Intense Pure Air PU4015 - Air purifier TEFAL - Free user manual and instructions

Product Type	Air Purifier
Brand	Tefal
Model	Intense Pure Air PU4015
Colour	White
Dimensions (H x W x D)	700 x 420 x 260 mm
Weight	8.5 kg
Power Supply	220-240 V, 50 Hz
Power Consumption	55 W (max)
Noise Level (min-max)	20 - 55 dB(A)
Coverage Area (max)	80 m²
CADR (Clean Air Delivery Rate)	250 m³/h
Filtration System	Pre-filter, HEPA H13, Activated Carbon
Number of Fan Speeds	3 + Auto mode
Timer Settings	1, 2, 4, 8 hours
Air Quality Sensor	PM2.5 and VOC sensor
Filter Replacement Indicator	Yes
Night Mode	Yes, ultra-silent operation
Child Lock	Yes
Control Type	Touch panel
Casing Material	Plastic (ABS)
Filter Maintenance	Replace every 6-12 months
Energy Efficiency Class	A (EU)
Spare Parts Available	Replacement filters (reference: XD6000)
Warranty	2 years (EU)

Frequently Asked Questions - Intense Pure Air PU4015 TEFAL

How often should I replace the filters?

The pre-filter should be cleaned every 2-4 weeks. The HEPA and activated carbon filters typically need replacement every 6 to 12 months, depending on usage and air quality. The filter replacement indicator will alert you when it's time.

How do I clean the pre-filter?

Remove the front cover and take out the pre-filter. Vacuum it with a brush attachment or rinse it under lukewarm water. Let it dry completely before reinstalling.

What is the maximum room size this purifier can handle?

The recommended room size is up to 80 m² (about 860 sq ft) for optimal performance. For larger spaces, consider multiple units.

Is the air purifier noisy?

Noise levels range from 20 dB in sleep mode (virtually silent) to 55 dB at maximum speed, which is comparable to a normal conversation.

Does it have a remote control?

No, the Intense Pure Air PU4015 is controlled via a touch panel on the unit. It does not include a remote control.

Can I set a timer to turn off the purifier?

Yes, you can set a timer for 1, 2, 4, or 8 hours. The unit will automatically turn off after the selected time.

How do I activate night mode?

Press the night mode button on the touch panel. This will dim the lights and set the fan to the lowest speed for quiet operation.

What does the child lock feature do?

Child lock locks the touch panel buttons to prevent accidental changes. To activate, press and hold the child lock button for 3 seconds.

Where can I buy replacement filters?

Replacement filters (reference XD6000) are available on the Tefal website, authorized retailers, and online marketplaces like Amazon.

What does the air quality indicator color mean?

The color ring indicates air quality: blue (good), orange (moderate), red (poor). The sensor detects PM2.5 and VOCs.

USER MANUAL Intense Pure Air PU4015 TEFAL

INTENSEPUREAIRPU4015/PU6015

www.tefal.com

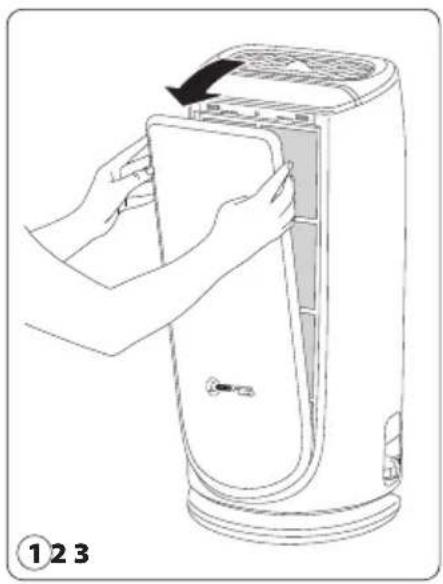

DISASSEMBLING/REASSEMBLING FILTERS

拆卸/重新安装滤网 - 초기 필터분리 및 설치 - فك وتركيب الفترات

DESCRIPTION

Product description

A Ambient light (model PU6015 only)

B Adjustable air outlet grid

C Control panel

D Front door

E Handle

F Air inlets

G Power cord outlet

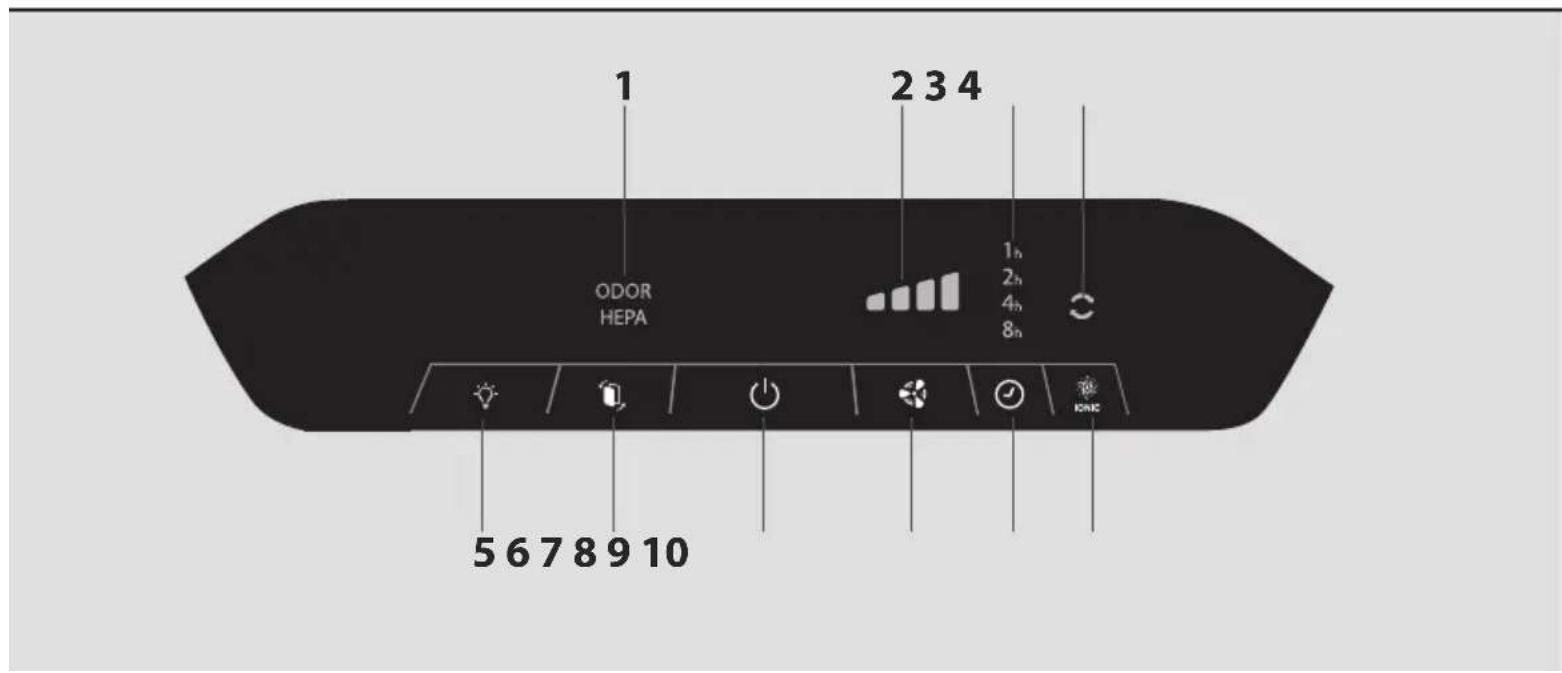

Control panel Lights

1 Filter replacement indicator

2 Filtration speed

3 Timer / delayed start

4 Ionizer function

Control buttons

5 Light

6 Filter reset

7 Start

8 Filtration speed selection

9 Timer / delayed start setting

10 Ionizer function

Read the instructions for use and safety carefully before use and keep them for future reference.

SAFETY TIPS

It is essential that you read these instructions carefully and observe the following recommendations:

• For your safety, this appliance complies with the applicable standards and regulations (low voltage, electromagnetic compatibility, environmental directives, etc.).
• This appliance should not be used by persons (including children) with reduced physical, sensory or mental capacities or lack of experience and knowledge, unless they are supervised or have been given instructions beforehand concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure they do not play with the appliance.

- The appliance can be used by children aged 8 and over and persons with a lack of experience or knowledge or reduced physical, sensory or mental capacities, provided they are supervised, have been trained on the safe use of the appliance and are aware of the risks involved. Children must not play with the appliance.

- If the power cord is damaged, it must be replaced by the manufacturer, its after-sales service or a similarly qualified person so as to avoid any danger.

- Children should not clean or perform maintenance on the appliance without being supervised.

- For maintenance operations, please refer to the "Maintenance" section.

- Keep the appliance and its power cord out of the reach of children aged under 8.

- This appliance is designed for domestic use only. It should not be used for industrial purposes.

- The warranty will be invalidated if damage occurs due to incorrect use.

- Do not operate this appliance in a very dusty and/or humid place or in a location with fire hazards.

- Before use, always make sure that the appliance, plug and power cord are in good condition.

- Never insert objects into the appliance (e.g. needles, etc.).

- Do not pull on the power cord or the appliance, even to unplug it from the wall power outlet.

- Unroll the full length of the cord before use.

VERY IMPORTANT

Do not cover the air inlets or the outlet grid.

Do not touch the appliance with wet hands.

Never allow any liquid to enter the appliance.

Never use the appliance in a humid place.

Never use the appliance close to a heat source.

Never place anything on the appliance or insert anything into it.

Do not use the appliance close to flammable objects or products (curtains, aerosols, solvents, etc.).

Never use the appliance in an inclined or horizontal position. Place the appliance on a flat, stable surface.

In the case of prolonged absence: switch the appliance off using the button (7) and unplug it.

Switch off and unplug your appliance before moving it.

Unplug the air purifier during assembly and cleaning.

EN

OPERATING PRINCIPLE

The new Intense Pure Air purifier from Tefal enables you to breathe up to 99.97% pure air in your home and protect your health with 4 filtration levels as described below. Each level is essential and traps characteristic pollutants:

LEVEL 3:

HEPA FILTER

• Fine particles (PM2.5)
- Pollen
- Dust mites
• Animal allergens
• Mold
- Bacteria / viruses

LEVEL 4:

NANOCAPTUR FILTER

- Formaldehyde

LEVEL 1:

PRE-FILTER

• Dust
- Hair
• Fur
• Lint

LEVEL 2:

ACTIVE CARBON FILTER

• Volatile organic components (VOCs)
- Odors / gases

« HOW TO ACHIEVE CLEANER INDOOR AIR »

In addition to using your Intense Pure Air purifier, here are some tips on how to improve the quality of your indoor air:

• Ventilate the rooms for at least 10 min. every day, in summer and winter
• Maintain your ventilation system
• Limit the use of household products
• Do not smoke indoors
• Avoid home fragrances, incense sticks, scented candles, etc.
  • Ventilate whenever any work is being conducted in your home and for several weeks afterwards
• Avoid green plants that are allergenic or need frequent watering

WHERE TO INSTALL THE APPLIANCE

Place the purifier on a flat, stable surface in the room requiring treatment.

To allow the air to circulate freely, avoid placing the appliance behind curtains, below a window, item of furniture or shelf unit, or close to any other obstacle, and leave at least 50 cm of free space on each side of the appliance.

BEFORE USING THE APPLIANCE FOR THE FIRST TIME

Make sure that the plastic packaging protecting the filters has been removed before using the appliance.

Also make sure that:

• The voltage of your electrical installation corresponds to the one indicated on the appliance.
Your appliance can be used with a power plug without an earth connection. It is a class II appliance (double electrical insulation),
• The appliance is positioned in the house as described above,
• The air inlet and outlet grids are completely unobstructed,
- Ensure the 4 filters and front panel have been correctly installed (See section "Disassembling/Reassembling filters").
This appliance is fitted with a device that automatically prevents it from operating if the front door is not correctly assembled.

Inserting and replacing the filters

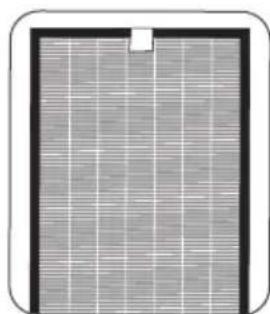

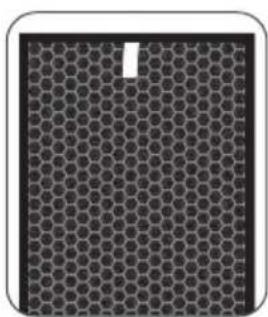

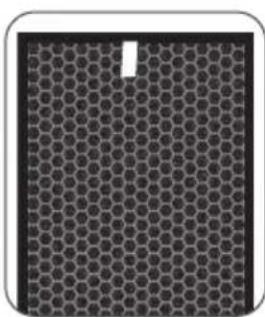

This appliance is equipped with 4 types of filters:

Pre-filter Active carbon filter NanoCaptur

HEPA filter

filter

NB: For optimum performance of the appliance, only use filters provided by TEFAL.

To replace the filters, follow the instructions in the section "Disassembling/Reassembling filters".

Please note: certain filters may emit a temporary slight odour, due to the transport and storage conditions.

SWITCHING THE APPLIANCE ON

Connect the power cord and press the start button (7).

When you switch your appliance on, it will be automatically set to speed 2, the optimum operating speed.

OPERATION

Start

Briefly press this button to switch the air purifier on or off.

Mode/filtration speed selection

This appliance has 4 filtration speeds. You can change these speeds as you wish or according to the time of day.

• Speed 1 is specially adapted for nighttime operation – for whisper-quiet air purification.
• Speed 2 is the optimum operating speed, combining performance and quietness.
• Speeds 3 and 4 purify the air faster, for times when pollution levels are high.

Light

You can change the light intensity of the appliance as you wish or according to the time of day.

Press Ambient light (PU6015 only) Control panel
1 Light up Light up
2 Moderate light Moderate light
3 (model PU6015 only)	Off Moderate light

Ionizer function

The ionizer function releases negative ions into the air. This function is switched off by default. To activate it, briefly press button 10.

Timer / delayed start

If the appliance is on: you can use this button to define the operating duration. Briefly press the button to select the number of operating hours desired (1, 2, 4 or 8) and the appliance will automatically turn off at the end of the selected period.

If the appliance is off: briefly press the button to set the appliance to turn on in a certain number of hours (1, 2, 4 or 8).

3D pure air function (adjustable grid)

You can adjust the position of the air outlet grid manually, as desired. For an optimum, even flow of purified air in the room, set the angle to 45° ; for maximum comfort, set the angle to 90° .

MAINTENANCE

Always switch the appliance off with the button (7) and unplug it before conducting any maintenance operation.

You can clean the appliance with a slightly damp cloth.

IMPORTANT: Never use abrasive products which could damage your appliance's appearance.

Filters

Filter Action Cycles
Pre-filter Clean Every 2 to 4 weeks
Active carbon filter Replace Every	12 months
HEPA filter Replace Every 3 years
NanoCaptur filter Replace		Color changing(see Color chart on filter)

This data is based on an average use of 8 hours per day at speed 2.

The recommended frequency for cleaning and replacing the filters may vary depending on the duration of use and the operating environment.

• A "HEPA" light indicates when the HEPA filter needs to be replaced.
  The 'Odor' light display indicates when the carbon filter needs replacing.

- The NanoCaptur filter contains translucent granules which change color according to the formaldehyde absorption rate. Refer to the color chart on the inside of the panel or the filter itself to establish the filter saturation rate.Once the saturation rate has reached its maximum, the filter must be replaced. You have to check the filter saturation rate every six months.

- The pre-filter can be re-used: remove the dust using a vacuum cleaner or wash with water.

CAUTION:

The appliance's efficiency can be reduced if the pre-filter is not cleaned regularly.

Never use a pre-filter that is still damp.

The pre-filter is the only filter which can be re-used and washed with water. The HEPA, NanoCaptur and active carbon filters cannot be cleaned and re-used. Never wash with water.

To replace the filters, follow the instructions in the section "Disassembling/Reassembling filters".

Your replacement filters are available under the following codes:

Filter Code PU4015 Code PU6015
HEPA filter	XD6070	XD6071
Active carbon filter	XD6060	XD6061
NanoCaptur filter	XD6080	XD6081

IMPORTANT: Resetting the filters

The reset light flashes when a filter needs to be replaced. Once the filter has been replaced, hold down the reset

button for 2 seconds.

Forced reset:

If you have replaced a filter before its end of life, force the reset of the filter replacement cycle:

1. Hold the reset button for 2 seconds.
2. Press the reset button briefly to select the filter you have changed.
3. After selecting the filter to reset, hold the reset button for 2 seconds. The electronic meter is then reset.
4. If no button is activated for 10 seconds in forced reset mode, the reset mode is canceled.

• Avoid handling used filters if you suffer from allergies or asthma.
• Wear gloves when changing the filters, or wash your hands well afterwards.
• Put used filters directly into a closed, air-tight bag before throwing them away to avoid spreading pollutants.

STORAGE

When you are not using the appliance, store it in a cool, dry place.

IN THE EVENT OF A PROBLEM

• Never dismantle your appliance yourself. A poorly repaired appliance can cause risks for the user.
• Check the troubleshooting table below before contacting an approved Service Center:

Problem Check Solution
The appliance will not switch on.	Is the power cord connected?	Connect the power cord to a plug with the correct voltage.
	Are all the display elements off?	Press the start button and select the required function.
	Is there a power outage?	You can use your purifier once the power turns on again.
	Is the front door closed? Close the front door properly.
The flow is a lot weaker than before.	Does the filter need to be cleaned or replaced?	Check the filter cleaning and replacement frequencies and clean/replace the filter(s) if necessary.
There is an unpleasant smell coming from the air outlet.	Is the sensor lens covered with dust?	Check the filter cleaning and replacement frequencies and clean/replace the filter(s) if necessary.

WARRANTY

Contact an approved Service Center if:

• your appliance has been dropped
• your appliance or its power cord is damaged
• your appliance is not working properly

LET'S HELP PROTECT THE ENVIRONMENT!

Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local waste collection point or take to an approved service center so that it can be processed.
