USER MANUAL WM60UDB BLAUPUNKT

Enjoy it.

UHF wireless microphone (Dual)

Important Notes

• Safety and operating instructions should be retained for future reference.
• The apparatus should not be exposed to dripping or splashing or placed in a humid atmosphere such as a bathroom.
• Do not install the product in the following areas:
• Places exposed to direct sunlight or close to radiators. • On top of other stereo equipment that radiate too much heat.
• Blocking ventilation or in a dusty area.
• Areas where there is constant vibration. • Humid or moist places. • Do not place near candles or other naked flames. • Operate the product only as instructed in this manual.
• Before turning on the power for the first time, make sure the power adaptor is properly connected.

For safety reasons, do not remove any covers or attempt to gain access to the inside of the product. Refer any servicing to qualified personnel.

Do not attempt to remove any screws, or open the casing of the unit; there are no user serviceable parts inside. Refer all servicing to qualified service personnel.

SAFETY INSTRUCTIONS

1. Read Instructions - All the safety and operating instructions must be read before the product is operated.
2. Retain Instructions - The safety and operating instructions should be kept with the product for future reference.
3. Heed warnings - All warnings on the product and in the operating instructions should be adhered to.
4. Follow instructions - All operating and users' instructions should be followed.
5. Installation - Install in accordance with the manufacturer's instructions.
6. Power sources - This product should be operated only from the type of power source indicated by the marking adjacent to the power cord entry. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.
7. Water and moisture - To reduce the risk of fire or electric shock, do not expose the product to rain, dripping, splashing or excessive moisture such as in a sauna or bathroom. Do not use this product near water, for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool (or similar).
8. Object and Liquid Entry - Never push objects of any kind into this product through openings, as they may touch dangerous voltage points or short-circuit parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. Do not place any object containing liquid on top of the product.
9. Servicing - Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
10. Replacement parts - When replacement parts are required, ensure that the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
11. The highest environmental temperature suitable for this product is 35°C.
12. ESD hints - If the product may reset or not reset to operation of control due to electrostatic discharge, just switch off and reconnect again, or move the product to another location.
13. Battery

a. The batteries must not be exposed to excessive heat such as sunshine, fire or the like.

b. The batteries should be drawn to the environmental aspects of battery disposal.

c. Battery usage CAUTION - to prevent battery leakage which may result in body injuries, property damage, or damage to the apparatus:

. Install all batteries correctly, + and - as marked on the apparatus.

. Do not mix batteries (old and new or carbon and alkaline, etc.)

. Remove batteries when the unit is not used for a long time.

ERP2 (Energy Related Products) note

This product with ecodesign complies with the stage 2 requirements of Commission Regulation (EC) NO. 1275/2008 implementing Directive 2009/125/EC regard to standby and off mode electric power consumption of electronic household and office equipment.

WARNING

This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

1. Never use the device unsupervised! Switch off the device whenever you are not using it, even if this only for a short while.
2. The appliance is not intended to be operated by means of an external timer or separate remote control system.
3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
4. Before operating this system, check the voltage of this system to see if it is identical to the voltage of your local power supply.
5. To prevent fire or shock hazard, do not expose this equipment to hot places, rain, moisture or dust.
6. Do not place this unit close to a strong magnetic field.
7. Do not place the unit on an amplifier or receiver.
8. Do not place this unit in a damp area as the moisture will affect the life of electric components.
9. If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens inside the player. If this occurs, the system will not operate properly. Please leave the system turned on for about an hour until the moisture evaporates.
10. Do not attempt to clean the unit with chemical solvents as this might damage the finish. Wipe with a clean, dry or slightly damp cloth.

NOTICE

Conformity

Hereby, Blaupunkt Competence Center 2N-Everpol Sp. z o.o., declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity can be obtained from the product page at www.blaupunkt.com.

Responsible party: 2N-Everpol Sp. z o.o, Puławska 403A, 02-801

Warsaw, Poland, Phone: [phone], E-mail: [e-mail]

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product, it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed of with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environment and human health.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet). Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Recording and playback of material might require consent. See Copyright Act 1956 and The Performer's Protection Acts 1958 to 1972.

Thank you for purchasing our model. This handheld wireless bidirectional microphone uses UHF (ultra high frequency) technology and includes 16 auto-detection channels to avoid unwanted noise or interference, providing high-quality sound transmission. It comes with a 6.3mm plug and a 6.3mm to 3.5mm converter, making it easy to connect to the microphone input jack of audio amplifiers, PA systems, etc. It is a great choice for karaoke, group events, or performances. Please read and reference this manual carefully before operating the unit, and keep it for future reference.

Control Locations

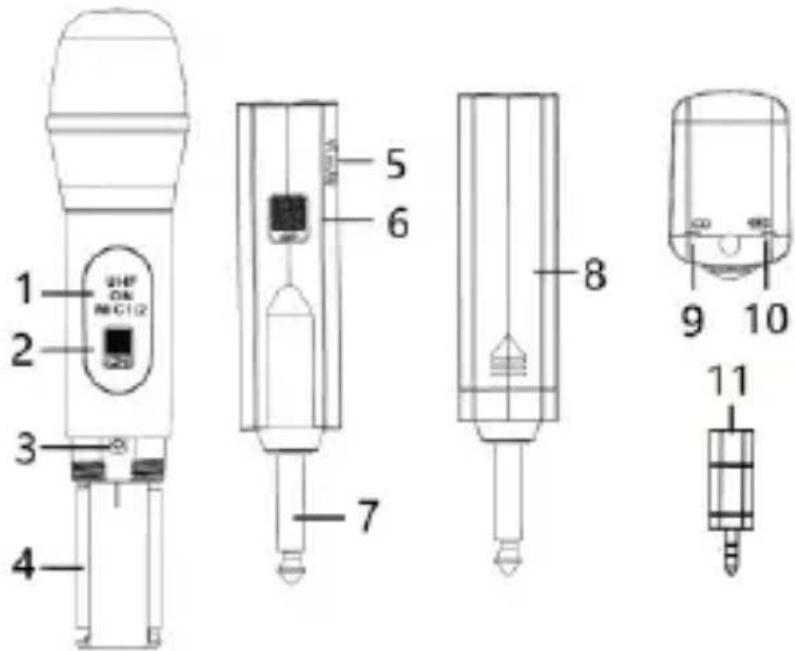

1—Display; 2—Microphone power ON/OFF button; 3—Reset button; 4—AA battery compartment; 5—DC 5V input jack; 6—Wireless receiver ON/OFF button; 7—6.3mm microphone plug; 8—Rechargeable battery compartment; 9—Signal LED indicator; 10—Charging LED indicator; 11—6.3mm to 3.5mm plug converter.

Setup

Install battery for microphone: Hold and rotate the tail of the microphone counterclockwise to open the battery compartment. Insert the supplied AA dry battery according to the correct positive and negative polarity. Push the power ON/OFF button to check the display. Then hold and rotate the tail clockwise to close the battery compartment. The display will flash when the battery is low and turn off when the battery is exhausted.

Charging wireless receiver: The wireless receiver has a built-in rechargeable battery. Use the supplied USB cable to connect the receiver to your USB charger (USB adapter or USB output port like on a PC, with a rated output of DC 5V, max 2A, or other USB chargers with current between 1-2A). Connect the connector to the DC 5V power jack on the side of the receiver, and the other end to the USB charger.

Then plug your USB charger into household AC power. The charging LED will be red during charging and turn green when fully charged. Please unplug the charger after charging. The receiver will automatically turn off when the battery is exhausted; please recharge it for use.

Important: We recommend connecting a USB charger with a rated output of DC 5V/1A, or a USB power source with current between 1-2A. The general USB output on a PC is 5V/500mA (please check your PC specifications).

Use the Microphone

Plug the male 6.3mm connector of the wireless receiver into the 6.3mm microphone input jack of your audio device (if only a 3.5mm microphone input jack is available, use the 6.3mm to 3.5mm converter for connection). Push the power ON/OFF button to turn on the wireless receiver. Push and power on the wireless microphone. The microphone will automatically pair with the receiver within a few seconds. Check and adjust the microphone output volume from your audio device, then you can start enjoying the microphone.

LED Signal and Reset Microphone

The two microphones can pair with the wireless receiver automatically after power on. One signal LED indicator on the receiver will turn to solid blue when MIC1 is paired successfully, and another LED will light up in green when MIC2 is paired. If not, you can try to reset the microphone base as follows.

a. Power off both the microphone and the wireless receiver, and make sure there is battery power inside. b. Rotate and open the battery compartment of the microphone, push and power on the microphone; press and hold the reset button for 3 seconds, then the display will flash, indicating that the microphone is ready for pairing. c. Power on the wireless receiver. When the red LED is stable and the blue LED is flashing (or the green LED for MIC2 pairing), it indicates that it is waiting for pairing. d. Short press the reset button on the microphone to confirm. Then the display and the blue LED will become stable, indicating successful pairing.

Notes:

a. If the microphone is not needed, please turn it off. And remove the internal battery if it will not be used for a long time.

b. Please do not use the microphone facing the speaker, as this will cause loud noise.

Troubleshooting

1. Cannot power on the microphone or wireless receiver

a. Please check if the battery is installed properly.

b. Please check if the battery is exhausted.

c. Please contact the service center if the issue persists.

1. Noise or distortion when speaking into the microphone

a. Please try to reduce the microphone output volume from your audio device, as it may be overloaded.

b. Please move the microphone a bit farther away from the speaker when talking.

c. Please contact the service center if the issue persists.

Specifications

Distance between transmitter and receiver: >10m

Type of frequency band: UHF

Frequency response: 65Hz–18kHz

Signal-to-Noise (S/N) ratio: >85 dBA

UHF frequency band: MIC1: 640MHz–647.5MHz; MIC2: 650–657.5MHz (0.5MHz interval).

THD: <0.3%

Transmitter transmitting power: <10 mW

Receiver input: 1/4" (6.3 mm) unbalanced

Receiver maximum output level: 120 dBV

Receiver rechargeable battery: Lithium-ion 3.7V, 1200 mAh

Receiver charge time: 2-3 hours @5V/1A

Receiver battery playtime: Up to 7 hours

Microphone battery: 2 x AA alkaline (included)

Microphone battery playtime: Up to 3 hours

Microphone wireless transmission distance: 30 meters max (WM60UDB).

Receiver power source: DC 5V/1A.

Dimensions and Weight

Dimensions (W x H x D):

Microphone: 230 x 49 x 49 mm

Receiver: 25 mm x 56 mm x 120 mm

Weight: Microphone: 2 x 155 g (without battery)

Receiver: 72 g

Important information

The device is equipped with batteries covered by European Directive 2006/66/EC. Batteries must not be disposed of with household waste. Please refer to local regulations regarding separate collection of batteries, as proper disposal will prevent potential negative consequences for the environment and human health.

Receiver: 25 mm x 56 mm x 120 mm

Weight:

02-801 Warsaw, Poland

phone: [phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems

please contact our service.

Tel. [phone]

E-mail: [e-mail]

All rights reserved. All brand names are registered trademarks of their

respective owners. Specifications are subject to change without prior notice.
