PRO ML10-DB - Saw Cocraft - Free user manual and instructions

Product Type	Compound Mitre Saw
Brand	Cocraft
Model	PRO ML10-DB
Power Supply	230–240 V AC, 50 Hz
Rated Power	1200 W
No-Load Speed	6000 rpm
Saw Blade Type	TCT (Tungsten Carbide Tipped)
Blade Diameter	255 mm
Blade Bore	30 mm
Number of Teeth	60
Bevel Tilt Range	0° to 45°
Mitre Angle Range	-45° / 0° / +45°
Max Cutting Capacity (0° mitre, 0° bevel)	340 × 75 mm
Max Cutting Capacity (0° mitre, 45° bevel)	340 × 45 mm
Max Cutting Capacity (45° mitre, 0° bevel)	240 × 75 mm
Max Cutting Capacity (45° mitre, 45° bevel)	240 × 45 mm
Weight	18 kg
Laser Class	Class 2 (EN 60825-1)
Laser Wavelength	650 nm
Laser Power	< 1 mW
Noise Level (LpA)	97.5 dB(A), K=3 dB
Noise Level (LwA)	106.8 dB(A), K=3 dB
Dust Collection	Dust bag included, optional extractor
Safety Features	Blade guard, safety lever, spindle lock, emergency stop
Carbon Brush Inspection	Check every 50 hours, replace if < 6 mm

Frequently Asked Questions - PRO ML10-DB Cocraft

How do I change the saw blade on the Cocraft PRO ML10-DB?

Unplug the saw. Raise the saw head, loosen the screw on the blade guard, swing the guard back, press the spindle lock, turn the blade until it locks, then rotate the blade bolt clockwise (left-hand thread) to remove. Replace with a blade of the same specifications, ensuring rotation direction matches the arrow. Tighten the bolt counterclockwise, release the spindle lock, and swing the guard back into place.

What type of saw blade should I use?

Only use TCT (Tungsten Carbide Tipped) blades with a diameter of 255 mm and a bore of 30 mm. Do not use HSS blades. Always observe the maximum speed rating on the blade.

How do I adjust the bevel angle?

Undo the bevel locking lever (24), tilt the saw head to the desired angle using the bevel scale (23), then tighten the locking lever. For fine adjustment of the 0° or 45° stops, use the respective adjuster screws (16 and 25).

How do I use the laser guide?

Press the laser line switch (3) to turn the laser on. The laser projects a line onto the workpiece to indicate the cut path. Never look directly into the laser beam. The laser is Class 2 and must not be replaced with a different type.

What is the maximum cutting capacity?

At 0° mitre and 0° bevel, the saw can cut workpieces up to 340 × 75 mm. At 45° bevel, the capacity is 340 × 45 mm. At 45° mitre and 0° bevel, it is 240 × 75 mm. At 45° mitre and 45° bevel, it is 240 × 45 mm. Use the slide function for wider pieces.

How do I maintain the carbon brushes?

Unplug the saw. Remove the carbon brush plugs (22) on each side of the motor. Extract the brushes and check their length. If either brush is shorter than 6 mm or the spring is damaged, replace both brushes. Inspect after the first 50 hours, then every 10 hours.

What safety precautions should I take?

Always wear safety glasses, ear defenders, and a dust mask. Ensure the blade guard is functioning. Secure the workpiece with clamps. Keep hands away from the blade. Disconnect power before changing blades or servicing. Never operate if tired or under medication.

How do I perform a mitre cut?

Raise the saw head, undo the locking knob (20) and lift the locking lever (21). Rotate the turntable to the desired mitre angle using the scale. Tighten the locking knob. Proceed to cut as with a normal cross-cut.

What should I do if the motor does not start?

Release the power trigger immediately. Unplug the saw and check that the blade spins freely. Inspect all cables and connections. Ensure the power supply is earthed and protected by a 10 A slow-blow fuse. Do not overload the circuit with other tools.

How do I clean and store the saw?

Empty the dust bag regularly. Keep air vents clean by blasting with compressed air or vacuuming. Store the saw in a locked, dry area away from children. Wipe down surfaces with a dry cloth. Do not use solvents. Ensure all moving parts are free of debris.

USER MANUAL PRO ML10-DB Cocraft

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Cocraft cutting machine with red caliper and scale, displayed against a dark textured background (no text or symbols visible)

Ver. 20170403

Original instructions

Bruksanvisning i original

Originalbruksanvisning

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

Warning!

When using this tool all basic safety precautions must be followed to avoid the risk of fire, electrocution and personal injury. Read these instructions carefully before using the product and keep them for future reference.

• Keep the working area tidy. Cluttered surfaces and benches invite accidents.
  • Take stock of your working environment. Do not expose the tool to rain.
• Do not use the tool in moist or wet areas. Keep the working area well lit. Never operate the tool near flammable liquid or gas.
• Avoid electric shocks. Avoid body contact with earthed objects, such as pipes, radiators, ovens or refrigerators.

- Keep other people at a safe distance. Do not allow anyone not involved in the work process to touch the tool or its electric cable, especially children. Keep all bystanders at a distance.

- Store the tool in a safe place. When your tools are not in use, keep them in a locked, dry area, away from children.

- Do not overload the tool. The correct feed rate makes the work better and safer.

- Use the correct tool for the job. Do not try to use small tools to perform jobs requiring more powerful tools. Do not use a tool for a purpose for which it was not designed, e.g. using a circular saw for lopping branches off trees.

- Wear suitable clothing. Do not wear loose-fitting clothing or jewellery; they could be caught in moving parts. Non-slip shoes are recommended for outdoor work.

- Wear a hairnet or similar if you have long hair.

- Always use safetywear. Wear safety glasses. Use a dust mask or dust filter when working in dusty environments.

- Use dust extractors. If the tool is equipped with or connected to a dust extractor/collector, make sure that it is turned on and used correctly.

- Do not abuse the lead. Do not jerk the lead, grip the plug itself when disconnecting the power. Make sure that the mains lead does not come into contact with heat, oil, or sharp edges.

• Firmly secure the workpiece. If possible use vices or clamps to hold the workpiece in place. This is much safer than holding the workpiece in one hand.
• Do not overreach. Make sure that you stand steady and balanced all times.
• Look after you tools. Make sure that they are clean and that the edges are sharp for maximum effect and best results. Follow the manual's recommendations regarding lubrication and replacement of accessories. Inspect the mains lead regularly. If it is damaged it should be replaced by a qualified service technician. Inspect all leads and cables regularly to check for any damage. Make sure that the machine's handles and controls are clean, dry and free from oil and grease.
• Turn the power off. Pull out the plug and push in the emergency stop button before servicing or changing any blades, drill bits, cutters or sanding discs.
• Remove all spanners and repair tools. Make a habit of checking to make sure that the machine is free of all spanners and tools before turning the power on.
• Avoid accidental starts. Do not walk around with your finger on the trigger of a power tool if it is plugged in. Make sure that the on/off switch is set to OFF before plugging in any power tool.
• Use the correct extension leads. If you use extension leads outdoors, only use those designed for outdoor use. Only use extension leads with thick enough diameter core wires and roll out the whole lead.
• Use common sense and be careful. Think before carrying out any task, so that it is carried out safely. Never operate machines/power tools when you are tired or under the influence of medicine.

- Check the following before turning the tool on:

• That all guards and other parts are whole and in working order.
• That moving parts are free and correctly aligned.
• That no moving parts can get caught.
• That there are no visible defects.
• Other factors that can influence work execution.

- Use only recommended accessories. The use of non-recommended accessories can cause accidents and personal injury.

- Should only be repaired by a qualified technician. This tool conforms to current safety requirements. Repairs to the tool should only be carried out by a tradesman using original spares; otherwise the tool could cause accidents and personal injury.

Additional safety rules for compound mitre saws

• Never use cracked or damaged saw blades.
• Replace the kerf plate when it is worn.
• Use only saw blades recommended by the manufacturer.
• Never use blades made of high speed steel (HSS).
• Select the correct blade for the material to be cut.
• Never saw material other than that for which the saw blade is intended.
• Observe the maximum speed marked on the saw blade.
• When moving the mitre saw, hold it by the handle.
• Do not operate the machine without the guard in position, or if the guard does not function or is not maintained properly.
• Keep the surrounding work area free of loose chips and offcuts.
• Use only those spacers and spindle adaptors approved for your saw.
• If the laser is fitted with a laser, it must not be replaced by a different type. If damaged, have the laser repaired by the manufacturer or an authorised repair agent.
• Do not remove any offcuts or jammed material from around the blade area until the blade has stopped.
• Before sawing, make sure that the saw is stable and secure. When possible, always mount the machine to a bench.
• When sawing, always secure the workpiece using clamps or a vice if possible.
• Use a table, roller stand, or similar to support long workpieces.

In spite of the application of the relevant safety rules and the implementation of safety devices, certain residual risks cannot be avoided. The following hazards are inherent to the use of mitre saws:

• Contact with uncovered parts of the rotating saw blade.
• Contact with rotating saw blade (cuts).
• Workpiece or parts of it can be ejected back towards the user (kickback).
• Shattered saw blade.
• Flying metal particles if the carbide tips break off.
• Impairment of hearing if ear defenders are not worn.
• Health hazards caused by breathing dust in poorly ventilated work areas.

Safety symbol guide

• Class 2 laser product (EN 60825-1:2007).
- Never look into the laser beam.
- Never point the laser beam into the eyes of people or animals.

Read the entire instruction manual.

Always use safety glasses, ear defenders and a face mask.

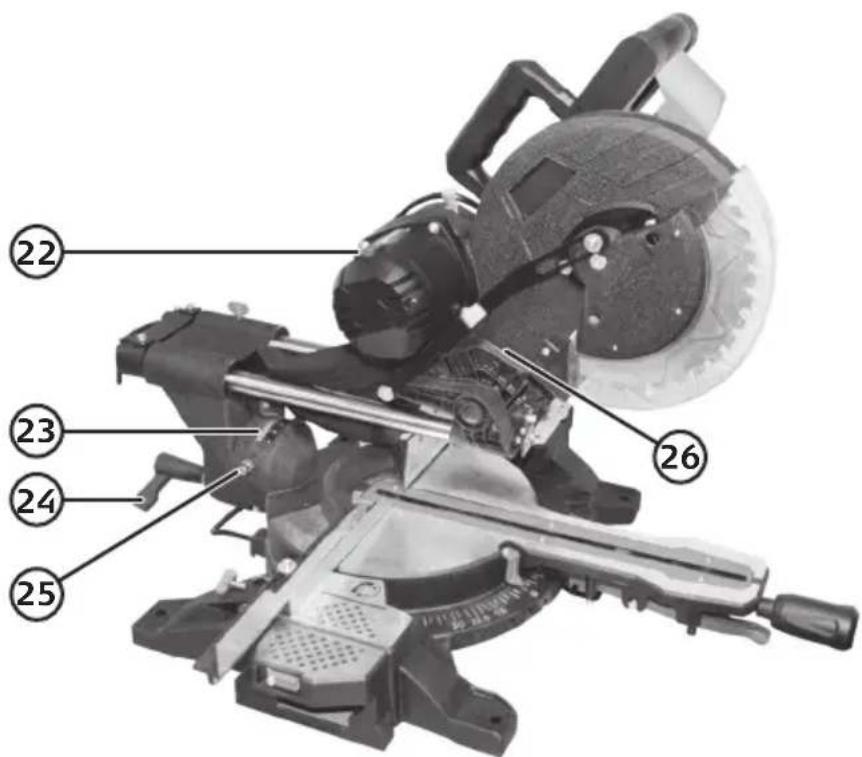

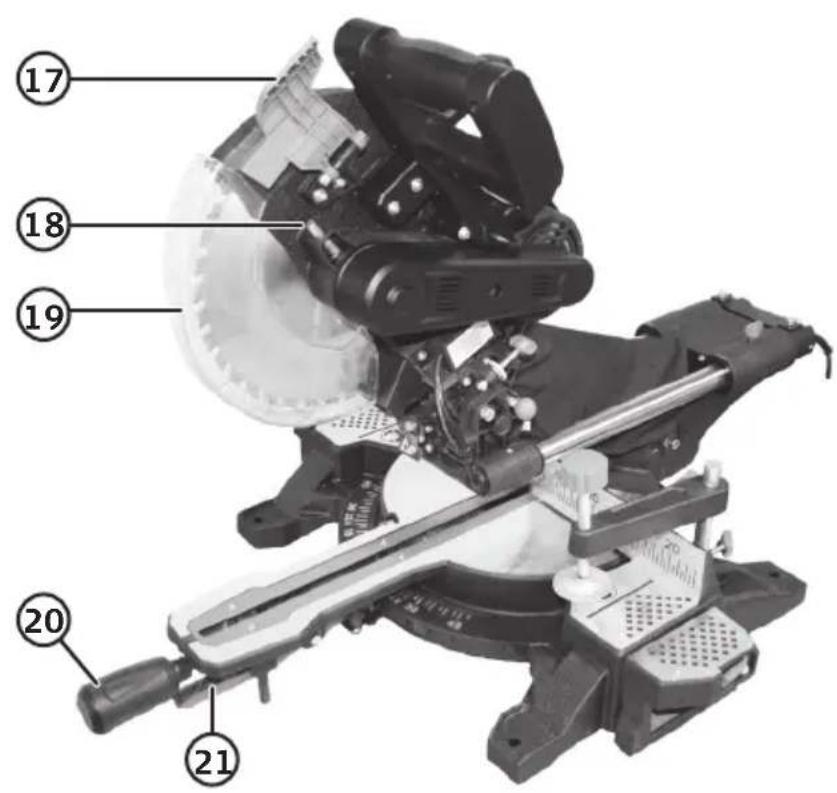

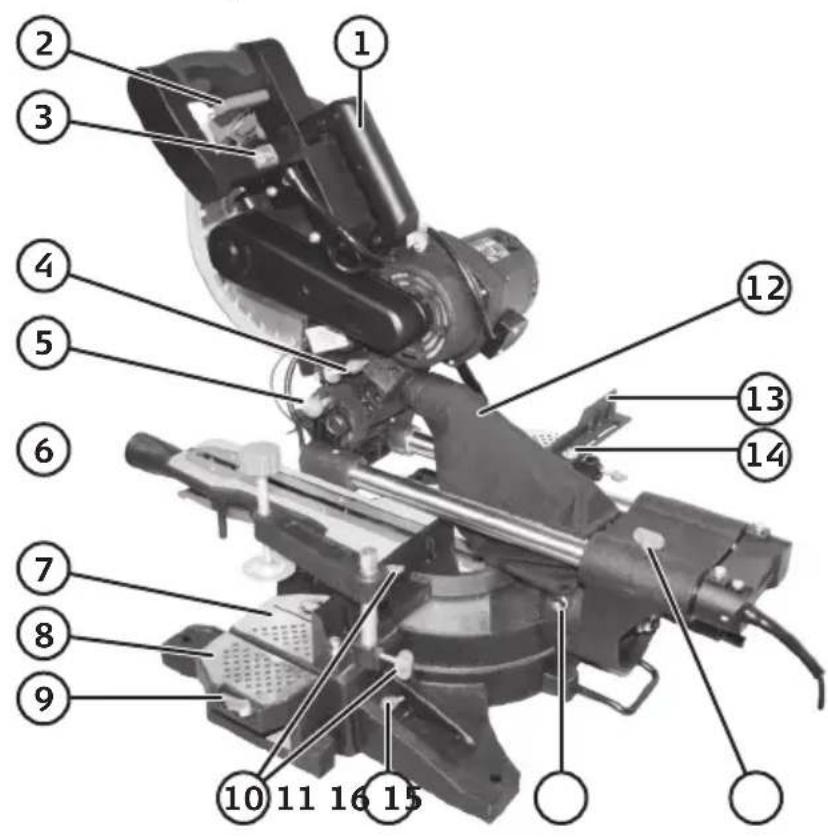

Product description

1. Handle
2. Power trigger
3. Laser line switch
4. Cutting depth adjuster
5. Saw head lock
6. Material clamp
7. Turntable
8. Work support
9. End stop
10. Material clamp adjuster
11. Work support locking screw
12. Dust bag

13. Fence

14. Fence adjustment knob

15. Slide rail locking wing nut
16. Bevel angle 0° adjuster
17. Safety lever
18. Spindle lock
19. Blade guard
20. Locking knob
21. Fixed setting locking lever
22. Carbon brush plug
23. Bevel scale
24. Bevel locking lever
25. Bevel angle 45^ adjuster
26. Saw head

Before operating the machine

• The saw must be securely fastened to a workbench or stand.
• All guards and safety devices must be properly fitted.
• The saw blade must be able to turn freely in all work settings.

• Make sure that there are no foreign objects (nails, screws) in the workpiece to be sawn.

- Make sure that the saw blade is correctly fitted and that all moving parts run smoothly.

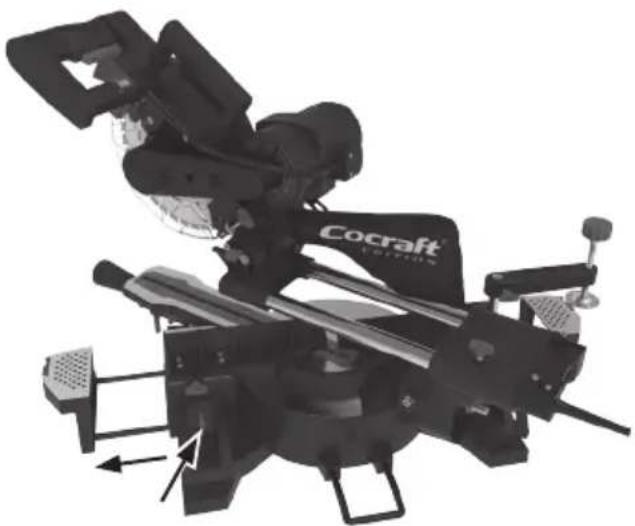

Operating instructions Work support

1. Undo the work support locking screw (11).
2. Extend the work support.
3. Tighten the locking screw again.

Mechanical training machine with a Cocrift brand logo and directional arrows indicating movement (no text or symbols on the device itself)

Cutting operations

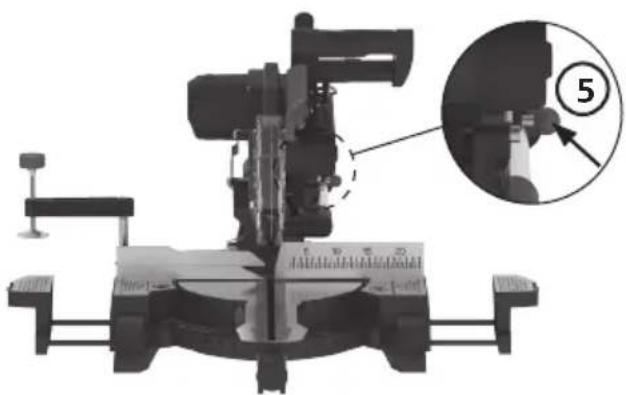

Cross-cutting with the saw head at 0°

The saw can cross-cut workpieces up to 120 mm wide without using the slide function and the saw can be fixed in the rearmost setting using the slide rail lock nut (15). If the workpiece is wider than 120 mm, make sure that the slide rail lock nut is undone and that the saw head (26) is able to slide back and forth before beginning to cut.

1. Raise the saw head to its upper position by releasing the lock (5).
2. Move the saw head backwards using handle (1) and fix it in this position if necessary (depending on the width of the workpiece) using the slide rail lock nut.
3. Place the workpiece against the fence (13) on the turntable (7).
4. Secure the workpiece using the clamp (6) to prevent it from moving during the cutting process.

Mechanical device with a magnified inset showing a numbered component (5), no visible text or symbols on the main body.

1. Switch the laser line on if necessary, using the switch (3).
2. Press in the power trigger (2) to start the motor, press in the safety lever (17) and carefully lower the saw head and let the blade cut through the workpiece.
3. To switch the saw off, release the power trigger whilst still maintaining full control over the saw head. When the blade has stopped, the saw head can be moved back to its upper position.

Warning: The resetting springs in the machine automatically raise the saw head after cutting. Do not simply let go of the saw head after cutting, hold onto the handle and let it come up slowly.

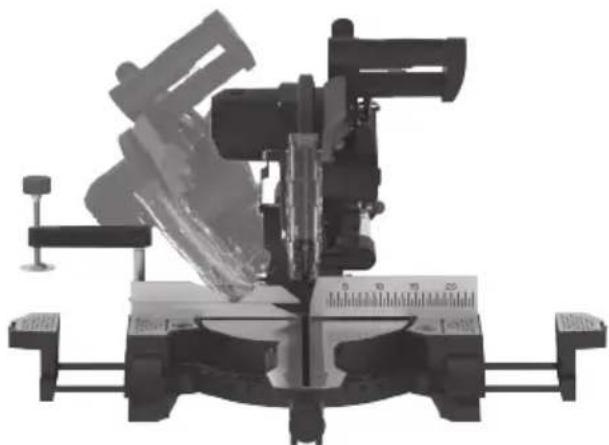

Bevel cutting 0–45°

1. Undo the locking lever (24) and tilt the blade to the desired angle with the help of the bevel scale (23).
2. Tighten the locking lever to lock the bevel angle.
3. Cut as described above.

Mechanical device with calipers and a transparent lever, no visible text or symbols

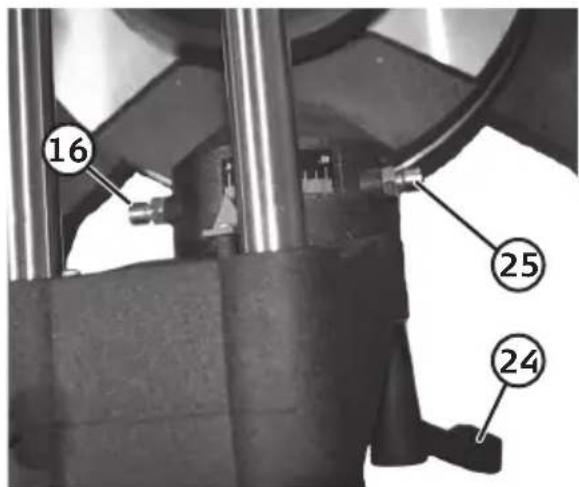

Fine-adjusting the 0° and 45° bevel angle stops

1. Undo the locking knob (24) and angle the saw to 0°.
2. Check the angle between the blade and the turntable using a 90° angle guide.
3. Adjust the end stop using the adjuster screw (16) by slackening the nut and turning the screw. Lock the screw again afterwards by re-tightening the nut.
4. To adjust the 45^ end stop, do as above but use the other adjuster screw (25) and a 45^ angle guide.

Mitre cutting -45°/0°/+45°

1. Raise the saw head (26) to its upper position by releasing the lock (5).
2. Undo the locking knob (20), lift the locking lever (21) and set the saw to the desired mitre angle using the scale on the base.
3. Tighten the locking knob and perform cutting operations as described above.

Sawing bowed workpieces

Pure geometric diagram of a trapezoidal structure with curved and straight lines, no text or symbols present.

Correct

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Incorrect

If the workpiece is bowed, turn it as shown in the figure to prevent it from pinching the blade towards the end of the cut.

Care and maintenance

Dust bag

The saw is fitted with a dust bag (12) which can be emptied by opening the zip on the bottom. A dust extractor can also be attached to the outlet instead of the dust bag.

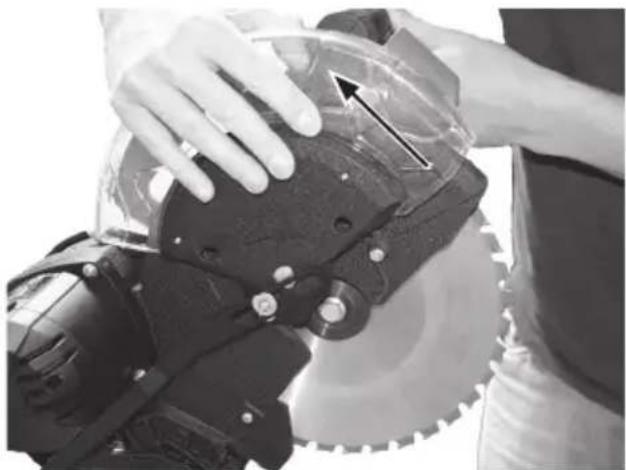

Changing the blade

Note: Wear gloves whenever handling the blade, it is very sharp.

1. Unplug the mains lead from the wall socket.
2. Raise the saw head to its upper position by releasing the lock (5).

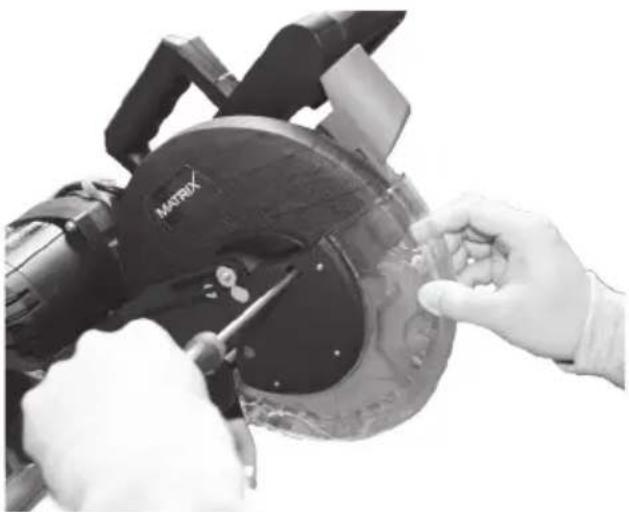

3. Alter the position of the blade guard a little so that you can undo the screw in the hole as shown in the figure.
   Note: Do not remove the screw, just slacken it.

Close-up of hands using a screwdriver to adjust or install a mechanical component with a circular base (no visible text or symbols)

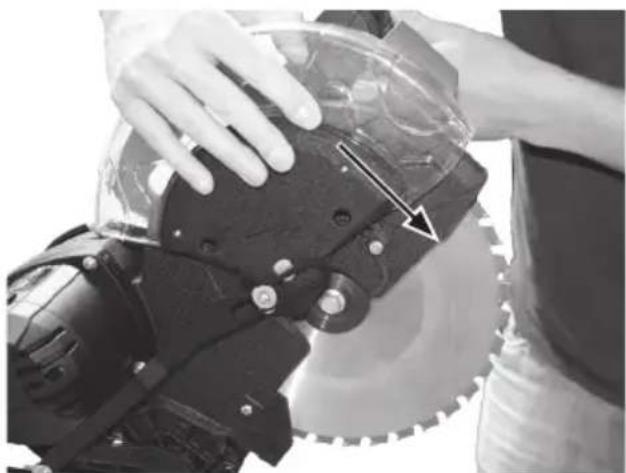

1. Swing back the blade guard to expose the blade bolt.

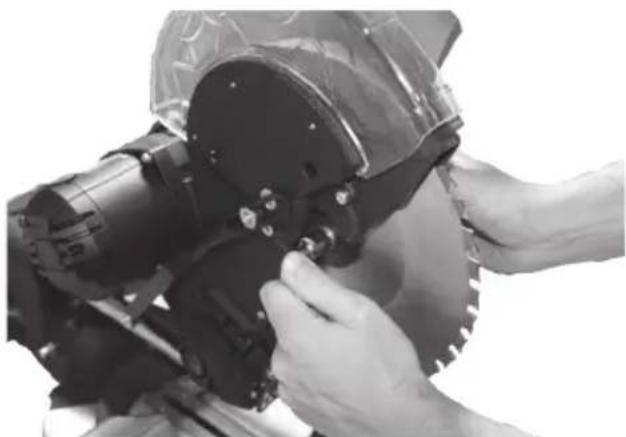

2. Press in the spindle lock (18) with one hand and turn the blade with your other hand until it locks.

3. Keep the spindle lock pressed in and undo the blade bolt using the included hex key.
   Note: The blade bolt has a left-hand thread so you have to turn the bolt clockwise to undo it.

4. Remove the blade bolt and the outer flange.
5. Remove the blade from the inner flange.
6. Clean the saw blade flanges and bolt thoroughly before fitting the new blade. The direction of rotation of the blade must be the same as the arrow on the housing.
7. Fit the new blade in the reverse order. Swing the blade guard back into place and tighten the screw which you loosened during step 3 above.
8. Make sure the spindle lock is off.
9. Before using the saw again, make sure that all safety devices are in good working order.

Close-up of hands operating a mechanical device with a gear and switch (no visible text or symbols)

Close-up of hands operating a mechanical device with a gear-like component (no visible text or symbols)

Close-up of hands operating a mechanical device with a gear-like blade and a black component, no visible text or symbols.

Warning: Every time you change the blade, make sure that it spins freely in all angle settings.

Warning: Remove the hex key and release the spindle lock before switching the machine on.

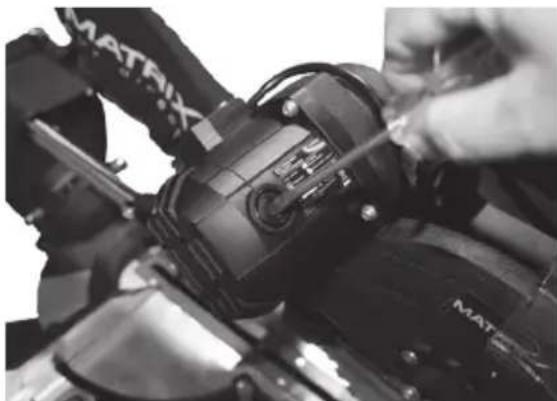

Inspecting and replacing carbon brushes

Warning: Unplug the machine before inspecting the carbon brushes.

Close-up of a robotic arm with visible components and tools, no readable text or symbols present.

Pure mechanical diagram of a solenoid with spring, no text or symbols present

Min. length 6 mm

The life expectancy of the brushes depends on how hard the motor has been run. If the saw is new or if the brushes have just been replaced, the condition of the brushes should be checked after 50 hours of operation. They should then be checked after every 10 hours operation until they need to be replaced again. Check the carbon brushes as follows:

1. Remove the plugs (22) on each side of the motor.
2. Extract the carbon brushes.
3. Check the length of the carbon brushes, they should be at least 6 mm in length.
4. If either of the brushes is shorter than 6 mm or the spring is damaged, they must both be changed.

Troubleshooting guide - motor

1. To prevent the motor from overheating it should be air-blasted or vacuum-cleaned regularly to remove any dust or wood chips which might clog the air vents.

2. Use the saw with an earthed power supply protected by a slow-blow fuse of at least 10 A.

3. Release the power trigger immediately if the motor does not start straight away. Unplug the saw and make sure that the blade spins freely.

4. If the blade binds during a cut: Release the power trigger immediately and pull out the plug from the wall socket. Remove the blade from the workpiece, plug the saw in again and try starting the motor again.

5. Check all the cables, plug and socket connections.

6. Make sure not to connect any more power tools or appliances such as site lights to the same wall socket as the mitre saw. Doing so could overload the fuse or circuit breaker.

7. Any extension leads used should have the following conductor cross-sectional area:

- up to max 7 mm: min 1.5 mm²

- 7-15 m: min 2 mm²

- Max extension lead length: 15 m

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Specifications

Voltage 230–240 V AC, 50 Hz

Rated power 1200 W

No-load speed 6 000 rpm

Saw blade TCT, ∅ 255 × ∅ 30

Number of teeth 60

Saw blade bevel tilt 0–45°

Variable mitre angle -45^/0^/+45^

Work support 500 × 160 mm

Max workpiece size at

0° mitre and 0° bevel 340 × 75 mm

Max workpiece size at

0° mitre and 45° bevel 340 × 45 mm

Max workpiece size at

45° mitre and 0° bevel 240 × 75 mm

Max workpiece size at

45° mitre and 45° bevel 240 × 45 mm

Noise emission data LpA 97.5 dB(A), K=3 dB

LwA 106.8 dB(A), K=3 dB

Laser Class 2 in accordance with EN 60825-1

P = < 1 mW, = 650 ~nm

Weight 18 kg

Kap- och geringssåg

Mechanical training machine with a Cocrift brand logo and directional arrows indicating motion (no text or symbols on the device itself)

Kapning

Mechanical device with a magnified inset showing a numbered component (5), no visible text or symbols on the main body.

Mechanical device with tool handle and measurement scale (no visible text or symbols)

Pure geometric diagram of a trapezoidal structure with no text, numbers, or symbols

Rätt

Pure technical line drawing of a symmetrical mechanical component (no text or symbols)

Fel

Close-up of hands using a screwdriver to adjust or install a mechanical component, no visible text or symbols.

Close-up of hands operating a mechanical device with a gear-like component (no visible text or symbols)

Close-up of hands operating a mechanical device with a gear-like component (no visible text or symbols)

Close-up of hands operating a mechanical device with a gear and blade (no visible text or symbols)

Close-up of a motorcycle's engine component being adjusted by hand (no visible text or symbols)

Pure mechanical diagram of a solenoid with spring, no text or symbols present

Min. längd 6 mm

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no text or symbols present)

Specifikationer

Nätanslutning 230–240 V AC, 50Hz

Märkeffekt 1200 W

Varvtal, obelastad 6000 rpm

Mechanical training machine with mounted target and blade assembly (no visible text or symbols)

Kapping

Kappe med klingen vinklet 0°

Mechanical device with a magnified inset showing a component labeled '5' (no text or symbols on the device itself)

Mechanical device with tool and measurement scale (no visible text or symbols)

Pure geometric diagram of a trapezoidal structure with no text, numbers, or symbols

Riktig

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Galt

Close-up of hands using a screwdriver to adjust or install a mechanical component, no visible text or symbols.

Close-up of hands operating a mechanical device with a gear-like component (no visible text or symbols)

Close-up of hands operating a mechanical device with a gear-like component (no visible text or symbols)

Close-up of hands operating a mechanical device with a gear and blade (no visible text or symbols)

Close-up of a motorcycle's internal components being adjusted by a tool (no visible text or symbols)

Pure mechanical diagram of a solenoid with spring, no text or symbols present

Min. lengde 6 mm

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no text or symbols present)

Spesifikasjoner

Strømtilkobling 230–240 V AC, 50 Hz

Effekt 1200 W

Turtall, ubelastet 6000 rpm

Sagklinge m. hardmetalltenner ∅ 255 × ∅ 30

Antall tenner 60

Mechanical training machine with a Cocrift sponsorship device, showing blade alignment and motion arrows (no text or symbols on the device itself)

Katkaisminen

Mechanical device with a magnified inset showing a component labeled '5' (no text or symbols on the device itself)

Mechanical device with calipers and lever mechanism (no visible text or symbols)

Pure geometric diagram of a trapezoidal structure with no text, numbers, or symbols

Oikein

Pure technical line drawing of a symmetrical mechanical component with no text or symbols

Väärin

Close-up of hands using a screwdriver to adjust or install a mechanical component, no visible text or symbols.

Close-up of hands operating a mechanical device with a gear-like component (no visible text or symbols)

Close-up of hands operating a mechanical device with a gear-like component (no visible text or symbols)

Close-up of hands operating a mechanical device with a gear-like cutout and an arrow indicating a specific component (no text or symbols visible)

Close-up of a mechanical device with a tool inserted, showing no visible text or symbols.

Pure mechanical diagram of a solenoid with no text or symbols

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Tekniset tiedot

Mechanical training setup with a Cocraft 2019 platform and mechanical components (no visible text or symbols)

Quersägen

Mechanical device with a magnified inset showing a numbered component (5), no visible text or symbols on the main body.

Mechanical device with calipers and lever mechanism (no visible text or symbols)

Pure geometric diagram of a trapezoidal structure with curved and straight lines, no text or symbols present.

Richtig

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Falsch

Close-up of hands using a screwdriver to adjust or install a mechanical component, no visible text or symbols

Close-up of hands operating a mechanical device with a gear-like component (no visible text or symbols)

Close-up of hands operating a mechanical device with a gear-like component (no visible text or symbols)

Close-up of hands operating a mechanical device with a gear and saw (no visible text or symbols)

Close-up of a mechanical device with a hand adjusting a screwdriver (no visible text or symbols)

Pure mechanical diagram of a solenoid with spring, no text or symbols present

Mindestlänge 6 mm

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Technische Daten

Declaration of Conformity

Declares that this product complies with the requirements of the following directives and standards

Machinery Directive 2006/42/EC

EN 61029-1:2009

+A11:2010

EN 61029-2-9:2012

+A11:2013

EMC Directive 2004/108/EC

EN 55014-1/A2:2011

EN 55014-2/A2:2008

EN 61000-3-2/A2:2009

EN 61000-3-3:2013

Hemil Alfredson

Henrik Alfredsson

Manager Technique & Quality

Insjön, Sweden, 2015-12-18

Sverige

Postal 10 - 13 Market Place

Kingston Upon Thames

Surrey

KT1 1JZ

Deutschland

Kundenservice Hotline: [phone]

E-Mail: [e-mail]

Homepage

www.clasohlson.de
