USER MANUAL NLL01 Cocraft

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. If you have any questions concerning technical problems please contact our Customer Services.

Safety

• Keep any warning labels on the laser spirit level in readable condition.
• This laser spirit level generates laser beams in accordance with EN 60825-1, class II standards. Never point the laser at yourself, other persons or animals. Even low intensity lasers can cause permanent eye damage.
• This laser spirit level contains no parts that you can repair yourself. The product must not be dismantled, opened or modified in any way.
  Warning: The use or adjustment of the spirit level in any way other than that described in this instruction manual could result in exposure to dangerous laser radiation.
• The laser spirit level is only intended for indoor use.
• Do not subject the laser spirit level to knocks, blows, strong vibrations or extreme temperatures.
• Never use the laser spirit level if you are under the influence of alcohol, medication or other drugs.
• Alert any bystanders to the use of the laser spirit level and inform them of the risks involved in the use of a laser.
• Avoid using the laser beam at eye-level (160–190 cm) if possible.
• Never look into the laser beam using a magnifying glass, microscope, binoculars or similar.
• The laser spirit level must not be used for any other purpose than projecting a laser line as described in this instruction manual.
• Only allow qualified service technicians to repair the laser spirit level and only using original parts.
• Never point the laser at reflective material.
• The laser spirit level is not a toy. Never let children use the product without supervision.
• Never leave the laser spirit level switched on unattended. Always switch it off after use.
• Never let children use the laser spirit level without supervision. They could unintentionally blind other persons or themselves.
• The bubble vials are filled with spirit, make sure that any leaks are cleaned up and taken care of in a safe way. The spirit is flammable and could cause eye and skin irritation.

Extra safety regulations specifically for lasers

Warning: Laser emissions. Laser class II,

635 nm (line), 650 nm (dot).

Never look directly into the laser beam. Never look into the laser beam using optical instruments.

Product description

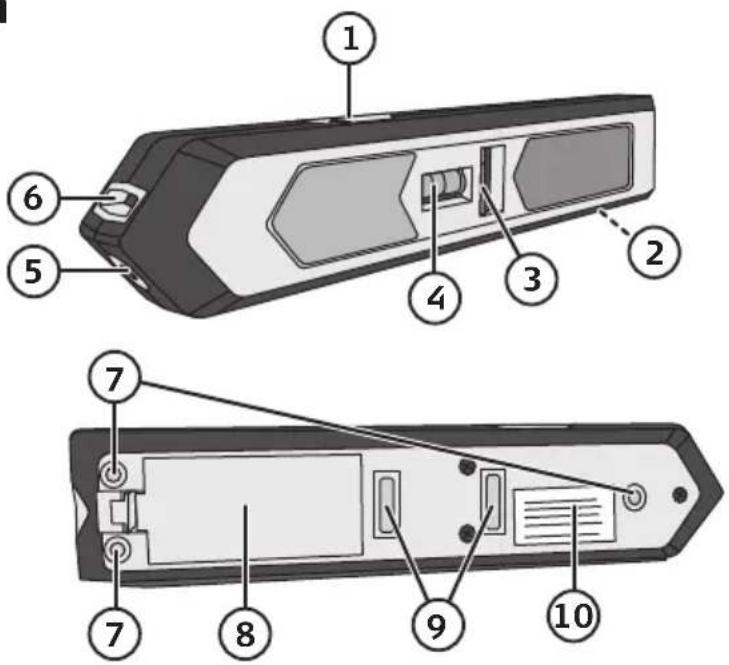

1. Power switch/function selector Line laser – off – laser dot
2. Aluminium supporting surface
3. Bubble vial for vertical projection
4. Bubble vial for horizontal projection
5. Laser dot aperture
6. Line laser aperture
7. Supporting point

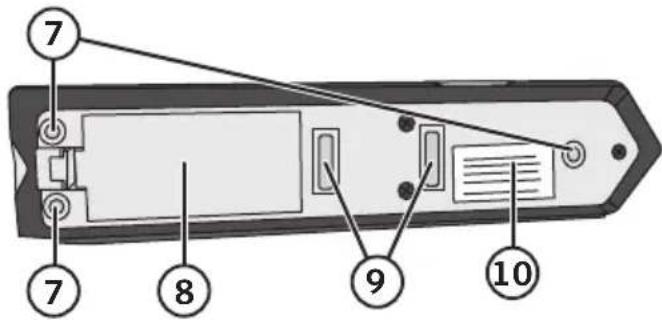

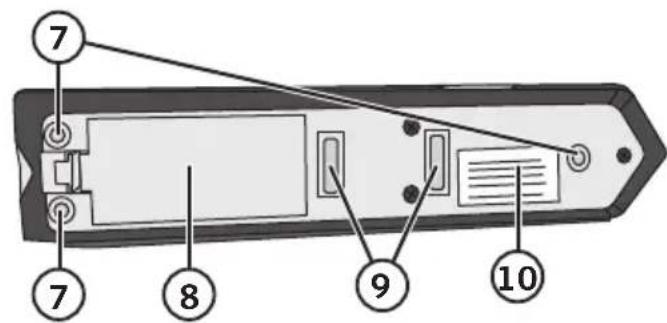

8. Battery cover
9. Magnets

10. Laser warning label

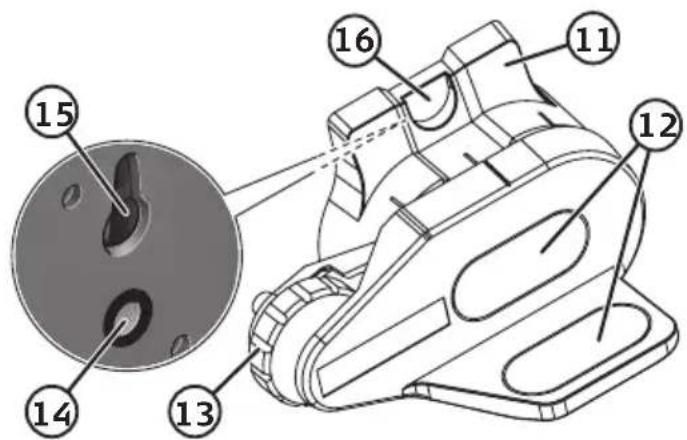

11. Wall holder

12. Attachment surface for magnet

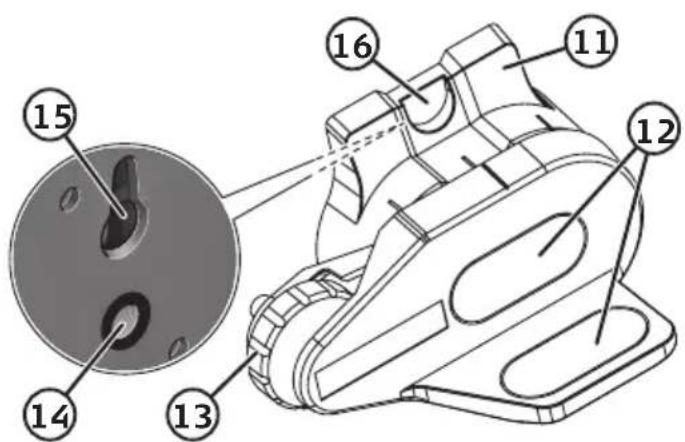

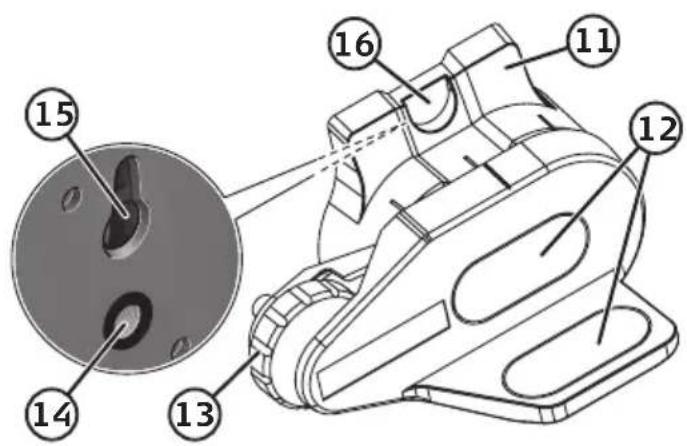

13. Adjustment knob (for when the wall holder is used on a tripod or horizontal)
14. 1/4" tripod thread
15. Mounting hole
16. Hole for drawing/push pin

Functions

The laser spirit level can:

• Project lines horizontally onto a wall.
• Project lines vertically onto a wall.
• Project a laser dot for level control.

Operating instructions

Note: Read the entire instruction manual ensuring that you have read all safety guidelines and understand how the laser spirit level operates before turning it on. Incorrect usage can lead to permanent eye damage.

Note: The laser spirit level is a precision instrument. Handle it with care.

Batteries

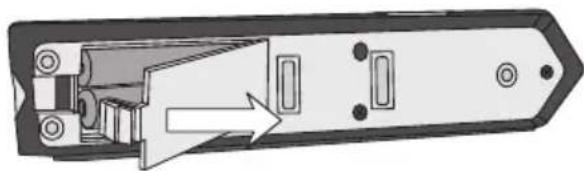

1. Release the spring catch on the battery cover (8) and remove it.

2. Insert 2 × AAA/LR03 batteries into the battery compartment in accordance with the markings.

3. Refit the battery cover.

Cross-sectional diagram of a mechanical device with internal components and an arrow indicating direction (no text or symbols)

Switching on/off and selecting the function

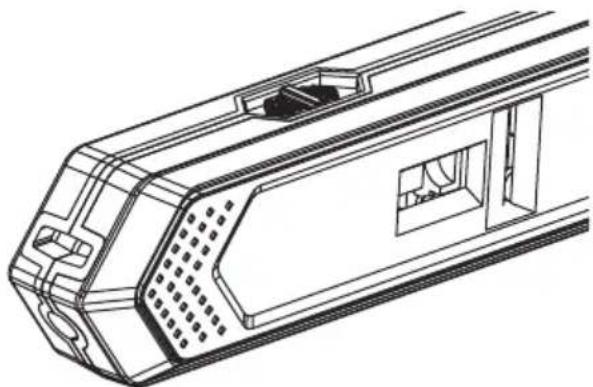

The laser spirit level is switched on/off using the power switch/function selector (1). The switch has the following settings:

- Laser line (forwards toward the laser outlet apertures).

- Off (in the middle).

- Laser dot (backwards).

The laser spirit level should be switched off when not in use to save the batteries.

Technical line drawing of a mechanical component with internal structure and mounting holes (no text or symbols)

Placement

The laser spirit level can be used in various different positions.

1. The laser spirit level should always be placed (with or without wall holder) on a firm, flat surface.

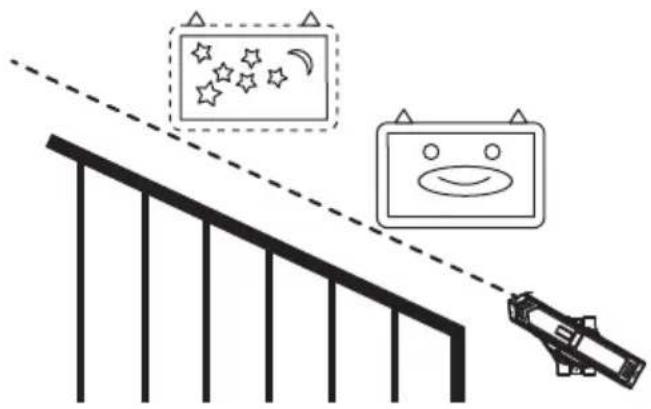

2. The included wall holder (11) can be used to attach the laser spirit level to a wall. The wall holder can be attached to a wall using a drawing pin or push pin. The wall holder also has a hole (15) for hanging it on a nail or screw.
3. For use with a tripod (sold separately) the wall holder has a 1/4" tripod mount thread (14).

Aligning the spirit level

The horizontal and vertical alignment of the laser spirit level should be adjusted using the bubble vials. When the laser spirit level is in the wall holder and on a wall the level or plumb alignment can be adjusted by moving the edge of the wall holder. When the laser spirit level is in the wall holder and mounted on a tripod it can be aligned using the adjustment knob (13). Make sure that the bubble is centred between the lines on the bubble vial.

Using the laser line

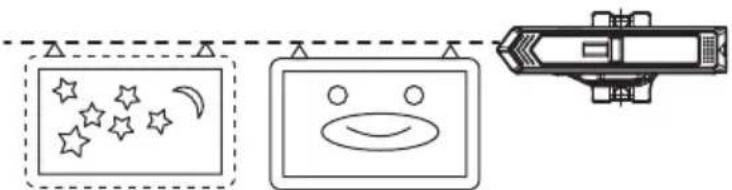

Horizontal laser line

For horizontal alignment the aluminium supporting surface (2) must be facing downward.

Simple line drawing of a space station with stars, moon, and a smiling face (no text or symbols)

Align the laser spirit level horizontally using the bubble vial for horizontal projection (4).

Note: Horizontal alignment using the laser spirit level is only possible on the surface against which the wall holder is placed. A laser line projected onto an adjoining wall will not necessarily be horizontal.

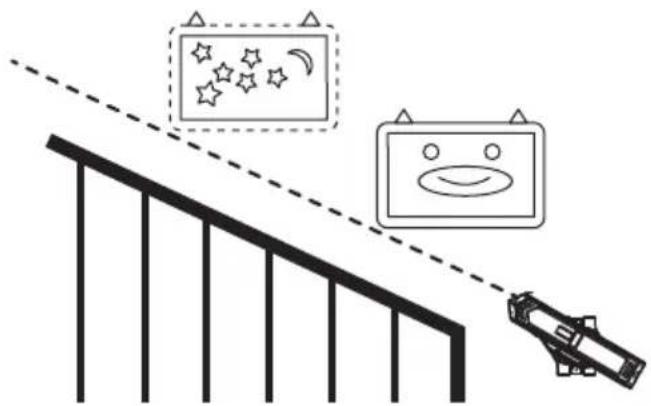

Vertical laser line

For vertical alignment the aluminium supporting surface (2) must be facing to the side.

Align the laser spirit level vertically using the bubble vial for vertical projection (3).

Diagram showing a mechanical assembly with a bracket and a vertical rod, no text or symbols present

The adjustment knob on the wall holder can be used for setting the laser spirit level to an angle of your choice for applications such as projecting lines parallel to stairs for hanging picture frames.

Illustration of a railing with starry sky and moon symbols, alongside a cartoon cow on a platform (no text or symbols)

Using the laser dot

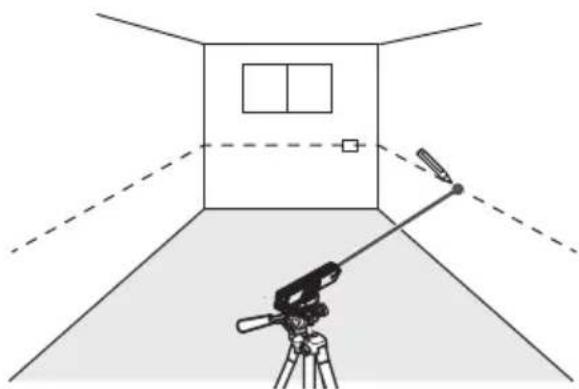

Used on a tripod (sold separately), the laser spirit level can also be used to mark points at the same height on multiple walls. The height should also be checked manually by measuring. Bear in mind that the setting will be altered if the tripod or spirit level is knocked or jolted.

Diagram of a camera setup inside a room with a tripod-mounted instrument, showing no text or symbols.

Checking horizontal/vertical lines with the spirit level

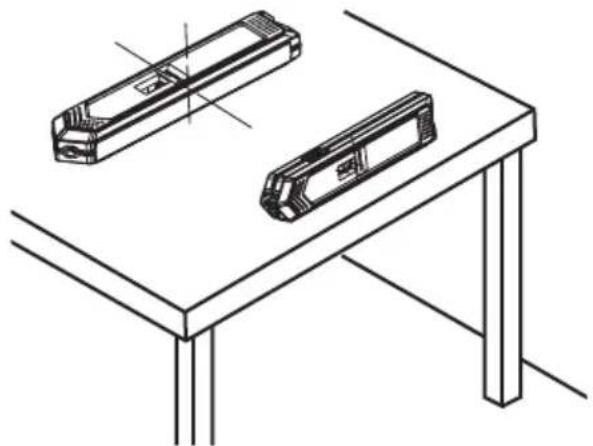

Hold the laser spirit level with the aluminium supporting surface (2) against the surface to be checked. Check the position of the bubble in the applicable bubble vial.

Line drawing of two mechanical parts on a workbench, no text or symbols present

Care and maintenance

• Clean the laser spirit level by wiping it with a damp cloth. Use only mild cleaning agents, never solvents or corrosive chemicals.
• Remove the batteries if the laser function is not to be used for a long time.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Specifications

Batteries 2 × AAA/LR03 (sold separately)

Operating time >15 hours

Laser wavelength Line: 635 nm, Dot: 650 nm

Laser class II

Power P_max < 1 mW

Levelling accuracy ±1 mm/m

Operating temperature 0–40 °C

Weight 153 g (without batteries, with wall holder)

Size (H × W × L) 33.5 × 23 × 165 mm

Laservattenpass

Art.nr 40-9685 Modell NLL01

Användning

Technical diagram of a mechanical device with internal components and an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with internal cavity and mounting holes (no text or symbols)

Placering

Simple line drawing of a space station with stars, moon, and a smiling face (no text or symbols)

Diagram of a mechanical lifting device with a vertical dashed line and a separate view of a bracket (no text or symbols)

Illustration of a railing with star and moon symbols, alongside a cartoon character on a platform (no text or labels)

Diagram of a telescope imaging setup inside a room with a window and floor, showing no text or symbols.

Line drawing of two mechanical parts on a table, one with a cylindrical part and the other with a rectangular part (no text or symbols)

Symbol of a trash bin crossed with no visible text or labels

Specifikationer

Batterier 2 × AAA/LR03 (säljs separat)

Funksjoner

Funksjoner:

Technical diagram of a mechanical device with internal components and an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with internal cavities and mounting holes (no text or symbols)

Plassering

Simple line drawing of a starry night scene with a crescent moon and a smiling face, alongside a stylized ship (no text or symbols)

Still inn laservateret med libellen (4). Obs! Horisontal bruk er kun viktig på den veggen (flaten) som veggfestet sitter på. Hvis laserlinjen projiseres på en annen, motstående flate blir ikke målingen nøye nok!

Vertikal laserlinje

Diagram showing a mechanical assembly with a vertical dashed line and a separate view of a cylindrical component (no text or symbols present)

Illustration of a railing with star and moon symbols, alongside a cartoon cat on a platform (no text or labels)

Bruk med laserpunkt

Diagram of a camera setup inside a room with a tripod-mounted instrument, showing no text or symbols.

Line drawing of two rectangular electronic components on a table, no text or symbols present

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Spesifikasjoner

Batterier 2 × AAA/LR03 (selges separat)

Brukstid > 15 timer

Toiminnot

Technical diagram of a mechanical device with internal components and an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with internal cavities and a window (no text or symbols)

Sijoittaminen

Simple line drawing of a starry night scene with a crescent moon and a smiling face, next to a spacecraft (no text or symbols)

Diagram showing a fence with hanging objects and a gear mechanism, no text or symbols present

Diagram of a camera setup with a tripod-mounted instrument in a room, no text or symbols present

Line drawing of two rectangular electronic components on a table, no text or symbols present

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Tekniset tiedot

Bedienung

Technical diagram of a mechanical device with internal components and an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with internal cavity and mounting holes (no text or symbols)

Standort

Simple line drawing of a space station with stars, moon, and a smiling face (no text or symbols)

Diagram showing a mechanical assembly with a bracket and a vertical rod, no text or symbols present

Illustration of a railing with starry sky and moon symbols, alongside a cartoon cow on a platform (no text or symbols)

Diagram of a telescope imaging setup inside a room with a window and floor, showing no text or symbols.

Technical line drawing of two mechanical components on a workbench (no text or symbols)

Pflege und Wartung

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Technische Daten
