Brand	Cocraft
Model	HC 16
Product Type	Air Compressor
Rated Voltage	220–240 V AC, 50 Hz
Power	1200 W
No-load Speed	4000 rpm
Max Working Pressure	8 bar
Pressure Tank Capacity	6 L
Sound Pressure Level (LpA)	85 dB(A)
Sound Power Level (LwA)	97 dB(A)
Weight	8 kg
Dimensions (L × W × H)	31 × 27 × 32 cm
Cylinder Displacement	180 L/min
Free Air Delivery	120 L/min
Free Air Delivery at 6 bar	50 L/min
Oil-free	Yes
Operation Type	Intermittent (max 120 seconds continuous)
Safety Valve	Yes, automatic pressure release
Drain Valve	Yes, for condensation release
Overheat Protection	Yes, motor thermal cut-out
Residual Current Device Required	30 mA RCD
Temperature Range	5–40 °C
Certifications	CE, Machinery Directive 2006/42/EC

Frequently Asked Questions - HC 16 Cocraft

How do I drain condensation from the pressure tank?

Depressurize the compressor by unscrewing the safety valve and let it cool completely. Then open the drain valve at the bottom of the tank to release any trapped condensation. Make this a regular habit.

How do I check if the safety valve is working?

While the tank is under pressure, turn the upper part of the safety valve anticlockwise until it opens. Air should seep out. If it doesn't, the valve may be faulty and must be replaced by a qualified technician.

What should I do if the compressor will not start?

Check that the plug is properly connected and the mains outlet is live. If the ambient temperature is below 5°C, the compressor may not start. Also, if the motor has overheated, wait for it to cool down. Ensure the power switch is ON.

Can I use the compressor continuously?

No, this compressor is designed for intermittent operation only. It should not run for more than 120 seconds continuously. It is intended for tasks like inflating small items, driving nail guns, or paint sprayers.

What is the maximum pressure setting?

The maximum working pressure is 8 bar (116 psi). The working pressure adjustment knob allows you to set the desired pressure up to that limit.

How do I adjust the working pressure?

Use the working pressure adjustment knob on the compressor. Turn it clockwise to increase pressure, anticlockwise to decrease. The pressure gauge shows the current tank pressure.

What type of oil does the compressor use?

This compressor is oil-free, meaning it does not require any oil. The pump is designed to run without lubrication.

Why does the compressor start but no pressure builds?

Check that the drain valve is closed tightly. Also inspect all air hoses and connected accessories for leaks. If there is a leak, pressure will not build.

How often should I inspect the pressure tank?

Perform a visual inspection at least once a year for corrosion. The wall thickness must not be less than 2 mm. If any damage is found, replace the compressor immediately.

Can I use an extension cord with this compressor?

Yes, but only use an extension cord rated for outdoor use and appropriate for the power consumption. Ensure it is fully unwound to prevent overheating. Do not use damaged cords.

USER MANUAL HC 16 Cocraft

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Original instructions

Bruksanvisning i original

Originalbruksanvisning

Please read the entire instruction manual before use and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

⚠ Ensure that you have read and understood:

• all the safety guidelines.
• all the explanations as to how the compressor works.
• all the instructions as to how to use it in a safe manner.

• all the instructions concerning care, maintenance and storage.

• Keep the work area tidy.

- Cluttered and disorganised work areas pose an accident risk.

1. The work environment.

2. Do not expose the product to rain.

3. Do not use the product in damp or wet areas.
4. Make sure that the work area is well illuminated.

5. Do not use the product in areas where combustible gases or liquids are stored or used.

6. Guard against electric shocks.

- Avoid physical contact with earthed objects such as water pipes, radiators and cookers.

1. Keep other people at a safe distance.

- Never permit persons, especially children, not involved in the work to touch the product or its power supply cables. Keep unauthorised persons away from the work area.

1. Storing the product.

- Products that are not in use should be kept locked away in a dry place out of children's reach.

1. Do not overload the product.

- The work will be performed better and more safely if the product is not overloaded.

1. Wear suitable clothing.

2. Do not wear loose-fitting clothing or jewellery; they could be caught in moving parts.

3. Wear non-slip footwear when working outdoors.

4. Wear a hairnet or similar if you have long hair.

5. Use personal protective equipment.

6. Wear eye protection.

7. Wear a respirator or dust mask if the operation will generate a great deal of dust.

9. Make sure that the mains lead is not damaged.

- Do not pull or tug the mains lead when unplugging the product, grip and pull the plug itself. Keep the mains lead away from heat, oil and sharp edges.

10. Take good care of the product.

• Make sure that the product is clean and free from contaminants.
• Follow all guidelines concerning care, maintenance and storage.
• Check the product's mains lead regularly. If the mains lead is damaged in any way, it must be replaced by a qualified electrician.
• Inspect any extension leads regularly. Replace cables if they are damaged in any way.
• Keep the handles dry, clean and free of oil and grease.

11. Always disconnect the product from the mains.

- Disconnect the product from the mains whenever it is not in use, before service and maintenance and whenever switching accessories.

12. Avoid unintentional starting.

- Make sure that the power switch is set to OFF before connecting the product to the mains.

13. Use the right kind of extension lead.

- If you use the product outdoors, only use extension cables, which are clearly labelled as designed for outdoor use.

14. Remain attentive.

- Pay attention to what you are doing. Use your common sense and never operate the product when tired, sick or under the influence of medicine, alcohol or narcotics.

15. Check that the product is undamaged.

• Before using the product, make sure that it functions normally as described in this instruction manual.
• Make sure that any moving parts are intact, properly fitted and rotate freely.
• Damaged safety devices must be replaced by authorised service personnel unless otherwise specified in this instruction manual.
• Damaged switches must be replaced by a qualified electrician.

• Never use the product if it cannot be switched on and off using its power switch.

• Do not use any accessories other than those mentioned in this instruction manual or recommended by the manufacturer or retailer. Risk of personal injury.

17. Have the product repaired by qualified service personnel.

- This product conforms to relevant safety regulations. Repairs must only be carried out by qualified service personnel and only using original spare parts. Failure to do so could lead to serious personal injury.

18. Protect yourself from high noise levels.

- Use ear defenders when using the compressor.

19. Damage to the mains lead or plug.

- If the mains lead is damaged in any way, it must be replaced by a qualified electrician.

Risk of explosion

• Never use the compressor in areas where flammable liquids/materials or gases (petrol, solvents, gas cylinders, etc.) are stored or used.
• Never use the plug to turn the compressor on or off, always use the power switch.
  • Always unplug the mains lead and empty the pressure tank of air before servicing or repairing the compressor.
• Always unplug the mains lead and empty the pressure tank of air before moving the compressor.
• Make sure that the mains lead does not come into contact with heat, oil, or sharp edges.
• Never move the compressor around by pulling the mains lead or air hoses. The compressor must only be moved using the handle.
• Make sure that any air hoses and pneumatic tools connected to the compressor are rated to withstand the pressure generated by the compressor and that they are connected correctly.
• The compressor is only intended for use in well-ventilated areas in temperatures between 5–40°C.
• Never expose the compressor to water or other liquids.

Risk of personal injury

• Never use the compressor if the pressure tank has been damaged in any way.
• Make sure that all air hoses are intact and dimensioned for the capacity of the compressor.
• Never attempt to repair damaged air hoses, always replace them.
• Never move or transport the compressor when the pressure tank is under pressure.
• Never disconnect any connectors when the pressure tank is under pressure.
• Never tamper with or modify the pressure tank or any other part of the compressor.
• Never point the air hose nozzle or attached tools at other people or pets.
• Never use compressed air to clean work wear worn by you or anyone else.
• Never insert fingers or foreign objects into the housing of the compressor.

Dangerous voltage

- The compressor must only be connected to an earthed 230 V, 50/60 Hz mains outlet protected by a 30 mA residual current device (RCD).

- Always connect the plug to an easily accessible mains outlet so that it can quickly be unplugged should a fault occur.

Risk of burns

- Certain parts of the compressor can become hot during use. Touch only the handle and the power switch when using the compressor.

Risk of damage to property

• Place the compressor on an easily accessible, dry, firm and level surface. Do not place the compressor on the very edge of a surface.
• Make sure that the compressor is sufficiently ventilated. Place it at least 1 m from nearby surfaces.
• Place the compressor so that it cannot move while being used.
  • Always place the compressor on its own feet when being used.
• Never place the compressor on or near hot surfaces.
• This product is not intended for use by persons (including children) whose physical, sensory or mental capabilities, or lack of experience and knowledge, prevents them from using the product safely without supervision or instruction.
  • Never let children play with the product.

Symbols

Read the entire instruction manual carefully.

Use ear defenders.

Risk of electric shock.

This unit is remote controlled and can start without warning.

Never switch off the compressor by pulling out the plug or using the isolator switch (if fitted). Always use the ON/OFF button on the compressor.

Warning: Hot surfaces.

Guaranteed sound power level (LWA) of max 97 dB.

Declaration of Conformity.

Product description

The compressor pump compresses the air and discharges it into the pressure tank. When the air pressure in the tank reaches max, a pressure switch switches off the motor driving the compressor. A safety valve releases the air in the pressure tank if the pressure switch fails to turn the motor off.

How the safety valve works

The safety valve is a simple but critical part of the air compressor. If the air pressure inside the pressure tank exceeds the maximum allowed limit, the safety valve will automatically open and release air until the pressure is reduced. The operation of the safety valve should be checked regularly while the pressure tank is under pressure by turning the upper part of it anticlockwise until it opens and air is released.

The compressor is oil-free, which means that it is intended for intermittent operation. This means that is must only be used to drive smaller pneumatic tools, such as nail guns, to inflate smaller items, such as footballs, or to drive a paint sprayer, such as an airbrush. It is not intended to inflate large objects, such as pools and large air mattresses, where it needs to operate for a long time (over 120 seconds).

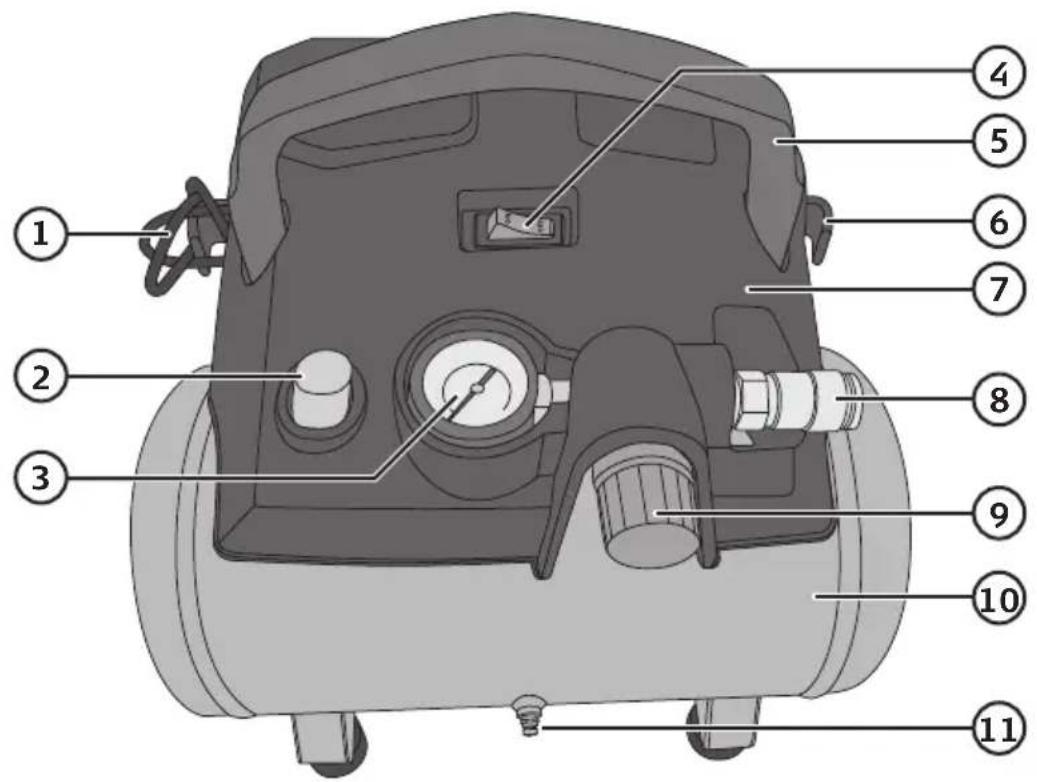

1. Mains lead
2. Safety valve
3. Pressure gauge
4. [ON/OFF] Power switch
5. Carrying handle

6. Holder for mains lead (one on each side)

7. Motor housing

8. Air outlet
9. Working pressure adjustment knob
10. Pressure tank
11. Drain valve

Instructions for use

i Remember that the compressor is intended for intermittent operation. Refer to the section Product description.

1. Make sure that the power switch (4) is set to the OFF position.
2. Plug the mains lead into an earthed mains outlet.
3. Connect the desired pneumatic accessory to the air outlet (8).
4. Set the power switch to the ON position.
5. Set the desired working pressure using the knob (9).

After use

⚠️ Depressurise the pressure tank by unscrewing the safety valve before disconnecting the attached accessory.

1. Turn off the compressor and pull out the plug from the mains outlet.
2. Depressurise the compressor by unscrewing the safety valve.
3. Disconnect the attached accessory and wind the mains lead around the holders (6).

Care and maintenance

• Unplug the mains lead from the mains outlet. Depressurise the compressor by unscrewing the safety valve and let it cool down completely.
• Clean the compressor using a damp cloth. Use only mild cleaning agents, never solvents or corrosive chemicals.
• Check the safety valve regularly by unscrewing it. If the safety valve is working properly (and the pressure tank is under pressure), air should seep out through the safety valve.
• Under no circumstances may the safety valve be tampered with or blocked.
• Perform a visual inspection at least once a year to check that the inside and outside of the pressure tank is free of corrosion. Under no circumstances must the wall thickness of the pressure tank be less than 2 mm.
• Make it a habit to open the drain tap regularly to release any trapped condensation in the pressure tank. Depressurise the compressor by unscrewing the safety valve and let it cool down completely before opening the drain tap.
• If the compressor is not to be used for an extended period, unplug it from the mains, depressurise the tank by unscrewing the safety valve and drain the tank using the drain valve (11).

Troubleshooting guide

The compressor will not start/shuts down when in use.	Is the plug properly connected to the mains outlet?Is the mains outlet live?The ambient temperature is too low. The compressor is not intended for use at temperatures below 5°C.The motor has overheated and the overheating protection has been triggered. Let the compressor cool down before attempting to start it again.
The compressor starts but no pressure builds up.	Check that the drain valve (11) is closed.Check that there are no leaks from the attached air hoses and accessories.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling the product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin with crossed lines indicating no waste or restriction, accompanied by a blank rectangular bar below (no text or labels)

Specifications

Rated voltage 220–240 V AC, 50 Hz

Power 1200 W

No-load speed 4000 rpm

Max working pressure 8 bar

Pressure tank 6 L

Sound LpA = 85 dB(A), KpA = 3 dB(A)

LwA = 97 dB(A), KwA = 3 dB(A)

Weight 8 kg

Cylinder displacement Ca 180 L/min

Free air delivery Ca 120 L/min

Free air delivery at 6 bar Ca 50 L/min

Size (L × W × H) 31 × 27 × 32 cm

Kompressor HC16

Art.nr 41-1366 Modell JL811001

Symbol of a trash bin crossed with no visible text or labels

Specifikationer

Nätanslutning 220–240 V AC, 50 Hz

Effekt 1200 W

Varvtal 4000 rpm

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid rectangle below (no text or labels)

Spesifikasjoner

Nettilkobling 220–240 V AC, 50 Hz

Effekt 1200 W

Turtall 4000 rpm

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Tekniset tiedot

Symbol of a trash bin crossed with no text or labels, accompanied by a blank rectangular block below (no text or symbols present)

Technische Daten

Declaration of Conformity

Declares that this product complies with the requirements of the following directives and standards

Machinery Directive 2006/42/EC

EN 1012-1:2010

EN 60204-1:2006+A1:2009

EMC Directive 2014/30/EU

EN: 61000-3-2: 2014

EN: 61000-3-3: 2013

EN: 55014-1: 2017

EN: 55014-2: 2015

Low Voltage Directive 2014/35/EU

Henrik Alfredsson

Product Quality & Compliance Manager

Insjön, Sweden, 20200616

CLAS OHLSON AB, SE-793 85 INSJÖN, SWEDEN

Sverige

Postal Clas Ohlson Ltd, Aquilla House (First floor),

1 Becketts Wharf, Lower Teddington Road,

Hampton Wick, Kingston Upon Thames, KT1 4ER

Deutschland

Kundenservice Hotline: [phone]

E-Mail: [e-mail]

Homepage

www.clasohlson.de

Postanschrift Clas Ohlson GmbH, Valentinskamp 88

20355 Hamburg
