HC 350-V - Compressor Cocraft - Free user manual and instructions

Product Type	Air Compressor
Model	HC 350-V
Brand	Cocraft
Power Source	Electric (230 V, 50 Hz)
Motor Power	1.5 kW (2 HP)
Free Air Delivery	350 L/min
Maximum Pressure	8 bar (116 psi)
Tank Capacity	24 L
Dimensions (L x W x H)	45 x 30 x 40 cm
Weight	15 kg
Noise Level	85 dB(A)
Lubrication	Oil-free
Main Functions	Inflating tires, operating pneumatic tools, painting, cleaning
Adjustable Pressure Regulator	Yes
Safety Valve	Pressure relief valve included
Thermal Overload Protection	Automatic shut-off
Quick Couplers	1/4 inch BSP
Maintenance	Drain tank daily, clean air filter monthly
Spare Parts Available	Air filter, pressure switch, safety valve, quick couplers
Repairability	Modular design, user-serviceable parts

Frequently Asked Questions - HC 350-V Cocraft

How do I adjust the pressure on my Cocraft HC 350-V compressor?

Turn the pressure regulator knob clockwise to increase pressure and counterclockwise to decrease. Monitor the gauge for desired pressure, typically up to 8 bar (116 psi).

What is the tank capacity and how long does it take to fill?

The tank capacity is 24 liters. Under normal conditions, it takes about 2-3 minutes to fill to 8 bar.

Is the compressor oil-free or oil-lubricated?

The HC 350-V is an oil-free compressor, meaning no oil changes are required. Regular maintenance includes draining condensate and cleaning the air filter.

What can I use this compressor for?

It is suitable for inflating tires, operating pneumatic tools (nail guns, staplers), spray painting, and cleaning with compressed air.

How do I drain the tank?

Ensure the compressor is turned off and unplugged. Locate the drain valve at the bottom of the tank, open it slowly to release moisture, and close it after draining.

What safety features does this compressor have?

It includes a safety relief valve that opens if pressure exceeds safe limits, and thermal overload protection that shuts off the motor if it overheats.

Why is my compressor not building pressure?

Possible causes: a leak in the hose or fittings, faulty check valve, or worn piston seal. Check connections and listen for air leaks. If the problem persists, consult the manual.

Can I connect multiple tools at once?

While it has one quick coupler, you can use a Y-splitter to connect multiple tools, but the airflow may be insufficient for high-demand tools simultaneous operation.

How loud is the compressor?

The noise level is approximately 85 dB(A) at 1 meter. Ear protection is recommended when operating in enclosed spaces.

Where can I find spare parts?

Spare parts such as air filters, pressure switches, safety valves, and quick couplers are available at most hardware stores or online. Use the model number HC 350-V for compatibility.

USER MANUAL HC 350-V Cocraft

MAX WORKING PRESSURE: 10 BAR

KOMPRESSOR KOMPRESSORI

Important!

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Technical line drawing of a Cocracraft air compressor with attached pump and wheels (no text or symbols on the diagram itself)

Art.no Model

41-9001 HC 350V

Ver. 20220323

Original instructions

Bruksanvisning i original

Originalbruksanvisning

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

The compressor is sold without oil in it. Oil is sold separately. Oil MUST be added before oppressor is switched on.

If the oil inlet (11) is fitted with a transit bung, remove it and replace it with the proper oil filler cap. Pour approximately 200 ml oil into the oil inlet and fit the proper oil filler cap. Check the oil level through the oil level window (12).

• Use SAE 30 compressor oil at temperatures over +10 °C.
• Use SAE 10 compressor oil at temperatures under +10 °C.

Safety

Ensure that you have read and understood:

• all the safety guidelines.
• all the explanations as to how the compressor works.
• all the instructions as to how to use it in a safe manner.

• all the instructions concerning care, maintenance and storage.

• Keep the work area tidy.

- Cluttered and disorganised work areas pose an accident risk.

1. The work environment.

2. Do not expose the product to rain.

3. Do not use the product in damp or wet areas.
4. Make sure that the work area is well illuminated.

5. Do not use the product in areas where combustible gases or liquids are stored or used.

6. Guard against electric shocks.

- Avoid physical contact with earthed objects such as water pipes, radiators and cookers.

1. Keep other people at a safe distance.

- Never permit persons, especially children, not involved in the work to touch the product or its power supply cables. Keep unauthorised persons away from the work area.

1. Storing the product.

- Products that are not in use should be kept locked away in a dry place out of children's reach.

6. Do not overload the product.

- The work will be performed better and more safely if the product is not overloaded.

7. Wear suitable clothing.

• Do not wear loose-fitting clothing or jewellery; they could be caught in moving parts.
• Wear non-slip footwear when working outdoors.
• Wear a hairnet or similar if you have long hair.

8. Use personal protective equipment.

• Wear eye protection.
• Wear a respirator or dust mask if the operation will generate a great deal of dust.

9. Make sure that the mains lead is not damaged.

- Do not pull or tug the mains lead when unplugging the product, grip and pull the plug itself. Keep the mains lead away from heat, oil and sharp edges.

10. Take good care of the product.

• Make sure that the product is clean and free from contaminants.
• Follow all guidelines concerning care, maintenance and storage.
• Check the product's mains lead regularly. If the mains lead is damaged in any way, it must be replaced by a qualified electrician.
• Inspect any extension leads regularly. Replace cables if they are damaged in any way.
• Keep the handles dry, clean and free of oil and grease.

11. Always disconnect the product from the mains.

- Disconnect the product from the mains whenever it is not in use, before service and maintenance and whenever switching accessories.

12. Avoid unintentional starting.

- Make sure that the power switch is set to OFF before connecting the product to the mains.

13. Use the right kind of extension lead.

- If you use the product outdoors, only use extension cables, which are clearly labelled as designed for outdoor use.

14. Remain attentive.

- Pay attention to what you are doing. Use your common sense and never operate the product when tired, sick or under the influence of medicine, alcohol or narcotics.

15. Check that the product is undamaged.

• Before using the product, make sure that it functions normally as described in this instruction manual.
• Make sure that any moving parts are intact, properly fitted and rotate freely.
• Damaged safety devices must be replaced by authorised service personnel unless otherwise specified in this instruction manual.
• Damaged switches must be replaced by a qualified electrician.

• Never use the product if it cannot be switched on and off using its power switch.

• Do not use any accessories other than those mentioned in this instruction manual or recommended by the manufacturer or retailer. Risk of personal injury.

• Have the product repaired by qualified service personnel.

- This product conforms to relevant safety regulations. Repairs must only be carried out by qualified service personnel and only using original spare parts. Failure to do so could lead to serious personal injury.

1. Protect yourself from high noise levels.

- Use ear defenders when using the compressor.

1. Damage to the mains lead or plug.

- If the mains lead is damaged in any way, it must be replaced by a qualified electrician.

Risk of explosion

• Never use the compressor in areas where flammable liquids/materials or gases (petrol, solvents, gas cylinders, etc.) are stored or used.
• Never use the plug to turn the compressor on or off, always use the power switch.
• Always unplug the mains lead and empty the pressure tank of air before servicing or repairing the compressor.
• Always unplug the mains lead and empty the pressure tank of air before moving the compressor.
• Make sure that the mains lead does not come into contact with heat, oil, or sharp edges.
• Never move the compressor around by pulling the mains lead or air hoses. The compressor must only be moved using the handle.
• Make sure that any air hoses and pneumatic tools connected to the compressor are rated to withstand the pressure generated by the compressor and that they are connected correctly.
• The compressor is only intended for use in well-ventilated areas in temperatures between 5–40°C.
• Never expose the compressor to water or other liquids.

Risk of personal injury

• Never use the compressor if the pressure tank has been damaged in any way.
• Make sure that all air hoses are intact and dimensioned for the capacity of the compressor.
• Never attempt to repair damaged air hoses, always replace them.
• Never move or transport the compressor when the pressure tank is under pressure.
• Never disconnect any connectors when the pressure tank is under pressure.
• Never tamper with or modify the pressure tank or any other part of the compressor.
• Never point the air hose nozzle or attached tools at other people or pets.
• Never use compressed air to clean work wear worn by you or anyone else.
• Never insert fingers or foreign objects into the housing of the compressor.

Dangerous voltage

• The compressor must only be connected to an earthed 230 V, 50/60 Hz mains outlet protected by a 30 mA residual current device (RCD).
• Always connect the plug to an easily accessible mains outlet so that it can quickly be unplugged should a fault occur.

Risk of burns

- Certain parts of the compressor can become hot during use. Touch only the handle and the power switch when using the compressor.

Risk of damage to property

• Place the compressor on an easily accessible, dry, firm and level surface. Do not place the compressor on the very edge of a surface.
  • Make sure that the compressor is sufficiently ventilated. Place it at least 1 m from nearby surfaces.
• Place the compressor so that it cannot move while being used.
  • Always place the compressor on its own feet when being used.
• Never place the compressor on or near hot surfaces.
• This product is not intended for use by persons (including children) whose physical, sensory or mental capabilities, or lack of experience and knowledge, prevents them from using the product safely without supervision or instruction.
• Never let children play with the product.

Symbols

Read the entire instruction manual carefully.

Use ear defenders.

Risk of electric shock.

This unit is remote controlled and can start without warning.

Never switch off the compressor by pulling out the plug or using the isolator switch (if fitted). Always use the ON/OFF button on the compressor.

Warning: Hot surfaces.

Guaranteed sound power level (LwA) of max 90.6 dB.

Declaration of Conformity.

Product description

The compressor increases the pressure of the air which is pumped into the pressure vessel. When the air pressure in the vessel reaches max, a pressure switch switches off the motor driving the compressor. At the same moment, the air in the compressor is released. This occurs to reduce the pressure in the compressor so that it can restart when the pressure drops to below the minimum pressure. A safety valve releases the air in the pressure vessel if the pressure switch should fail to turn the motor off.

How the safety valve works

The safety valve is a simple but critical part of the air compressor. If the air pressure inside the pressure tank exceeds the maximum allowed limit, the safety valve will automatically open and release air until the pressure is reduced. The operation of the safety valve should be checked regularly while the pressure tank is under pressure by turning the upper part of it anticlockwise until it opens and air is released.

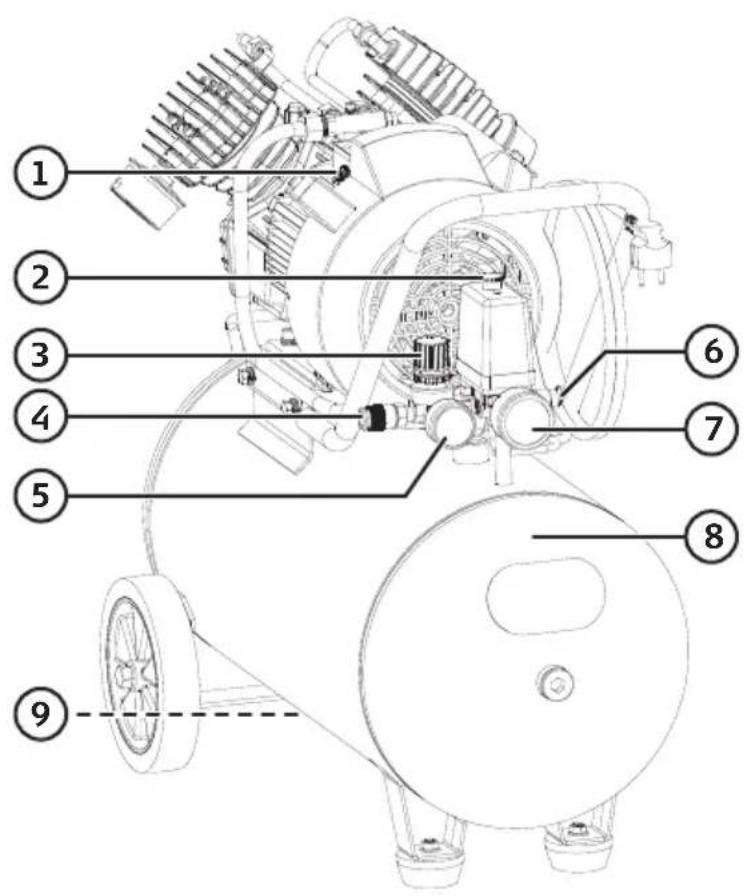

Buttons and functions

1. Motor overload cut-out
2. [ON/OFF]
3. Pressure regulator (working pressure)
4. Air outlet
5. Pressure gauge – working pressure
6. Safety valve
7. Pressure gauge – pressure vessel
8. Pressure vessel
9. Drain tap (under pressure vessel)

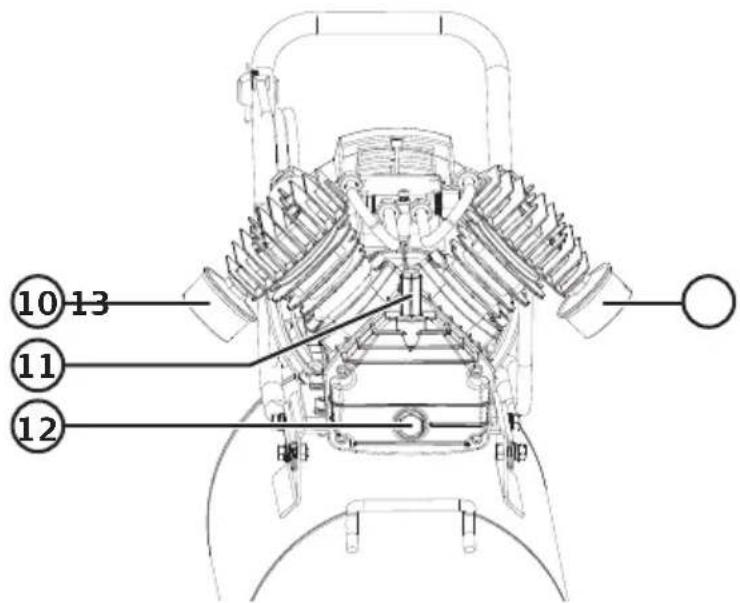

1. Air filter
2. Oil filler cap
3. Window for checking oil level
4. Air filter

Getting started

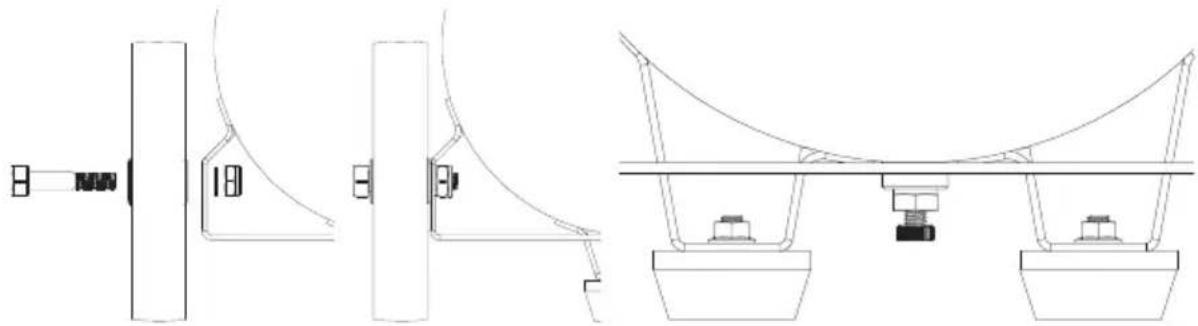

1. Attach the wheels and rubber feet to the pressure vessel.

Technical line drawing of a mechanical assembly with three views (top, front, side), no text or symbols present.

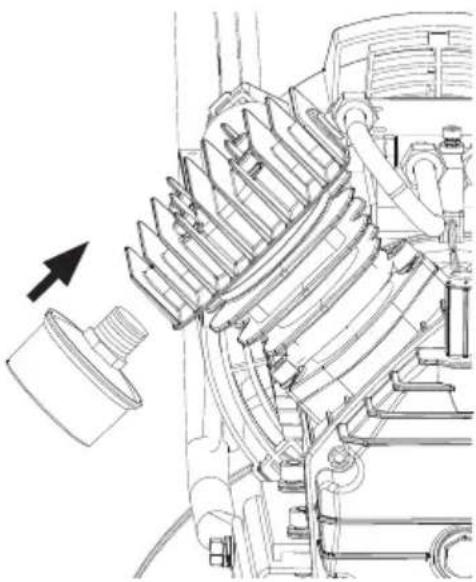

1. Attach the air filters to the compressor.
2. Place the compressor in a dry and well ventilated place.
3. Make sure that it is stable and cannot tip over.
4. Make sure that the oil level is up to the red circle in the oil level window (12).
5. Connect the mains lead to a permanently installed 230 V wall socket.

Note:

Before using the compressor for the first time: Open the drain tap (9) in the bottom of the pressure vessel, switch the compressor on using the ON/OFF button (7) and let it run for 10 minutes to lubricate all the moving parts. Close the drain tap.

Technical line drawing of a mechanical component with no visible text or symbols

Use

1. Check the oil level in the window (12).
2. Attach a suitable air tool: blow gun, spray gun, tyre inflator, etc.
3. If necessary: Read the instruction manual of the connected air tool and set the recommended working pressure using the regulator (3).
4. Use SAE 30 compressor oil at temperatures over +10 °C.
5. Use SAE 10 compressor oil at temperatures under +10 °C.

After use

Depressurise the pressure tank by unscrewing the safety valve before disconnecting attached accessory.

1. Turn off the compressor and pull out the plug from the mains outlet.
2. Depressurise the compressor by unscrewing the safety valve.

Motor overload cut-out

If the safety cut-out has tripped, the motor has been overloaded in some way.

The button on the motor overload cut-out (1) will pop out a couple of millimetres when it has been tripped and is reset by pushing it back in.

There are a number of possible reasons why the overload cut-out might trip such as a voltage drop caused by the use of long extension leads, low ambient temperature (under 10 °C ), or that the pressure switch is not used to turn the compressor on/off in the event of a power cut for example.

Care and maintenance

• The compressor's first oil change should be done after 10 hours of operation.
• Change the oil and clean the air filter after every 120 hours of use. Check the safety valve and pressure gauges at the same time.
• Check the safety valve regularly by unscrewing it. If the safety valve is working properly (and the pressure vessel is under pressure) air should seep out through the safety valve.
• Perform a visual inspection at least once a year to check that the inside and outside of the pressure vessel is free of corrosion. Under no circumstances must the wall thickness of the pressure vessel be less than 2 mm.
• The safety valve must under no circumstances be manipulated or blocked.
• Regularly check that the ventilation port in the oil filler cap (11) is open.
• Regularly check that all bolts holding the compressor and pressure vessel together are tight.
• Make it a habit to open the drain tap regularly to release any trapped condensation in the pressure tank. Depressurise the compressor by unscrewing the safety valve and let it cool down completely before opening the drain tap.
• Do not clean the compressor or pressure vessel with solvents or flammable liquids.
• If the compressor is not to be used for an extended period, unplug it from the mains, depressurise the tank by unscrewing the safety valve and drain the tank using the drain valve (9).

Changing the oil

1. Turn off the compressor and pull out the plug from the mains outlet. Depressurise the compressor by unscrewing the safety valve.
2. Remove the oil filler plug (11).
3. Tilt the compressor so that oil can run out of the oil filler hole into an appropriate receptical.
4. Let the oil completely drain from the compressor.

5. Replace with new oil until the oil reaches the middle of the oil-display window. Refit the oil filler plug.
   Oil capacity: Approx 1 dl.

6. Use SAE 30 compressor oil at temperatures above +10 °C.

7. Use SAE 10 compressor oil at temperatures below +10 °C.

Compressor oil is especially designed for compressors, e.g. it has additives that prevent foaming. If no compressor oil is available then SAE 10-30 engine oil can be used as a substitute.

Troubleshooting guide

The compressor does not start.	Is it plugged into a wall socket?Is the wall socket live?Has the motor's overload protection tripped? Reset by pushing in the button (1).Is the mains lead damaged?
Heavy vibrations and/or unusual sounds.	Check that all bolts holding the compressor and pressure vessel together are tight.Check all other joints and connections.
No pressure build-up in vessel or pressure too low.	Make sure the safety valve is not leaking.Make sure the drain tap is not leaking.Check all hose connections for leaks.Air filter is clogged.
Oil consumption too high.	Too much oil in the compressor.The ventilation hole in the oil filler cap is clogged.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangle below (no readable text or symbols)

Specifications

Rated voltage 230 V, 50 Hz

Power 2200 W / 3 hp

No-load speed 2800 rpm

Free Air Delivery at 6 bar 180 l/min

Max working pressure 10 bar

Noise emission data LpA = 70.3 dB(A), KpA = 1.75 dB(A)

LwA = 90.6 dB(A), KwA = 1.75 dB(A)

Cylinder displacement 360 l/min

Pressure vessel 50 l

Size (L × W × H) 76 × 40 × 65.5 cm

Weight 47 kg

Kompressor

Art.nr 41-9001 Modell HC 350V

Att komma igång

Technical line drawing of a mechanical assembly with three views (top, front, side) showing structural components and mounting points (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Användning

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangle below (no readable text or symbols)

Specifikationer

Kom i gang

Technical line drawing of a mechanical assembly with three views (top, front, side) showing structural components and mounting points (no text or symbols)

1. Monter luftfilteret på kompressoren.
2. Oppbevar kompressoren på et tørt og godt ventilert sted.
3. Pass på at den blir stående stodig og ikke har mulighet til å velte.
4. Sjekk at oljenivået ligger i den røde sirkelen i nivåvinduet (12).
5. Apparatets støpsel skal plugges til et strømuttak som har 230 V.

Obs!

Technical line drawing of a mechanical assembly with no visible text or symbols

Bruk

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid rectangle below (no text or labels)

Spesifikasjoner

Spenning 230 V, 50 Hz

Käytön aloittaminen

Technical line drawing of a mechanical assembly with three views (top, front, side) showing structural components and mounting points (no text or symbols)

Technical line drawing of a mechanical component with internal gear and housing (no text or symbols)

Käyttö

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no text or symbols present)

Tekniset tiedot

EC Declaration of Conformity

This declaration of conformity is issued under the sole responsibility of the manufacturer.

EU-försäkran om överensstämmelse utfärdas på tillverkarens eget ansvar. / Egenerkläringen er utstedt under produsentens eget ansvar. / Tämä vaatimustenmukaisuusvakuutus on annettu valmistajan yksinomaisella vastuulla

Manufacturer and person authorised to compile technical file: Clas Ohlson AB, SE-793 85 Insjön, Sweden

Name	Cocraft 50L Air compressor
Type/Model	HC350V
Clas Ohlson Article Number	419001000

The product satisfies the provision for CE-marking according to the following directive(s) / regulation(s)

including amendments / Produkten uppfyller kraven för CE-märkning enligt följande direktiv / förordningar inklusive ändringar/ Produktet tilfredsstiller bestemmelsen om CE-merking i henhold til følgende direktiv (er) / forskrifter, inkludert endringer / Tuote täyttää seuraavien direktiivien / asetusten mukaiset CE-merkintää koskevat vaatimukset, mukaan lukien muutokset;

Machinery Directive 2006/42/EC

EMC Directive 2014/30/EU

References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared. Hänvisning till de harmoniserade standarder som använts eller hänvisningar till de specifikationer som försäkran om överensstämmelse deklareras: / Referere til harmoniserte standarder som brukes, eller henvisninger til spesifikasjonene der samsvarserklæring er erklärt: / Viittaus yhdenmukaistettuihin standardeihin taiviittaus eritelmiin, jossa vaatimustenmukaisuusvakuutus on julistettu; Machinery: EN 1012-1:2010. EN 60204-1:2018

EMC/LVD: EN 55014-1:2017+A11:2020. EN 55014-2:2015. EN IEC 61000-3-2:2019.

EN 61000-3-3:2013+A1:2019. EN 60335

Signed for and on behalf of;

Product Compliance & Sustainability Manager

Clas Ohlson AB, SE-793 85 Insjön, Sweden

Place and date: Insjön 2022-04-31

Sverige
