Product Type	Jigsaw
Model	PRO Edition JL750-P
Brand	Cocraft
Power Input	750 W
Voltage	230 V / 50 Hz
No-Load Stroke Rate	500 - 3000 spm
Stroke Length	26 mm
Cutting Depth (Wood)	Up to 135 mm
Cutting Depth (Steel)	Up to 10 mm
Orbital Action	4 settings + straight
Bevel Cut	0 - 45 degrees
Base Plate	Steel, adjustable
Dust Extraction	Yes, via dust port (36 mm)
Blade Change	Tool-free lever
Soft Grip Handle	Yes, ergonomic
Lock-Off Switch	Yes, for safety
Blade Guard	Yes, transparent
Weight	2.5 kg
Power Cord Length	2.5 m
Included Accessories	3 blades, hex key, dust nozzle
Maintenance	Clean with dry cloth; replace carbon brushes when needed
Spare Parts	Blades (T-shank), carbon brushes, base plate

Frequently Asked Questions - PRO Edition JL750-P Cocraft

What type of blades does the Cocraft PRO Edition JL750-P jigsaw use?

It uses T-shank blades, which are widely available and compatible with most jigsaws.

How do I change the blade on this jigsaw?

Use the tool-free lever located on the side. Pull the lever, insert the new blade with teeth facing forward, and release the lever to lock it in place.

Can I cut bevels with this saw?

Yes, the base plate tilts from 0 to 45 degrees for bevel cuts. Loosen the bevel adjustment knob, set the angle, and tighten.

What is the maximum cutting depth in wood?

The maximum cutting depth in softwood is 135 mm. In hardwood, it may be slightly less.

Does this jigsaw have orbital action?

Yes, it has 4 orbital settings plus straight cutting. Adjust the orbital action to match the material for faster or smoother cuts.

How do I connect a vacuum cleaner for dust extraction?

Attach a standard 36 mm vacuum hose to the dust port on the rear of the saw. Ensure the vacuum is switched on during operation.

What safety features does this jigsaw have?

It includes a lock-off switch to prevent accidental start, a transparent blade guard for visibility, and a soft-grip handle for control.

Can I use this saw for metal cutting?

Yes, with the appropriate metal-cutting blade, it can cut steel up to 10 mm thickness and aluminum up to 20 mm.

How do I maintain the jigsaw?

Regularly clean the saw with a dry cloth, check the carbon brushes after 50 hours of use, and lubricate the blade guide occasionally.

Where can I find replacement parts?

Replacement blades, carbon brushes, and base plates are available from Cocraft retailers or online parts stores. Use genuine parts for best performance.

USER MANUAL PRO Edition JL750-P Cocraft

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Exterior view of a Cocraft PROEDITION electric tool (no visible text or symbols beyond branding)

Art.no Model

40-9925

PSJ750GH.1

Ver. 20170131

Original instructions

Bruksanvisning i original

Originalbruksanvisning

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

General Safety Requirements - EN 60745-1

Warning: Read all the instructions. Failure to comply with the following instructions can lead to electric shocks, fires and/or serious injury. The term “power tool” in the warning text below refers to your handheld mains operated or battery operated tool.

SAVE THESE INSTRUCTIONS.

1) Work area

a) Keep the work area clean and well illuminated. Cluttered and poorly lit areas invite accidents.
b) Do not use power tools in explosive environments, e.g. near to flammable liquids, gases or dust. Power tools generate sparks that can easily ignite dust or fumes.
c) Keep children and bystanders away from the area where you are using the power tool. Distractions can cause you to lose your concentration and control.

2) Electrical safety

a) The plug of the power tool must fit correctly into the wall socket. Never modify the plug in any way. Never use an adaptor together with earthed power tools. Unmodified plugs and suitable wall sockets minimize the risk of electric shocks.
b) Avoid physical contact with earthed objects, such as pipes, radiators, ovens or refrigerators. There is an increased risk of receiving an electrical shock if your body is earthed.
c) Do not expose the power tool to rain or other wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the mains lead. Never use the lead to carry the tool or pull the plug from a wall socket. Keep the lead away from heat, oil, sharp edges and moving parts. Damaged or tangled leads increase the risk of electric shock.
e) When using power tools outdoors, use an extension lead that is suitable for this purpose. The use of an extension lead designed for outdoor use decreases the risk of electric shocks.

3) Personal safety

a) Pay attention to what you are doing and use common sense when using power tools. Never use power tools if you are tired or under the influence of drugs, alcohol or medication. One moment of inattention while using a power tool may result in serious injury.

b) Wear protective clothing. Always wear safety glasses. Using protective clothing such as dust masks, non-slip safety shoes, helmets and ear defenders when needed decreases the risk of injury.

c) Avoid accidental starts. Make sure that the power switch is set to OFF before plugging the tool into a wall socket. Never carry a power tool with your finger on the trigger and never connect the power tool to a wall socket when the switch is set to ON, since it may result in injury.

d) Remove all service tools/keys before switching on the power tool. A service tool left on a rotating part of the power tool may result in personal injury.

e) Do not overreach. Make sure you stand steady and well balanced at all times. This will allow you to have more control in unexpected situations.

f) Wear suitable clothing. Do not wear loose-fitting clothing or jewellery. Keep hair, clothes and gloves away from moving parts. Loose-fitting clothes, jewellery or long hair could potentially become caught in any moving parts.

g) If equipment for dust extraction or collecting is available make sure it is connected and used properly. Use of dust collection equipment can reduce dust related hazards.

4) Use and maintenance of the power tool

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will perform the task better and safer if used at the correct feed rate.

b) Never use the power tool if the power switch does not switch the tool on and off. Any power tool that cannot be controlled by the power switch is dangerous and must be repaired.

c) Unplug the lead from the wall socket before making any adjustments, changing accessories or storing the power tool. These precautions reduce the risk of the power tool starting unexpectedly.

d) Store power tools that are not being used out of children's reach. Do not allow people who are unfamiliar with the tool or its functions to operate it. Power tools can be dangerous if they fall into the hands of inexperienced users.

e) Maintain power tools. Check for any incorrect settings, parts that catch, broken parts or anything else which may cause the power tool to malfunction. If something is damaged it must be repaired before use. Accidents are frequently caused by poorly maintained power tools.

f) Keep tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and similar according to the instructions and in an appropriate way suitable for the type of power tool used. Also take into consideration your work environment and the type of work to be done.
Using the power tool for a purpose other than that for which it is intended could result in a dangerous situation.

5) Service

a) Repairs and service should only be performed by qualified tradesmen, and only with original spare parts. This guarantees that the safety of the power tool is maintained.

Safety Instructions - Jigsaw EN 60745-2-11

Warning: Always disconnect the plug from the mains before adjusting, servicing or performing maintenance on the machine.

- Hold the power tool by its insulated gripping surfaces when performing an operation where the cutting accessory may contact hidden wiring or the power tool's own mains lead. Cutting accessories which contact "live" wires may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

- If the mains lead is damaged in any way it must be replaced by a qualified electrician.

- Keep your hands away from the blade and other moving parts.

- Do not reach under the workpiece being sawed. Be extra careful if the blade or your hand is out of sight. Make sure that the underside of the workpiece is free of obstacles.

- Do not use blunt or damaged saw blades. Bent saw blades can easily break or cause kickback.

- Start the saw and let it run up to speed before starting to cut.

- Make sure that the soleplate is in constant contact with the workpiece during sawing. Be extra careful when cutting with a tilted soleplate as it is easy to exert too much lateral force on the saw blade.

- Secure the workpiece with a clamp, vice, etc.

- Make sure that the settings are correct and that the blade is securely fastened in the blade holder before beginning to saw.

- Make sure that the saw blade has come to a complete stop before removing the saw from the cut. The saw blade should not be stopped by applying lateral force to the side of the blade.

Vibration

• The measurement of the vibration emission level declared in this instruction manual has been carried out in accordance with a standardised test method described in EN 60745 and can be used for comparing one power tool with another.
• The measurement method may also be used for a preliminary assessment of vibration exposure.
• The declared vibration emission level applies when the power tool is used in accordance with this instruction manual. If however, the power tool is used for other purposes and with other accessories or has not been properly maintained, the vibration emission level could increase significantly over the total working period.
• For an exact assessment of the vibration exposure, the times when the tool is switched off or running idle should also be taken into account. This significantly reduces the vibration exposure over the total working period. Decide upon safety measures to protect the operator from the effects of vibration during all types of use.

Product safety symbols

Icon of a person reading a book inside a circle (no text or symbols)

Read the instruction manual before use.

Simple line drawing of a person wearing glasses and a phone receiver, enclosed in a circle (no text or symbols)

Always wear eye protection. Always wear ear protection. Always wear a dust mask.

Product description

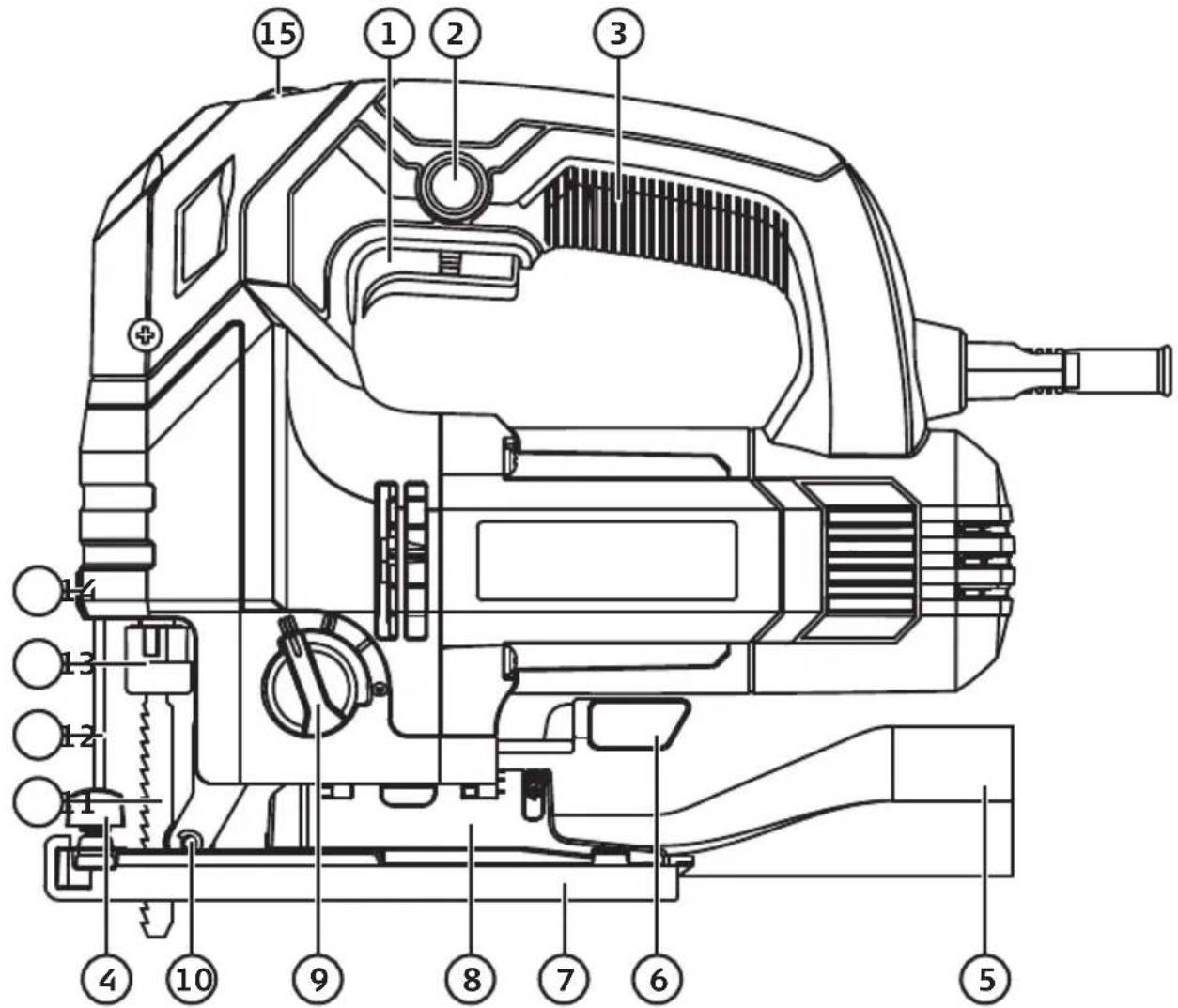

1. Power trigger
2. Trigger lock button
3. Handle
4. Locking knob
5. Dust extractor port
6. Footplate tilt angle locking lever
7. Footplate
8. Footplate bracket with angle scale
9. Pendulum action selector
10. Blade guide roller
11. Saw blade
12. Blade guard
13. Toolless blade clamp (T-shank)
14. Work light
15. Speed selector
16. Parallel guide

Simple line drawing of a mechanical lever or clamp with a numbered label (16) pointing to the pivot point.

Assembly and setup

Warning: Unplug the jigsaw before any service or adjustment.

Fitting the saw blade (T-shank)

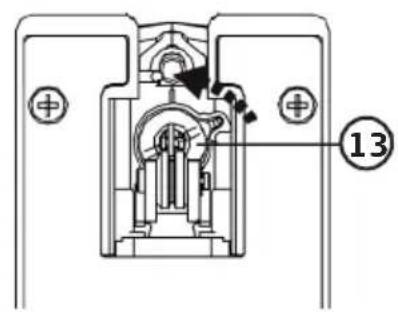

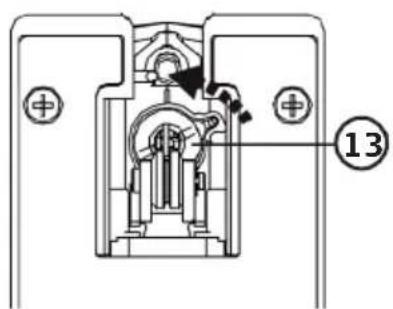

1. Turn the jigsaw upside down and turn the blade clamp ring (13) anticlockwise as far as it will go. Hold the ring in place.
2. Fully insert the blade into the blade clamp, teeth facing forward.
3. Release the clamp ring and let it rotate back and lock the blade in place.
4. Push the blade into the clamp again and pull it down to check that it is securely locked into position.

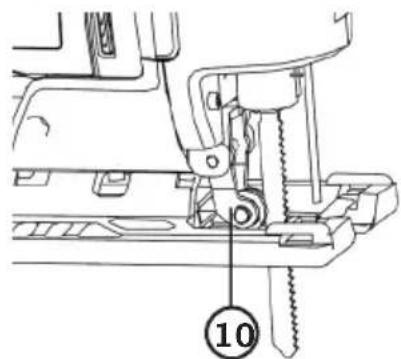

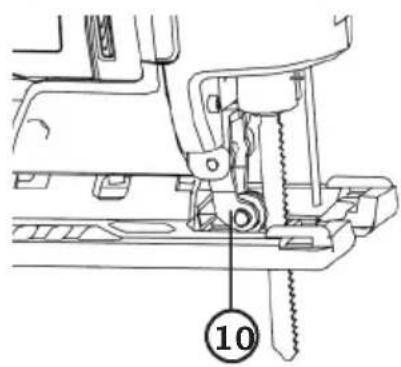

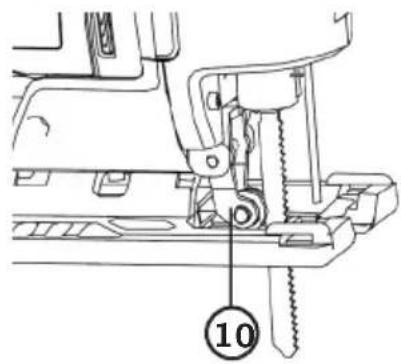

5. Make sure that the back edge of the blade is slotted into the groove in the guide roller (10).

Removing/Replacing the saw blade

1. Turn the jigsaw upside down and turn the blade clamp ring (13) anticlockwise as far as it will go. Hold the ring in place.
2. Pull the blade out of the clamp.
3. Fit a new blade as described above.

Fitting the parallel guide

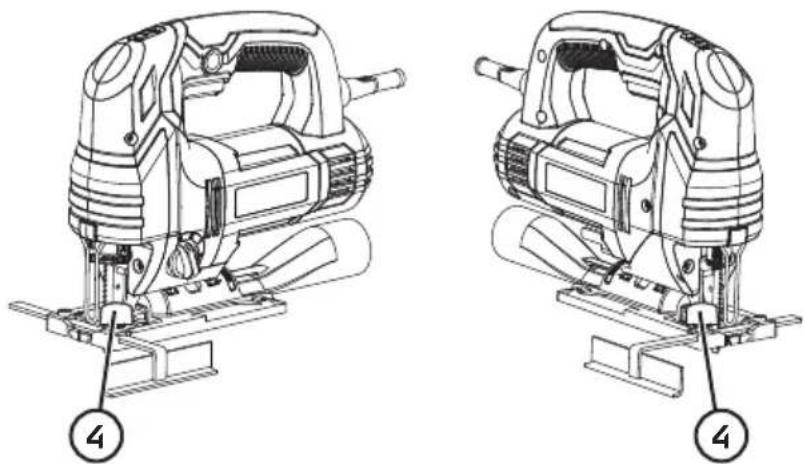

Slide the parallel guide into its clamps and tighten the locking knob (4). The parallel guide can be fitted on either the right or the left side.

Technical line drawings of two different types of power shaver machines, labeled with parts 4 (no text or symbols on the devices themselves)

Footplate angle adjustment

The footplate (7) can be tilted up to 45° to the right or left.

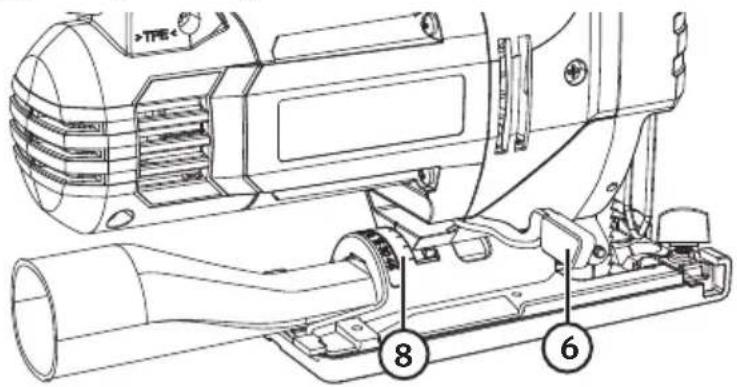

1. Turn the footplate locking lever (6) through 90 degrees.

2. Use the scale on the footplate bracket (8) to set the desired bevel angle. There are several preset angle markings but the footplate can be set to any angle between 0 and 45 degrees. Note: The preset angle markings are accurate enough for most general purposes. If extra precision

is required, the angles should be checked using a protractor.

1. Hold the footplate in place and turn the locking lever back through 90 degrees so that it is in line with the body of the jigsaw to lock the footplate in position.

2. Always make a test cut on a piece of waste material to check the angle setting before starting to cut the real workpiece. Note: Remove or make sure that the parallel guide's locking knob, located at the side of the footplate, is angled away from the saw.

Technical line drawing of a mechanical assembly with no visible text or symbols

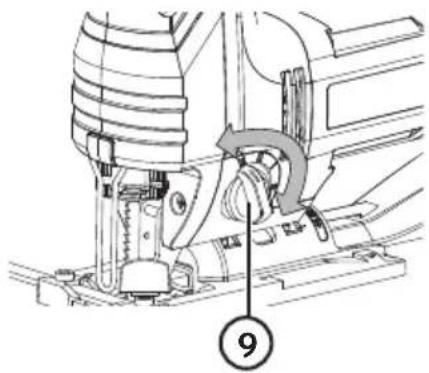

Pendulum action selection

The pendulum action can be set to different levels to vary the cutting angle of the blade for increased cutting efficiency. Select the pendulum action setting which provides the optimum stock removal for the material that you are cutting. For the finest possible cut, the pendulum action should be set to position 0.

1. The pendulum action selector (9) sets the degree of pendulum swing.

2. There are 4 fixed settings, turn the selector carefully until it clicks into a setting. Never use excessive force when pushing the jigsaw forwards. When the pendulum action is used, the blade cuts only on the upward stroke. Refer to the chart below as a guide.

0 Thin materials of sheet metal, wood or plastic. Fine cuts, tight curves.

I Hard materials such as non-ferrous metals and chipboard.

II Thick materials of wood or plastic.

III Wood, provides the highest removal rate.

Technical line drawing of a mechanical assembly with no visible text or symbols

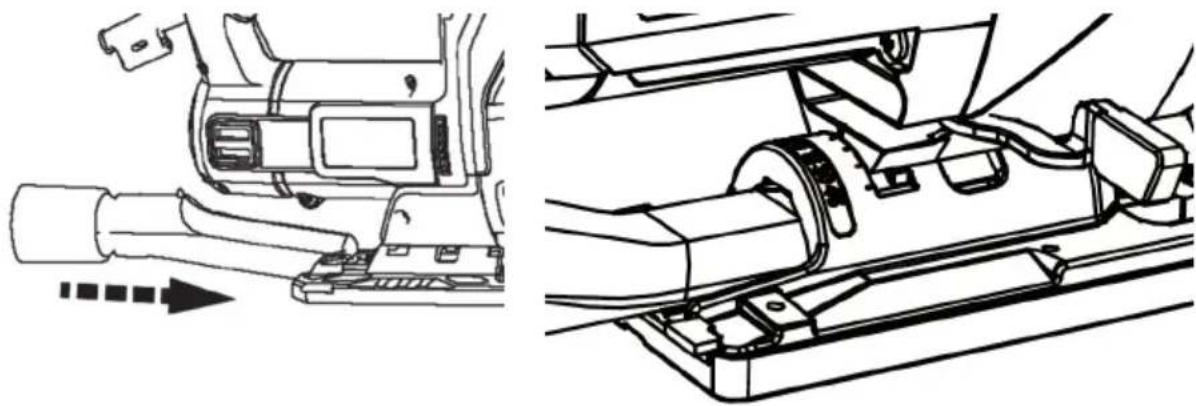

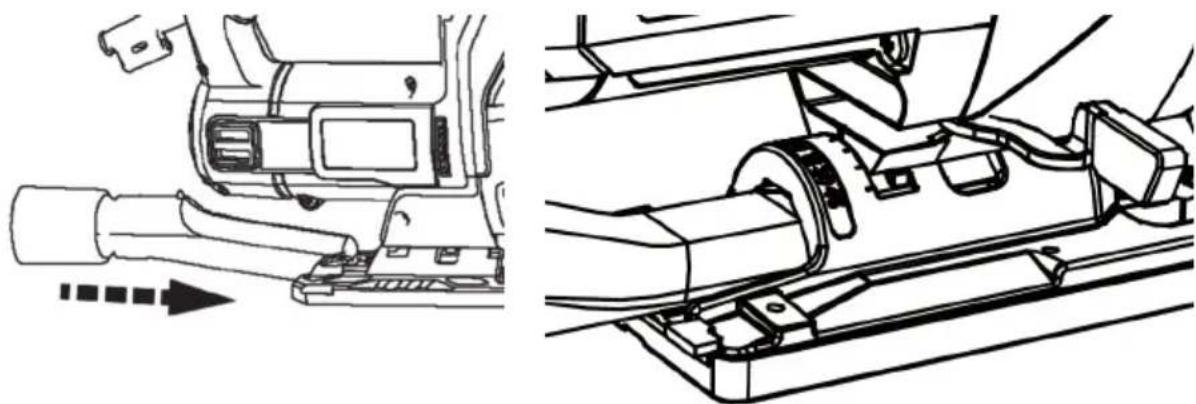

Dust extractor port

1. Attach the dust extractor port to the footplate bracket as shown in the figure.

2. Connect the hose of the vacuum cleaner (industrial vac, ash cleaner or dust extractor) to the dust extractor port.

Technical line drawing of a vehicle's internal components, showing engine, suspension, and wheel assembly (no text or labels)

Cut line blower

The saw has a blower function which keeps the cut line free of dust. The aperture is located just behind the blade guide. Make sure that this aperture is kept free of debris to ensure optimum blower performance.

LED work light

The saw has an LED work light (14) to help in poor lighting conditions. The light should be kept clean to ensure optimum effect.

Operating instructions

Setting the speed

The stroke rate is controlled using the speed selector (15). Refer to the table below as a guide.

• Note: Do not run the saw for long periods at very low speed. Doing so can cause the motor to overheat.
• When you have used the saw at low speed and have finished work, let the motor run at max speed under no load for a minute to cool it down.

Material Speed setting
Wood 5-6
Metal 3-4
Aluminium 3-5
PVC 3-4
Ceramic 3-5

Switching on/off

• Switching on: Start the jigsaw by squeezing the trigger (1).
• Switching off: Release the trigger to switch the jigsaw off.

The jigsaw is equipped with a lock button to lock the trigger on for longer cuts. This is what you do:

Press the trigger lock button (2) and trigger (1) simultaneously and then release the trigger before releasing the trigger lock button. To disengage the trigger lock, squeeze the trigger and then release it.

Operating tips

Preparations

• Measure and mark out the sawing line carefully before starting to cut.
- Small workpieces should be securely clamped. Make sure that the power supply cable does not impede working operations or come into contact with the blade during use.
- Check that the soleplate is locked at the required angle before you begin sawing.
- If you are unsure about the choice of blade speed or type of blade, test-cut a piece of scrap of the same material as the workpiece.

Sawing

• Hold the jigsaw in a firm grip. Make sure that the saw blade is not in contact with the workpiece and then pull the trigger to start the saw. Let the motor come up to speed before starting to cut.
• Never apply excessive forward pressure to the tool – always let the blade do the work.
• Keep hands in sight, do not hold hands under the workpiece where the blade cannot be seen.

Internal cuts

This operation should be undertaken with great care and should only be performed by experienced operators. Internal cutting is only possible in soft materials such as wood.

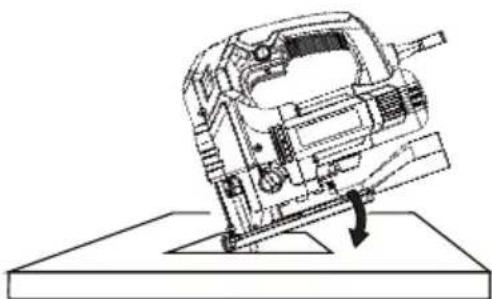

1. Rest the front of the soleplate on the workpiece and tilt the saw forwards. Make sure that the saw blade is not in contact with the workpiece.

2. Run the blade up to full speed and slowly pivot the saw so the blade starts to cut into the material, then slowly lower the entire soleplate onto the workpiece.

(Alternatively, a hole can be drilled in the material to provide a starting point for the blade.)

Technical line drawing of a mechanical assembly with a downward arrow indicating motion (no text or symbols)

Sawing metal

• Be careful, the saw blade can easily bend.
• Use a finer toothed blade if the jigsaw vibrates a lot during operation.
• Lower the speed if the saw blade becomes very hot.
• The use of some kind of lubrication/coolant is recommended, e.g. alcohol for aluminium and cutting oil for steel.
• When cutting thin sheet metal, it is advisable to clamp the sheet to a sheet of thin plywood or similar on either side of the metal. Then saw through all the layers.

Troubleshooting guide

The saw does not start.	Make sure that the mains lead is undamaged and securely plugged into a wall socket.Make sure that the wall socket is live.
The saw runs slowly.	Adjust the speed setting. Refer to the Speed setting section above.Remember not to use too much force on the blade when cutting. Let it work at its own pace.Is the blade worn? Replace if necessary.
Heavy vibrations.	Make sure that the footplate is held against the workpiece.Check that the blade is in good condition and is correctly fitted.

Care and maintenance

• Warning: Unplug the jigsaw and remove the blade before any service or adjustment.
• If the mains lead is damaged it should only be replaced by a qualified electrician.
• Clean the jigsaw by wiping it with a damp cloth. Use only mild cleaning agents, never solvents or corrosive chemicals.
• Keep the motor ventilation openings free from contaminants.
• If the jigsaw is not to be used for an extended period, it should be unplugged and stored in a dry and dust-free location out of reach of children.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner.

When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed with no visible text or labels

Specifications

Rated voltage 220–240 V AC, 50/60 Hz

Mains lead 4 m

Power 750 W

Blade holder T

Variable speed 800–3000 spm

Stroke length 26 mm

Tiltable footplate ±45°

Sawing capacity Wood 100 mm, aluminium 25 mm and steel 10 mm.

Noise emission data LpA: 80 dB(A), uncertainty KpA: 3 dB(A)

LwA: 91 dB(A), uncertainty KwA: 3 dB(A)

Ear protection must be worn when

the sound level exceeds: 80 dB(A)

Vibration value

a_h,B 6.851 m/s ^2 , K: 1.5 m/s ^2

a_h,M 6.766 m/s ^2 , K: 1.5 m/s ^2

Weight 3.1 kg

Sticksåg

Art.nr 40-9925 Modell PSJ750GH.1

Icon of a person reading a book inside a circle (no text or symbols)

Simple line drawing of a person wearing sunglasses and a mask, enclosed in a circle (no text or symbols)

Simple line drawing of a mechanical lever or clamp with a numbered label (16) pointing to the pivot point.

Technical line drawings of two different types of power shaver machines, showing mounting brackets and mounting base (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Stos för dammsugare

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with a downward arrow indicating motion (no text or symbols present)

Sågning i metall

Symbol of a trash bin crossed with no visible text or labels

Specifikationer

Nätanslutning 220–240 V AC, 50/60 Hz

Nätkabel 4 m

Effekt 750 W

Sågbladsfäste T

Steglös hastighet 800–3000 slag/min

Slaglängd 26 mm

Icon of a person reading a book inside a circle (no text or symbols)

Les hele bruksanvisningen!

Simple line drawing of a person wearing glasses and a mask, enclosed in a circle (no text or symbols)

Simple line drawing of a mechanical lever or clamp with a numbered label (16) pointing to the pivot point.

Technical line drawings of two different types of industrial hipoers or pumps, shown from top and side views with no visible text or symbols.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Rørstuss for støvsuger

1. Stussen kobles til festet på fotplaten, som vist på bildene.

2. En grovstøvsuger kobles til stussen.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with a downward arrow indicating motion (no text or symbols)

Saging i metall

Symbol of a trash bin crossed with no visible text or labels

Spesifikasjoner

Nettspenning 220–240 V AC, 50/60 Hz

Strømkabel 4 m

Effekt 750 W

Sagbladfeste T-feste

Trinnløs hastighet 800–3000 slag/min

Slaglengde 26 mm

Justerbar fotplate ±45°

Sagekapasitet Tre 100 mm, aluminium 25 mm, stål 10 mm

Lyd LpA: 80 dB(A), unøyaktighet KpA: 3 dB(A)

LwA: 91 dB(A), unøyaktighet KwA: 3 dB(A)

Bruk hørselvern när lyden overstiger: 80 dB(A)

Icon of a person reading a book inside a circle (no text or symbols)

Simple line drawing of a person wearing glasses and a phone receiver, enclosed in a circle (no text or symbols)

Simple line drawing of a mechanical lever or clamp with a numbered label (16) pointing to the pivot point.

Technical line drawings of two different types of electric drill heads (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Pölynpoistoliitin

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with a downward arrow indicating motion (no text or symbols)

Metallin sahaaminen

Icon of a person reading a book inside a circle (no text or symbols)

Simple line icon of a person wearing sunglasses and a phone receiver, enclosed in a circle (no text or symbols)

Simple line drawing of a mechanical lever or clamp with a numbered label (16) pointing to the pivot point.

Technical line drawings of two different types of industrial machines, labeled with numbers 4 and 4 (no text or symbols on the diagrams themselves)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with a downward arrow indicating motion (no text or symbols)

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Technische Daten

Declaration of Conformity

Machinery Directive 2006/42/EC

EN 60745-1:2009

+A11:2010

EN 60745-2-11:2010

EMC Directive 2014/30/EU

EN 55014-1:2006

+A1:2009+A2:2011

EN 55014-2:1997

+A1:2001+A2:2008+2015

EN 61000-3-2:2014

EN 61000-3-3:2013

Henrik Alfredsson

Manager Technique & Quality

Insjön, Sweden, 2017-01-31

CLAS OHLSON AB, SE-793 85 INSJÖN, SWEDEN

Sverige

Postal 10 - 13 Market Place

Kingston Upon Thames

Surrey

KT1 1JZ

Deutschland

Kundenservice Hotline: [phone]

E-Mail: [e-mail]

Homepage

www.clasohlson.de
