Product Type	Bluetooth Headset (Mono)
Brand	Motorola
Model	HX520
Connectivity	Bluetooth
Simultaneous Connections	Up to 2 phones
Talk Time	Up to 5 hours (depending on usage)
Battery Type	Internal rechargeable (non-removable)
Charging Port	Micro USB
Charging Indicator	Red/Yellow = charging; Green = full
Status Light	Blue (pairing/connected), Purple (second phone), Red (low battery), etc.
Voice Prompts	English only
Buttons	Call, Volume Up, Volume Down, Mute, Power
Wearing Style	Over-ear hook (left or right ear)
Microphones	Dual microphones for noise reduction
Weight	Approx. 10 g (0.35 oz)
Dimensions (approx.)	5.0 x 2.0 x 1.5 cm (2.0 x 0.8 x 0.6 in)
Operating Temperature	-10°C to 60°C (14°F to 140°F)
Charging Temperature	0°C to 45°C (32°F to 113°F)
Storage	Rotate boom to closed position
Cleaning	Dry soft cloth only; no alcohol or solvents
Safety	Do not expose to liquids, extreme heat/cold, or microwaves
Certifications	FCC, CE, Anatel
Warranty	1 year (varies by region)
Support	www.motorola.com/support

Frequently Asked Questions - HX520 MOTOROLA

How do I pair my HX520 headset with my phone?

Turn off any previously paired Bluetooth devices. Ensure Bluetooth is enabled on your phone. Wear the headset and turn it on. The status light will turn steady blue and you will hear 'ready to pair'. Follow the voice prompts and enter 0000 as the passkey when prompted. You will hear 'pairing complete' when successful.

How can I connect a second phone to my headset?

Turn off the first phone and any other paired devices. Turn off the headset, then put it on your ear. Enable Bluetooth on the second phone, then turn on the headset. When you hear 'ready to pair', follow the voice prompts and enter 0000 as the passkey. Then turn on the first phone; you will hear 'phone 2 connected' when both are linked.

What do the different status light colors mean?

The status light indicates various states: steady blue (pairing mode), rapid blue/purple flashes (connected to phone), slow blue pulse (on a call), slow blue flash (standby, one phone), slow green flash (standby, two phones), slow red flash (idle, not connected), steady red (trying to connect), quick red flash (low battery). Yellow/red during charging, green when fully charged.

How do I check the battery level?

While not on a call, press both Volume Up and Volume Down buttons simultaneously. The status light will flash and you will hear a voice prompt: low (red, less than 2 hours), medium (yellow, 2-5 hours), or high (green, more than 5 hours talk time remaining).

Can I turn off the voice prompts?

Yes. With the headset turned on, press and hold either Volume button and the Call button simultaneously until you hear 'voice prompts off'. Repeat to turn them back on.

How do I reset my headset?

Warning: This erases all pairing information. With the headset on, press and hold both Volume buttons and the Call button together for about 10 seconds until the status light turns steady blue.

My headset won't enter pairing mode. What should I do?

Make sure all previously paired devices are turned off. If the status light is flashing blue, turn off the other device, then turn your headset off and on again. The light should become steady blue and you will hear 'ready to pair'.

My phone cannot find the headset during search.

Ensure the headset's status light is steadily lit in blue. If not, press and hold the Call button and both Volume buttons until you hear 'ready to pair'. Also confirm Bluetooth is enabled on your phone.

How do I answer or end a call?

To answer a call, press the Call button. To end a call, press the Call button again. To reject a call, press and hold either Volume button until you hear a tone.

How do I mute a call?

During a call, press the Mute button. You will hear 'mute on'. Press it again to unmute, and you will hear 'mute off'. The status light will pulse slowly purple while muted.

USER MANUAL HX520 MOTOROLA

Abstract black and white geometric logo resembling a stylized letter 'M' within a circle (no text or symbols)

MOTOROLA HX520

Quick Start Guide

Congratulations

Your MOTOROLA HX520 headset is designed for quick connections, clear calls, and lasting comfort.

Some other cool features:

• Simultaneously connect with two phones.
• Use voice prompts to guide you on connections, battery level, and other functions.

We've crammed all of the main features of your headset into this handy guide, and in a matter of minutes we'll show you just how easy your headset is to use.

So go on, check it out.

more information

on the Web: www.motorola.com/support

Caution: Before using your headset for the first time, please read the important Safety, Regulatory & Legal information at the back of this guide (page 17).

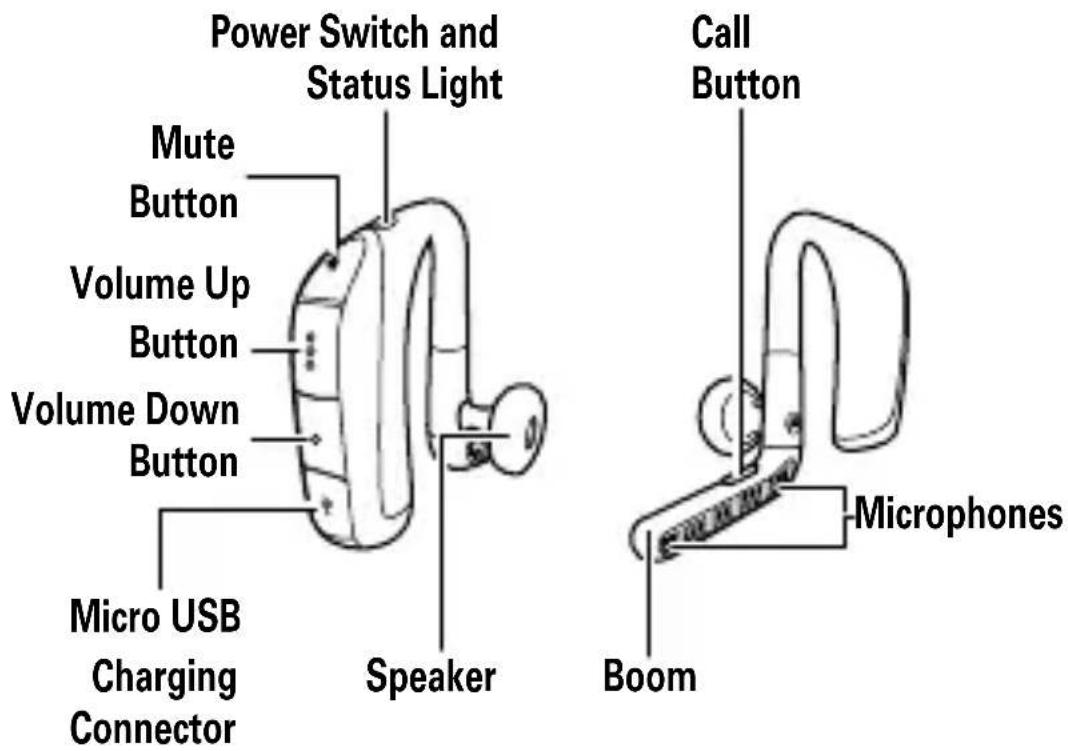

Your headset

the important parts

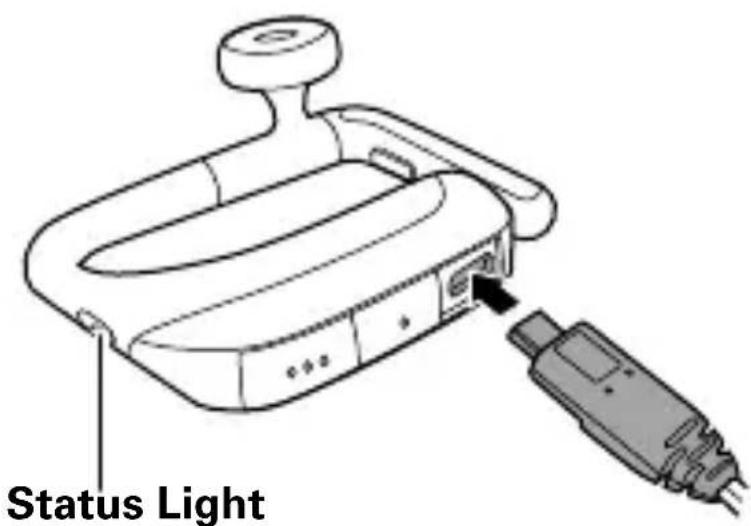

Charge it

let's get you up and running

Red/Yellow = charging

Green = fully charged

While your headset is charging, you won't be able to use it.

Note: Your battery is designed to last the life of your product. It should only be removed by a recycling facility. Any attempt to remove or replace your battery will damage your headset.

Basics

a few essentials to get you started

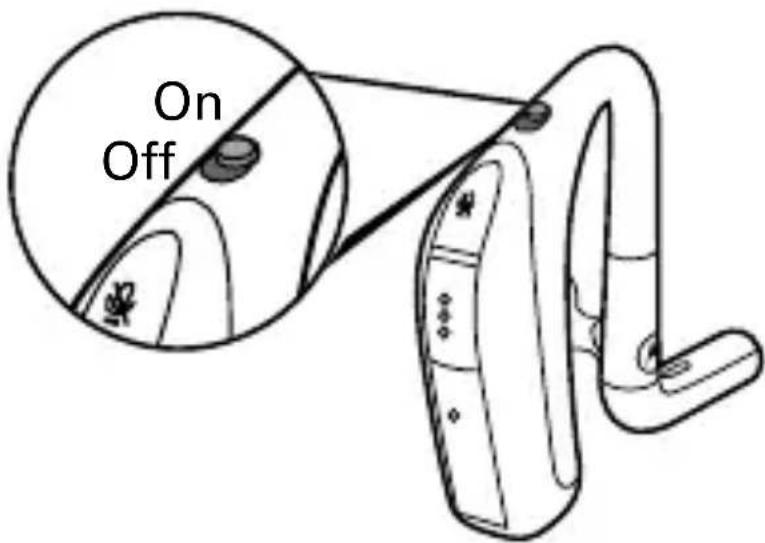

Turn it on & off

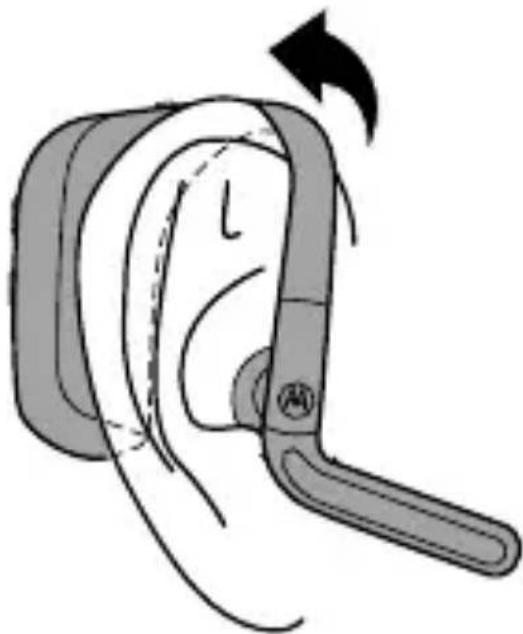

Wear it

1 Rotate the boom to the open position and the speaker to the right or left (depending on which you ear you use).

2 Loop it over your ear (ensure main housing is behind your ear and the boom points towards your mouth).

Diagram of a hand-operated ear device with a curved arrow indicating rotation (no text or symbols)

Tip: Try out all the supplied ear cushions to get a comfortable fit and optimal performance.

5 Basics

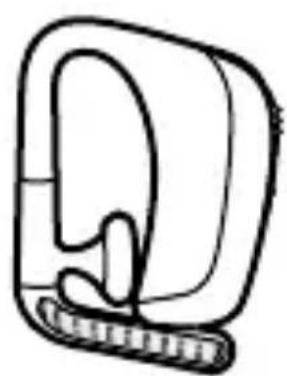

Store it

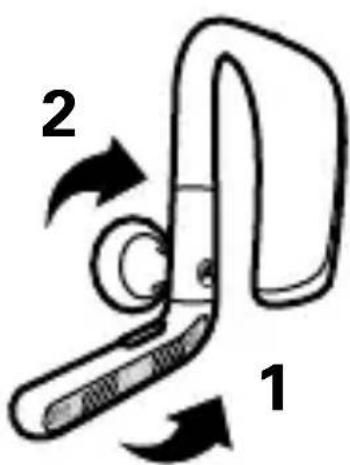

Rotate the boom (1) and speaker (2) as shown to the closed position.

Simple line drawing of a medical device with a ruler and clamped cup (no text or symbols)

storing position

Note: Only rotate the boom in the direction shown. It will not rotate in the other direction.

Pair & connect

connect and go

Note: The voice prompts are only in English.

Pair & connect with your phone

1 Turn off any Bluetooth™ devices previously paired with your headset.
2 Turn on the Bluetooth feature on your phone.
3 Put the headset on your ear (see "Wear it" on page 5).
4 Turn on your headset (see "Turn it on & off" on page 5).

The status light becomes steadily lit in blue and you hear “ready to pair”.

5 Follow the voice prompts to connect your phone to your headset.

Note: When prompted for the passkey, enter 0000.

When your headset successfully pairs with your phone, you hear “pairing complete”.

For daily use, make sure your headset is turned on, and your phone's Bluetooth feature is on. Your headset and phone will connect automatically.

Pair & connect a second phone

1 Turn off first phone and any other Bluetooth devices previously paired with your headset.
2 Turn your headset off (see "Turn it on & off" on page 5).
3 Put the headset on your ear.
4 Turn on the Bluetooth feature on your phone.
5 Turn on your headset.
The status light becomes steadily lit in blue and you hear “ready to pair”.
6 Follow the voice prompts to connect your phone to your headset.

Note: When prompted for the passkey, enter 0000.

When your headset successfully pairs with your phone, you hear “pairing complete”.

To connect to both phones, turn on the first phone while the second phone is connected. When you hear “phone 2 connected”, your headset is connected to both phones.

Test your connection

1 Place the headset on your ear.
2 On your phone, dial a phone number and press the Call/Send key.

If your phone and headset are successfully connected, you hear ringing on the headset.

Calls

it's good to talk

Note: Some features are phone/network dependent.

Note: The voice prompts are only in English.

To...
answer call Press the Call button.
reject call Press and hold a Volume button until you hear a tone
make a voice dial call	Press the Call button and you hear a tone.
redial last call Press and hold the Call button until you hear a tone.
mute or unmute a call	Press the Mute button and you hear “mute on” or “mute off”.
end a call Press the Call button.
answer second incoming call	Press the Call button.
reject second incoming call	Press and hold a Volume button until you hear a tone.

Tip: When connected to two phones, follow the voice prompts to perform functions such as voice dial and redial on the desired phone.

Talk time

check your chat time

Note: The voice prompts are only in English.

Press both Volume buttons while not on a call.

if light shows... and/or you hear...	your remaining talk time is...
red “battery level is low”	less than 2 hours
yellow “battery level is medium”	between 2 to 5 hours
green “battery level is high”	more than 5 hours

To save battery power, turn off the headset when not using it for an extended time.

Status light

know your headset

If light shows... your headset is...

three blue flashes powering on/off

steady blue in pairing/connect mode

rapid blue/purple flashes connected to your phone

quick blue flash receiving or making a call on phone 1

quick purple flash receiving or making a call on phone 2

slow blue pulse on a call

slow blue flash in standby (not on a call—connected to one phone)

slow green flash in standby (not on a call—connected to two phones)

slow red flash idle (not connected to a phone)

slow purple pulse muting the call

steady red trying to connect to your phone

quick red flash in a low battery state

Note: After 1 minute on a call or 20 minutes of inactivity, the light stops flashing to conserve power, but the headset remains on.

Settings

make some changes

Note: The voice prompts are only in English.

Turn voice prompts on & off

With the headset turned on, press and hold either Volume button and Call button until you hear “voice prompts on” or “voice prompts off”.

Reset

Caution: This action erases all pairing information stored in your headset.

1 Ensure your headset is on.
2 Press and hold both Volume buttons and Call button together for 10 seconds until the status light is steady blue.

Problems?

we've got solutions

Note: The voice prompts are only in English.

My headset will not enter pairing mode

Make sure that any devices previously paired with the headset are turned off. If the status light is flashing in blue, first turn off the other device, then turn the headset off and on. The status light becomes steadily lit in blue and you hear “ready to pair”.

My phone doesn't find my headset when searching

Make sure the status light on your headset is steadily lit in blue when your phone is searching for devices. If not, press and hold the Call button and both Volume buttons until you hear “ready to pair”.

My headset worked before but now it's not working

Make sure your phone is on and the Bluetooth feature is turned on in your phone. If the Bluetooth feature was turned off or was turned on only temporarily, you may need to restart the Bluetooth feature and pair your phone and headset again (see “Pair & connect” on page 7).

Support

we're here to help

If you have questions or need assistance, visit us at www.motorola.com/Bluetoothsupport or www.motorola.com/bluetoothconnect

Safety & General Information IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION. READ THIS INFORMATION BEFORE USING YOUR DEVICE.

Use & Safety for Battery-Powered Accessories

• Do not store or use your battery-powered accessory (such as a Bluetooth® headset or other device) in temperatures below -10°C (14°F) or above 60°C (140°F).
• Do not recharge your accessory in temperatures below 0°C (32°F) or above 45°C (113°F).
• Conditions inside a parked car can exceed this range. Do not store your accessory in a parked car.
• Do not store your accessory in direct sunlight.
• Storing your fully charged accessory in high-temperature conditions may permanently reduce the life of the internal battery.
• Battery life may temporarily shorten in low-temperature conditions.

Approved Accessories

Use of accessories not approved by Motorola, including but not limited to batteries, antennas, and convertible covers, may cause your mobile device to exceed RF energy exposure guidelines and may void your mobile device's warranty. For a list of approved Motorola accessories, visit our Web site at: www.motorola.com

Driving Precautions

Responsible and safe driving is your primary responsibility when behind the wheel of a vehicle. Using a mobile device or accessory for a call or other application while driving may cause distraction. Using a mobile device or accessory may be prohibited or restricted in certain areas, always obey the laws and regulations on the use of these products.

While driving, NEVER:

- Type or read texts.

• Enter or review written data.
• Surf the web.
• Input navigation information.
• Perform any other functions that divert your attention from driving.

While driving, ALWAYS:

• Keep your eyes on the road.
• Use a handsfree device if available or required by law in your area.
• Enter destination information into a navigation device before driving.
• Use voice activated features (such as voice dial) and speaking features (such as audible directions), if available.
• Obey all local laws and regulations for the use of mobile devices and accessories in the vehicle.
  • End your call or other task if you cannot concentrate on driving.

Responsible driving practices can be found at www.motorola.com/callsmart (in English only).

Caution About High Volume Usage

Warning: Exposure to loud noise from any source for extended periods of time may affect your hearing. The louder the volume sound level, the less time is required before your hearing could be affected.

To protect your hearing:

• Limit the amount of time you use headsets or headphones at high volume.
• Avoid turning up the volume to block out noisy surroundings.
• Turn the volume down if you can't hear people speaking near you.

If you experience hearing discomfort, including the sensation of pressure or fullness in your ears, ringing in your ears, or muffled speech, you should stop listening to the device through your headset or headphones and have your hearing checked.

For more information about hearing, see our Web site at direct.motorola.com/hellomoto/nss/AcousticSafety.asp(in English only).

Small Children

Keep your mobile device and its accessories away from small children.

These products are not toys and may be hazardous to small children. For example:

• A choking hazard may exist for small, detachable parts.
• Improper use could result in loud sounds, possibly causing hearing injury.
• Improperly handled batteries could overheat and cause a burn.

Symbol Key

Your battery, charger, or mobile device may contain symbols, defined as follows:

Symbol Definition
	Important safety information follows.
	Do not dispose of your battery or mobile device in a fire.
	Do not dispose of your battery or product with your household waste. See “Recycling” for more information.
	For indoor use only.

European Union Directives Conformance Statement

CE

Hereby, Motorola declares that this product is in compliance with:

• The essential requirements and other relevant provisions of Directive 1999/5/EC
  • All other relevant EU Directives

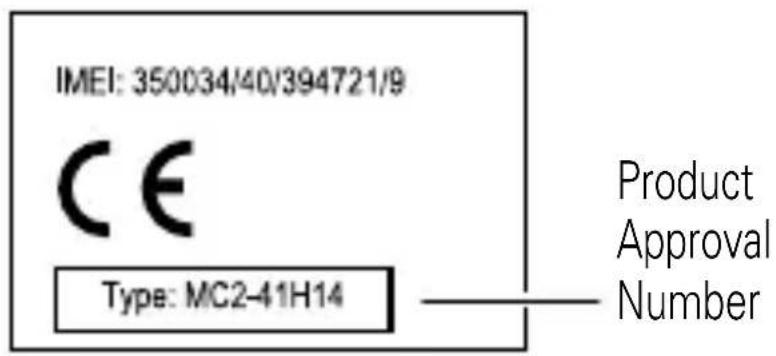

The above gives an example of a typical Product Approval Number.

You can view your product's Declaration of Conformity (DoC) to Directive 1999/5/EC (to R&TTE Directive) at www.motorola.com/rtte. To find your DoC, enter the Product Approval Number from your product's label in the "Search" bar on the Web site.

FCC Notice to Users

The following statement applies to all products that have received FCC approval. Applicable products bear the FCC logo, and/or an FCC ID in the format FCC ID:xxxxxx on the product label.

Motorola has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user's authority to operate the equipment. See 47 CFR Sec. 15.21.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. See 47 CFR Sec. 15.19(3).

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Privacy & Data Security

Motorola understands that privacy and data security are important to everyone. Because some features of your product may affect your privacy or data security, please follow these recommendations to enhance protection of your information:

- Monitor access —Keep your product with you and do not leave it where others may have unmonitored access. Lock your product's keypad where this feature is available.

- Keep software up to date —If Motorola or a software/application vendor releases a patch or software fix for your product that updates the device's security, install it as soon as possible.

- Secure Personal Information —Your product can store personal information in various locations including a SIM card, memory card, and built-in memory. Be sure to remove or clear all personal information before you recycle, return, or give away your product..

Note: For information on how to backup or wipe data from your product, go to www.motorola.com/support

- Online accounts —Some products provide a Motorola online account. Go to your account for information on how to manage the account, and how to use security features.

- Applications—Install third party applications from trusted sources only. Applications can have access to private information such as call data, location details and network resources.

If you have further questions regarding how the use of your mobile device may impact your privacy or data security, please contact Motorola at [e-mail], or contact your service provider.

Use & Care

To care for your Motorola product, please keep it away from:

liquids of any kind

Don't expose your product to water, rain, extreme humidity, sweat, or other moisture. If it does get wet, don't try to accelerate drying with the use of an oven or dryer, as this may damage the product.

extreme heat or cold

Avoid temperatures below -10^ ( 14^ ) or above 60^ ( 140^ ).

microwaves

Don't try to dry your product in a microwave oven.

dust and dirt

Don't expose your product to dust, dirt, sand, food, or other inappropriate materials.

cleaning solutions

To clean your product, use only a dry soft cloth. Don't use alcohol or other cleaning solutions.

shock and vibration

Don't drop your product.

Recycling

Mobile Devices & Accessories

Please do not dispose of mobile devices or electrical accessories (such as chargers, headsets, or batteries) with your household waste, or in a fire. These items should

be disposed of in accordance with the national collection and recycling schemes operated by your local or regional authority. Alternatively, you may return unwanted mobile devices and electrical accessories to any Motorola Approved Service Center in your region. Details of Motorola approved national recycling schemes, and further information on Motorola recycling activities can be found at:

www.motorola.com/recycling

Packaging & Product Guides

Product packaging and product guides should only be disposed of in accordance with national collection and recycling requirements. Please contact your regional authorities for more details.

Software Copyright Notice

Motorola products may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product.

Content Copyright

The unauthorized copying of copyrighted materials is contrary to the provisions of the Copyright Laws of the United States and other countries. This device is intended solely for copying non-copyrighted materials, materials in which you own the copyright, or materials which you are authorized or legally permitted to copy. If you are uncertain about your right to copy any material, please contact your legal advisor.

Latin America Warranty, Except Mexico

Latin America Warranty Motorola Mobility Inc. Subscribers/Cellular Division

Through its own service centers and/or its authorized service centers, Motorola provides a 1-year warranty that covers the cellular phone, all its parts and labor against any defect and operation as long as the “Product” has been operated and handled under normal conditions. The term of 1 year begins when the “Product” is purchased.

Conditions

1. For warranty service, return the "Product" and this warranty to the place of purchase or to any Motorola authorized service center.

If additional information is needed, please contact any of our service centers:

Motorola Comercial, S.A. de C.V.

Bosques Alisos No. 125

Diagonal 127A N. 17-64

Bogotá, Colombia

Telephone: [phone]

Telephone: [phone]

Telephone: [phone]

If the cellular phone has been installed in a vehicle, take the vehicle to the service center to analyze the equipment, or the installation on the vehicle. This warranty does not cover the installation of the cellular phone.

1. Motorola Mobility Inc., through its own service centers and/or their authorized service centers, will repair or replace the cellular phone at no charge. This warranty covers shipping expenses, only if it is needed to make the repair. Motorola Mobility Inc. through its own service centers and/or their authorized service centers, at its own discretion, will repair, replace, or reimburse the purchase price of the defective cellular phone only during the warranty period, as long as the "Product," in accordance with the conditions established in this warranty, is returned to a Motorola service center or to a Motorola authorized service center. All the accessories, batteries, parts, small boards or equipment of the cellular telephone that by virtue of being defective are replaced in fulfillment of this warranty, will automatically become property of Motorola Mobility Inc.
2. To receive warranty service, present your cellular phone or accessory to any Motorola service center or Motorola authorized service center, along with your receipt of purchase or comparable substitute that indicates the date of purchase, serial number of the transceiver, and/or electronic serial number.
3. The repair time will not be greater than 30 days, starting from the day the equipment was received at the service center.
4. To purchase parts, spare parts, accessories and service not covered by this warranty, contact one of the service centers listed in section 1, or any authorized service center in your locality.
5. This warranty is not valid in the following cases:

• Defects or damages derived from abnormal use.

- Defects or damages derived from accident or negligence.

- Defects or damages derived from tests, unsuitable operation, maintenance, installation and adjustments, or derived from any alteration or modification of any type.

- Damage caused to antennas, unless they are consequences of defects in material or workmanship.

- When the cellular phone has been disassembled and/or repaired so that its operation has been affected or that it can not be tested to verify any claim that grants this warranty.

• Any cellular phone with a serial number that has been removed, altered, or obliterated.
  • Defects or damages caused by food spills or liquids.
• When the cables of the control unit have been stretched or the module tongue-piece has broken.
• When the surface of the "Product" and its pieces have been scratched or damaged due to normal use.
• Leather cases.
• Rented cellular phones.
• When the "Product" has been altered or repaired by non-Motorola authorized service centers.

• When the "Product" has not been operated in agreement with the instructions that accompany the "Product."

• The batteries (Nickel-Cadmium) are warranted only if their capacity is reduced by 80% below its predicted capacity. This warranty is null for all types of batteries if:

- The batteries are charged by a charger that has not been approved by Motorola.

- Any of the battery seals are broken or tampered with.

- The batteries were used or installed in non-Motorola equipment.

"Product":

Brand: Motorola Model:

Number of Mechanical Series:

Number of Electronic Series:

Name of Distributor:

Street and Number:

Town:

Municipality:

Postal Code, City, State, or Country:

Telephone:

Date of Delivery or Installation:

Limited Warranty (Mexico)

For Motorola personal communication products and accessories purchased in Mexico

I. Concepts Covered by this Warranty

This warranty covers all the parts, components, accessories and labor of the Motorola “Product” from defects in materials and workmanship under normal consumer usage.

The Motorola “Products” that are protected under this warranty can be: (a) cellular telephones, (b) radar sets, (c) two-way radios, and (d) wireless telephones.

Motorola Comercial, S.A. de C.V., at its option, will at no charge repair, replace, or refund the purchase price of any “Product” that does not conform to this warranty. Motorola may use functionally equivalent reconditioned/refurbished/pre-owned or new products, accessories, or parts. Updates in software are not covered.

II. Length of Warranty Coverage

The length of coverage is one (1) year from the date the new “Product” was purchased from an authorized distributor.

III. Place where consumers can make the warranty effective, obtain parts, components, and accessories

Motorola Comercial, S.A. de C.V.

Bosques de Alisos 125

IV. Procedure to Make the Warranty Effective

For warranty service, return the “Product” (with its components and accessories, such as batteries, antennas, and charger) to the place of purchase, to the address above, or to an authorized service center, or call 01 800 021 0000. To request a refund, you must present this warranty, sealed by the place of purchase, along with the “Product.”

V. Warranty Limitations or Exceptions

The warranty is not valid when:

• The "Product" has been used in conditions different from the normal ones.
• The "Product" has not been operated as described in the operating instructions.)
• The "Product" has been altered or repaired by someone other than Motorola, or its authorized service centers.

If repairs are not covered by this warranty, Motorola, at the request of the purchaser, will provide information regarding availability, prices, and other conditions for the repair of the “Product.”

To obtain information on products that need repairs not covered by this warranty, please call 01 800 021 0000.

Product Model: Date of Purchase:
Seal of the authorized or established distributor where the “Product” was purchased:

Note: In other countries, consult the laws and local regulations under the warranty and its local Motorola office.

Copyright & Trademarks

Motorola Mobility, Inc. Consumer Advocacy Office 600 N US Hwy 45 Libertyville, IL 60048 www.hellomoto.com

Note: Do not ship your product to the above address. If you need to return your product for repairs, replacement, or warranty service, please contact the Motorola Customer Support Center at:

1-800-331-6456 (United States)

1-888-390-6456 (TTY/TDD United States for hearing impaired)

1-800-461-4575 (Canada)

Motorola Mobility Argentina S.A.

Suipacha 1111 - Piso 18

C1008AAW Buenos Aires

ARGENTINA

Motorola Industrial Ltda.

Certain features, services and applications are network dependent and may not be available in all areas; additional terms, conditions and/or charges may apply.

Contact your service provider for details.

All features, functionality, and other product specifications, as well as the information contained in this guide, are based upon the latest available information and believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation.

MOTOROLA and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. The Bluetooth trademarks are owned by their proprietor and used by Motorola Mobility, Inc. under license. All other product or service names are the property of their respective owners.

© 2010 Motorola Mobility, Inc. All rights reserved.

Caution: Changes or modifications made in the radio phone, not expressly approved by Motorola, will void the user's authority to operate the equipment.

Product ID: Motorola HX520

Manual Number: 68014248001-A

Abstract black-and-white geometric logo resembling a stylized letter 'M' within a circle (no text or symbols)

MOTOROLA HX520

Line drawing of a medical device with a connector inserted, showing internal components and a terminal block (no text or symbols)

Luz de estado

Roja/Amarilla = carga

Verde = carga completa

Diagram of a hand-wear device with a curved arrow indicating rotation (no text or symbols)

4 Conceptos básicos

Simple line drawing of a medical device with a ruler for scale (no text or symbols)

www.motorola.com/Bluetoothsupport o

www.motorola com/bluetoothconnect

Mientras conduce, NUNCA:

Diagonal 127A N. 17-64

Bogotá, Colombia

Teléfono: 615-5759

Teléfono: 615-5769

Teléfono: 216-1743

Abstract black and white geometric logo resembling a stylized letter 'M' within a circle (no text or symbols)

MOTOROLA HX520

na Web: www.motorola.com/support

Diagram of a handbell with a handle and belt, showing a curved arrow indicating rotation (no text or symbols)

Simple line drawing of a medical device with a ruler for scale (no text or symbols)

www.motorola.com/recycling

Logo featuring a stylized eye and curved shape, labeled 'ANATEL' below (no additional text or symbols)

Anatel: 2257-10-0502
