USER MANUAL HK200 MOTOROLA

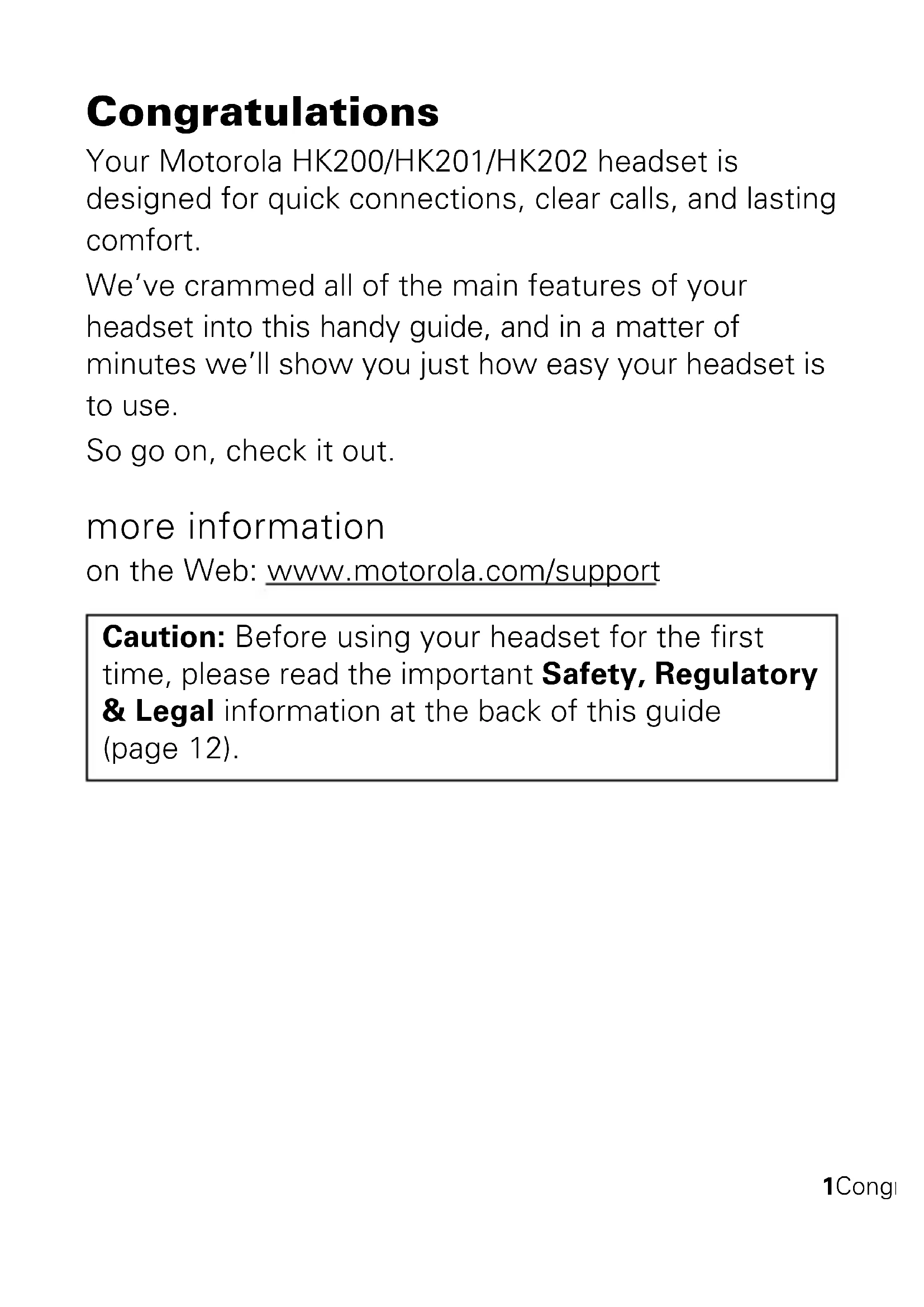

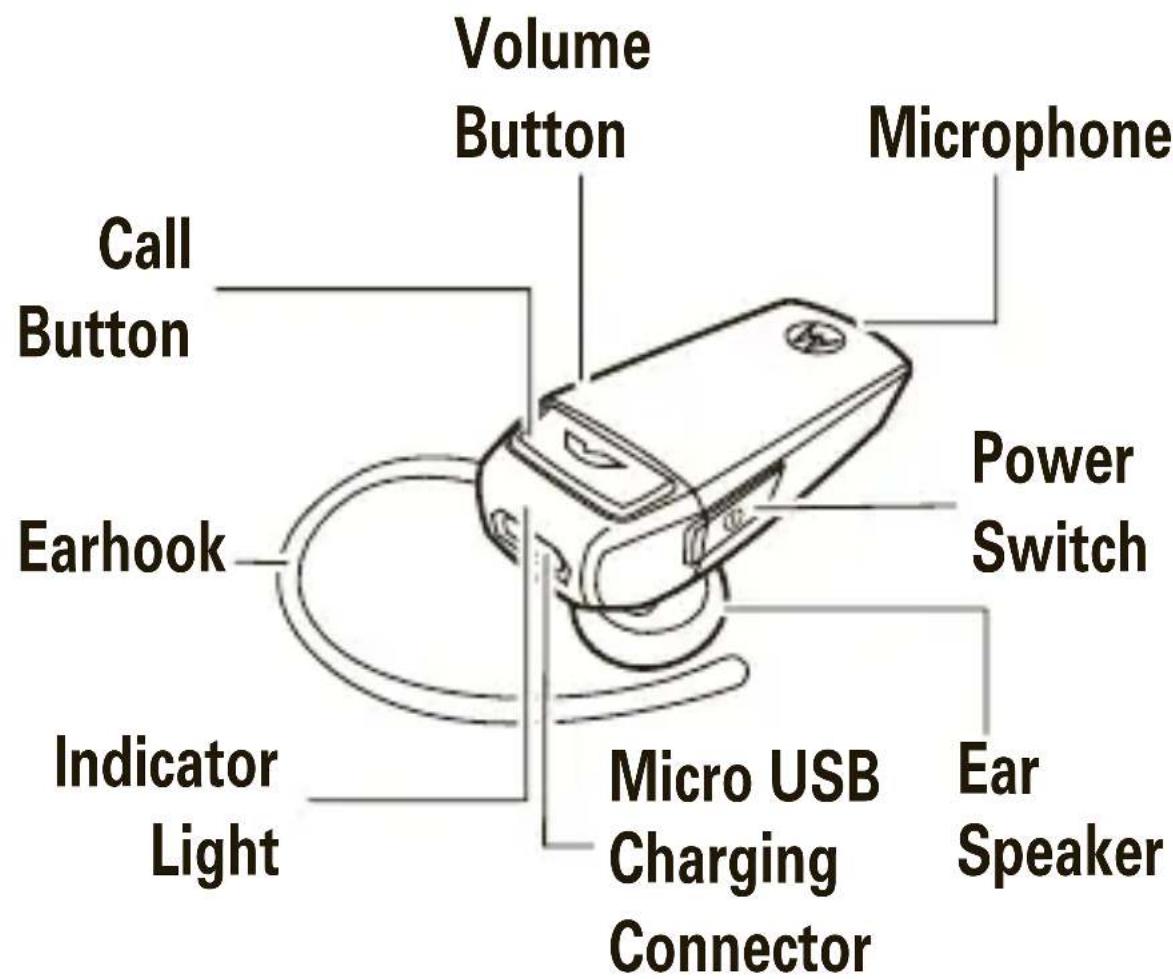

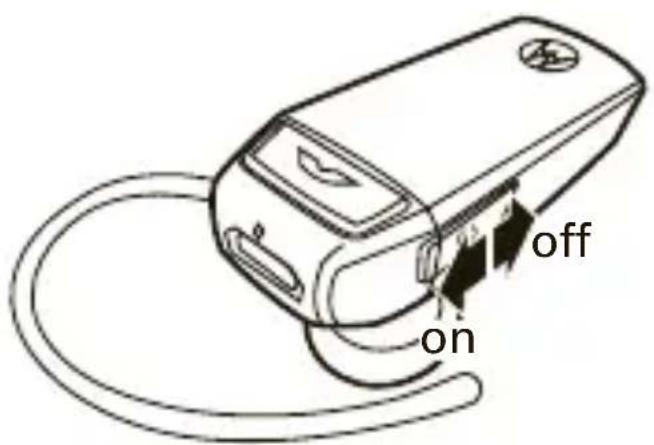

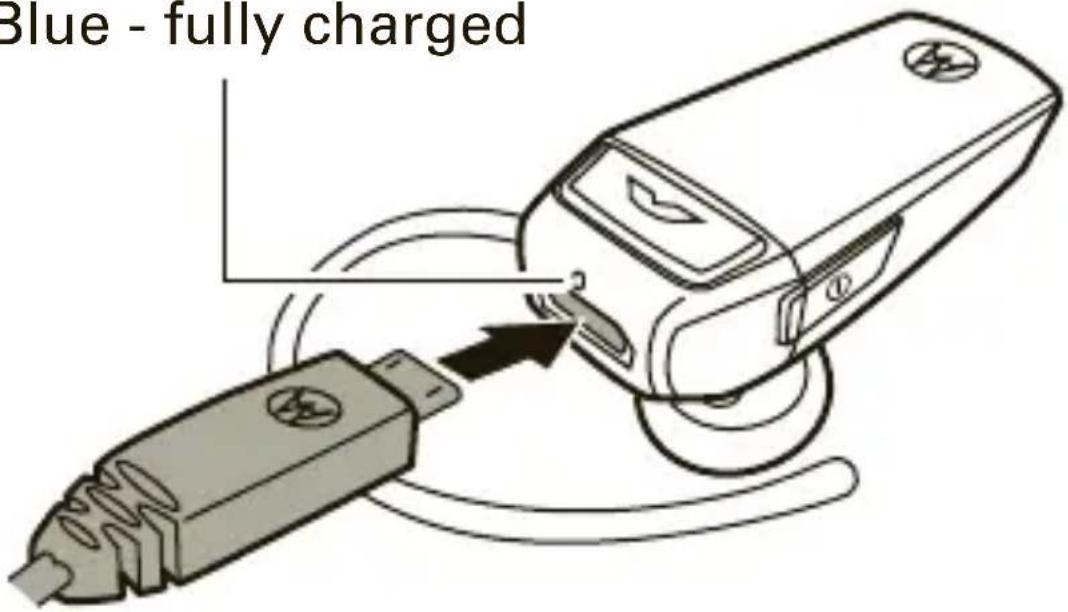

Quick Start Guide motorola HK200 HK201 HK2021Congratulations Congratulations Your Motorola HK200/HK201/HK202 headset is designed for quick connections, clear calls, and lasting comfort. We’ve crammed all of the main features of your headset into this handy guide, and in a matter of minutes we’ll show you just how easy your headset is to use. So go on, check it out. more information on the Web: www.motorola.com/support Caution: Before using your headset for the first time, please read the important Safety, Regulatory & Legal information at the back of this guide (page 12).2 Your headset Yo u r h e a d s e t the important buttons and connectors Earhook Power Switch Micro USB Charging Connector Volume Button Call Button Ear Speaker Indicator Light Microphone3Charge it Charge it let’s get you up and running Note: Headset is not functional while charging. Note: Your battery is designed to last the life of your product. It should only be removed by a recycling facility. Any attempt to remove or replace your battery will damage your headset. Indicator Light Red/Purple - charging Blue - fully charged4 Basics Basics a few essentials to get you started Turn it on & off Use the power switch to turn your headset on and off as shown. Wear it Flex the ear hook and loop it over your ear as shown. Make sure the speaker aligns with your ear canal, and the microphone is pointing towards your mouth. Your headset comes ready for use on your right ear. To change the ear hook for use on the left ear, just pull off the earhook, turn, and reinstall as shown. off on5Pair & connect Pair & connect connect and go Note: The voice prompts are only in English. 1 Turn off any Bluetooth devices previously paired with your headset. 2 Turn on the Bluetooth feature on your phone. 3 Put the headset on your ear (see “Wear it” on page 4 for help). 4 Turn on your headset (see “Turn it on & off” on page 4 for help). The indicator light becomes steadily lit in blue and you hear “ready to pair”. 5 Follow voice prompts to connect your phone to your headset. Note: When prompted for the passkey, enter 0000. When your headset successfully pairs with your phone, you hear “pairing complete”. When connected, you hear “phone connected” and see the indicator light rapidly flash in blue and purple. Test your connection 1 Place the headset on your ear. 2 On the phone, dial the number you want to call and press the Call/Send key.6 Pair & connect If your phone and headset are successfully connected, you hear ringing on the headset. For daily use, make sure your headset is turned on, and your phone’s Bluetooth feature is on. Your headset and phone will connect automatically. Restore to factory settings Caution: This action erases all pairing information stored in your headset. 1 Turn your headset off. 2 Press and hold the Volume button and Call button together, and turn your phone on wait until the indicator light is steady blue.7Calls Calls it’s good to talk Note: Some call features are phone/network dependent. Note: The voice prompts are only in English. To . . . answer call Press the Call button. reject call Press and hold the Volume button until you hear a tone. make a voice dial call Press the Call button and you hear a tone. redial last call Press and hold the Call button until you hear a tone. mute or unmute a call Press and hold the Volume button until you hear “mute on” or “mute off”. end a call Press the Call button. answer or reject second call Follow the phone’s instructions. adjust call volume Press and release Volume button until desired volume is reached8 Status light Status light know your headset Note: After 20 minutes of inactivity, the light stops flashing to conserve power, but the headset remains on. if light shows... your headset is... off off three blue flashes powering on/off steady blue in pairing/connect mode rapid blue/purple flashes connecting to your phone quick blue flash receiving or making a call slow blue pulse connected (on a call) slow blue flash in standby (not on a call—connected to the phone) slow red flash idle (not connected to a phone) slow purple pulse muting the call steady red trying to connect to your phone quick red flash in a low battery state9Problems? Problems? we’ve got solutions Note: The voice prompts are only in English. My headset will not enter pairing mode. Make sure that any devices previously paired with the headset are turned off. If the indicator light is flashing in blue, first turn off the other device, then turn the headset off and on. The indicator light becomes steadily lit in blue and you hear “ready to pair”

My phone doesn't find my headset when searching. Make sure the indicator light on your headset is steadily lit in blue when your phone is searching for devices. If not, press and hold the Call button and Volume button while turning the power on until you hear “ready to pair” and see the indicator light steady blue. My headset will not pair with my phone. If the indicator light is not steadily lit in blue when your phone is searching for your headset, press and hold the Call button and Volume button while turning the power on until you hear “ready to pair” and see the indicator light steady blue. Then follow pair & connect instructions on pages 5.10 Problems? My headset connected before, but now it's not working. Make sure the indicator light on your headset is steadily lit in blue when your phone is searching for devices. If not, press and hold the Call button and Volume button while turning the power on until you hear “ready to pair” and see the indicator light steady blue.11Support Support we’re here to help If you have questions or need assistance, contact us at 1877MOTOBLU, or visit us at www.motorola.com/Bluetoothsupport

www.motorola com/bluetoothconnect

Safety, Regulatory & Legal Safety Information Software Copyright Notice Soft ware Copyright Notice Motorola products may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product. Safety & General Information Safety Information IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION. READ THIS INFORMATION BEFORE USING YOUR DEVICE. Approved Accessories Use of accessories not approved by Motorola, including but not limited to batteries, antennas, and convertible covers, may cause your mobile device to exceed RF energy exposure guidelines and may void your mobile device’s warranty. For a list of approved Motorola accessories, visit our Web site at: www.motorola.com13 Batteries & Chargers Your battery, charger, or mobile device may contain symbols, defined as follows: Use & Safety for Battery-Powered Accessories

Do not store or use your battery-powered accessory (such as a Bluetooth® headset or other device) in temperatures below -10°C (14°F) or above 60°C (140°F).

Conditions inside a parked car can exceed this range. Do not store your accessory in a parked car.

Do not store your accessory in direct sunlight.

Storing your fully charged accessory in high-temperature conditions may permanently reduce the life of the internal battery.

Battery life may temporarily shorten in low-temperature conditions. Caution About High Volume Usage

Exposure to loud noise from any source for extended periods of time may temporarily or permanently affect your hearing. The louder the volume sound level, the less time is required before your hearing could be affected. Hearing damage from loud noise is sometimes undetectable at first and can have a cumulative effect. To protect your hearing:

Start your volume control at a low setting and use as low a volume as possible.

Limit the amount of time you use headsets or headphones at high volume. Symbol Definition Important safety information follows. Do not let your battery, charger, or mobile device get wet. 032374o14

Where possible, use your headset in a quiet environment with low background noise.

Avoid turning up the volume to block out noisy surroundings.

Turn the volume down if you can’t hear people speaking near you. If you experience hearing discomfort, including the sensation of pressure or fullness in your ears, ringing in your ears, or muffled speech, you should stop listening to the device through your headset or headphones and have your hearing checked by your doctor. Driving Precautions Using a mobile device while driving may cause distraction. End a call if you can’t concentrate on driving. Input information about your destination and route prior to your drive. Do not input data or engage in text messaging while driving. Keep your eyes on the road while driving. Listen to the audible turn-by-turn directions, if available. Also, using a mobile device or accessory may be prohibited or restricted in certain areas. Always obey the laws and regulations on the use of these products. Responsible driving practices can be found at www.motorola.com/callsmart (in English only). Industry Canada Notice to Users Industry Canada Notice Operation is subject to the following two conditions: (1) This device may not cause interference and (2) This device must accept any interference, including interference that may cause undesired operation of the device. See RSS-GEN 7.1.5. FCC Notice to Users FCC Notice The following statement applies to all products that have received FCC approval. Applicable products bear the FCC logo, and/or an FCC ID in the format FCC-ID:xxxxxx on the product label. Motorola has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user’s authority to operate the equipment. See 47 CFR Sec. 15.21. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2)15 this device must accept any interference received, including interference that may cause undesired operation. See 47 CFR Sec. 15.19(3). This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and the receiver.

Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help. Motorola Limited Warranty for the United States and Canada Wa rr a n t y What Does this Warranty Cover? Subject to the exclusions contained below, Motorola, Inc. warrants its mobile telephones (“Products”), Motorola-branded or certified accessories sold for use with these Products (“Accessories”), and Motorola software contained on CD-ROMs or other tangible media and sold for use with these Products (“Software”) to be free from defects in materials and workmanship under normal consumer usage for the period(s) outlined below. This limited warranty is a consumer's exclusive remedy, and applies as follows to new Motorola Products, Accessories, and Software purchased by consumers in the United States or Canada, which are accompanied by this written warranty:16 Products and Accessories Exclusions (Products and Accessories) Normal Wear and Tear. Periodic maintenance, repair and replacement of parts due to normal wear and tear are excluded from coverage. Batteries. Only batteries whose fully charged capacity falls below 80% of their rated capacity and batteries that leak are covered by this limited warranty. Abuse & Misuse. Defects or damage that result from: (a) improper operation, storage, misuse or abuse, accident or neglect, such as physical damage (cracks, scratches, etc.) to the surface of the product resulting from misuse; (b) contact with liquid, water, rain, extreme humidity or heavy perspiration, sand, dirt or the like, extreme heat, or food; (c) use of the Products or Accessories for commercial purposes or subjecting the Product or Accessory to abnormal usage or conditions; or (d) other acts which are not the fault of Motorola, are excluded from coverage. Products Covered Length of Coverage Products and Accessories
