Product type	Bedside lamp – LED night light with dusk sensor
Brand	Livarno Lux
Model	IAN 283490 (item no. 14120106L / 14120206L)
Supply voltage	230 V~, 50 Hz
Total power	0.8 W (8 LEDs of 0.08 W each for item 14120106L; 10 LEDs of 0.08 W for item 14120206L)
Bulb type	White LED, non-replaceable
Integrated USB port	Yes, output 5 V ⎓ 2.0 A, compatible with USB cables up to 5 m
Protection class	II
Dusk sensor	Yes, can be activated via switch (AUTO position)
Operating mode	3-position switch: ON (continuous light), AUTO (dusk sensor), OFF (off)
Intended use	Indoor, dry and enclosed spaces
Not compatible with	Dimmers and electronic switches
Light source	Non-replaceable: at end of life, replace the entire lamp
Warranty	36 months from date of purchase
Care and cleaning	Unplug, allow to cool, clean with a dry, lint-free cloth. Do not use water or solvents.
Disposal	Recycle the product and packaging separately in accordance with local regulations
After-sales service contact	Briloner: tel. [phone], email [e-mail], www.briloner.com
Product reference	14120106L (8 LED model) / 14120206L (10 LED model)

Frequently Asked Questions - IAN 283490 Livarno Lux

How to turn the lamp on and off?

Use the switch on the housing. Position ON: continuous light. Position OFF: off. Position AUTO: activates the dusk sensor, which turns on the lamp automatically in darkness.

Can the lamp be used with a dimmer?

No, this lamp is not suitable for dimmers or electronic switches. It works only on mains 230 V without any dimming device.

What should I do if the lamp no longer lights up?

Check that the lamp is properly plugged in and the switch is in ON or AUTO. If it still does not work, the dusk sensor may be faulty or the lamp is defective. Attention: the LED light source is not replaceable; in case of failure, replace the entire lamp.

Can I charge my smartphone with the USB port?

Yes, the USB port (5 V ⎓ 2.0 A) allows charging USB-compatible devices even when the lamp is switched off (OFF position). Use a USB cable with a maximum length of 5 m.

Is the lamp suitable for outdoor use?

No, this lamp is exclusively designed for indoor use in dry and enclosed spaces. Do not expose it to moisture or water.

How to clean the lamp?

Before cleaning, set the switch to OFF, unplug the lamp and let it cool completely. Use a dry, lint-free cloth. Never use water, solvents or liquid cleaning products.

How long does the warranty last?

The warranty is 36 months from the date of purchase. It covers material and manufacturing defects, but not damage from misuse or wear parts (the LED bulb is not replaceable). Keep the receipt and the IAN reference.

How does the dusk sensor work?

Set the switch to AUTO. The lamp automatically turns on when darkness is sufficient and turns off in daylight. The sensor is located at the front of the lamp; do not obstruct it.

What to do in case of damage or malfunction?

Do not use a damaged lamp. Contact customer service at the provided address (tel. [phone], email [e-mail]). The lamp cannot be repaired; it must be replaced.

How to dispose of the lamp at end of life?

Do not dispose of the lamp with household waste. Take it to a collection point for electrical and electronic equipment. The cardboard and plastic packaging must be recycled separately according to local regulations.

USER MANUAL IAN 283490 Livarno Lux

Operation and Safety Notes

NL BE

LED-NACHTLAMP

LÁMPARA NOCTURNA LED

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB / IE Operation and Safety Notes Page 9

Simple line drawing of a circular socket or socket with four pins, no text or symbols present.

14120206L

Simple line drawing of a circular socket or connector with four pins (no text or symbols)

List of pictograms used
	Please read the operating instructions!		Observe the warnings and safety notices!
	Volt (AC)		Warning!Risk of electric shock
	Hertz (frequency)		Caution! Risk of burns due to hot surfaces!
	Watt (effective power)		This light is not suitable for dimmer or electronic switches.
	Ampere For your safety
	This light is only suitable for indoor use in dry and enclosed spaces.		Dispose of the packaging and product in an environmentally-friendly manner!
	Risk of loss of life and accident to infants and children!		USBConnector
	Safety class II

LED night light

- Introduction

Congratulations on your new product.

You have selected a high quality product.

Please be sure to carefully read the com-

plete operating instructions. Fold out the page with the illustrations. These instructions are part of the product and contain important information on setup and handling. Always follow all safety instructions. Before using this product for the first time, verify that the voltage is correct and that all parts are properly installed. Should you have any questions or you are unsure about operating the product, please contact the dealer or service centre. Please keep these instructions in a safe place and pass them on to third parties as applicable.

Intendeduse

This light can be plugged into all permanently installed sockets. This product is intended for private household use only. This product is only to be used as a wall light or reading light. This product is a night light.

This light is only suitable for indoor use in dry and enclosed rooms.

- Scope of delivery

Check immediately after unpacking that the parts are complete and that the product is in proper condition.

1 LED night light including twilight sensor, Model 14120106L/14120206L

1 Set of operating instructions

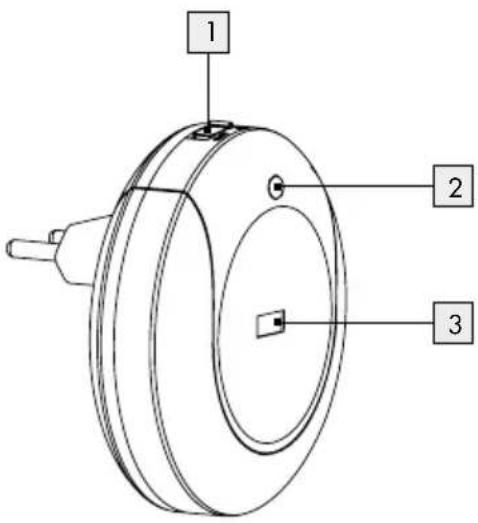

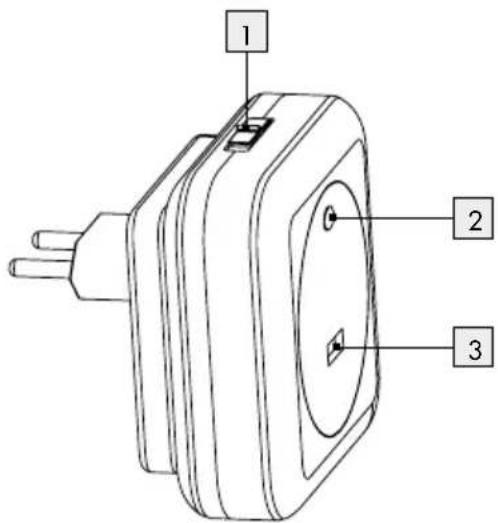

Partsdescription

1 Switch (continuous operation, twilight switch in darkness or off)
2Twilightsensor
3 USBconnector

●TechnicalData

Article no.: 14120106L

Operating voltage: 230 V\~, 50 Hz

Protection class: II /

Lamps: 8 white LEDs

Rated output: 0.08 W per LED

Total output: 0.8 W

USB connector: 5 V 2.0 A

Article no.: 14120206L

Operating voltage: 230 V\~, 50 Hz

Protection class: II/☐

Lamps: 10 white LEDs

Rated output: 0.08 W per LED

Total output: 0.8 W

USB connector: 5 V 2.0 A

Safety

Safetynotes

Damage due to failure to comply with these operating instructions will invalidate the guarantee! We assume no liability for consequential damage! We assume no liability for material damage or personal injury due to improper handling or failure to comply with the safety instructions!

WARNING! DANGER TO LIFE AND RISK OF ACCIDENT FOR INFANTS AND CHIL-

DREN! Never leave children unsupervised with the packaging materials. The packaging material poses a suffocation hazard. Children frequently underestimate dangers. Please

always keep the product out of the reach of children.

This product may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the product and understand the associated risks. Do not allow children to play with the product. Cleaning and user maintenance must not be performed by children without supervision.

Avoid the risk of fatal injury from electric shock

• Check the light for damage every time before you use it. Never use the light if it shows any signs of damage.
  WARNING! A damaged light means danger of death from electric shock!
• Check the light regularly and before every use to see if there is any damage to the casing and mains plug.
  The light can not be repaired. If the light is damaged, the product must be disposed of.
• Ensure before use that the available mains voltage is the same as the voltage required for operating the lamp (see „Technical Data“).
• Strictly ensure that the light does not come into contact with water or other liquids.
  ■ Never open any of the components of the electrical equipment or insert any objects into the same components. This will pose a risk of fatal injury from electric shock.
• Do not install the light on a damp or conducting surface.
• Do not use the light with sockets which have a hinged cover.

Prevent fire and injury hazards

■ Never use the light if any defects have been identified.

CAUTION! RISK OF BURNS DUE TO HOT SURFACES! To prevent burns, ensure

that the light is switched off and has cooled down before touching it. Lamps develop a lot of heat in the area of the lamp head.

• Allow the light to cool completely.
• Do not look directly into the light source (lamp, LED, etc.).
  ■ The lamp is not replaceable.
  This light is not suitable for dimmer

or electronic switches.

In order to disconnect the light completely from the power supply, the light must be removed from the socket.
Do not leave the light or packaging material lying unattended. Plastic film or bags and Styrofoam etc. can turn into dangerous toys for children.
The lamp's light source is not replaceable, the entire light needs to be replaced if the light source reaches the end of its service life.
Do not cover the lamp with objects. Excessive heat can result in a fire.

Safe working

■ Install the lamp out of the reach of children.
■ Install the light so that it is protected from moisture, dirt and excessive heat temperature.
Constant attentiveness is required! Always pay attention to what you are doing and act with common sense. Never use the light if you are having difficulty concentrating or do not feel well.
- Familiarise yourself before use with all instructions and diagrams in this manual as well as with the light itself.

- Start-up

- Switching on and off

☐ Plug the night light into the socket. Your light is now ready to use.

Switching the light on:

Set the switch to the "AUTO" position. - The twilight switch is switched on.
- The function only operates if there is darkness.
Set the switch to the "ON" position. - The lamp is permanently switched on. - The twilight switch is switched off.

Switching the light off:

Set the switch to the "OFF" position. - The lamp is permanently switched off.

- USB plug

Your night light features a USB connector on the housing. With this USB connector 3 you can operate any devices that may be operated using a USB connector.
☐ The charging function works during all three settings (ON/OFF/AUTO).
☐ The night light is suitable for USB cables up to 5 m long.

● Maintenance and Cleaning

WARNING! DANGER OF ELECTRIC

SHOCK! Set the night light to the „OFF" position.

CAUTION! RISK OF BURNS DUE TO

HOT SURFACES! Allow the night light to cool down completely. Remove the inserted USB plug if necessary.

WARNING! DANGER OF ELECTRIC

SHOCK! For electrical safety, never clean the light with water or other liquids, nor immerse it in water.

■ Remove the night light from the socket.
- Do not use solvents, petrol, etc. Otherwise the light will be damaged.

☐ Only clean with a dry, lint-free cloth.
☐ Plug the night light into the socket.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities. The Green Dot is not valid for Germany.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibre-board / 80–98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Service Centre address, making reference to the following article number: 14120106L / 14120206L. Wearing parts (such as lamp bulbs) and damage caused by improper handling, non-observance of the operating instructions or unauthorised interference with the appliance are excluded from the warranty. The performance of services under the warranty does not extend or renew the warranty period.

Declaration of conformity

This product conforms to the requirements of the applicable European and national directives. Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer.

• Manufacturer / Service

When inquiring about your product, please have your receipt and product number (e.g. IAN 12345) ready as your proof of purchase.

Information

Warranty

You receive a 36 month warranty on this product, valid from the date of purchase. The appliance has been carefully produced under strict quality control. We will rectify without charge all material and manufacturing defects within the warranty period. In the event of a defect arising during the warranty period, please send the appliance to the listed
