IAN 73760 - Bedside lamp Livarno Lux - Free user manual and instructions

Product Type	Bedside lamp
Model	IAN 73760
Brand	Livarno Lux
Dimensions (approx.)	Height: 35 cm, Base diameter: 15 cm
Weight (approx.)	0.8 kg
Power Source	Plug-in (mains powered)
Bulb Type	E14 screw base (max. 40W or equivalent LED)
Switch	Push-button switch on base or cord
Material	Metal and plastic
Color	Black/Silver (typical)
Light Direction	Adjustable lampshade
Dimmable	No (on/off only)
Protection Class	IP20 (indoor use only)
Safety Certification	CE, GS (assumed)
Care Instructions	Wipe with dry cloth; do not use water or solvents
Bulb Included	No
Spare Parts Available	Contact manufacturer for replacements
Repairability	Repair possible by qualified electrician
Energy Class (if bulb)	Depends on bulb used

Frequently Asked Questions - IAN 73760 Livarno Lux

What type of bulb does the Livarno Lux IAN 73760 bedside lamp use?

The lamp uses an E14 screw base bulb with a maximum wattage of 40W or equivalent LED.

Is the lamp dimmable?

No, the lamp only has an on/off switch and is not dimmable.

How do I clean the bedside lamp?

Clean with a dry, soft cloth. Do not use water, cleaning agents, or solvents as they may damage the surface.

Is the lamp suitable for outdoor use?

No, it is rated IP20 for indoor use only. Keep away from moisture.

Can I use an LED bulb with this lamp?

Yes, any E14 LED bulb up to 40W equivalent is suitable.

Does the lamp come with a bulb?

No, the bulb is not included. You need to purchase one separately.

How do I replace the bulb?

Unplug the lamp, let it cool, then twist the old bulb counterclockwise to remove and insert the new one clockwise.

What are the dimensions of the lamp?

Approximate height 35 cm and base diameter 15 cm.

Is the lampshade adjustable?

Yes, the lampshade can be tilted to direct light where needed.

Where can I find spare parts?

Contact Livarno Lux customer service or the retailer for spare parts.

USER MANUAL IAN 73760 Livarno Lux

Color palette bar with grayscale shades and a central target symbol, likely for image color selection or calibration.

IAN 73760

Milomex Ltd.

c/o Milomex Services

Hilltop Cottage

Barton Road

Pulloxhill

Bedfordshire

MK45 5HP

UK

Model no.: Z29012A-BS

Version: 05/2012

Color palette bar with grayscale shades and a central target symbol, likely for image color selection or calibration.

LED NIGHT LIGHT

Operation and Safety Notes

ΦΩΤΑΚΙ ΝΥΚΤΟΣ-LED

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

GB / IE/Operation and Safety Notes Page 4

Color palette bar with grayscale shades and a central target symbol

Pure geometric lines without any text, numbers, or symbols

Color palette bar with grayscale swatches and a central black dot, no text or symbols present

OFF AUTO ON 1

COLOR MODE 2

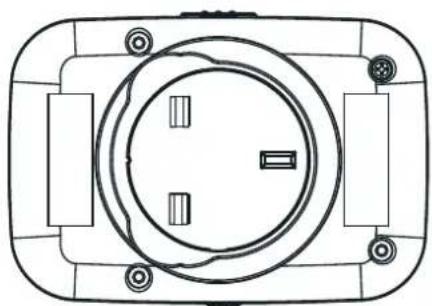

Top-down schematic of a device housing with circular component and mounting points (no text or symbols)

Z29012A-BS

LIVARNO LUX

3

Color palette bar with grayscale shades and a central black dot, no text or symbols present

Introduction......Page 5

Intended use ......Page 6

Description of parts ......Page 6

Technical data ......Page 6

General Safety Instructions ......Page 7

Start of operation

Using the LED night light ......Page 11

Cleaning and care......Page 13

Disposal Page 14

4 GB/IE/CY

LIVARNO LUX

LED NIGHT LIGHT

- Introduction

The instructions for use are to be considered as part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. The product must only be used as described and for the stated fields of application.

Keep all the safety advice and instruction in a safe place for future reference. If you pass the product on to third parties, please give them all of the documentation as well.

LIVARNO LUX

GB/IE/CY 5

Color palette bar with grayscale shades and a central black dot, no text or symbols present

- Intended use

The LED night light is only suitable for lighting in dry indoor environments and is for private use. The LED night light has a colour change mode. Other uses of or changes to the product are not as intended and could lead to risks such as injuries and damage. The manufacturer does not assume any liability for damage arising from improper use. The product is not intended for commercial use.

• Description of parts

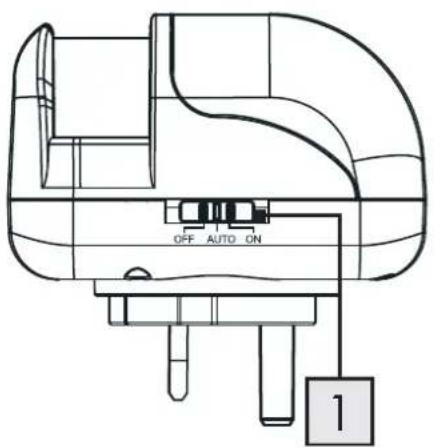

1 OFF/AUTO/ON switch

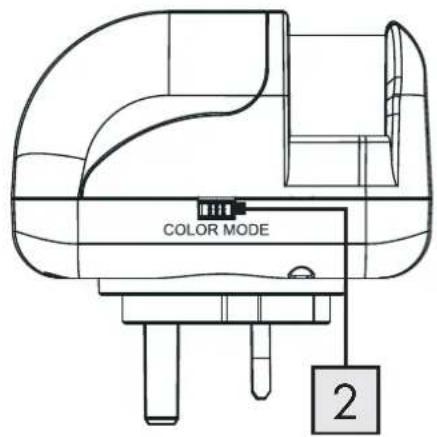

2 Colour mode button (colour change)

- Technical data

Operating voltage: 230 V \~, 50 Hz Illuminant: 1 x LED, max. 0.7 W, (non-replaceable)

6 GB/IE/CY

LIVARNO LUX

Protection class:

LED night light (model No. Z29012A-BS) product tested.

General Safety Instructions

This safety advice is an important part of these operating instructions and must be observed every time electrical devices are used. The advice and instructions will help you to avoid risk of loss of life, accidents and damage. Therefore you must read carefully through the following information concerning safety and proper use.

KEEP ALL THE SAFETY ADVICE AND INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE!

LIVARNO LUX

GB/IE/CY 7

WARNING! DAN- GER OF DEATH AND ACCIDENTS FOR TOD-

DLERS AND CHILDREN! Never

leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Always keep children away from the packaging material. This is not a toy.

Children or other individuals who do not know or have no experience of handling this device, or whose physical, sensory or mental abilities are restricted, must not use the device without supervision or instruction by an individual responsible for their safety. Children must be supervised in order

to ensure that they do not play with the device.

CAUTION! RISK OF INJURY!

Please do not use this device if you find that it is damaged in any way.

CAUTION! LED RADI-

ATION! Avoid damage

to the eyes! Never look

into the beam of the LED. Never use optical devices such as magnifying glasses or similar to look into the beam of the LED. Protect yourself and your environment by taking proper precautions.

■ Never point the LED beam at reflective surfaces, people or animals. This could result in blindness or irritation of the eyes. Even weak LED radiation could lead to eye injuries.

Do not subject the device to any extreme temperatures or severe mechanical stress. Otherwise this may result in deformation of the product.
■ Remove the product from the socket when not in use.
■ Only use the LED night light in a wall socket so that the LEDs point upwards.
■ Never cover the LED night light when it is in operation.

Avoid danger to life from electric shock!

Before using, make sure that power supply available corresponds with the required operating voltage of the device (230 V\~).

CAUTION! RISK OF ELECTRIC SHOCK! Do not operate the device if

10 GB/IE/CY

LIVARNO LUX

it is damaged. Damaged appliances could give you an electric shock and thus put your life at risk! Regularly check the appliance and check before every use to see if there is any damage to the casing and mains plug.

This article does not contain any parts that need to be maintained by the user. The illuminants cannot be replaced.
■ Never open one of the items of electrical equipment or insert any objects into them.
- Keep the product away from humidity.

- Start of operation

- Using the LED night light

Note: The LED night light has a colour change function. The colour changes at regular intervals.

LIVARNO LUX

GB/IE/CY 11

☐ Insert the LED night light into a correctly installed wall socket.
☐ Push the OFF/AUTO/ON switch 1 to the desired position.

The following functions are available:

Position ON: The LED night light is permanently switched on.

Position OFF: The LED night light is permanently switched off.

Position AUTO: The LED night light automatically switches itself on when it is dark and off when it is light. The threshold value is 5 - 20 Lux.

☐ Press the colour mode button 2 once to deactivate the colour change function and to set the current colour.

☐ Press the colour mode button 2 again to activate the colour change function again.

- Cleaning and care

Warning symbol of a lightning bolt inside a triangle (no text or numbers)

CAUTION! RISK OF ELEC- TRIC SHOCK! First remove the LED night light from the socket.

CAUTION! DANGER OF ELECTRIC SHOCK! For reasons of electrical safety the

device must never be cleaned with water or other liquids or immersed in water.

☐ Only a dry, lint-free cloth should be used for cleaning.
☐ Do not use any solvents, petrol or similar items. This would damage the device.

Color palette bar with grayscale shades and a central black dot, no text or symbols present

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local

recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached

the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

14 GB/IE/CY

LIVARNO LUX

Color palette bar with grayscale swatches and a central black dot, no text or symbols present

EMC CE

LIVARNO LUX

GB/IE/CY 15
