USER MANUAL LXC RS18 Cocraft
RECIPROCATING SAW 18 V
LXC RS18
18 V LITHIUM SERIES
TIGERSÅG PUUKKOSAHA
MULTISAG SÄBELSÄGE
Cocraft LXC is a tool system incorporating lithium-ion technology for an entire series of Cocraft power tools. A single universal battery and charger is all that is needed to power the entire series.
Important!
Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.
Viktig information:
KUNDTJÄNST Tel: 0247/445 00
Fax: 0247/445 09
E-post: kundservice@clasohlson.se
INTERNET
www.clasohlson.se
BREV Clas Ohlson AB, 793 85 INSJÖN
NORGE
KUNDESENTER Tlf.: 23 21 40 00
Faks: 23 21 40 80
E-post: kundesenter@clasohlson.no
INTERNETT
www.clasohlson.no
POST Clas Ohlson AS, Postboks 485 Sentrum, 0105 OSLO
SUOMI
ASIAKASPALVELU Puh.: 020 111 2222
POSTAL 10 - 13 Market Place
Kingston Upon Thames
Surrey
KT1 1JZ
DEUTSCHLAND
KUNDENSERVICE
Please read the entire instruction manual before using the product and save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. If you have any questions regarding technical problems please contact our Customer Services.
Safety
General Power Tool Safety Warnings - Personal Safety
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on.
A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use.
Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
5) Battery tool use and care
a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
6) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
Specific safety instructions for reciprocating saws
Important: Always remove the battery from the power tool before adjusting, servicing or repairing it.
a) Keep your hands away from the blade and other moving parts. Do not reach under the workpiece being sawed. The blade or your hand could be out of your sight.
b) Never put your hand or finger between the pendulum arm and gearbox. There is a risk of crushing.
c) Do not saw into walls or other places where there might be hidden electric cables. If it is necessary to saw in any case: Remove all fuses and cut off all the power supply to any wiring circuits which may be hidden behind the wall. Grip only the plastic parts of the reciprocating saw. Never grip any metal parts of the saw when cutting in areas where there might be live electrical wires.
d) Do not use blunt or damaged saw blades. Bent saw blades can easily break or cause kickback.
e) Start the saw and let it get up to speed before starting to cut.
f) Clamp down any small workpieces before starting to cut them.
g) Make sure that the settings are correct and that the blade is securely fastened in the blade holder before beginning to saw.
Safety Warnings for battery pack
a) Do not dismantle, open or shred cells or battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
f) Seek medical advice immediately if a cell or battery pack has been swallowed.
g) Keep battery pack clean and dry.
h) Wipe the battery pack terminals with a clean dry cloth if they become dirty.
i) Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.
j) Do not maintain battery pack on charge when not in use.
k) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.
I) Battery pack gives its best performance when it is operated at normal room temperature (20 ± 5 °C).
m) When disposing of battery packs, keep battery packs of different electrochemical systems separate from each other.
n) Recharge only with the specified charger. Do not use any charger other than that specifically provided for use with the equipment.
A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
o) Do not use any battery pack which is not designed for use with the equipment.
p) Keep battery pack out of the reach of children.
q) Retain the original product literature for future reference.
r) Remove the battery from the equipment when not in use.
s) Dispose of properly.
General safety instructions for batteries and chargers
- Never attempt to dismantle a battery.
- Never store a battery in direct sunlight or at temperatures above 40 °C.
- Only charge the battery when the ambient temperature is between +5 and 40 °C.
- Never expose the battery or charger to water.
Vibration
- The measurement of the vibration emission level declared in this instruction manual has been carried out in accordance with a standardised test method described in EN 60745 and can be used for comparing one power tool with another.
- The measurement method may also be used for a preliminary assessment of vibration exposure.
- The declared vibration emission level applies when the power tool is used in accordance with this instruction manual. If however, the power tool is used for other purposes and with other accessories or has not been properly maintained, the vibration emission level could increase significantly over the total working period.
- For an exact assessment of the vibration exposure, the times when the tool is switched off or running idle should also be taken into account. This significantly reduces the vibration exposure over the total working period. Decide upon safety measures to protect the operator from the effects of vibration during all types of use.
Product safety symbols
Read the entire instruction manual.
Always use ear protection.
Always use safety glasses.
Always use respiratory protection.
max 50 °C
Protect the battery against heat, e. g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion.

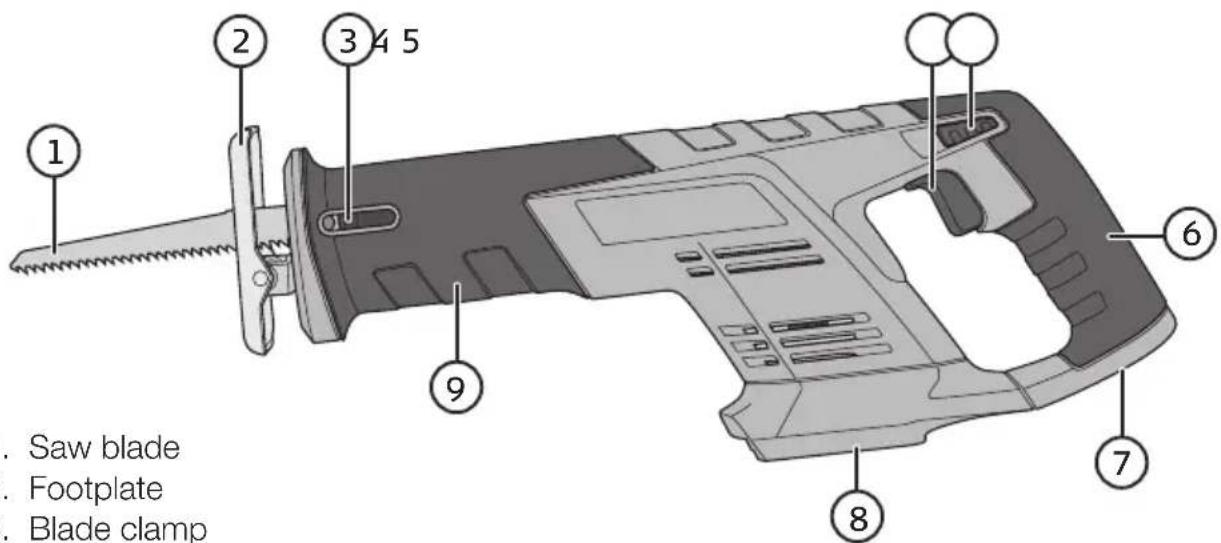

Product description
- Footplate
- Blade clamp
- Variable speed power trigger
- Safety lock button
- Rear handle
- Allen key holder
- Battery connection
- Front handle
Assembly and setup
Important: Always remove the battery from the power tool before adjusting, servicing or repairing it.
Changing the saw blade
The saw blade can either be fitted with the teeth along the bottom edge of the blade or with them along the top edge of the blade. Fitting the blade with the teeth along the bottom edge is usually preferable, but for some tasks it is sometimes better to have the teeth along the top edge.
- Remove the battery.
- Remove the Allen key.
- Turn the socket head screw in the blade clamp four turns anticlockwise.
Remove the saw blade by unhooking it from the blade clamp guide pin.
-
Insert a new blade into the blade clamp making sure that the blade clamp guide pin passes through the hole in the end of the blade.
-
Tighten the socket head screw on the blade clamp.
-
Place the Allen key back into the holder on the rear handle.
-
Make sure that the blade is properly clamped before starting to saw.
- Make sure that the saw blade is locked in the blade clamp before starting to saw.
- Make sure that the workpiece is securely anchored or clamped to prevent it slipping (especially small or light workpieces). It is the saw that you want to move, not the workpiece.
- Mark the cut line clearly before starting to cut.
- Adjust the footplate so that it rests against the surface of the workpiece.
- Hold the saw in a firm grip at a comfortable working distance from the workpiece and make sure that the blade is not touching anything when the saw is turned on.
- Start the saw by pressing in the power trigger.
- Move the blade carefully towards the workpiece. Do not overload the saw – let it work at its own pace. It is the saw blade that should do the work; do not force the blade into the workpiece.
Power trigger
-
To start the saw, the safety lock button must be held in at the same time as the power trigger is pressed. The speed of the blade is determined by how much the power trigger is held in.
-
Turn the saw off by releasing the power trigger.
Sawing flush to a surface
Handy hint: By using a flexible bi-metal saw blade you can saw right up to the edge of a surface. This is useful when sawing off pipes protruding from a wall for example.
- Lay the side of the saw blade flat against the surface/wall and tilt the saw so that the side of the footplate rests against the surface/wall.
- Lay a thin piece of hard plastic between the blade and the surface to protect the surface.
- Mark the cut line clearly before starting to cut.
- Line the tip of the blade along the cut line.
- Rest the edge of the footplate on the workpiece and hold the saw almost parallel to the workpiece with the blade in the air.
- Start the saw and let it come up to speed.
-
Slowly tilt the saw upwards so that the blade feeds into the marked cut line.
-
Continue to tilt the saw upwards until it is at right angles to the workpiece, cut until you reach the next corner.
Do not feed the saw blade into the material until it has fully come up to the set speed or serious injury may result.
Sawing metal
Use a sharp blade specially designed for cutting metal. Use cutting oil* for cooling and lubrication while cutting metal. Do not overload the saw – let it work at its own pace.
* Different materials require different lubricants/coolants.
Overload protection and other safety features
The saw and its battery have a number of safety features that prevent damage to the machine and battery during use.
- During short high-load situations the overload protection may turn off the machine/battery. This protection resets automatically. Release the trigger, wait a few seconds, ensure that there is no load and restart the machine. The machine should now function normally again.
- During high-load situations for an extended period of time the overheating protection will turn off the machine/battery. This feature is self-resetting once the saw returns to normal operating temperature. Let the machine cool properly before trying to restart it. Adverse temperatures can occur in direct sunlight and should therefore be avoided.
- The battery has low-voltage protection which comes into effect when the battery becomes discharged. The low-voltage protection turns off the machine automatically and the battery should then be recharged.
Troubleshooting guide
| Problem Possible cause Solution | ||
| The machine does not start. | Battery discharged. Recharge | the battery. |
| The battery is overheated. Let the battery cool down. | ||
| Worn brushes. Contact our Customer Services. | ||
| Faulty power trigger. | ||
| The machine is slow and/or shuts off. | Worn/damaged saw blade. | Replace the saw blade. |
| Too much pressure applied. | Decrease applied pressure. | |
| Battery discharged. Recharge | the battery. | |
| The battery is overheated. Let the battery cool down. | ||
| The motor is overheated. Let the motor cool down. | ||
| Sparks in the motor. | Faulty brushes. Contact customer services. | |
| Windings shortcircuited. | ||
| Dirty commutator. | ||
Maintenance
- Cleaning: Switch the saw off and remove the battery. Wipe the saw with a soft cloth. Use a mild detergent if needed. Never use abrasive cleaning agents or solvents.
- Make sure that the motor's ventilation openings are not clogged.
Responsible disposal
This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.
Specifications
No-load speed 0–3000 strokes/min
Stroke length 22 mm
Sawing capacity 60 mm in wood; 5 mm in steel
Noise level LpA = 82.7 dB(A), K = 3 dB(A)
LwA = 93.7 dB(A), K = 3 dB(A)
Vibration value a_h,B = 19.276 m/s^2, K = 1.5 m/s^2
ah,WB = 18.320 m/s², K = 1.5 m/s²
Weight 1.8 kg (without battery)
(Battery and charger sold separately)
Tigersåg
Mechanical component diagram showing a lever mechanism with motion arrow (no text or symbols)natural_image
Mechanical component diagram showing a lever and handle assembly (no text or symbols)
Mechanical component diagram showing a lever mechanism with motion arrow (no text or symbols)- Sagbladet fjernes ved at det hukes av fra dets styrepinne.
- Plasser det nye bladet i bladfestet. Sagbladet har et hull hvor styrepinnen til bladfestets skal sitte.
Mechanical component diagram showing a clamping mechanism with no visible text or symbolsBruk
- Merk sagesnittet.
- Plasser sagbladets spiss mot linjen som krysser sagesnittet.
- Vinkle sagen til fotplaten berører arbeidsemnet og sagbladet går fritt.
- Start sagen og la den komme opp i turtall.
- Før sagen sakte opp slik at bladet møter den markerte sagelinjen.
- Fortsett med å før sagen opp til den er vinkelrett mot arbeidsemnet og sag til neste hjørne.
La ikke sagbladet komme i berøring av emnet før sagen har oppnådd maksimalt turtall.
Saging i metall
Bruk kun sagblad som er beregnet for saging i metall. Bruk skjæreolje* til avkjøling og smøring under sageprosessen. Maskinen må ikke overbelastes. La den jobbe i sin egen takt.
Mechanical component diagram showing a lever mechanism with motion arrow (no text or symbols)natural_image
Mechanical component diagram showing a clamping tool interacting with a cylindrical part (no text or symbols visible)natural_image
Mechanical component diagram showing a clamping mechanism (no text or symbols)Käyttö
Mechanical component diagram showing a lever mechanism with a curved arrow indicating rotation (no text or symbols)natural_image
Mechanical component diagram showing a clamping tool interacting with a cylindrical part (no text or symbols visible)
Declaration of Conformity
Declares that this product complies with the requirements of the following directives and standards
Machinery directive 2006/42/EC
EN 60745-1:2009
+A11:2010
EN 60745-2-11:2010
EMC directive 2004/108/EC
EN 55014-1:2006
+A1:2009 +A2:2011
EN 55014-2:1997
+A1:2001 +A2:2008
Henrik Alfredsson
Manager Technique & Quality
Insjön, Sweden, 2016-02-03
LXC
LITHIUM XROSS CONNECT
