KX-TGA551FX - Telephone PANASONIC - Free user manual and instructions

Product Type	Additional Digital Cordless Handset
Compatible Base Units	Panasonic KX-TG5511 and KX-TG5521
Frequency Band	DECT (1.88-1.90 GHz)
Display Languages	16 languages (selectable via menu)
Power Supply (Handset)	2 x Ni-MH AAA rechargeable batteries (included)
Power Supply (Charger)	AC Adaptor PQLV219CE (100-240 V, 50/60 Hz)
Battery Charge Time	Approx. 7 hours for initial charge
Battery Type	Ni-MH only (supplied: HHR-55AAAB or N4DHYYY00005)
Handset Registration	Required before use; press [→] on handset, then [•••] on base unit
Safety Features	Auto power off if not registered; warning against using non-Ni-MH batteries
Care Instructions	Wipe with soft dry cloth; do not use benzine, thinner, or abrasive powder
Intended Use Countries	Czech Republic, Slovakia, Hungary, Poland
Accessories Included	Charger, AC adaptor, 2 rechargeable batteries, handset cover
Spare Parts Recommendation	Use only Panasonic specified rechargeable Ni-MH AAA batteries
Environmental Compliance	WEEE directive 2002/96/EC, Battery directive 2006/66/EC

Frequently Asked Questions - KX-TGA551FX PANASONIC

How do I register the KX-TGA551FX handset to my base unit?

Ensure the handset is on. Lift the handset and press [→]. On the base unit (KX-TG5511 or KX-TG5521), press and hold [•••] for about 5 seconds. Place the handset on the base unit and wait for a confirmation tone and display of Y.

Can I use alkaline or Ni-Cd batteries in this handset?

No. Only use Ni-MH AAA (R03) rechargeable batteries. Do not use alkaline, manganese, or Ni-Cd batteries as they may cause damage or safety issues.

How long does it take to charge the batteries for the first time?

Place the handset on the charger for about 7 hours before the first use. The display may show 'Please wait for 1 minute' if not registered.

How do I change the display language?

From the idle screen, press [#][1][1][0]. Use [▼]/[▲] to select your desired language, then press OK and [×○] to confirm. 16 languages are available.

What should I do if the handset does not register?

Ensure the handset is on (press and hold [×] if off). Repeat the registration steps. If an error tone sounds or Y is displayed, refer to the base unit's operating instructions for manual registration.

Can I use this handset with an answering system?

The handset itself does not have an answering system. Answering system features are only available if the handset is registered to a KX-TG5521 base unit (which includes an answering machine). The KX-TG5511 does not have this feature.

How do I clean and maintain the handset?

Wipe the outer surface with a soft, moist cloth. Do not use benzine, thinner, or abrasive powder. Regularly clean the battery and charge contacts with a dry cloth if operating time shortens.

Is the AC adaptor warm during use?

Yes, it is normal for the AC adaptor to feel warm during continuous use. The adaptor must remain connected at all times for the charger to function.

What countries is this handset designed for?

This equipment is designed for use in Czech Republic, Slovakia, Hungary, and Poland. For use in other countries, contact your equipment supplier.

What should I do before disposing of the product?

To protect your privacy, erase phonebook and caller list entries from memory before disposal. Also, remove batteries and dispose of them according to local regulations (see WEEE and Battery directives).

USER MANUAL KX-TGA551FX PANASONIC

TGA551FX(fx).book Page 1 Wednesday, August 4, 2010 1:45 PM

Panasonic®

Installation Manual

Telepítési útmutató

Line drawing of a mobile phone with keypad and base (no text or symbols)

Additional Digital Cordless Handset

This unit is an additional handset compatible with the following series of Panasonic Digital Cordless Phone: KX-TG5511/KX-TG5521

You must register this handset with your base unit before it can be used. This installation manual describes only the steps needed to register and begin using the handset. Please read the base unit's operating instructions for further details.

Supplied accessories

Charger....1

AC adaptor (PQLV219CE) ...... 1

Rechargeable batteries ^1 2

(HHR-55AAAB or N4DHYYY00005)

Handset cover ^2 1

*1 Please read the base unit's operating instructions for replacement battery information.

*2 The handset cover comes attached to the handset.

Note:

• Please read the base unit's operating instructions for additional/replacement accessories.
  • This equipment is designed for use in Czech, Slovakia, Hungary, and Poland.
• In the event of problems, you should contact your equipment supplier in the first instance.
• For use in other countries, please contact your equipment supplier.

Connection (page 2: 1)

• Use only the supplied Panasonic AC adaptor PQLV219CE.
• The AC adaptor must remain connected at all times. (It is normal for the adaptor to feel warm during use.)

4

TGA551FX(fx).book Page 5 Wednesday, August 4, 2010 1:45 PM

Battery installation/Battery charge (page 2: 2)

When the language selection is displayed after installing the batteries for the first time, you can select your desired language.

[▼]/[▲]: Select your desired language. → OK → [✗○]

Important:

• Use the supplied rechargeable batteries. For replacement, we recommend using the Panasonic rechargeable batteries noted in the base unit's operating instructions.
• Wipe the battery ends (⊕, ⊖) with a dry cloth.
• Avoid touching the battery ends (⊕, ⊖) or the unit contacts.
• Confirm correct polarities (⊕, ⊖).
  • USE ONLY Ni-MH batteries AAA (R03) size.
• Do NOT use Alkaline/Manganese/Ni-Cd batteries.

Place the handset on the charger for about 7 hours before initial use.

Note:

• The handset display may show "Please wait for 1 minute." when the handset is placed on the charger if it is not registered to the base unit.
• If the batteries are fully charged, but the operating time seems to be shorter, clean the battery ends (⊕, ⊖) and the charge contacts with a dry cloth and charge again.

Display language

16 display languages are available.

1 →[#][1][1][0]
2 [▼]/[▲]: Select your desired language. → OK → [×○]

5

TGA551FX(fx).book Page 6 Wednesday, August 4, 2010 1:45 PM

Registering the handset to the base unit

Ensure that the handset is switched on. If it is not on, press and hold [×] for few seconds to turn the handset on.

1 Handset:

Lift the handset and press [→].

2 Base unit:

Proceed with the operation for your model.

KX-TG5511

Press and hold [•••] for about 5 seconds. (No registration tone)

KX-TG5521

Press and hold [•••] for about 5 seconds, until the registration tone sounds.

- If all registered handsets start ringing, press the same button to stop. Then repeat this step.

3 Handset:

Place the handset on the base unit.

Continue the operation even when the handset display shows

"Please wait for 1 minute."

4 With the handset still on the base unit, wait until a confirmation tone sounds and Y is displayed.

Note:

• If an error tone sounds, or if Y is displayed, register the handset according to the base unit's operating instructions.
  • The KX-TG5511 does not feature an answering system.
• Answering system features are available only when this handset is registered to the KX-TG5521.

For your safety

To prevent severe injury and loss of life/property, read this section carefully before using the product to ensure proper and safe operation of your product.

WARNING

Power connection

• Completely insert the AC adaptor/power plug into the power outlet. Failure to do so may cause electric shock and/or excessive heat resulting in a fire.
• Regularly remove any dust, etc. from the AC adaptor/power plug by pulling it from the power outlet, then wiping with a dry cloth. Accumulated dust may cause an insulation defect from moisture, etc. resulting in a fire.
• Unplug the product from power outlets if it emits smoke, an abnormal smell, or makes an unusual noise. These conditions can cause fire or electric shock. Confirm that smoke has stopped emitting and contact an authorised service centre.

6

TGA551FX(fx).book Page 7 Wednesday, August 4, 2010 1:45 PM

Installation

• To prevent the risk of fire or electrical shock, do not expose the product to rain or any type of moisture.
• Do not place or use this product near automatically controlled devices such as automatic doors and fire alarms. Radio waves emitted from this product may cause such devices to malfunction resulting in an accident.

CAUTION

Installation and location

- The AC adaptor is used as the main disconnect device. Ensure that the AC outlet is installed near the product and is easily accessible.

Battery

• We recommend using the supplied batteries or additional/replacement batteries noted in the base unit's operating instructions for replacement battery information. USE ONLY rechargeable Ni-MH batteries AAA (R03) size
• Do not mix old and new batteries
• Do not open or mutilate the batteries. Released electrolyte from the batteries is corrosive and may cause burns or injury to the eyes or skin. The electrolyte is toxic and may be harmful if swallowed.
• Exercise care when handling the batteries. Do not allow conductive materials such as rings, bracelets, or keys to touch the batteries, otherwise a short circuit may cause the batteries and/or the conductive material to overheat and cause burns.
• Charge the batteries provided with or identified for use with this product only, in accordance with the instructions and limitations specified in this manual.
• Only use a compatible base unit (or charger) to charge the batteries. Do not tamper with the base unit (or charger). Failure to follow these instructions may cause the batteries to swell or explode.

Other information

• Operating the product near electrical appliances may cause interference. Move away from the electrical appliances.
• Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions.

Routine care

• Wipe the outer surface of the product with a soft moist cloth.
• Do not use benzine, thinner, or any abrasive powder.

Notice for product disposal, transfer, or return

- This product can store your private/confidential information. To protect your privacy/confidentiality, we recommend that you erase information such as phonebook or caller list entries from the memory before you dispose of, transfer, or return the product.

7

TGA551FX(fx).book Page 8 Wednesday, August 4, 2010 1:45 PM

Information for Users on Collection and Disposal of Old Equipment and used Batteries

These symbols (①, ②, ③) on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national

legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

These symbols (①, ②, ③) are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol

This symbol (②) might be used in combination with a chemical symbol (③). In this case it complies with the requirement set by the Directive for the chemical involved.

8

TGA551FX(fx).book Page 9 Wednesday, August 4, 2010 1:45 PM

Magyar

KÉRJÜK, HASZNÁLAT ELÖTT OLVASSA EL, ÉS ÖRIZZE MEG

Punjač....1 AC adapter (PQLV219CE)....1

Punjive baterije ^*1 ..... 2 (HHR-55AAAB ili N4DHYYY00005)

Poklopac slušalice ^2 1

*1 Informacije o zamjeni baterija pronadite u uputama za rukovanje baznom stanicom.
*2 Poklopac slušalice pričvršćen je na slušalicu.

Napomena:

• Informacije o zamjenskoj i dodatnoj opremi pronađite u uputama za rukovanje baznom stanicom.
• Ovaj uređaj je namijenjen za korištenje u Češkoj, Slovačkoj, Mađarskoj i Poljskoj.
• U slučaju problema najprije se obratite Vašem dobavljaču opreme.
• Za korištenje u drugim zemljama, obratite se Vašem dobavljaču opreme.

Declaration of Conformity:

- Panasonic System Networks Co., Ltd. declares that this equipment is in compliance with the essential requirements and other relevant provisions of Radio & Telecommunications Terminal Equipment (R&TTE) Directive 1999/5/EC. Declarations of Conformity for the relevant Panasonic products described in this manual are available for download by visiting: http://www.doc.panasonic.de

Declaration of Conformity 016869

(Issuer's name & address)

Panasonic System Networks Co., Ltd. Hakata-ku, Fukaziki, Japan

(Object of the declaration)

Product (Title Name): PNC2029 Name No: 1000-000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 AC Adaptor - POLY23E- POLY23ICE. Chemical Unit: PNC214

(Country of Origin) China ____

The object of the declaration described above is in conformity with the requirements of the following EU legislations and harmonized standards:

(Council Directive) 1999/5/EC < B> (Council recommendation) 1999/11/8/C (Hemorized Standards) EN 60820-1:2006+A11:2008, EN 301:406/12.1.1 < C> EN 301:406-1:V1.0.1, EN 301:406-8:V1.3.1 EN 50825:2007, EN 50360:2007

(Casal) directive): 2009/25/EC ____ (Insumenting Measure for E&P Directive): Commission Regulation (EC) No.278/2009

The last two digits of the year in which the CF marking was fixed the first time: 10

Signed for and on behalf of

Printed Name: Toshado Sakiyama Title: Director Date of issue: March 31, 2019

Authorised Representative in EU: Panasonic Testing Centre Panasonic Marketing Europe GmbH Winsbargring 15, 22525 Hamburg, Germany (Signature) (Printed name) (Date) Hane-Joachim Nabeck 3 L. März 2010

Bucureşti, 062204, Romania

Telefon: [phone]

Fax: [phone]

e-mail: [e-mail]

web: www.panasonic.ro

74

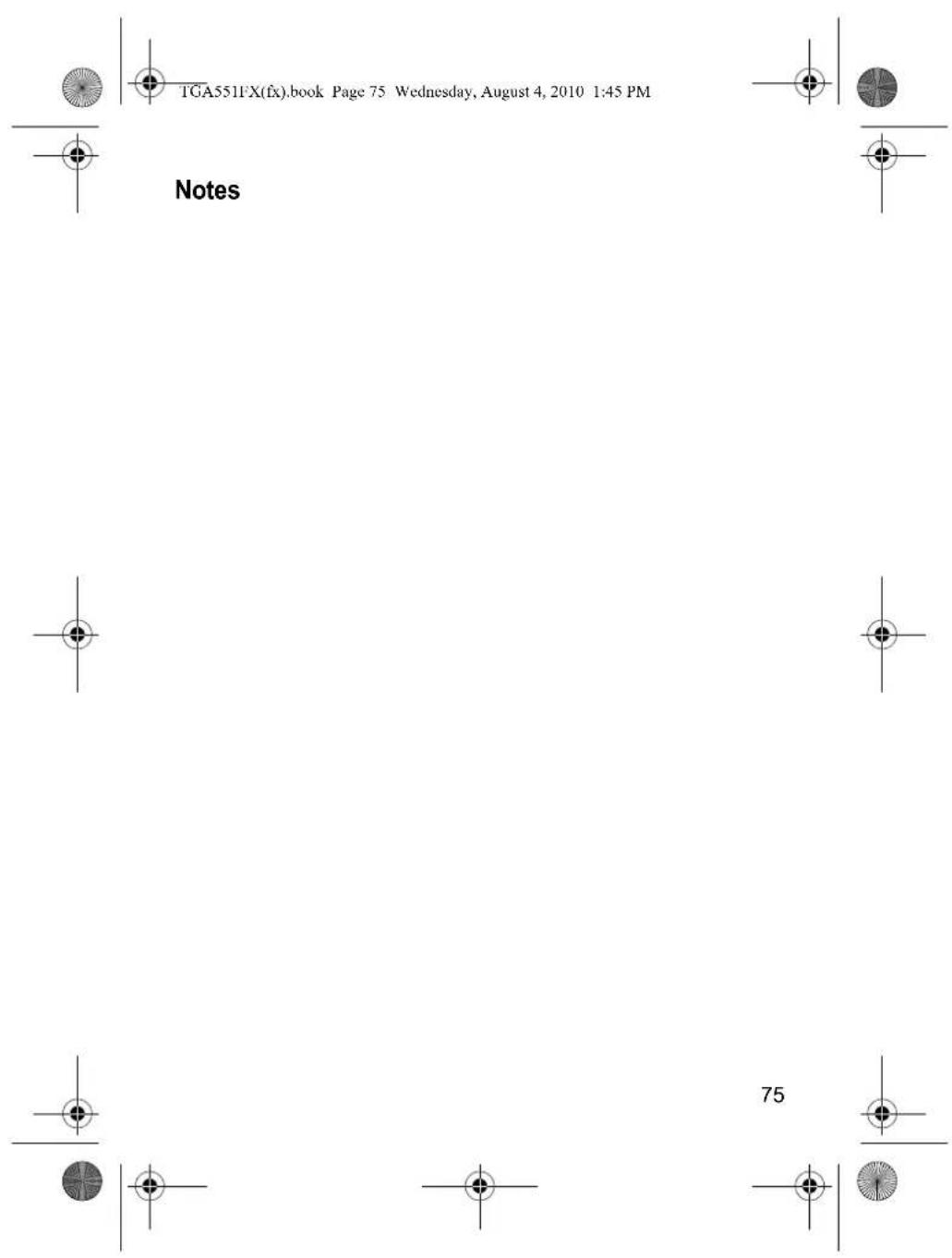

TGA551FX(fx).book Page 75 Wednesday, August 4, 2010 1:45 PM
