Product Type	Electric Cement Mixer
Brand	Graphite
Model	58G782
Rated Power	1200 W
Supply Voltage	230 V AC
Frequency	50 Hz
No-Load Speed (Gear I)	0 – 580 rpm
No-Load Speed (Gear II)	0 – 760 rpm
Number of Gears	2
Speed Control	Electronic, 6 levels
Spindle Connection	M14 internal thread
Protection Class	II (double insulation)
Weight (without paddle)	4.3 kg
Weight (with paddle)	5.5 kg
Mixing Capacity (max)	65 liters
Sound Pressure Level	90.6 dB(A) (K=3 dB(A))
Sound Power Level	101.6 dB(A) (K=3 dB(A))
Vibration (weighted)	4.687 m/s² (K=1.5 m/s²)
Safety Features	Switch lock button, anti-restart
Soft Start/Stop	Electronic control
Maintenance	Replace carbon brushes when ≤5 mm
Included Accessories	Mixer shaft, mixing paddle, transport case
Environmental Protection	WEEE compliant, do not dispose with household waste

Frequently Asked Questions - 58G782 Graphite

What is the maximum mixing capacity of the Graphite 58G782 cement mixer?

The recommended maximum mixing capacity is 65 liters of product, depending on the composition and mixing tool used.

How do I change the speed or gear on this mixer?

Use the gear selector switch (positions 1 for low speed/high torque, 2 for high speed/low torque) and the rotational speed control wheel (settings 1-6) on the handle. Never change gears while the mixer is running.

Can I use this mixer for mixing paints or chemicals?

Yes, it is designed for mixing cement, gypsum, stucco, paint, plaster, self-levelling underlayment and other chemicals. However, do not mix solvents or substances with an ignition temperature below 210°C.

How do I assemble the mixing paddle and shaft?

First, disconnect the mixer from the power supply. Screw the shaft into the mixer spindle (fig. A), then attach the mixing paddle to the shaft (fig. A). Ensure all connections are tight.

What is the correct way to start and stop the mixer?

To start, press the switch lock button and then press the switch button. To stop, release the switch button. The electronic controller provides a soft start/stop to reduce splashing.

What type of power source does this mixer require?

It requires a 230 V AC, 50 Hz power supply. Ensure the mains voltage matches the label on the tool.

How do I maintain the carbon brushes?

Check the carbon brushes regularly. Replace them when they are shorter than 5 mm, or if they are burnt or cracked. Always replace both brushes at the same time and use only original parts.

Is the mixer safe to use in wet or outdoor conditions?

This device is designed for indoor use only. Do not use in potentially explosive atmospheres or where flammable substances are present. Always operate on a stable surface.

What should I do if the mixer vibrates excessively or makes unusual noises?

Stop using the mixer immediately and disconnect from power. Check that the mixing paddle and shaft are properly attached and that the ventilation holes are not blocked. If the problem persists, contact an authorized service workshop.

How should I dispose of this product at the end of its life?

Do not dispose of it with household waste. Take it to a designated collection point for electrical and electronic equipment recycling. Contact your local authorities or retailer for information.

USER MANUAL 58G782 Graphite

INSTRUKCJA ORYGINALNA (OBSŁUGI)

MIESZARKA ELEKTRYCZNA

58G782

UWAGA: PRZED PRZYSTĄPIENIEM DO UŻYTKOWANIA ELEKTRONARZĘDZIA NALEŻY UWAŻNIE PRZECZYTAĆ NINIEJSZĄ INSTRUKCJĘ I ZACHOWAĆ JĄ DO DALSZEGO WYKORZYSTANIA.

SZCZEGÓŁOWE PRZEPISY BEZPIECZEŃSTWA

/EC Declaration of Conformity/

/The above listed product is in conformity with the following UE Directives:/

/Machinery Directive 2006/42/EC/

/ 2006/42/EK Gépek /

RoHS Directive 2011/65/UE

2011/65 EK RoHS

/and fulfils requirements of the following Standards:/

/Last two figures of CE marking year:/

/Name and address of the person who established in the Community and authorized to compile the technical file/

ELECTRIC MIXER

58G782

CAUTION: BEFORE USING THE POWER TOOL READ THIS MANUAL CAREFULLY AND KEEP IT FOR FURTHER USE.

DETAILED SAFETY REGULATIONS

• Ensure the mains voltage matches the voltage on the tool label.
• Do not use the mixer in environments with potentially explosive atmosphere. Do not mix solvents or substance containing solvents with ignition temperature below 210^ C.
• Do not wind the power cord around any part of the mixer body.
• Switch the mixer on and off only when the mixer paddle is immersed in the tub.
• Ensure the tub for mixing is well fixed.
• Do not put your hands or any other objects into the tub when mixing.

CAUTION! This device is designed to operate indoors.

The design is assumed to be safe, protection measures and additional safety systems are used, nevertheless there is always a small risk of operational injuries.

CONSTRUCTION AND USE

Electric mixer is a power tool designed for continuous use for building industry and other fields. Possibility to use various mixing tools appropriate for mixed substances allows for mixing of cement, gypsum, stucco, paint, plaster, self levelling underlayment and other chemicals. Depending on the composition being mixed and type of the tool used, it is not recommended to mix more than 65 litres of the product.

Use the power tool according to the manufacturer's instructions only.

DESCRIPTION OF DRAWINGS PAGES

Below enumeration refers to the device elements depicted on the drawing pages of this manual.

1. Mixer spindle
2. Gear switch
3. Switch
4. Switch lock button
5. Mixer shaft
6. Mixing paddle
7. Wheel for speed control

* Differences may appear between the product and drawing

MEANING OF SYMBOLS

CAUTION

WARNING

ASSEMBLY/SETTINGS

INFORMATION

EQUIPMENT AND ACCESSORIES

1. Mixer shaft - 1 pce
2. Mixing paddle - 1 pce
3. Transport case - 1 pce

Disconnect the power tool from power supply.

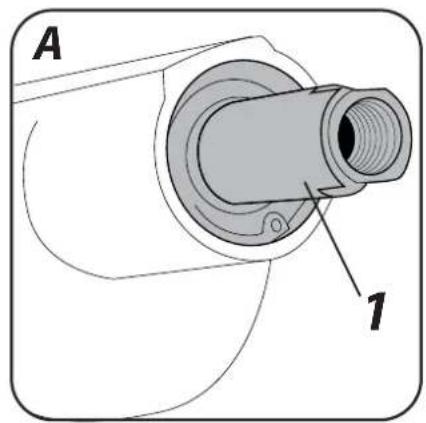

• Screw the shaft (5) into the mixer spindle (1) (fig. A).
• Screw the mixing paddle (6) to the shaft (5).

SWITCHING ON / SWITCHING OFF

The mains voltage must match the voltage on the label of the mixer.

The mixer is equipped with the switch, which protects against accidental starting.

Switching on

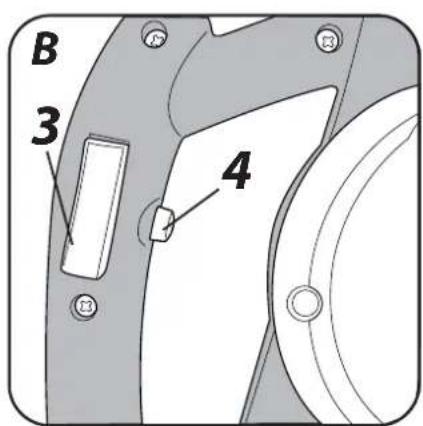

• Press the switch lock button (4) located on the handle (fig. B).
• Press the switch button (3).

Switching off

- Release pressure on the switch button (3).

2 GEAR SELECTOR SWITCH

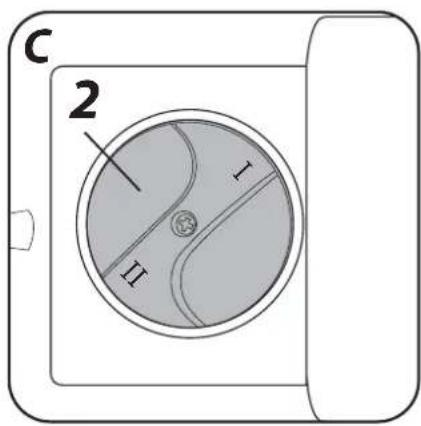

Rotational speed can be changed with the use of two-position gear switch (2) (fig. C). Depending on the work being carried out, set the gear switch to appropriate position.

• Position '1' is for lower speed and greater torque.
• After switching to the right, to position '2', the speed is greater and the torque is lower.
• To restore lower speed set the switch back to the left position.

Never change the gear switch position under operation of the mixer. It may damage the power tool. Turn the spindle slightly if the switch position cannot be changed.

ROTATIONAL SPEED CONTROL

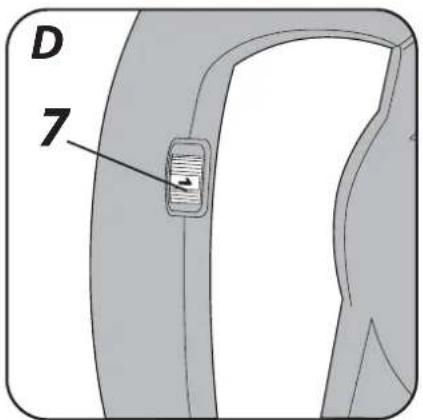

Wheel for rotational speed control (7) is located on the mixer handle (fig. D). Control range is from 1 to 6, the speed can be changed depending on the user's needs when working on either gear.

USE OF THE MIXER

• Ensure the power supply voltage is 230 V.
• Connect the power tool to the power supply network.
• During operation, always hold the mixer firmly (with both hands).
• Electronic controller allows for slow start of the mixing (no splash) and slow stop.
• By turning the control wheel (7) you can increase or reduce rotational speed of the spindle.

Unplug the power cord from the mains socket before commencing any activities related to installation, adjustment, repair or maintenance.

• Keep the mixer clean.

• When using the mixer always check that the ventilation holes are not obstructed and no foreign body got between internal parts of the power tool.

• Any maintenance or repairs should be carried out by an authorized service workshop.

• During operation of the mixer, carbon brushes of the motor wear out and they should be controlled and replaced regularly.
• Ball bearings of the mixer are greased for the whole time of mixer operation.

REPLACEMENT OF CARBON BRUSHES

Replace immediately worn out (shorter than 5 mm), burnt or cracked motor carbon brushes. Always replace both brushes at a time.

Entrust replacement of carbon brushes only to a qualified person. Only original parts should be used.

All faults should be repaired by service workshop authorized by the manufacturer

TECHNICAL PARAMETERS

RATED PARAMETERS

Electric Mixer
Parameter Value
Supply voltage 230 V AC
Input current frequency 50 Hz
Rated power 1200 W
Spindle rotational speed with no load	Gear I (low) 0 ÷ 580 min	-1
	Gear II (high) 0 ÷ 760 min	-1
Mixer shaft connection M14, internal thread
Protection class II
Weight w/o mixer paddles 4,3 kg
Weight with mixer paddles 5,5 kg
Year of production		2016

NOISE LEVEL AND VIBRATION PARAMETERS

Sound pressure Lp_A=90,6 dB(A) K=3 dB(A)

Sound power Lw_A=101,6 dB(A) K=3 dB(A)

Weighted value of vibration acceleration a_h=4,687 m/s^2 K=1,5 m/s^2

ENVIRONMENT PROTECTION

Do not dispose of electrically powered products with household wastes, they should be utilized in proper plants. Obtain information on wastes utilization from your seller or local authorities. Used up electric and electronic equipment contains substances active in natural environment. Unrecycled equipment constitutes a potential risk for environment and human health.

* Right to changes is reserved.
