DVD 4514 - DVD player AEG - Free user manual and instructions

Product Type	DVD Player
Brand	AEG
Model	DVD 4514
Dimensions (W x H x D)	430 x 38 x 265 mm
Weight	Approx. 2.4 kg
Power Supply	100-250 V ~ 50/60 Hz, 15 W
Compatible Media	DVD-Video, DVD±R/RW, MPEG-4, Audio CD, Video CD, MP3, Kodak Picture CD
Audio Outputs	Analogue stereo (2.0 V rms), 5.1 channel, digital coaxial (0.5 V p-p)
Video Outputs	SCART, Component (YUV), S-Video, Composite (1.0 V p-p)
Playback Features	Repeat (title/chapter/A-B), zoom, angle, subtitle, audio language, playlist, program
Regional Code	2 (Europe, Middle East, Japan, etc.)
Laser Type	Semiconductor laser, Class 1
Operating Temperature	0°C to 40°C
Remote Control	Included, 2 x AAA batteries (not included)
Safety Features	Child lock (parental control), auto power-off (standby), D.R.C. (dynamic range compression)
Maintenance	Clean exterior with soft cloth; avoid solvents. Clean discs radially with soft cloth.
Spare Parts / Repairability	Remote control replaceable; service only by authorized workshops
Warranty	24 months from date of purchase (receipt required)

Frequently Asked Questions - DVD 4514 AEG

Why is there no power?

Check that the mains plug is correctly inserted and the socket is working. Ensure the mains switch on the back of the player is turned on.

Why is there no picture on the TV?

Verify the video cable (SCART, Component, S-Video, or Composite) is securely connected. Make sure a compatible disc is inserted and the correct input is selected on your TV. Also check the video output setting in the setup menu (e.g., YUV for Component).

Why is there no sound?

If you are not using SCART, ensure the audio cables are connected to the TV or amplifier. Check that the amplifier is powered on and the correct input is selected. Also verify the audio settings (e.g., downmix, digital output) are appropriate for your setup.

Why doesn't the remote control work?

Point the remote towards the sensor on the front of the player (max 7 m, within 30° angle). Replace the batteries with new AAA batteries if they are empty. Check for obstructions between remote and sensor.

Why won't the disc play?

Ensure the disc is compatible (DVD, CD, etc.) and placed correctly on the tray with the label facing up. The disc must be clean and not damaged. If it is a burned disc, make sure it was finalized. Regional code must be 2.

Why are titles playing in the wrong order?

A playlist might be active. Press the PROGRAM button to view or delete the playlist via the CLEAR button.

How do I set or disable parental control?

Go to the Preference page in the setup menu. Select 'Parental' and choose a rating level (1=Kid SAF to 8=ADULT). To set a password, go to the Password Setup page. The master password is 49540.

Can I play DVDs from other regions?

This player only supports region code 2 discs (Europe, Middle East, Japan). DVDs from other regions will not play.

How should I clean the disc and player?

Clean discs with a soft, lint-free cloth wiping from the center outward. Do not use solvents or abrasive cleaners. For the player exterior, use a dry soft cloth. Avoid moisture entering the device.

How do I reset the player to factory settings?

Press the SETUP button, navigate to the Preference page, select 'Default' and choose 'Reset'. Confirm with the PLAY button. All custom settings will be lost.

USER MANUAL DVD 4514 AEG

Line drawing of a rectangular electronic device with ports and buttons (no text or symbols)

Line drawing of a rectangular electronic device with ports and connectors (no text or symbols)

Line drawing of a remote control device with battery and two separate components (no text or symbols)

Abb. 3

Abb. 8

Stereo

Line drawing of a hand inserting a CD into a slot (no text or symbols)

Abb. 12

Abb. 61

Device parts/Scope of delivery

1 On/Off switch	18 Time display
2 Di s p l a y	19 Dolby indicator
3 CD/DVD tray	20 DTS indicator
4 "Open/Close" button	21 VCD indicator
5 "Play" button
6 "Pause" button	Without illustration:
7 "Stop" button	- Remote control
8 5.1 Output terminal
9 Component Video output
10 Composite Video output
11 S-Video output
12 SCART output
13 Digital Audio output
14 Mains On/Off switch
15 DVD indicator
16 Play indicator
17 CD indicator

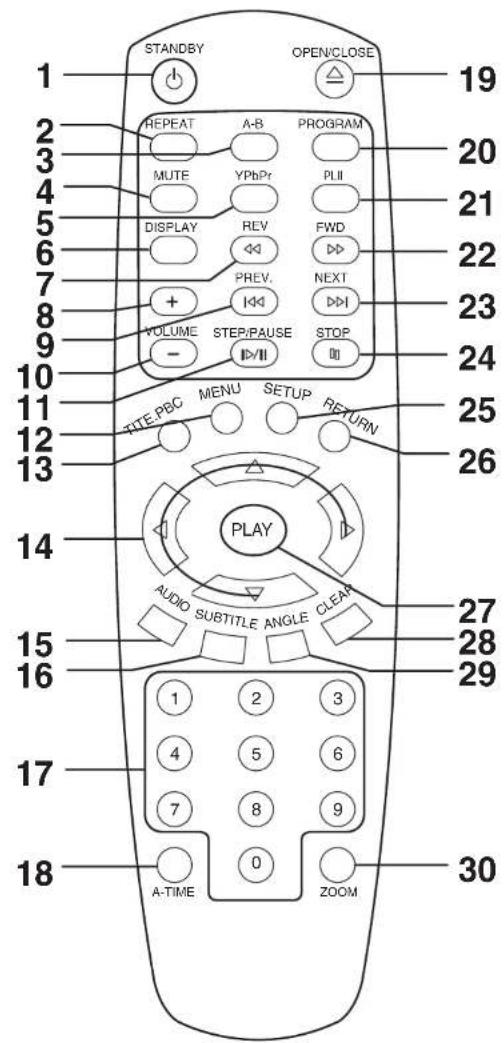

Remote control

1 Standby: To activate standby mode	16 Subtitle: To show/hide subtitles
2 Repeat: To repeat title, chapters, etc.	17 Numerical buttons: For direct selection of chapter or song number
3 A-B: To select the section to be repeated	18 A-Time: Display of DVD/VCD menu or direct access to a section on CD
4 Mute: To switch of the sound	19 Open/Close: to open or close the CD/DVD tray
5 Y Pb Pr: Activating/deactivating Progressive Scan mode	20 Program: To add a title to the Playlist
6 Display: To display the play status on screen	21 PLII: Activating/deactivating Dolby Pro Logic II mode
7 Rev: Fast reverse	22 FWD: Fast forward
8 Volume +: To increase the volume	23 Next: To jump to the next chapter or song
9 Prev: To return to the previous chapter or song	24 Stop: Stop play
10 Volume -: To reduce the volume	25 Setup: To start the setup menu
11 Step/Pause: To freeze the picture. Press again to show the next picture. Resume playing film with the Play button	26 Return: Once step back
12 Menu: To display the main menu of the DVD/VCD	27 Play: To start the replay, to confirm the input
13 Title.PBC: To show the title menu of the DVD. To show the Playback-Control for VCD	28 Clear: To delete the Playlist or the selected song number
14 Cursor buttons: Navigation in screen menu	29 Angle: To select the viewing angle
15 Audio: To change the Audio settings	30 Zoom: To zoom in or out

Device parts/Scope of delivery

Technical data

Type of equipment DVD-Player
Model DVD 4514
Voltage 100 - 250 V ~ 50/60 Hz
Output 15 W
Dimensions(W x H x D)	430 x 38 x 265 mm
Weight approx. 2,4 kg
Laser Semiconductor laser
Signal format PAL/NTSC
Frequency response	DVD VIDEO (PCM 96KHz)20 Hz~44 KHz(±1 dB)DVD VIDEO (PCM 48KHz)20 Hz~44 KHz(±0,5 dB)CD: 20 Hz~22 KHz(±0,5 dB)
Signal noise distance >=	90 dB
Dynamic range DVD	Video >= 90 dBCD >= 85 dB
Video output 1,0V (P-P)	75 Ω
Analogue Audio output	2,0 V (rms)
S-Video output	(Y) 1,0 V (P-P), 75 Ω(C) 286 mV (P-P), 75 Ω
Component Video output	(Y) 1,0 V (P-P), 75 Ω0,7 V (P-P), 75 Ω
SCART-Video output	0,7 V (P-P) 75 Ω
COAXIAL Audio output	0,5 V (P-P) 75 Ω
Operating environment	0°C to 40°C, level base
Compatible media	DVD-Video (DVD Disc, DVD ±R/RW)MPEG-4 Video (from CD/DVD Disc,DVD±R/RW, CD-R/RW)Audio CD (from CD Disc, CD-R/RW)Video CD (from CD Disc, CD-R/RW)MP3 files (from CD/DVD Disc,DVD±R/RW, CD-R/RW)Kodak Picture CD (from CD Disc, CD-R/RW)
Regional code	2 (= Europe, Greenland, South Africa,Egypt and Middle East, Japan)

AEG

Table of Contents

Device parts/Scope of delivery 49

Technical data 50

Safety instructions....54

Operating Manual 54

Children 54

Power supply 54

Laser 55

Transport 55

Where to position the appliance 55

Operation....55

Intended use.... 56

Defect 56

Setting up and connecting 56

Unpacking....56

Setting up....56

Starting up 57

Remote control battery installation 57

Connecting the Video cable....58

Connecting the Audio cable....59

Switching on the player....60

About the DVD-Player....61

Handling CD/DVD 61

Terminology....61

Playing media 62

Using the remote control....62

Loading a CD/DVD 62

Using the on-screen DVD/VCD-menu 62

Starting the replay....64

Interrupting the replay....64

Changing Audio-Language/Audio-Mode....64

Showing subtitles....64

Showing still images 64

Stopping the replay.... 64

Selecting previous chapter/track 65

Selecting next chapter/track 65

Selecting chapter/track directly.... 65

Accessing a section via menu 65

Repeating titles/chapters 65

Repeating a CD-track 65

Stopping repeat 66

Selecting a section to be repeated 66

Using the DVD-menu.... 66

Using fast forward or reverse....66

Enlarging a screen section 66

Changing the viewing angle....66

Adjusting the volume 67

Creating a playlist 67

Deleting a Playlist entry 68

Changing the default settings....68

Understanding the menu structure 68

Using the menu....68

Overview of the main menu 69

General setup page 69

Audio setup page....71

Video Setup Page....77

Preference page 79

Password Setup Page 81

Working in file mode 82

Using CD/DVD 82

Selecting photo files and starting replay 82

Selecting MP3 files and starting replay.... 84

Selecting MPEG4 files and starting replay 84

Stopping the replay 85

Troubleshooting 86

Disposal 87

Warranty....87

After the warranty 87

Conformity declaration....87

AEG

Many thanks! We are glad that you have made a decision in favour of the DVD-

Player DVD 4514!

We would like to wish you much joy with your machine and thank you for your purchase!

Line drawing of a rectangular electronic device with ports and connectors (no text or symbols)

Symbols in this operating manual

Important instructions for your safety are especially marked. You must follow these instructions to avoid accidents and damage to the machine:

WARNING:

Warns against dangers to your health and indicates potential risks of injury.

ATTENTION:

Indicates potential hazards for the player or other objects.

i NOTE:

Highlights tips and information for you.

Manufacturer address ETV

We reserve the right to make technical and design-related changes in the course of ongoing product improvements.

Operating Manual Read the complete operating manual before using the player.

Keep the manual in a safe place. If you pass the player on to a third party, pass on the operating manual as well.

Non-compliance with this manual can lead to severe injuries or damage to the machine.

We assume no liability for damage caused as a result of non-compliance with this operating manual.

The player may only be used in households for private use. It is not suitable for commercial use.

Children

Do not leave the machine unattended, and do not use it if children or persons who cannot assess the risk are nearby.
Children or persons who cannot assess the risks are not allowed to use the player. Keep the player out of reach.
Packaging material must not be used to play with. There is a risk of suffocation.

Power supply

The machine is operated with electrical current, which means there is in principle a risk of electric shock. For this reason, pay particular attention to the following:

■ Never touch the plug with wet hands.
If you want to pull the plug out of the plug socket, always pull directly on the plug. Never pull on the cable as it could tear.
Make sure that the power cable is not bent, caught or run over and that it does not come into contact with heat sources.
Never place the machine on the power cable while it is being operated.
Only use extension cables that are designed for the power consumption level of the machine.
- Keep the appliance away from rain and any moisture.
Only operate the appliance if the electrical voltage stated on the type plate corresponds with the voltage supplied through your socket. The wrong voltage can destroy the machine.
Do not stand vases etc. on the appliance. Water could seep into the appliance.
Do not open the appliance.
Pull out the mains plug if the appliance is not to be used over a longer period of time.
Take care that nobody can trip over the power supply cable.

AEG

Safety instructions

Laser

This appliance is classified as laser appliance of class 1 (CLASS 1 LASER). The associated label is attached to the outside of the appliance.

Laser beams can damage the eyes. Therefore observe the following:

Do not open the appliance. Do not attempt to dismantle the appliance.
In order to avoid any danger: Have service work only carried out by the manufacturer or an authorized service workshop.
In order to avoid damage to the DVD, you should remove it before transporting the appliance.
Never move the machine when it is in operation.

Transport

Where to position the appliance

Safe operation of the appliance presupposes that it is positioned in an appropriate place. Therefore observe the following:

• Protect the appliance against the influence of weather. Never use it in the open-air.
• Protect the appliance against moisture.
  Never place the appliance on or in direct vicinity of heat sources, such as e.g. hobs, ovens, etc.
  Do not expose the appliance to direct sunlight.
  Place the appliance so that a sufficient air supply is assured. This is to avoid a build up of heat inside the appliance. Make sure that the ventilation slots are not blocked.
• Protect the appliance against the mechanical vibrations.
  Stand the appliance on a solid base so that it cannot drop down.
• Protect the remote control against weather influences, moisture and high temperatures (e.g. by direct sunlight).

Operation

The player is able to show a still image on the TV-screen/monitor over an unlimited period of time. This can cause damage to the screen. It is therefore advisable to activate the screen saver Page 70, "Screen saver".
Do not increase the volume when the player is just playing very quiet sections. This could damage the speaker if very loud passages start all of a sudden after the quiet section.
Do not move the player with a DVD inserted. This could damage the DVD.
Do not put your hands into the DVD-slot. You could be injured.
Place only DVDs or CDs on the DVD-tray, as otherwise the player may be damaged.
Switch the player off by the On/Off-switch if it is not going to be used for a longer period of time.

Setting up and connecting

Intended use

The DVD-Player is solely intended for the following tasks:

Playing of Video DVD/Video CD.
Playing of Audio-CD.

Any other use is considered non-intended use and is prohibited.

Defect If the machine should become defective at some point:

If the power supply cable for this appliance is damaged, it must be replaced by the manufacturer or his customer services, in order to avoid hazards.
Should fluid have seeped into the player or if the player has been dropped down or damaged in any other way, the player must be examined by an authorized dealer. Disconnect the player from the power supply and consult an authorized dealer.

Setting up and connecting

Unpacking Unpack the appliance and all accessories and check that the

contents are complete. You will find information about the scope of delivery on Page 49, "Device parts/Scope of delivery".

ATTENTION:

Always transport/send the player in its original packaging to prevent it from being damaged. Keep the packaging for this purpose.

Dispose of unnecessary packaging material in accordance with the regulations applicable in your country.

i NOTE:

Get in touch with your dealer immediately if you notice damage caused by transport.

Setting up

1. Place the player on a stable, heat resistant, horizontal and level surface. Keep a distance of at least 10 cm from walls and objects.
2. Connect the machine to an earthed socket.

AEG

Starting up

Starting up

Remote control battery installation

WARNING:

Leaking out battery acid can damage your health.

Remove the battery from the battery compartment as soon as it is exhausted or if the remote control is not going to be used for a longer period of time. Wipe up leaked out battery acid with a cloth. In case of skin contact immediately wash the affected area. Seek medical advice if battery acid has been swallowed. In case of contact with your eyes wash out the eyes and seek medical advice.

ATTENTION:

Mismatching battery types or new and used batteries must never be used together. Different battery types have different properties. Do not use old and new batteries together. The mutual use of old and new batteries can shorten the lifetime of the new batteries and possibly result in leakage of the old batteries.

When disposing of old batteries you should strictly comply with the legal and environmental regulations applicable in your country. Do not throw batteries into fire!

i NOTE:

The lifetime of the enclosed batteries may be shortened because of storage.

1. Open and remove the battery compartment cover.
2. Insert two batteries of type AAA/R03 (1.5 V), ensure correct polarity (+ and -). Start with the negative pole (-).
3. Attach and close the battery compartment cover.

i NOTE:

The signals from the remote control are transmitted to the DVD-Player by infrared light. You should therefore take care that the DVD-Player is not exposed to the direct sunlight. This could make the transmission of signals from the remote control to the DVD-Player impossible.

Effective range of the remote control

When using the remote control direct it towards the remote control sensor in the display at the left hand front side of the player. The distance between remote control and sensor should not exceed 7m. The angle of the remote control to the remote control sensor to right, left, top and bottom should not exceed 30°.

Line drawing of a remote control device with battery and two cylindrical components (no text or symbols)

Fig. 3

Starting up

Connecting the Video cable

The video cable transmits the video data from your DVD-Player to the TV or the Video-Projector.

There are four different ways of connecting the DVD-Player with your TV/Video-Projector. Select one of these possibilities to suit your replay unit.

i NOTE:

If you do not use a SCART-Connection, you must set up an additional Audio-Connection to transmit Audio data (i.e. from the audio track). See section Page 59, "Connecting the Audio cable".

Fig. 4

SCART

SCART is used to transmit both Video and Audio data.

1. Plug the SCART jack firmly into the socket on the back of the player (Fig. 4).
2. Plug the SCART jack into the corresponding socket on your replay device.

Component Video

Connection using a Component Video cable ensures a very high replay quality.

Component Video transmits only Video signals.

1. Plug each of the three jacks into the corresponding sockets on the DVD-Player (Fig. 5).
2. Plug the jacks into the corresponding socket on your replay device. Select the sub-menu "Video Output" from the menu "Video Setup Page" Activate the option "YUV" →Page 78, "Video output".

S-Video

Connection using a Component-Video cable ensures a very high replay quality.

Component Video transmits only Video signals.

1. Plug the S-Video jack into the socket on the back of the player (Fig. 6).
2. Plug the S-Video jack into the corresponding socket on your replay device.

Composite-Video

Composite-Video is used to transmit only Video data.

1. Plug the Composite-Video jack into the socket on the back of the player (Fig. 7).
2. Plug the Composite-Video jack into the corresponding socket on your replay device.
3. Select the sub-menu "Video Output" from the menu "Video Setup Page". Activate the option "OFF" → Page 78, "Video output".

Fig. 5

Fig. 6

Fig. 7

AEG

Starting up

Connecting the Audio cable

You can choose from three transmission methods for audio signals. You must generally choose first whether you would like to have the sound coming from your TV, or through a Stereo or 5.1-Amplifier. The Audio cable must then be connected to the TV or an amplifier accordingly.

NOTE:

If your amplifier is equipped with a digital output, you should use the amplifier. You will experience a much better audio quality, and the installation is much easier.

Fig. 8

Stereo

Connect both Audio cables for the right (Fig. 8/1) and the left (Fig. 8/2) speakers to your replay device or your amplifier.

1. Plug the Audio jacks into the sockets on the back of the player.
2. Plug the Audio jacks into the corresponding sockets on your replay device or your amplifier.

Fig. 9

5.1-Audio signal

If you would like to achieve a replay of almost original quality you should use an Audio output by means of a 5.1-Audio signal.

This method uses 6 speakers. Four of these speakers are placed in the four corners of the room. One speaker is positioned close to the replay device. The sixth speaker serves the output of very low tones. With this arrangement of speakers a very natural stereophonic sound is achieved.

If your amplifier has no digital input you need six cables to transmit the analogue 5.1-Audio signal.

Proceed as follows:

1. Plug the Audio jacks into the sockets on the back of the player. Make sure that the jacks are correctly arranged:

2. (1) Connection for Subwoofer: Bass

3. (2) Connection for Center speaker
4. (3) Speaker rear right
5. (4) Speaker rear left
6. (5) Speaker front right

7. (6) Speaker front left

8. Plug the Audio jacks into the corresponding sockets on your replay device or your amplifier.

Fig. 10

Digital

Connect the Coaxial cable for transmission of digital Audio signals to your replay device or your amplifier.

1. Plug the Audio jack into the socket on the back of the player.
2. Plug the Audio jack into the corresponding socket on your replay device or your amplifier.

Starting up

Switching on the player

Fig. 11

Switch on the DVD-Player by the mains On/Off switch on the back of the player (Fig. 11).

About the DVD-Player

With this DVD 4514 you can play a vast variety of DVD-formats Page 50, "Technical data".

However, you must be aware that in many cases DVDs are encrypted with a so-called "Regional Code". This specifies for which region in the world the DVD is intended. As an example, the DVDs marked with regional code "1" are intended for the USA and Canada. DVDs with regional code "2" are for use in Europe.

i NOTE:

With your DVD-Player you can only play DVDs with regional code "2".

There are both lots of burning and compressing methods as well as high quality differences in (burned) CDs/DVDs. Moreover, the music industry has not yet agreed on a fixed standard for copy protection. This may, in very isolated cases, result in problems when relaying CDs, DVDs and MP3 CDs. This is no malfunction of the player.

Furthermore, there may be isolated problems when playing CDs or DVDs which were created on a PC (e.g. holiday photographs). In case of problems check the settings of the DVD writing program on your computer. You should in particular make sure that the DVD has been finalized. For further information on this matter please refer to the operating manual of your recorder.

Handling CD/DVD

CDs and DVDs are highly sensitive media. Please observe the following points in order to avoid damage or contamination.

Hold CDs or DVDs only by their edges.
Do not expose CDs or DVDs to heat sources (e.g. direct sunlight).
- Keep CDs or DVDs always in their jewel cases.
If necessary clean CDs or DVDs with a soft cleaning cloth. Wipe from inside to outside. Do not use any detergents or solvents.
If you want to write on DVDs: use only a suitable pen. Write only on the upper side!
Track: "Track" is the designation for sections on an Audio-CD. This may be a song, the set of a symphony, etc.
Title/Chapter: Video-DVDs are divided into "Title" and "Chapters". A "Title" may be e.g. a particular film, the "Chapters" may be subsections of this film.
MPEG-4: Your DVD-Player is still capable of playing files compressed in MPEG-4 (short for Moving Picture Experts Group-4). MPEG-4 is a compression method able to reduce high amounts of data without a noticeable loss in the quality of pictures and sound.

Terminology

Playing media

Playing media

Using the remote control

You transmit commands to the DVD-Player via remote control. It is thus important to point the upper end of the remote control towards the DVD-Player.

Loading a CD/DVD

Line drawing of a hand inserting a CD into a tray (no text or symbols)

Fig. 12

1. Press the button Open/Close (Fig. 2/19) on the remote control or on the player. The CD/DVD tray opens.
2. Place the CD/DVD on the tray (Fig. 12).
3. Press the remote control button Open/Close (Fig. 2/19) again. The CD/DVD tray closes. The display (Fig. 1/2) first shows "Load". Replay of the medium starts after a short while.

Using the on-screen DVD/VCD-menu

When playing DVDs/VCDs you can view the on-screen menu by pressing the A-TIME-button (Fig. 2/18).

Press the A-TIME-button again to exit the menu.

The DVD menu consists of several pages. The menu is structured as follows:

Fig. 13

Operating status (1): Here you can view in which mode the DVD is played (normal play, fast forward, etc.).
Media type (2): The display shows which media type is currently used (e.g. DVD or VCD).
■ Menu (3): The menu is to be used to navigate through the DVD and to make certain settings.
Bitrate (4): This informs you about the amount of data being transferred by the DVD-Player to your replay unit.
Title Elapsed (5): Here the time is displayed. The display depends on the setup of your DVD-Player. You can e.g. have the playtime of a chapter displayed. The indicated time can be changed with the menu option "Time Disp." (see below).

Menu commands

Use the menu as follows:

1. Press the Cursor Buttons (Fig. 2/14) to navigate through the menu.
2. Press the Play-button (Fig. 2/27) if you would like to change a menu command.n
3. Then enter the desired value either with the Numerical Buttons (Fig. 2/17), or by means of the Cursor Buttons (Fig. 2/14).
4. Press the Play-button (Fig. 2/27) to confirm your input.

The following information/commands are available in the menu.

AEG

Playing media

i NOTE:

Most menu options depend on the DVD. Example: Only the Audio languages, which are actually on the DVD, will be available for selection.

Time settings can only be made in compliance with the length of the DVD/VCD. If you try to enter values which are longer than the length of the title/chapter, the input will be ignored.

Title: Display/selection of the current title and total number of titles. Just enter a number to select another title.
Chapter: Display/selection of the current chapter and total number of chapters. Just enter a number to select another chapter.
Audio: Display/selection of Audio language or output type, see also →Page 64, "Changing Audio-Language/Audio-Mode". Select the Audio output from a list of possible languages.
Subtitle: Display/selection of subtitles, see also Page 64, "Showing subtitles". Select the subtitle from a list of possible subtitles.
Angle: Display/selection of viewing angles, see also Page 66, "Changing the viewing angle". Enter a number to select a different viewing angle.
TT Time: Display of the expired playtime of the title. Enter a numerical value if you want the replay to start from a certain position of the title.
CH Time: Display of the elapsed playtime of the chapter. Enter a numerical value if you want the replay to start from a certain position of the chapter.
Repeat: Display indicating repeat is activated. Select an option to change the setting, see also →Page 65, "Repeating titles/chapters". The following options are available:
- Chapter: The current chapter is repeated.
- Title: The current title is repeated.
- All: The total CD/DVD is repeated
- Off: The "Repeat" option is switched off.

Time Disp.: This option is used to change the time displayed at the bottom of the menu. The following options are available:

- Title Elapsed: Display of the expired playtime of the title

- Title Remain: Display of the remaining playtime of the title.

- Chapter Elapsed: Display of the elapsed playtime of the chapter.

- Chapter Remain: Display of the remaining playtime of the chapter.

Playing media

Starting the replay	1. Place the CD/DVD on the CD/DVD-tray ⇔ Page 62, "Loading a CD/DVD").2. Press the Play-button (Fig. 2/27) on the remote control.The play indicator (Fig. (Fig. 1/18) lights up.i NOTE:If the replay does not start or the replay is of poor quality, you should check the default settings of the DVD-Player ⇒ Page 86, "Troubleshooting".
Interrupting the replay	1. Press the Step/Pause-button (Fig. 2/11) on the remote control.The replay is interrupted, the currently visible image is "frozen".2. Press the Play-button (Fig. 2/27) on the remote control to restart the "normal" replay.
Changing Audio-Language/Audio-Mode	Press the Audio-button (Fig. 2/15) to display the currently selected Audio language.Press the Audio-button several times to change the Audio language. The available subtitle languages depend on the DVD.i NOTE:If the medium does not support this function (e.g. a CD), you can use this button to change the Audio mode and set it e.g. to "Mono" or "Stereo".
Showing subtitles	Press the Subtitle-button (Fig. 2/16) to display the current subtitle status.Press the button several times if you would like to activate or deactivate the subtitle function or if you want to choose a different subtitle language.The available subtitle languages depend on the DVD.
Showing still images	1. Press the Step/Pause-button (Fig. 2/11) on the remote control.The replay is interrupted, the currently visible image is "frozen".2. Press the Step/Pause-button (Fig. 2/11) again. The next image is displayed.3. Press the Play-button (Fig. 2/27) on the remote control to restart the "normal" replay.
Stopping the replay	Press the Stop-button (Fig. 2/24) during replay.The replay stops.Press the Play-button (Fig. 2/27) again, to continue the replay from the last position.i NOTE:Replay is only continued from the last position, if this option has not been disabled in the default settings of the DVD-Player.Press the Stop-button (Fig. 2/24) twice to stop the replay completely. Press the Play-button (Fig. 2/27) again, to replay the CD/DVD from the beginning.

AEG

Playing media

Selecting previous chapter/track

Press the PREV-button (Fig. 2/9) to jump to the start of the previous chapter or track.

Selecting next chapter/track

Press the Next-button (Fig. 2/23) to jump to the start of the next chapter or track.

Selecting chapter/track directly

1. Enter the number of the desired chapter/track with the Numerical buttons on the remote control (Fig. 2/17).
2. Press the Play-button (Fig. 2/27) to confirm your input. Replay of the chapter/track starts after a short while.

Accessing a section via menu

DVD/VCD

Press the A-Time-button (Fig. 2/18) to access the DVD-menu. Here you can access a section directly →Page 62, "Using the on-screen DVD/VCD-menu".

CD

1. Press the button A-Time (Fig. 2/18) once or several times, depending of which input you would like to make. The input must be made with the Numerical Buttons (Fig. 2/17).
2. 1x: Disc Go To: Enter a time in minutes and seconds. The complete CD is available for selection.
3. 2x: Track Go To: Enter a time in minutes and seconds. Only the current track is available for selection.

4. 3x: Track Select: Enter the number of the track from which you would like to start the replay.

5. Press the Play-button (Fig. 2/27) to start the replay from this point.

Repeating titles/chapters

1. Choose the chapter or title to be repeated Page 65, "Selecting chapter/track directly".
2. Press the REPEAT-button (Fig. 2/2). The screen displays a message showing what is repeated, e.g. "Chapter". If necessary press the REPEAT-button (Fig. 2/2) several times to change the selection, e.g. to repeat a title instead of a chapter.

i NOTE:

If no on-screen message appears after pressing the button REPEAT, the repeat feature is deactivated.

Repeating a CD-track

1. Select the track to be repeated →Page 65, "Selecting chapter/track directly".
2. Press the REPEAT-button (Fig. 2/2). The message "REPEAT: [OFF]" appears on the screen.
3. Press the REPEAT-button again to have the current track repeated.

Playing media

Stopping repeat	Keep pressing the REPEAT-button (Fig. 2/2), until no message is displayed on screen after pressing the button.
Selecting a section to be repeated	You can define a freely selected section to be automatically repeated.To do this, proceed as follows:1. Mark the beginning of the section to be repeated. During repetition press the buttonA-B (Fig. 2/3) on the remote control once.The message "A" appears on the screen.2. Mark the end of the section to be repeated by pressing the A-B-button on the remote control once again.The display "A" appears on the display.The previously marked section is now continuously repeated.Press the A-B-button again to stop the repetition.
	NOTE:The section to be repeated must be part of a chapter (DVD) or a track.
Using the DVD-menu Normally each DVD has its own menu. Here you can choose chapters, make settings, etc. This menu is specific for the DVD and can thus not be explained in detail.Press the Menu-button (Fig. 2/12) to access the DVD-menu. Use the Cursor Buttons (Fig. 2/14) to navigate in the menu. Press the Play-button (Fig. 2/27) to confirm.If you are in a menu area for direct chapter selection, you can enter the number of this chapter with the Numerical Buttons (Fig. 2/17) on the remote control.
Using fast forward or reverse	The DVD-Player has a fast forward and a fast reverse feature.1. Press the FWD (Fig. 2/22) or REV-button (Fig. 2/7) to start fast forward or fast reverse.The current replay direction and the speed, e.g. "2x" is now displayed on screen.2. Press the FWD or REV-button several times in order to change the speed.The speed can be accelerated by factor 2, 4, 8, 16 or 32.3. Press the Play-button (Fig. 2/27) to restart the "normal" replay when the desired section is reached.
Enlarging a screen section	You can change the screen section when viewing DVDs, VCDs or images.Press the ZOOM-button (Fig. 2/30) to change the screen section. Press the button several times to select the suitable zoom factor or to return to the original zoom factor.
Changing the viewing angle	Some DVDs offer the possibility to select the viewing angle.Press the ANGLE-button (Fig. 2/29) to change the viewing angle.Repeat pressing the the button to choose a different viewing angle, or to return to the original viewing angle.

AEG

Playing media

i NOTE:

Further settings concerning the subject "Viewing Angle" Page 69, "Angle mark".

Adjusting the volume

Press the + button (Fig. 2/8) to increase the volume.
Press the - button (Fig. 2/10) to reduce the volume.

i NOTE:

Please remember, that this will only change the output volume of the DVD-Player. In order to adjust the volume to your requirements you may also have to change the volume of the replay device.

Creating a playlist

You may want to replay the titles, e.g. on a CD, in a different order to the order determined by the producer. The function "Create Playlist" you can create your own playing order. To do this, proceed as follows:

1. Press the PROGRAM-button.

You will now see a table. Here you enter the desired order of tracks (for CDs) or chapters/titles (for DVDs).

i NOTE:

However, your playlist will be lost when switching off the DVD-Players or when inserting a new CD/DVD.

1. Use the Cursor Buttons (Fig. 2/14) to navigate in the table.
2. At the corresponding table position enter the desired track (for CDs) or the desired title and chapter (for DVDs). Use the Numerical Buttons e.g. 05 (Fig. 2/17) for this purpose.
3. Use the Cursor Buttons (Fig. 2/14) to select the command "Play" at the bottom of the table to save the input.
4. Press the Play-button (Fig. 2/27) on the remote control to confirm this command.

Creating an MP3-Playlist

When inserting an MP3-CD, the file selection dialog ( Page 84, "Selecting MP3 files and starting replay") will open.

Please proceed as follows to create a playlist:

1. Use the Cursor Buttons (Fig. 2/14) to select the title you want to add to the playlist.
2. Press button CLEAR (Fig. 2/28). The function information line (Fig. 62/12) displays "Add to Playlist".
3. To enter the playlist press the PROGRAM-button (Fig. 2/20), until the function information line (Fig. 62/12) displays "Playlist".
4. Press the Play-button (Fig. 2/27) to start replaying the playlist.

Changing the default settings

Deleting a Playlist entry

1. Press the PROGRAM-button. You will now see a Playlist.
2. Use the Cursor Buttons (Fig. 2/14) to navigate to the desired track (for CDs) or the desired title and chapter (for DVDs) you want to delete.
3. Delete the selected element by pressing the CLEAR-button (Fig. 2/28) on the remote control.

Changing the default settings

A large number of default settings can be comfortably changed via the screen menu.

Press the Setup-button (Fig. 2/25) on the remote control to start the menu for changing the default settings.

i NOTE

Many of these default settings can be changed via both the remote control and the menu "Default settings". The difference is: If you change the default settings via the remote control, these changes will only be valid until the DVD-Player is switched off or the DVD is changed. However, any changes made in the menu "Default settings" are permanent.

Understanding the menu structure

The Setup menu has two menu levels:

■ Main menu: The main level is represented by graphical symbols.
Sub-menu: The corresponding sub-menu options can be found under each of the main menu options.

Fig. 14

Using the menu Navigation and selection

Use the Cursor Buttons (Fig. 2/14) (◀, ▶) on the remote control to browse through the main menu.

In contrast to this, you must use the Cursor Buttons (▲, ▼) to move in the sub-menu.
Select a menu option with the Play-button (Fig. 2/27).
Use the Play-button also to select an option (e.g. "4:3 PANSCAN" in the illustration on the left). The selected option (in the example "4:3 PANSCAN") is now highlighted.

Fig. 15

Fig. 16

Slide control

In many menus you will find slide controls to adjust e.g. the volume or the brightness of the screen.

The slide control is used as follows:

1. Select with the Play-button.
2. Move the control with the Cursor Buttons (▲, ▼).
3. Confirm the entry with the Play-button.

Overview of the main menu

Fig. 17

General setup page (1)
Audio setup page (2)
Video setup page (3)
Preference page (4)
Password setup page (5)
Exit the setup menu (6)

General setup page

Fig. 18

TV-display

Here you can adapt the output of the DVD-Player to the TV-aspect.

Concerning the background: If you do not have a wide screen TV the TV-aspect will be 4:3. However, most feature films have an aspect of 16:9, the image is therefore too wide for the TV-screen.

Here you can specify how the replay of the film is to be adapted to the replay device:

4:3 PANSCAN: You will only see the middle section of the film. The edges are cut off.
4:3 LETTERBOX: You will see the complete width of the film. For this purpose the picture is reduced in size, so that black bars appear above and below the film.
16:9: Select this option if you use a wide screen TV for replay. Please note that films, that have been recorded with TV-aspect 4:3 can still be replayed using aspect 4:3. This means, that replaying this film will not require the complete wide screen area of the television.

Fig. 19

Angle mark

Some films have not only be taken from one perspective, but from several.

ON: When playing a film that has been taken from several viewing angles, a symbol with the number of angles (e.g. 2/3) will appear on the screen. With the ANGLE-button you can then select from the different angles.
OFF: The information does not appear on the screen, even when playing a multi-angle DVD.

Changing the default settings

OSD language

Select the desired language for the on-screen displays.

Fig. 20

Fig. 21

Captions

Besides the linguistic content these subtitles also describe environmental noises, e.g. by stating "Quite Music" and provide further information about the film. This function mainly addresses viewers with hearing impediment or deafness.

ON: Subtitles are displayed, if the DVD provides this type of information.
OFF: No subtitles will be displayed, even if the DVD contains subtitle information.

i NOTE:

If you would like to make use of the "Captions" function you must make sure that the selected DVD-title supports this feature. If the subtitles are still not displayed, your TV-set may probably not be able to show subtitles.

Screen saver

The player is able to display a still image for any time on the screen. This can cause damage to the screen. It is therefore recommended to activate the screen saver.

The following options are available:

ON: The screen saver is activated (default setting).
OFF: The screen saver is deactivated.

Fig. 22

Fig. 23

Last Memory

Specify how the DVD-Player should respond if the user presses the Stop-button (Fig. 2/24) during play.

ON: If the replay of a DVD, CD or VCD is stopped and resumed again, the replay will start at the position the replay was stopped.
OFF: If the replay of a DVD, CD or VCD is stopped and resumed again, the replay will start at the beginning of the medium.

Audio setup page

Fig. 24

The Audio setup page gives you the possibility to make a quite a number of setting, which influence the audio output.

Fig. 25

Analog audio setup

Downmix

Change the characteristics of the speaker output:

L/R: Choose this setting if you want to play the DVD with the Pro Logic Dolby stereo effect. This produces a almost real 2-channel replay effect.
Stereo: Choose this setting if you want to play a DVD, that has been produced in the 5.1-Audio format, as 2-channel stereo sound.
V Surr: You may probably not have a 5.1-Audio system. In this case you can use this setting to simulate a similar sound effect.
5.1 CH: Choose this setting if you want to transmit the audio signal to the output device without changing.

i NOTE:

If you have activated the option "5.1 CH" in the menu "Downmix", you can now setup how the individual speakers are to be controlled. For these settings choose the menu options "Front Speaker", "Center Speaker" and/or "Rear Speaker".

Fig. 26

Front speakers

LARGE: Bass and treble are transmitted to the front speaker.
SMALL: Only treble is transmitted to the speaker (standard setting).

Changing the default settings

Center speaker

i NOTE:

The menu "Center Speaker" is only available if the option "5.1 CH" has been activated in the menu "Downmix".

Fig. 27

LARGE: The speakers emits bass and treble.
SMALL: The speakers only emits treble (standard setting).
OFF: The speaker does not emit any Audio signals.

Rear speaker

i NOTE:

The menu "Rear Speaker" is only available if the option "5.1 CH" has been activated in the menu "Downmix".

LARGE: The rear speaker emits bass and treble.
SMALL: The rear speaker only emits treble (standard setting).
OFF: The rear speaker does not emit any Audio signals.

Fig. 28

Subwoofer

ON: Output of subwoofer signal.
OFF: No output of subwoofer signal.

i NOTE:

It is recommended to activate the subwoofer in order to achieve a sound quality close to reality.

Fig. 29

i NOTE:

The menu "Test Speaker" is only available if the option "5.1 CH" has been activated in the menu "Downmix", and the tray is opened.

Test Speaker

For the speaker test the full surround sound is generated. The individual speakers are thereby triggered one after the other. This gives you the possibility to check the settings of your multi-channel speakers.

ON: Output of test sound.
OFF: No output of test sound.

Fig. 30

72

AEG

Changing the default settings

Dialog

i NOTE:

The menu "Dialog" is only available, if the option "L/T" or the option "Stereo" has been activated in the menu "Downmix".

Fig. 31

After selecting L/T or Stereo in the menu Downmix you have the possibility to set the volume of the dialogs. Use the Cursor button ▲ to increase or Cursor button ▼ to reduce the volume of the dialogs.

Fig. 32

D.R.C

The function D.R.C serves the purpose of limiting the max. adjustable volume in order to prevent the speakers from being damaged.

ON: The max. adjustable volume is limited.

OFF: The limitation for the max. adjustable volume is disabled.

ATTENTION:

With the "D.R.C"-function disabled the volume can be increased to such a level, that the speakers may be damaged.

AUTO: Automatic limitation of the max. adjustable volume (standard setting).

Fig. 33

Digital audio setup

Digital output

Here you specify the settings for the digital Audio output.

■ SPDIF Off: Output of an analogue Audio signal, but no digital signal.
SPDIF/RAW: Output of a digital Audio signal. Use this setting if your amplifier is no two-channel stereo amplifier.
SPDIF/PCM: Output of a digital Audio signal that is converted to a 2-channel signal. Use this setting if your amplifier is a two-channel stereo amplifier
Manual: Activate this function if you would like to make the settings for the digital audio output manually for various formats. The menu options "CD", "Dolby Digital", "DTS" and "MPG" are then available. Make the required settings.

i NOTE:

If there is no Audio output, even though you connected the DVD-Player to an amplifier, you will most likely have chosen an incorrect setting for the Audio output.

Changing the default settings

Fig. 34

LPCM output

Here you can determine the scanning rate of the Audio signal. A higher scanning rate generally results in a better Audio signal.

Fig. 35

Dolby Digital Setup

Dual Mono

The Audio output is normally in stereo. Here you have the possibility to choose Mono-output instead of Stereo-output.

STEREO: The Audio output is in Stereo (default).
L-MONO: The Audio output is in Mono. In this case the signal of the "left" stereo channel is transmitted to all speakers.
R-MONO: The Audio output is in Mono. In this case the signal of the "right" stereo channel is transmitted to all speakers.
Mix-Mono: The Audio output is in Mono. In this case the signal of the "both" stereo channel is transmitted to all speakers.

NOTE:

These Audio settings can be made at any time by pressing the Audio button on the remote control.

Fig. 36

Dynamic

The term "Dynamic" describes the ratio of quietest and loudest sound. If the dynamic range is very large, you will experience very quiet and very loud sounds.

This may cause replay problems. Let us assume that you are watching a DVD in a relatively loud environment. You can now increase the volume to be able to hear also the very quiet passages, however with the disadvantage that loud passages will be unacceptably loud.

In this case it would make sense to compress the dynamic range (i.e. reduce) and increase the output volume at the same time.

FULL - 1/4: The dynamic range is compressed slightly (1/4) to full (FULL).
OFF: The dynamic range is not compressed at all (default).

AEG

Changing the default settings

Fig. 37

Channel delay

If you use a 5.1-Audio system, you may experience a distortion of the sound impression caused by the distance differences between speaker groups and listener. Sounds that should be heard by the listener at the same time arrive successively.

Here you can delay the output from the central or the rear speakers, in order to achieve a well balanced sound impression for the listener. The delay is set in milli-seconds.

1. Use the Cursor Buttons (▲, ▼) to select the menu option "Channel Delay".
2. Press the Play-button (Fig. 2/27) to confirm your input.
3. Use the Cursor Buttons (▲, ▼) to select the speaker for which you would like to set the channel delay. The currently selected speaker is highlighted in yellow.
4. Make the adjustment with the Cursor Buttons ◀ or ▶. Pressing the Cursor button ◀ reduces the channel delay, pressing the Cursor button ▶ increases the channel delay.

Fig. 38

Equalizer

Sound mode

You can set the frequency response for optimally matching it to a certain type of music.

1. Choose the menu option "SOUND MODE" with the Cursor Buttons.
2. Select the desired Sound Mode by moving with the Cursor Buttons to the corresponding genre, e.g. "POP".
3. Press the Play-button (Fig. 2/27) to confirm your input.

Fig. 39

Bass Boost

Activation of the function "Bass Boost" increases the intensity of the bass.

Changing the default settings

Fig. 40

Super Bass

Activation of the function "Super Bass" increases the intensity of the bass once again.

Fig. 41

Treble Boost

Activation of the function "Treble Boost" intensifies treble sounds

Fig. 42

3D-Processing

Pro Logic II

The function "Pro Logic II" converts Stereo signals, e.g. from Audio-CDs, MP3, VCDs or SVCDs, into almost realistic five-channel stereo sounds.

i NOTE:

If you would like to use the „Pro Logic II“ function, you must make sure that you have selected the multi-channel audio output and the option "5.1 CH" in the menu "Downmix" is activated. You can also activate or deactivate the "Pro Logic II" function using the PLII button on the remote control.

ON: Pro Logic II is active and you can experience the benefits of five-channel sound.
OFF: Pro Logic II is deactivated.
AUTO: Pro Logic II will automatically be activated, if the properties of the medium to be played support a Pro Logic II conversion.

Mode

Music: Music mode is especially suitable for the natural surround replay of music programs.
■ Movie: Movie mode is especially suitable for the natural surround replay of films.
Pro Logic: This mode is particularly suitable for the decoding of films containing music recordings in Original Dolby Surround.
Auto: If the "Pro Logic II" function is enabled, a suitable mode will automatically be activated.

i NOTE:

The menu options "Panorama", "Dimension" and "Center Width" are only available if the option "Music" in the menu "Reverb Mode" has been activated.

Panorama

Panorama mode creates a very spacious surround effect. There is a possibility to switch the Panorama mode on or off.

Dimension

With "Dimension" you can set the depth of the surround sound.

Center Width

With "Center Width" you can set the balance between center and front speakers.

Fig. 43

Reverb Mode

The "Reverb Mode" function can be used to create surround acoustics which is close to the atmosphere of a concert or a church.

1. Select the menu option "REVERB MODE".
2. Choose the desired Audio characteristic with the Cursor Buttons (Fig. 2/14).
3. Press the Play-button (Fig. 2/27) to confirm your input.

Fig. 44

HDCD

This player is suitable to play HDCD coded CDs and DVDs. This "HDCD" function gives you the possibility to achieve a high quality and very detailed sound. The following applies in general: the higher the HDCD filtration, the better the sound.

Video Setup Page

Fig. 45

On the Video setup page you have the possibility to make settings which influence the Video output.

Changing the default settings

Fig. 46

Video output

Select the Video output options for the connected replay device to be used.

OFF: Select this option, if the replay device is connected to the DVD-Player via the Composite-Video and/or S-Video connection.
YUV: Select this option, if the replay device is connected to the DVD-Player via the Component-Video connection.
RGB: Select this option, if the replay device is connected to the DVD-Player via the Scart connection.

i NOTE:

If you choose the setting "RGB", you must make sure that your replay device supports this setting.

TV-Mode

i NOTE:

If the option "Off" in the menu "Video Output" is selected, the menu "TV-Mode" is not available.

Fig. 47

With the function "TV-Mode" you determine the signal format to be transmitted to your replay device. Choosing the right signal format depends on the type of connection and the replay device (see also the operating manual of the replay unit).

Older replay units normally only support the so-called interlaced scanning method ("INTERLACE"). With this method the image is composed by means of two successively built up fields. The first field thereby consists of the even screen lines, the second one of the odd ones. With the "progressive" Video signal, in contrast, the complete image is build up in a single process. The thus achieved image quality is normally much higher.

PROGRESSIVE: Choose this option if your replay device supports progressive signals and is connected to the DVD-Player by means of a Component-Video cable.
INTERLACE: Choose this option if your replay device does not support progressive signals and is connected to the DVD-Player by means of a Component-Video cable.

i NOTE:

If the option "PROGRESSIVE" is activated in the menu "TV-Mode", but your replay device does not support Progressive-Scan signals, no picture will be displayed.

Fig. 48

Colour Setting

In this menu you will find various possibilities to adjust the Video signal to suit your requirements.

SHARPNESS
BRIGHTNESS
CONTRAST
GAMMA (Black/White adjustment)

HUE

SATURATION

LUMA DELAY (Correction of Black/White delay for YUV signals)

AEG

Changing the default settings

Preference page

Fig. 49

On the preference page you have the possibility to make a number of settings.

i NOTE:

The DVD-Player must be Stop-Mode to be able to select the preference page. If it is not possible to select the preference page in Stop-Mode, press the Stop button a second time and try it again.

Fig. 50

TV Type

Match the output of the DVD-Player to the colour transfer system of your replay device. The following options are available:

PAL: Choose this option for a TV-set from Europe, which support the PAL-System.

i NOTE:

If you choose the function "PAL" make sure that the colour system setting of your replay device is also set to "PAL".

MULTI: Choose this option if your TV-set has a multi-channel system which is capable to replay NTSC and PAL.
NTSC: Choose this option for a TV-set from North America, Japan, Canada, etc., which support the NTSC-system.

PBC

PBC (Playback-Control) automatically starts any interactive menus on the DVDs or VCDs provided by the producer as default. If you switch this PBC-option "OFF" the tracks on DVD or VCD will automatically be played in the given order.

i NOTE:

The "PBC"-function can be switched on and off by pressing the PBC-button on the remote control.

If the DVD or the VCD's are not PBC-compatible, no selection menu will be displayed, even if the "PBC"-function is enabled.

Audio

Choose your favourite language in which you would like to listen to your DVDs. The selected language will then automatically be used when playing a DVD.

i NOTE:

The language output depends on the language variants provided by the DVD. There is also the possibility to set the favourite language with the Audio-button on the remote control.

Fig. 51

Fig. 52

Changing the default settings

Fig. 53

Subtitle

Activate/deactivate subtitles and/or set the favourite language to be used for the subtitles appearing on the screen. The selected language will then automatically be used when playing a DVD.

i NOTE:

The language output for the subtitles depends on the language variants provided by the DVD. There is also the possibility to set the favourite language with the Subtitle-button on the remote control.

Fig. 54

Disc-Menu

Set the favourite language to be used to display the DVD-menu on the screen. The selected language will then automatically be used when playing a DVD.

i NOTE:

The language output for the DVD-menus depends on the language variants provided by the DVD.

Fig. 55

Parental

Some DVD contain information concerning the target group. This method is comparable with the rating of cinema films ("Suitable only for persons of 12 years and over" e.g.).

If you have the child protection option activated a probably existing corresponding information is read from the DVD and compared with the value pre-set by you. If a DVD is intended for an older age group than the one pre-set by you, the DVD cannot be played.

The following child protection options are available:

1 Kid SAF: Suitable for children.
2 G: Suitable for all age groups.
3 PG: The presence of parents is recommended. Some scenes may be unsuitable for children.
4 PG 13: The presence of parents is strictly recommended. Some scenes may be unsuitable for children under the age of 13.
5 PGR: The presence of parents is strictly necessary.
6 R: Young persons under the age of 17 may only view this film in the presence of an adult.
7 NC17: Children and juveniles under the age of 17 are not allowed to watch this film.
8 ADULT: The film must only be watched by adults.

Default

Select the command "Default/Reset" if you want to reset the player to the factory implemented default settings.

Any settings you have made will be lost.

Fig. 56
Password Setup Page

If you want to operate the DVD-Player with parental control, you must first enter a password. This password safeguards the settings for the parental control, so that it can only be changed by yourself.

Fig. 57

Password Mode

ON: Any changes to the parental control require the input of the password.
OFF: The parental control function can be changed without having to enter the password

Fig. 58

Password

In this menu you can change the password for the parental control. In order to change the password, you must first enter the currently valid password. The master password is "49540".

If you forgot your password, you can deactivate the parental control with this master password.

Fig. 59

Proceed as follows to change the password:

1. Enter the current password with the Numerical Buttons (Fig. 2/17) on the remote control. To prevent the password from being read by unauthorized persons only the characters "XXXXX" will appear on the screen.
2. Press the Play-button (Fig. 2/27) to confirm your input. If the entered password is correct enter the new password and confirm it with another input.

Working in file mode

If you want to operate the DVD-Player with parental control, you must first enter a password. This password safeguards the settings for the parental control, so that it can only be changed by yourself.

Working in file mode

Besides the possibility of playing "normal" films or music from CDs/DVDs, this DVD-Player also gives you the possibility to play Video or Audio files from CDs, DVDs which are saved in file systems. Such media are frequently generated when creating CDs with digital photos or MP3 music on your computer.

Such media may contain a large number of data/files. You must therefore first determine the data to be played. Directories and files are hierarchically structured, similar to the directory and file structure on your PC.

Using CD/DVD

Selecting photo files and starting replay

1. Place the CD or DVD on the tray Page 62, "Loading a CD/DVD"). File mode is automatically started.
2. Select the desired file(s) and start the replay Page 82, "Selecting photo files and starting replay".

The DVD-Player is excellently suitable for viewing digital photographs. These photos may be stored on any medium (DVD, CD, etc.) supported by the DVD-Player.

i NOTE:

Please ensure a suitable size of the photos. Large size photos may take some time to be displayed or may not be displayed at all. It is of advantage if the size of the photo corresponds with the screen size of the replay device. For TVs this is normally 1024x576 pixel (TV-aspect 16:9) or 768x576 (TV-aspect 4:3).

1. The file selection dialogue appears (Fig. 60). This dialogue is structured as follows:

2. Selected files - total number of files (1)

3. Current folder (2)
4. File list (3)
5. Preview window (4)

- Display of the image resolution of the current photo (5)

i NOTE:

You can use the Cursor Buttons (▲, ▼) on the remote control to navigate to the directories and files in this menu.

1. Use the Cursor Buttons (▲, ▼) to select the folder containing the files you would like to play. The currently selected folder is highlighted in orange.
2. Access the folder with the Cursor Buttons (◀, ▶).
3. Use the Cursor Buttons (▲, ▼) to select the file you would like to play and press the Play-button (Fig. 2/27) to start the replay. The currently selected file is highlighted in orange.

AEG

Working in file mode

Scrolling

■ Manual: Press the PREV (Fig. 2/9) or NEXT-button (Fig. 2/23) on the remote control to scroll forward or back.
Automatic: After the replay has started press the Play-button (Fig. 2/27) a second time. The photos change automatically.

NOTE:

In order to exit the automatic picture sequence and to change to the file selection dialogue press the Menu-button on the remote control.

Fig. 61

Overview

If you press the Stop-button on the remote control while viewing photos, an overview with up to twelve miniatures of the next pictures will be displayed on the screen.

Slide Show: Automatic replay is resumed.
Menu: The file selection dialog is opened.
■ Prev: The previous 12 photos are displayed.
Next: The next 12 photos are displayed.

Enlarging/reducing the picture

You have the possibility to enlarge or reduce the displayed picture:

Press the ZOOM button (Fig. 2/30) and the FWD button (Fig. 2/22) on the remote control to enlarge the picture, or the REV button (Fig. 2/7), to reduce the picture.

Rotating a photo

You can use the Cursor Buttons to rotate a photo during replay:

Mirror vertically: Cursor Button "▼"
Mirror horizontally: Cursor Button "▲"
Rotate clockwise for 90°: Cursor Button "▶"
Rotate counter-clockwise for 90°: Cursor Button "◀"

Image transition

You can choose from 17 different image transitions, i.e. methods of changing from one photo to the next.

You can change the type of image transition by pressing the

PROGRAM-button (Fig. 2/20) on the remote control. The following options are available:

Fading in from above, below, left or right
Fading in diagonally from top left, top right, bottom left or bottom right
Fading in from the centre of the image, horizontally or vertically
Fading in from the edge of the image, horizontally or vertically
Fading in from the center of the image, horizontally and vertically
Fading in by stripes, horizontally or vertically
No image transition

Working in file mode

Selecting MP3 files and starting replay

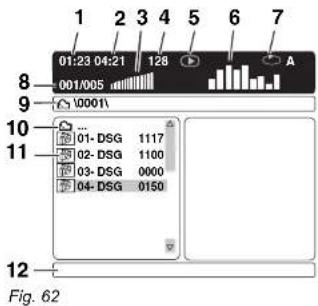

1. The file selection dialogue appears (Fig. 62). This dialogue is structured as follows:

2. Expired time of title (1)

3. Total time of title (2)
4. Volume display (3)
5. Bit rate (4)
6. Operating status (5)
7. Dynamic range (6)
8. A-B Repeat display (7)
9. Selected titles - total number of titles (8)
10. Current folder (9)
11. Exit current folder/change to main directory (10)
12. File list (11)
13. Function information (12)

i NOTE:

You can use the Cursor Buttons (▲, ▼) on the remote control to navigate to the directories and files in this menu.

1. Use the Cursor Buttons (▲, ▼) to select the folder containing the files you would like to play. The currently selected folder is highlighted in orange.
2. Access the folder with the Cursor Buttons (◀, ▶).
3. Use the Cursor Buttons (▲, ▼) to select the file you would like to play and press the Play-button (Fig. 2/27) to start the replay. The currently selected file is highlighted in orange.

Selecting MPEG4 files and starting replay

Fig. 63

1. The file selection dialogue appears (Fig. 63).

i NOTE:

You can use the Cursor Buttons (▲, ▼) on the remote control to navigate to the directories and files in this menu.

1. Use the Cursor Buttons (▲, ▼) to select the folder containing the files you would like to play. The currently selected folder is highlighted in orange.
2. Access the folder with the Cursor Buttons (◀, ▶).
3. Use the Cursor Buttons (▲, ▼) to select the file you would like to play and press the Play-button (Fig. 2/27) to start the replay. The currently selected file is highlighted in orange.

Selecting a file

You can change to a different file while playing a file.

1. Press the button A-Time on the remote control. An input window appears on the screen.
2. Enter the number of the desired file with the Numerical Buttons on the remote control.
3. Press the Play-button to start.

Selecting a point in a file

You have the possibility to choose a certain point in a file while playing this file.

1. Press the button A-Time on the remote control twice. A time code input window appears on the screen.
2. Enter the desired point to which you would like to jump with the Numerical Buttons on the remote control. Enter the ciphers for hour, minutes and seconds successively.
3. Press the Play-button to start.

Stopping the replay

Press the STOP-button (Fig. 2/24) on the remote control to stop the replay and to return to the file selection dialog.

Troubleshooting

Troubleshooting

Before sending the Player to the Customer Services, use the following table to check whether you can rectify the fault yourself.

WARNING:

Before trouble shooting, switch the player off and remove the mains plug. Wait until the player and accessories have cooled down. Never use a defective player.

Fault Possible cause Solution

The power supply light does not light	No power supply Put the mains plug in correctly, if necessary, check the socket is working with another appliance.
	no power supply/ mains switch switched off	Switch the player on by the mains switch (Fig. 1/14).
No image displayed on screen	Video cable not correctly connected	Check the correct fit of the Video cable Page 58, "Connecting the Video cable". Make sure that the jacks are tightly in the sockets.
	no DVD/CD inserted Insert a CD/DVD.
	DVD/CD not compatible	Use only compatible media (see Page 50, "Technical data".
	DVD/CD incorrectly placed in CD/DVD-tray	Turn the CD/DVD around.
	CD/DVD is dirty	Clean the CD/DVD around Page 61, "Handling CD/DVD".
	CD/DVD is damaged Use a different CD/DVD.
	Incorrect settings Check the settings of your DVD-Player.
	The child protection system is activated	Deactivate the parental Page 80, "Parental".
No response when pressing button	Power supply problem or static charging of appliance	Switch off the main switch and pull out the mains plug. Insert the mains plug into the socket and switch the player on again.
No sound	Audio cable not connected	If you do not use a SCART-plug for transmission of the Video signal, you must use an Audio cable in addition to the Video cable Page 59, "Connecting the Audio cable".
	Amplifier switched off	If you use an amplifier for Audio output: check whether the amplifier is switched on.
	Incorrect settings	Check the settings of your DVD-Player.
The remote control does not work	wrong direction	The remote control is not pointed towards the DVD-Player.
	too far away	Make sure that the remote control is not further than 7 m away from the player.
	Batteries empty	Replace the batteries in the remote control Page 57, "Remote control battery installation".
Titles are played in wrong order	Playlist is used	Delete the playlist Page 68, "Deleting a Playlist entry".
DVD cannot be played	DVD has not been finalized	Use a finalized DVD.

Disposal

At the end of the service life of the appliance, in particular if it is malfunctioning, make the appliance unusable by pulling the mains plug out of the socket and separating the power cable. Dispose of the appliance according to the environmental regulations applicable in your country. Electrical waste may not be disposed of together with household waste. For any advice regarding recycling, contact your local municipal authorities or your dealer.

Warranty

For the appliance sold by us we grant a 24 months warranty from the date of purchase (receipt).

Within the warranty period we will rectify any deficiencies on the appliance or its accessories*) caused by material or manufacturing faults free of charge, by repair or, at our discretion, by replacement. Warranty adjustments do not constitute an extension of the warranty period, and they are not the beginning of a new warranty!

The purchase receipt counts as proof of warranty. A free-of-charge replacement or repair is not possible without this proof.

*) Damage to accessories automatically result in the free-of-charge replacement of the complete appliance. In this case you should contact our hotline! damage to glass or plastic parts will generally be charged!

Both defects and consumables or wear item (e.g. replacement remote control, etc.), as well as cleaning, service or replacement of wear items are not covered under warranty and will be charged! In case of unauthorized opening this warranty will become null and void.

After the warranty

After the expiration of the warranty period repairs made by the corresponding expert dealers or repair services will be charged accordingly.

Conformity declaration

Elektro-Technische-Vertriebsgesellschaft mbH hereby declares that the DVD 4514 machine conforms to the fundamental requirements of the European directive for electro-magnetic compatibility (89/336/EEC) and the low voltage guideline (93/68/EEC).

Fig. 2

Line drawing of a rectangular electronic device with ports and a central control panel (no text or symbols)

Line drawing of a remote control device with battery and two cylindrical components (no text or symbols)

Fig. 3

Messa in funzione

Fig. 8

Fig. 9

Segnale audio 5.1

Line drawing of a hand inserting a CD into a slot (no text or symbols)

OSD Language/Lingua OSD

Fig. 26

Front Speaker/Altoparlante davanti

Rear Speaker/Altoparlante surround

i INDICAZIONE:

Il menu „Rear Speaker“ può essere selezionato soltanto, quando nel menu „Downmix“ è attivata l'opzione „5.1 CH“.

Fig. 33

Fig. 44

HDCD

Fig. 56

Default/Standard

Fig. 58

Fig. 61

Line drawing of a rectangular electronic device with ports and control buttons (no text or symbols)

Line drawing of a remote control device with battery and plug components (no text or symbols)

a/b. 3

afb. 8

Stereo

afb. 9

5.1-audiosignaal

Illustration of a hand inserting a CD into a tray (no text or symbols visible)

afb. 12

afb. 23

Rear Speaker/Surroundluidspreker

i AANWIJZING:

afb. 33

Digitale audio-instelling

Digital uitgang

Bass Boost/Bassversterking

afb. 40

Superbass

Reverb Mode/Galmmodus

afb. 44

HDCD

afb. 50

TV-type

afb. 58

Wachtwoordmodus

afb. 61

Overzicht

Line drawing of a rectangular electronic device with ports and indicator lights (no text or symbols)

Line drawing of a remote control device with battery and casing (no text or symbols)

Rys. 3

Uruchamianie

Rys. 8

Rys. 9

Line drawing of a hand inserting a CD into a rack (no text or symbols)

Rys. 12

Rys. 23

Rear Speaker/Głośniki surround

i WSKAZÓWKA:

Rys. 33

Digital Audio Setup

Digital output

Rys. 44

HDCD

Rys. 51

Rys. 56

Default

Rys. 58

Rys. 61

Przegład elementów

Line drawing of a rectangular electronic device with ports and buttons (no text or symbols)

Line drawing of a remote control device with battery and plug (no text or symbols)

Obr. 3

Obr. 8

Stereo

Obr. 9

5.1-Audio-Signál

Hand inserting a CD into a tray (no text or symbols visible)

Obr. 12

Obr. 26

Obr. 33

Obr. 34

Channel Delay/Prodleva

Obr. 47

TV-Mode

i UPOZORNĚNÍ:

Obr. 56

Standard

Obr. 58
