AS 1000 - Slicer TEAM - Free user manual and instructions

Product type	Ham and meat slicer
Brand	TEAM
Model	AS 1000
Dimensions (L x W x H)	Approximately 55 x 45 x 40 cm
Weight	Approximately 18 kg
Power supply	230 V / 50 Hz
Power	150 W
Blade diameter	300 mm
Cutting thickness	Adjustable from 0 to 15 mm
Blade material	Stainless steel
Housing material	Aluminum and painted steel
Main functions	Slicing ham, roasts, cured meats and cheeses into regular slices
Maintenance and cleaning	Removable blade for cleaning, housing washable with soapy water
Safety	Safety switch with emergency stop, sliding blade guard
Spare parts and repairability	Replacement blade, cutting block, gasket available
General information	Professional or semi-professional use

Frequently Asked Questions - AS 1000 TEAM

How to adjust the cutting thickness on the TEAM AS 1000 slicer?

Turn the adjustment knob on the side of the device to adjust the thickness from 0 to 15 mm. A graduated scale shows the selected thickness.

Is the blade of the AS 1000 easy to remove for cleaning?

Yes, the blade can be removed without tools. Use the provided key to unlock it, then carefully remove it. You can then wash it with warm soapy water.

What to do if the slicer does not start?

First check that the safety switch is pressed in, then that the power cord is properly plugged. If the problem persists, the internal fuse may have blown; contact customer service.

What types of food can be sliced with the TEAM AS 1000?

This slicer is designed for cooked or raw meat (ham, roast), cured meats (sausage, coppa), and hard or semi-hard cheeses. Avoid frozen foods or those containing bones.

How to sharpen the blade of the AS 1000?

The device comes with an integrated sharpener. Activate it by turning the knob near the blade while manually rotating the blade. For deeper sharpening, contact a professional.

Is the slicer stable during use?

Yes, it rests on four non-slip feet. For maximum stability, place it on a flat, clean surface. The 18 kg weight also contributes to its stability.

What is the maximum capacity of the carriage?

The carriage can accommodate meat pieces up to 200 mm in diameter and 50 cm in length. It is sliding and allows precise slicing.

How to clean the AS 1000 slicer after use?

Unplug the device, remove the blade and cutting block. Clean these parts with soapy water then dry them thoroughly. The housing can be wiped with a damp cloth. Do not put the blade in the dishwasher.

What are the essential safety precautions?

Always use the pusher to guide the food. Never touch the moving blade. Before any cleaning or adjustment, unplug the device and wait for the blade to stop completely. Keep hands away from the cutting area.

Where to find spare parts for the TEAM AS 1000?

Replacement blades, gaskets and the cutting block are available from authorized TEAM dealers or online. Always use original parts to ensure safety and performance.

USER MANUAL AS 1000 TEAM

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Technical diagram of a microwave oven with numbered components labeled 1 through 6

Interior view of a baby car seat with labeled component (no text or symbols visible)

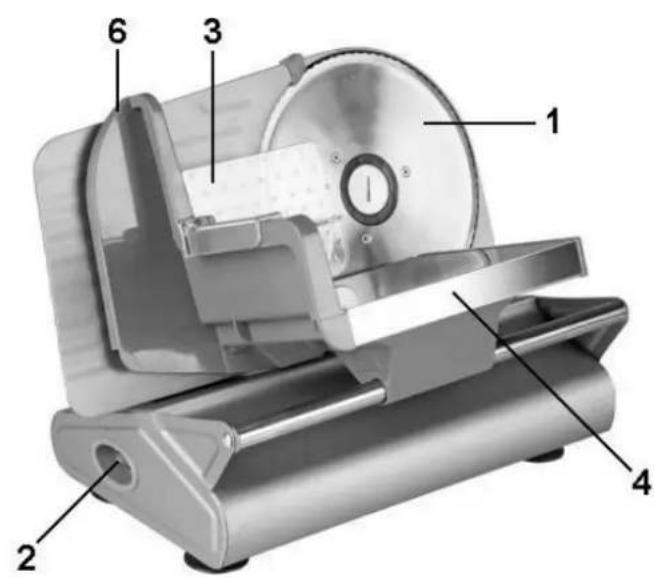

D

1. Blade
2. On/off switch
3. Pusher
4. Platform

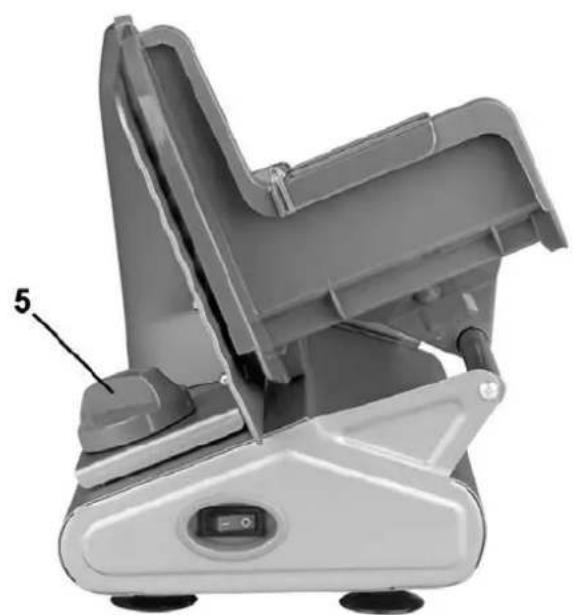

5. Slice thickness regulation
6. Thumb guard

F

Please read these instructions carefully before using the appliance, and always follow the safety and operating instructions.

Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy.

☐ Check that your mains voltage corresponds to that stated on the appliance.
☐ Never leave the appliance unsupervised when in use.
From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage but have it checked and repaired by a competent qualified service ^[1] . Should the cord be damaged, it must be replaced by a competent qualified service ^[2] .
☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.
☐ Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
□ Never use the appliance near hot surfaces.
Before cleaning, always unplug the appliance from the power supply.
☐ Never use the appliance outside and always place it in a dry environment.
☐ Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
☐ Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
☐ Make sure the appliance is set on a flat surface.
☐ Unplug the appliance when not in use.
☐ Only use this slicer for cooking applications. Only cut articles such as cheese, (boned) meat, bread and preparations. Never cut frozen food with this slicer.
☐ Never cut food only by using your hands. Always use the slide and its food guide unless it is impossible because of the size and dimension of the article. Make sure never to touch the knife.
This kind of appliance cannot function continuously, it is not a professional type of appliance. It is necessary to make temporary stops. Check the section « Important information » in the instruction manual.
☐ The blade of this appliance is extremely sharp, always be very careful when cleaning the appliance.
☐ It is absolutely necessary to keep this appliance clean at all times as it comes into direct contact with food.
☐ Make sure the appliance is unplugged when disassembling it before cleaning or other.
☐ Never touch the blade when the appliance is in use. Furthermore, never try to stop the movement of the blade in any way whatsoever.

^1 Competent qualified electrician: after-sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In case of need you should return the appliance to this electrician.

IMPORTANT INFORMATION

This appliance is not intended for professional use. You should follow the requested breaks. Failure to follow this instruction carefully may result in damage to the motor. Please refer to the rating label for the maximum continuous usage time (KB xx min where xx is the maximum usage time). The breaks should last at least 10 minutes.

USING THE SLICER

For a safe use, your appliance is fitted with a complete device (platform (4) with a thumb guard (6) and pusher (3)) which allows protecting your hands by giving an exceptional use comfort.

The platform allows making to and fro motions along the blade to cut the slices. Use the handle to move it.

The pusher allows you to keep the food when slicing by holding your hand far from the blade. Therefore it is recommended to always use it except if the food is too large and in this case keep it as far as possible from the blade.

• Clean all parts of the appliance before the first use.
  • Make sure the appliance is steady and add the pusher (3) on the platform (4).
• Plug in the appliance. The slicer is now ready for use.
• Place a plate or a dish behind the blade to collect the slices.
  • Free the platform from the blade and lay the food to be sliced on its stainless steel plate.
• Push the food against the mobile side of the appliance with the pusher (3) and select the slicing thickness by turning the adjusting knob (5).
• Place the switch (2) to the position I. The blade will start rotating.
• Push the platform to bring the food to the blade (1). Therefore use the handle of the platform and keep the pressure on the mobile side of the appliance thanks to the pusher.
• If it becomes difficult to slice the food (important braking of the blade), move back a little bit and start the operation again by approaching the blade slowly.
• To avoid food sticking to the appliance and to improve the slicing, you can moisten or oil the blade with a wet towel beforehand.
• Do not slice meat with bones, food with large seeds, rolled roast without removing the string, wrappers (i.e. aluminium foil), frozen food or any hard, inedible food parts.

CLEANING

• The switch has to be in position OFF and the appliance has to be unplugged from the power supply before cleaning the appliance.
• Wipe the inside and outside of the appliance with a paper towel or a soft cloth. It should not be washed in a dishwasher (the platform tips to make the cleaning easier).
• Do not clean the inside or outside with any abrasive scouring pad or steel wool as this will damage the finish.
• Do not immerse in water or any other liquid.
  • Dry all parts well before storage.

REMOVING THE BLADE

• To clean the appliance thoroughly, it is possible to remove the blade.
- Put the switch in its off-position, unplug the appliance and use a coin to turn the locking device located in the middle of the blade.
- Make sure you replace the blade in its exact original position after cleaning. Screw the locking device back on with a coin.

• When the blade is detached, make sure that no water penetrates into the appliance and never try to switch on the appliance. You might get injured by the moving parts of the motor (e.g. fingers stuck)!
• Caution! Handle the blade with care, otherwise you might get injured as it is very sharp.

PROTECTION OF THE ENVIRONMENT - DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol — on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.
