USER MANUAL AS 10 TEAM

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity. Front cover page (first page) Assembly page 1/28

Allesschneider Slicer Trancheuse Allessnijder Cortafiambres Fiambreira Macchina Affettatrice I/B Version 070420 TEAM AS 10 230 V~ 120 W Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Fax [phone] Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

5. Slice thickness regulation

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

MOUNTING OF THE PLATFORM

1. Put the platform (7) in a vertical position in order to mount it correctly on the table (8).

2. Put edge (B) under edge (A).

3. Lift it up so that edge (B) is next to edge (A).

4. Turn the platform down (horizontally) so that it is located on the table and can be moved

easily. The platform should be secured in the table groove (C).

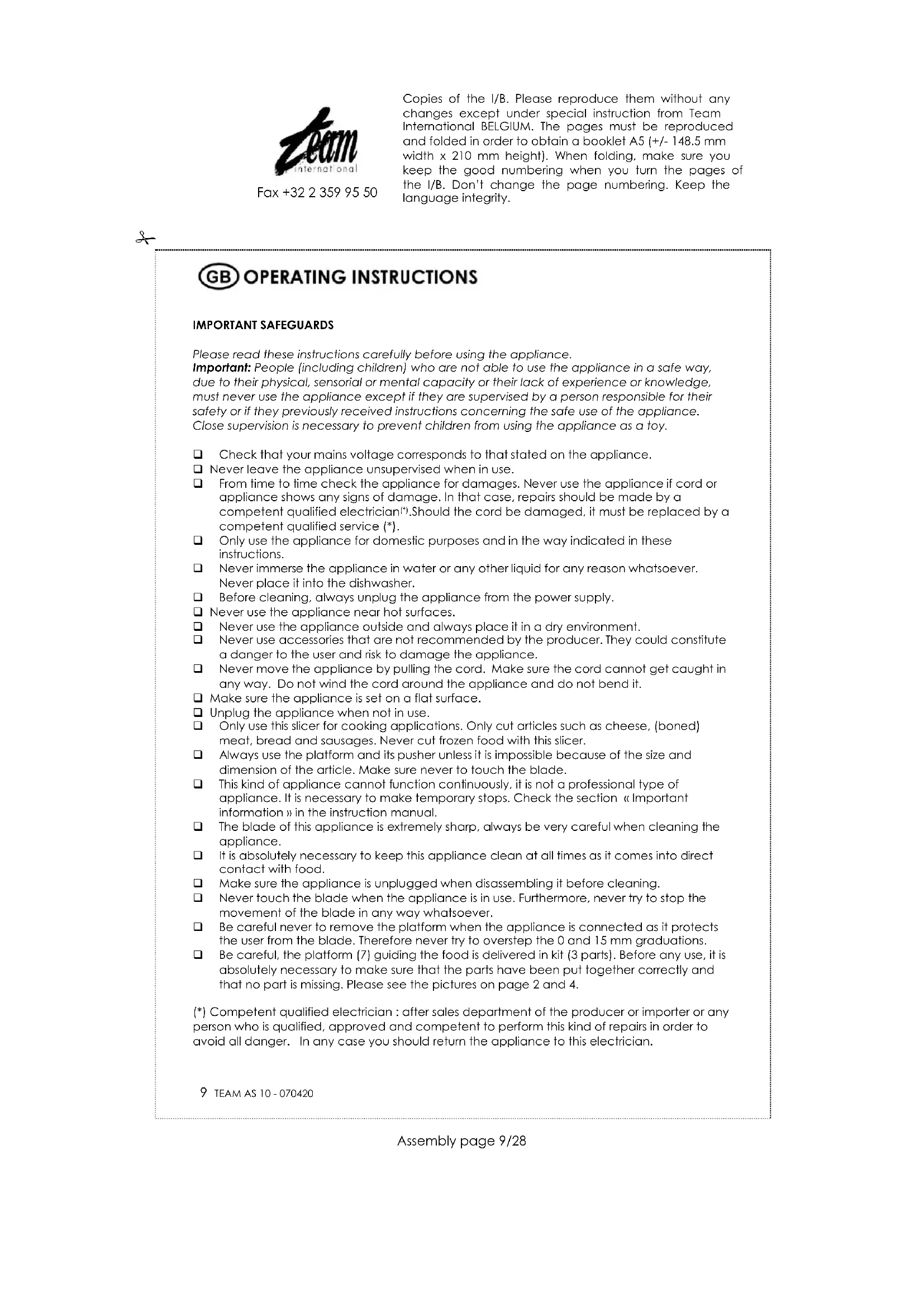

IMPORTANT SAFEGUARDS Please read these instructions carefully before using the appliance. Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy. Check that your mains voltage corresponds to that stated on the appliance. Never leave the appliance unsupervised when in use. From time to time check the appliance for damages. Never use the appliance if cord or appliance shows any signs of damage. In that case, repairs should be made by a competent qualified electrician

.Should the cord be damaged, it must be replaced by a competent qualified service (*). Only use the appliance for domestic purposes and in the way indicated in these instructions. Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher. Before cleaning, always unplug the appliance from the power supply. Never use the appliance near hot surfaces. Never use the appliance outside and always place it in a dry environment. Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance. Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it. Make sure the appliance is set on a flat surface. Unplug the appliance when not in use. Only use this slicer for cooking applications. Only cut articles such as cheese, (boned) meat, bread and sausages. Never cut frozen food with this slicer. Always use the platform and its pusher unless it is impossible because of the size and dimension of the article. Make sure never to touch the blade. This kind of appliance cannot function continuously, it is not a professional type of appliance. It is necessary to make temporary stops. Check the section « Important information » in the instruction manual. The blade of this appliance is extremely sharp, always be very careful when cleaning the appliance. It is absolutely necessary to keep this appliance clean at all times as it comes into direct contact with food. Make sure the appliance is unplugged when disassembling it before cleaning. Never touch the blade when the appliance is in use. Furthermore, never try to stop the movement of the blade in any way whatsoever. Be careful never to remove the platform when the appliance is connected as it protects the user from the blade. Therefore never try to overstep the 0 and 15 mm graduations. Be careful, the platform (7) guiding the food is delivered in kit (3 parts). Before any use, it is absolutely necessary to make sure that the parts have been put together correctly and that no part is missing. Please see the pictures on page 2 and 4. (*) Competent qualified electrician : after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

IMPORTANT INFORMATION This appliance is not for professional use. You should follow the requested breaks. Failure to follow this instruction carefully may result in damage to the motor. Please refer to the rating label for the maximum continuous usage time (KB xx min where xx is the maximum usage time). The breaks should last at least 10 minutes. USING THE SLICER (see Page 4) Clean all exterior parts of the appliance before the first use. Make sure the appliance is on a steady surface and open the table (8). Put the platform (7) on top of the table. The platform should be secured in the table groove. Now add the pusher (6) and the thumb guard (9) as described on the picture. Select the slicing thickness by turning the adjusting knob (5). You can control millimetres on the side of the appliance. Plug in the appliance. The slicer is now ready for use. Lay the food to be sliced between the blade (2) and the pusher. First press the safety switch (3), then the on switch (4). The blade will start rotating. If you release the on switch first, the blade will stop rotating. On the contrary, if you release the safety switch first and afterwards the on switch, the appliance will operate continuously. You can deactivate the continuous operation by pressing the safety switch briefly. Please note that for safety reasons the appliance will only operate if both switches are pressed. Push the platform with the other hand to bring the food to the blade. As a safety measure, the platform cannot be moved easily. This means that the pressure has to be sufficiently strong in order to obtain regular slices. To avoid food sticking to the appliance, you can moisten the blade with a wet towel beforehand. This also allows you to slice more easily. Always use the pusher when slicing small parts and leftovers. Do not slice meat with bones, food with large seeds, rolled roast without removing the string, wrappers (i.e. aluminium foil), frozen food or any hard, inedible food parts. CLEANING Before cleaning, always unplug the appliance. Wipe the inside and outside of the appliance with a paper towel or a soft and damp cloth. It should not be washed in a dishwasher. Do not clean the inside or outside with any abrasive scouring pad or steel wool as this will damage the finish. Do not immerse in water or any other liquid. The blade can be taken off by turning the blade-locking knob (1) clockwise (e.g. with a coin of the suitable size). Caution: the blade is very sharp. Clean the blade with soapy water and give it a rinse. Then turn the knob anticlockwise to fasten it. Dry all parts well before storage. PRACTICAL TIP Lubricate the blade with cooking oil after each cleaning in order to protect it agains humidity. This way, the blade will not stick to the food during use. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Fax [phone] Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.
