AS 8 - Slicer TEAM - Free user manual and instructions

Product type	Electric slicer
Brand	TEAM
Model	AS 8
Power supply	230 V ~ 50 Hz
Rated power	150 W
Adjustable cutting thickness	0 to 15 mm
Approximate dimensions (L x W x H)	35 x 25 x 25 cm
Approximate weight	3.5 kg
Blade material	Stainless steel
Maximum continuous capacity	10 minutes (then 10-minute break)
Safety features	Forced operation with child safety button, guide carriage, thumb guard
Removable parts for cleaning	Carriage, guide, blade, locking screw
Maintenance and cleaning	Unplug before cleaning, do not immerse, clean blade by hand
Prohibited use	Frozen foods, bone-in meat, packaging
Warranty	Standard 2 years (depending on retailer)

Frequently Asked Questions - AS 8 TEAM

How to assemble the carriage of the AS 8 TEAM slicer?

The carriage is delivered as a kit (3 parts). To assemble, insert the tab under edge A of the carriage into the slot of edge B of the tray, then slide the tab under the carriage into the slot at the end of the tray. Ensure the arrows align.

How to use the slicer safely?

Never use the appliance unattended. To start, press the start/stop button and the child safety button simultaneously. Always use the carriage to guide food and do not touch the blade while operating.

What slice thickness can I get?

The thickness is adjustable from 0 to 15 mm using the rotating knob. Do not exceed the 15 mm mark to ensure protection of the circular knife.

Can you cut frozen foods with this slicer?

No, it is essential not to cut frozen foods. The slicer is designed for foods at room temperature such as boneless meat, cheese, bread, and cold cuts.

How to clean the AS 8 slicer?

Unplug the appliance. Wipe the exterior with a damp cloth. For the blade, unscrew the locking screw counterclockwise, carefully remove it (it is very sharp), clean with soapy water, rinse, and reassemble by tightening clockwise. Never put the appliance in the dishwasher.

What to do if the power cord is damaged?

If the cable is damaged, it must be replaced by a qualified competent service (manufacturer or importer after-sales service). Do not use the appliance until the cable is repaired.

Can I use the slicer without the carriage?

No, the carriage is a mandatory safety device. Never cut food with hands alone, always use the carriage and the support plate, except for very large pieces that do not fit, but with great care.

What is the maximum continuous use time?

The appliance should not run continuously for more than 10 minutes (check the rating plate). After this time, take a break of at least 10 minutes to avoid damaging the motor.

How to adjust slice thickness?

Turn the rotating knob (7) to set the desired thickness. The graduations go from 0 to 15 mm. Do not force beyond 15 mm to avoid removing the knife protection plate.

Where to find the complete manual of the AS 8 TEAM slicer?

The original manual is available for free in PDF on the notice-facile.com website. You can download it in French, English, or Dutch. Other languages can be requested by email.

USER MANUAL AS 8 TEAM

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+ / - 150mm width × 210mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

3

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+ / - 150mm width x 210~mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

D

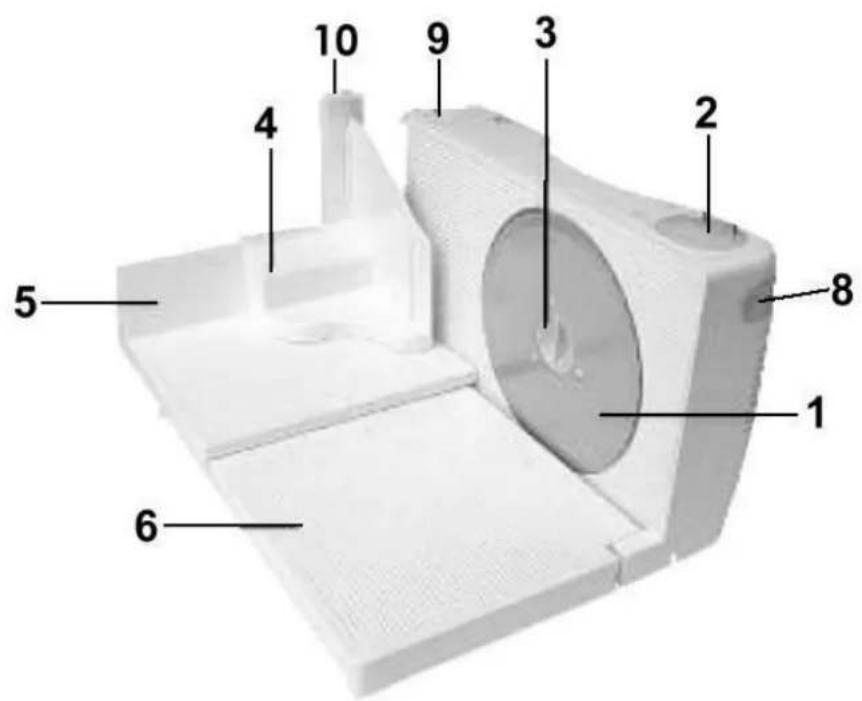

1. Blade
2. On/off button
3. Blade-locking knob
4. Pusher
5. Platform
6. Table

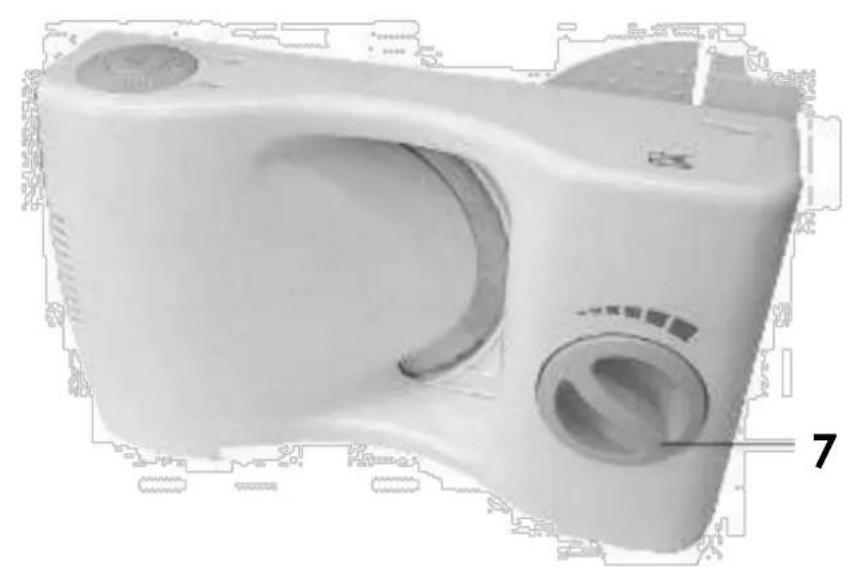

7. Adjusting knob
8. Safety lock
9. Slices thickness regulation
10. Protection of the thumb

F

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+ / - 150mm width × 210mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

I.

II.

MONTAGE DES LAUBBRETTE

I While making the two arrows meet exactly, insert the tongue which is under the platform's (5) edge A in the slit located on the table's (6) edge B.
II Do the same at the end of the table sliding the tongue which is under the platform into the slit provided.

MOUNTING OF THE PLATFORM

While making the two arrows meet exactly, insert the tongue which is under the platform's (5) edge A in the slit located on the table's (6) edge B.
II Do the same at the end of the table sliding the tongue which is under the platform into the slit provided.

MONTAGE DU CHARIOT COULISSANT

Please read these instructions carefully before using the appliance.

Check that your mains voltage corresponds to that stated on the appliance.

Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons.

From time to time check the cord for damages. Never use the appliance if cord or appliance show any signs of damage.

Only use the appliance for domestic purposes and in the way indicated in these instructions.

Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.

Never use the appliance near hot surfaces.

Should the cord be damaged, it must be replaced by a competent qualified electrician (^*)

Before cleaning, always unplug the appliance from the power supply.

All repairs should be made by a competent qualified electrician

Never use the appliance outside and always place it in a dry environment.

• Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.

Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.

Make sure the appliance is set on a flat surface.

Unplug the appliance when not in use.

Only use this slicer for cooking applications. Only cut articles such as cheese, (boned) meat, bread and preparations. Never cut frozen food with this slicer.

Never cut food only by using your hands. Always use the slide and its food guide unless it is impossible because of the size and dimension of the article. Make sure never to touch the knife.

This kind of appliance can not function continuously; it is not a professional type of appliance. It is necessary to make temporary stops. Check the section "Temporary stops" in the instructions manual.

The blade of this appliance is extremely sharp, always be very careful when cleaning the appliance.

It is absolutely necessary to keep this appliance clean at all times as it comes into direct contact with food.

Make sure the appliance is unplugged when disassembling it before cleaning or other

Never touch the blade when the appliance is in use. Furthermore, never try to stop the movement of the blade in any way whatsoever.

• Be careful never to remove the platform when the appliance is connected as it protects the user from the blade. Therefore never try to overstep the 0 and 15mm graduations.

(^*) Competent qualified electrician : after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

IMPORTANT INFORMATION

This appliance is not for professional use. You should follow the requested breaks. Failure to follow this instruction carefully may result in damage to the motor. Please refer to the rating label for the maximum continuous usage time (KB xx min or xx is the maximum usage time). The breaks should last at least 10 minutes.

UK STYLE PLUG WIRING INSTRUCTIONS (IN THE UK ONLY)

This product must only be used from a 13 amp power socket. If a BS1363 approved 13 amp plug is used, it should be fitted with a 13 amp fuse. The wires on the power cord are colour coded:

blue = neutral, brown = live, green or green & yellow = earth.

The blue wire must be connected to the terminal marked N or coloured in black.

The brown wire must be connected to the terminal marked L or coloured in red.

The green (& yellow) wire must be connected to the terminal marked E or coloured in green (& yellow).

USING THE SLICER

• Clean all parts of the appliance before the first use.
• Make sure the appliance is steady and open the table (6).
• Put the platform (5) on top of the table: the platform triangle should be facing the triangle on the table. The platform should be secured in the table groove. Now add the pusher (4) and the protection of the thumb as described on the picture.
• Select the slicing thickness by turning the adjusting knob (7).
• Plug in the appliance. The slicer is now ready for use.
• Lay the food to be sliced between the blade (1) and the pusher.
• Push simultaneously the on/off button (2) and the safety lock (8) with your hand. The blade will start rotating. For safety reasons, the appliance only works if both buttons are pushed.
• Push the platform with the other hand to bring the food to the blade. As a safety measure, the platform cannot be moved easily. This means that the pressure has to be sufficiently strong in order to obtain regular slices.
• To avoid food sticking to the appliance, you can moisten the blade with cooking oil beforehand. This also allows you to slice more easily.
  Always use the pusher when slicing small parts and leftovers.
• Do not slice meat with bones, food with large seeds, rolled roast without removing the string, wrappers (i.e. aluminium foil), frozen food or any hard, inedible food parts.

CLEANING

• Before cleaning, always unplug the appliance.
• Wipe the inside and outside of the appliance with a paper towel or a soft and damp cloth. It should not be washed in a dishwasher.
• Do not clean the inside or outside with any abrasive scouring pad or steel wool as this will damage the finish.
• Do not immerse in water or any other liquid.
  The blade can be taken off by turning the blade-locking knob (3). Caution: the blade is very sharp. Clean the blade with soapy water and give it a rinse. Then turn the knob clockwise to fasten it.
• Dry all parts well before storage.
