AS 9 - Slicer TEAM - Free user manual and instructions

Product type	Electric slicer
Brand	Team
Model	AS 9
Power supply	220-240 V, 50-60 Hz
Maximum continuous use duration	Refer to the rating plate (e.g., KB 5 min)
Mandatory break after use	At least 10 minutes
Blade type	Removable circular knife
Slice thickness adjustment	From 0 to 15 mm via knob
Child safety	Two simultaneous buttons (on/off + safety)
Blade protection	Thickness adjustment plate protects the knife
Included accessories	Carriage (3 pieces), guide, thumb guard
Compatible foods	Cheeses, boneless meats, bread, culinary preparations
Prohibited foods	Frozen foods, bones, pits, packaging, hard parts
Cleaning	Wipe with a damp cloth, blade washable with soapy water
Cleaning precautions	Do not immerse, do not put in dishwasher
Blade disassembly	Turn the locking screw clockwise to remove
Repairability	Qualified after-sales service mandatory

Frequently Asked Questions - AS 9 TEAM

How to assemble the carriage for the AS 9 slicer?

The carriage (7) is delivered as a kit of 3 pieces. To assemble it, tilt it perpendicular to the platform (8), slide edge (B) under edge (A), then rotate to place it in groove (C). Make sure it is properly inserted before each use.

What is the maximum continuous use duration?

The maximum continuous use duration is indicated on the rating plate (e.g., KB 5 min). After each cycle, respect a break of at least 10 minutes to avoid motor damage.

How to adjust slice thickness?

Use the thickness adjustment knob (5) located on the side. Turn it to select a thickness between 0 and 15 mm. Never exceed 15 mm to ensure blade protection.

Can I cut frozen foods with the slicer?

No, the AS 9 slicer is designed only for fresh foods (cheeses, boneless meats, bread). Frozen foods can damage the blade and the appliance.

How to clean the slicer blade?

First unplug the appliance. Remove the blade by turning the locking screw (1) clockwise. Wash it with soapy water, rinse with clean water, then dry thoroughly before reassembling.

What to do if the power cord is damaged?

Do not use the appliance. The cord must be replaced by a qualified competent service (manufacturer or importer after-sales service) to avoid any danger.

Can I use the slicer without the carriage?

It is strongly recommended to use the carriage to guide foods. The only exception: if the size or shape of the food does not allow its use, but be extremely cautious and always use the guide.

How does the child safety work?

To start the appliance, you must simultaneously press the on/off button (3) and the child safety button (4). If either button is released, the appliance stops immediately.

Can I clean the slicer in the dishwasher?

No, no part of the slicer is dishwasher safe. Clean the exterior with a soft damp cloth and the blade by hand with soapy water.

What to do if the blade does not turn?

Check that the appliance is plugged in and that both safety buttons are pressed correctly. If the problem persists, unplug it and contact qualified after-sales service.

USER MANUAL AS 9 TEAM

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Allesschneider

Slicer

Trancheuse

Allessnijder

Cortafiambres

Fambreira

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

2

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+ / - 150mm width x 210~mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

D

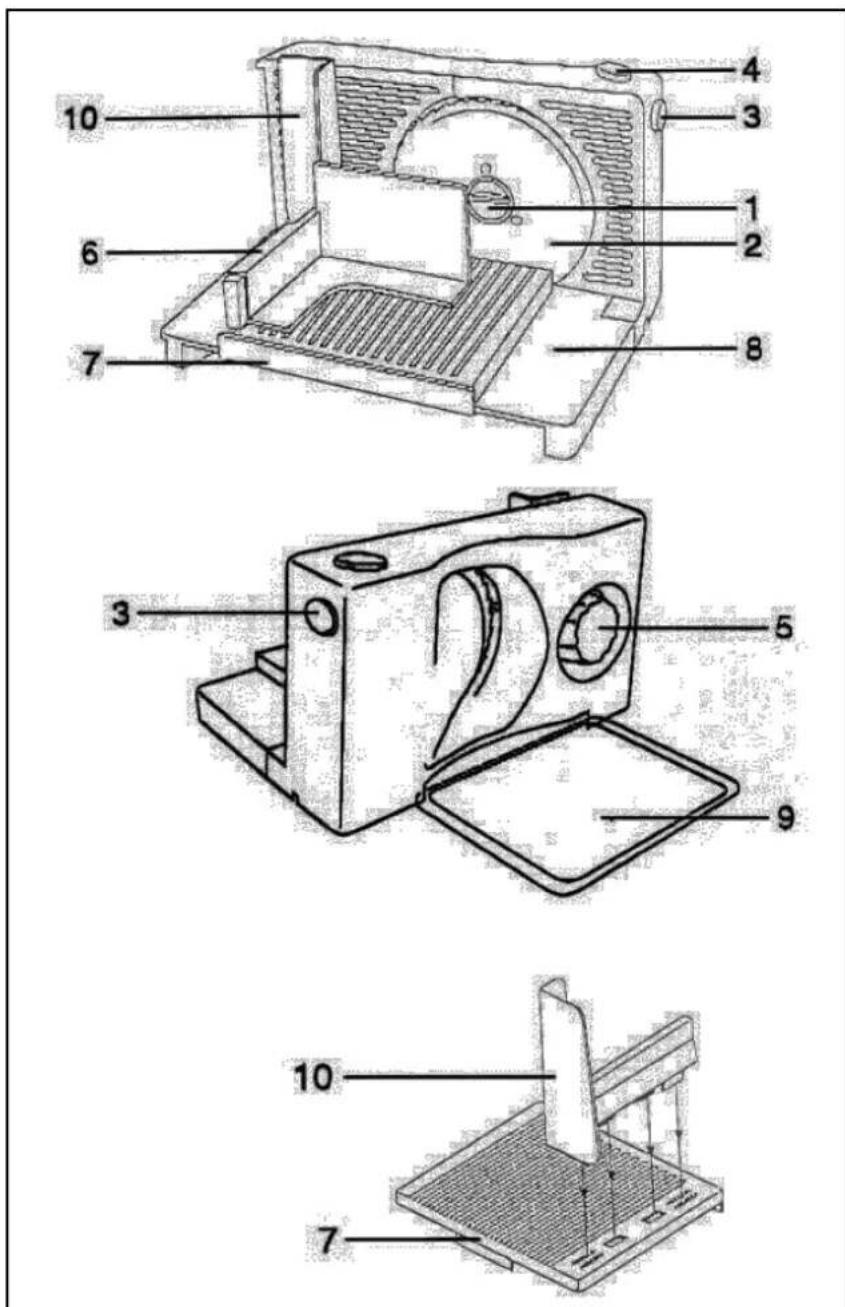

1. Blade-locking knob
2. Blade
3. On/off button
4. Safety lock
5. Slices thickness regulation
6. Pusher
7. Platform
8. Table
9. Tray
10. Thumb guard

F

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

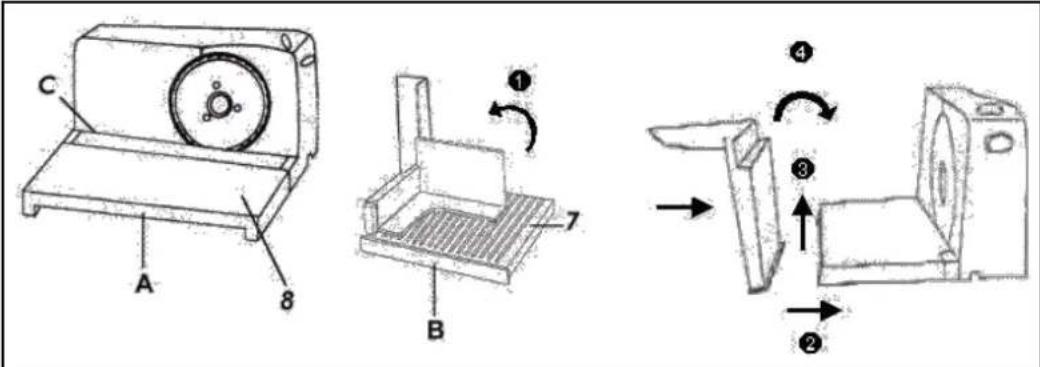

MONTAGE DES LAUFBRETTES

MOUNTING OF THE PLATFORM

Put the platform (7) in a vertical position in order to mount it correctly on the table (8).
Put edge (B) under edge (A).
Lift it up so that edge (B) is next to edge (A).
Turn the platform down (horizontally) so that it is located on the table and can be moved easily. The platform should be secured in the table groove (C).

MONTAGE DU CHARIOT COULISSANT

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+ / - 150mm width x 210mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

de snijplank.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+ / - 150mm width × 210mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

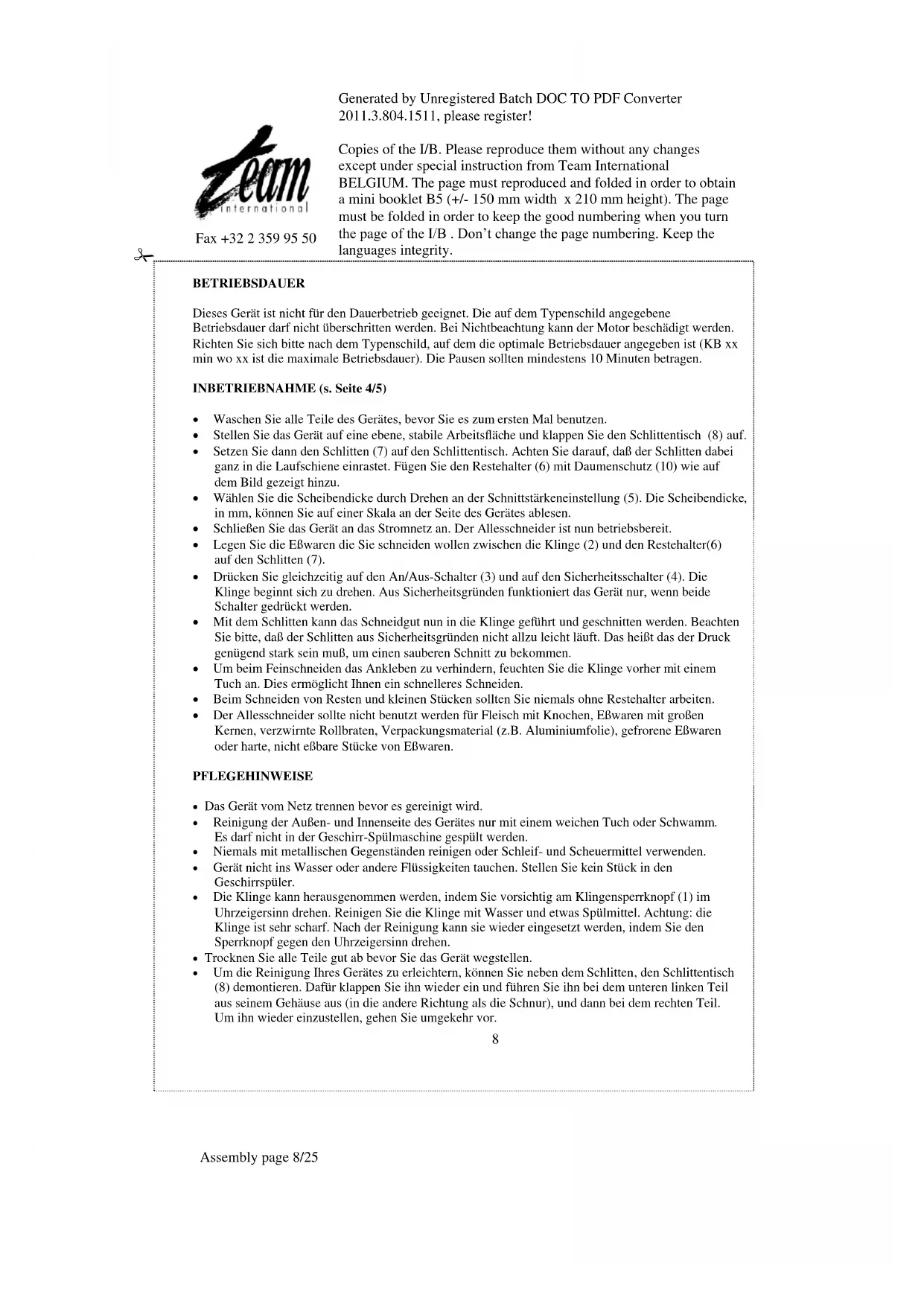

BETRIEBSDAuer

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+ / - 150mm width × 210mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

GB

OPERATINGINSTRUCTIONS

IMPORTANT SAFEGUARDS

Please read these instructions carefully before using the appliance.
Check that your mains voltage corresponds to that stated on the appliance.
Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons.
From time to time check the cord for damages. Never use the appliance if cord or appliance show any signs of damage.
Only use the appliance for domestic purposes and in the way indicated in these instructions.
Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
Never use the appliance near hot surfaces.
Should the cord be damaged, it must be replaced by a competent qualified electrician (^*)
Before cleaning, always unplug the appliance from the power supply.
All repairs should be made by a competent qualified electrician
Never use the appliance outside and always place it in a dry environment.
- Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
Make sure the appliance is set on a flat surface.
Unplug the appliance when not in use.
Only use this slicer for cooking applications. Only cut articles such as cheese, (boned) meat, bread and preparations. Never cut frozen food with this slicer.
Never cut food only by using your hands. Always use the slide and its food guide unless it is impossible because of the size and dimension of the article. Make sure never to touch the knife.
This kind of appliance cannot function continuously, it is not a professional type of appliance. It is necessary to make temporary stops. Check the section « Important information » in the instruction manual.
The blade of this appliance is extremely sharp, always be very careful when cleaning the appliance.
It is absolutely necessary to keep this appliance clean at all times as it comes into direct contact with food.
Make sure the appliance is unplugged when disassembling it before cleaning or other.
Never touch the blade when the appliance is in use. Furthermore, never try to stop the movement of the blade in any way whatsoever.
- Be careful never to remove the platform when the appliance is connected as it protects the user from the blade. Therefore never try to overstep the 0 and 15mm graduations.
Be careful, the platform (7) guiding the food is delivered in kit (3 parts). Before any use, it is absolutely necessary to make sure that the parts have been put together correctly and that no part is missing. Please see the picture on page 2.

(^*) Competent qualified electrician : after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

IMPORTANT INFORMATION

This appliance is not for professional use. You should follow the requested breaks. Failure to follow this instruction carefully may result in damage to the motor. Please refer to the rating label for the maximum continuous usage time (KB xx min where xx is the maximum usage time). The breaks should last at least 10 minutes.

UK STYLE PLUG WIRING INSTRUCTIONS (IN THE UK ONLY)

This product must only be used from a 13 amp power socket. If a BS1363 approved 13 amp plug is used, it should be fitted with a 13 amp fuse. The wires on the power cord are colour coded: blue = neutral, brown = live, green or green & yellow = earth.

The blue wire must be connected to the terminal marked N or coloured in black.

The brown wire must be connected to the terminal marked L or coloured in red.

The green (& yellow) wire must be connected to the terminal marked E or coloured in green (& yellow).

USING THE SLICER (see Page 4/5)

• Clean all parts of the appliance before the first use.
• Make sure the appliance is steady and open the table (8).
• Put the platform (7) on top of the table. The platform should be secured in the table groove. Now add the pusher (6) and the thumb guard (10) as described on the picture.
• Select the slicing thickness by turning the adjusting knob (5). You can control millimetres on the side of the appliance.
• Plug in the appliance. The slicer is now ready for use.
• Lay the food to be sliced between the blade (2) and the pusher.
• Push simultaneously the on/off button (3) and the safety lock (4). The blade will start rotating. For safety reasons, the appliance only works if both buttons are pushed.
• Push the platform with the other hand to bring the food to the blade. As a safety measure, the platform cannot be moved easily. This means that the pressure has to be sufficiently strong in order to obtain regular slices.
• To avoid food sticking to the appliance, you can moisten the blade with a wet towel beforehand. This also allows you to slice more easily.
  Always use the pusher when slicing small parts and leftovers.
• Do not slice meat with bones, food with large seeds, rolled roast without removing the string, wrappers (i.e. aluminium foil), frozen food or any hard, inedible food parts.

CLEANING

• Before cleaning, always unplug the appliance.
• Wipe the inside and outside of the appliance with a paper towel or a soft and damp cloth. It should not be washed in a dishwasher.
• Do not clean the inside or outside with any abrasive scouring pad or steel wool as this will damage the finish.
  Do not immerse in water or any other liquid. Do not place any piece in the dishwasher.
  The blade can be taken off by turning the blade-locking knob (1) clockwise. Caution: the blade is very sharp. Clean the blade with soapy water and give it a rinse. Then turn the knob anticlockwise to fasten it.
• Dry all parts well before storage.

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+ / - 150mm width x 210mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

• In order to make the cleaning of your appliance easier, you can, besides the platform, take the table (8) apart. Therefore close it and take the lower left side (on the opposite side of the cord) of its housing, then the right side. To replace it, proceed inversely.
