FH 600 - Heating EINHELL - Free user manual and instructions

Product Type	Oil-filled radiator
Brand	Einhell
Model	FH 600
Power Output	600 W
Voltage	230 V ~ 50 Hz
Protection Class	I
Mains Cable	3 x 0.75 mm², 1.5 m
Thermostat Control	Infinitely adjustable
Overload Cut-out	Yes, with reset button
Installation Options	Free-standing or wall-mounted
Width (approx.)	770–870 mm
Height (free-standing)	Approx. 400–500 mm (estimated)
Depth	Not specified
Weight	Not specified
Heating Elements	Oil-filled sealed ribs
Usage	Indoor, dry areas only
Not Suitable For	Commercial, trade, or industrial use
Safety Features	Overload cut-out, tip-over protection not specified
Cleaning	Wipe with damp cloth, disconnect power first
Storage	Dry place, covered if possible
Warranty	2 years (subject to terms)
Spare Parts	Order with model/type, article number, ID number, part number

Frequently Asked Questions - FH 600 EINHELL

How do I assemble the FH 600 for free-standing use?

Press the panel radiator onto the supplied legs until they click into place (see Fig. 2 of the manual).

How do I mount the FH 600 on a wall?

Drill 8 mm holes at the spacing shown (770–870 mm), insert dowels, screw wall brackets with tension springs at the top. Hook the radiator into the bottom brackets, then press the top brackets up and push the radiator against the wall until it locks.

How do I set the thermostat?

Turn the thermostat control to MAX until desired temperature is reached, then turn it down until you hear a click. The thermostat will maintain the temperature automatically.

What should I do if the radiator stops heating?

Check if the overload cut-out has tripped (button C popped out). Turn off the radiator, unplug, wait a few minutes to cool, then plug in and press the reset button. If it trips again, contact customer service.

Can I use the FH 600 in a bathroom?

No. The manual states it must not be placed near wet rooms, bathtubs, showers, or swimming pools. Use only in enclosed, dry areas.

Is it safe to cover the radiator?

No. Covering the radiator is a fire hazard. Keep at least 50 cm away from flammable objects like curtains, furniture, or clothing.

How do I clean the radiator?

Disconnect the mains plug first. Use a damp cloth to wipe the casing. Never immerse the radiator in water or allow liquids to enter.

What do I do if oil leaks from the radiator?

Do not use it. Return the radiator to the customer service for examination. The oil seal must only be opened by authorized personnel.

How should I store the radiator when not in use?

Store it in a dry place, preferably covered. Keep it upright. Wind the mains cable for storage.

Where can I find spare parts?

Visit www.isc-gmbh.info or contact customer service. Provide the model/type, article number, ID number, and part number when ordering.

USER MANUAL FH 600 EINHELL

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols visible)

Close-up of a metallic object with a small protrusion, possibly a component or part, against a plain background (no text or symbols visible)

Close-up of a small, smooth object resting on a cylindrical surface (no text or symbols visible)

D

• Read the operating instructions before using the appliance for the first time. The appliance may only be used as described therein. All other usages are not permitted.
• Keep the instructions in a safe place and give them to third parties if necessary.
• Check that the appliance has been delivered in perfect condition. If it has suffered any damage, do not connect the appliance to the power supply.
• Check the appliance, particularly the mains lead, for signs of damage every time before use. If you find signs of damage, contact your customer service.
• Place the mains cable so that there is no danger of tripping over the cable.
• Do not guide the mains cable over hot parts of the appliance during operation.
  ●Never use the mains cable to pull the power plug out of the socket-outlet! Never use the mains cable to carry the appliance or try to move the appliance by pulling the mains cable.
  ●Never jam the mains cable between objects, or pull the cable over sharp edges, or place the cable over hot plates or open flames.
  ●Not suitable for commercial purposes.
  ●Use the appliance in enclosed, dry areas only.
  ●Never open the appliance or touch live parts – danger of fatal accident!
  ●Never immerse the appliance in water – danger of fatal accident!
• Do not place the appliance near wet rooms or wet areas (bathroom, shower room, swimming pool, etc.). It must not be possible for the control elements to be touched by a person in a shower, a vessel filled with liquid or the bathtub.
  ●Never use the appliance with wet hands.
• Do not cover the appliance and place no objects or clothing on or between the heating ribs. Under no circumstances are you to restrict the air circulation around the heating ribs through curtains, furniture or similar objects - fire hazard!
• Connect the device to an earthed socket outlet only!
• If the radiator is damaged due to toppling or otherwise or if the power cable is damaged, contact an authorized professional or the customer service responsible for your country.
• Position the appliance in such a way that the mains plug is accessible at all times.

• If the appliance is not used for a lengthy period of time, disconnect it from the mains supply.

• Do not position the appliance directly below a socket.
  ●For supervised operation only.

• If the radiator topples, disconnect the mains plug from the supply, wait until it has cooled and then place it upright again.
  ●Caution! The heating ribs become hot during operation.
  ●Never position the appliance on deep pile carpets.
• Do not use the appliance in rooms in which inflammable materials (for example solvents, etc.) or gases are used or stored.
• Keep highly inflammable substances and gases away from the appliance.
• Do not use in areas where there is a fire risk (for example wooden sheds).
  ●Only use the radiator with its mains lead fully extended.
  ●Not suitable for installation on permanently installed electrical cables.
• Do not insert any foreign objects in the appliance's openings.

- Danger of electric shock and damage to the appliance.

• Keep children and people on medication or under the influence of alcohol away from the appliance.
  ●Maintenance and repair work may only be carried out by authorized trained personnel.

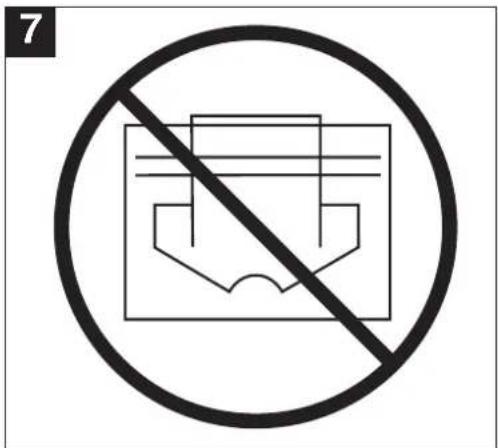

• Important! Do not cover the appliance – fire risk! Pay attention to the symbol on the appliance (Fig. 7).
  ●Children or infirm persons may use the appliance only under supervision. Children are not allowed to use the appliance as a toy.
  ●The radiator may only be used mounted in an upright position on the wall or with mounted legs and must always be stored in an upright position. Keep at least 50 cm away from inflammable objects such as furniture, paper, clothing, curtains, etc.

2. Layout (Fig. 1)

1 Heating ribs
2 Thermostat control
3 ON/OFF switch
4 Legs
Wall bracket (not shown)

GB

3. Installation

3.1 Assembly for use as a free-standing radiator (Fig. 2)

Press the panel radiator onto the supplied legs.

3.2 Assembly for use as a wall radiator (Fig. 3-5) Important! When the panel radiator is screwed to the wall the distance between the bottom edge of the radiator and the floor must be between 100 – 150 mm. Make sure that there are no electric cables or other installations (for example water pipes) near the drill holes. Ensure that the radiator is fitted securely and horizontally.

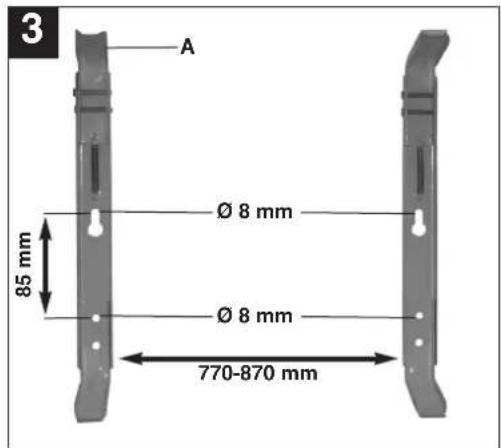

a) Drill holes with diameters of 8 mm in the wall, spaced as shown.
b) Insert the dowels with diameters of 8 mm in the holes and screw the wall brackets to the wall. Make sure that the top end of the wall bracket "A" with the tension spring is at the top.

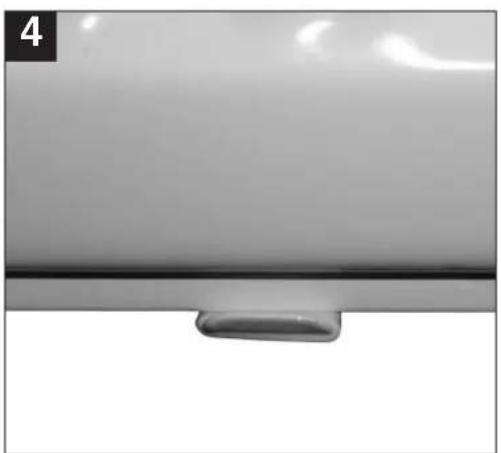

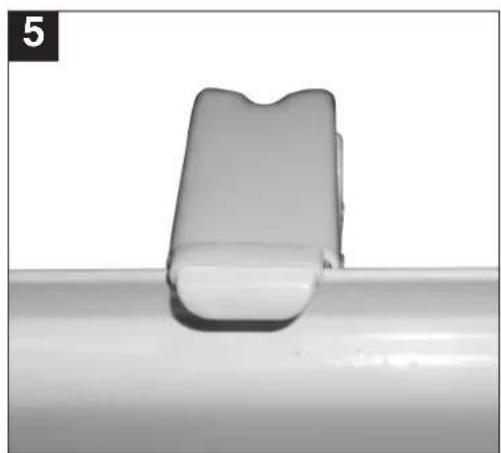

c) Hook the panel radiator into the bottom of the wall bracket first, then press the top end of the wall bracket "A" up and press the panel radiator against the wall bracket. Let go of the top end of the wall bracket – the panel radiator locks into place.

4. Technical data:

Rated voltage: 230 V \~ 50 Hz

Output: 600

Thermostat control: Infinitely adjustable

Protection class: I

Mains lead: 3 x 0,75 mm ^2 x 1,5 m

5. Proper use

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

6. Starting up

Important! Before using the appliance for the first time, check that the voltage supply is the same as the voltage details set out on the data plate.

Read safety instructions listed under section 1.

6.1 Thermostat (Fig. 1/Item 3)

Switch on the radiator with the ON/OFF switch. If the current room temperature is higher than the temperature set in the thermostat, the ON/OFF rocker switch will not illuminate.

Turn the control to "MAX" until the required room temperature has been reached. Then turn down the control until you hear a clear click. The thermostat control will switch the radiator on and off automatically to maintain the room temperature at an almost constant level. However, this presupposes that the radiator has a sufficient output to cover the heating requirements for the room.

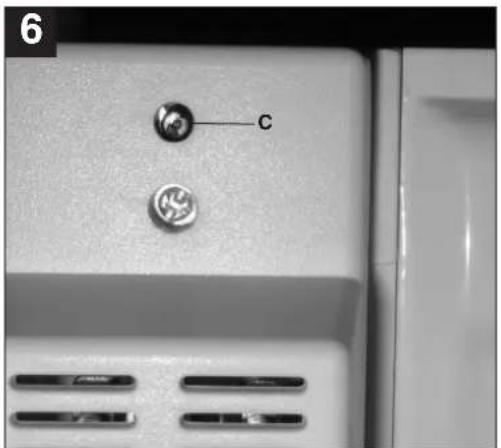

6.2 Overload cut-out (Fig. 6)

The panel radiator is fitted with an overload cut-out which switches off the heating element in the event of overheating. If this happens, the pushbutton (C) jumps out slightly. If this occurs, turn off the radiator at the ON/OFF switch, pull out the power plug and wait a few minutes for the radiator to cool down. Once it has cooled down you can connect the power plug to the mains socket outlet again. Then press the button for the overload cut-out and switch on the radiator with the ON/OFF switch.

7. Storage

If the radiator is not used for a lengthy period of time, the mains lead must be stored complete. The radiator has to be stored in a dry place, covered if possible.

8. Maintenance and cleaning

●Maintenance and repair work may only be carried out by an authorized electrical servicing contractor or the customer service responsible for your country.
- Check the mains lead at regular intervals for signs of defects or damage. A damaged mains lead may only be replaced by an electrician or the customer service responsible for your country in compliance with the relevant regulations.
- Important: Disconnect the mains lead before cleaning – danger of electric shock.
●Use a damp cloth to clean the casing.
●The ribs are filled with a special oil. Repairs that necessitate the oil seal to be opened may only be carried out by the customer service responsible for

your country. If oil leaks from the appliance, return it to the customer service responsible for your country for examination.

9. Ordering spare parts

Please provide the following information on all orders for spare parts:

●Model/type of machine
●Article number of the machine
●ID number of the machine
●Number of the required spare part For our latest prices and information please go to www.isc-gmbh.info

10. Waste disposal

Defective devices must be disposed of properly. Please contact the customer service center responsible for your country. Accessories and packaging should be disposed of in an environment-friendly fashion, i.e. by taking them to a recycling depot. Plastic parts are coded for purposes of separation when recycling.

●It is imperative to follow the applicable oil disposal directives when the equipment is scrapped.

I

X 89/336/EWG_93/68/EEC

95/54/EG:

90/396/EWG

97/68/EG:

89/686/EWG

EN 60335-1+A11; EN 60335-2-30; EN 55014-1+A1+A2; EN 55014-2+A1; EN 61000-3-2; EN 61000-3-3+A1

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of ISC GmbH.

①

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

©Nur für EU-Länder

Never place any electric tools in your household refuse.

To comply with European Directive 2002/96/EC concerning old electric and electronic equipment and its implementation in national laws, old electric tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the demand to return electrical devices:

As an alternative to returning the electrical device, the owner is obliged to cooperate in ensuring that the device is properly recycled if ownership is relinquished. This can also be done by handing over the used device to a returns center, which will dispose of it in accordance with national commercial and industrial waste management legislation. This does not apply to the accessories and auxiliary equipment without any electrical components which are included with the used device.

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. Of course, if you would prefer to call us then we are also happy to offer our assistance under the service number printed below. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights. We do not charge you for this guarantee.
2. Our guarantee only covers problems caused by material or manufacturing defects, and it is restricted to the rectification of these defects or replacement of the device. Please note that our devices have not been designed for use in commercial, trade or industrial applications. Consequently, the guarantee is invalidated if the equipment is used in commercial, trade or industrial applications or for other equivalent activities. The following are also excluded from our guarantee: compensation for transport damage, damage caused by failure to comply with the installation/assembly instructions or damage caused by unprofessional installation, failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type), misuse or inappropriate use (such as overloading of the device or use of non-approved tools or accessories), failure to comply with the maintenance and safety regulations, ingress of foreign bodies into the device (e.g. sand, stones or dust), effects of force or external influences (e.g. damage caused by the device being dropped) and normal wear resulting from proper operation of the device.

The guarantee is rendered null and void if any attempt is made to tamper with the device.

1. The guarantee is valid for a period of 2 years starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies when an on-site service is used.

2. In order to assert your guarantee claim, please send your defective device postage-free to the address shown below. Please enclose either the original or a copy of your sales receipt or another dated proof of purchase. Please keep your sales receipt in a safe place, as it is your proof of purchase. It would help us if you could describe the nature of the problem in as much detail as possible. If the defect is covered by our guarantee then your device will either be repaired immediately and returned to you, or we will send you a new device.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.
