Product Type	USB Hi-Fi Headphones
Brand	Tracer
Model	ZEN
Connectivity	USB
Sound Modes	7.1 Virtual Surround Sound, Xear Surround Max
Equalizer	10-band EQ with presets (Rock, Jazz, Classic, etc.)
Environment Effects	Simulation of halls, underwater, bathroom, etc.
Microphone	Built-in retractable microphone
Microphone Features	Volume control, mute, echo, voice enhancement, magic voice
LED Lighting	RGB LED (red, green, blue, purple, multicolor, off)
Volume Control	Slide switch for volume (10% steps) and LED color change
Compatibility	Windows XP/Vista/7/8/10
Software	Xear Audio Center for sound customization
Sampling Rate	44.1 kHz / 48 kHz
Operating Temperature	0°C to 40°C
Storage Temperature	-15°C to 60°C
Humidity (Operating/Storage)	85% RH or less
Weight (approx.)	300 g
Cleaning	Wipe with a dry cloth
Safety	Avoid high volume to prevent hearing damage

Frequently Asked Questions - ZEN Tracer

How do I change the LED color on my Tracer ZEN headphones?

Press the slide switch on the earcup; each press cycles through red, green, blue, purple, multicolor, and off. The color is memorized even after disconnecting the USB.

Can I use these headphones with a console or mobile device?

The Tracer ZEN is designed for PC use via USB. It may work with some consoles or adapters but is optimized for Windows.

How do I enable 7.1 virtual surround sound?

Open the Xear Audio Center software, go to the '7.1 Virtual Speaker Shifter' tab, and enable the feature. You can adjust individual speaker levels.

Where is the microphone located?

The microphone is retractable and stored inside the left earcup. Pull it out to use, and push back to store.

How do I adjust the equalizer settings?

In Xear Audio Center, click the 'Equalizer' tab. You can select presets (Rock, Jazz, etc.) or manually adjust the 10-band graphic equalizer.

What should I do if the headphones are not recognized?

Ensure the driver is installed correctly. Download the driver from the manufacturer's website and run setup for Windows. Reboot after installation.

Can the microphone be muted?

Yes, in the Xear Audio Center under 'Microphone Settings', there is a mute switch. Also, the slide switch on the headset can be configured for mute.

How do I clean the headphones?

Use a soft, dry cloth to wipe the exterior. Do not use liquids or chemicals. Avoid getting moisture into the earcups.

What is the frequency response of the headphones?

The manual does not specify frequency response, but typical gaming headsets range from 20 Hz to 20 kHz. For exact specs, refer to the product packaging.

Are replacement ear pads available?

The manual does not mention replacement parts. Contact Tracer support for availability of spare ear pads or other accessories.

USER MANUAL ZEN Tracer

RAVCORE RAVENS CORE GAMING

EN Instructions for use

CS Návod k obsluze

SK Návod na obsluhu

X-ray Audio Center RAYCORE Playbox Synthetic Cat Capture Hz In 44.1 KHz Out In Sample Rate 44.1 KHz 45 KHz Speakers Mio

Year Audio Center Raycore Playback 2 Out In Soundset Out TO MS Capture 44.1 KHz OP VP MIC DT VSS SNX Microphone Boost Enable Microphone Boost Speakers ✓ Mic ✓

Raycore Playback Capture Mio In 44.1KHz Out In SP Application Setting Show System Try Item U3 Transparent Language Select: English Don't show start up message: OK Cancel Add/Remove

7

Diagram showing computer and laptop connections with USB cable and USB icons, likely illustrating network or data transfer.

Close-up of a white and black headboard with a red laser pointer (no text or symbols visible)

Close-up of a black ergonomic headset with a connector, shown against a white background (no text or symbols visible)

(WEEE - ang. Waste Electrical and Electronic Equipment)

The headphones provide the best performance and sound effects when surround sound environment is installed and configured.

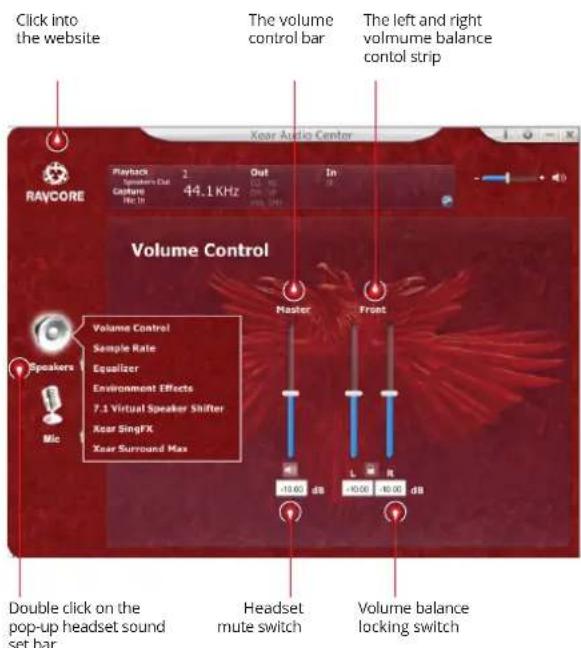

USTAWIENIA PODSTAWOWE:

1. The alignment of the lower right corner of the red label, double-click pop-up.

2. Headset volume control

Click into the website Playback 2 Out In Capture 44.1 KHz RRCORE Volume Control Master Front Speaker Volume Control Sample Rate Equalizer Environment Effects 7.1 Virtual Speaker Shifter Xear SingFX Xear Surround Max -10.00 dB +10.00 -10.00 dB Double click on the pop-up headset sound set bar Headset mute switch Volume balance locking switch

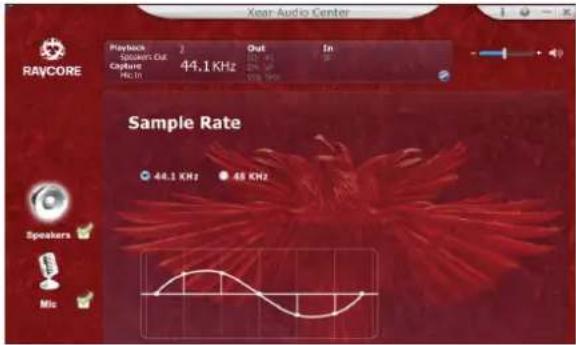

1. Music sampling frequency


X-ray Audio Center Playback 2 Out In Soundset Cut Capture 44.1 KHz MAC IN 100 MHz Sample Rate 44.1 KHz 48 KHz Speakers Mix

NOTE: The selection rate of sampling frequency and sampling the same music, batteer quality of music.

10

4. Equalizer

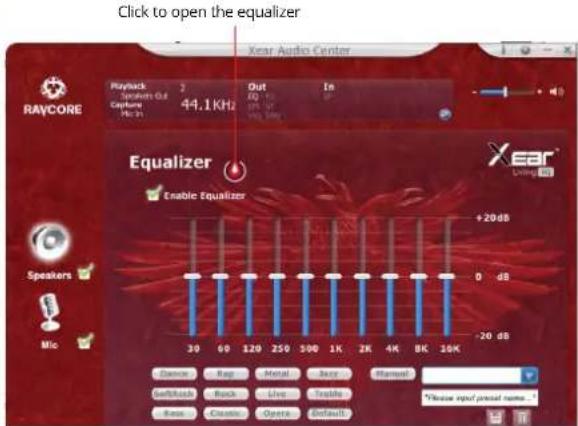

Click to open the equalizer Xear Audio Center RAYCORE Playback Capture Out Capture 44.1KHz Out In EQ 10 EPS 10 EPS 20 Equalizer Enable Equalizer +20dB 0 dB -20 dB 30 60 120 250 500 1K 2K 4K 8K 10K Speakers Mic Device Rag Metal Jazz Manual Self/Rock Rock Live Console Classic Opera Default Please input preset name * Xear Audio Center

The equalizer has:

1. O band equalizer adjustment
2. Preset made dance ceremony
3. Preset made rock Lyricak bass
4. Preset made
5. Preset moda rap music scena
6. Preset made
7. Preset made Rock
8. Preset paltem of classical
9. Preset mode of vocal music
10. Preset made of metal
11. Preset made Jazz
12. Preset made soprana
13. Preset default
14. Mode equalizer using definition switch
15. Select the custom model
16. Custom name typa
17. Add a new custom model
18. Delete existing custom made

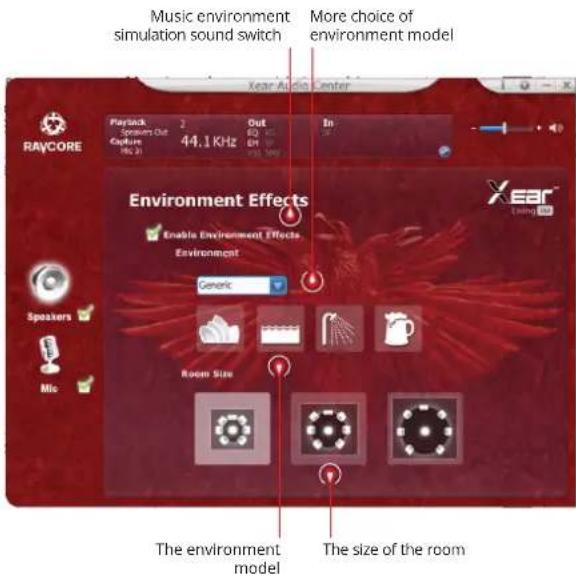

5. The music soud environment simulation

Music environment simulation sound switch More choice of environment model Playback 2 Out In Speaker Out EQ 10 Capture 44.1 KHz Det 10 RRC 31 100 MHz Environment Effects Enable Environment Effects Environment Generic Room Size The environment model The size of the room RAYCORE Xear Audio Center Xear™ Lingi968 Speakers Mic

Environmental audio The size the room
1. muic hall2. underwater3. bathroom4. music bar5. more options:environmental model	6. small7. medium8. large

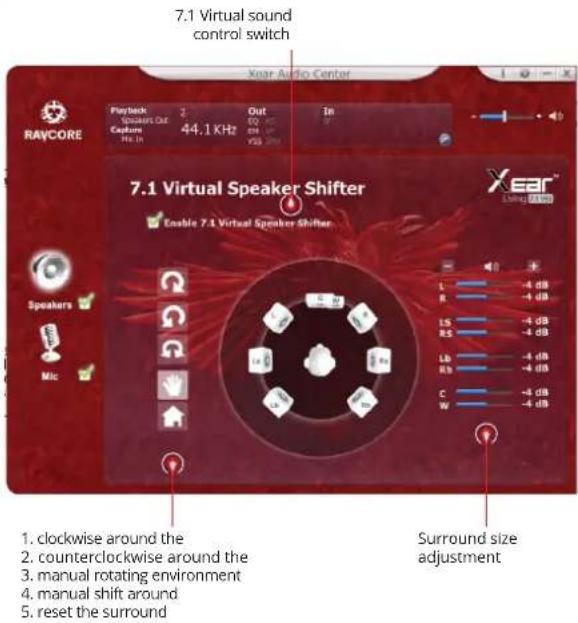

6.7.1 Virtual sound control

7.1 Virtual sound control switch Xear Audio Center Playback Speakers Out Custom Hz In Out EQ SN VCS In 44.1KHz 7.1 Virtual Speaker Shifter Enable 7.1 Virtual Speaker Shifter L R LS RS Lb RS C W +4 dB -4 dB -4 dB -4 dB -4 dB -4 dB -4 dB -4 dB Surround size adjustment Speakers Mic 1. clockwise around the 2. counterclockwise around the 3. manual rotating environment 4. manual shift around 5. reset the surround

7. The tone setting

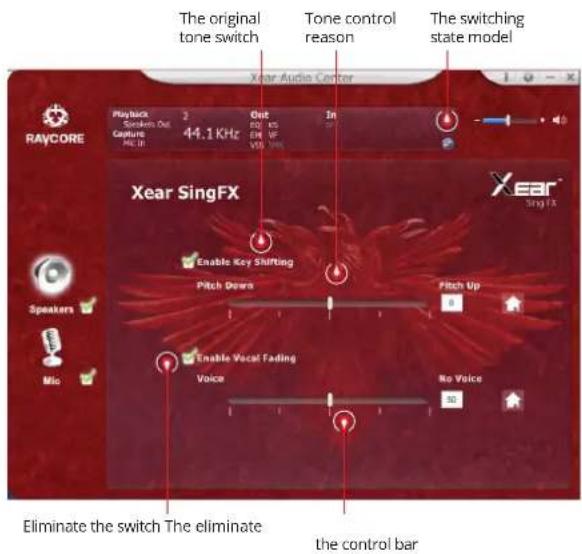

The original tone switch Tone control reason The switching state model Playback Sensors Out Capture PAC 01 44.1 KHz One EN VS VSS Xear Audio Center RAYCORE Xear SingFX Enable Key Shifting Pitch Down Fitch Up speaker Mio Enable Vocal Fading Voice No Voice 50 Eliminate the switch The eliminate the control bar

12

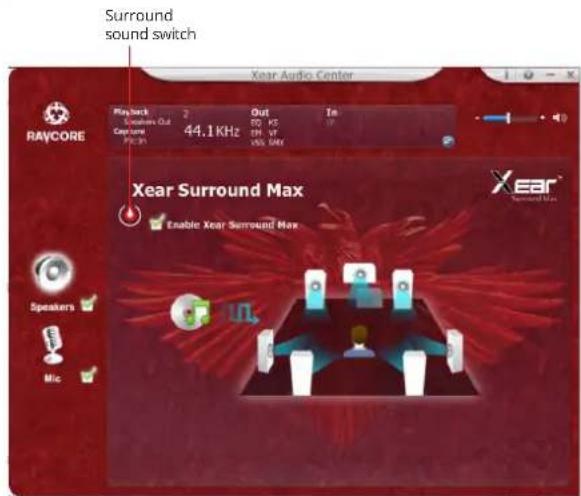

8. Xear sourround sound

Surround sound switch Xear Audio Center Raycore Playback 2 Sunshine Out Capture 44.1 KHz Out To TP: KS EP: VT VSS: MAX Xear Surround Max Enable Xear Surround Max Xear Sunburst Max Speakers ✓ Mic ✓

THE MICROPHONE SETTINGS

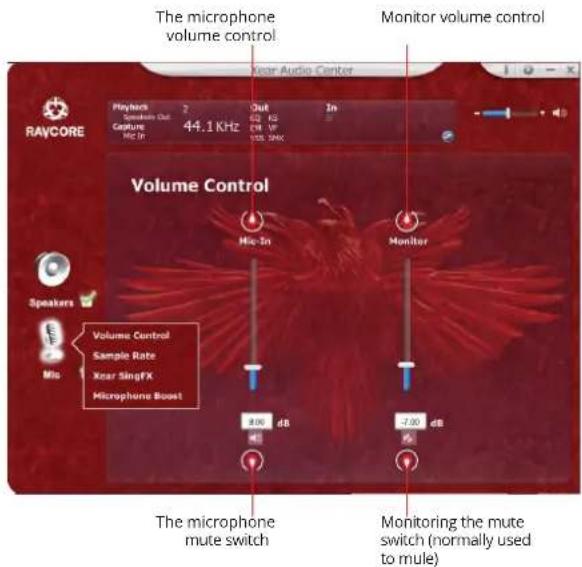

1. The microphone volume control

The microphone volume control Monitor volume control Raycore Playback 2 Out In Capture 44.1 KHz 100 Hz Mio In 155 MHz Volume Control Mio-In Monitor Speakers Volume Control Sample Rate Xcar SingFX Microphone Boost 8.06 dB 7.00 dB The microphone mute switch Monitoring the mute switch (normally used to mule)

13

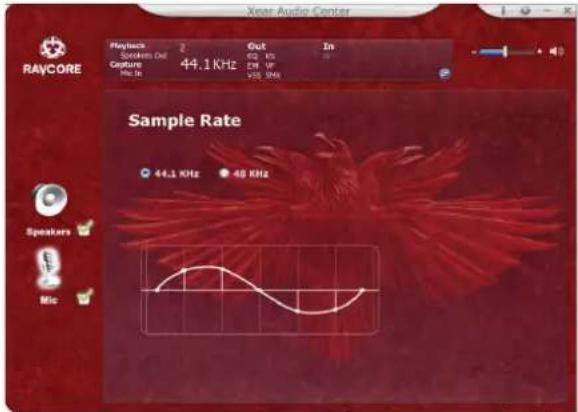

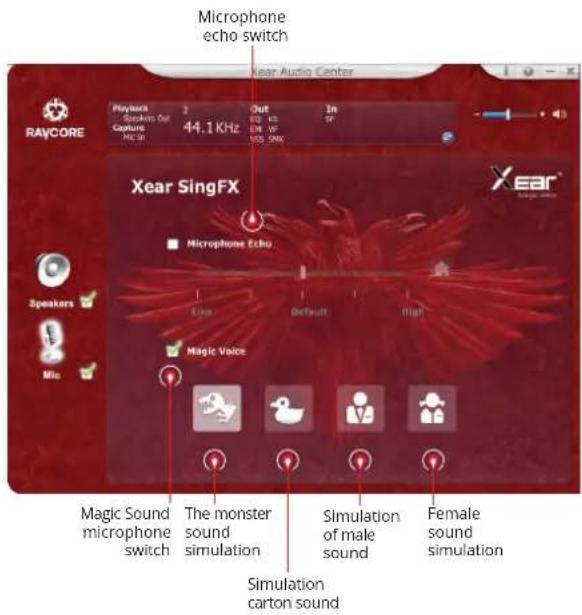

1. The sampling frequency set microphone 3. Xear SingFX Magic Sound selection


X-ray Audio Center Raycore Capture Mio. In 44,1 KHz Gut 200 Hz 25V UP VSS 396V Sample Rate 44,1 KHz 48 KHz Speakers Mio

Microphone echo switch Xear Audio Center Playtura 2 Out In Speakers Out Capture Mic In 44.1KHz 60 In 500 SNX Xear SingFX Microphone Echo Live Default High Speakers Mio Magic Voice Magic Sound microphone switch The monster sound simulation Simulation of male sound Female sound simulation Simulation carton sound

14

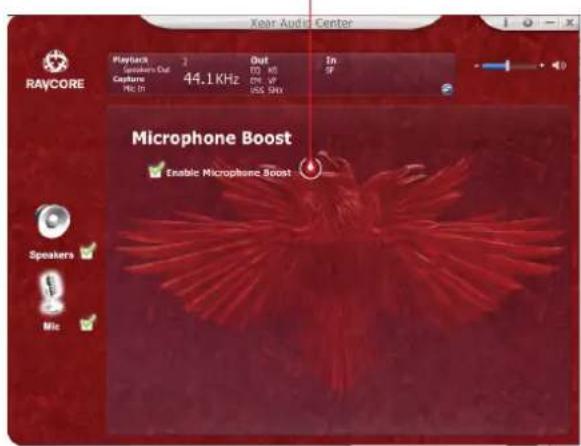

4. The microphone volume strengthen settings

The microphone volume

strengthen switch

X-ray Audio Center Raycore Sensors Out Capture MHz 44.1 KHz Out TO: KB DVI: VP VSS: SNX In SP Microphone Boost Enable Microphone Boost Speakers Mie

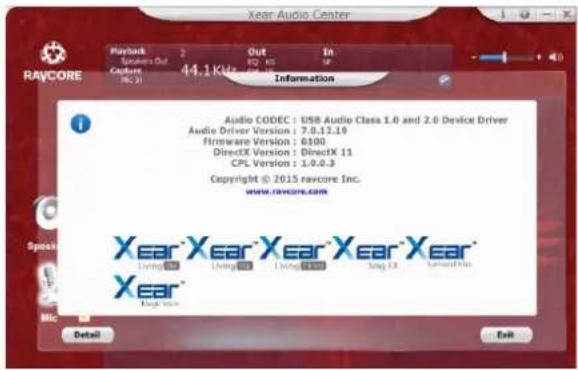

5. The driver version information

Xear Audio Center Playback Newman Out Capture 44.1 Kids Out FQ: 10 In SP Information Audio CODEC : USB Audio Class 1.0 and 2.0 Device Driver Audio Driver Version : 7.0.12.19 Firmware Version : 6100 DirectX Version : DirectX 11 CPL Version : 1.0.0.3 Copyright © 2015 navcore Inc. www.ravcore.com Xear® Living Web Living Web Living Web Sing 13 Current Plus Xear® Big Now Detail Exit

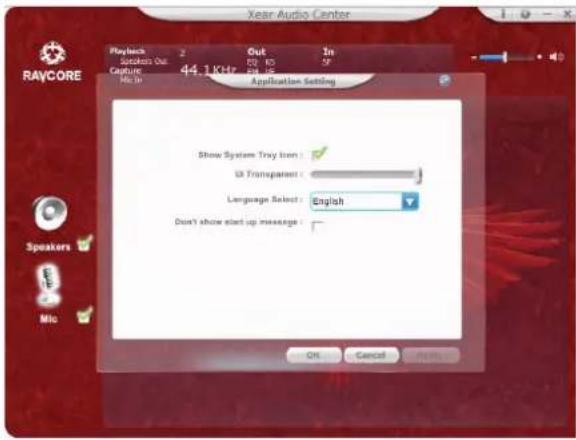

6. Basic settings

Raycore Playback Capture Mio In 44.1KHz Out In SP Application Setting Show System Try Item U3 Transparent Language Select: English Don't show start up message: OK Cancel Finish

Silhouette of a bird with wings and tail, overlaid with a horizontal line labeled '15' (no text or symbols beyond the number)

1. Basic functions: this product is USB hi-fi headphone for games/videos/music.

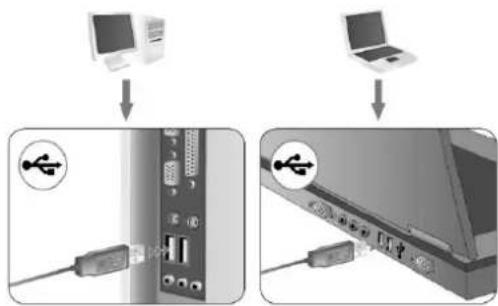

2. Connect the headset to your USB interface as follows:

Diagram showing computer and laptop connections with USB icons, illustrating network connection setup

1. You will find the decorative LED's on the two sides of earmuff (default color is red).
2. PLS kindly see below operations to adjust the volume and turn your favorable colors.

Close-up of a white and black headband device with a red laser pointer pointing to the left side (no text or symbols visible)

This is the slide switch for volume up/down and LED's color changes. Slide it up or down, and you will get to volume up or down, one slide will increase/decrease 10% volume. If you keep sliding up/down, the volume will get 100% loud or 1% low in 2sec.

Pressing the switch, will change LED colour (default color is red). Could be switched between red, green, blue, purple, multicolour and light off by continuous press. The switches gain memory function, which means, for instance, if the color is green when the interface is pulled out, the color is still green when powered again.

1. Microphone: For outlook feature and ergonomic design, the microphone is placed inside the left earmuff, leaving only partial out for stretching/retracting.

Close-up of a black ergonomic device with a connector and cable (no visible text or symbols)

The product is designed to use it with PC driver.

SOFTWARE SYSTEM REQUIREMENTS

Windows XP/Vista®/7/8/10

• Run setup from downloaded drivers.
• Follow the on-screen instructions. Complete the installation by rebooting your computer.
• After rebooting, the symbol will appear on the right corner of the Taskbar. Double click it to access the sound menu.

SAFETY INSTRUCTIONS

• Operation of the device (the devices) may be affected by strong static, electrical or high-frequency fields (radio installations, mobile telephones, microwave discharges). If this occurs, try increasing the distance between the devices that are causing interference.
• High volume levels may cause damage to hearing. Avoid listening to audio at too high a volume, especially for extended periods, and check the volume level that has been set on the volume control each time before the product is used.

Temperature: 0°C to 40°C Humidity: 85% RH or less

STORAGE TEMPERATURE AND HUMIDITY

Temperature: -15°C to 60°C

Humidity: 85% RH or less

17

X-ray Audio Center Playtecs 2 Out In Sockets Out Capture 44.1 KHz 0.0 Hz Hi: In 28.0 VSS 396V Sample Rate 44.1 KHz 45 KHz Speakers ✓ Mlc ✓

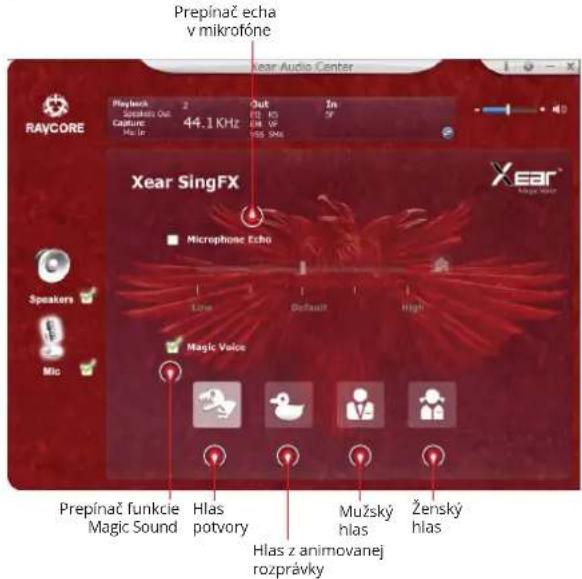

Přepínač echa v mikrofonu Raycore Playbox 2 Out In Sprinkin Out 10 SF Capture: 44.1 KHz EM OF Mn In SBS SHS Xear SingFX Microphone Echo Speaker Magic Voice Přepínač funkce Hlas Magic Sound pfíšery Hlas z animované pohádky Hlas muže Hlas ženy

X-ray Audio Center Raycore Simpkins Out Capture MHz 44.1 KHz Out TO: MS ON: VP VSS: SPIN In SP Microphone Boost Enable Microphone Boost Speakers Mic

5. Informace o verzi ovladače

Xear Audio Center Playback Newman Out Capture 44.1 Kids Out FQ: 10 In SP Information Audio CODEC : USB Audio Class 1.0 and 2.0 Device Driver Audio Driver Version : 7.0.12.19 Firmware Version : 6100 DirectX Version : DirectX 11 CPL Version : 1.0.0.3 Copyright © 2015 navcore Inc. www.ravcore.com Xear® Living Web Living Web Living Web Sing 13 Sonic Web Xear® Big Now Detail Exit

X-ray Audio Center Playback 2 Out In Spectron Out 100 KB SF Capture 44.1KHz Mio In Application Setting Show System Try Item U3 Transparent Language Select: English Don't show start up message OK Cancel Apply Raycore Speakers ✓ Mio ✓

23

Diagram showing two computer devices connected to a USB cable, with an icon indicating the USB symbol.

Side profile of a silver and black headband with a red laser pointer (no text or symbols visible)

Close-up of a black ergonomic headset with a cable, no visible text or symbols

X-ray Audio Center Playtecs 2 Out In Sockets Out Capture 44.1 KHz 0.0 Hz Hi: In 28.0 VSS 396V Sample Rate 44.1 KHz 45 KHz Speakers ✓ Mlc ✓

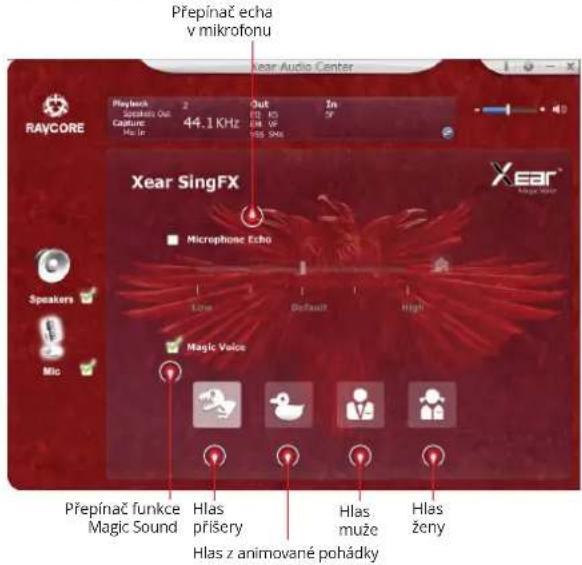

Prepínač echa v mikrofône Xear Audio Center Playback Capture 44.1 KHz Out In 5° Xear SingFX Microphone Echo Loya Default High Magic Voice Prepínač funkcie Magic Sound Hlas potvory Mužský hlas Ženský hlas Hlas z animovanej rozprávky
