Product Type	High Pressure Washer
Brand	Parkside
Model	IAN 78962
Power Supply	230 V / 50 Hz
Power Consumption	1800 W
Max. Pressure	120 bar
Max. Flow Rate	480 l/h
Weight	6.2 kg
Dimensions (L x W x H)	32 x 28 x 48 cm
Hose Length	5 m
Power Cord Length	3 m
Nozzle Types	Adjustable (0°-40°), Foam nozzle, Rotary nozzle
Detergent System	Integrated detergent tank (0.5 l) and metering valve
Protection Class	IPX5
Safety Features	Auto shut-off, thermal overload protection, pressure relief valve
Accessories Included	High-pressure gun, lance, foam sprayer, brush, extension lance
Maintenance	Clean filter regularly, check oil level, winterize with antifreeze
Spare Parts Available	Yes, via Parkside service center (nozzles, hose, pump parts)
Reparability	Modular design; user-replaceable parts: nozzles, hose, gun
Certifications	CE, GS

Frequently Asked Questions - IAN 78962 PARKSIDE

How do I start the Parkside pressure washer IAN 78962?

Ensure the water supply is connected and turned on, then plug the unit into a mains outlet. Press the power switch and squeeze the trigger on the gun. The motor will start automatically when the trigger is pulled.

What should I do if the pressure washer has no pressure?

Check that the water supply is fully open and the inlet filter is clean. Also, ensure the nozzle is not blocked. If the problem persists, bleed air from the pump by squeezing the trigger without a nozzle for a few seconds.

Can I use bleach or other chemicals with this pressure washer?

Only use detergents specifically designed for pressure washers. Do not use bleach, corrosive or flammable chemicals as they can damage seals and pose safety risks. The Parkside machine has a detergent system for approved cleaners.

How do I connect the detergent tank?

Fill the integrated detergent tank with appropriate cleaning solution. Adjust the metering valve to the desired concentration. Use the low-pressure nozzle (foam nozzle) to apply detergent. Do not use with high-pressure nozzles.

How do I store the pressure washer for winter?

Drain all water from the pump, hoses, and detergent tank. Run the unit for a few seconds without water to remove residual moisture. Add antifreeze for pressure washers to the pump if temperatures drop below 0°C. Store in a frost-free location.

Why does the pressure washer keep turning off?

The unit may be overheating due to continuous use. Pause and let it cool down. Also, check that the thermal overload protection hasn't tripped. If it happens frequently, ensure the water flow is adequate and the nozzle is not blocked.

How do I change the nozzle on the gun?

Turn off the unit and release any pressure by squeezing the trigger. Pull back the quick-connect collar on the lance, remove the current nozzle, and push the new nozzle into place. Release the collar to lock it securely.

Can I use an extension hose or power cord?

Yes, but use only high-pressure hose extensions rated for the unit's pressure (120 bar). The power cord can be extended with a suitable outdoor extension cable (min. 1.5 mm² cross-section) up to 10 m total length.

What maintenance does the pressure washer require?

Regularly clean the inlet filter and remove any debris. Check the pump oil level (if applicable) every 50 hours. After each use, detach the hose and run the pump briefly to clear water. Inspect hoses for leaks.

Where can I buy spare parts for the IAN 78962?

Parkside spare parts are available through the Parkside service center or online retailers. Common parts include nozzles, high-pressure hose, gun, and pump seals. Provide the IAN number (78962) when ordering.

USER MANUAL IAN 78962 PARKSIDE

PIPE CLEANING SET

GB

PIPE CLEANING SET

Translation of original operation manual

HU

CSÖTISZTÍTÓKÉSZLET

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

PL

Congratulations on the purchase of your new device. With it, you have chosen a high quality product.

The operating instructions constitute part of this product. They contain important information on safety, use and disposal.

Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified.

Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Intended purpose

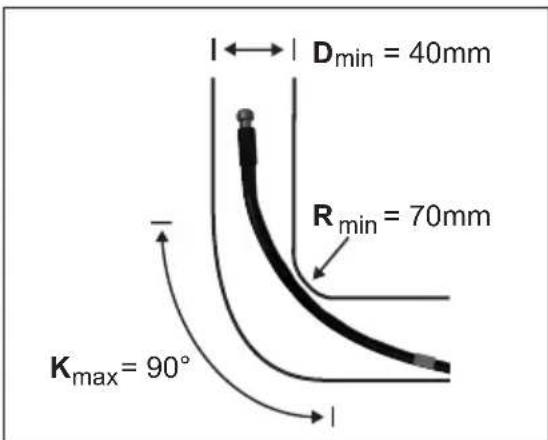

The pipe cleaning set clears blockages from pipes, down pipes, drains and toilets. The equipment is intended for use with the Parkside pressure washers PHD 100 A1, PHD 100 B2, PHD 150, PHD 150 A1 and PHD 150 B2 Operating pressure (Rated pressure) max. 110 bar. The equipment is suitable for the following pipes:

• Curve C no more than 90°;
• Diameter D at least 40 mm;
• Radius R at least 70 mm.

The equipment is not intended for commercial use.

The operator or user is responsible for accidents or damages to other people or their property.

The manufacturer is not liable for damages caused by use other than for the intended purpose or improper operation.

Functional description

The pipe cleaning set comprises a nozzle head and a 15 m long, flexible hose, which can be connected to a pressure washer. The hose is moved through the pipe by the four high-pressure jets that are directed backwards and the blockage is released by the water jet.

See the front fold-out page for illustrations.

Overview

1 Pipe cleaning set

2 Marking ring

3 Pipe cleaning hose
4 Connecting piece
5 Nozzle head
6 Scale
7 Red safety marking

8 Pressure washer jet gun (sold separately)

Technical specifications

High-pressure hose

Intake temperature .... max. 60°C

Length 15 m

Use the product only as described and for the applications specified:

Operating pressure / Rated pressure .max. 110 bar / 11 MPa Pressure ....max. 160 bar / 16 MPa Max. pumping rate, water..... 450 l/h

Technical and optical changes can be carried out in the course of further development without notice. All dimensions, references and information of this instruction manual are therefore without guarantee. Legal claims, which are made on the basis of the instruction manual, cannot thus be considered as valid.

Safety information

Please also observe the safety instructions for your pressure washer.

To avoid accidents and injuries:

Pressure washers can be dangerous if used incorrectly. Do not direct the jet at people, animals, live electrical equipment or the equipment itself.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Operation of the equipment is not permitted for people under the age of 16.

• Wear goggles to protect your eyes against loose dirt while working.

• To avoid damage and personal injury, only use the unit on leak-tight pipes and drains that are resistant to pressure.

• Do not leave equipment unattended in the workplace.
• Switch on the pressure washer only when the pipe cleaning hose is at least up to the red marking in the pipe to be cleaned.
• During high pressure operation, do not pull the inserted hose completely out of the pipe to be cleaned. You might be injured by the four pressure jets coming out at the back.
• The maximum washing temperature must not exceed 60^ C. The hose could be damaged.

Initial Operation

1. Connect the connecting piece (4) to the pressure washer spray gun Parkside (8). Turn it by 90° until it engages (bayonet joint).
2. Push the pipe cleaning hose (3) at least up to the red safety marking (7) into the pipe to be cleaned.

Caution! The red safety marking must be in the pipe before the pressure washer is switched on. The high-pressure jet could cause injury.

1. Switch on the pressure washer and squeeze the trigger on the spray gun (E8).

2. Whilst the nozzle head (5) is moving through the pipe independently, feed in the pipe cleaning hose (3) manually.

3. To release blockages, squeeze the trigger several times in a row then release it.

4. Your progress in the pipe can be marked with the marking ring (2). The progress can be read from the white scale (A6) on the hose, which is spaced at intervals of 1 m.

Cleaning/Maintenance/Storage

• Clean the equipment with a damp cloth.
• The equipment is maintenance free.
• Keep the equipment in a frost-proof area.

Waste disposal and environmental protection

Return the tool, accessories and packaging to a recycling centre when you have finished with them.

Hand over the device at an utilization location. Ask our Service-Center for details.

Guarantee

Dear Customer,

This equipment is provided with a 3-year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.

If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. filters or attachments) or to cover damage to breakable parts (e.g. switches, batteries, or parts made of glass).

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against

which the operating manual advises or warns must be categorically avoided. The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure quick handling of you issue, please follow the following directions:

• Please have the receipt and item number (e.g. IAN 12345) ready as proof of purchase for all enquiries.
• Please find the item number on the rating plate, an engraved plate on the front page of your manual (bottom left) or as a sticker on the back or bottom.
• Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.
• After consultation with our customer service, a product recorded as defective can be sent postage paid to the service

Service Branch

Please note that the following address is not a service address. Please initially contact the service centre specified above.

DES UK Ltd.

Unit B7

Oxford Street Industrial Park

Vulcan Road

Bilston, West Midlands WV14 7LF

Grizzly Service Malta

Fax: [phone]

address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.

We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.
