Product Type	Juicer
Model	MSO-06M
Brand	MPM
Power	600W
Speed Settings	2 (Low/High)
Juice Container Capacity	0.6 liters
Pulp Container Capacity	1.0 liters
Feeding Tube Diameter	60 mm
Material	BPA-free plastic and stainless steel
Dimensions (W x D x H)	28 x 20 x 35 cm
Weight	2.5 kg
Cord Length	1.2 meters
Dishwasher Safe Parts	Yes (excluding motor base)
Safety Features	Safety lock, non-slip feet, overheat protection
Warranty	2 years
Additional Functions	Pulp separation, foam separation, anti-drip system

Frequently Asked Questions - MSO-06M MPM

How do I assemble the MPM MSO-06M juicer?

Place the motor base on a stable surface. Insert the pulp container, then attach the filter basket onto the motor coupling. Position the juice jug with the foam separator, and finally secure the lid with the locking arm until it clicks.

Can I juice whole fruits like apples or carrots?

Yes, but cut them into pieces that fit the feeding tube (max 60 mm diameter). For harder vegetables like beets, cut into smaller chunks. Remove pits and hard seeds.

How do I clean the juicer after use?

Unplug the unit. Disassemble all removable parts. Rinse immediately under running water and scrub with the included brush. Most parts are dishwasher safe (top rack). Dry thoroughly before reassembly.

What does the anti-drip system do?

The anti-drip spout prevents juice from dripping onto your counter when you remove the jug. Simply flip the spout to the closed position before lifting the jug.

Why is my juicer not starting?

Ensure the lid is properly locked and the safety lock is engaged. Check the power cord connection. If it still doesn't start, the thermal overload may have tripped; let it cool down for 30 minutes.

Can I juice leafy greens like spinach or wheatgrass?

Yes, but use the low speed setting and wrap them around the plunger. For best results, juice them with a harder vegetable like cucumber.

How often should I replace the filter basket?

With proper care, the stainless steel filter should last for years. Replace if it becomes damaged or shows signs of wear (e.g., bent mesh). Check periodically for sharp edges.

What is the maximum continuous operating time?

Do not run the juicer continuously for more than 1 minute without a break. After 1 minute, let it rest for at least 1 minute to avoid overheating.

Can I process soft fruits like bananas or avocados?

Not recommended. Soft fruits produce a puree rather than juice and can clog the filter. For banana or avocado, use a blender instead.

Where can I find replacement parts?

Contact MPM customer service or check the official website. Parts such as the juice jug, pulp container, and filter basket are available. Provide your model number (MSO-06M).

USER MANUAL MSO-06M MPM

Exterior view of a modern MPM brand juice<|im_start|> Greenland tea maker (no signage or text visible on device body)

SOKOWIRÓWKA MSO-06M

Simple line drawing of a mechanical device with a circular component and a pointer (no text or symbols)

Line drawing of a juice maker with a side dish (no text or symbols)

Line drawing of a blender with a glass and a small object inside, no text or symbols present

Simple line drawing of a hand holding a circular object over a surface, with no text or symbols present.

Line drawing of a juice maker with a glass beside it (no text or symbols)

Line drawing of a blender with a straw and a drop arrow, no text or symbols present

Read carefully the operating instructions before using the appliance.
- Close supervision is necessary when using the appliance near children.
Do not immerse the appliance, its cord and plug in water or any other liquids.
Do not place the cord over sharp edges and keep it away from hot surfaces.
▶ Always unplug the appliance when it is not in use or before cleaning.
Do not use the appliance if it is damaged, also if the power cord or plug is damaged – return the appliance for repair to an authorized service centre.
To avoid the risk of damage, fire or injury, always use the attachments recommended by the manufacturer.

Do not use the juice extractor with an empty container.

Do not touch the appliance with wet hands.

Before removing the lid wait until the cutting plate has completely stopped.

- Never insert your fingers or cutlery inside the juice extractor's chamber – place the food with the pusher only!

Before the first use wash all the parts of the juice extractor that come in contact with the food

▶ Always switch off the juice extractor after use.
- Avoid contact with moving parts of the appliance.
Put aside and empty the waste container when it is full.

Before you start working with the appliance, make sure all its parts are properly assembled – never remove the lid when the appliance is running..

Before assembly or disassembly, unplug the appliance.

This appliance has been designed for domestic use only.

Please observe the following guidelines for nominal operating time: juice extraction – no longer than 2 minutes of continuous operation; After completing one operation cycle, wait 2 minutes before restarting the appliance. After completing

three consecutive operation cycles, wait 15-20 minutes before starting the next cycle. Allow the engine to cool down and restart the appliance. Compliance with the above will prolong the life of the product.

Do not use the juice extractor if the rotating plate is damaged.

Do not remove the plug from the mains by pulling by the cord.
Do not plug the power cord with wet hands.
Do not use the appliance outdoors.

Never put the unit next to other electric units, burners, cookers, ovens etc.

Do not use the unit for purposes other than the intended.
▶ Use the pusher only to push the product.

Keep your children safe: do not leave any parts of the pack aging readily accessible (i.e. plastic bags, cardboard boxes, polystyrene inserts, etc.).

WARNING! Never let children play with plastic film or bags. Choking/asphyxiation hazard!

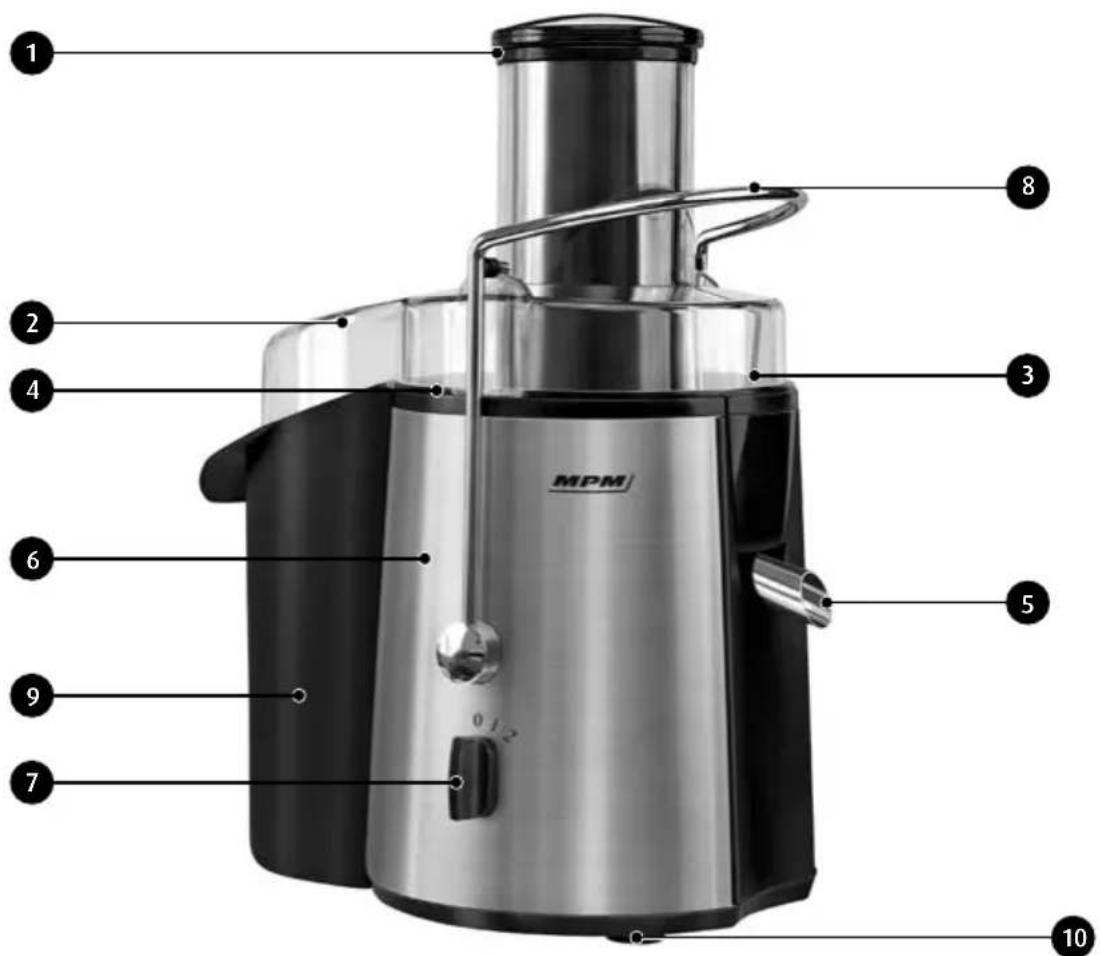

DESCRIPTION OF THE APPLIANCE

No. Name Function

1 Pusher		After placing the fruit and vegetables into the feeding hole, push the products gently inside – use the pusher to ensure better effect of extraction.
2 Upper lid		The upper lid, which is attached to the body, plays an important role in the process of juice extraction and is necessary for safety reasons.
3 Plate		The lower part of the plate is made of blades which crush the fruit and vegetables. The plate filters the juice from the pieces of fruit and vegetables, and separates it from the pulp.
4	Plate fitting	After separation the juice flows into the fitting, next flows out through the outlet to the jug.
5	Spout	The juice runs from the container through an outlet which is ended with a spout.
6	Body	The main part of the appliance containing the engine. The engine forms the power unit of the appliance.
7 Switch		Used to switch on/off the appliance and to select one of the two operation modes: slow operation, fast operation.
8	Handle for closing the upper lid
9	Waste container	Collects the pulp separated by the plate when processing the fruit and vegetables.
10	Non-slip feet	Feet (suction cups) protect the appliance from moving during operation.

Level „0“ Switched off.

Level „l”

Slow operation. Suitable for processing soft fruit and vegetables, e.g. watermelon, tomato, cucumber, strawberry, etc.

Level„2“ Fast operation. Suitable for processing all kinds of fruit and vegetables

BEFORE FIRST USE

1. Take the appliance out of the box, remove all protective cardboards and foil.
2. Wash the appliance thoroughly, in particular the parts which come in contact with the food.
3. The juice extractor is equipped with a safety system – the appliance can work only if the lid is assembled properly.

ASSEMBLY OF THE JUICE EXTRACTOR

The appliance is equipped with a double safety system. This means that it works only if all the parts have been properly assembled. The instructions for proper installation and operation are provided below:

Line drawing of a cooking pot with a handle and lid, showing internal structure without any text or symbols

1 Place the plate fitting onto the body.

Diagram of a speaker tower with an arrow indicating compression or disassembly (no text or symbols present)

Simple line drawing of a mechanical device with a circular component and a base, no text or symbols present.

Line drawing of a juice maker with a side dish (no text or symbols)

Line drawing of a blender with a glass and a small container, no text or symbols present

2	Insert the plate into the body, make sure that it has been properly mounted onto the driver (before switching on the appliance check that the plate is not damaged. In case of damage stop using the appliance and immediately contact the nearest service centre).
3	Place the upper lid onto the plate fitting and secure it by using the handle. The appliance will not run if the upper lid is not properly assembled.
4	Tilt the pulp container slightly towards the appliance and place it under the juice container outlet. Attach the container to the appliance.
5	Connect the power cord to the power supply. Before connecting make sure that the switch is set to „0” (switched off).

6 Wash the fruit/vegetables, remove the stones and thick/hard peel.
7	Place the glass under the spout. (The glass is not supplied. For practical reasons it is advisable to purchase a glass of sufficient height to prevent splashing the juice running from the outlet). Switch on the appliance. Set the operation mode according to the type of fruit/vegetables. To ensure long life of the appliance observe the maximum time of continuous operation - 120 seconds .
9	Insert the fruit or vegetables into the hole in the upper lid and push them gently with the pusher. Do not exert too much pressure on the pusher, as this could affect the process of juice extraction. If during the juice extraction after a while the pieces of fruit accumulate in the outlet or pulp container, or if the glass is filled with juice, switch off the appliance. Clean the appliance before reuse. Do not insert fingers or any other objects into the feeding hole of the juice extractor.
10	After you have processed all ingredients and the juice flow has stopped, switch off the appliance and remove the plug from the socket. Take the glass of juice away from the outlet after the engine and the plate have stopped rotating.(Drink the juice immediately after you have extracted it. If you let the juice set too long, it will lose its taste ant nutritional value).

JUICE EXTRACTION

1. Wash fruit and vegetables you want to use thoroughly
2. To extract the maximum amount of juice from such fruit as grapes, quinces. Wash the cutting plate ③ after each 0,5 kg of fruit extracted
3. Place the juice container under the outlet 5.
4. Insert the fruit and vegetables through the feeding hole in the upper lid 2.

NOTE! Before placing the products inside, switch on the juice extractor by turning the switch ⑦ to position 1 or 2, depending on the desired operation mode

1. Push the ingredients through the hole in the upper lid ②, using the pusher ① only.
2. Check from time to time whether the waste container ⑨ is full – if necessary, switch off the appliance first and empty the container!
3. In case when the appliance starts to vibrate and generate less amount of juice than expected, disassemble the unit and wash the cutting plate 3 – hard fruit and vegetables may cause the engine to slow down, therefore do not overload the unit and provide appropriate breaks during operation.
4. Do not exceed the maximum time of continuous operation – 2 minutes! – after that time, switch off the appliance for 2 minutes and switch it on again.

NOTE! Never open the lid when the juice extractor is running!

NOTE! The slow operation mode is suitable for extracting soft and juicy fruit/vegetables, whereas fast operation mode for harder and less juicy products.

The juice extractor enables generation of 1 L of juice per one.

1. Use fresh fruit and vegetables containing a large amount of juice, e.g.: pineapples, beetroots, celery, apples, cucumbers, spinach, melons, tomatoes, mandarins, grapes, etc.
2. You do not have to remove thin peels or skins. Only thick peels, e.g. those of mandarins, oranges, pineapples and raw beetroots need to be removed. Remove the stones from citrus fruit as they produce bitter taste.
3. The amount of apple juice depends on the kind of apple you are using. The juicer the apple, the thinner the juice. Choose a kind of apple that produces the type of juice you prefer.
4. Apple juice turns brown very quickly. You can slow down this process by adding a few drops of lemon juice.
5. Fruit that contain starch (e.g. bananas, papayas, avocados, figs and mangoes) are not suitable for processing in the juice extractor.
6. The table below provides information on the nutritional value of fruit and vegetables as well as the selection of operation modes.

Fruit/vegetables	Vitamins and minerals	Energy value (kJ/kcal)	Operation mode
Apple Vitamin C 200g = 150 KJ (72 calories) 2
Apricot	Rich in fibre, contains potassium	30g = 85 KJ (20 calories)	1
Beetroot	A source of folic acid, fibre, vitamin C and potassium	160g = 190 KJ (45 calories) 2
Berry Vitamin C 125g = 295 KJ (70 calories) 1
Brussels sprout	Vitamin C B, B6, E, folic acid and fibre	100g = 110 KJ (26 calories) 1
Cabbage	Vitamin C, folic acid, potassium, vitamin B6 and fibre	100g = 110 KJ (26 calories) 2
Carrot Vitamin A, C, B6, E and fibre 120g = 125 KJ (30 calories) 2
Celery Vitamin C and potassium 80g = 55 KJ (7 calories) 2
Cucumber Vitamin C 280g = 120 KJ (29 calories) 1
Fennel Vitamin C and fibre	300g = 145 KJ (35 calories) 1
Grapes Vitamin C, B6 and fibre	125g = 355 KJ (85 calories) 1
Kiwi	Vitamin C and potassium	100g = 100 KJ (40 calories)	1
Melon	Vitamin C, folic acid, fibre and vitamin A	200g = 210 KJ (50 calories) 1
Nectarine	Vitamin C, B3, potassium and fibre	180g = 355 KJ (85 calories) 2
Peach	Vitamin C, B3, potassium and fibre	150g = 205 KJ (49 kalorii) 2
Pear	Fibre	150g = 250 KJ (60 kalorii)	2
Pineapple	Vitamin C	150g = 245 KJ (59 kalorii)	2
Raspberry	Vitamin C, iron, potassium and magnesium	125g = 130 KJ (31 calorie)	1
Potatoes	Vitamin C, fibre, vitamin E, folic acid and vitamin A	100g = 90KJ (22 calorie) 1

JUICE EXTRACTION

1. Wash fruit and vegetables you want to use thoroughly.
2. To extract the maximum amount of juice from such fruit as grapes, quinces, etc., wash the cutting plate 3 after each 0.5 kg of fruit extracted.
3. Place the juice container under the outlet 5.
4. Insert the fruit and vegetables through the feeding hole in the upper lid 2.

DISASSEMBLY OF THE JUICE EXTRACTOR

1. Switch off the appliance using the switch ⑦ and remove the plug from the socket.
2. Wait until the cutting plate ③ has completely stopped.
3. Remove the pusher 1 from the feeding hole.

4. Remove the lid ②. If necessary remove the waste container ⑨.

5. Disassemble the plate fitting 4 together with the cutting plate 3.

6. Wash all the parts thoroughly.

CLEANING AND MAINTENANCE

1. Switch off the appliance before you start cleaning.
2. Clean the main body with a wet wipe (if necessary add some detergent).
3. All parts that come in contact with the food must be cleaned thoroughly after each use in hot water with a small amount of detergent, preferably once you finish using the appliance.
4. Do not clean the appliance using strong cleaning agents, acetone, acute materials, etc.
5. Clean the cutting plate thoroughly after each use. Do not wash the cutting plate in the washing machine.
6. Do not immerse the base of unit in water or any other liquids!
7. If parts of the juice extractor change their colour due to carrots, oranges etc., such parts may be brushed with a cloth and some food oil.
8. Assemble the juice extractor after cleaning.

TROUBLESHOOTING

Problem description Possible cause Solution

The appliance does not operate when the switch is on	1. The juice container/plate has not been mounted properly2. The upper lid has not been mounted properly3. The pulp container, juice container, the body have not been mounted properly	1. Mount the juice container/plate properly2. Mount the upper lid properly3. Mount the pulp container, juice container, the body properly
The engine unit gives off an unpleasant smell the first few time the appliance is used	This is not unusual If the appliance continues to give off an unpleasant smell after a few times, return it to the nearest service centre
The appliance heats up during operation	1. The power voltage is too low2. Too much fruit/vegetables in the appliance3. Too much pressure exerted on the ingredients4. Thermal protection against overheating	1. Check the power voltage2. Switch off the appliance.Remove the excess of fruit/vegetables3. Place the ingredients with less pressure4. Wait 20-30 minutes before restarting the appliance
The juice contains a large amount of pulp	1. Uszkodzone sitko2. Zbyt dużo miąższu w sitku	1. Replace the plate2. Wash the plate
The appliance vibrates and makes a lot of noise during operation	1. The plate has not been mounted properly or the appliance improperly levelled2. The appliance is placed on an unstable surface or one of the feet is missing3. Surge in the electrical system4. Too much fruit/vegetables in the appliance5. The waste container has not been mounted properly	1. Place the plate in the right place2. Place the appliance on a stable surface or mount the foot3. Check the electrical system4. Switch off the appliance.Remove the excess of fruit/vegetables5. Mount the waste container properly
The juice is of low quality	1. Large amount of pulp in the plate2. Too much pressure exerted on the ingredients	1. Wash the plate o2. Place the ingredients with less pressure
Blade	The blade has been blocked by pieces of fruit/vegetables	Disconnect the appliance from the power supply.Remove the products and cut them in smaller pieces

TECHNICAL DATA

Power: 1000 W

Power supply: 220-240 V 50/60 Hz

Maximum time of continuous operation: KB max = 2 minutes

Time interval before re-use: 2 minutes

Noise level: L_WA = 65 dB

Length of power cord: 1,1 m

NOTE! MPM agd S.A. reserves its right to modify the technical data

PROPER DISPOSAL OF THE PRODUCT (waste electrical and electronic equipment)

This symbol on the product indicates that the product, after its lifetime, should not be disposed with other household wastes. To avoid harmful influence on the environment and human health due to uncontrolled waste disposal, dispose the waste device to the service point of waste household appliances or report collecting it from home. In order to obtain detailed information about the location and how to dispose the waste electrical and electronic equipment in a safe way, contact your retailer or local Department of Environmental Protection. Do not dispose the device with other municipal waste.

Simple line drawing of a mechanical device with a circular component and lever (no text or symbols)

Line drawing of a juice maker with a glass beside it (no text or symbols)

Line drawing of a blender with a glass and a small object inside, no text or symbols present

Line drawing of a cooking pot with an arrow indicating a downward motion (no text or symbols)

Line drawing of a funnel pouring into a circular container with an arrow indicating the process (no text or symbols)

Simple line drawing of a mechanical device with a circular component and pointer (no text or symbols)

Line drawing of a juice maker with a glass beside it (no text or symbols)

Line drawing of a blender with a glass and apple, showing a drop in the top container (no text or symbols)

Simple line drawing of a person using a device to interact with a circular object (no text or symbols)

Line drawing of a juice maker with a side dish (no text or symbols)

Line drawing of a blender with a glass and apple, showing a drop in the top layer (no text or symbols)

Simple line drawing of a mechanical device with a circular component and lever (no text or symbols)

Line drawing of a juice maker with a glass beside it (no text or symbols)

Line drawing of a blender with a glass and a small object inside, no text or symbols present

We wish you satisfaction from using the product and invite you to check a wide range of other MPM appliances

Line drawing of a vacuum cleaner with a handle, emitting exhaust smoke (no text or symbols)

MPM agd S.A.
