CJ100HE - Juicer GORENJE - Free user manual and instructions

Product Type	Citrus Juicer
Brand	Gorenje
Model	CJ100HE
Voltage	220-240 V
Frequency	50 Hz
Power Consumption	80 W (estimated)
Cord Length	1.2 m (estimated)
Weight	1.5 kg (estimated)
Dimensions (H x W x D)	25 x 20 x 20 cm (estimated)
Juicing Cones	Large (for grapefruits, oranges) and Small (for lemons, limes)
Juice Container Capacity	0.5 L (estimated)
Spout	Adjustable: close for container, open for direct glass
Auto On/Off	Yes, activated by pressing fruit on cone
Noise Level	Lc < 60 dB(A)
Dishwasher Safe Parts	All detachable parts (cones, strainer, container, lid)
Motor Base Cleaning	Wipe with damp cloth only; do not immerse
Safety Features	Automatic shut-off when pressure reduced; anti-slip feet; cord storage
Warranty	See guarantee leaflet
Included Accessories	Large cone, small cone, strainer, juice container, dust cover
Usage Time Limit	Do not use longer than 5 minutes continuously

Frequently Asked Questions - CJ100HE GORENJE

Can I juice other fruits like apples or carrots with this juicer?

No, this appliance is a citrus juicer specifically designed for citrus fruits such as oranges, grapefruits, lemons, and limes. It is not suitable for hard fruits or vegetables.

How do I clean the CJ100HE juicer?

Unplug the appliance first. Remove all detachable parts (cones, strainer, juice container, lid). They are dishwasher safe or can be washed with warm water and a few drops of washing-up liquid. Wipe the motor base with a damp cloth. Never immerse the motor unit in water.

Why does the juicer stop automatically?

The juicer has an automatic on/off function. It starts when you press a fruit half onto the cone and stops when you reduce pressure or lift the fruit. This is a safety feature to prevent overheating and overworking.

Can I use both cones at the same time?

No. Use the small cone for small citrus fruits like lemons and limes. To use the large cone, fit the small cone onto the drive shaft first, then place the large cone on top until the notches click into place.

How long can I continuously use the juicer?

Do not use the citrus press for longer than 5 minutes without interruption. This prevents the motor from overheating.

What is the best way to get maximum juice from fruits?

Press the fruit half onto the cone several times in a rocking motion. The cone scrapes the pulp and extracts more juice. Also, ensure the fruit is at room temperature for better yield.

Can I store the juice in a metal container?

No, citrus fruit juices should be consumed immediately and never stored in a metal container, as the juice may react with the metal and alter the taste.

What is the cord storage method?

The cord can be wound around the base of the appliance. There is a cord storage compartment underneath the juicer. Ensure the cord is correctly positioned in the cord guide to prevent wobbling.

Is the CJ100HE safe for children to use?

Children aged 8 years and above can use the appliance under supervision. Keep the iron (if referenced) and cord out of reach of children under 8. Always supervise children when they use or clean the appliance.

What should I do if the power cord is damaged?

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid a hazard. Do not use the appliance with a damaged cord.

USER MANUAL CJ100HE GORENJE

Modern stainless steel coffee maker with a dome-shaped lid and black handle (no visible text or symbols)

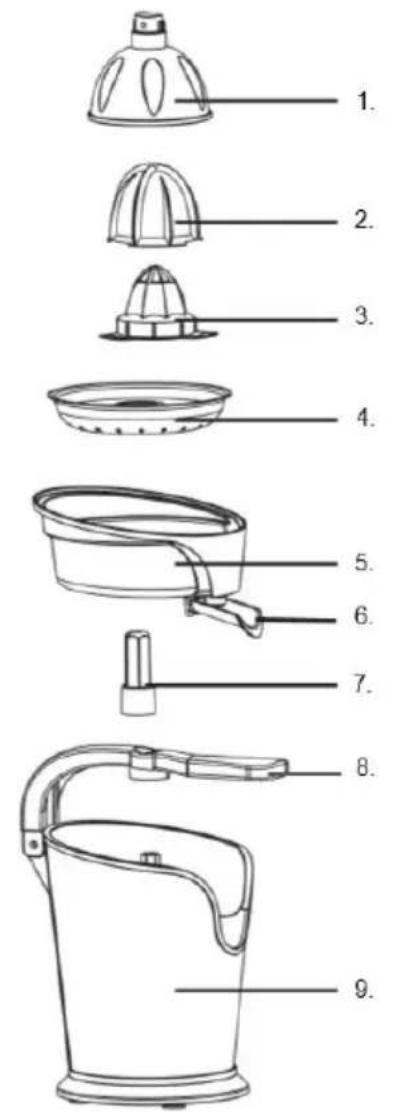

CJ100HE

1. The cover of rotating head
2. Big rotating head
3. Small rotating head
4. Screening plate
5. Middle container
6. Pipe
7. Axis of rotation
8. Handle
9. Motor unit

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger

Do not immerse the motor unit in water or any other liquid, nor rinse it under the tap.

Warning

• Do not allow children touch the iron or the power cord when ironing.
• Check to make sure the mains socket has the correct rating(230V/16A).
• Children should be supervised to ensure that they do not play with the appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Keep the iron and its cord out of reach of children less than 8 years of age when it is energized cooling down or.
• Cleaning and user maintenance shall not be made by children without supervision.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service or similar qualified person in order to avoid a hazard.

Caution: This appliance is intended for household use only.

Never use any accessories or parts from other manufacturers or that Gorenje does not specifically recommend. If you use such accessories or parts, your guarantee becomes invalid.

Make sure all parts are correctly mounted before you switch on the appliance.

Warning

Check if the voltage indicated on the bottom of the appliance corresponds to the local mains voltage before you connect the appliance.
If the mains cord is damaged, you must have it replaced by Gorenje; a service centre authorized by Gorenje or similarly qualified persons in order to avoid a hazard.
Do not use the appliance if the plug, the mains cord or other parts are damaged.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Never connect this appliance to an external timer switch or remote control system in order to avoid a hazardous situation.
Always unplug the appliance after use.
Never connect this appliance to an external timer switch or remote control system in order to avoid a hazardous situation.
Noise level: Lc < 60 dB(A)

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.

Preparing for use

Caution

Always place the appliance on a flat, stable surface.

Do not use the citrus press longer than 5 minutes without interruption.

This appliance is intended for household use only.

Never use any accessories or parts from other manufacturers unless they are authorized by Gorenje. In case you use these accessories the warranty will be cancelled.

Before use

Clean all detachable parts before using the appliance for the first time (see chapter 'Cleaning').

Make sure the appliance is assembled properly before you plug it in the wall socket. Wind excess cord round the base of the appliance.

Put the plug in the wall socket.

Before first use

Danger Keep the packaging material away from children .they could suffocate
Unpack the citrus juicer and remove all of the packaging
Material Examine the juicer for visible damage and check that all of the parts are present
You should clean the appliance before using it for the first time
Wipe the motor base with a damp cloth
Before using the juicer for the first time, rinse the cones, strainer, juice container and transparent dust lid with warm water and a few drops of washing-up liquid.

Using the appliance

Setting up the juicer

Stand the appliance on an even surface that is easy to clean

Unwind the power cord – to the length you require – from the cord storage compartment (underneath the juicer). Make sure that the cord is correctly positioned in the cord guide to prevent the juicer from wobbling.

Connect the mains plug to a AC230V,50Hz socket outlet.

Selecting accessories

Depending on the size of the fruit you are juicer, you can use the large or the small cone

The large cone is suitable for juicing small citrus fruit, such as grapefruit, oranges etc. The small cone is suitable for juicing small citrus fruit, such as lemons, limes etc.

Fit the small juicing cone directly onto the drive shaft

If you wish to use the large cone, fit the small cone onto the drive shaft. Then fit the large cone over the top of the small cone.

You must feel the notches in the large cone clip into place over the stirring wings on the small cone.

To separate the cones, pull the large cone up and off.

Juicing

Caution: if you apply too much pressure to the juicing cone, the motor may seize.

Fit the appropriate cone onto the drive shaft.

If you wish to collect the juice in the container, press the spout upwards to close it.

If you want the juice to run straight into a glass, press the spout downwards to open it and place a stand under it.

Cut a citrus fruit in half and press the cut end of one fruit half onto the cone. The juicer switches on automatically when you press the fruit down and the cone starts to turn. The juicer automatically switches off as soon as you reduce pressure on the cone. The cone

scrapes the pulp out and squeezes the juice from the fruit. The juice flows through the strainer into the juice container from where it can run into a glass (the spout must be open). The strainer keeps back thick pulp and seeds. To maximize the quantity of juice extracted from a fruit, press a fruit onto the cone several times.

Cleaning

After use

Remove cone, strainer, juice container and drive shaft from the appliance and clean them.

Unplug the appliance.

Juicing advice

Citrus fruit juices should be consumed immediately and never stored in a metal container.

Citrus juices are ideal for mixing. For example, you can mix orange juice with lemon juice for and extra vitamin C kick.

Freshly squeezed juice gives cocktails a particularly tangy twist and better flavour.

Lemon juice is also delicious in hot tea and additionally helps you build up your defences when you have a cold.

Cleaning

Unplug the appliance.

Remove all detachable parts from the motor unit.

Clean all detachable parts with hot water and some washing-up liquid or in the dishwasher.

Clean the motor unit with a moist cloth.

Never immerse the motor unit in water nor rinse it under the tap.

Storage

Wind the cord round the base of the appliance. Then assemble it and cover with the anti-dust cover.

Store the appliance in a safe and dry place.

Environment

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Guarantee and service

If you need information or if you have a problem, please contact the Gorenje Customer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Gorenje dealer or contact the Service department of Gorenje domestic appliances.

For personal use only!

GORENJE

WISHES YOU A LOT OF

PLEASURE WHEN USING YOUR

APPLIANCE

We reserve the right to any modifications!
