USER MANUAL T45L2P Vigan Mammoth

Vigan® Mammoth Vigan® Mammoth

Labeled diagram of a microwave oven with internal components and exploded view of the interior panel

TECHNICKÉ SPECIFIKACE

R A B C D F H I J K M N O P L Q E Z G

V W U X Y eso

Line drawing of a rectangular tray with a slatted inner surface and a label 'S' pointing to the side (no text or symbols on the tray itself)

Diagram of a heat exchanger or cooling device with labeled component 'T' (no text or symbols beyond label)

TECHNICKÉ ŠPECIFIKÁCIE

Napätie: 220 - 240 V AC, 50/60 Hz

Electric oven Vigan T45L2P - with grill, convection heating and el. hotplates

IMPORTANT: Before using this product, carefully read the entire manual. Keep this manual for future use.

FAMILIARIZATION WITH ELECTRIC OVEN

This oven is very easy to use, timer up to 120 minutes with an acoustic signal, the double glass doors made of safety glass, 2 cast iron plates - left hotplate diameter 185 mm/1 200 W, right hotplate diameter 155 mm / 600 W, 2 lower and 2 upper heating elements, rotary barbecue set temperature of 90 °C - 230 °C, volume 45 l, interior lighting, power 1 800 W, 220-240 V AC, 50/60 Hz, internal dimensions 400 x 351 x 302 mm, external dimensions 550 x 423 x 373.5 mm, accessories: baking tray, grate, handle for safe removal of plate, handle for safe removal of toasting iron.

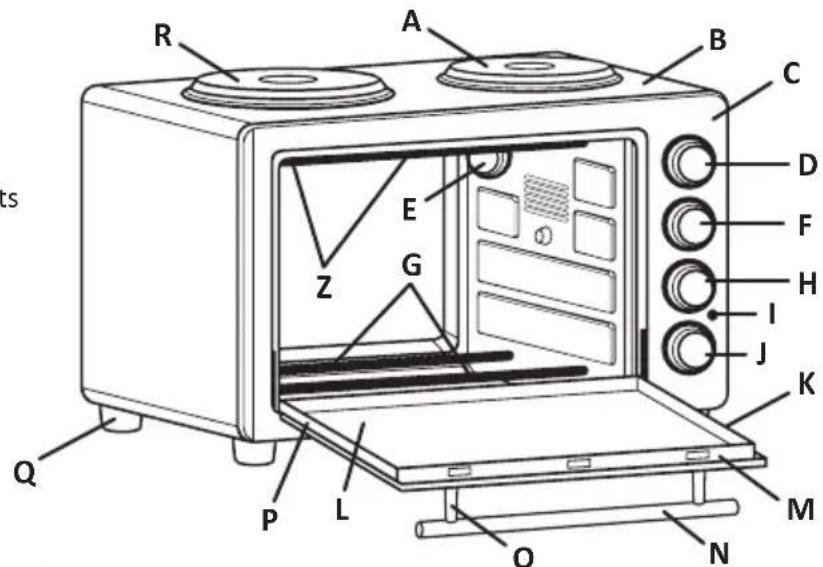

Main components (illustrations may vary slightly from the actual product):

A: Right hotplate
B: Cover
C: Front Panel
D: Temperature Control
E: Inner Light
F: Functions selector
G: 2 bottom heating elements
H: Hotplates control
I: Indicator light
J: Timer control
K: Right door frame
L: Glass door
M: Upper door frame
N: Door handle
Q: Bakelite
P: Left door frame
Q: Oven feet
R: Left hotplate
S: Baking sheet
T: Grille
U: Screw

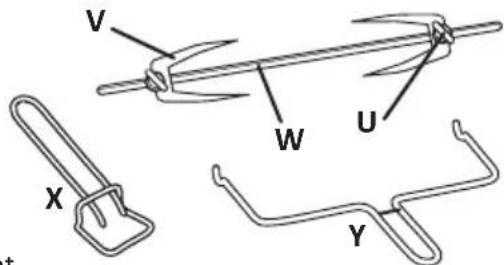

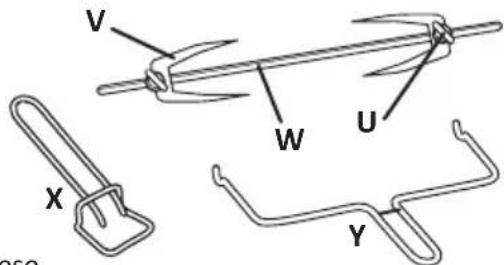

V: Grill fork
W: Grill rod
X: Handle for plate
Y: Handle for grill
Z: 2x top heating element

R A B C D F H I J K M N O P L Q E Z G

V W U X Y

Simple line drawing of a rectangular tray with a grid pattern and an arrow labeled 'S' pointing to the side (no text or symbols on the tray itself)

Diagram of a heat exchanger or cooling device with labeled component 'T' (no text or symbols beyond label)

TECHNICAL SPECIFICATIONS

Voltage: 220 to 240 V AC, 50/60 Hz

Oven power: 1 800 W

Left hotplate: 1200 W

Right hotplate: 600 W

Total input: 3 600W

Capacity: 45 liters

Temperature range: 90 - 230 °C

Internal dimensions: 400 x 351 x 302 mm

External dimensions: 550 x 423 x 373.5 mm

Package Dimensions: 588 x 466 x 425 mm

Net weight: 10.5 kg

Gross weight: 13.1 kg

Total pieces in carton: 1

IMPORTANT SAFETY INSTRUCTIONS

When using electric oven, you should always observe the following precautions:

- Before using, make sure that your power supply corresponds to the values on the label on the product. The power socket must correspond to the applicable standards and regulations. It is not recommended to use extension cords

or adapters. If you must use them, be careful not to exceed their rated voltage.

- Do not touch hot surfaces, use handles and control elements for manipulation. It is recommended to use protective gloves.

- If product is used near children, they have to be supervised.

- To avoid electric shock, do not immerse cord, plug or any part of the oven into water or other liquids. Do not wash the oven in a dishwasher.

- Do not let the power cord hang over the edge of the table and keep it away from hot surfaces and sharp edges.

- Do not operate this equipment with a damaged cord or plug, if it acts weird, it was dropped from a height or damaged in any way. The power cable may be damaged by the sharp or hot objects, fire or water. For repair gice this product to such facilities as an authorized service center.

- Use of accessories other than recommended by the manufacturer may cause injuries or damage.

- Do not place the product next to the sources of heat, gas outlet, explosive and flammable substances, away from water and other liquids, and do not expose it to the weather.

- When working with oven, keep on all sides by at least 10 cm to ensure adequate air circulation. In the direction of heat radiation, keep the distance of 50 cm. Do not block the vents, danger of overheating.

- After you have stopped using the product, you want it to be cleaned or repaired or you want to disconnect any part, allow it to cool down and unplug its power cord.

- Before disconnecting the cable, turn the device off. Disconnect the cord by the plug, do not pull by the wire. Do not touch the cable with wet hands.

- Do not move the product by pulling the cord.

• After each use, or before cleaning the oven, leave it to cool down and disconnect it from the power supply.

- When handling the pan with hot oil or other containers of hot liquid, be very careful.

- Do not cover any part of the oven or place objects on oven. It may cause overheating.

- When replacing plates and other accessories or removing hot liquids, pay attention.

- Do not clean the oven using wire brush or steel wool. It can break off a piece, touch electrical parts and cause a risk of electric shock.

- Do not put into the oven too many food or metal objects in the mode of roasting. Risk of fire and electric shock.

- If the oven is covered or touching flammable materials such as curtains, it may cause a fire. Do not place any objects on the oven when you use it.

- Be especially careful, if you cook or bake in containers made of materials other than metal or special glass for use in ovens.

- Make sure that the heating elements in the oven top and bottom do not touch anything.

- Do not place on the oven following materials: cardboard, plastic, paper or anything similar.

- When not in use, do not store in the oven materials other than manufacturer's recommended accessories.

• Always wear protective gloves when you place anything into or taking out of the oven.

- This device has a door made of hardened, double safety glass. This glass is stronger and more resistant to breakage than normal glass. Nevertheless, the glass may break at the edges. Avoid scratching the surface of the door and got in touch with serrated edges.

- This device is switched off when the timer is set to „OFF“ position.

- Do not use the device outdoors.

- Do not use this device for purposes other than those specified in the instructions.

- This product is only for domestic use according to these instructions. It is not intended for commercial use.

- Children should be supervised to ensure that they do not play with this device or its power cord.

- Do not leave the device turned on or plugged into the network without supervision.

- The oven is not designed to be operated by remote control or timer.

- Do not disconnect any part of the oven, for example feet or screws.

- Frequently check whether the oven or the power cord aren't damaged. If there is any damage, do not use the oven and contact your dealer or authorized service center.

- The oven is designed only for indoor use.

- The oven is designed for preparing meals, not as a heater.

- This device can be used by children 8 years of age and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they are properly instructed and supervised in connection with the safe and proper use of this equipment. Cleaning and user maintenance by the children should not be unattended. Children under 8 years of age should not be around the oven and power cord.

BEFORE YOU USE THE ELECTRIC OVEN FOR THE FIRST TIME

Before using this product:

1. Remove all packaging materials (do not get into the hands of children) and read the instructions completely.
2. This oven, because of the greater weight must be placed on a flat horizontal surface, solid and safe enough to maintain this weight.
3. Make sure the oven is unplugged and the driver is time to „OFF“ position.
4. Wash all accessories in hot water with mild detergent or in the dishwasher.
5. Carefully dry all the parts and assemble the oven again. Plug it into the wall outlet. It is now ready for use.
6. After reassembling your oven we recommend that you turn on the oven function at the highest temperature (230 °C) for about 15 minutes without any food. When you first turn on the oven may give off a slight odor and smoke. This is normal when there are burning heaters or other parts where it heats.

USING ELECTRIC OVEN

Before first use, familiar yourself with following functions of the oven:

Temperature control: select the desired temperature from 90 °C to 230 °C for baking or grilling.

Time control: when turning activate timer, turn the knob time to the right (clockwise). After the set time bell rings.

Functions control: for selection of four functions: Off OFF, grill, Convection Oven

grill and convection oven

Hotplate control: has four positions: Off OFF, right hotplate, left hotplate and both plates.

Light indicator: Lights when the oven is on.

Baking tray: for roasting or grilling meat, poultry, fish and other foods. It can also capture the fat dripping from food or oil while grilling.

Handle for plate: allows you to grab the grid and plate, while hot.

USE OF GRILL

a) Set the temperature to the one you need.
b) Set the function functions to the grill.
c) Insert the first spike in place to grill bars. Fasten it with the screw.
d) Put the rod into the center of the food you want to grill. Make sure the food is at the center before connecting the second spike. Attach the other spike using screw.
e) Insert the end of the rod into the hole, which will rotate the rods, and the other end to the opposite side to the pad with a square shape.
f) Turn on the power and turn the timer to set the grilling time.
g) The cycle is complete when the timer reaches „OFF“ position.
h) To remove food from the oven, lift the rod using the grill handle.
i) Make sure both hooks are in the right places on the rod. Lift the first end lying on a square base and then remove the rod from the part which it rotates.
i) Place the food on a surface such as a plate, and remove the spikes and rod.
k) If you need both grill and convection oven feature, select ☑ which simultaneously allows the grill and convection oven.

USING THE CONVECTION OVEN

a) Set the selector switch to the position, if you wish only function of convection oven.

b) If you want both functions of convection oven and grill, you need to select a feature that enables

simultaneous functions of grill and convection oven

USING THE HOTPLATES

a) Left hotplate power 1200 W. When you turn the knob to the ON position, the hotplate starts to operate.

b) When finished, turn to the OFF position to turn off the hotplate.

c) Right hotplate power 600 W. When you turn the knob to the ON position, the hotplate starts to operate.

d) When finished, turn to the OFF position to turn off the hotplate.

BAKE

a) Place the removable grate to the desired position.

b) Put the baking tray and close the oven door. c) Turn the timer to set the cooking time.

d) Turn the temperature selector to the position ☐. e) Select temperature.

f) When finished, turn the timer to „OFF“ position to turn off the oven.

BROIL

a) Place the oven grate with baking plate and food.
b) Leave the glass door half open.
c) Turn the temperature selector to the position ☐. d) Select the temperature.
e) When finished, turn the timer to „OFF“ position to turn off the oven.

ROAST

a) Set the temperature control to 250 °C. b) Rotate the function controller to the position =
c) Place the food to be roasted on the grill. d) Turn the control time to „OFF“ position.
e) Once the toasting cycle has finished, a bell will ring.

Note: The grate should be placed in the middle of the oven with the notches facing downwards.

GRATE POSITION

Cookies - the lower and middle locations.

Layer cake - only the bottom position (bake a cake layers individually).

Pie - the lower and middle positions.

Warning: Be very careful when taking out the plate, grate or any hot pan from the oven. Always use the grill handle or gloves when taking out something from hot oven.

CLEANING AND MAINTENANCE

Warning: Make sure before cleaning that the oven is disconnected from the wall outlet and let it cool.

Debris generated during cooking can lead to oxidation of oven interior. You can easily clean it with a damp sponge, cloth or nylon and mild detergent. Do not immerse the oven in water or wash it under running water. Do not use steel wool or abrasive cleaners and do not scrape the walls with anything made of metal. All of these methods can damage the surface.

All accessories should be cleaned with warm soapy water or in the dishwasher. The door can be cleaned with a damp sponge, then wipe it dry with paper towel or cloth. Clean the external parts with a damp sponge. Do not use abrasive cleaners, you may damage the finish.

Do not use abrasive cleaners or steel wool to clean the pans, you can damage the finish.

Before reconnecting to the power outlet and use the oven and all its components, let them to dry properly!

TROUBLESHOOTING

If the oven is not working correctly, before calling for service, make sure you remove the fault yourself using the following procedures:

• Make sure the oven is plugged in.
• Check whether there is a power outage.
• Check whether the apartment / house fuses did blow out.
• Check the settings of the oven. Remember that the oven switches on after setting the timer.

DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol on the product, its accessories, packaging or accompanying documents indicates that the product should not be treated as household waste. Please take this product to the respective collection point where will be carried out specialist recycling of electronic equipment. In the European Union and other European countries there are collection points for used electrical and electronic equipment. By ensuring proper product disposal, you prevent potential negative impact for the environment and human health, which could result from improper handling of this product. Recycling of these materials also helps to preserve natural resources. For this reason, please do not throw the old electric and electronic equipment together with household waste. For more information please contact your local authority, any service company liquidating household waste or the store where you purchased the product. Details also refer to the relevant laws about waste, in the Czech Republic no. 185/2001 Coll. as amended. Furthermore, the website www.elektrowin.cz, www.remasystem.cz and www.asekol.cz (disposal of electrical waste). The improper disposal of this waste can be in accordance with applicable laws, regulations and fines.

Importer:

GM electronic, spol. s r. o.

We offer warranty for 24 months sounding from the day of purchase by you. This warranty covers defect caused by defective material or error in workmanship. It does not cover defects caused by mechanical damage, natural disaster of other inevitable events, connecting to the wrong power grid voltage, modifications or service work by non-qualified or unauthorized personal, misuse or use in contradiction to this manual.

Please remember, that this product is only for home use, not professional use.

If you find out, that this product does not suit you, it is not a reason for a complaint.

In the case of complaint please submit receipt.

All documents about your purchase and service repairs on any product keep for at least three years to ensure quality customer service.

In the case of malfunction of your product, please contact the dealer, you bought it from, or service at the following address:

Service: Interservis Liberec s r.o.
