WK17B - Kettle Vigan Mammoth - Free user manual and instructions

USER MANUAL WK17B Vigan Mammoth

Vigan® Mammoth MAX 1.7L 1.5L 1.0L 0.5L MIN Vigan® Mammoth

Rychlovarná konvice

Rýchlovarná kanvica | Electric kettle

Vigan WK17B

Uživatelský manuál

Thank you for purchasing our product. This kettle is an excellent solution for express heating up to 1.7 liters of water at once. Before using the product, read the entire manual and keep it for future reference.

SPECIFICATIONS

Rated voltage: AC 220-240V \~ 50 / 60Hz

Power: 1 850 - 2200 W

Capacity: 1.7 l

Dimensions: 21,5 x 14,5 x 22,7 cm (∅ on lower side 16 cm)

Packing dimensions: 21 x 16 x 22 cm

Net weight: 1.05 kg

Gross weight: 1.14 kg

Total pieces: 12

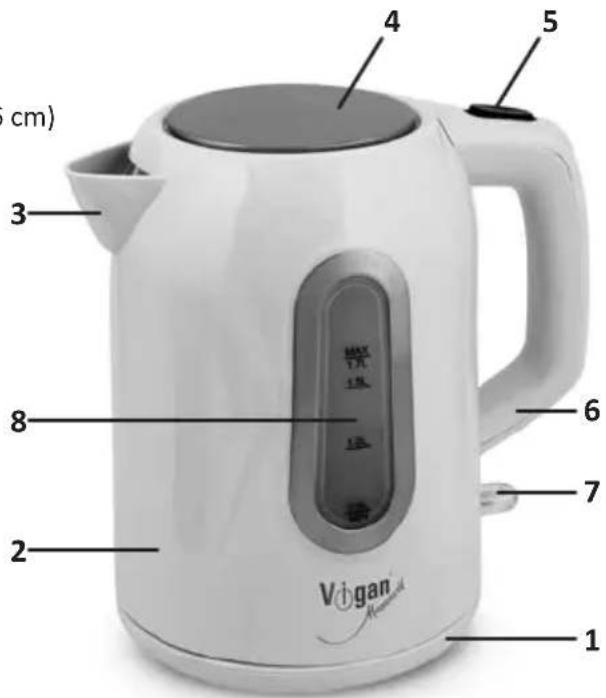

PRODUCT DESCRIPTION

1. Base
2. Body
3. Nozzle with filter
4. Lid
5. Opening of the lid
6. Handle
7. The switch with indicator light
8. Watermark - control of water quantity

Important safety precautions:

cm) 3 4 5 6 7 8 2 Vigan Mensati

When using electrical equipment you should always follow these precautions:

• The device can be used by children from eight years of age and older people with impaired physical, sensory or mental capabilities or lack of experience if they are under supervision or they received instruction on the use of this device and understand the potential risks. Children should not play with the device. Cleaning or maintenance must be performed only by children older than eight years and under supervision.
  • Children under eight years of age should be kept away from the device and its power cord.
• Before connecting to the power outlet, make sure the voltage stated on the label on the power base is the same as in your power grid. If not, do not use product and return it to the dealer.
• Be careful not to use kettle without closed lid. Do not open it when the water boils. The risk of scalding.
• Use only with the power base.
• When removing the kettle from the base, it must be turned off.
• Beware of steam rising from the spout or lid.
• The kettle has a protection against turning-off without turning on the water, or if water has not reached the minimum. For more information, see „Tips“.
• The kettle should not be used without a lid.
• When the kettle boils water, do not leave it unattended.
• During cooking and after the kettle is very hot. Do not touch the hot spots, use a handle.

• Do not fill the kettle or pour it out, when it is in the base. Unplug it before cleaning.
• When the kettle is not in use, unplug it from the socket.
• If any part of kettle or power cord is damaged in any way or is malfunctioning, do not use it and contact the service.
• Kettle repair and the power cord replacement can only be done by a qualified service technician.
• Device and power cord must not come into contact with hot surfaces.
• The kettle must stand on a firm, flat surface.
• The kettle is only intended for use indoors, not outdoors.
• This device is intended only for heating of water, do not cook anything else.
• Do not handle the power cord with wet hands. Do not pull the wire, when unplugging, hold the plug.
• Use the unit only in locations where it can not fall over, and away from heat sources, flammable objects and wet surfaces.
• Kettle is not intended for storing of liquids. Do not leave the water in it for more than four hours.
• Do not immerse device into water. Coupling connector at the base must not come in contact with water.
• Always make sure that the device is switched off when removing it from the power base, unpluging it from the wall socket, when you are going to clean it, or you will not use it for a longer time.
• Keep the kettle and the power cord out of the reach of children and pets. When the device is used near children, it is necessary to have control over them.
• This device is intended only for normal household. It should not be used in any other way than to what is intended.
• Do not allow power cord to be hanging down from the desktop, to touch hot surfaces or be tangled.
• Do not fill above the MAX mark. Boiling water can spray out when the kettle is overfilled.
• The device contains no parts that can be repaired by the user.
• To prevent damage by steam, turn the spout away from walls, use kettle only in places where it can not tip over, and away from any source that generates heat (eg. fireplaces, stoves, ovens, stoves, grills or stoves) from flammable objects (eg. tablecloths, curtains, blinds fabric etc.) from moist surfaces (eg. bathtubs, sinks, washbasins etc.).

BEFORE USE

1. Remove the kettle and power base of all packaging materials and dispose of them in order to not fall into the hands of children (choking hazard). But do not remove the label attached on the bottom of the kettle and the bottom of the base.
2. Ensure that those power supply voltage of the kettle corresponds to your power grid.
3. Before using the kettle for the first time or if you have not used it for some time, fill it to the MAX mark with water and boil. Pour out this water and refill the kettle with cold water.

INSTRUCTIONS FOR USE

1. During filling, always first remove the kettle from the power base.
2. Lift the lid.
3. Fill the kettle between the MIN and MAX with cold water.

4. Close the lid and return kettle to the power base.
   Make sure the lid is firmly on the kettle, before you start to boil the water.

5. Plug the power base into an active power socket.

6. Start to boil water by pushing ON / OFF switch to the lower position.

7. Power indicator lights up and the kettle starts to boil.

DO NOT LEAVE THE LID OPEN DURING BOILING.

1. Kettle will turn itself off, when the water is boiled.

2. Cooking can be interrupted at any time by moving the switch to the OFF position.

3. After the kettle switches itself off, you should wait before another use.

This is usually about 20 seconds.

1. If you accidentally turn on the kettle empty or all the water boils away, the protection is activated.

Before refilling water and boiling, wait 15 minutes.

FILTER

The filter serves to stop any residues from entering your beverage.

This filter is not able to remove the calcium dissolved in the water.

CLEANING

1. Before storing or cleaning the kettle, always disconnect the power supply and let the kettle to cool completely.

2. Never immerse any part of the power cord, plug, power base or kettle into any liquid.

Do not wash the kettle in the dishwasher.

1. Clean the outside of the kettle with a damp cloth. Carefully dry the entire kettle.

Do not clean with strong chemicals or abrasives as they can damage the surface of the kettle.

1. After some time limescale may appear in the kettle. In normal use and normal water hardness it is not necessary to clean the pot more than twice a year. If the appliance automatically switches off even before the water boils, it indicates that you must remove limescale.

Limescale can be removeb using the following methods:

Vinegar: Fill the kettle with half a liter of vinegar and let it to stand for about half an hour. Do not boil vinegar! Once this period is over, empty the kettle and rinse it several times with water.

Citric acid: boil half a liter of water and then add to it 25 g of citric acid. Let the kettle stand for about fifteen minutes. Empty the kettle and rinse several times with water.

Cleaners for limestone meant for other devices may damage the kettle.

No not clean inside of the kettle with abrasive materials or solvents.

TIPS

- If the kettle turns off before the water starts to boil, it indicates there is limescale in it. The second possibility is that there is not enough of no water in the kettle.

- If the kettle was turned off by the protection, due to lack of water, leave it before another filling for 15 minutes. Then you can boil again.

DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol on the product, its accessories, packaging or accompanying documents indicates that the product should not be treated as household waste. Please take this product to the respective collection point where will be carried out specialist recycling of electronic equipment. In the European Union and other European countries there are collection points for used electrical and electronic equipment. By ensuring proper product disposal, you prevent potential negative impact for the environment and human health, which could result from improper handling of this product. Recycling of these materials also helps to

preserve natural resources. For this reason, please do not throw the old electric and electronic equipment together with household waste. For more information please contact your local authority, any service company liquidating household waste or the store where you purchased the product. Details also refer to the relevant laws about waste, in the Czech Republic no. 185/2001 Coll. as amended. Furthermore, the website www.elektrowin.cz, www.remasystem.cz and www.asekol.cz (disposal of electrical waste). The improper disposal of this waste can be in accordance with applicable laws, regulations and fines.

Importer:

GM electronic, spol. s r. o.

We offer warranty for 24 months sounding from the day of purchase by you. This warranty covers defect caused by defective material or error in workmanship. It does not cover defects caused by mechanical damage, natural disaster of other inevitable events, connecting to the wrong power grid voltage, modifications or service work by non-qualified or unauthorized personal, misuse or use in contradiction to this manual.

Please remember, that this product is only for home use, not professional use.

If you find out, that this product does not suit you, it is not a reason for a complaint.

In the case of complaint please submit receipt.

All documents about your purchase and service repairs on any product keep for at least three years to ensure quality customer service.

In the case of malfunction of your product, please contact the dealer, you bought it from, or service at the following address:

Service: Interservis Liberec s r.o.
