Product Type	Hand blender
Brand	Zelmer
Model	ZHB0804S
Power Supply	AC only, voltage as per rating plate
Noise Level	70 dB(A)
Main Functions	Blending, whisking, chopping (mini food processor)
Attachments Included	Removable blending foot, whisk set with gear, mini food processor set (container, blade, lid with transmission), mixing jug with lid, wall mount
Blending Foot Material	Stainless steel blade, plastic body
Motor Unit	Detachable, with ON/OFF switch and release buttons
Maximum Operating Time	One portion per cycle, let cool to room temperature between uses
Processing Temperature Limit	Food must cool to at least 80°C before blending
Mini Food Processor Capacity	Up to 200 g meat, 150 g nuts, etc. (see manual for specific amounts)
Whisk Usage	For whipping cream, egg whites, cold milk (max 8°C)
Cleaning - Motor Unit	Wipe with damp cloth only; do not immerse
Cleaning - Blending Foot	Wash blade under running water; do not immerse foot, do not dishwasher; dry upright
Cleaning - Whisk	Whisk wires dishwasher safe; whisk gear wipe with damp cloth only, not dishwasher
Cleaning - Mini Processor	Container and blade washable with water; lid wipe with damp cloth only
Safety Features	Safety lock on mini processor lid; release buttons for attachments; automatic stop when detached
Spare Parts Available	Universal cutter (order no. 00651139) from customer service
Intended Use	Household and similar (e.g., staff kitchens, farm houses, bed & breakfast)
Altitude Limit	Up to 2000 m above sea level
Warranty	Manufacturer liability excluded for improper use

Frequently Asked Questions - ZHB0804S Zelmer

How do I attach the blending foot to the motor unit?

Ensure the appliance is unplugged. Insert the top part of the blending foot into the hole on the bottom of the motor unit until you hear a click. To remove, press the release buttons on the sides and pull apart.

Can I blend hot liquids with this hand blender?

Yes, but with caution. Allow hot food to cool to at least 80°C before blending. Use a tall, narrow receptacle to avoid splashing. Never blend hot oil.

How do I use the whisk attachment?

First insert the whisk gear into the motor unit until it clicks. Then insert the whisk into the gear and lock. Use for whipping cream, egg whites, and cold milk (max 8°C). Tilt the whisk slightly and make round movements.

Is the mini food processor suitable for grinding coffee beans or ice?

No, it is not allowed to grind hard products such as coffee beans, nutmeg, or ice cubes. It is designed for chopping meat, cheese, nuts, onions, garlic, carrots, and prunes.

How do I clean the blending foot?

Wash the blade under running water without abrasive detergents. Do not immerse the foot completely, as this ruins the lubrication. Dry the foot upright (blade facing up) so trapped water can drain. Do not clean in the dishwasher.

Can I wash the motor unit in water?

No. Only wipe the motor unit with a damp cloth. Never immerse it in water or any other liquid.

What should I do if the power cord is damaged?

Stop using the appliance immediately. The cord must be replaced by the manufacturer, its customer service, or a similarly qualified person to avoid injury.

How do I mount the wall holder?

Drill two holes in the wall, then attach the wall mount using the supplied plugs and screws. The mount holds the hand blender for convenient storage.

What is the maximum amount of meat I can chop in the mini food processor?

Up to 200 g of meat, cut into 1 cm pieces. The processing time is about 15-25 seconds. Remove bones and gristle before chopping.

Can children use this hand blender?

No. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children. Persons with reduced capabilities may use it only under supervision.

USER MANUAL ZHB0804S Zelmer

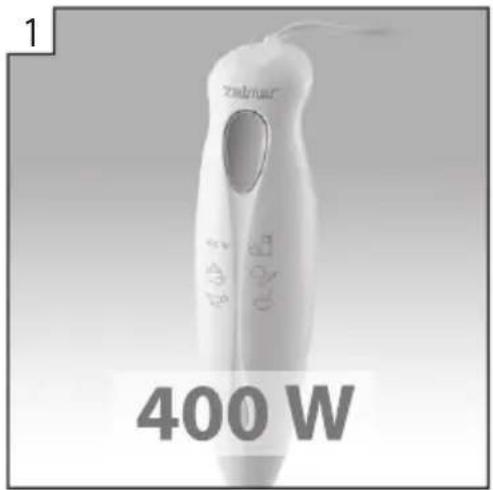

White zelmer brush with control knob and food icons, no visible text or symbols on the device itself.

ZHBo800

PL INSTRUKCJA UŻYTKOWANIA BLENDER RĘCZNY 3-7
CZ NÁVOD K POUŽITÍ RUČNI MIXÉR 8–11
SK NÁVOD NA OBSLUHU RUČNÝ MIXÉR 12–16
HU HASZNÁLATI UTASÍTÁS BOTMIXER 17–21
RO INSTRUCTIUNI DE UTILIZARE BLENDER DE MANA 22-26

• objective agroturistice,

Congratulations on your choice of our appliance, and welcome among the users of Zelmer products.

In order to achieve best possible results we recommend using exclusively original Zelmer accessories. They have been specially designed for this product.

Please read this instruction manual carefully. Pay special attention to important safety instructions. Keep this instruction manual for future reference.

Important safety instructions

Read this entire manual carefully before using the appliance. If the instructions for correct use of the appliance are not observed, the manufacturer's liability for any resulting damage will be excluded.

Make sure that you understand the below safety precautions.

DANGER! / WARNING!

Health hazard

• Do not handle the appliance with wet hands.
• Risk of injury from sharp blades/rotating drive!
• Never grip the blade in the blender foot. Never clean the blades with bare hands. Use a brush.
• Avoid contact with the moving parts.
• Switch off and unplug the appliance before changing any accessories or approaching the moving parts.
• Do not touch the blade while it is operating as it is very sharp. After the appliance has been switched off the blade will continue to rotate a moment longer.
• The universal cutter is not microwave-safe.
• Observe the following safety precautions while using the mini food processor:
• The blade is very sharp. Always hold the blade by the plastic handle. Handle with care to avoid any cuts.
  • Always place the container on a clean, level surface.
  • Grip the blender firmly during use.

Risk of scalding!

- Do not use the appliance with hot oil, as there is a risk of burns due to splashing.

- Caution when processing hot liquids. Liquids may splash during processing.

- When processing hot milk, use a tall, narrow receptacle for blending. Hot milk may splash and scald you.

- Do not operate the appliance with the cable still coiled.

- Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.
- Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
- Do not immerse the appliance in water or any other liquid.
- Do not use the appliance if the power cord and/or appliance are damaged.
- To prevent injury, a damaged power cord must be replaced by the manufacturer or his customer service or a similarly qualified person. Only our customer service may repair the appliance.
- This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
- Repairs may only be undertaken by qualified staff. Improper repairs may result in serious injuries to the user. In case of malfunction, contact a specialized service centre.
- Make sure that the lid of the mini food processor is closed before operating the appliance.
- Do not detach any elements while the blender is in motion.
• This appliance is intended for domestic use only.
- Only use the appliance indoors at room temperature and up to 2000 m above sea level.
- Be careful when cleaning, emptying the container and manipulating with cutting blades. Careless use can result in injuries.

CAUTION!

Risk of property damage

The appliance may only be plugged to an electrical socket (alternating current only) with voltage corresponding to the voltage indicated on the rating plate of the appliance.

Never insert metal utensils, such as knives or forks, into the inside of the cowl while the appliance is operating.

Do not use the blending foot without a workload; when mixing liquids, do not immerse more than half of the foot in the liquid.

Do not place the power cord over sharp edges or hot surfaces.

Never place blender foot on hot surfaces or use in very hot food. Leave hot food to cool down to at least 80°C before processing with the blender! Before using the hand blender in a cooking pot, take the pot off the hotplate.

Operate the hand blender with original accessories only.

Do not attach or remove tools until the appliance is at a standstill.

Recommendation: Never switch on the appliance for longer as you need to processing the ingredients.

The blender jug is not suitable for use in the microwave.

Do not unplug the appliance by pulling the power cord.

Do not overload the appliance by processing too much food at one time or pressing too hard.

Unplug the appliance before cleaning.

Do not use aggressive detergents such as emulsion, milk, paste, etc. as they can remove graphic symbols such as scales, markings, warning signs, etc.

Be careful not to flood the inside of the blending foot.

Do not process continuously more than one portion. Before the next use, let the appliance cool down to room temperature.

Information on the product and tips for use

The appliance is only suitable for cutting or mixing food. It must not be used for processing other objects or substances.

Please keep the operating instructions in a safe place.

If passing on the appliance to a third party, always include the operating instructions. If the instructions for correct use of the appliance are not observed, the manufacturer's liability for any resulting damage will be excluded.

This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments,

- by clients in hotels, motels and other residential type environments,

- farm houses,

• bed and breakfast type environments.

Manufacturer is not liable for any damage caused by unintended use or improper handling of the blender and its accessories.

Appliance description

1 Removable blending foot
2 Blending foot blade
3 Motor unit
4 ON/OFF switch
5 Release buttons
6 Wall mount

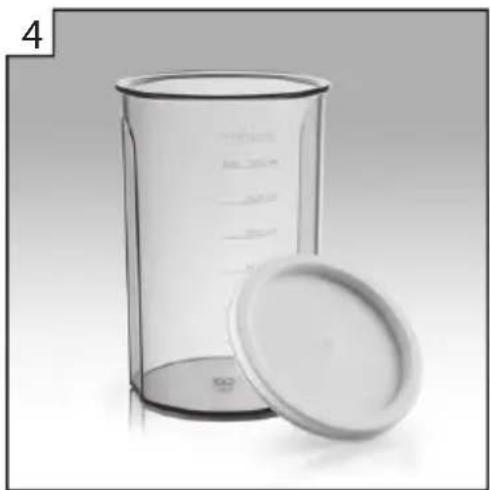

7 Mixing jug
8 Mixing jug lid

Whisk set

9 Whisk gear
10 Whisk

Mini food processor set

11 Mini food processor container
12 Mini food processor blade
13 Mini food processor lid with transmission
14 Mini food processor container lid

If the universal cutter is not included with the hand blender it can be ordered from customer service (order no. 00651139).

Technical data

Technical parameters are quoted at product nameplate. Appliance noise ( L_WA ): 70 dB/A.

Operation

The blender is suitable for preparing mayonnaises, purées, compotes, shakes, jams, baby foods or mincing small quantities of walnuts or almonds. It must not be used to prepare mashed potatoes.

Before assembling and removing the blending foot, make sure that the plug of the supplying cord is disconnected from the power outlet.

To mount an attachment, insert the top part of the attachment into the hole on the bottom of the motor unit until you hear a "click". To remove an attachment, press the release buttons inwards and the attachment will come away automatically.

Plug it in to mains. Press the ON/OFF switch to begin work. To avoid splashing, insert the blending foot/whisk into the ingredients before switching the blender on. Move the blending foot about in the mixture to get an even blend.

USING WHISK ATTACHMENT

Model ZHB0804L, ZHB0804S

For whipping cream, beating egg whites and milk shakes (cold milk, max. 8°C).

Before assembling on and removing the whisk, make sure, that the plug of the supplying cord is disconnected from the socket.

Never insert the whisk directly in the motor unit without using the whisk gear.

• Insert the whisk gear into the bottom of the motor unit and push it in until you hear a "click".
• Insert the whisk into the whisk gear and lock into position.
• Insert the mains plug.
  • Put ingredients into the mixing jug.
• Take hold of the base unit and mixing jug and press the ON/OFF switch.

For better results lean the whisk is a small angle and make round movements with it inside the bowl.

OPERATING THE MINI FOOD PROCESSOR

Model ZHB0804L, ZHB0804S

Zelmer hand blender is equipped with a mini food processor suitable for chopping meat, cheese, nuts, onions, garlic, carrots, and prunes.

Before assembling on and removing the motor unit out of the mini food processor, make sure that the plug of the supplying cord is disconnected from the power outlet.

• Place the mini food processor container on a clean, level surface.
  • Fit the blade in.
• Place the ingredients to be processed in the container.

- Place the top part onto the container and turn it in a clockwise direction until it locks into position (Safety lock).

Place the motor block onto the lid.

• Hold the container with one hand while operating the ON/OFF switch with the other.
• Press the lower buttons to dismantle it.

Before mincing meat remove any bones or gristle.

Before shredding big pieces of the products cut them into smaller ones - approximately 1 cm cubes.

It is not allowed to grind too hard products, such as: coffee beans, nutmeg, ice cubes.

The times indicated are approximate and may vary depending on the amounts used or the degree of blending which is required.

The mini food processor blades are very sharp. Be very careful during assembling, disassembling or during cleaning. Never disassemble the lid from the container before the disc stops rotating.

Examples of use:

Grated cheese for pasta dishes

Blend 200 g of moderately hard cheese (Emmental, etc.) for ten second to obtain a thickly grated cheese, ideal for sprinkling over pasta dishes.

Wall mount

Model ZHB0804L, ZHB0804S

To fix the support to a wall, drill two holes and attach the support by means of the wall plugs and screws supplied with the appliance.

Cleaning and maintenance

Unplug the appliance before cleaning.

• After each use of the motor unit wash carefully the parts in contact with processed product.
• After washing the blender accessories dry them and store in a dry place.

Motor unit

Wipe the motor unit with a damp cloth only.

Do not immerse the motor unit in water or any other liquid.

Blending foot

• Do not immerse the foot in water as this will ruin the lubrication on the bearings.
• The blade of the blending foot should be washed under running water without using any abrasive detergents.
• Do not clean the foot in the dishwasher.
• Dry the blending foot in an upright position (blender blade face up) so that any trapped water can run out.

Whisk

Model ZHB0804L, ZHB0804S

- The whisk can be cleaned in the dishwasher, but wipe the whisk gear with a damp cloth only.

Never immerse the gear attachment in water and do not clean in the dishwasher. Do not use steam cleaner!

Mincing accessory

Model ZHB0804L, ZHB0804S

• The jug and the blade can be washed with water and non-abrasive detergents.
• Do not immerse the top part in water. Clean it down with a damp cloth only.

Never immerse the whisk gear in water and do not clean in the dishwasher. Do not use steam cleaner!

Recommended gear and approximate processing time for selected foods

Product Maximum	amounts	Preparation Time (sec.)
Parsley 1 handful Cut off and remove stems. Give it a few sharp knocks.			10-20
Onion 100 g Cut into four 5-10
Garlic 2-10 cloves 5
Carrots 150 g Chopped 10-20
Fruit / vegetables 100 g Chopped 10-15
Baby foods 175 g Boil, cut up into small pieces 10-20
Almonds 150 g Whole		20-30
Butter (cubes big 1 cm) + honey	40 g + 40 g	Both ingredient must be cooled on 5 degree	5
Hard cheese	100 g Cut up into 1	cm pieces, without rind 20-30
Hard boiled eggs	2 eggs	Cut in half	2-5 button presses
Dry bread	150 g Cut up	15-20
Meat	200 g Cut up into 1	cm pieces 15-25

Disposal

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The

guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposal facilities.

The manufacturer does not accept any liability for any damages resulting from unintended use or improper handling.

The manufacturer reserves his rights to modify the product any time in order to adjust it to law regulations, norms, directives, or due to construction, trade, aesthetic or other reasons, without notifying in advance.

Notes

Notes

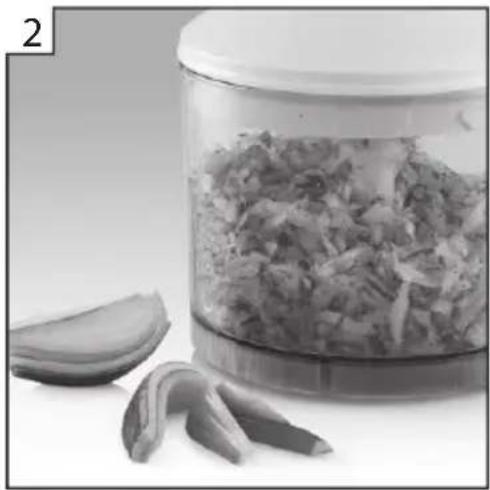

Close-up of a glass jar filled with chopped ingredients, accompanied by sliced seeds (no text or symbols visible)

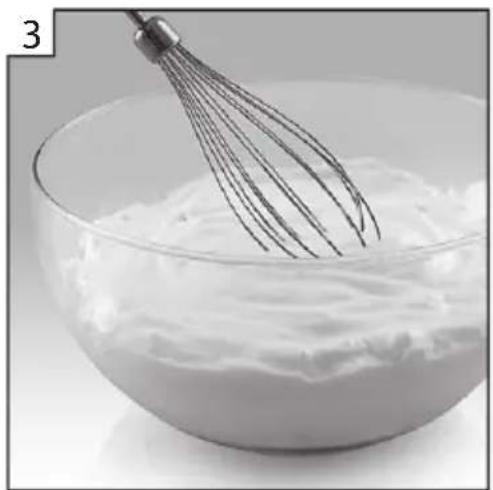

Black-and-white photo of a whisk stirring a creamy mixture in a glass bowl (no text or symbols visible)

Clear glass container with lid and lid, no visible text or symbols

7elmer takes care of the environment. This user manual has been printed on 100% recycled paper.

Zelmer S.A.
