USER MANUAL Zuri LG529-MC Pfister

Line drawing of two identical kitchen sink washers with adjustable arms and base (no text or symbols)

English

Pfister™ Lifetime Mechanical & Pfinish Warranty Covers Pfinish & Pfunction for as Long as You Own Your Home (Commercial Applications Limit the Duration of the Warranties Provided Below) Pfister™ provides the following Warranties for its products. Proof of Purchase may be required in order to obtain any of the benefits set forth below.

Limited Warranties: Pfister™ warrants that for as long as the original purchaser owns the home in which the Pfister™ product (the "Product") is originally installed, the Product will be free of all defects in material and workmanship that would impair the intended and proper use of the Product. If the Product is installed in a commercial application, the above mechanical warranty shall be limited for a period of ten (10) years from the date of purchase of the Product.

Pfister™ warrants against deterioration of the Product's finish for as long as the original purchaser owns the home in which the Product is originally installed. If the Product is installed in a commercial application, the above finish warranty for Products that do not contain the Pforever finish shall be limited to a period of ten (10) years from the date of purchase.

Exclusive Remedy: In the event of any defect in the Product that breaches the foregoing warranties, Pfister™, at its option, will repair or replace the defective part of the Product. Repair or replacement of the Product is the exclusive remedy.

For any remedy under this warranty, Pfister™ is to be notified describing the problem. In order to notify Pfister™ and receive assistance or service under this warranty, the original purchaser may: (1) call 1-800-Pfaucet (1-800-732-8238) for a consumer service representative who can assist you, or (2) write consumer service department c/o Pfister™ Inc., 19701 DaVinci, Lake Forest, CA 92610, and include a description of the problem, model number, your name, address, phone number and approximate date of purchase, or (3) email Pfister™s customer service department by going to www.PricePfister.com, or (4) notify the location or distributor from which the Product was purchased. In any case, you may be required to return the Product to Pfister™ for inspection and proof of purchase may be required.

Limitations and Exclusions:

Pfister™ WILL NOT BE LIABLE FOR ANY OTHER DAMAGES OR LOSSES, INCLUDING, BUT NOT LIMITED TO, INCIDENTAL AND/OR CONSEQUENTIAL DAMAGES, REGARDLESS OF THE LEGAL THEORY ASSERTED, INCLUDING ANY CLAIM OR BREACH OF WARRANTY HEREUNDER OR ANY OTHER CAUSE, AND WHETHER ARISING IN CONTRACT OR IN TORT (including negligence and strict liability).

Pfister™ has the right to discontinue or modify any product at any time. Some states do not allow limitations or exclusions of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

The above warranties do not cover damage resulting from improper maintenance, repair, cleaning or installation, misuse, abuse, alterations, accidents or acts of God.

EspañolFrançais

Thank you for purchasing this Pfister product. All Pfister products are carefully engineered, and factory tested to provide long trouble-free use under normal conditions. This product is easy to install using basic tools and our easy to follow illustrated instructions. If you have any questions regarding this product, call 1-800-340-7608.

BEFORE PROCEEDING

WARNING Read all the instructions completely before proceeding. Pfister recommends calling a professional if you are uncertain about installing this product! This product should be installed in accordance with all local and state plumbing and building codes.

Illustration of a hand holding a pipe fitting with a valve, showing rotational motion (no text or symbols)

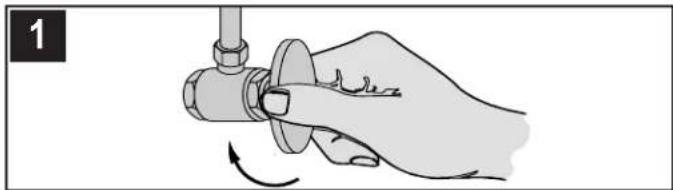

1 SHUT OFF WATER SUPPLY

Locate water supply inlets and shut off the water supply valves. These are usually found under the sink or near the water meter. If you are replacing an existing faucet, remove the old faucet from the sink and clean the sink surface thoroughly.

Line drawings of five different tools or fixtures: a jar, pliers, wrench, flashlight, and fabric (no text or symbols)

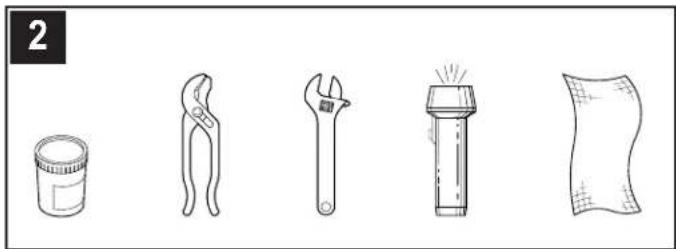

2 TOOLS RECOMMENDED

. Plumber's Putty

. Pliers

. Asadjustable Wrench

Flashlight

.Cloth

Installation may require new supply lines and/or shut-off valves or other additional tools.

3 A B N M L C K D E F G H P J H

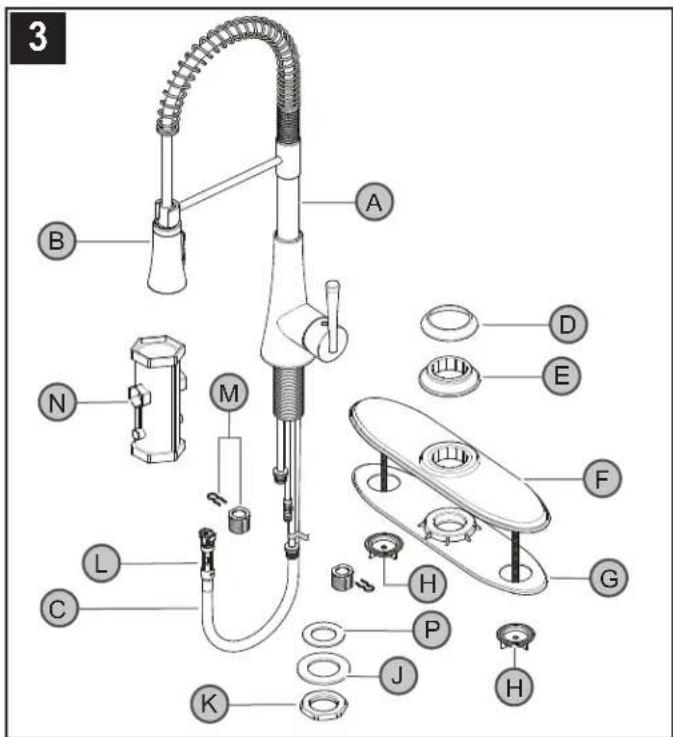

3 CHECKING THE CONTENTS OF THE BOX

Upon opening the box, check to ensure that all of the following items are included:

A Faucet Body

B Spray Head (Detached)

C Hose

D Mounting Ring E Putty Ring

F Deckplate

G Putty Plate

H Wing Nuts (2x)

J Metal Washer

K Locknut

L Quick Connector

M Inlet Connectors (2X)

N Installation Tool P Spout Washer

If any of these items are missing, please contact Pfister™ Consumer Services at

1-800-340-7608 or visit www.international.pfisterfaucets.com.

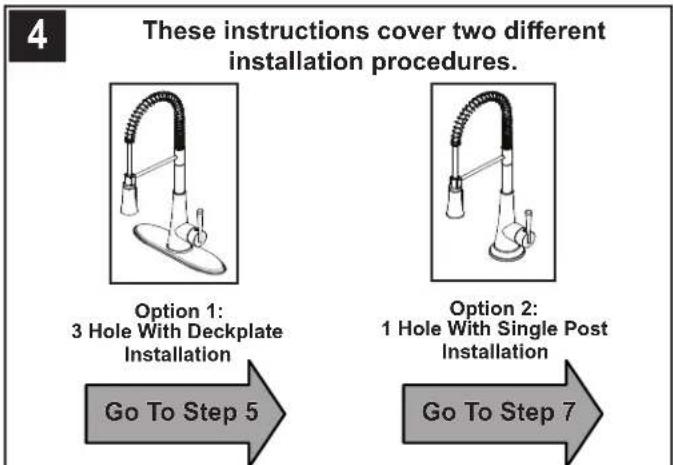


3 HOLE INSTALLATION

5 5A 5B BOTTOM GROOVE

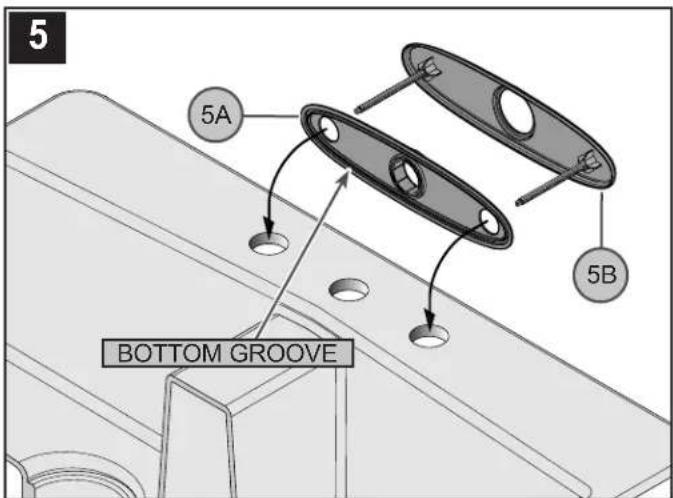

5 INSTALLING DECKPLATE

Ensure that Plastic Putty Plate (5A) is pressed on to Deckplate (5B). Place a bead of plumber's putty in the bottom groove along the outer edge of the Putty Plate (5A). Install Deckplate (5B) over the three holes in your sink.

6 6A 6B 6A

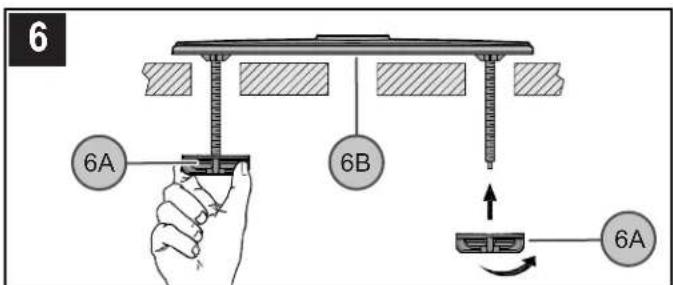

6 SECURING DECKPLATE

From underneath sink, hand tighten Wing Nuts (6A). NOTE: do not over-tighten wing nuts. Remove any excess putty from around the outside edge of Putty Plate (6B).

1 HOLE INSTALLATION

7 7A 7B

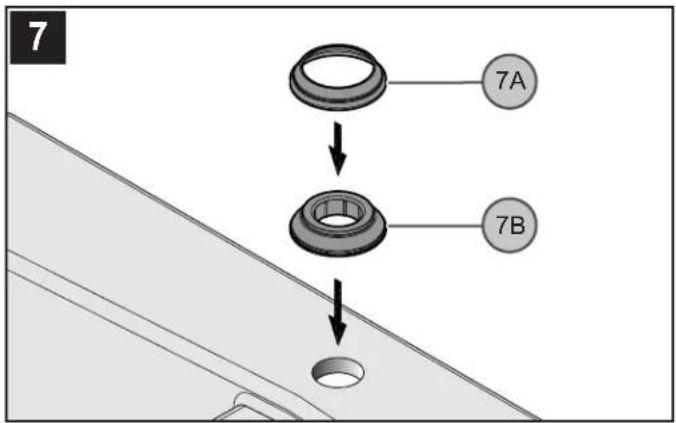

7 INSTALLING MOUNTING RING

Place Mounting Ring (7A) over Putty Ring (7B) and sink hole. Align Mounting Ring (7A) to the center of sink hole. Place a bead of plumber's putty in the bottom groove along the outer edge of Putty Ring (7B).

8 8B 8A 8D 8C 8B 8A

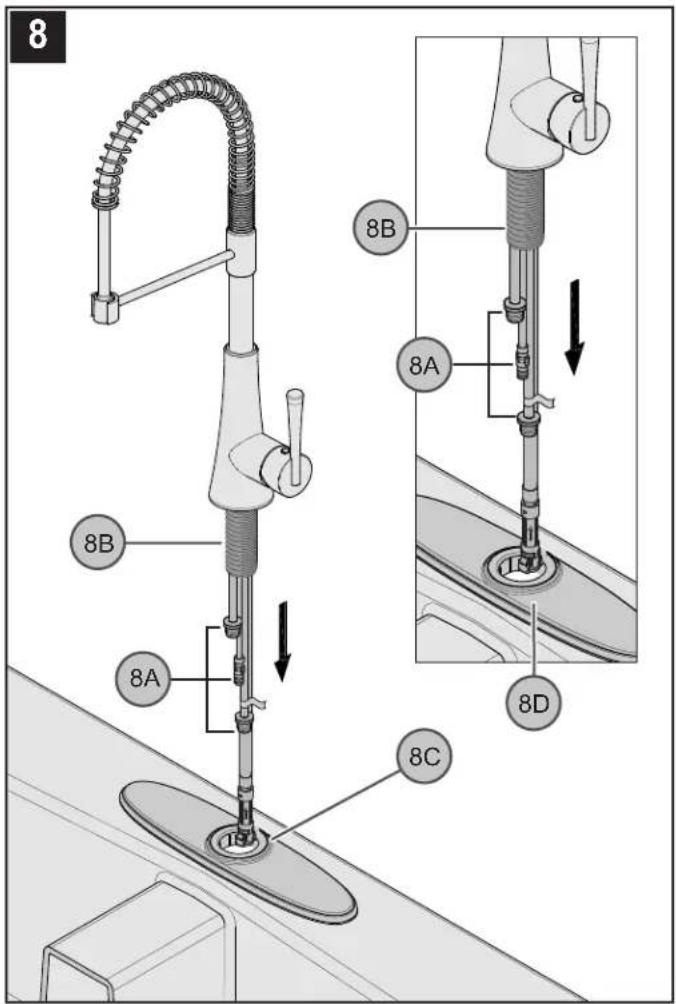

8 BODY INSTALLATION

Insert Faucet Supply Tubes (8A) and Mounting Shank (8B) through the hole in Deckplate (8C) or Mounting Ring (8D).

9 9F 9E 9D 9H 9A 9C 9B 9G

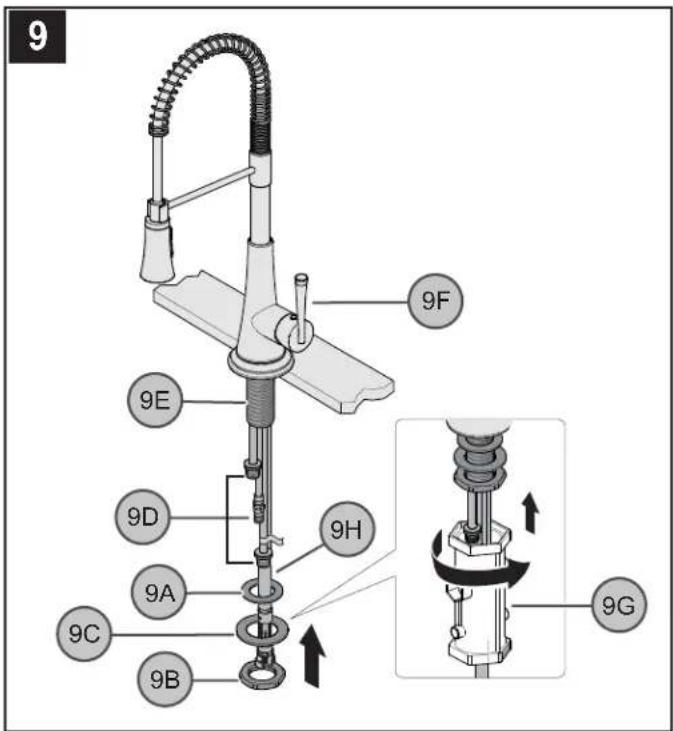

9 SECURING SPOUT BODY

From underneath sink, place Washers (9A), (9C) and Locknut (9B) over Hose (9H) and Supply Tubes (9D). Thread loosely onto faucet shank (9E). Make sure that Handle (9F) is properly aligned to sink. Tighten faucet firmly to sink, using the provided Installation Tool (9G).

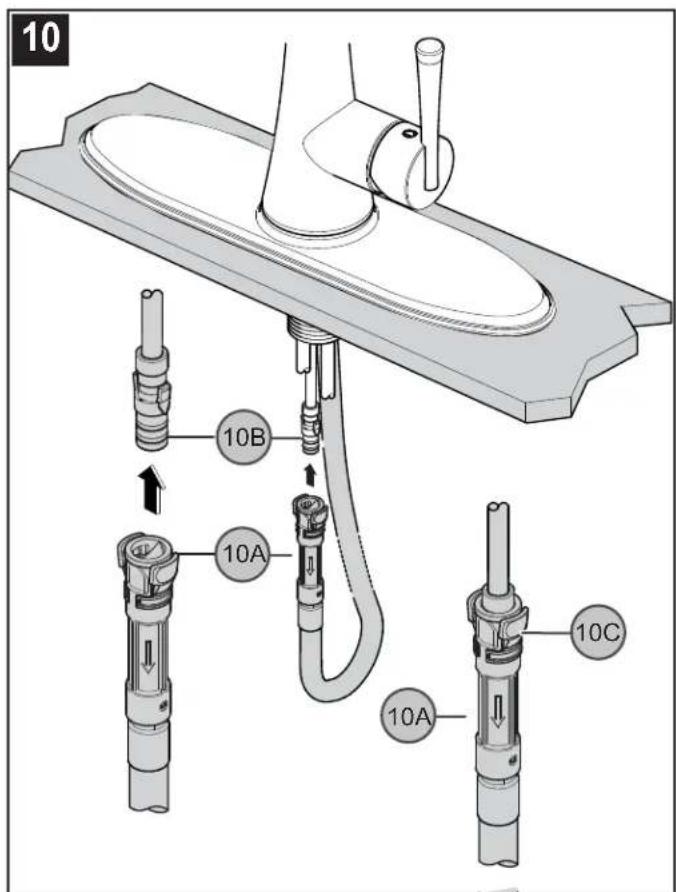

From underneath sink, push Hose Connector (10A) onto receiving Tube (10B). Push up until unable to push any further. To remove Hose, press on the Tabs (10C) and pull Hose Connector (10A) down.

CAUTION: Incorrect application of supply lines and fittings may result in the failure or leak of the supply lines and fittings.

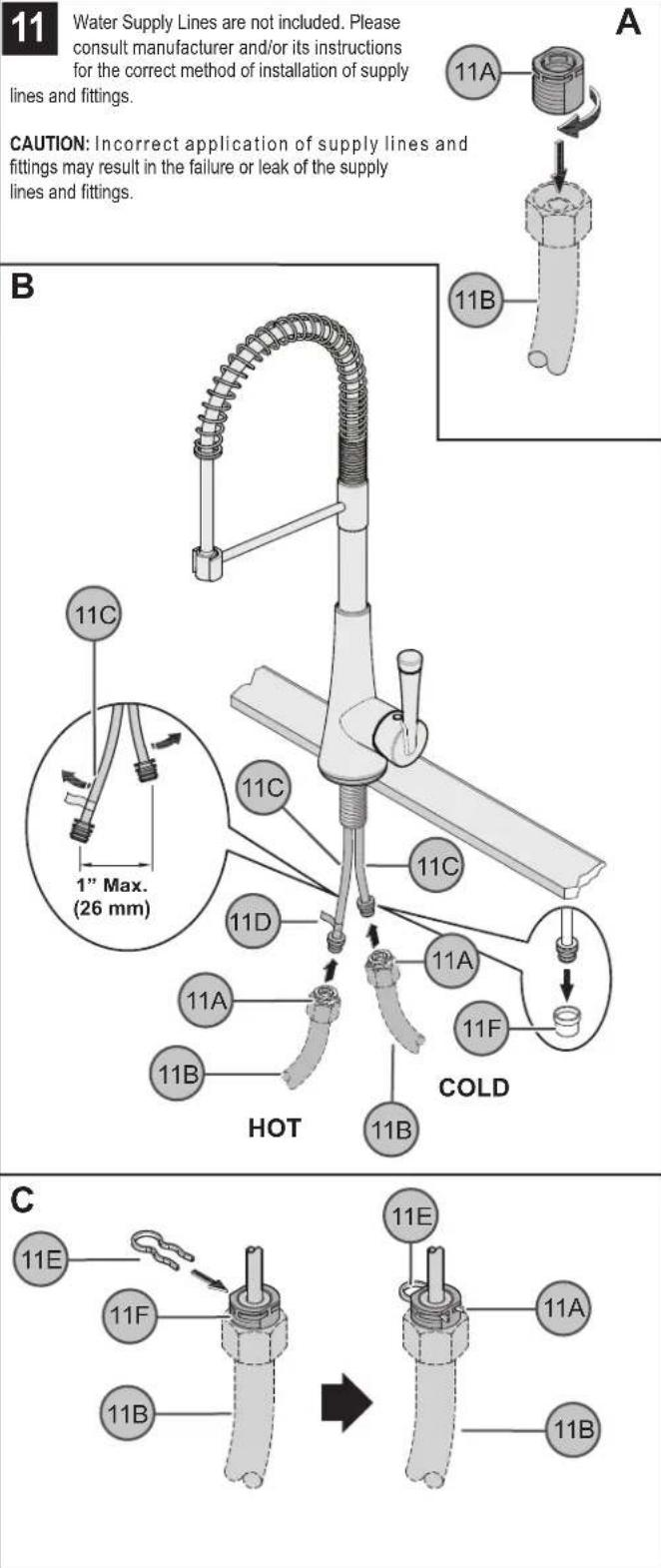

11 WATER SUPPLY CONNECTIONS

A. Thread inlet connectors (11A) into Water Supply Lines (11B).

B. Remove Protective Cap (11F). Gently separate HOT and COLD Faucet Inlets (11C), approximately 1 in. (26 mm) apart. Connect Water Supply Lines (11B) onto Faucet Inlets (11C). Hot Water supply goes to hot inlet fitting indicated by red tag (11D).

C. Insert Clip (11E) into Inlet Connector Holes (11F) to secure water supply lines, as shown.

WARNING: Do not twist Faucet Inlets.

12

Illustration of a hand holding a mechanical component with an arrow indicating rotation (no text or symbols)

12 UNIT START UP

Turn on hot and cold water supplies, and check for leaks above and below the sink

13

3 OPEN 13A 13B 13A

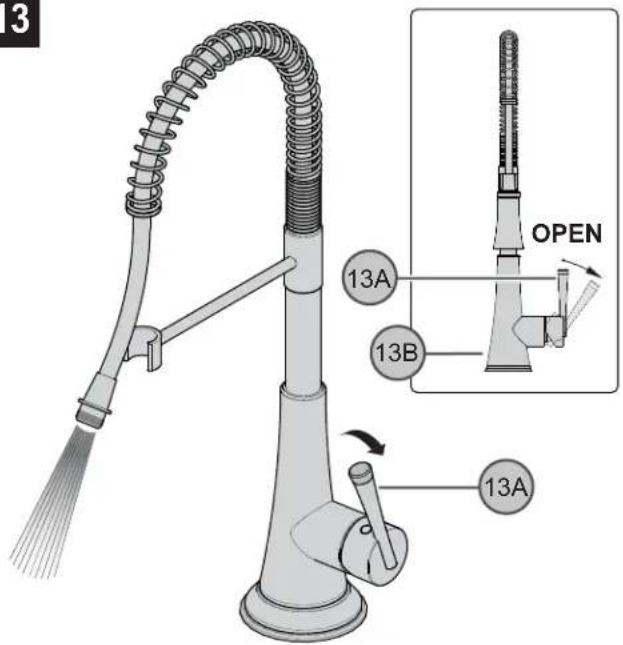

13 FLUSHING

By rotating the Lever Handle (13A) away from the Faucet Body (13B), the valve will be activated allowing water to flow. The water flow will increase by continuing to rotate the Lever Handle (13A). Run water for one minute. Repeat in hot and cold positions.

14

14A 14B

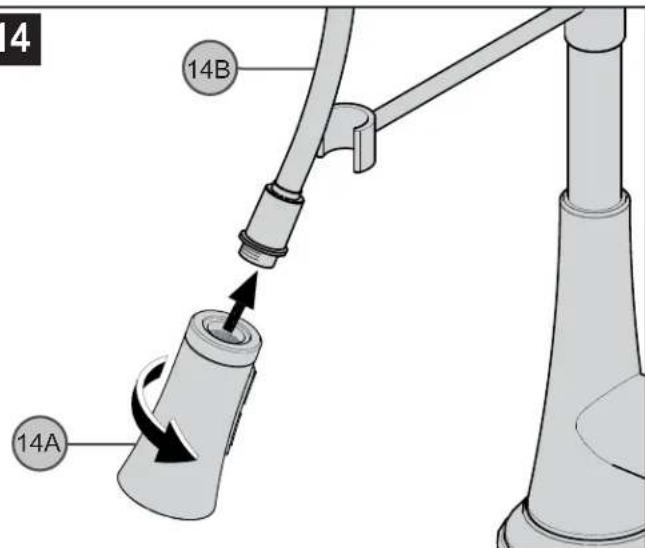

14 ATTACH SPRAY HEAD

Attach Spray Head (14A) to the Hose (14B) by turning Spray Head (14A) clockwise.

Caution: do not over tighten sprya head and hose.

FAUCET FUNCTIONS

15

15A A

B

15D 15B 15C

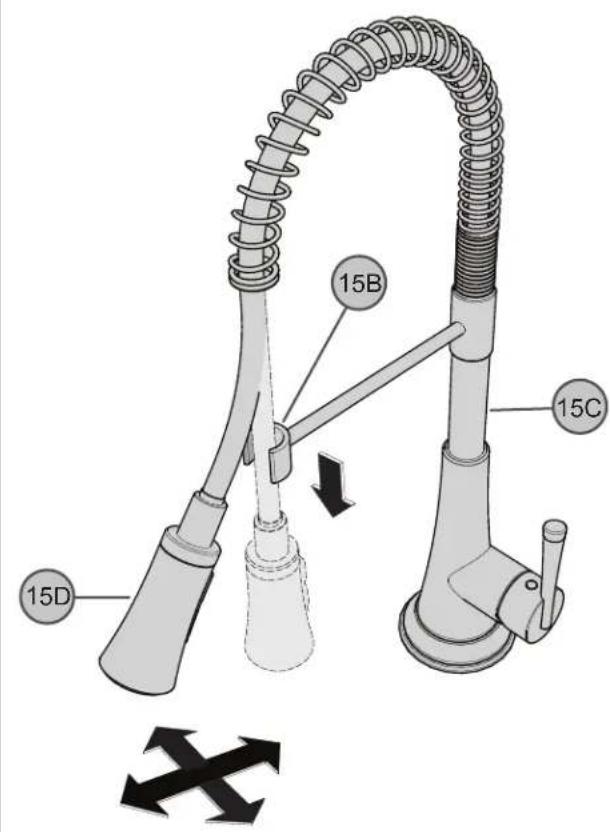

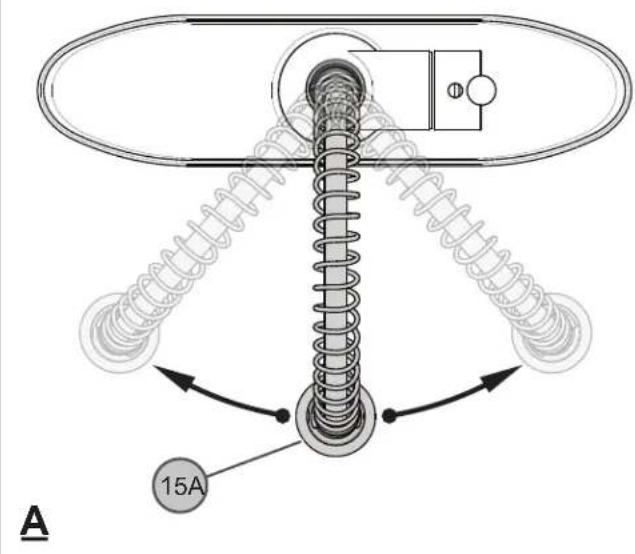

15 SPOUT FUNCTION

A. The spout (15A) can be rotated around the faucet body in any direction.

B. Spray Head (15D) can also be removed from the dock (15B) and swing in any direction around the Faucet Body (15C).

16

16A HOTCOLD

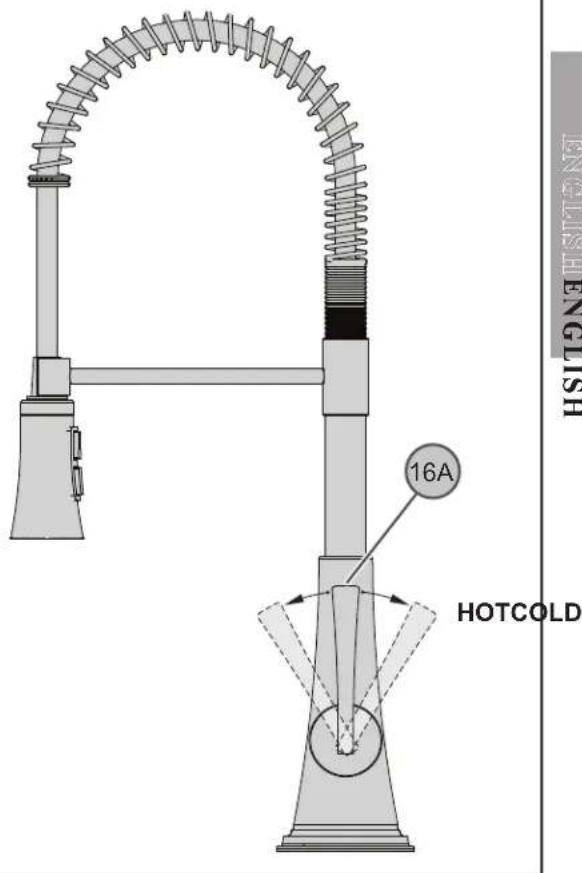

16 VALVE FUNCTION

By rotating the Lever Handle (16A) towards you, the water temperature will decrease to cold flow only. By rotating the Lever Handle (16A) away from you, the water temperature will increase to hot flow only.

17

17A 17A 17C 17E 17B 17B

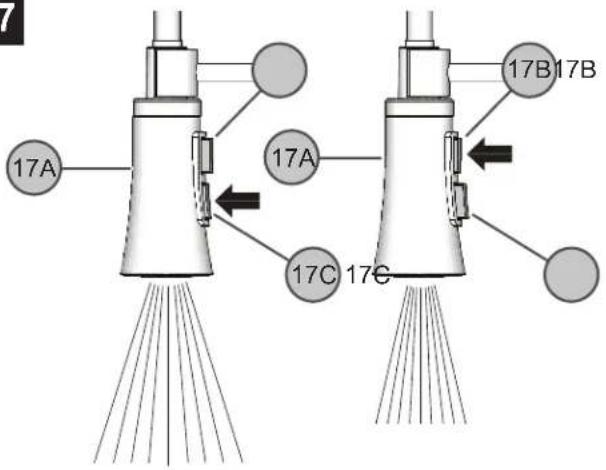

17 SPRAY OPERATION

By activating the valve, water will flow in regular stream mode. To activate the spray mode, press Button (17C) located behind Spray Head (17A). By pressing Button (17B), the spray pattern will change between spray and stream while the faucet is in operation. By holding Button (17B), the water flow will pause. The water flow will resume once Button (17B) is released.

18 18B 18C 18D 18A

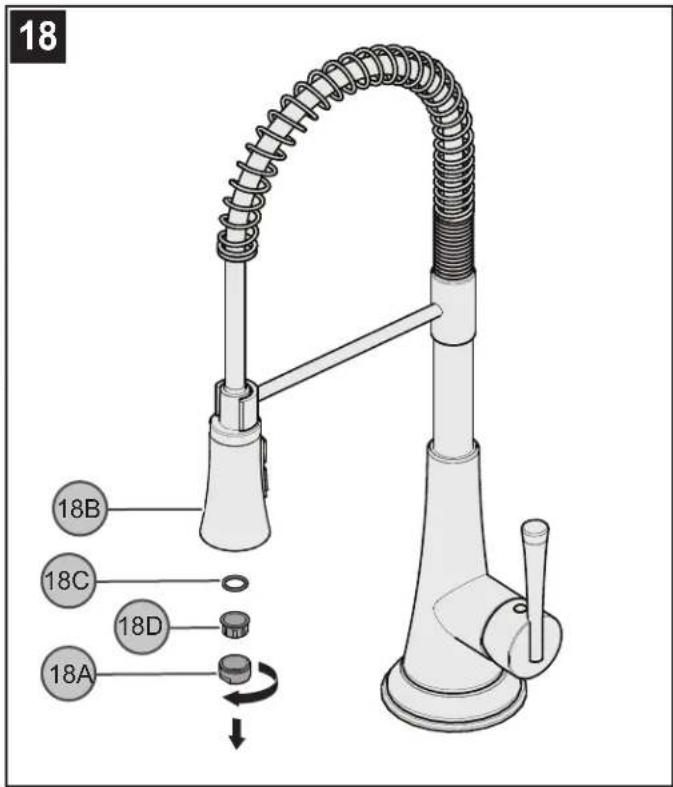

18 AERATOR CLEANING

Over time, the aerator in your faucet may become clogged with debris. To clean the aerator, unscrew Aerator Housing (18A) from Spray Head (18B). Remove Aerator Seal (18C) and Aerator Cartridge (18D) from Aerator Housing (18A). Clean Aerator Cartridge (18D) and Aerator Housing (18A). Reassemble by reversing steps.

19 19A 19D 19E 19C 19B

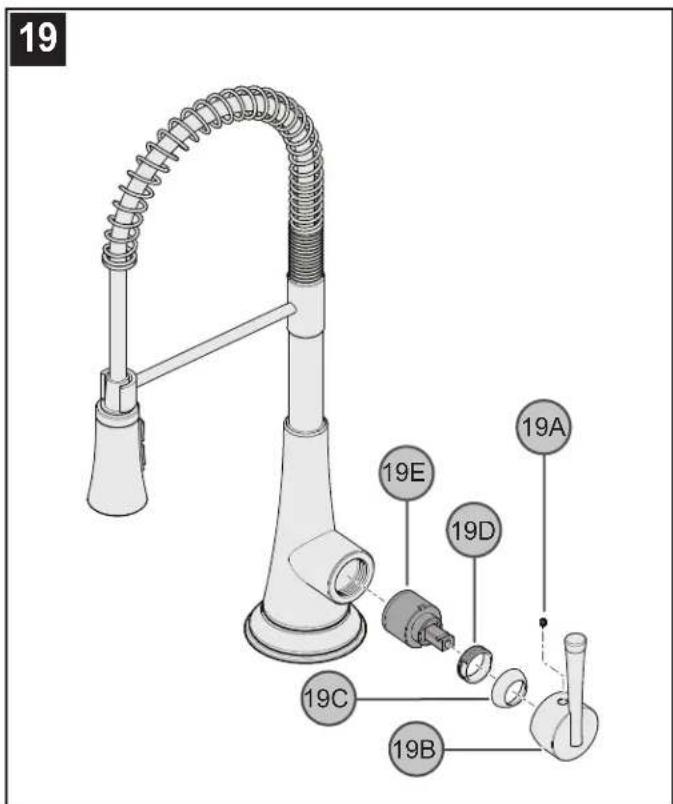

19 CARTRIDGE REPLACEMENT

Turn off water supplies and relieve pressure before working on your faucet. Using a 3^/_32 " Hex wrench, loosen Set Screw (19A) and remove Handle (19B). Uncrew Dome Cap (19C) and Retainer Nuts (19D). Remove Cartridge (19E) by pulling it out carefully. Reassemble by reversing steps.

CAUTION: Maintenance

DISASSEMBLY

1. Replacement parts may be available at the store where you purchased your faucet.
2. When replacement parts are not available, please write or call Pfister™ Consumer Service.
3. Always turn off water and relieve pressure before working on your faucet.

NOTE: Trim Care

Cleaning Instructions:

For all Handles and decorative finishes, use only a soft damp cloth to clean and shine. Use of polish, detergents, abrasive cleaners, organic solvents or acid may cause damage.

Use of other than a soft damp cloth will nullify our warranty! Special Trim:

Trim products which contain Porcelain or other similar substance are not acceptable for public areas or Commercial use. Installation of Said Trim is at Users Risk!

(1-800-340-7608)

For Toll Free Information call (1-800-340-7608) or visit www.international.pfisterfaucets.com

• Installation Support
• Care and Warranty Information
