USER MANUAL Serrano LJ142-SR Pfister

Pfirst Series™ by Pfister®

LJ142 Series

Serie LJ142

Série LJ142

Serrano™

Single Control Lavatory Faucet

Engineered to use 30% le compromising the wa WaterSet Meets EPA Co Certified by JAPM3 R&T

CONSERVE
Engineered to use 30% less water without compromising the water experience

Pfister ^4

Pfister® Lifetime Mechanical & Pfinish Warranty Covers Pfinish & Pfunction for as Long as You Own Your Home (Commercial Applications Limit the Duration of the Warranties Provided Below) Pfister® provides the following Warranties for its products. Proof of Purchase may be required in order to obtain any of the benefits set forth below.

Limited Warranties: Pfister® warrants that for as long as the original purchaser owns the home in which the Pfister® product (the "Product") is originally installed, the Product will be free of all defects in material and workmanship that would impair the intended and proper use of the Product. If the Product is installed in a commercial application, the above mechanical warranty shall be limited for a period of ten (10) years from the date of purchase of the Product.

Pfister® warrants against deterioration of the Product's finish for as long as the original purchaser owns the home in which the Product is originally installed. If the Product is installed in a commercial application, the above finish warranty for Products that do not contain the Pforever finish shall be limited to a period of ten (10) years from the date of purchase.

Exclusive Remedy: In the event of any defect in the Product that breaches the foregoing warranties, Pfister®, at its option, will repair or replace the defective part of the Product. Repair or replacement of the Product is the exclusive remedy.

For any remedy under this warranty, Pfister® is to be notified describing the problem. In order to notify Pfister® and receive assistance or service under this warranty, the original purchaser may: (1) call 1-800-Pftaucet (1-800-732-8238) for a consumer service representative who can assist you, or (2) write consumer service department c/o Pfister® Inc., 19701 DaVinci, Lake Forest, CA 92610, and include a description of the problem, model number, your name, address, phone number and approximate date of purchase, or (3) email Pfister®'s customer service department by going to www.Pfisterfaucets.com, or (4) notify the location or distributor from which the Product was purchased. In any case, you may be required to return the Product to Pfister® for inspection and proof of purchase may be required.

Limitations and Exclusions:

Pfister® WILL NOT BE LIABLE FOR ANY OTHER DAMAGES OR LOSSES, INCLUDING, BUT NOT LIMITED TO, INCIDENTAL AND/OR CONSEQUENTIAL DAMAGES, REGARDLESS OF THE LEGAL THEORY ASSERTED, INCLUDING ANY CLAIM OR BREACH OF WARRANTY HEREUNDER OR ANY OTHER CAUSE, AND WHETHER ARISING IN CONTRACT OR IN TORT (including negligence and strict liability).

Pfister® has the right to discontinue or modify any product at any time. Some states do not allow limitations or exclusions of Incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

The above warranties do not cover damage resulting from Improper maintenance, repair, cleaning or installation, misuse, abuse, alterations, accidents or acts of God.

Pfister ^2

Thank you for purchasing this Pfister product. All Pfister products are carefully engineered, and factory tested to provide long trouble-free use under normal conditions. This product is easy to install using basic tools and our easy to follow illustrated instructions. If you have any questions regarding this product, call 1-800-Pfaucet (1-800-732-8238).

1 BEFORE PROCEEDING

WARNING: Read all the instructions completely before proceeding. Pfiste recommends calling a professional if you are uncertain about installing this product! This product should be installed in accordance with all local and state plumbing and building codes.

Hand holding a mechanical component with a bolt and nut, showing rotational motion (no text or symbols)

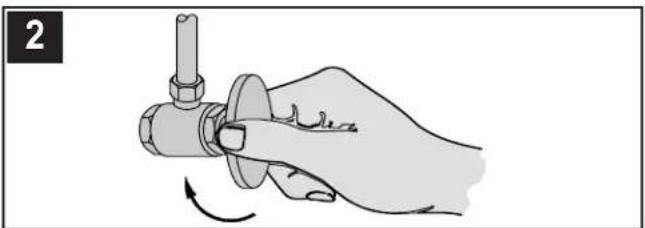

2 SHUT OFF WATER SUPPLY

Locate water supply inlets and shut off the water supply valves. These are usually found under the sink or near the water meter. If you are replacing an existing faucet, remove the old faucet from the sink and clean the sink surface thoroughly.

Line drawings of various tools including screwdriver, wrench, lamp, and fabric (no text or symbols)

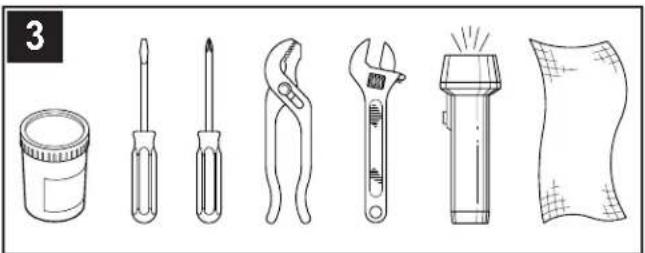

3 TOOLS RECOMMENDED

• Plumber's putty • Slotted screwdriver • Phillips head screwdriver
• Pliers - Adjustable wrench - Flashlight
• Cloth
  Your installation may require new supply lines and / or shut-off valves or other additional tools.

4 A B C D

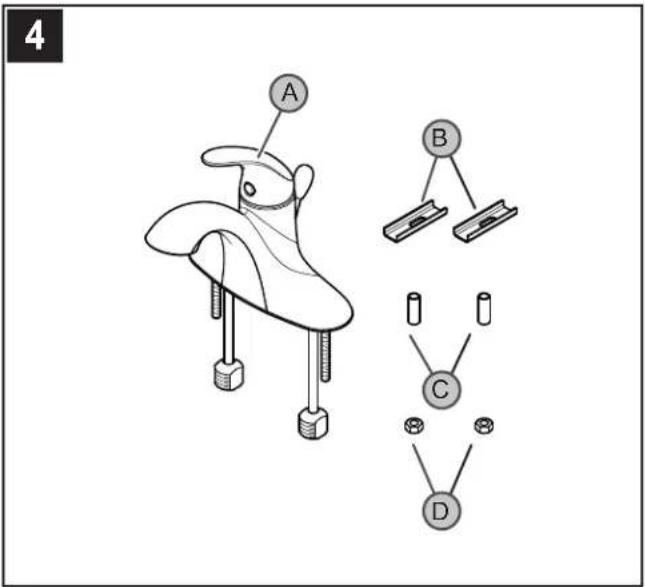

4 CHECKING THE CONTENTS OF THE BOX

Upon opening the box, check to ensure that all of the following items are included.

A Faucet B Channel (2x) C Sleeve (2x)

D Nut (2x)

If any of these items are missing, please contact Pfister Consumer Service at 1-800-Pfaucet (1-800-732-8238).

FAUCET INSTALLATION

BOTTOM GROOVE 5A 5B 5C 5C 5B 5D 5D

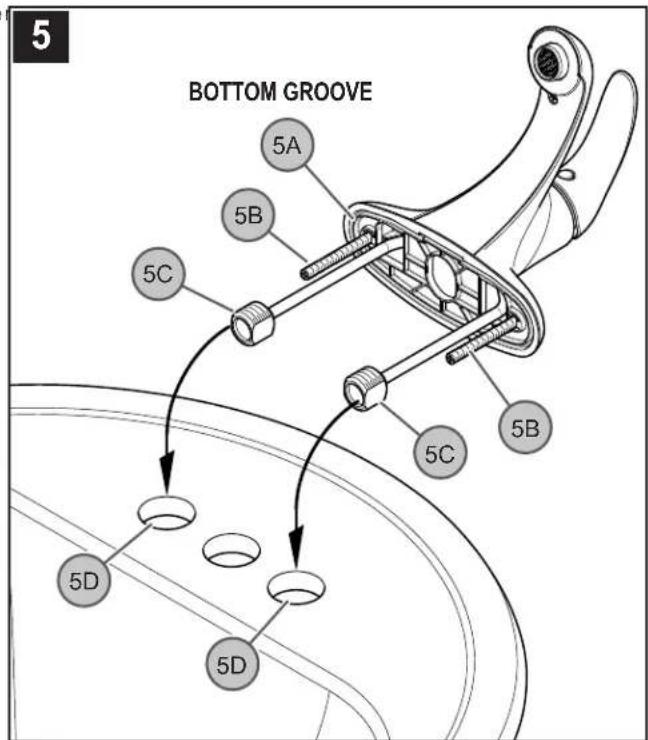

5 FAUCET INSTALLATION

Place a bead of plumber's putty in the groove along the bottom outer edge of Bottom Plate (5A). From above sink, insert Threaded Shanks (5B) and Faucet Inlets (5C) through End Holes (5D) of sink.

6 6C 6A 6D 6B 6C 6A 6D 6B

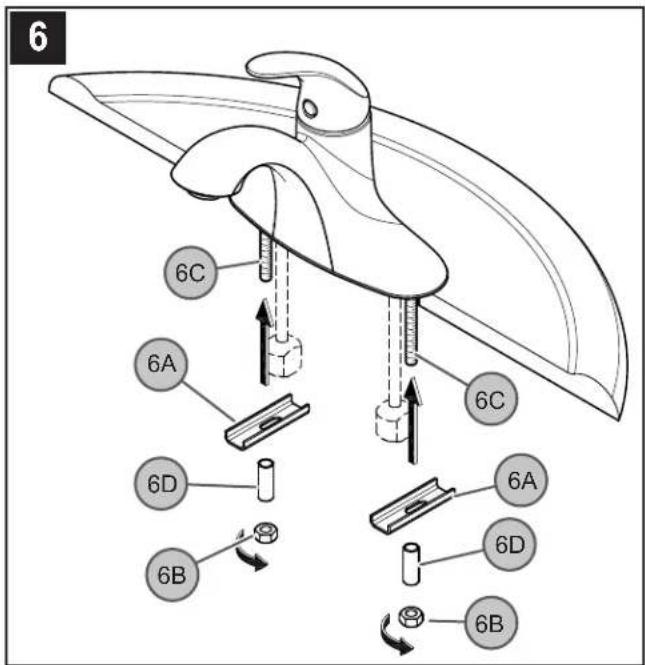

6 SECURING FAUCET

From underneath sink, secure the faucet by placing the Channel Washers (6A) and Nuts (6B) onto Mounting Posts (6C). Tighten Nuts (6B) until the faucet is firmly connected to the sink. For thin deck installations, use the support Sleeves (6D) in addition to the Channel Washers.

Caution: Do not over tighten!

7 7B 7B 7A HOT COLD 7A

7 WATER SUPPLY CONNECTIONS

Connect water Supply Lines (7A) to Faucet Inlets (7B). Hot water supply lines go into left inlet. Cold water supply lines go into right inlet. (Supply lines are not included). Please follow manufacturer's instructions when installing supply lines.

8 POP-UP INSTALLATION

Install Pop-Up using separate instructions supplied with the Pop-Up assembly.

Illustration of a hand holding a mechanical component with a valve and shaft, no text or symbols present

9 UNIT START UP

Turn on hot and cold water supplies, and check for leaks above and below the sink.

ENGLISH

FAUCET FUNCTION

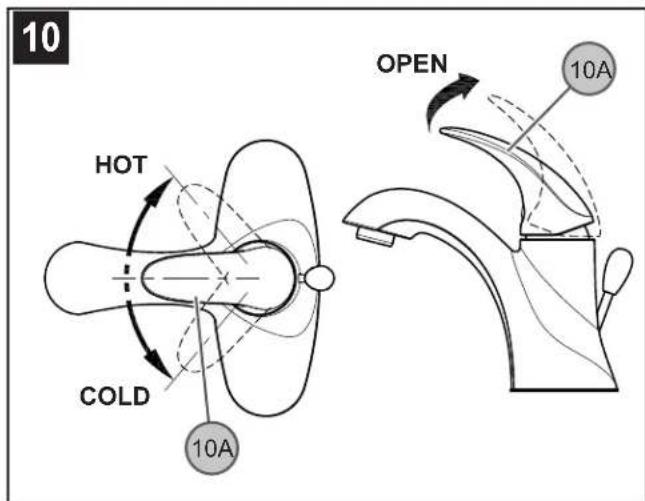

10 HOT COLD 10A OPEN 10A

10 VALVE FUNCTION

By lifting the Lever Handle (10A) up, the valve will be activated allowing water to flow. The water flow will increase by continuing to lift up the Lever Handle (10A). By rotating the Lever Handle counter-clockwise, the water temperature will decrease to cold flow only. By rotating the Lever Handle clockwise, the water temperature will increased to hot flow only.

MAINTENANCE & CARE

11 11A 11B 11E 11D 11C

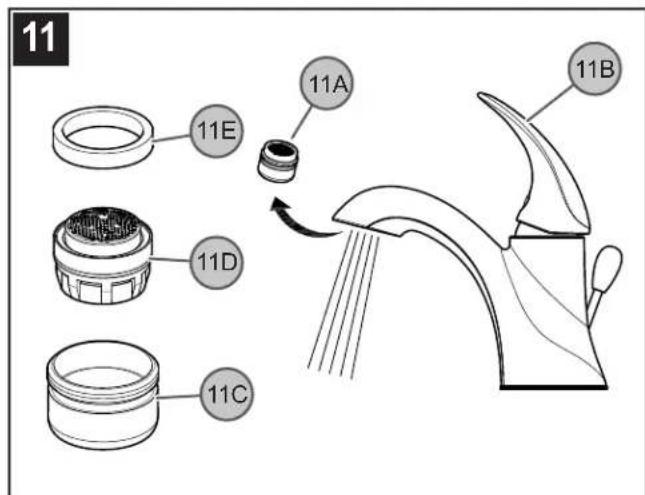

11 FLUSHING & AERATOR CLEANING

After installation is complete, remove Aerator Housing (11A). Turn Valves (11B) on and allow both hot and cold water to run for at least one minute each. While water is running, check for leaks. To clean the aerator, disassemble Aerator Housing (11A) by separating the Aerator Shell (11C), Basket (11D), and Washer (11E). Once parts have been cleaned, reassemble by reversing steps.

12 12B 12C 12A 12D 12E 12F

ENGLISH

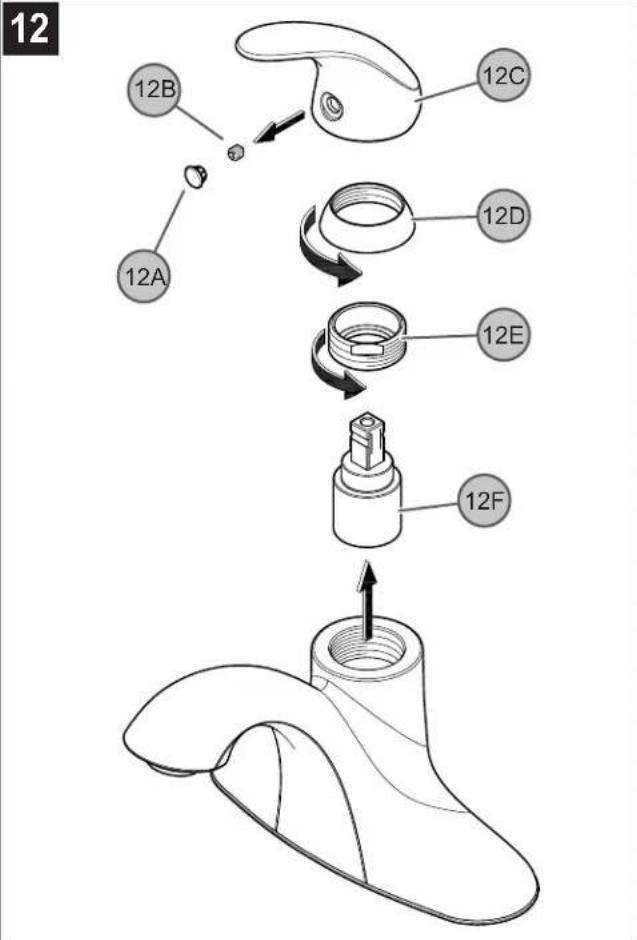

12 VALVE CARTRIDGE REMOVAL

Turn off water supplies and relieve pressure before working on your faucet! Detach Decorative Button (12A) by pulling it out. Using a 332 " Hex wrench, loosen Set Screw (12B) and remove Handle (12C). Remove the Dome Cap (12D) by unscrewing counterclockwise. Using pliers, unscrew the retainer ring (12E). Carefully remove the Cartridge (12F) by pulling it straight up and out. Reassemble valve by reversing steps.

CAUTION: Maintenance

DISASSEMBLY

1. Replacement parts may be available at the store where you purchased your faucet.
2. When replacement parts are not available, please write or call Pfister Consumer Service.
3. Always turn off water and relieve pressure before working on your faucet.

NOTE: Trim Care

Cleaning Instructions:

For all Handles and decorative finishes, use only a soft damp cloth to clean and shine. Use of polish, detergents, abrasive cleaners, organic solvents or acid may cause damage. Use of other than a soft damp cloth will nullify our warranty! Special Trim:

Trim products which contain Porcelain or other similar substance are not acceptable for public areas or Commercial use. Installation of Said Trim is at Users Risk!

1-800-PFAUCET (1-800-732-8238)

For Toll-Free Pfaucet information call 1-800-PFAUCET (1-800-732-8238) or visit www.pfisterfaucets.com

• Installation Support
• Care and Warranty Information

Hand holding a mechanical component with a rotating arrow indicating rotation (no text or symbols)

Line drawings of various tools including a paint can, screwdriver, pliers, wrench, flashlight, and fabric (no text or symbols)

6 6C 6A 6D 6B 6C 6A 6D 6B

6 CÓMO ASEGURAR EL GRIFO

Illustration of a hand holding a mechanical component with a valve and shaft, no text or symbols present

9 CÓMO ACTIVAR LA UNIDAD

Hand holding a mechanical component with a bolt and nut, showing rotational motion (no text or symbols)

2 COUPURE DE L'ARRIVÉE D'EAU

Line drawings of various tools including a paint can, screwdriver, pliers, wrench, flashlight, and fabric (no text or symbols)

3 OUTILLAGE RECOMMANDÉ

6 6C 6A 6D 6B 6C 6A 6D 6B

6 FIXATION DU ROBINET

Illustration of a hand holding a mechanical component with a valve, showing a curved arrow indicating rotation (no text or symbols)

9 MISE EN SERVICE DU ROBINET

FONCTIONNEMENT DES ROBINETS

10 CHAUD FROID 10A OUVERT 10A

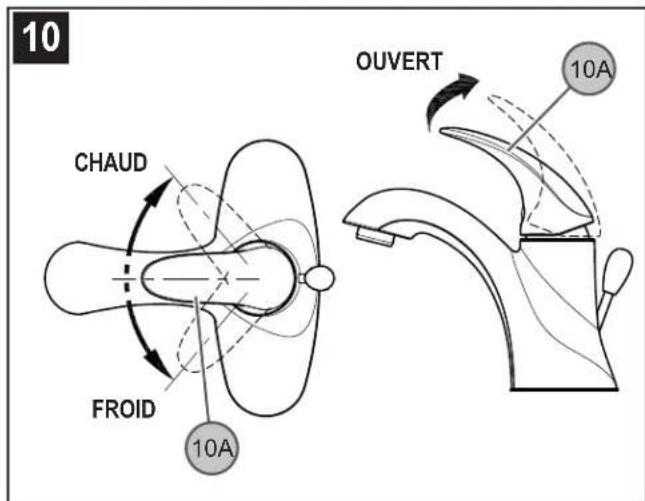

10 FONCTIONNEMENT DES ROBINETS

12 DÉPOSE DES CARTOUCHES DE ROBINETS
