USER MANUAL Avalon GT26-4C Pfister

Single Control Kitchen Faucet With Side Spray and Soap Dispenser

Illustration of a kitchen faucet with three variants and a handle (no text or symbols)

Price Pfister

Lifetime Limited Mechanical & Pfinish Warranty Covers Pfinish and Pfunction for as Long as You

Own Your Home

(Commercial Applications Limit the Duration of the Warranties as Provided Below)

Price Pfister provides the following Warranties for its products. Proof of Purchase may be required in order to obtain any of the benefits s forth below.

Limited Warranties: Price Pfister warrants that for as long as the original purchaser owns the home in which the Price Pfister product (the "Product") is originally installed, the Product will be free of all defects in material and workmanship that would impair the intended and proper use of the Product. If the Product is installed in a commercial application, the above mechanical warranty shall be limited for a period of ten (10) years from the date of purchase of the Product.

Price Pfister warrants against deterioration of the Product's finish for as long as the original purchaser owns the home in which the Product is originally installed. If the Product is installed in a commercial application, the above finish warranty for Products that do not contain the Pforever finish shall be limited to a period of five (5) years from the date of purchase.

Exclusive Remedy: In the event of any defect in the Product that breaches the foregoing warranties, Price Pfister, at its option, will repair or replace the defective part of the Product. Repair or replacement of the Product is the exclusive remedy.

For any remedy under this warranty, Price Pfister is to be notified describing the problem. In order to notify Price Pfister and receive assistance or service under this warranty, the original purchaser may: (1) call 1-800-Pftaucet (1-800-732-8238) for a consumer service representative who can assist you, or (2) write consumer service department c/o Price Pfister Inc., 19701 DaVinci, Lake Forest, CA 92610, and include a description of the problem model number, your name, address, phone number and approximate date of purchase, or (3) email Price Pfister's customer service department by going to www.PricePfister.com, or (4) notify the location or distributor from which the Product was purchased. In any case, you may be required to return the Product to Price Pfister for inspection and proof of purchase may be required.

Limitations and Exclusions: PRICE PFISTER WILL NOT BE LIABLE FOR ANY OTHER DAMAGE OR LOSSES, INCLUDING, BUT NOT LIMITED TO, INCIDENTAL AND/OR CONSEQUENTIAL DAMAGES, REGARDLESS OF THE LEGAL THEORY ASSERTED, INCLUDING ANY CLAIM OR BREACH OF WARRANTY HEREUNDER OR ANY OTHER CAUSE, AND WHETHER ARISING IN CONTRACT OR IN TORT (including negligence and strict liability).

Price Pfister has the right to discontinue or modify any product at any time. Some states do not allow limitations or exclusions of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

The above warranties do not cover damage resulting from improper maintenance, repair, cleaning or installation, misuse, abuse, alterations, accidents or acts of God.

Price Pfister

Thank you for purchasing this Price Pfister product. All Price Pfister products are carefully engineered, and factory tested to provide long trouble-free use under normal conditions. This valve is easy to install using basic tools and our easy to follow illustrated instructions. If you have any questions regarding this product, call 1-800-Pfaucet (1-800-732-8238).

BEFORE PROCEEDING

WARNING: Read all the instructions completely before proceeding. Price per recommends calling a professional if you are uncertain about installing product!

This product should be installed in accordance with all local and state plumbing and building codes.

Hand holding a mechanical component with a bolt and nut, showing rotational motion (no text or symbols)

2 SHUT OFF WATER SUPPLY

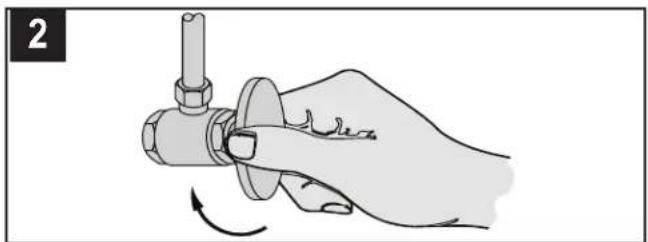

Locate water supply inlets and shut off the water supply valves. These are usually found under the sink or near the water meter. If you are replacing an existing faucet, remove the faucet from the sink and clean the sink surface thoroughly.

Illustration of six different tools and a paper sheet: a cap, screwdriver, pliers, wrench, flashlight, and fabric (no text or symbols)

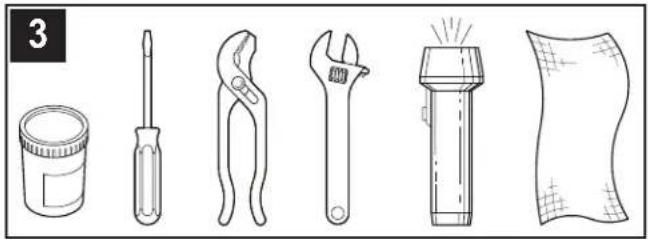

3 TOOLS RECOMMENDED

• Plumber's putty • Slotted screwdriver • Pliers
• Adjustable wrench • Flashlight • Cloth

Your installation may require new supply lines and / or shut-off valves or other additional tools.

4 A B C D H E K J F G

4 CHECKING THE CONTENTS OF THE BOX

Upon opening the box, check to ensure that all of the following items are included:

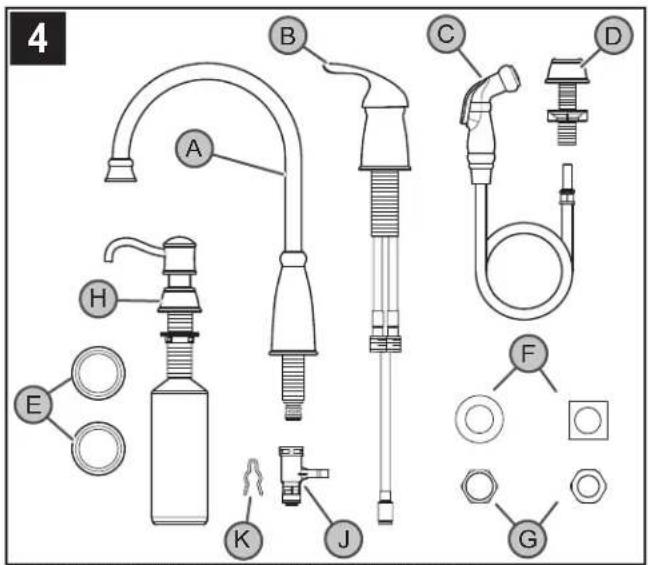

A Spout Body B Control Body C Side Spray
D Hose Guide E Gaskets (2X) F Washers (2X)
G Locknuts (2X) H Soap Dispenser J Diverter

K Clip

If any of these items are missing, please contact Price Pfister Consumer Services at 1-800-Pfaucet (1-800-732-8238).

5 SPOUT BODY INSTALLATION

FAUCET INSTALLATION

5 5C 5B 5A

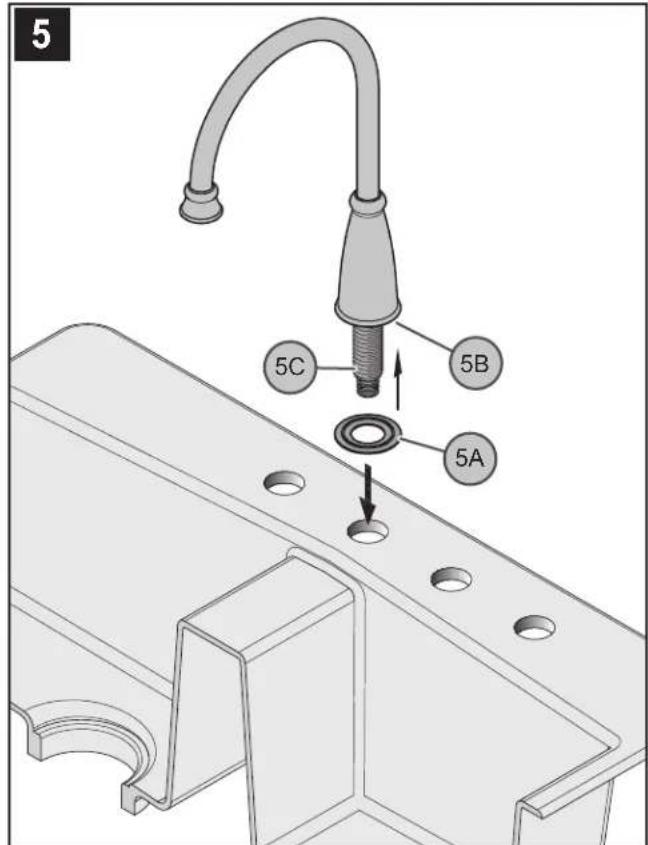

Apply plumber's putty into groove on bottom of Gasket (5A) per manufacturer's recommendations. Place Gasket (5A) under base of Spout Body (5B). From above sink, insert Mounting Shank (5C) through center hole of sink.

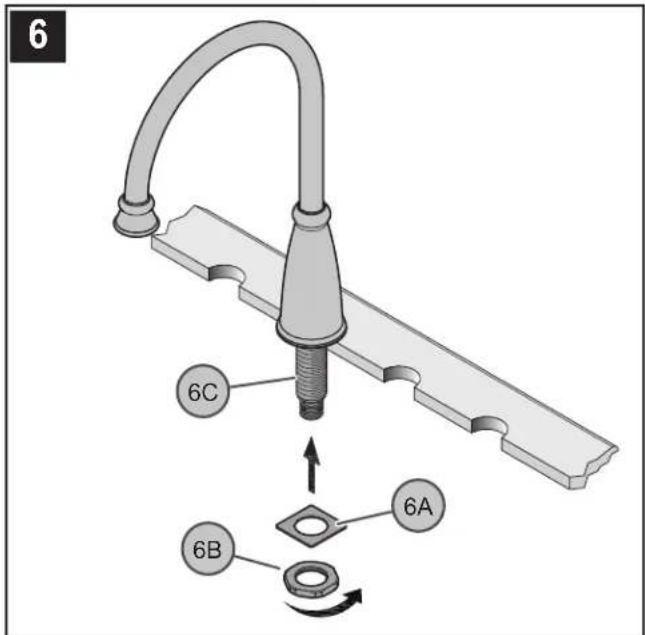

6 SECURING SPOUT BODY

6 6C 6A 6B

From underneath sink, place large Washer (6A), and Locknut (6B) onto Mounting Shank (6C). Tighten faucet firmly to sink.

7 CONTROL BODY INSTALLATION

7 7B 7C 7D 7A

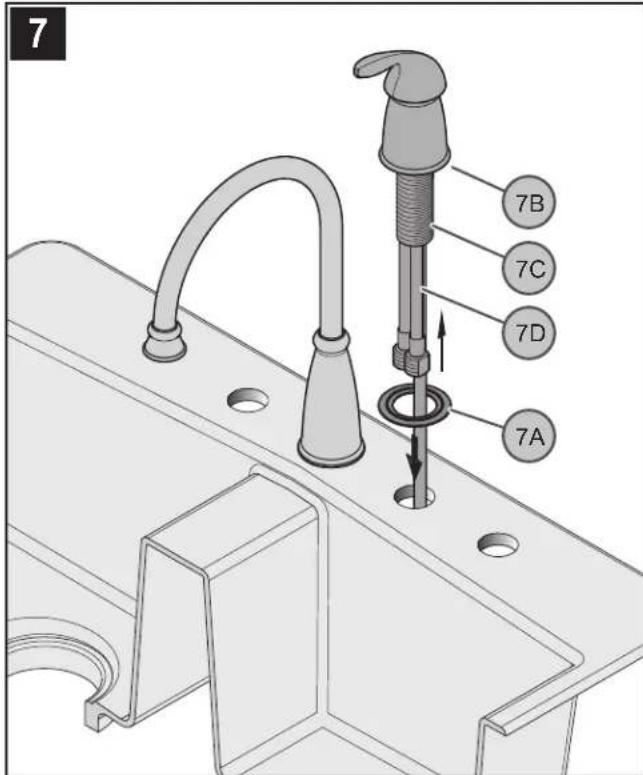

Apply plumber's putty into groove on bottom of Gasket (7A) per manufacturer's recommendations. Place Gasket (7A) under base of Control Body (7B). From above sink, insert Threaded Shank (7C) and Flexible Tubing (7D) through side hole of sink.

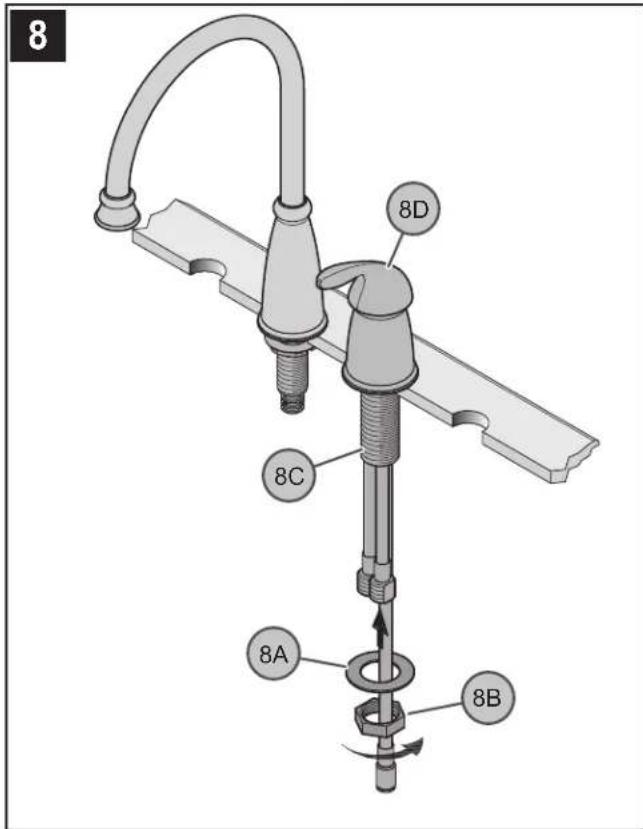

8 SECURING CONTROL BODY

8 8D 8C 8A 8B

From underneath sink, place Washer (8A), and Locknut (8B) onto Mounting Shank (8C). Make sure Handle (8D) is facing forward and it swings equally in both directions. Tighten Locknut (8B) firmly to Shank (8C).
Caution: Do not over tighten!

9 HOSE GUIDE & SOAP DISPENSER GUIDE INSTALLATION
ENGLISH

9 9A 9B 9C 9D

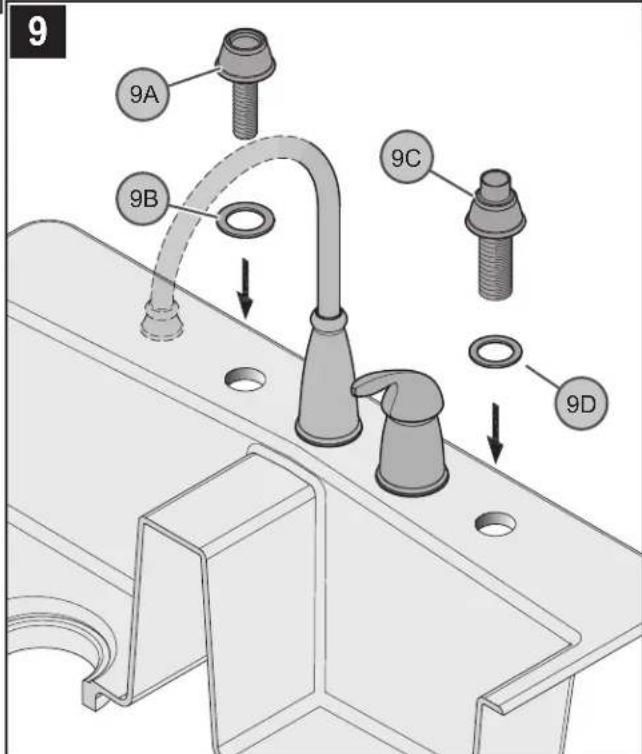

Insert Hose Guide Shank (9A) through Flange Gasket (9B) and insert Soap Dispenser Guide Shank (9C) through Foam Gasket (9D) and into the sink holes. (Both Hose Guide and Soap Dispenser Guide can be placed in either hole). 10 SECURING HOSE GUIDE & SOAP DISPENSER GUIDE

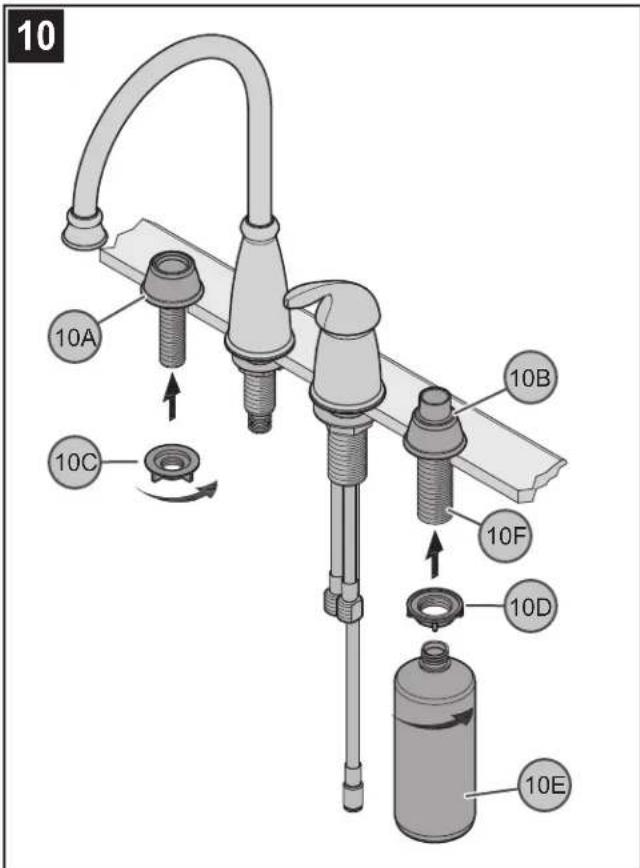

From underneath sink, secure Hose Guide (10A) and Soap Dispenser Guide (10B) by screwing Plastic Locknuts (10C) and (10D). Thread on Bottle (10E) to Soap Dispenser Shank (10F). Hand tighten.
Caution: do not over tighten!

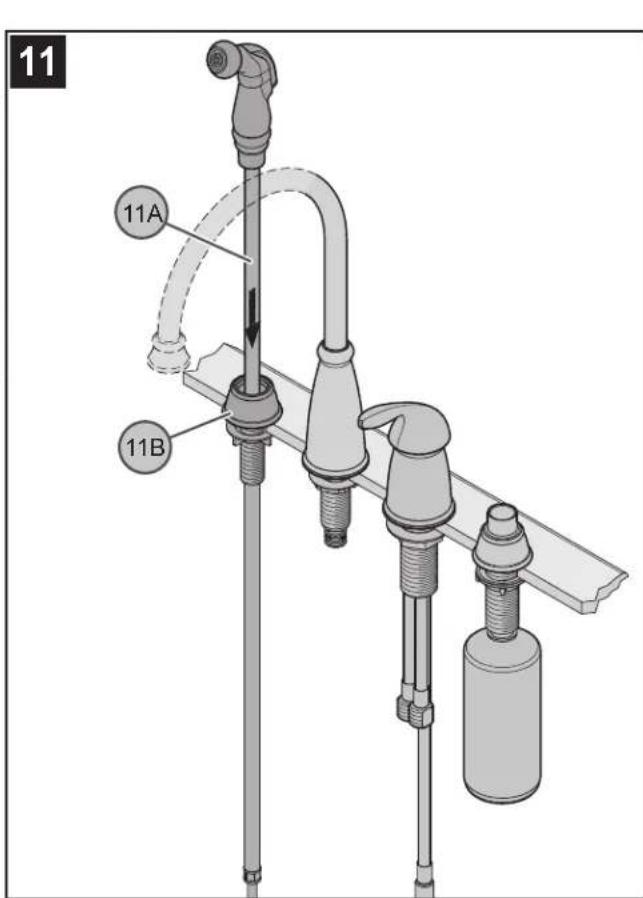

11 SIDE SPRAY INSTALLATION

11 11A 11B

Insert Side Spray Hose (11A) through Hose Guide (11B).

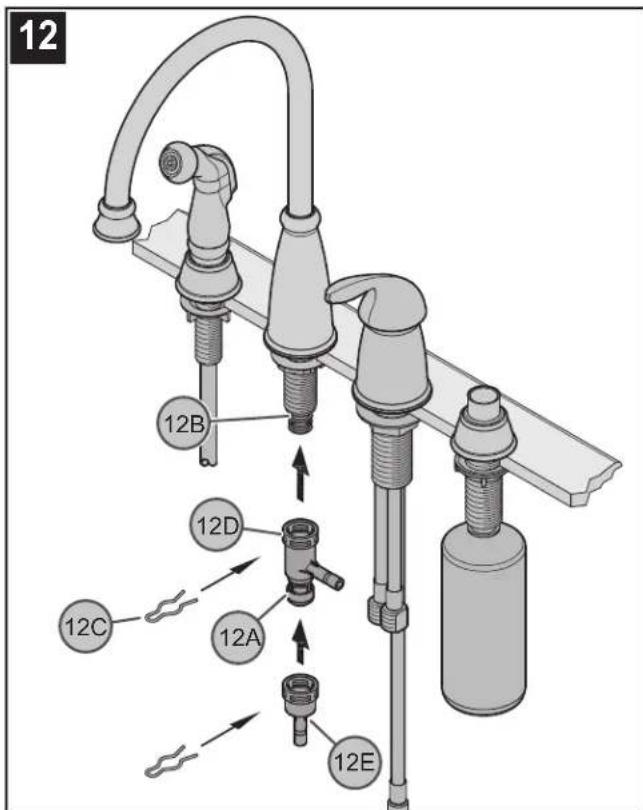

12 DIVERTER INSTALLATION

12 12B 12D 12C 12A 12E

Push Diverter Tee (12A) all the way up until completely seated onto Mounting Shank (12B). Slide Clip (12C) into Diverter Holes (12D), to secure unit. When installing without side spray, a One Way Connector (12E) 970-037 must be used and is to be ordered separately.
13 HOSE ATTACHMENTS

ENGLISH

13B 13D 13C 13A 13B 13D 13C 13A 13E 13E

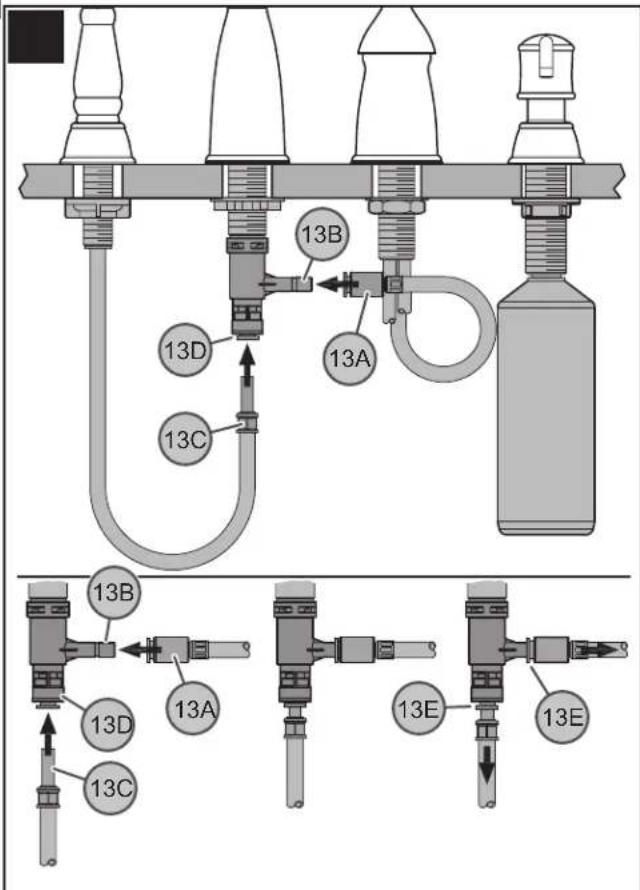

From underneath sink, push Outlet Hose Fitting (13A), firmly onto the Diverter Receiving Tube (13B) until unable to push any further. Connect Spray Hose Fitting (13C) into Diverter Outlet Collet (13D) until unable to push any further. Pull on connection Fittings (13A & 13C). If the Fittings (13A & 13C) and the Inner Collets (13E) separate slightly but do not pull off, the connections are secure.

14 SOAP DISPENSER INSTALLATION

14 14D 14B 14A 14C

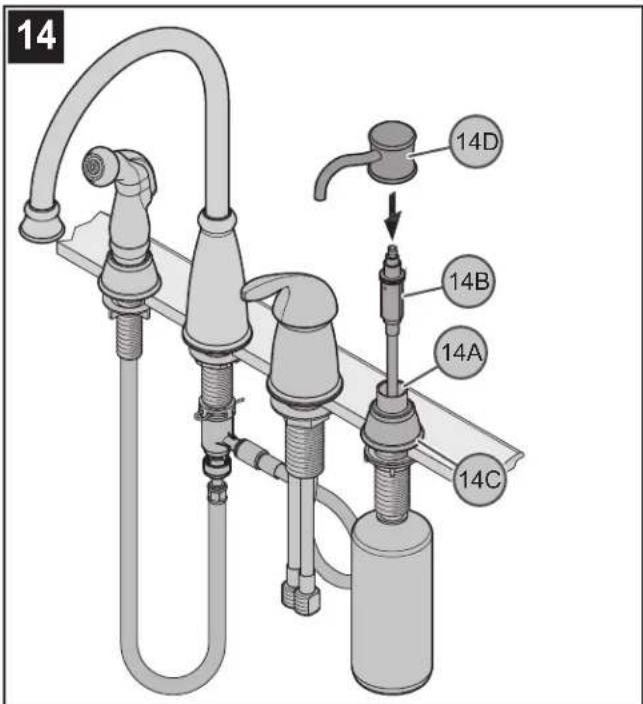

Pour in liquid soap (not included) into Guide Orifice (14A). Insert Pump Mechanism (14B) into Soap Dispenser Guide (14C). Install Dispenser Head (14D) by pushing firmly onto Pump Mechanism (14B).
15 WATER SUPPLY CONNECTIONS

15 15C 15B 15B HOT COLD 15A 15A ENGLISH

Connect water Supply Lines (15A) to Faucet Inlets (15B). Hot water supply line goes to hot inlet fitting indicated by Tag (15C). (Supply lines not included). Follow manufacturer's instructions when installing supply lines.

16 UNIT START UP

Illustration of a hand holding a mechanical component with a rotating arrow indicating rotation (no text or symbols)

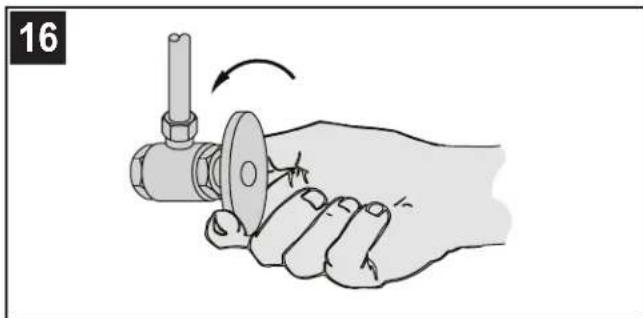

Turn on hot and cold water supplies, and check for leaks above and below the sink Note: After installation is complete, flush faucet (see step 21).

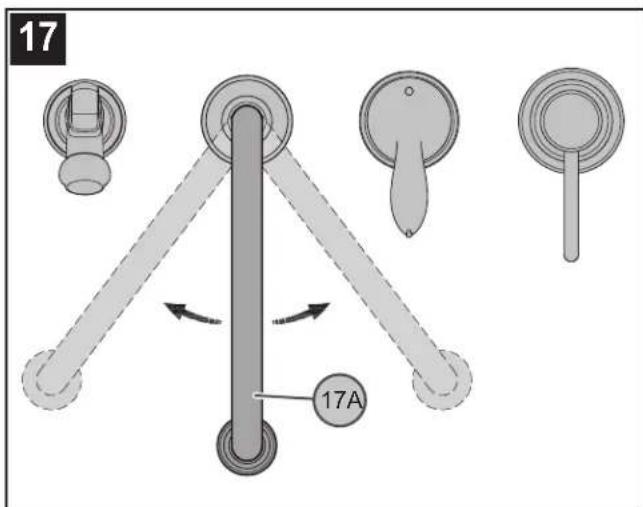

Spout (17A) can be rotated around the Faucet Body in any direction.

17 SPOUT FUNCTION

FAUCET FUNCTIONS

17 17A

18 VALVE FUNCTION

18 ON 18A HOT COLD 18A

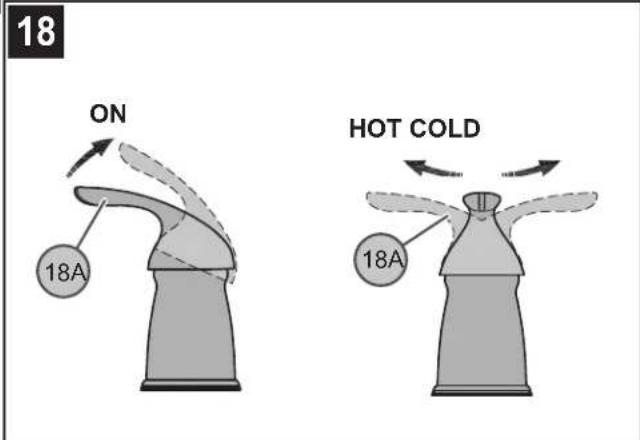

By lifting Lever Handle (18A) up, the valve will be activated allowing water to flow. The water flow will increase by continuing to lift up Lever Handle (18A). By rotating Lever Handle (18A) counterclockwise, the water temperature will decreased to fully cold. By rotating Lever Handle (18A) clockwise, the water temperature will increased to fully hot.

Side Spray (19A) can be pulled out to spray water in any direction. To activate the Side Spray (19A), press Toggle Button (19B) located on the back of Side Spray (19A).

To activate Soap Dispenser (20A), press Dispenser Head (20B) to dispense liquid soap.

21 FLUSHING & AERATOR CLEANING

MAINTENANCE & CARE

21 21A 21E 21D 21C 21B

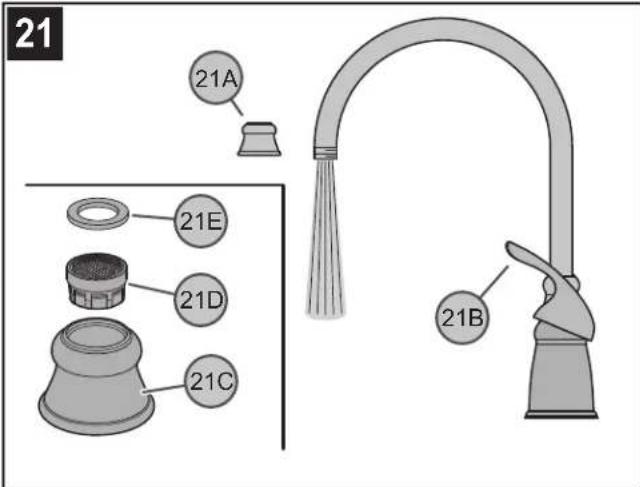

After installation is complete, remove Aerator Housing (21A). Turn Valve (21B) on and allow both hot and cold water to run for at least one minute each. While water is running, check for leaks. To clean the aerator, disassemble Aerator Housing (21A) by separating the Aerator Shell (21C), Basket (21D), and Washer (21E). Once parts have been cleaned, reassemble by reversing steps.

22 HANDLE REMOVAL


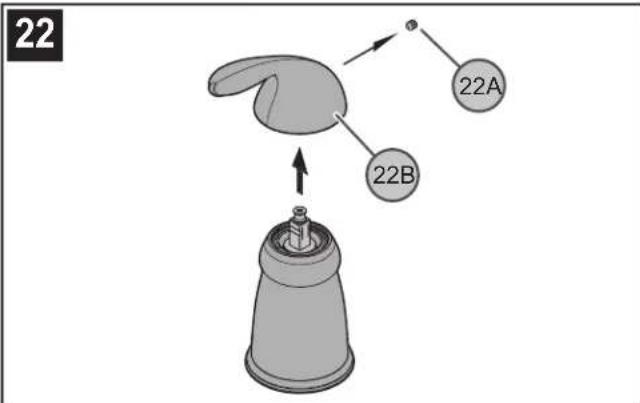

Using a 3/32" Allen wrench, loosen Set Screw (22A) and remove Handle (22B).

23 CARTRIDGE REMOVAL

Turn off water supplies and relieve pressure before working on your faucet.

23 23A 23B 23C

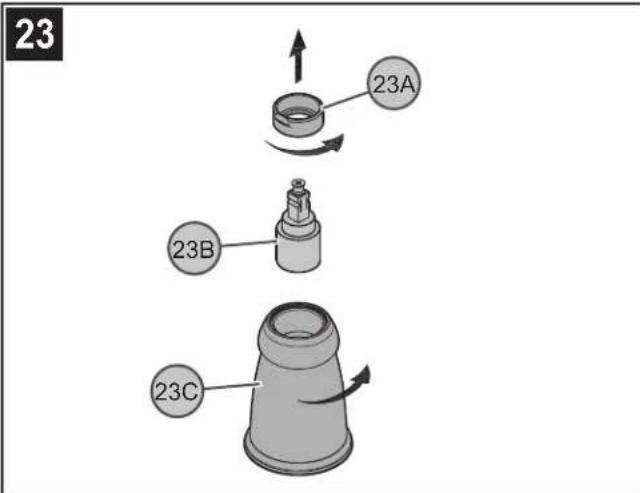

Remove handle (see figure 22). Remove Body (23C) by hand. Using pliers, unscrew the retainer ring (23A). Carefully remove the Cartridge (23B) by pulling it straight up and out. Reassemble valve by reversing steps.

24 HOSE REMOVAL

Turn off water supplies and relieve pressure.

ENGLISH

24

24F 24A 24C 24B 24C 24D 24F 24E

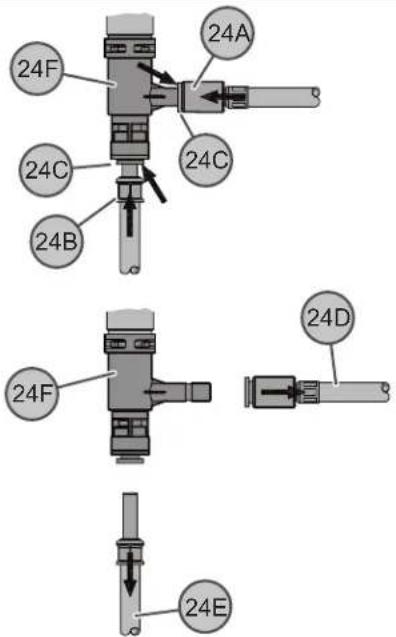

To remove hose attachments from Diverter Tee (24F), push on Connection Fittings (24A & 24B). Holding Plastic Collet (24C) in place, pull out on Connection Fittings (24A & 24B) until Hoses (24D & 24E) are free.

CAUTION: Maintenance

DISASSEMBLY

1. Replacement parts may be available at the store where you purchased your faucet.
2. When replacement parts are not available, please write or call Price Pfister Consumer Service.
3. Always turn off water and relieve pressure before working on your faucet.

NOTE: Trim Care

Cleaning Instructions:

For all Handles and decorative finishes, use only a soft damp cloth to clean and shine. Use of polish, detergents, abrasive cleaners, organic solvents or acid may cause damage. Use of other than a soft damp cloth will nullify our warranty! Special Trim:

Trim products which contain Porcelain or other similar substance are not acceptable for public areas or Commercial use. Installation of Said Trim is at Users Risk!

1-800-PFAUCET (1-800-732-8238)

For Toll-Free Pfaucet information call 1-800-PFAUCET (1-800-732-8238) or visit www.pricepfister.com

• Installation Support
• Care and Warranty Information

Hand holding a mechanical component with a rotating arrow indicating rotation (no text or symbols)

Illustration of six different tools and components: a paint can, screwdriver, pliers, wrench, flashlight, and fabric (no text or symbols)

4 A B C D H E K J F G

9 9A 9B 9C 9D

Illustration of a hand holding a mechanical component with a valve and shaft, no text or symbols present

Hand holding a mechanical component with a bolt and nut, showing a curved arrow indicating rotation (no text or symbols)

2 COUPURE DE L'ARRIVÉE D'EAU

Line drawings of six different tools and objects: a paint can, screwdriver, pliers, wrench, flashlight, and fabric (no text or symbols)

3 OUTILLAGE RECOMMANDÉ

•Mastic de plombier

•Tourmevis plat

•Pince

4 A B C D H E K J F G

4 VÉRIFICATION DU CONTENU DE LA BOÎTE

5 INSTALLATION DU CORPS DU BEC

6 FIXATION DU CORPS DU BEC

9 9A 9B 9C 9D

Illustration of a hand holding a mechanical component with a valve and shaft, no text or symbols present

FONCTIONNEMENT DES ROBINETS

17 17A
