USER MANUAL Digbeth DB200-210 Laney

Laney® DIGBETH® DB500H, DB200H & DB200-210

·DIGBETH·

DB500H, DB200H & DB200-210

Table of contents

ENGLISH 2

GERMAN....18

FRENCH.... 34

SPANISH....50

PORTUGUESE....66

KOREAN....82

CHINESE....98

WARNINGS.... 114

THE. NEW. STANDARD.

Bass is part of the Laney DNA. Founded in 1967 by Lyndon Laney – a bass player - the business was born with a bass in its hand.

The DIGBETH bass range is a celebration of this fact. Designed with a vintage aesthetic, harking back to the looks and sounds of the 60's & 70's, the DIGBETH takes vintage tone and looks, and combines it with ultra-modern functionality and British design and engineering.

Created for the bass player seeking a range of FET & TUBE tones not previously available in a compact, powerful and portable bass amp.

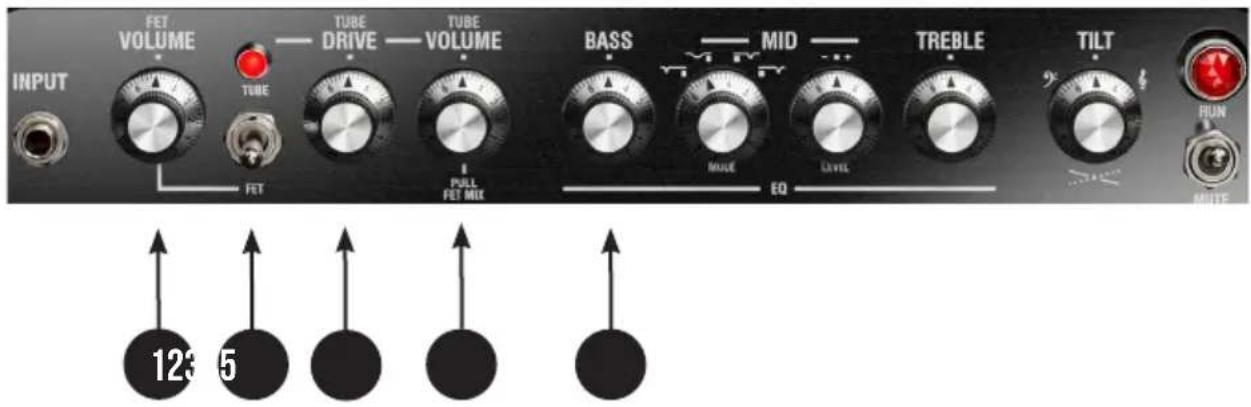

DB500H FEATURES

FET VOLUME TUBE DRIVE TUBE VOLUME BASS MID TREBLE TILT INPUT FET MULE LEVEL RUN PULL PET MIX EQ 123 5

1 - FET VOLUME – Controls the level of the FET Channel. This channel offers a clean, fast response which is articulate & punchy in the low end
2 - FET/TUBE SWITCH – Changes the selected channel between FET & TUBE.
3 - TUBE DRIVE – Sets the amount of pre-gain to the TUBE channel. At low settings the TUBE channel will have subtle amount of overdrive adding a characteristic warm sound. At higher settings the preamp into the TUBE channel is pushed harder, giving you more growl and distortion.
4 - TUBE VOLUME – Controls the post-gain level of the TUBE channel. Use it in conjunction with the TUBE drive control to get the perfect overdrive tone at the right volume. The TUBE Volume control can also be pulled to allow MIX both the TUBE & FET channel. This allows blending if the sonic benefits of both channels. Great for a clean tone with a small bit of grit or a distorted tone with super punchy bass!
5 - BASS – Increasing this control adds move low frequencies to the sound, great for increasing the sub. Decreasing this control cuts back low frequencies, useful to help reign in low end feedback or clean up a muddy sound. Set to 5 this control is by passed and doesn't affect sound.

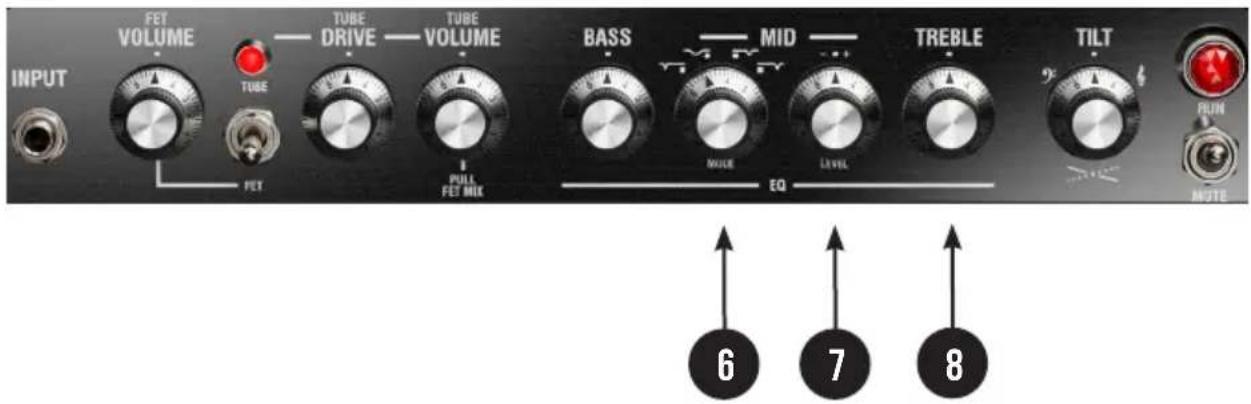

DB500H FEATURES

FET VOLUME TUBE DRIVE TUBE VOLUME BASS MID TREBLE TILT INPUT TUBE PULL FET MIX MULE LEVEL EQ 6 7 8 RUN NOTE

6 - MID MODE - A 4-position rotary switch – each position applies one of four different pre-shaped EQ sounds. The position selected works in conjunction with the MIDS PRESHAPE LEVEL (7) control.

Position 1 -> A narrow lower mid cut which is great for giving more definition to your bass when playing with a drummer. Pull it back to give space to the kick & snare, bring it up to push your bass in front of the drums.

Position 2 -> A wider mid-range control is great for bringing out the growl of you bass, very useful to give more bite to your distorted tones, or for cutting back and increasing mid-range clarity.

Position 3 -> A narrow mid-range setting, like in position 2, though more refined and less aggressive, good for scooping out your bass for a slap tone or increasing definition when playing distorted guitars.

Position 4 -> A upper mid setting, great to honing in on the pop of a bass or to cut back on fret noise.

7 - MID LEVEL – This control works in conjunction with the MID MODE control. Increasing the control boosts the set MID band, decreasing the control cuts the set MID band. Set to 5 this bypasses the mid control irrespective of the MID MODE setting.

8 - TREBLE - Boost the higher frequencies giving more top end clarity to the sound. Decrease the control to remove higher frequencies, good for a subby mellow sound.

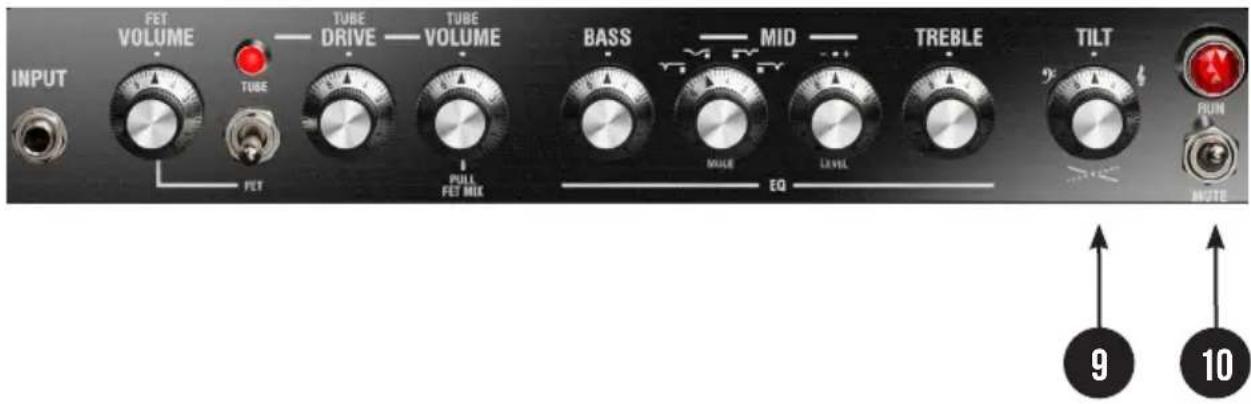

DB500H FEATURES

FET VOLUME TUBE DRIVE TUBE VOLUME BASS MID TREBLE TILT INPUT FET MULE LEVEL 9 10 MODE

9 - TILT - Works like an overall balance control of the tone. Turning toward the TREBLE clef will decrease lower frequencies and boost higher frequencies. Turning towards the BASS clef does the opposite. This control is perfect for fine tuning your overall tone and making sure your tone works in any situation.
10 - STANDYBY SWITCH – Works in conjunction with the power switch and switches the amp out of stand-by (MUTE) and into active mode (RUN). In stand-by (MUTE) mode the LED pulses to give you a visual reference that the amp is in stand-by (MUTE) mode.

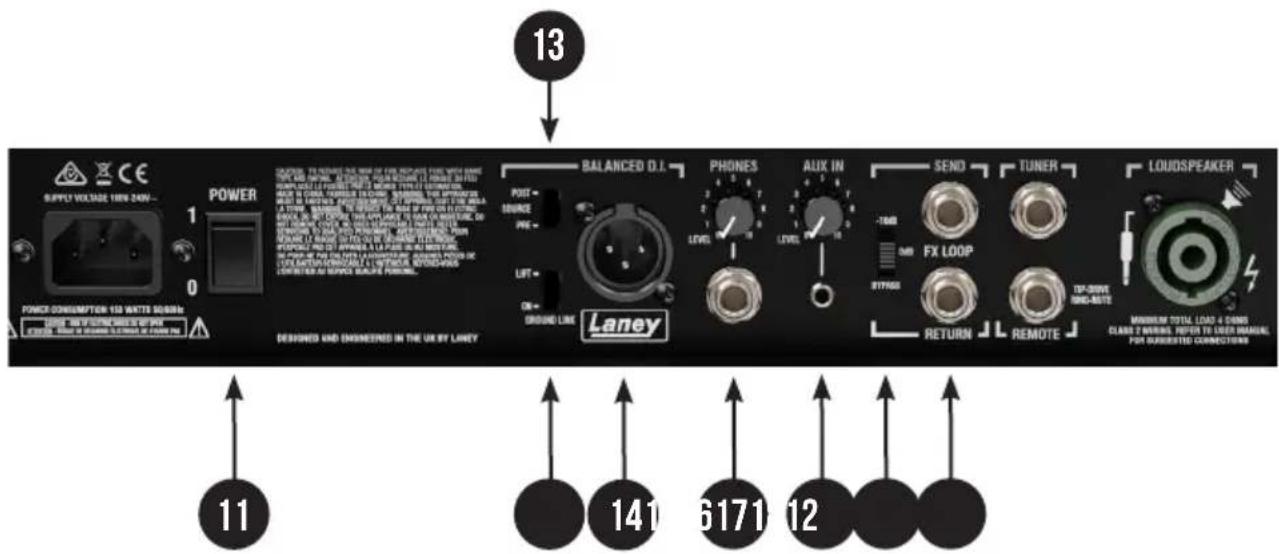

DB500H FEATURES

13 POWER SUPPLY VOLTAGE 100W 240V... 1 0 POWER CONSUMPTION 150 WATTE 50/80A LINE MODE/ORDER/ORDER EXIDE: START OF REACHING ORDER OF POWER BALANCED D.I. PHONES ALUX IN SEND TUNER LANEY LUT Ground Line LEVEL 1 2 3 4 5 6 7 8 9 10 11 141 6171 12 MAXIMUM TOTAL LOAD 4 CHADS CLASS 2 WORKS. REFER TO USER MANUAL FOR SUGGESTED CONNECTIONS

11 - POWER SWITCH - Switches the power to the AMP.
12 - GROUND LIFT – Provided to avoid any hum problems there may be when connecting the balanced D.I to external equipment such as mixing desks etc.
13 - SOURCE SWITCH - Selects the signal sent to the Balanced D.I. out. Can be set to PRE, only sending the input signal to the AMP, or POST sending the signal after the Preamp, EQ and TILT sections.
14 - XLR-Balanced D.I. Out – This is a balanced signal output for sending to external devices such as mixing desking, PA etc.
15 - PHONES SOCKET with Level Control – Connect headphones for monitoring or silent practice.
16 - AUX IN with Level Control – Provided for connecting an external sound source. Useful for jamming along with audio tracks.
17 - EFFECTS LOOP LEVEL - Selects the level at which the effects loops operates at. When using effects start with 0dB as the setting, but if your effects are HOT or start distorting set the switch to -10dB. When not using the EFFECTS loop is not in use, set the switch to bypass.
18 - FX LOOP SEND & RETURN - These sockets are used for connecting an external effects device to your amplifier. Use the send jack to connect to the input of your external device and use the return jack to connect the output of the external device to your amplifier.

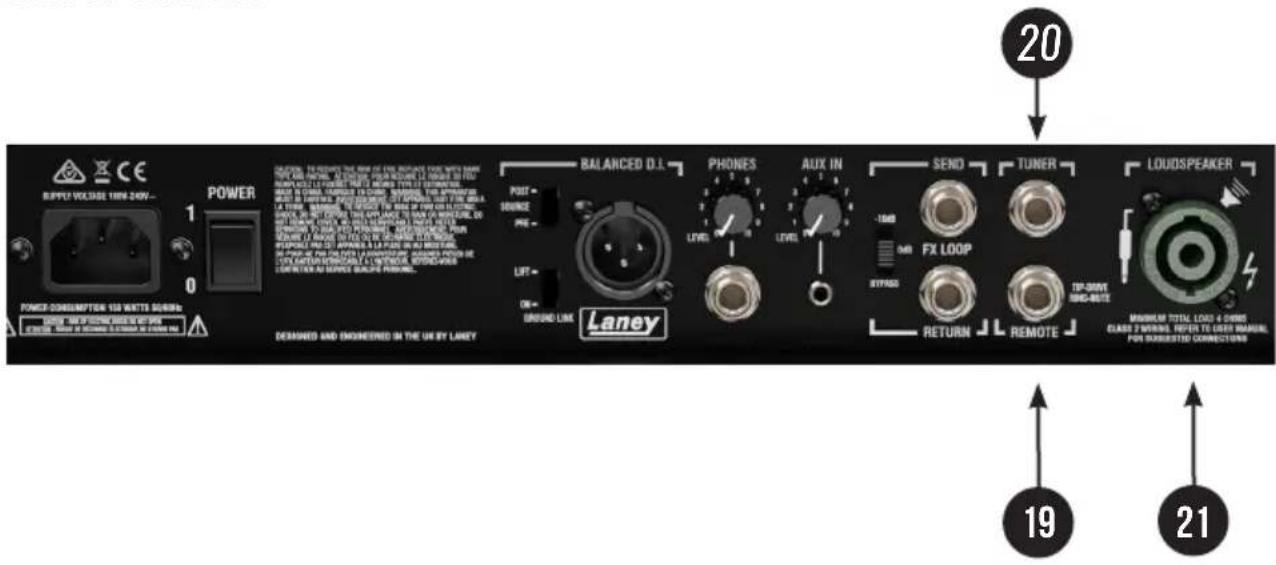

DB500H FEATURES

20 POWER 1 1 0 PONCE CONSUMPTION 150 WATTS SCRRB CLOSE: MAX/OPEN/MAX/OPEN J-20000, MOUNT OF SCRRB & CABBAGE IN CHINE PE DESIGNED AND ENCLOSED IN THE UR BY LANey BALANCED D.L. PHONES AUX IN SEND TUNER LOUDSPEAKER FX LOOP RETURN REMOTE MINIMUM TOTAL LOAD 4 ONNE GARST 2 WORKS. REFER TO ORDER MANUAL. FOR SUBSTOCK CONNECTIONS 19 21

19 - REMOTE SOCKET – Allows you to connect an external remote footswitch (FS2-MINI) for remote switching of TUBE DRIVE and MUTE.
20 - TUNER SOCKET - Plug your external tuning device in here. The signal is still sent to the tuner socket even when the unit is in MUTE mode allowing silent tuning.
21 – COMBI Socket – Speakon NL2 compatible twist lock and 6.3mm jack. Provided to connect your external cabinet. Please make sure the total cabinet impedance is no less than 4 Ohms i.e. you can use a single 4 Ohm rated cabinet or 2 x 8 Ohm rated cabinets may be used.

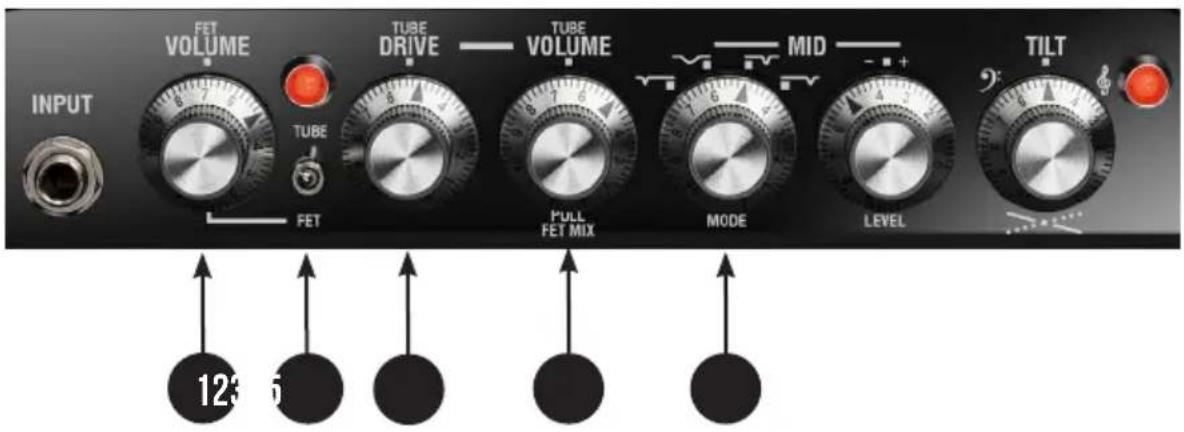

DB200H/DB200-210 FEATURES

FET VOLUME TUBE DRIVE TUBE VOLUME MID TILT INPUT FET PULL FET MIX MODE LEVEL 123 5

1 - FET VOLUME – Controls the level of the FET Channel. This channel offers a clean, fast response which is articulate & punchy in the low end
2 - FET/TUBE SWITCH – Changes the selected channel between FET & TUBE.
3 - TUBE DRIVE – Sets the amount of pre-gain to the TUBE channel. At low settings the TUBE channel will have subtle amount of overdrive adding a characteristic warm sound. At higher settings the preamp into the TUBE channel is pushed harder, giving you more growl and distortion.
4 - TUBE VOLUME – Controls the post-gain level of the TUBE channel. Use it in conjunction with the TUBE drive control to get the perfect overdrive tone at the right volume. The TUBE Volume control can also be pulled to allow MIX both the TUBE & FET channel. This allows blending if the sonic benefits of both channels. Great for a clean tone with a small bit of grit or a distorted tone with super punchy bass!
5 - MID MODE - A 4-position rotary switch – each position applies one of four different pre-shaped EQ sounds. The position selected works in conjunction with the MIDS PRESHAPE LEVEL (6) control.

Position 1 -> A narrow lower mid cut which is great for giving more definition to your bass when playing with a drummer. Pull it back to give space to the kick & snare, bring it up to push your bass in front of the drums.

Position 2 -> A wider mid-range control is great for bringing out the growl of you bass, very useful to give more bite to your distorted tones, or for cutting back and increasing mid-range clarity.

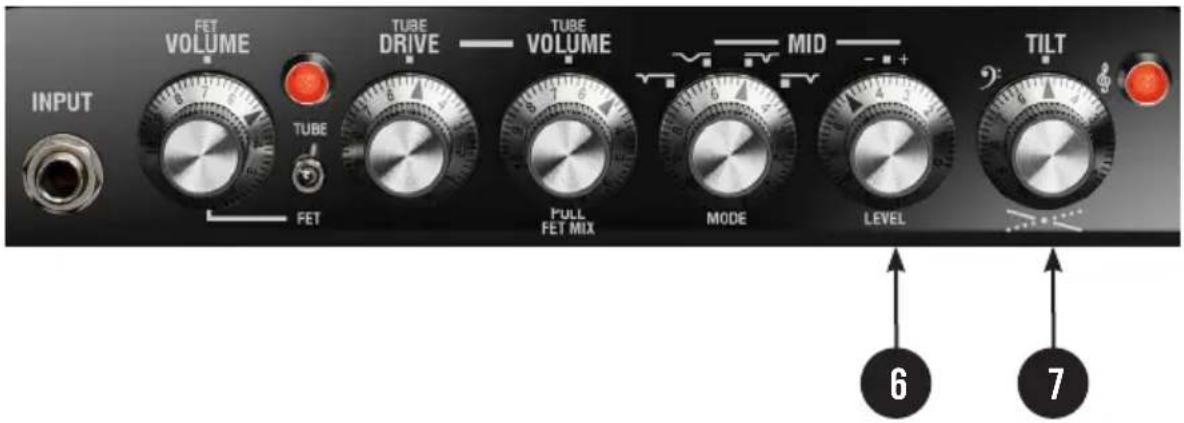

DB200H/DB200-210 FEATURES

FET VOLUME TUBE DRIVE TUBE VOLUME MID TILT INPUT FET FULL FET MIX MODE LEVEL 6 7

Position 3 -> A narrow mid-range setting, like in position 2, though more refined and less aggressive, good for scooping out your bass for a slap tone or increasing definition when playing distorted guitars.

Position 4 -> A upper mid setting, great to honing in on the pop of a bass or to cut back on fret noise.

6 - MID LEVEL – This control works in conjunction with the MID MODE control. Increasing the control boosts the set MID band, decreasing the control cuts the set MID band. Set to 5 this bypasses the mid control irrespective of the MID MODE setting.
7 - TILT - Works like an overall balance control of the tone. Turning toward the TREBLE clef will decrease lower frequencies and boost higher frequencies. Turning towards the BASS clef does the opposite. This control is perfect for fine tuning your overall tone and making sure your tone works in any situation.

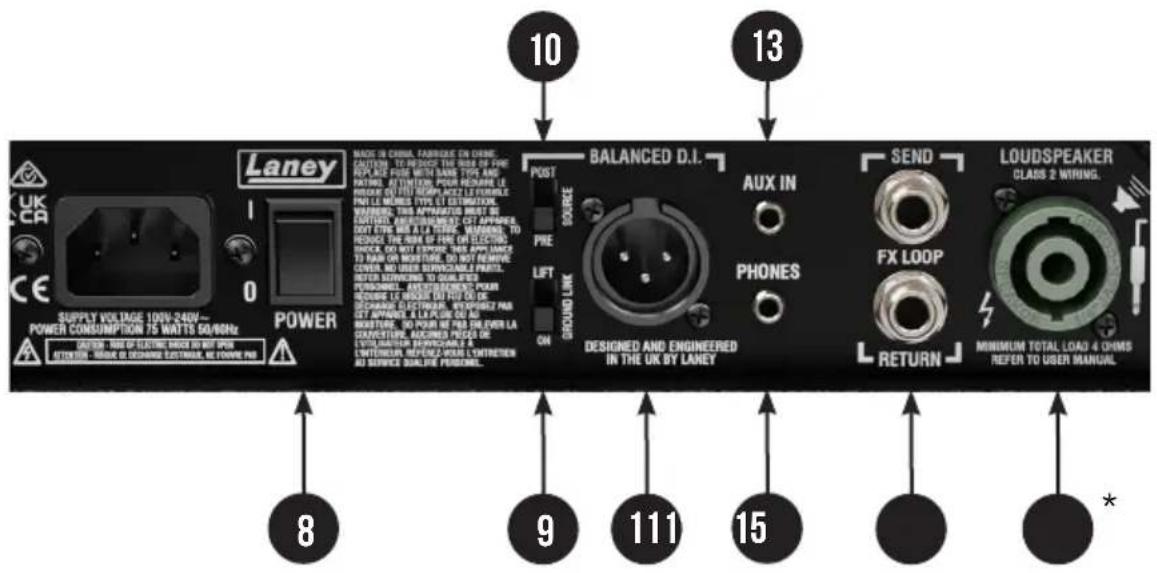

DB200H/DB200-210 FEATURES

10 13 8 9 111 15 *

8 - POWER SWITCH - Switches the power to the AMP.
9 - GROUND LIFT – Provided to avoid any hum problems there may be when connecting the balanced D.I to external equipment such as mixing desks etc.
10 - SOURCE SWITCH - Selects the signal sent to the Balanced D.I. out. Can be set to PRE, only sending the input signal to the AMP, or POST sending the signal after the Preamp, EQ and TILT sections.
11 - XLR-Balanced D.I. Out-XLR-Balanced D.I. Out-This is a balanced signal output for sending to external devices such as mixing desking, PA etc.
12 - PHONES SOCKET – Connecting headphones for monitoring or silent practice.
13 - AUX IN – Provided for connecting an external sound source. Useful for jamming along with audio tracks.
14 - FX LOOP SEND & RETURN - These sockets are used for connecting an external effects device to your amplifier. Use the send jack to connect to the input of your external device and use the return jack to connect the output of the external device to your amplifier.
15 – COMBI Socket – Speakon NL2 compatible twist lock and 6.3mm jack. Provided to connect your external cabinet. Please make sure the total cabinet impedance is no less than 4 ohms i.e. you can use a single 4 Ohm rated cabinet or 2 x 8 Ohm rated cabinets may be used. *Not present on the DB200-210.

Technical Specifications

DB500H
Product	BASS Amplifier Power		500	Watts	RMS
Channels	FET & TUBE Features		FET	Volume
		TUBE	Drive
		TUBE	Volume
		Bass
		Mid	Preshape
		Mid	Preshape	Level
		Treble
		TILT
		DI	OUT	Pre/Post
		Ground	Lift
		Phones	with	Level
		Aux	in	with	Level
		FX	loop	send
		FX	Loop	Return
		Tuner
		Footswitch	socket	(FS2-MINI)
		External	Speaker	socket
	Unit	Size/mm	205x420x220	(HxWxD)
Unit Weight	7.1 Kg
	Carton	Size/mm	280x585x310	(HxWxD)
Packed Weight	11 Kg
Mains Voltage	100-240V Universal power supply
Power Consumption	150W

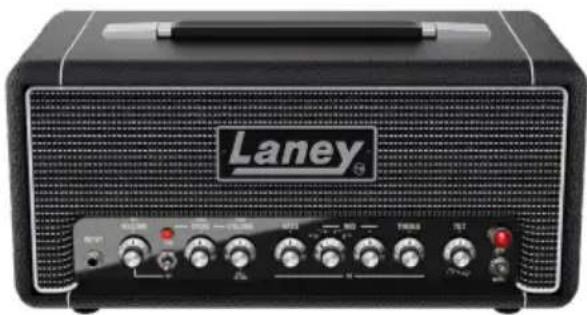

Front view of a black Laney audio amplifier with visible knobs and control buttons (no readable text beyond brand name)

DB500H

In the interest of continued product development, Laney reserve the right to amend product specification without prior notice

Technical Specifications

DB200H
Product	BASS Amplifier Power		200	Watts	RMS
Channels	FET & TUBE Features		FET	Volume
		TUBE	Drive
		TUBE	Volume
		Mid	Preshape
		Mid	Preshape	Level
		TILT
		DI	OUT	Pre/Post
		Ground	Lift
		Phones
		Aux	in
		FX	loop	send
		FX	Loop	Return
		External	Speaker	socket (HxWxD)
	Unit	Size/mm	180x300x207
Unit Weight	4.1 Kg
	Carton	Size/mm	235x470x300		(HxWxD)
Packed Weight	6.5 Kg
Mains Voltage	100-240V~ Universal power supply
Power Consumption	75W

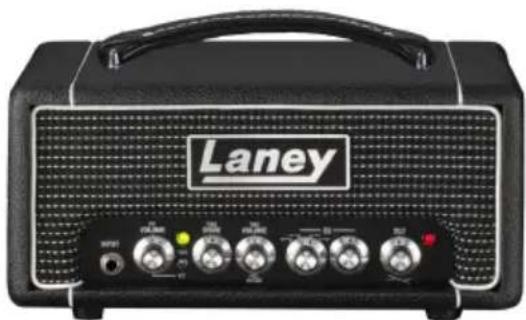

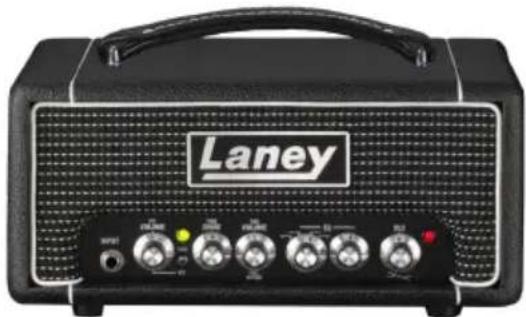

Front view of a black Laney audio amplifier with visible knobs and grille (no text or symbols on body)

DB200H

In the interest of continued product development, Laney reserve the right to amend product specification without prior notice

Technical Specifications

DB200-210
Product	BASS COMBO Amplifier
	Power		200	Watts	RMS
Channels	FET & TUBE Features		FET	Volume
			TUBE	Drive
			TUBE	Volume
			Mid	Preshape
			Mid	Preshape	Level
			TILT
			DI	OUT	Pre/Post
			Ground	Lift
			Phones
			Aux	in
			FX	loop	send
			FX	Loop	Return
			2x10”	HH	Blue
			Lavoce	DF10.10L	1” Comp (HxWxD)
	Unit	Size/mm		580x440x325
Unit Weight	18.5 Kg
	Carton	Size/mm		645x535x420	(HxWxD)
Packed Weight	22.5 Kg
Mains Voltage	100-240V~ Universal power supply
Power Consumption	75W

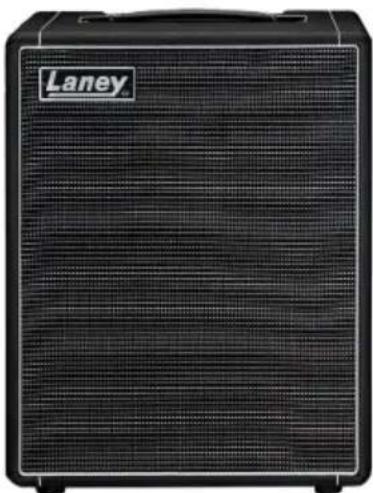

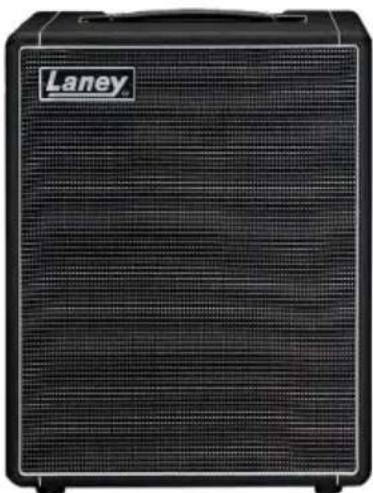

Black and white photo of a Laney audio amplifier (no visible text or symbols on body)

DB200-210

In the interest of continued product development, Laney reserve the right to amend product specification without prior notice

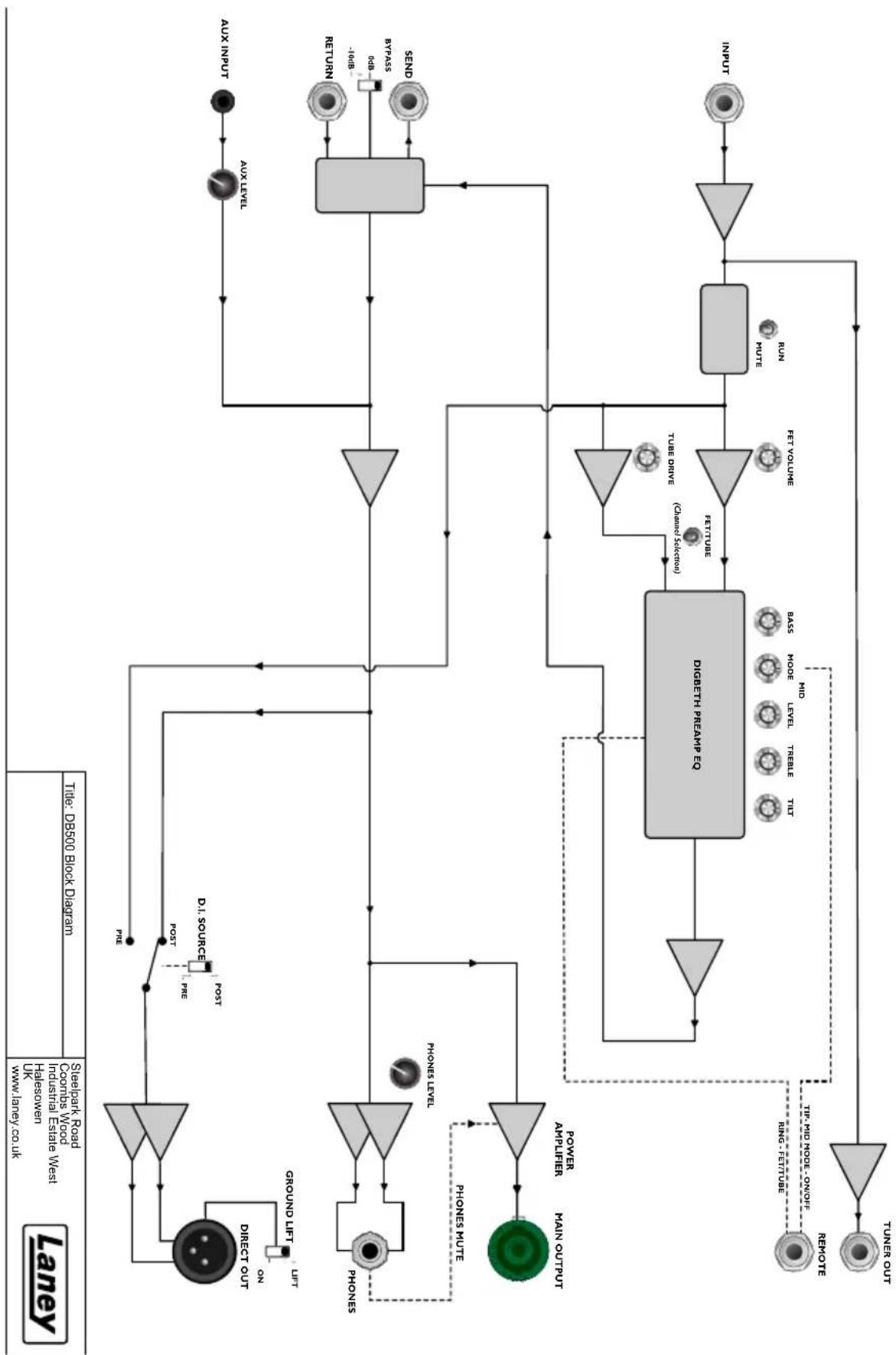


	Steelpark Road Coombus Wood Industrial Estate West UKHALSOHEN Halseothen

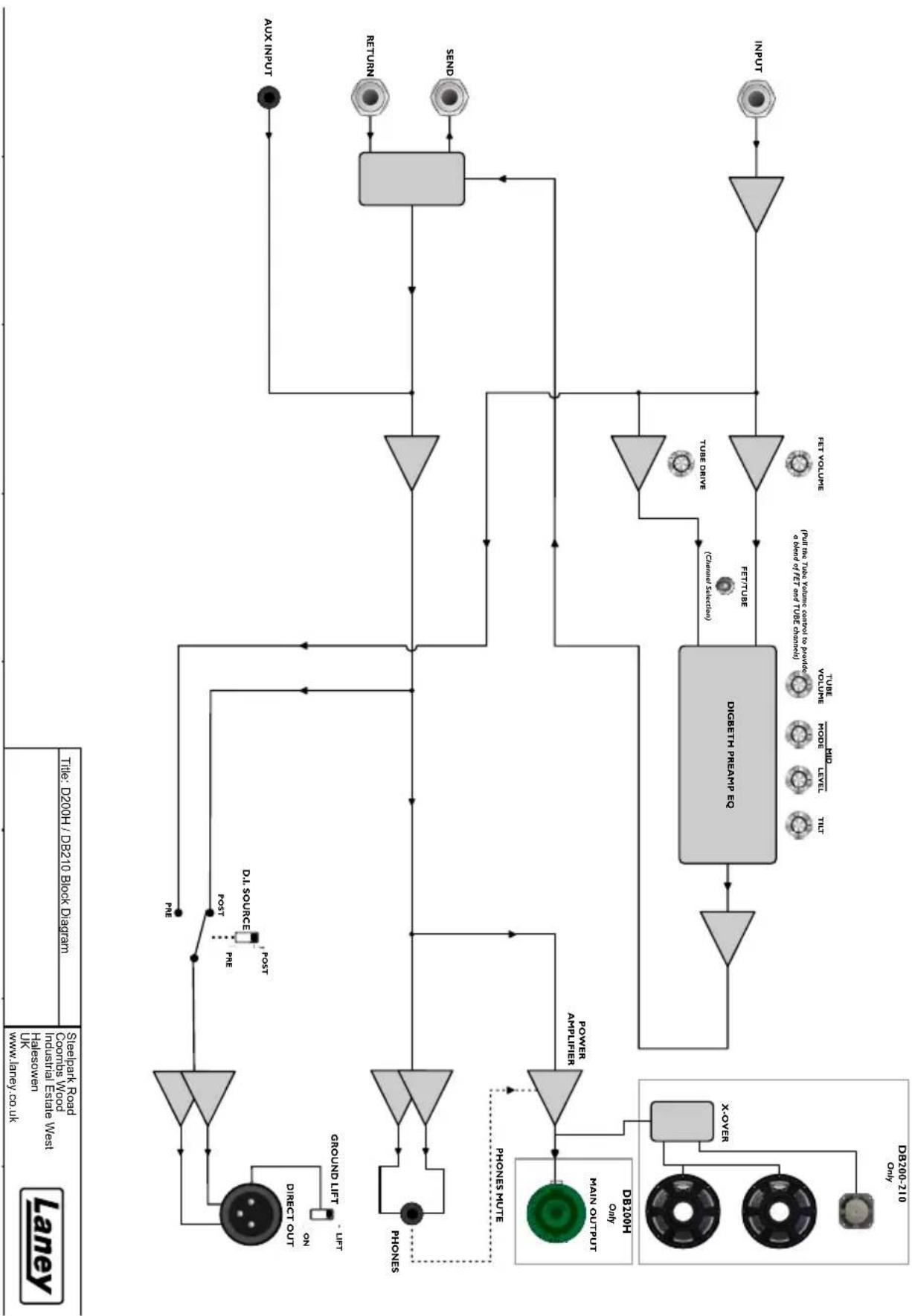

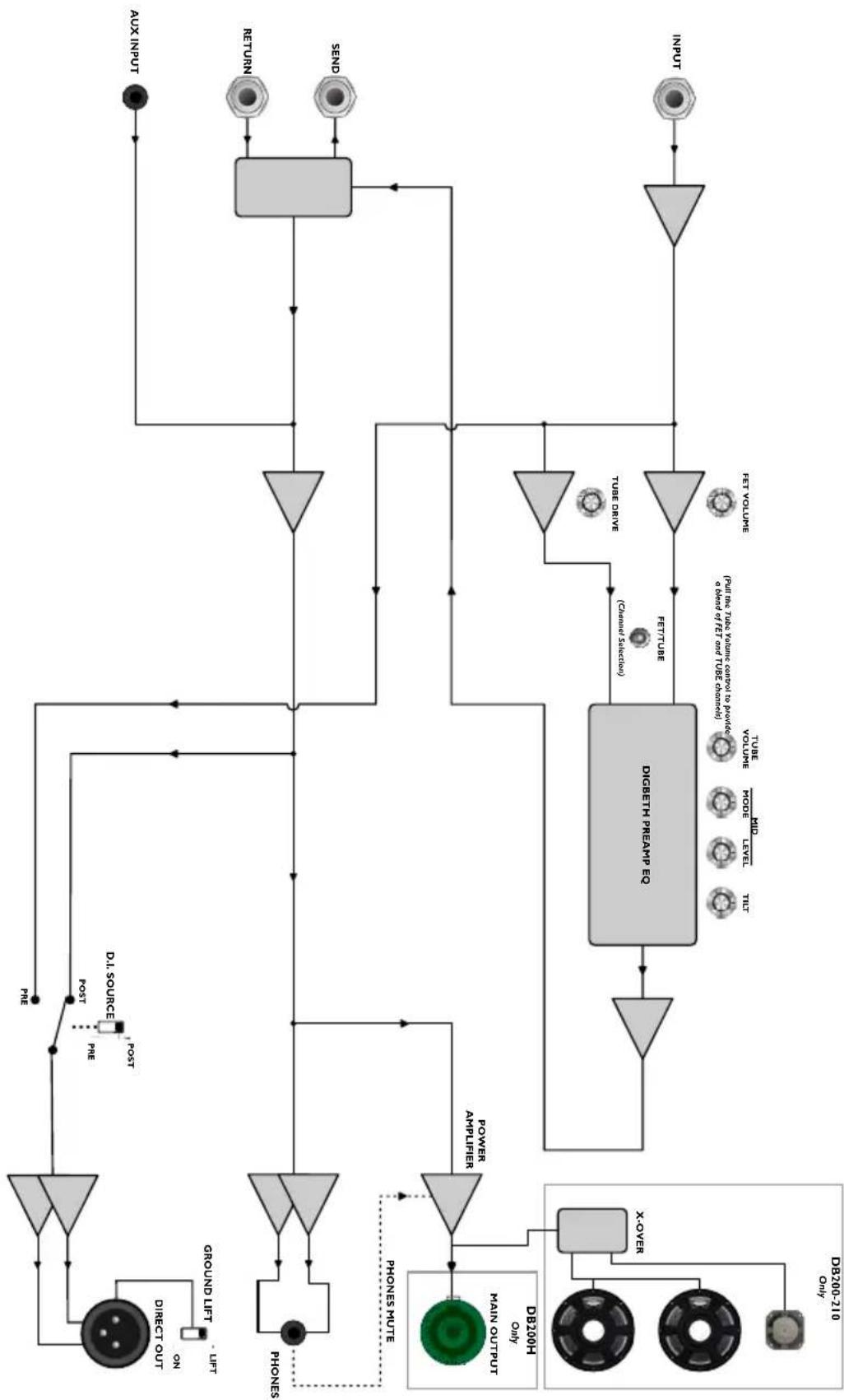

Title: D200H / DB210 Block Diagram

Laney® DIGBETH® DB500H, DB200H & DB200-210

·DIGBETH·

DB500H, DB200H & DB200-210

THE. NEW. STANDARD.

Technical Specifications

DB500H
Product	BASS Amplifier Power		500	Watts	RMS
Channels	FET & TUBE Features		FET	Volume
		TUBE	Drive
		TUBE	Volume
		Bass
		Mid	Preshape
		Mid	Preshape	Level
		Treble
		TILT
		DI	OUT	Pre/Post
		Ground	Lift
		Phones	with	Level
		Aux	in	with	Level
		FX	loop	send
		FX	Loop	Return
		Tuner
		Footswitch	socket	(FS2-MINI)
		External	Speaker	socket
	Unit	Size/mm	205x420x220	(HxWxD)
Unit Weight	7.1 Kg
	Carton	Size/mm	280x585x310	(HxWxD)
Packed Weight	11 Kg
Mains Voltage	100-240V Universal power supply
Power Consumption	150W

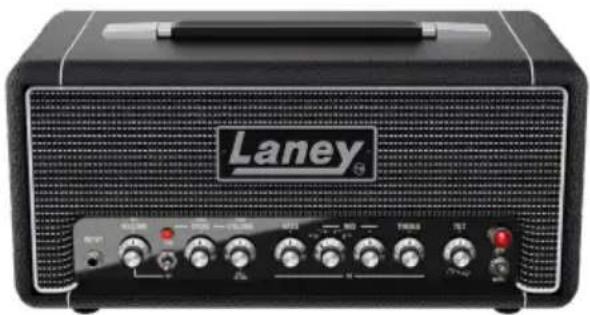

Front view of a black Laney audio amplifier with visible knobs and control buttons (no readable text beyond brand logo)

DB500H

In the interest of continued product development, Laney reserve the right to amend product specification without prior notice

Technical Specifications

DB200H
Product	BASS Amplifier Power		200	Watts	RMS
Channels	FET & TUBE Features		FET	Volume
		TUBE	Drive
		TUBE	Volume
		Mid	Preshape
		Mid	Preshape	Level
		TILT
		DI	OUT	Pre/Post
		Ground	Lift
		Phones
		Aux	in
		FX	loop	send
		FX	Loop	Return
		External	Speaker	socket (HxWxD)
	Unit	Size/mm	180x300x207
Unit Weight	4.1 Kg
	Carton	Size/mm	235x470x300		(HxWxD)
Packed Weight	6.5 Kg
Mains Voltage	100-240V~ Universal power supply
Power Consumption	75W

Front view of a black Laney audio amplifier with visible buttons and grille (no text or symbols on body)

DB200H

In the interest of continued product development, Laney reserve the right to amend product specification without prior notice

Technical Specifications

DB200-210
Product	BASS COMBO Amplifier
	Power		200	Watts	RMS
Channels	FET & TUBE Features		FET	Volume
			TUBE	Drive
			TUBE	Volume
			Mid	Preshape
			Mid	Preshape	Level
			TILT
			DI	OUT	Pre/Post
			Ground	Lift
			Phones
			Aux	in
			FX	loop	send
			FX	Loop	Return
			2x10”	HH	Blue
			Lavoce	DF10.10L	1” Comp (HxWxD)
	Unit	Size/mm		580x440x325
Unit Weight	18.5 Kg
	Carton	Size/mm		645x535x420	(HxWxD)
Packed Weight	22.5 Kg
Mains Voltage	100-240V~ Universal power supply
Power Consumption	75W

Black Laney audio amplifier with mesh grille and label (no visible text beyond logo)

DB200-210

In the interest of continued product development, Laney reserve the right to amend product specification without prior notice

Digital logic system flowchart for a stereo audio device, showing signal paths from input to output with key components like DIBETH PRAPM EQ, AUX INPUT, and AUX Level.

Laney® DIGBETH® DB500H, DB200H & DB200-210

·DIGBETH·

DB500H, DB200H & DB200-210

LE NOUVEAU STANDARD

FET VOLUME TUBE DRIVE TUBE VOLUME BASS MID TREBLE TILT INPUT FET MUTE EQ RUN MUTE 123 5

Front view of a black Laney audio amplifier with visible knobs and control buttons (no readable text beyond brand name)

DB500H

Black Laney audio amplifier front panel with control knobs and speaker grille (no visible text or symbols on body)

DB200H

Black Laney audio amplifier with mesh grille and label (no visible text beyond logo)

DB200-210

FET VOLUME TUBE DRIVE TUBE VOLUME BASS MID TREBLE TILT INPUT TUBE PULL FET MILK EQ RUN MUTE 6 7 8

Technical Specifications

DB500H
Product	BASS Amplifier Power		500	Watts	RMS
Channels	FET & TUBE Features		FET	Volume
		TUBE	Drive
		TUBE	Volume
		Bass
		Mid	Preshape
		Mid	Preshape	Level
		Treble
		TILT
		DI	OUT	Pre/Post
		Ground	Lift
		Phones	with	Level
		Aux	in	with	Level
		FX	loop	send
		FX	Loop	Return
		Tuner
		Footswitch	socket	(FS2-MINI)
		External	Speaker	socket
	Unit	Size/mm	205x420x220	(HxWxD)
Unit Weight	7.1 Kg
	Carton	Size/mm	280x585x310	(HxWxD)
Packed Weight	11 Kg
Mains Voltage	100-240V Universal power supply
Power Consumption	150W

Front view of a black Laney audio amplifier with visible knobs and control buttons (no readable text beyond brand name)

DB500H

In the interest of continued product development, Laney reserve the right to amend product specification without prior notice

Technical Specifications

DB200H
Product	BASS Amplifier Power		200	Watts	RMS
Channels	FET & TUBE Features		FET	Volume
		TUBE	Drive
		TUBE	Volume
		Mid	Preshape
		Mid	Preshape	Level
		TILT
		DI	OUT	Pre/Post
		Ground	Lift
		Phones
		Aux	in
		FX	loop	send
		FX	Loop	Return
		External	Speaker	socket (HxWxD)
	Unit	Size/mm	180x300x207
Unit Weight	4.1 Kg
	Carton	Size/mm	235x470x300		(HxWxD)
Packed Weight	6.5 Kg
Mains Voltage	100-240V~ Universal power supply
Power Consumption	75W

Front view of a black Laney audio amplifier with visible buttons and grille (no text or symbols on body)

DB200H

In the interest of continued product development, Laney reserve the right to amend product specification without prior notice

Technical Specifications

DB200-210
Product	BASS COMBO Amplifier
	Power		200	Watts	RMS
Channels	FET & TUBE Features		FET	Volume
			TUBE	Drive
			TUBE	Volume
			Mid	Preshape
			Mid	Preshape	Level
			TILT
			DI	OUT	Pre/Post
			Ground	Lift
			Phones
			Aux	in
			FX	loop	send
			FX	Loop	Return
			2x10”	HH	Blue
			Lavoce	DF10.10L	1” Comp (HxWxD)
	Unit	Size/mm		580x440x325
Unit Weight	18.5 Kg
	Carton	Size/mm		645x535x420	(HxWxD)
Packed Weight	22.5 Kg
Mains Voltage	100-240V~ Universal power supply
Power Consumption	75W

Black Laney audio amplifier with mesh grille and label (no visible text beyond logo)

DB200-210

In the interest of continued product development, Laney reserve the right to amend product specification without prior notice

Laney® DIGBETH® DB500H, DB200H & DB200-210

·DIGBETH·

DB500H, DB200H & DB200-210

O NOVO PADRÃO.

FET VOLUME TUBE DRIVE TUBE VOLUME BASS MID TREBLE TILT INPUT TUBE PULL FET MILK EQ RUN MUTE 6 7 8

Technical Specifications

DB500H
Product	BASS Amplifier Power		500	Watts	RMS
Channels	FET & TUBE Features		FET	Volume
		TUBE	Drive
		TUBE	Volume
		Bass
		Mid	Preshape
		Mid	Preshape	Level
		Treble
		TILT
		DI	OUT	Pre/Post
		Ground	Lift
		Phones	with	Level
		Aux	in	with	Level
		FX	loop	send
		FX	Loop	Return
		Tuner
		Footswitch	socket	(FS2-MINI)
		External	Speaker	socket
	Unit	Size/mm	205x420x220	(HxWxD)
Unit Weight	7.1 Kg
	Carton	Size/mm	280x585x310	(HxWxD)
Packed Weight	11 Kg
Mains Voltage	100-240V Universal power supply
Power Consumption	150W

Front view of a black Laney audio amplifier with visible knobs and control buttons (no readable text beyond brand name)

DB500H

In the interest of continued product development, Laney reserve the right to amend product specification without prior notice

Technical Specifications

DB200H
Product	BASS Amplifier Power		200	Watts	RMS
Channels	FET & TUBE Features		FET	Volume
		TUBE	Drive
		TUBE	Volume
		Mid	Preshape
		Mid	Preshape	Level
		TILT
		DI	OUT	Pre/Post
		Ground	Lift
		Phones
		Aux	in
		FX	loop	send
		FX	Loop	Return
		External	Speaker	socket (HxWxD)
	Unit	Size/mm	180x300x207
Unit Weight	4.1 Kg
	Carton	Size/mm	235x470x300		(HxWxD)
Packed Weight	6.5 Kg
Mains Voltage	100-240V~ Universal power supply
Power Consumption	75W

Front view of a black Laney audio amplifier with visible buttons and grille (no text or symbols on body)

DB200H

In the interest of continued product development, Laney reserve the right to amend product specification without prior notice

Technical Specifications

DB200-210
Product	BASS COMBO Amplifier
	Power		200	Watts	RMS
Channels	FET & TUBE Features		FET	Volume
			TUBE	Drive
			TUBE	Volume
			Mid	Preshape
			Mid	Preshape	Level
			TILT
			DI	OUT	Pre/Post
			Ground	Lift
			Phones
			Aux	in
			FX	loop	send
			FX	Loop	Return
			2x10”	HH	Blue
			Lavoce	DF10.10L	1” Comp (HxWxD)
	Unit	Size/mm		580x440x325
Unit Weight	18.5 Kg
	Carton	Size/mm		645x535x420	(HxWxD)
Packed Weight	22.5 Kg
Mains Voltage	100-240V~ Universal power supply
Power Consumption	75W

Black Laney audio amplifier with mesh grille and label (no visible text beyond logo)

DB200-210

In the interest of continued product development, Laney reserve the right to amend product specification without prior notice

Laney® DIGBETH® DB500H, DB200H & DB200-210

·DIGBETH·

DB500H, DB200H & DB200-210

새로운 기준

FET VOLUME TUBE DRIVE TUBE VOLUME BASS MID TREBLE TILT INPUT TUBE PULL FET MILK EQ RUN MUTE 6 7 8

Technical Specifications

DB500H

Product BASS Amplifier

Power 500 Watts RMS

Channels FET & TUBE

Features FET Volume

TUBE Drive

TUBE Volume

B a s s

Mid Preshape

Mid Preshape Level

Treble

T I L T

DI OUT Pre/Post

Ground Lift

Phones with Level

Aux in with Level

FX loop send

FX Loop Return

T u n e r

Footswitch socket (FS2-MINI)

External Speaker socket

Unit Size/mm 205x420x220 (HxWxD)

Unit Weight 7.1 Kg

Carton Size/mm 280x585x310 (HxWxD)

Packed Weight 11 Kg

Mains Voltage 100-240V Universal power supply

Power Consumption 150W

Front view of a black Laney audio amplifier with visible knobs and control buttons (no readable text beyond brand name)

DB500H

In the interest of continued product development, Laney reserve the right to amend product specification without prior notice

Technical Specifications

DB200H

Product BASS Amplifier

Power 200 Watts RMS

Channels FET & TUBE

Features FET Volume

TUBE Drive

TUBE Volume

Mid Preshape

Mid Preshape Level

T I L T

DI OUT Pre/Post

Ground Lift

Phones

A u x i n

FX loop send

FX Loop Return

External Speaker socket

Unit Size/mm 180x300x207 (HxWxD)

Unit Weight 4.1 Kg

Carton Size/mm 235x470x300 (HxWxD)

Packed Weight 6.5 Kg

Mains Voltage 100-240V\~ Universal power supply

Power Consumption 75W

Front view of a black Laney audio amplifier with visible buttons and grille (no text or symbols on body)

DB200H

In the interest of continued product development, Laney reserve the right to amend product specification without prior notice

Technical Specifications

DB200-210

Product BASS COMBO Amplifier

Power 200 Watts RMS

Channels FET & TUBE

Features FET Volume

TUBE Drive

TUBE Volume

Mid Preshape

Mid Preshape Level

T I L T

DI OUT Pre/Post

Ground Lift

Phones

Aux in

FX loop send

FX Loop Return

2x10" HH Blue 25038-8.

Lavoce DF10.10L 1" Compression driver

Unit Size/mm 580x440x325 (HxWxD)

Unit Weight 18.5 Kg

Carton Size/mm 645x535x420 (HxWxD)

Packed Weight 22.5 Kg

Mains Voltage 100-240V\~ Universal power supply

Power Consumption 75W

Black Laney audio amplifier with mesh grille and label (no visible text beyond logo)

DB200-210

In the interest of continued product development, Laney reserve the right to amend product specification without prior notice

Laney® DIGBETH DB500H, DB200H & DB200-210

·DIGBETH·

DB500H, DB200H & DB200-210

这是新的标准

INPUT VOLUME TUBE TUBE DRIVE VOLUME MID TILT 1 2 3 4 5

In order to take full advantage of your new product and enjoy long and trouble-free performance, please read this owner's manual carefully, and keep it in a safe place for future reference.

1) Unpacking: On unpacking your product please check carefully for any signs of damage that may have occurred whilst in transit from the Laney factory to your dealer. In the unlikely event that there has been damage, please re-pack your unit in its original carton and consult your dealer. We strongly advise you to keep your original transit carton, since in the unlikely event that your unit should develop a fault, you will be able to return it to you dealer for rectification securely packed.

2) Amplifier Connection: In order to avoid damage, it is advisable to establish and follow a pattern for turning on and off your system. With all system parts connected, turn on source equipment, tape decks, cd players, mixers, effects processors etc, BEFORE turning on your amplifier. Many products have large transient surges at turn on and off which can cause damage to your speakers. By turning on your bass amplifier LAST and making sure its level control is set to a minimum, any transients from other equipment should not reach your loud speakers. Wait till all system parts have stabilised, usually a couple of seconds. Similarly when turning off your system always turn down the level controls on your bass amplifier and then turn off its power before turning off other equipment.

3) Cables: Never use shielded or microphone cable for any speaker connections as this will not be substantial enough to handle the amplifier load and could cause damage to your complete system.

4) Servicing: The user should not attempt to service these products. Refer all servicing to qualified service personnel.

	Intended to alert the user to the presence of uninsulated ‘Dangerous Voltage’ within the products enclosure that may be sufficient to constitute a risk of electrical shock to persons.Ce symbole est utilise pur indiquer a l'utilisateur de ce produit de tension non-isolee dangereuse pouvant etre d'intensite suffisante pour constituer un risque de choc electrique.Este simbolo tiene el proposito de alertar al usuario de la presencia de ‘(voltaje) peligroso’ que no tiene aislamiento dentro de la caja del producto que puede tener una magnitud suficiente como para constituir riesgo de corrientazo.Dieses Symbol soll den Anwender vor unsolierten gefahrlichen Spannungen innerhalb des Gehauses warnen, die von Ausrichender Starke sind, um einen elektrischen Schlag verursachen zu konnen.
	Intended to alert the user of the presence of important operating and maintenance (Servicing) instructions in the literature accompanying the product.Dieses Symbol soll den Anwender vor unsolierten gefahrlichen Spannungen innerhalb des Gehauses warnen, die von Ausrichender Starke sind, um einen elektrischen Schlag verursachen zu konnen.Este simbolo tiene el proposito de la alertar al usuario de la presencis de instrucccones importantes sobre la operacion y mantenimiento en la literatura que viene conel producto.Dieses Symbol soll den Benutzer auf wichtige Instruktionen in der Bedienungsanleitung aufmerksam machen, die Handhabung und Wartung des Produkts betreffen.
CAUTION:ATTENTION:PRECAUCION:VORSICHT:	Risk of electrical shock - DO NOT OPEN.To reduce the risk of electrical shock, do not remove the cover. No user serviceable parts inside. Refer servicing to qualified personnel.Risques de choc electrique - NE PAS OUVIRIRAfin de reduire le risque de choc electrique, ne pas enlever le couvercle. Il ne se trouve a l'interieur aucune piece pouvant etre reparee par l'utilisateur. Confier l'entretien a un personnel qualifie.Riesgo de corrientazo - no abraPara disminuir el risego de carrientazo, no abra la cubierta. No hay piezas adentro que el pueda reparar. Deje todo mantenimiento a los tecnicos calificadod.Risiko - Elektrischer Schlag! Nicht offen!Um das Risiko eines elektrischen Schlages zu vermeiden, nicht die Abdeckung entfernen. Es befinden sich keine Teile darin, die vom Anwender repariert werden Konnten. Reparaturen nur von qualifiziertem Fachpersonal durchfuhren lassen.
WARNING:ADVERTISSEMENT:ADVERTENCIA:ACHTUNG:	To prevent electrical shock or fire hazard, do not expose this appliance to rain or moisture. Before using this appliance please read the operating instructions for further warnings.Afin de prevenir les risques de decharge electrique ou de feu, n'exposez pas cet appareil a la pluie ou a l'humidite. Avant d'utiliser cet appareil, lisez les advertisements supplentaires situes dans le guide.Para evitar corrientazos o peligro de incendio, no deja expuesto a la lluvia o humedad este aparato Antes de usar este aparato, lea mas advertcias en la guía de operacion.Um einen elektrischen Schalg oder Feuergefahr zu vermeiden, sollte dieses Gerät nicht dem Regen oder Feuchtigkeit ausgesetzt werden. Vor Inbetriebnahme unbedingt die Bedienungsanleitung lesen.

FCC COMPLIANCY STATEMENT

This device complies with Part 15 of the FCC rules Operation is subject to the following two conditions:

I) This device may not cause harmful interference
2) This device must accept any interference received, that may cause undesired operation.

Warning: Changes or modification to the equipment not approved by Laney can void the user's authority to use the equipment.

Note: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures.

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

This product conforms to the requirements of the following European Regulations, Directives & Rules:

CE Mark (93/68/EEC), Low Voltage (2014/35/EU), EMC (2014/30/EU),

RoHS (2011/65/EU), ErP (2009/125/EU).

In order to reduce environmental damage, at the end of its useful life, this product must not be disposed of along with normal household waste to landfill sites. It must be taken to an approved recycling centre according to the recommendations of the WEEE (Waste Electrical and Electronic Equipment) directive applicable in your country.

SIMPLIFIED EU DECLARATION OF CONFORMITY

Hereby, Laney Electronics Ltd. declares that the radio equipment is in compliance with Directives 2014/53/EU, 2011/65/EU, 2009/125/EU

Full text of the EU declaration of conformity is available at the following internet address:

support.laney.co.uk/approvals

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using electrical products, basic cautions should always be followed, including the following:

I. Read these instructions.
2. Keep these instructions safe.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings. Install in accordance with manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.
9. An apparatus with Class I construction shall be connected to a mains socket outlet with a protective connection. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point they exit from the apparatus.
II. Only use attachments/accessories provided by the manufacturer.
12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. The mains plug or appliance coupler is used as the disconnect device and shall remain readily operable. The user should allow easy access to any mains plug, mains coupler and mains switch used in conjunction with this unit thus making it readily operable. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as when power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15. Never break off the ground pin. Connect only to a power supply of the type marked on the unit adjacent to the power supply cord.
16. If this product is to be mounted in an equipment rack, rear support should be provided.
17. Note for UK only: If the colours of the wires in the mains lead of this unit do not correspond with the terminals in your plug, proceed as follows:

a) The wire that is coloured green and yellow must be connected to the terminal that is marked by the letter E, the earth symbol, coloured green or

coloured green and yellow.

b) The wire that is coloured blue must be connected to the terminal that is marked with the letter N or the colour black.
c) The wire that is coloured brown must be connected to the terminal that is marked with the letter L or the colour red.

1. This electrical apparatus should not be exposed to dripping or splashing and care should be taken not to place objects containing liquids, such as vases, upon the apparatus.
2. Exposure to extremely high noise levels may cause a permanent hearing loss. Individuals vary considerably in susceptibility to noise-induced hearing loss, but nearly everyone will lose some hearing if exposed to sufficiently intense noise for a sufficient time.

The U.S. Government's Occupational Safety and Health Administration (OSHA) has specified the following permissible noise level exposures: According to OSHA, any exposure in excess of the above permissible limits could result in some hearing loss. Earplugs or protectors to the ear canals or over the ears must be worn when operating this amplification system in order to prevent a permanent hearing loss, if exposure is in excess of the limits as set forth above. To ensure against potentially dangerous exposure to high sound pressure levels, it is recommended that all persons exposed to equipment capable of producing high sound pressure levels such as this amplification system be protected by hearing protectors while this unit is in operation.

1. Symbols & nomenclature used on the product and in the product manuals, intended to alert the operator to areas where extra caution may be necessary, are as follows:

Duration Per Day in Hours	Sound Level dBA, slow response
8	90
6	92
4	95
3	97
2	100
112	102
1	105
1/2	110
1/4 or less	115

Intended to alert the user to the presence of high 'Dangerous Voltage' within the products enclosure that may be sufficient to constitute a risk of electrical shock to persons.

Intended to alert the user of the presence of important operating and maintenance (Servicing) instructions in the literature accompanying the product.

Risk of electrical shock - DO NOT OPEN. To reduce the risk of electrical shock, do not remove the cover. No user serviceable parts inside. Refer servicing to qualified personnel.

To prevent electrical shock or fire hazard, do not expose this appliance to rain or moisture. Before using this appliance please read the operating instructions.

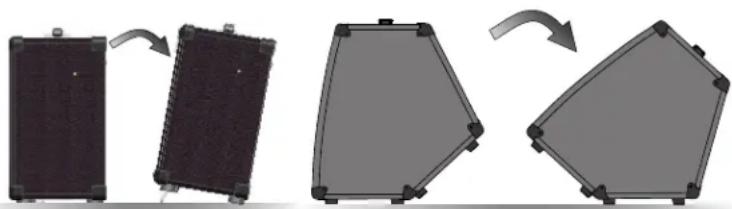

If your appliance features a tilting mechanism or a kickback style cabinet, please use this design feature with caution. Due to the ease with which the amplifier can be moved between straight and tilted back positions, only use the amplifier on a level, stable surface. DO NOT operate the amplifier on a desk, table, shelf or otherwise unsuitable non-stable platform.

Three-step diagram showing a device transitioning from black to gray, with arrows indicating the process (no text or symbols present)
