USER MANUAL AH80 Laney

Diagram of an electrical outlet with labeled components including N, L, and a plus/minus symbols

After unpacking your amplifier check that it is factory fitted with a three pin 'grounded' (or earthed) plug. Before plugging into the power supply ensure you are connecting to a grounded earth outlet.

If you should wish to change the factory fitted plug yourself, ensure that the wiring convention applicable to the country where the amplifier is to be used is strictly conformed to. As an example in the United Kingdom the cable colour code for connections are as follows.

This manual has been written for easy access of information. The front and rear panels are graphically illustrated, with each control and feature numbered. For a description of the function of each control feature, simply check the number with the explanations adjacent to each panel.

Your Laney amplifier has undergone a thorough two stage, pre-delivery inspection, involving actual play testing.

When you first receive your Laney amplifier, follow these simple procedures:

(i) Ensure that the amplifier is the correct voltage for the country it is to be used in.

(ii) Connect your equipment with a high quality shielded cable. You have probably spent considerable money on your amplifier and equipment - don't use poor quality cable, it won't do your gear justice.

Please retain your original carton and packaging so in the unlikely event that some time in the future your amplifier should require servicing you will be able to return it to your dealer securely packed.

Care of your Laney amplifier will prolong it's life.....and yours!

WELCOME

Dear Player,

Thank you very much for purchasing your new Laney product and becoming part of the worldwide Laney family.

Each and every Laney unit is designed and built with the utmost attention to care and detail, so I trust yours will give you many years of enjoyment.

Laney products have a heritage which stretches back to 1967 when I first began building valve amplifiers in my parents' garage.

Since then we have moved on from strength to strength developing an extensive range of guitar, bass, public address, multi instrument and keyboard amplification products along with a list of Laney endorsees that includes some of the world's most famous and respected musicians.

At the same time we believe we have not lost sight of the reason Laney was founded in the first place - a dedication to building great sounding amplification for working musicians.

Warm Regards,

Simple line drawing of a stylized animal or creature (no text or symbols)

Lyndon Laney

Chairman and Founder.

INTRODUCTION

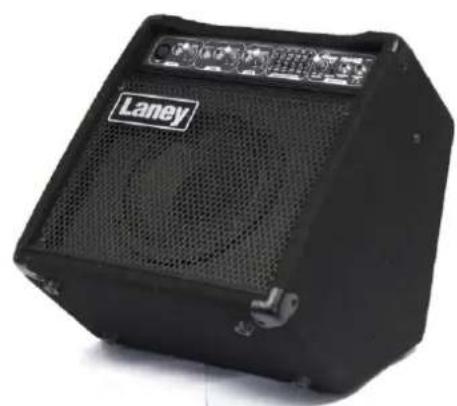

Black Laney audio amplifier with visible sound grille and speaker grille (no text or symbols on body)

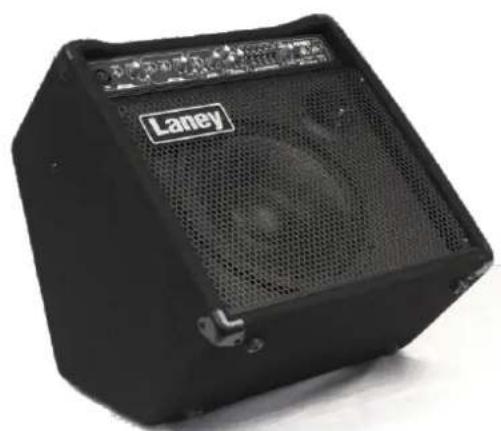

Black Laney audio amplifier device with visible grille and speaker grille (no text or symbols on body)

INTRODUCTION

The Audiohub range of multi instrument amplifiers is designed to be the centre of your audio world. The portable AH40 and AH80 amplifiers each feature 3 independent channels allowing connection of balanced XLR, line and Hi-Impedance/Instruments, as well as a dedicated Aux In. The AH40 and AH80 are driven by 40W and 80W output sections respectively. Additionally, the AH80 is equipped with a delay unit with Time and Feedback controls, and an FX send switch on each channel.

Ideal for keyboards, vocals, electronic drums and playing recorded audio, the Audiohub series features custom drivers to ensure that whatever sound source you use is produced and projected correctly and clearly. Add to this 'Road Rugged' solid construction, carpet covering, metal grilles and specially designed kickback cabinets - the Audiohub Series is the ideal solution for all of your audio performance and rehearsal needs.

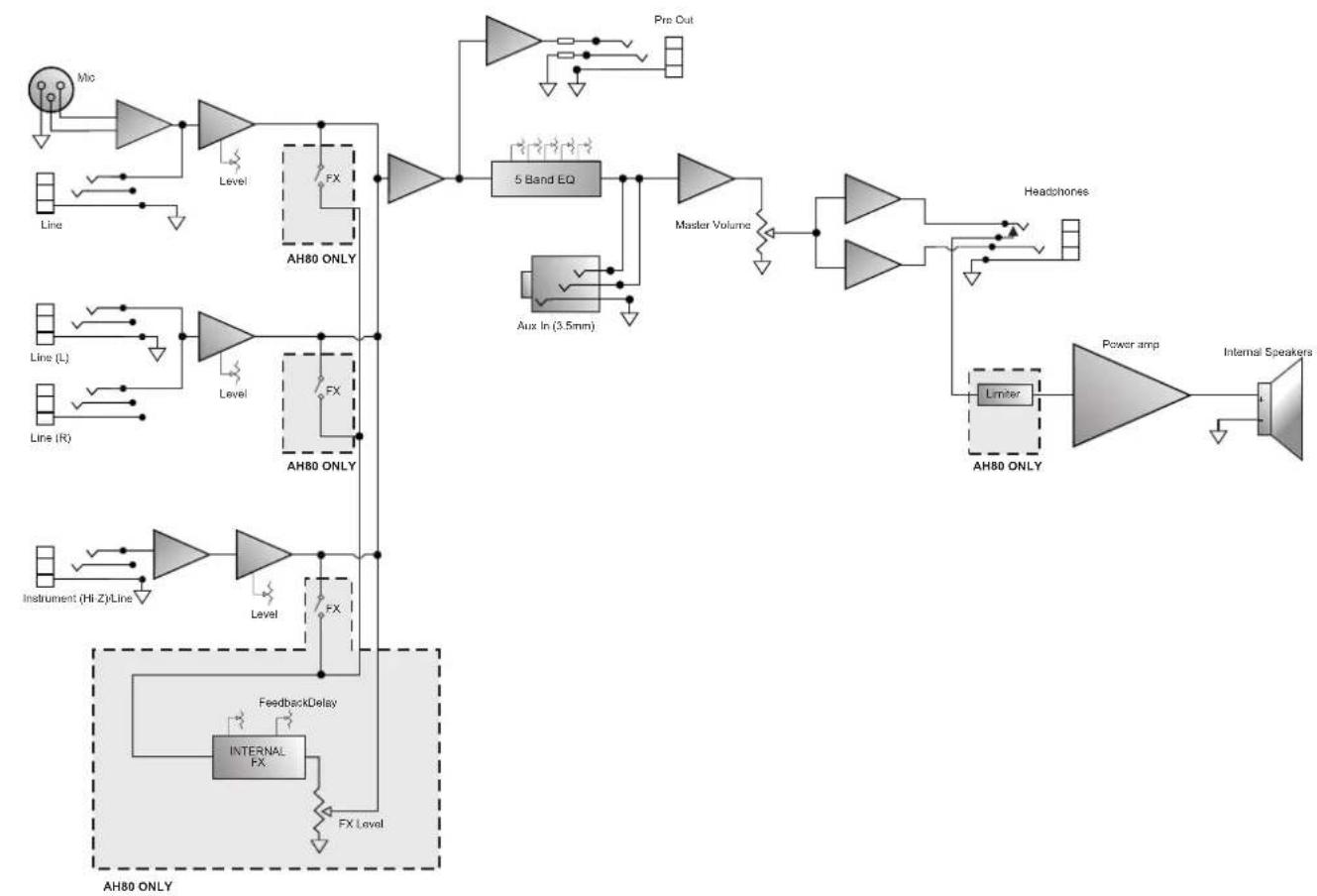

BLOCK DIAGRAM


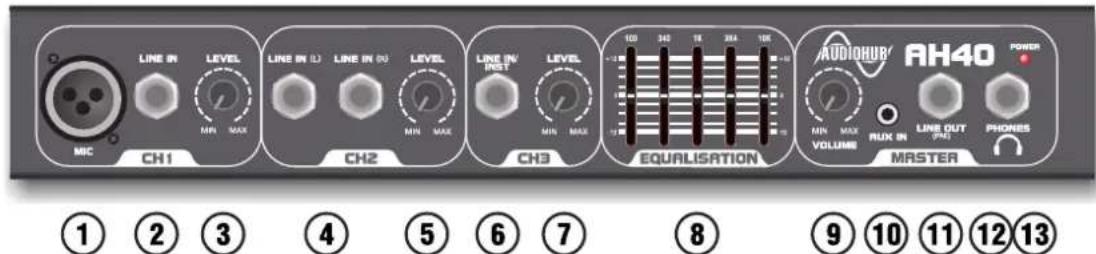

AH40 FRONT PANEL

MIC LINE IN LEVEL MIN MAX LINE IN (L) LINE IN (N) LEVEL MIN MAX LINE IN INST LEVEL MIN MAX CH1 CH2 CH3 EQUALISATION AudiOHUR/ RH40 POWER MIN MAX RUX IN LINE OUT PHONES VOLUME MASTER ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭

I. CHI MIC INPUT Balanced XLR input for low impedance microphone signals (200-600 Ohms).

1. CHI LINE INPUT Unbalanced Jack input socket for connection of all line level signals (keyboard, signal processor, sample, drum machine, etc.). Note that the Mic and Line inputs may be used simultaneously, although it may be difficult to balance input levels, depending on your source.

2. CHI LEVEL Adjusts the channel level, enabling the user to balance levels across channels.

3. CH2 STEREO LINE INPUT 2 x Unbalanced Jack sockets for connection of a stereo line signal. Sockets may also be used to connect a single mono source, or two individual sources. When connecting independent sources, use the output controls on your device to adjust the balance between the two signals.

4. CH2 LEVEL See CH | LEVEL.

5. CH3 LINE/INSTRUMENT INPUT Unbalanced high impedance input for connection of high impedance devices such as electric guitars/basses, or regular line devices. This channel features +6dB gain compared to the other line inputs, so take care if connecting a line level device here.

6. CH3 LEVEL See CH1 LEVEL. As this channel has more gain than the other line inputs, don't be surprised if you find that you need to set this control lower than the others when using line level devices.

7. GRAPHIC EQ A 5-Band graphic equaliser to fine tune your sound and help eliminate feedback issues. This is applied to the master mix. EQ is best used subtly. Cutting or boosting all bands, or using extreme settings can reduce clarity and dynamics.

8. MASTER VOLUME Sets the overall output level of the amplifier or headphones.

9. AUX INPUT 3.5mm Stereo Jack for connection of an auxiliary source such as an MP3 player: This input is controlled by the master volume control. The graphic equaliser has no effect on the Aux input.

10. LINE OUT Balanced line output for recording or connection to another amplifier. This output is not affected by the equaliser or master volume. The Aux input does not appear on this output. This allows you to record your performance without the presence of a backing track.

11. PHONES Stereo headphone socket. This disconnects the internal speaker so that you can practice by yourself. Ensure that the Master Volume is turned down before plugging in your headphones.

12. POWER LED Indicates that the unit is powered on.

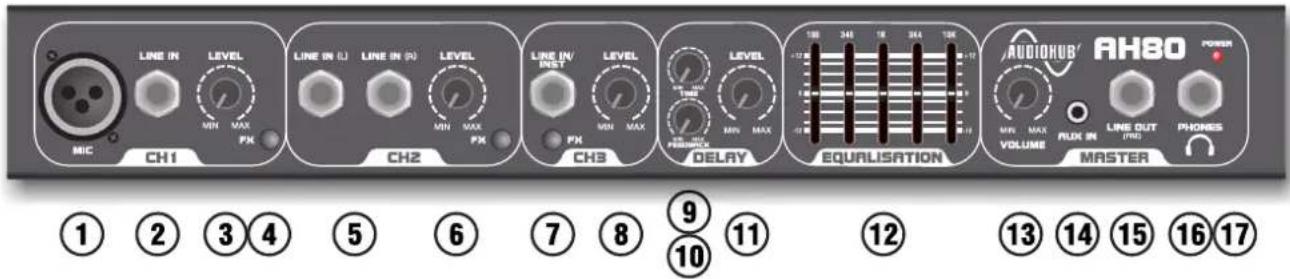

MIC CH1 LINE IN LEVEL MIN MAX PK LINE IN (L) LINE IN (R) LEVEL MIN MAX PK CH2 LINE IN/ INST LEVEL MIN MAX PK CH3 LEVEL MIN MAX DELAY EQUALISATION Audiokub® RH80 POWER MIN MAX VOLUME RUN IN LINE OUT (INS) PHONES MASTER ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴ ⑵ ⑶ ⑷

I. CHI MIC INPUT Balanced XLR input for low impedance microphone signals (200-600 Ohms).

1. CHI LINE INPUT Unbalanced Jack input socket for connection of all line level signals (keyboard, signal processor, sample, drum machine, etc.). Note that the Mic and Line inputs may be used simultaneously, although it may be difficult to balance input levels, depending on your source.

2. CHI LEVEL Adjusts the channel level, enabling the user to balance levels across channels.

3. FX SEND When pushed in, this switch routes the channel signal to the built in digital delay.

4. CH2 STEREO LINE INPUT 2 x Unbalanced Jack sockets for connection of a stereo line signal. Sockets may also be used to connect a single mono source, or two individual sources. When connecting independent sources, use the output controls on your device to adjust the balance between the two signals.

5. CH2 LEVEL & FX See CH | LEVEL & FX.

6. CH3 LINE/INSTRUMENT INPUT Unbalanced high impedance input for connection of high impedance devices such as electric guitars/basses, or regular line devices. This channel features +6dB gain compared to the other line inputs, so take care if connecting a line level device here.

7. CH3 LEVEL & FX See CH1 LEVEL & FX. As this channel has more gain than the other line inputs, don't be surprised if you find that you need to set this control lower than the others when using line level devices.

8. DELAY TIME Controls the amount of time between repeats of the inbuilt delay. Turning this control clockwise will increase the delay time.

9. DELAY FEEDBACK This controls the amount of repeats in the inbuilt delay. Turning the control clockwise increases the amount of repeats.

II. DELAY LEVEL Controls the mix level of the inbuilt delay. Use the delay to add atmosphere to your sound, or to create interesting effects.

1. GRAPHIC EQ A 5-Band graphic equaliser to fine tune your sound and help eliminate feedback issues. This is applied to the master mix. EQ is best used subtly. Cutting or boosting all bands, or using extreme settings can reduce clarity and dynamics.

2. MASTER VOLUME Sets the overall output level of the amplifier or headphones.

3. AUX INPUT 3.5mm Stereo Jack for connection of an auxiliary source such as an MP3 player. This input is controlled by the master volume control. The graphic equaliser has no effect on the Aux input.

4. LINE OUT Balanced line output for recording or connection to another amplifier. This output is not affected by the equaliser or master volume. The Aux input does not appear on this output. This allows you to record your performance without the presence of a backing track.

5. PHONES Stereo headphone socket. This disconnects the internal speaker so that you can practice by yourself. Ensure that the Master Volume is turned down before plugging in your headphones.

6. POWER LED Indicates that the unit is powered on.

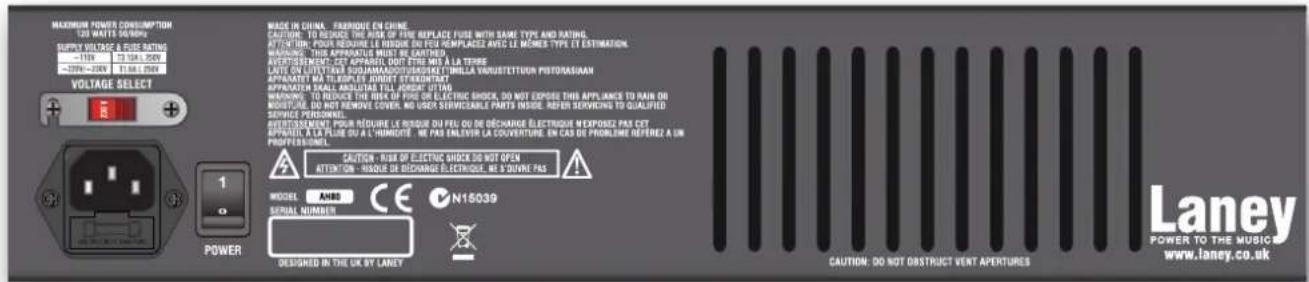

AH40/AH80 REAR PANEL

(AH80 SHOWN. AH40 SIMILAR)

MAXIMUM POWER CONSUMPTION 120 WATTS 500Hz SURVY VOLTAGE & DISTRIBUTION -15kV 3.75kV 40W -250V -250V 11.5kV 50W VOLTAGE SELECT MADE IN CHINA: PABRIQUE EN CHINE CAUTION: TO REINS THE RISK OF FIRE REPLACE FUSE WITH SAME TYPE AND RATING. SPE TUN POUR REQUIRE LE MINDIE NO FUL CREAMPLACE ANDC LE MOES TYPE ET ESTIMATION. MACHINE: THIS APPRAVATE MUST BE GARNED. AVERTISERMENT CET APPARAIL OUT ETRMS A LA TENSSE LATE ON LUTTER BUDHAMANDUSSCHIRTEFUMELA VIRUSTETTUUR PSTOSASIAN APPARAMATE MA TILKARES JOURET STRIKONTAT APPRODUCER SHALL ANNUATE THE RISK LETTER MACHINE: TO REINS THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOUSTURE, DO NOT REMOVE COVER. NO USED SERVICEABLE PARTS INSIDE. REFER SERVING TO QUALIFIED SERVICE PERSONNEL AVERTISERMENT POUR REQUIRE LE RUSQUE DU FEU OU DE CHARGE ELECTRIQUE MEXPOZZE PAS CET APPROAIL, A LA PLUE DU A L'UMINOIT. NE PAS ENLEVIR LA COUVERTURE. EN CAS DE PROBLEMRE REFERENCE A UN PROFESSIONNEL CAUTION: RISK OF ELECTRIC SHOCK DO NOT OPEN ATTENTORS - INSIDE DE CHARGE ELECTRIOSE, NE S'OUVER PAS MODEL: ANBD CE N15039 SERIAL NUMBER DESIGNED IN THE UK BY LANey CAUTION: DO NOT OBSTRUCT VENT APERTURES LANey POWER TO THE MUSIC www.laney.co.uk

18 19 20 21

1. VOLTAGE SELECT SWITCH This is factory set to the correct voltage for the region the product is supplied to. If necessary it can be reset by removing the mains lead and then loosening (but not removing) the screws securing the cover. The cover can then be pivoted away from the switch which can be moved to select the alternate voltage. DO NOT reconnect the mains lead until the cover is replaced and secured. Please ensure the correct fuse is fitted (as printed on the panel) for the voltage being used.

2. MAINS INLET SOCKET Connect to your power source using the supplied cable.

3. MAINS FUSE This drawer contains the main safety fuse for the unit. USE ONLY THE CORRECT SIZE AND RATING SPECIFIED ON THE PANEL.
4. MAINS POWER SWITCH When turned on, the Power LED on the front panel will light.

General Notes

Amplifier connection: In order to avoid damage, it is advisable to establish and follow a pattern for turning on and off your equipment. With all system parts connected, turn on source equipment, tape decks, cd players, mixers, effects processors etc. BEFORE turning on your AUDIOHUB. Many products have large transient surges at turn on and off which can cause damage to your speakers. By turning on your AUDIOHUB LAST and making sure its Volume control is set to minimum any transients from other equipment will not reach your loudspeakers. Wait until all system parts have stabilised; usually a couple of seconds. Similarly when turning off your system always turn down the Volume control on your AUDIOHUB and then turn off its power before turning off other equipment.

Caution: These professional loudspeaker systems are capable of generating very high sound pressure levels. Use care with placement and operation to avoid exposure to excessive levels that can cause permanent hearing damage. (Refer to guidelines on page 2)

Servicing: The user should not attempt to service these products. Refer all servicing to qualified service personnel.

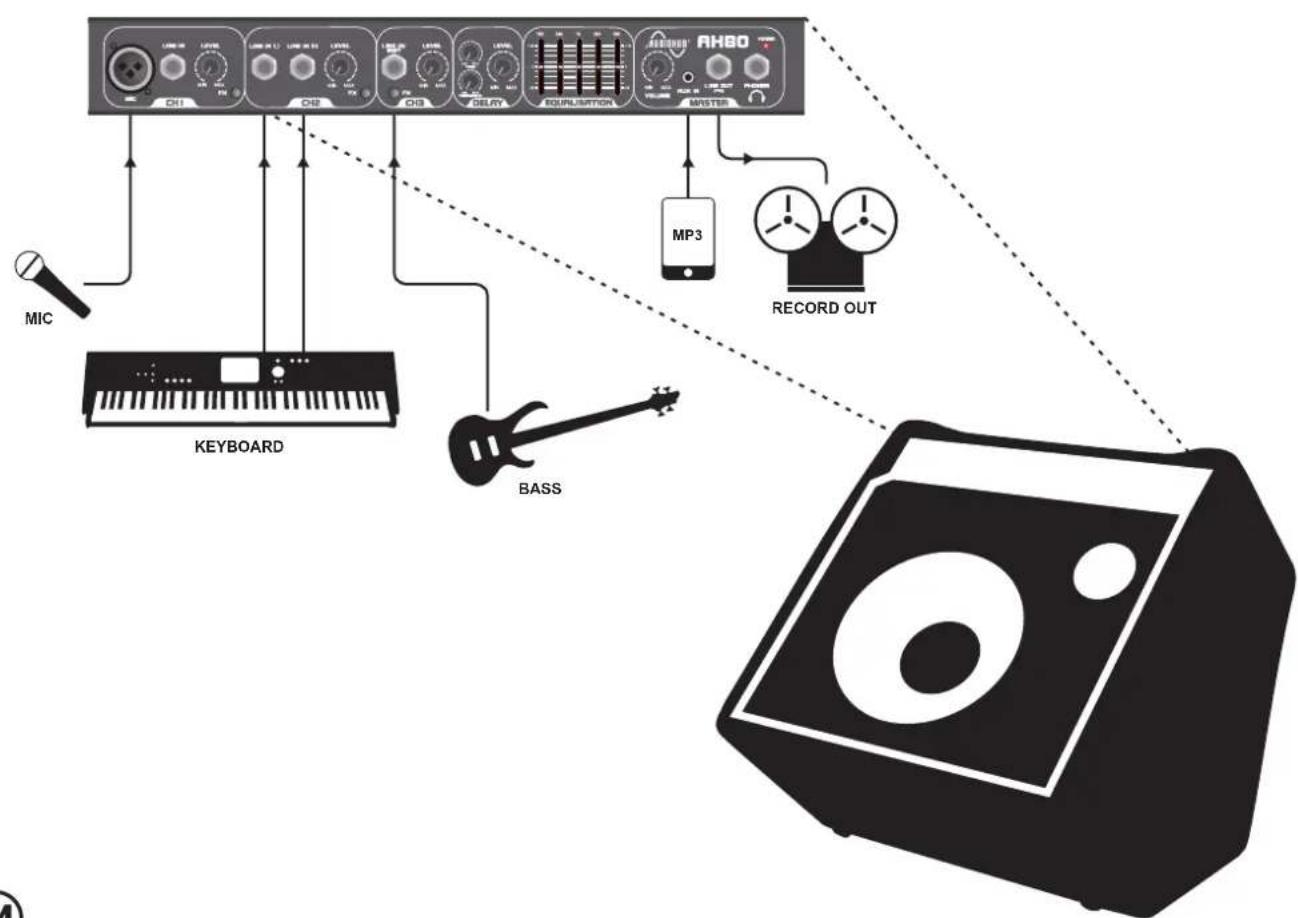

SAMPLE SETUP

SPECIFICATIONS

AH40

AH80

Supply Voltage on all models:		~115V, ~220V/~230V 50/60Hz
Mains Fuse:	~115V	T1A L	T3.15A L
	~220V/~230V	T500mA L	T1.6A L
Output Power Rating		40W	80W
Inputs		1 x Balanced Mic(XLR)/Unbalanced Line(Jack)
		1 x Stereo Unbalanced Line (2 x Jack)
		1 x Line/Hi-Z Instrument (Jack)
		Aux In (3.5mm Jack)
EQ		Global 5 Band Graphic Equaliser (±12dB)
Record Out		Yes (Pre Master Volume)
Headphones		Yes (Post Master Volume)
DSP		-	Delay with Time and Feedback controls,Master Level, FX Switches per channel
Loudspeaker		Custom Designed 8" Driver	Custom Designed 10" Driver with HF Horn
Size (mm)		389*363*328 (H*W*D)	433*413*368 (H*W*D)
Net Weight (kg)		10kg	13.5kg

In the interest of continued development, Laney reserves the right to amend product specification without prior notification.

www.Laney.co.uk

Laney

USER MANUAL

TRANSLATIONS

WWW.LANEY.CO.UK

DESIGNED & ENGINEERED IN THE UK BY LANEY

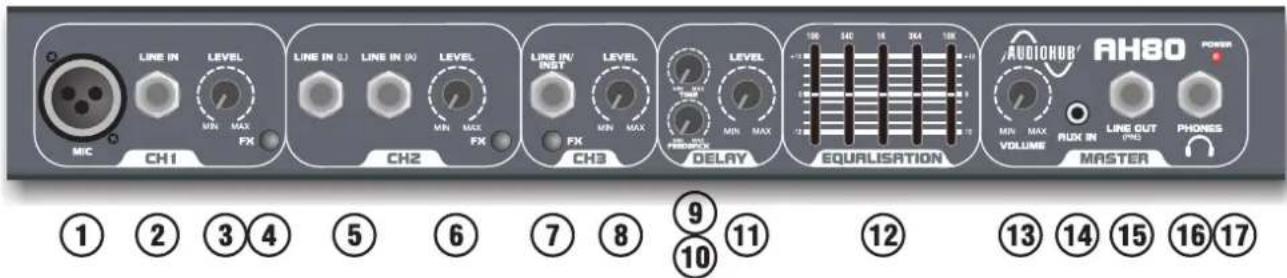

MIC CH1 LINE IN LEVEL MIN MAX FX LINE IN (L) LINE IN (A) LEVEL MIN MAX FX CH2 LINE IN/ INST LEVEL MIN MAX FX CH3 LEVEL MIN MAX DELAY EQUALISATION Audiouhur' RH80 POWER MIN MAX VOLUME RUN IN LINE OUT WINS PHONES MASTER ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴ ⑵ ⑶ ⑷

In order to take full advantage of your new product and enjoy long and trouble-free performance, please read this owner's manual carefully, and keep it in a safe place for future reference.

1) Unpacking: On unpacking your product please check carefully for any signs of damage that may have occurred whilst in transit from the Laney factory to your dealer. In the unlikely event that there has been damage, please re-pack your unit in its original carton and consult your dealer. We strongly advise you to keep your original transit carton, since in the unlikely event that your unit should develop a fault, you will be able to return it to you dealer for rectification securely packed.
2) Amplifier Connection: In order to avoid damage, it is advisable to establish and follow a pattern for turning on and off your system. With all system parts connected, turn on source equipment, tape decks, cd players, mixers, effects processors etc, BEFORE turning on your amplifier. Many products have large transient surges at turn on and off which can cause damage to your speakers. By turning on your bass amplifier LAST and making sure its level control is set to a minimum, any transients from other equipment should not reach your loud speakers. Wait till all system parts have stabilised, usually a couple of seconds. Similarly when turning off your system always turn down the level controls on your bass amplifier and then turn off its power before turning off other equipment.
3) Cables: Never use shielded or microphone cable for any speaker connections as this will not be substantial enough to handle the amplifier load and could cause damage to your complete system.
4) Servicing: The user should not attempt to service these products. Refer all servicing to qualified service personnel.

FCC COMPLIANCY STATEMENT

This device complies with Part 15 of the FCC rules Operation is subject to the following two conditions:

1) This device may not cause harmful interference

2) This device must accept any interference received, that may cause undesired operation.

Warning: Changes or modification to the equipment not approved by Laney can void the user's authority to use the equipment.

Note: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures.

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

This product conforms to the requirements of the following European Regulations, Directives & Rules:

CE Mark (93/68/EEC), Low Voltage (2014/35/EU), EMC (2014/30/EU),

RoHS (2011/65/EU), ErP (2009/125/EU).

In order to reduce environmental damage, at the end of its useful life, this product must not be disposed of along with normal household waste to landfill sites. It must be taken to an approved recycling centre according to the recommendations of the WEEE (Waste Electrical and Electronic Equipment) directive applicable in your country.

WARNING: When using electrical products, basic cautions should always be followed, including the following:

1. Read these instructions.
2. Keep these instructions safe.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings. Install in accordance with manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.
9. An apparatus with Class I construction shall be connected to a mains socket outlet with a protective connection. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point they exit from the apparatus.
11. Only use attachments/accessories provided by the manufacturer.
12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. The mains plug or appliance coupler is used as the disconnect device and shall remain readily operable. The user should allow easy access to any mains plug, mains coupler and mains switch used in conjunction with this unit thus making it readily operable. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as when power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15. Never break off the ground pin. Connect only to a power supply of the type marked on the unit adjacent to the power supply cord.
16. If this product is to be mounted in an equipment rack, rear support should be provided.
17. Note for UK only: If the colours of the wires in the mains lead of this unit do not correspond with the terminals in your plug, proceed as follows:

a) The wire that is coloured green and yellow must be connected to the terminal that is marked by the letter E, the earth symbol, coloured green or coloured green and yellow.

b) The wire that is coloured blue must be connected to the terminal that is marked with the letter N or the colour black.

c) The wire that is coloured brown must be connected to the terminal that is marked with the letter L or the colour red.

1. This electrical apparatus should not be exposed to dripping or splashing and care should be taken not to place objects containing liquids, such as vases, upon the apparatus.
2. Exposure to extremely high noise levels may cause a permanent hearing loss. Individuals vary considerably in susceptibility to noise-induced hearing loss, but nearly everyone will lose some hearing if exposed to sufficiently intense noise for a sufficient time.

The U.S. Government's Occupational Safety and Health Administration (OSHA) has specified the following permissible noise level exposures: According to OSHA, any exposure in excess of the above permissible limits could result in some hearing loss. Earplugs or protectors to the ear canals or over the ears must be worn when operating this amplification system in order to prevent a permanent hearing loss, if exposure is in excess of the limits as set forth above. To ensure against potentially dangerous exposure to high sound pressure levels, it is recommended that all persons exposed to equipment capable of producing high sound pressure levels such as this amplification system be protected by hearing protectors while this unit is in operation.

1. Symbols & nomenclature used on the product and in the product manuals, intended to alert the operator to areas where extra caution may be necessary, are as follows:

Intended to alert the user to the presence of high 'Dangerous Voltage' within the products enclosure that may be sufficient to constitute a risk of electrical shock to persons.

Intended to alert the user of the presence of important operating and maintenance (Servicing) instructions in the literature accompanying the product.

Risk of electrical shock - DO NOT OPEN. To reduce the risk of electrical shock, do not remove the cover. No user serviceable parts inside. Refer servicing to qualified personnel.

To prevent electrical shock or fire hazard, do not expose this appliance to rain or moisture. Before using this appliance please read the operating instructions.

If your appliance features a tilting mechanism or a kickback style cabinet, please use this design feature with caution. Due to the ease with which the amplifier can be moved between straight and tilted back positions, only

use the amplifier on a level, stable surface. DO NOT operate the amplifier on a desk, table, shelf or otherwise unsuitable non-stable platform.

Three-step diagram showing a device transitioning from dark to light, with arrows indicating the process (no text or symbols present)

CAUTION: WARNING:

Diagram showing two transformation steps of a device component, one with an arrow indicating rotation, the other with an arrow indicating change (no text or symbols present)
