USER MANUAL HL1400G ATO SCHEPPACH

Technical line drawing of a mechanical device with articulated arms and wheels (no text or symbols)

HL1400G ATO

https://www.scheppach.com/de/service scheppach

DE	HolzspalterOriginalbetriebsanleitung	9
GB	Log splitterTranslation of original instruction manual	21
FR	Fendeur de bûchesTraduction des instructions d'origine	33

1

Technical diagram of a mechanical device with numbered parts labeled for identification.

2

Technical line drawing of a mechanical press or drill press device with no visible text or symbols

5b 5a 8 7a 9b 1a 10a 12a 6b 9c

Technical diagram of a mechanical device with numbered parts for identification

Technical line drawing of a mechanical assembly with no visible text or symbols

4 7 7a

5 11 2 1a

6 3 4 4a

7 9c 9a9b 9

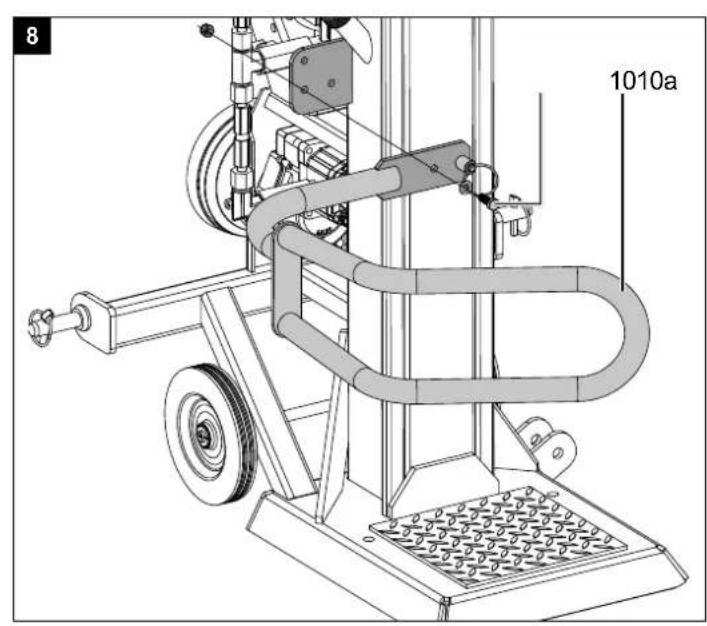

8 1010a

9 12a 12

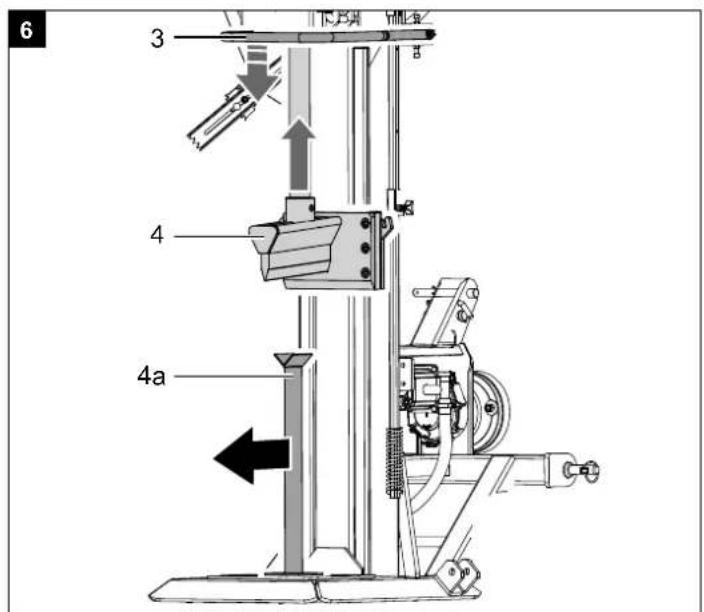

10 6 6a 6b 4

11 5 5a 5b

Technical diagram of a mechanical lifting device with numbered parts and labeled components

Technical diagram of a vehicle suspension system with numbered components and labeled parts

16a 17a 4 16b 16c

13 16b α α 16c

14 14

15 2 11 4

16 4 3 ↓ ↓ ↓

Technical diagram showing a mechanical assembly with labeled parts and an inset magnified view of a component.

18 5 19

19 20 22 21

Explanation of the symbols on the product

Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.

	Read the manual before commissioning!
	Use safety shoes!
	Use work gloves!
	Use hearing protection and safety goggles!
	Keep the work area orderly! Disorder can lead to accidents!
	Dispose of used oil properly (on-site waste oil collection point). Dumping used oil in the soil or mixing it with waste is prohibited.
	Risk of slipping due to leaking oil.
	Removing or modifying protective or safety equipment is prohibited.
	Do not remove any jammed trunks with your hands.
	Danger of injury due to objects being flung away!
	Danger of cuts and crushing; never touch dangerous areas when the splitting blade is moving.
	Speed of the drive PTO shaft n = 540 rpm
	Do not use the product in wet conditions!
	Machine may only be operated by one person!
	Keep bystanders away from the work area.
	Avoid injuries caused by the moving splitting knife.
	Unplug the mains cable before carrying out cleaning or maintenance work.
	Do not transport the device lying down!
	Loosen the bleeder screw about 2 turns before starting work. Close before transport.
	Caution! Moving tools!
	Lifting point
	Lashing point for load securing
	Two operating speeds:1. Low speed and full splitting force2. High speed and reduced splitting force
	Press the lever to fix the trunk in place with the claw.

		Press the lever to split the log.
		Press the return bar to raise the splitting blade.
△ Attention!		We have marked points in these operating instructions that impact your safety with this symbol.
		The product complies with the applicable European directives.

Table of contents: Page:

1. Introduction......25
2. Device description (Fig. 1-19)...... 25
3. Scope of delivery (Fig. 2) 25
4. Proper use....26
5. General safety instructions....26
6. Additional safety instructions....27
7. Technical data 27
8. Unpacking 27
9. Assembly / Before commissioning 28
10. Start-up 28
11. Cleaning 30
12. Transport 30
13. Storage....30
14. Maintenance....31
15. Disposal and recycling 31
16. Troubleshooting....32
17. Declaration of conformity 51

1. Introduction

Manufacturer:

AT-Outils

36 Rue de l'Eglise

68740 Nambshheim / FRANCE

[e-mail]

Dear Customer

We hope your new device brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this device assumes no liability for damage to the device or caused by the device arising from:

• Improper handling
• Failure to comply with the operating instructions.
• Repairs carried out by third parties, unauthorised specialists
• Installing and replacing non-original spare parts
• Improper use

Note:

Read the whole text of the instruction manual before assembly and commissioning.

This instruction manual should help you to familiarise yourself with your device and to use it for its intended purpose.

The instruction manual includes important instructions for safe, proper and economic operation of the device, for avoiding danger, for minimising repair costs and downtimes, and for increasing the reliability and extending the service life of the device.

In addition to the safety instructions in this instruction manual, you must also observe the regulations applicable to the operation of the device in your country.

Keep the instruction manual at the device, in a plastic sleeve, protected from dirt and moisture. They must be read and carefully observed by all operating personnel before starting the work.

The device may only be used by personnel who have been trained to use it and who have been instructed with respect to the associated hazards. The required minimum age must be observed.

In addition to the safety instructions in this instruction manual and the separate regulations of your country, the generally recognised technical rules relating to the operation of such machines must also be observed.

We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

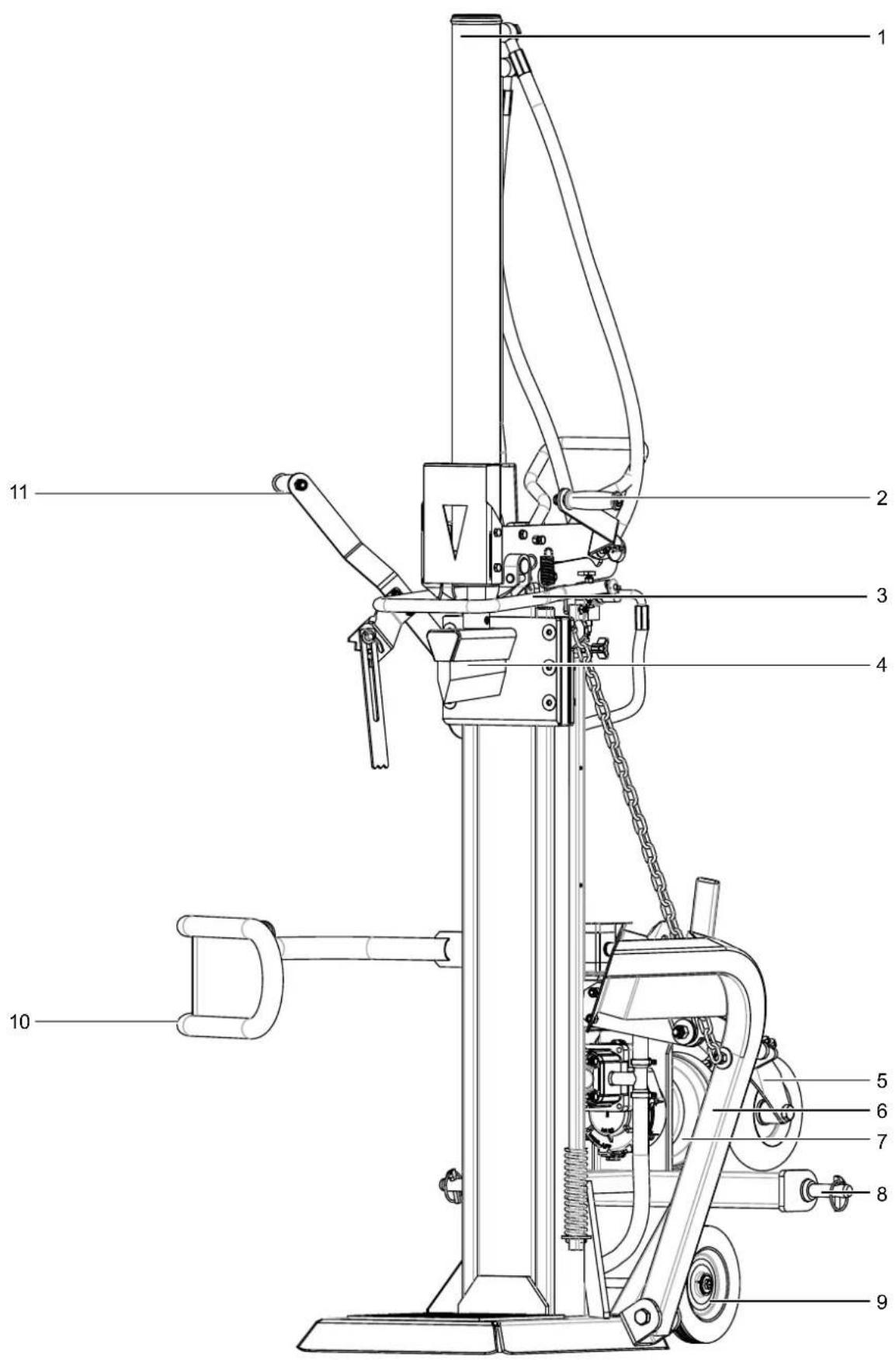

2. Device description (Fig. 1-19)

1. Cylinder

1a. Locking pin with split pin

1. Operating lever a
2. Return bow
3. Splitting blade
   4a. Support
4. Additional transport wheel
   5a. Locking bolt, locking pin and spring split pins
   5b. Locking bolt and locking pin

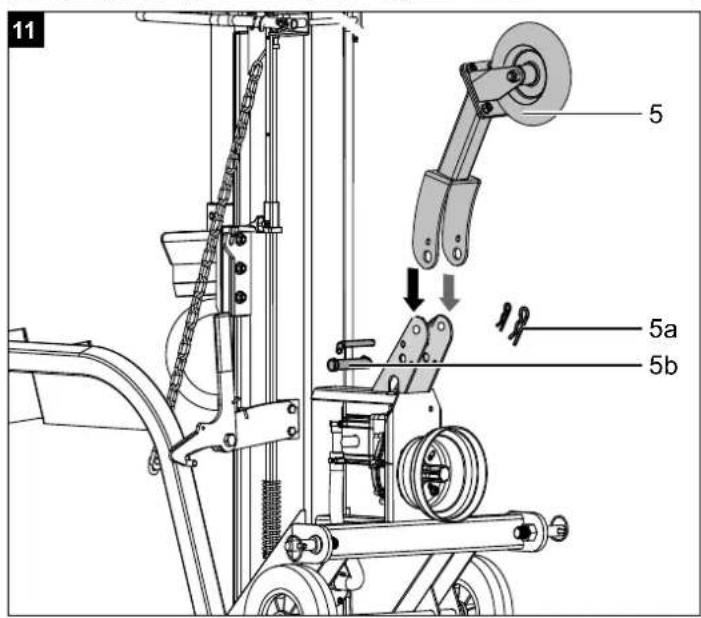

5. Trunk lifter
   6a. Chain
   6b. M16 x 90 mm bolt with hex nut

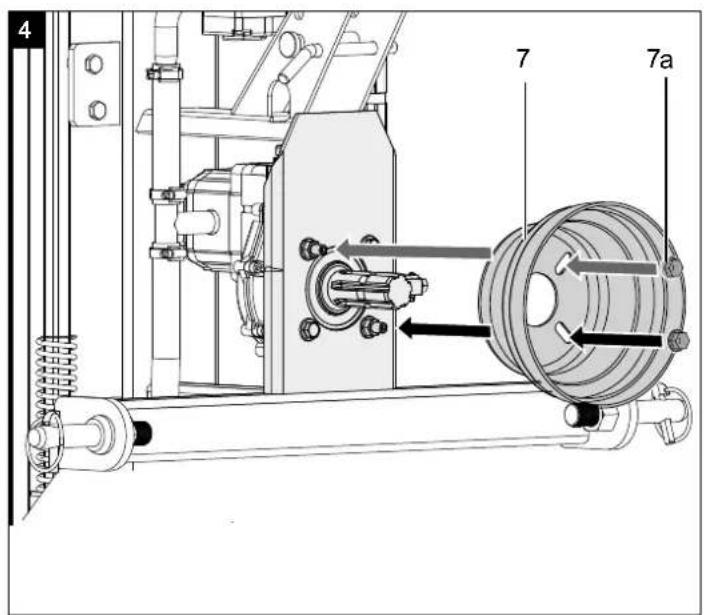

6. Cardan shaft protective cap
   7a. Collar nut M10
7. M22 three-point bolts with hex nut
8. Transport wheels
   9a. Wheel axle
   9b. Safety splint
   9c. Washer
9. Retainer arm
   10a. M10 x 35 mm bolt with washer and hex nut
10. Operating lever b

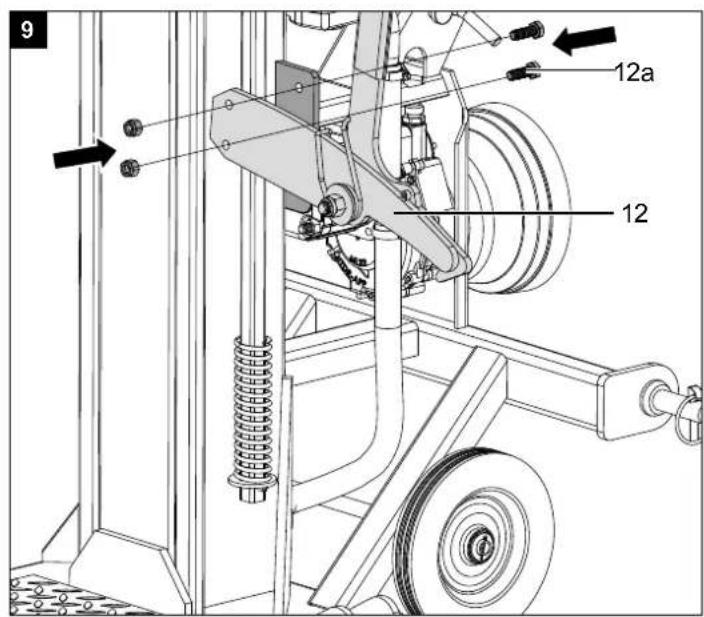

11. Retainer hook
    12a. M10 x 30 mm bolt with collar nut
12. Instruction manual
13. Claw

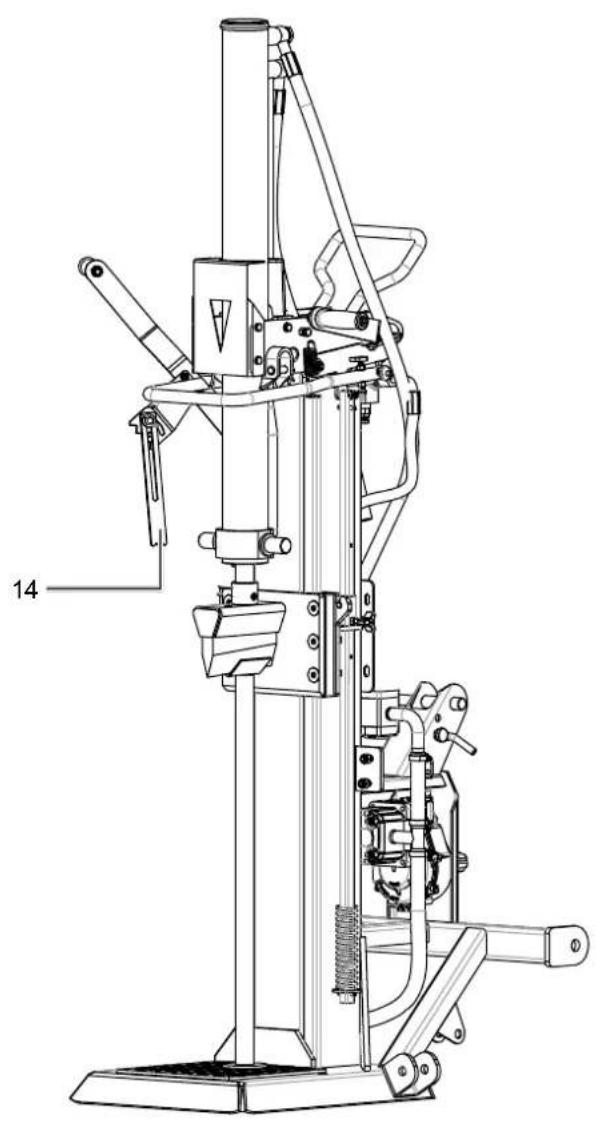

14. Dust cover
15. Upper mounting arm

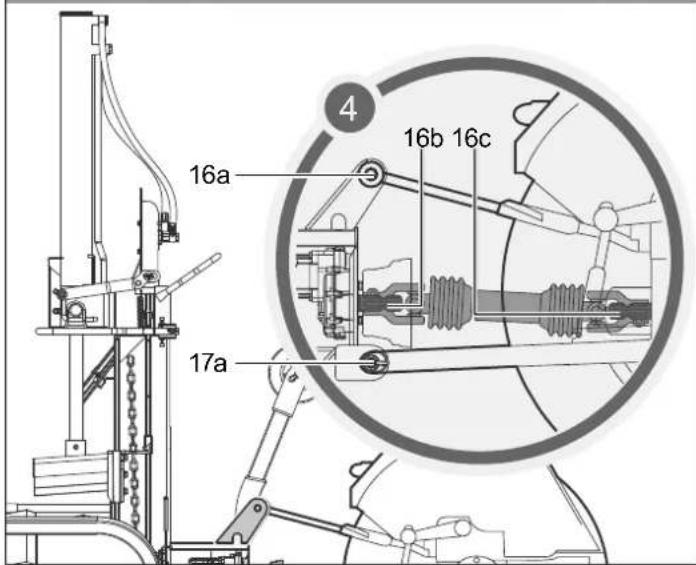

    16a. Hanger pin
    16b. PTO shaft (log splitter)
    16c. PTO shaft (drive)
16. Lower mounting arm
    17a. Connecting pin
17. Oil filling opening

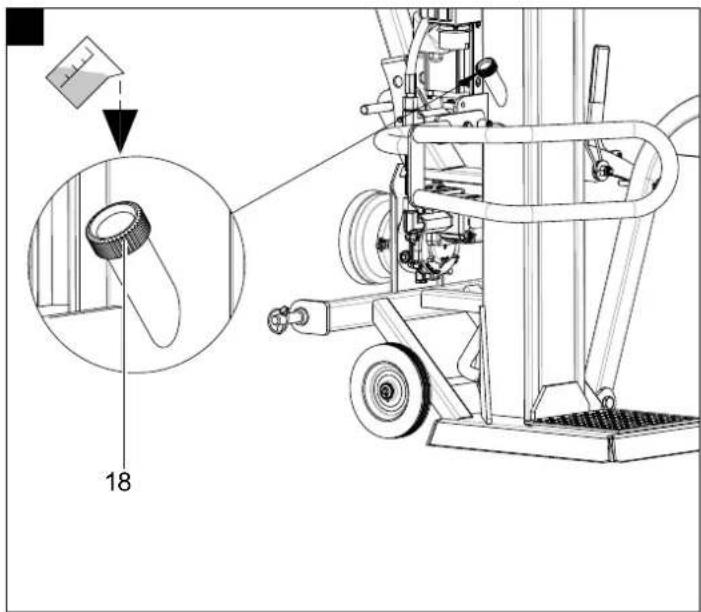

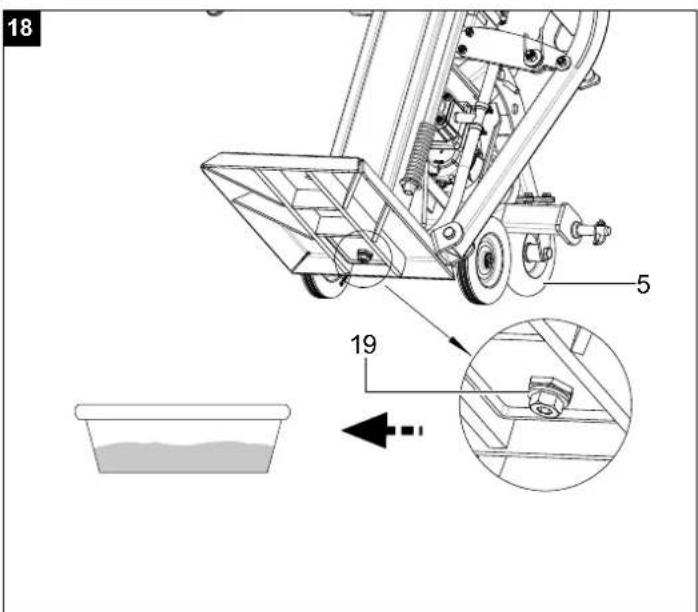

18. Oil drain screw

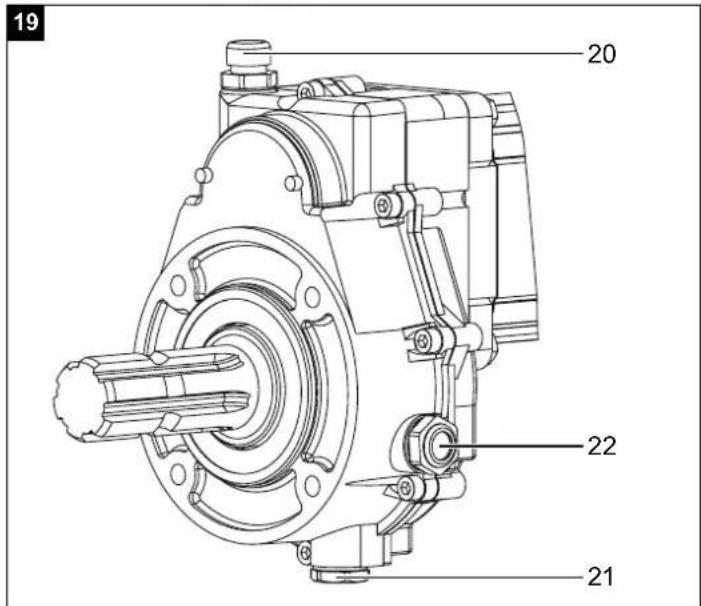

19. Oil filler plug
20. Oil drain screw (gearbox)
21. Oil-level window

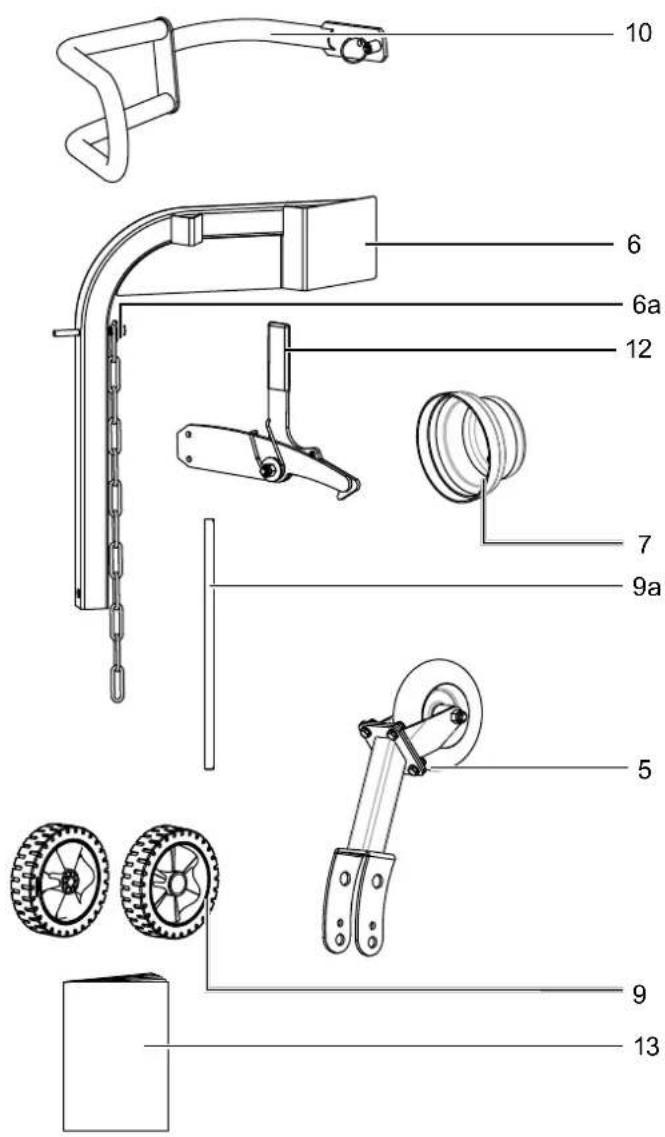

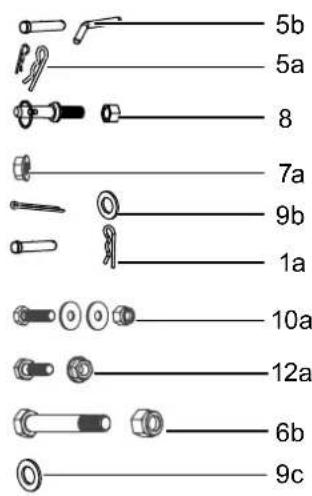

3. Scope of delivery (Fig. 2)

Item Quantity Designation

1a 2x Locking pin with split pin
4a 1x Support
5	1x Additional transport wheel
5a 2x Spring split pin
5b 1x Locking bolt and locking pin
6	1x Trunk lifter
6a 1x Chain
6b 1x M16 x 90 mm bolt with hex nut
7	1x Cardan shaft protective cap
7a 1x Collar nut M10
8	2x M22 three-point bolts with hex nut

9 2x Transport wheels

9a 1x Wheel axle

9b 2x Safety splint

9c 4x Washer

10 1x Retainer arm

10a 1x M10 x 35 mm bolt with washers and hex nut

12 1x Retainer hook

12a 2x M10 x 30 mm bolt with collar nut

13 1x Instruction manual

4. Proper use

The log splitter is designed exclusively for chopping firewood in the direction of the grain.

The machine may only be used in the intended manner. Any use beyond this is improper. The user/operator, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the instruction manual.

Persons who operate and maintain the machine must be familiar with it and must be informed about potential dangers.

In addition, the applicable accident prevention regulations must be strictly observed.

Other general occupational health and safety-related rules and regulations must be observed.

The liability of the manufacturer and resulting damages are excluded in the event of modifications of the machine.

The machine may only be operated with original parts and original accessories from the manufacturer.

• The hydraulic log splitter can only be used when standing and timbers may only be split in the direction of the grain. The dimensions of the timbers to be split:
  Wood length 56 cm-104 cm ø min. 10 cm-30 cm
• Never split wood horizontally or against the grain.
• The manufacturer's safety, operating and maintenance specifications as well as the dimensions given in the technical data must be observed.
• Relevant accident prevention regulations and other generally recognized safety and technical rules must also be observed.

• The machine may only be used, maintained or repaired by persons who are familiar with it and have been informed of the dangers. The manufacturer shall not be liable for damage resulting from unauthorised changes to the machine.

• The machine may only be operated with original accessories and original tools from the manufacturer.

• Any use beyond this is improper use. The manufacturer is not responsible for the resulting damages; the user solely bears the risk.
• Dry and seasoned wood can explode during the splitting process and injure the operator in the face. Please wear appropriate protective clothing!
• Pieces of wood that are produced during a splitting process can fall down and injure the feet of the person working.
• During the splitting process, bruising or severing of body parts may occur due to lowering of the hydraulic blade.
• There is a danger of knotty logs becoming jammed during the splitting process. Please note that the wood is under a lot of tension when it is removed and your fingers can be crushed in the split crack.
• Attention! As a rule, only split pieces of wood that have been cut off at right angles! Pieces of wood cut at an angle can slip away during the splitting process! Especially when using a splitting blade extension, this can lead to injuries or cause damage to the splitting blade!

Please note that our equipment was not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the device is used in commercial or industrial applications, or for equivalent work.

5. General safety instructions

Please read all instructions before working with this device.

• Observe all safety information and danger notices on the machine.
• Ensure that all of the safety information and danger notices on the machine are complete and in legible condition.
• The safety equipment on the machine must not be disassembled or made unusable.
• The safety equipment on the machine must not be disassembled or made unusable.
• Check for correct function of the two-hand control before commissioning.
• The operating personnel must be at least 18 years of age. Trainees must be at least 16 years of age and may only work on the machine under supervision.
• Wear work gloves when working.
• Caution when working: Danger of injury for fingers and hands due to the splitting tool.
• Use suitable aids to support the splitting of heavy or bulky parts.
  • Children may not work with this device

• Modification, adjustment and cleaning work, as well as maintenance and rectification of faults may only be carried out when the machine is switched off.

• Installation, repairs and maintenance work may only be carried out by electricians.

• All protective and safety equipment must be reassembled immediately after repair, maintenance is completed.
• Switch off the machine when leaving the work station
• Apart from the operator, it is forbidden to stand in the working radius of the machine. No other persons or animals may be within 5 metres of the machine.
• △ Danger of cuts and crushing to the hands: Never touch dangerous areas while the splitting wedge is moving.
• ⚠ WARNING! Always pay attention to the movement of the splitting blade.
• ⚠ WARNING! Never remove a trunk that is caught in the wedge by hand.
• △ WARNING! Disconnect the machine from the drive shaft before undertaking any maintenance work described in this manual.
• Store these instructions safely! Moving machine parts. Do not reach into the splitting area.
• Never press the log splitter with cylinder pressure for longer than 5 seconds to split excessively hard wood. Overheated oil can damage the machine under pressure. Stop the machine and try splitting the trunk again after turning the trunk 90^ . If the wood can still not be split, this means that the hardness of the wood exceeds the capacity of the machine and it must be discarded so that the log splitter is not damaged.
• When splitting, the properties of the wood (e.g. growths, trunk slices of irregular shape, etc.) can result in hazards such as ejecting parts, splitter blocking, and crushing.

⚠ WARNING!

The use of this powerful device may cause particular hazards. Ensure that you and the persons in your surroundings are safe.

Basic safety precautions must always be followed in order to reduce the risk of injuries and hazards.

6. Additional safety instructions

• The log splitter may only be operated by a single person.
• Wear protective equipment (safety goggles/visor, gloves, safety shoes, hearing protection) to safeguard yourself against possible injury.
• Never split trunks that contain nails, wire or other objects.
• Wood that has already been split and wood chippings create a hazardous work area. There is a danger of tripping, slipping or falling. Always keep the work area orderly.
• Never place your hands on moving parts of the machine when it is switched on.
• Only split wood with a maximum length of 104 cm.

Residual risks

The machine has been built according to the state-of-the-art and the recognised technical safety requirements. However, individual residual risks can arise during operation.

• Danger of injury for fingers and hands from the splitting tool in the event of improper guiding or support of the wood.
• Injuries due to the workpiece being ejected at high speed due to improper holding or guiding.
  • Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.
• Residual risks can be minimised if the “Safety instructions” and the “Proper use” are observed along with the whole of the operating instructions.
• Avoid accidental start-ups of the machine.
• Use the tool that is recommended in this instruction manual. This is how to ensure that your machine provides optimum performance.
• Keep your hands away from the working area when the machine is in operation.

7. Technical data

Drive Cardan shaft
PTO speed rpm 540
Minimum power of drivemachine (tractor) hp	6.3
Dimensions L x W x H mm 1050 x 870 x 2280
PTO ground clearance mm 400
Min./max. wood length cm 56 / 104
Min./max. wood diameter cm 10 / 30
Power (t) Max. 12.6
Cylinder stroke mm 850
Forward stroke speed cm/s	17.0 / 3.2
Reverse stroke speed cm/s	4.2
Oil quantity l	8.0
Weight kg	172

Subject to technical changes!

8. Unpacking

• Open the packaging and carefully remove the device.
• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport damage. In the event of complaints the carrier must be informed immediately. Later claims will not be recognised.
• If possible, keep the packaging until the expiry of the warranty period.

• Familiarise yourself with the product by means of the instruction manual before using for the first time.

• With accessories as well as wearing parts and replacement parts use only original parts. Spare parts can be obtained from your specialist dealer.

• When ordering please provide our article number as well as type and year of manufacture for the product.

⚠ WARNING!

Danger of choking and suffocating!

The packaging material, packaging and transport safety devices are not children's toys. Plastic bags, film and small parts can be swallowed and lead to choking.

- Keep packaging material, packaging and transport safety devices away from children.

9. Assembly / Before commissioning

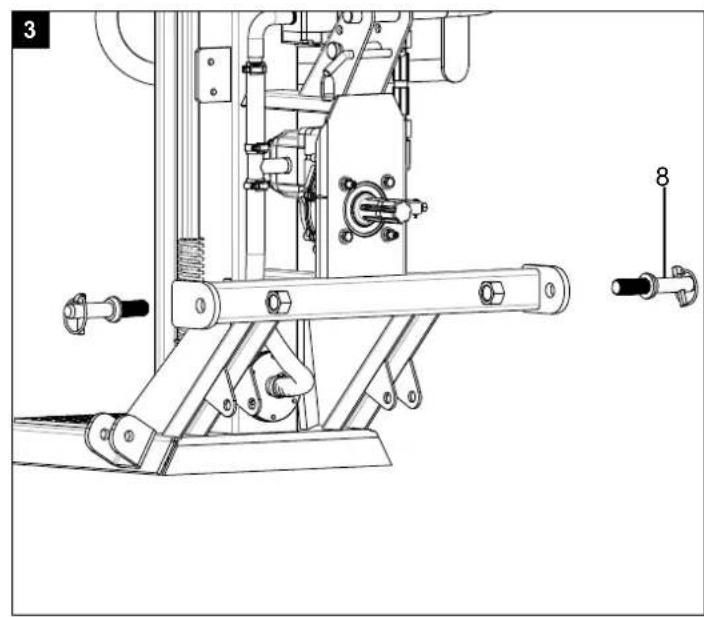

9.1 Fitting the three-point bolts (8) (Fig. 3)

1. Insert the three-point threaded bolts (8) through the holes provided and fix each one from the other side with an M22 nut.

9.2 Fitting the cardan shaft protective cover (7) (Fig. 4)

1. Place the cardan shaft protective cover (7) on the protruding grub screws on the cardan shaft and secure it with the two M10 collar nuts (7a).

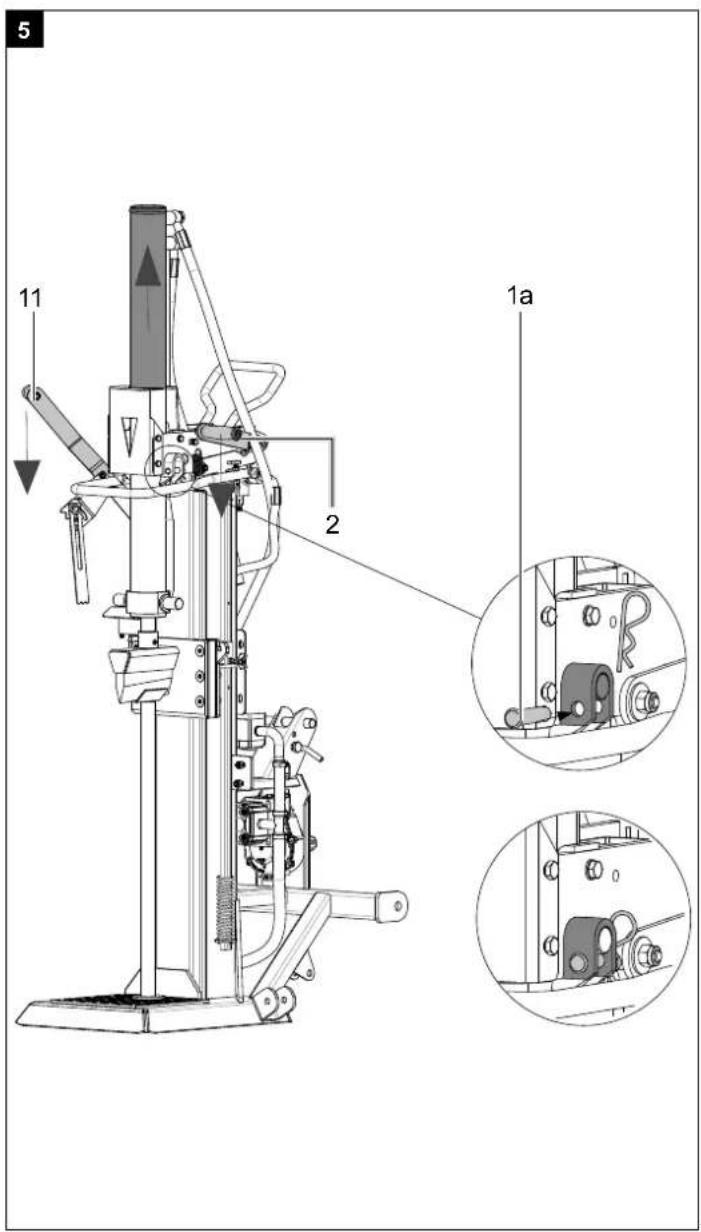

9.3 Bringing the splitter into working position (Fig. 5+6)

1. Lower the two operating levers (2+11) until the cylinder latches into the guide.

2. Insert the two locking pins with split pin (1a) to secure the cylinder.

3. Move the splitting knife (4) to the top position by pressing the return bar (3) downwards and remove the support (4a). Keep the prop (4a) in a good place as it will be needed for transporting the product.

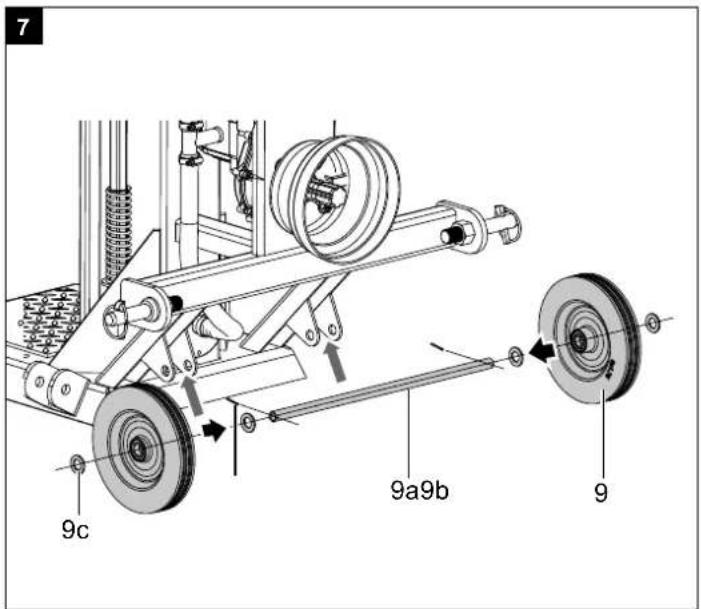

9.4 Fit the wheel axle (9a) and transport wheels (9) (Fig. 7)

1. Push the wheel axle (9a) through the holes in the axle mount and centre it.
2. Place the transport wheels (9) on the wheel axle (9a) and secure them with the locking pins (9b) and washers (9c) (see Fig. 7).

9.5 Fitting the retainer arm (10) (Fig. 8)

1. Secure the retaining arm (10) with an M10x30 hex screw, a washer and a hex nut (10a)

9.6 Fitting the retainer hook (12) (Fig. 9)

1. Attach the retaining hook (12) to the frame using two hex bolts and two collar nuts (12a). Note: Only tighten the connection once 9.7 has been completed.

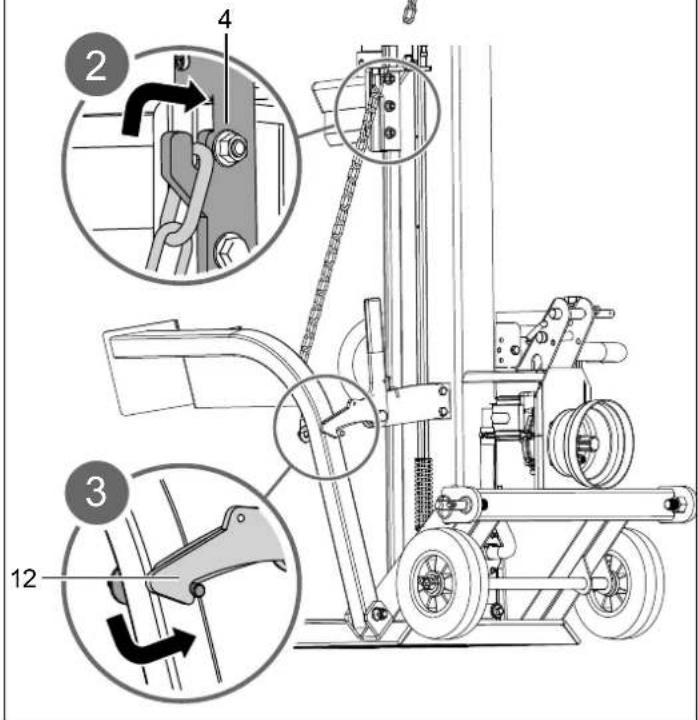

9.7 Fitting the trunk lifter (6) (Fig. 10)

1. Fasten the trunk lifter (6) to the retaining bracket using an M16 x 90 mm hex bolt and an M16 hex nut (6b).
2. Hook the last link of the chain (6a) onto the guide of the splitting blade (4).
3. Press the retaining hook lever (12) so that the pin on the trunk lifter (6) can latch into the retaining hook (12).
4. Release the retainer hook lever (12) again.

9.8 Fitting an additional transport wheel (5) (Fig. 11)

1. Attach the additional transport wheel (5) as shown in Fig. 11.
2. Secure the additional transport wheel (5) in the upper hole with the locking bolt and the locking pin (5b) as well as with the spring split pins (5a) when working with the splitter.
3. Fix the additional transport wheel (5) in the lower hole during transport.

10. Start-up

ATTENTION!

Always make sure the product is fully assembled before commissioning!

Make sure that the product is installed completely and properly. Before each use, always check:

• The product for possible damage,
• whether all screws are tightened,
• the hydraulic oil for leaks and
- the oil level
• Function of the two-hand control (see function test)
- the safety devices.

10.1 Check the oil level

The hydraulic system is a closed system with an oil tank, oil pump and control valve. Check the oil level regularly before commissioning. An oil level that is too low can damage the oil pump. The oil level must be within the middle mark on the oil dipstick. The splitting column must be retracted before the check, the product must be level. Screw in the oil dipstick fully, to measure the oil level.

10.2 Functional check (Fig. 1)

Carry out a functional check before each use.

Action:
Result:

Push both operating levers (2+11) down.	Splitting blade (4) goes down-until approx. 20 cm above the table.
Release one operating lever (2 or 11) at a time.	The splitting blade (4) remains in the selected position.
Release both operating levers (2+11).	The splitting blade (4) remains in the selected position.
Press the return bar (3) downwards.	Splitting blade (4) moves upwards.

Attention!

Loosen the filler plug (18) before commissioning. Never forget to loosen the filler plug (18)! Otherwise, the air in the system will be repeatedly compressed and depressurised, which will destroy the seals of the hydraulic circuit and the log splitter will no longer be usable. In this case, the seller and the manufacturer disassociate themselves from any warranty claims.

10.3 Cardan shaft

• Before connecting the product to the power take-off shaft of the drive vehicle, ensure that the weight of the machine is suitable for the drive vehicle. The weight of the machine can be found on the manufacturer's rating plate.
• The cardan shaft may only be connected when the drive vehicle's engine is switched off.
• Only use approved cardan shafts that are suitable for use with the product. The cardan shaft must also be equipped with all safety devices, which must be in good condition.
• Do not stand near the cardan shaft when it is in operation.
• Ensure that the speed on the drive vehicle does not exceed the number specified on the rating plate.
• Before carrying out maintenance work or if the splitting blade (4) has jammed, first disconnect the product from the drive vehicle and switch off the engine.

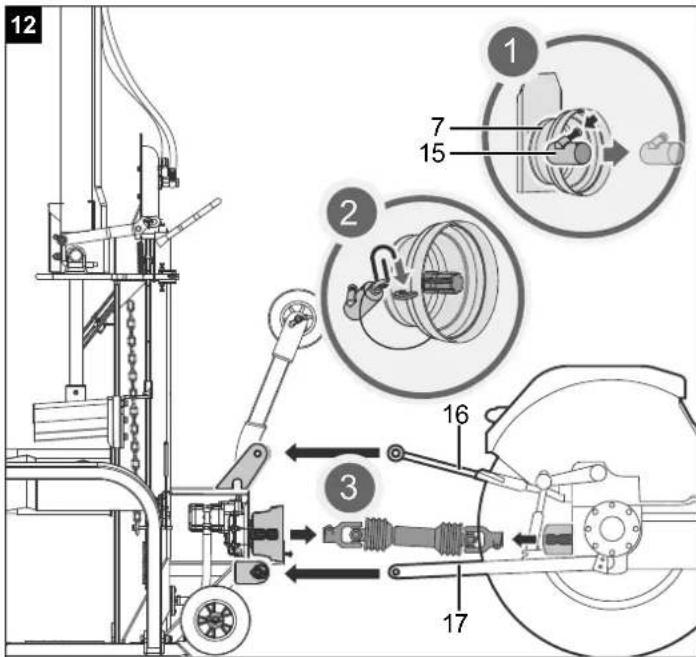

10.4 Attaching the splitter to the drive vehicle (Fig. 12+13)

1. Reverse the drive vehicle up to the product. Position the lower mounting arms close enough to the mounting pins of the log splitter.
2. Apply the parking brake of the drive vehicle and switch off the engine. Block the rear wheels on both sides with wedges or other suitable objects.
3. Remove the dust cover (15) and attach it to the cardan shaft protective cover (7).
4. Lower the lower mounting arms (17) to the mounting pins of the product and secure them with the locking pins (17a).
5. Position the upper mounting arm (16) in the bracket and align it with the holes in the bracket. Insert the hanger pin (16a) to lock the upper mounting arm.

6. The cardan shaft end of the gearbox has a diameter of 34.8 mm and a connection with 6 teeth (standard category 1 cardan).

7. Slide the cardan drive shaft over the power take-off shaft (16b) on the gearbox and on the drive vehicle (16c). Press in the spring pins located at both ends of the cardan shaft drive. Push the drive shaft further over the power take-off shaft (16b+16c) until the spring pins spring out and engage in the teeth of the end of the cardan shaft.

8. Viewed from above and from the side of the shaft, the power take-off shaft on the log splitter (16b) and the power take-off shaft on the drive vehicle (16c) must be aligned parallel. The angles of the universal joints ( ) must be as small as possible.
9. Secure the safety chain of the cardan shaft drive to a fixed part of the product and the drive to prevent the protective device from turning.

Check the direction of rotation of the PTO shaft (16c) of the drive vehicle. If the splitting blade (4) is not in the upper position, move it upwards by pressing the return bar (3). If the splitting blade (4) is already in the top position, activate the splitting mechanism by moving the two operating levers (2+11) downwards. This moves the splitting blade (4) downwards. If the splitting blade (4) does not move despite actuating the operating levers (2+11) or the return bar (3), stop the power take-off shaft drive and change its direction of rotation.

Never allow the power take-off shaft drive to run with the wrong direction of rotation! This will inevitably lead to the destruction of the pump system and no warranty claim can be made for this.

Only use cardan shafts with a CE mark, declaration of conformity and operating instructions! Read these instructions carefully before use! Carry out the aforementioned operations only with the engine switched off, the PTO connector disconnected and the ignition key removed!

10.5 Disconnecting the splitter from the drive vehicle (Fig. 12+13)

1. Apply the parking brake of the drive vehicle and switch off the engine. Block the rear wheels on both sides with wedges or other suitable objects.
2. Remove the connecting pins (17a) and the hanger pin (16a).
3. Remove the upper and lower mounting arm (16+17) from the mounts on the product.
4. Pull out the spring pins at both ends of the drive shaft.
5. Remove the drive shaft from the PTO shaft (16b+16c).
6. Fit the dust guard (15) back onto the power take-off shaft (16b).

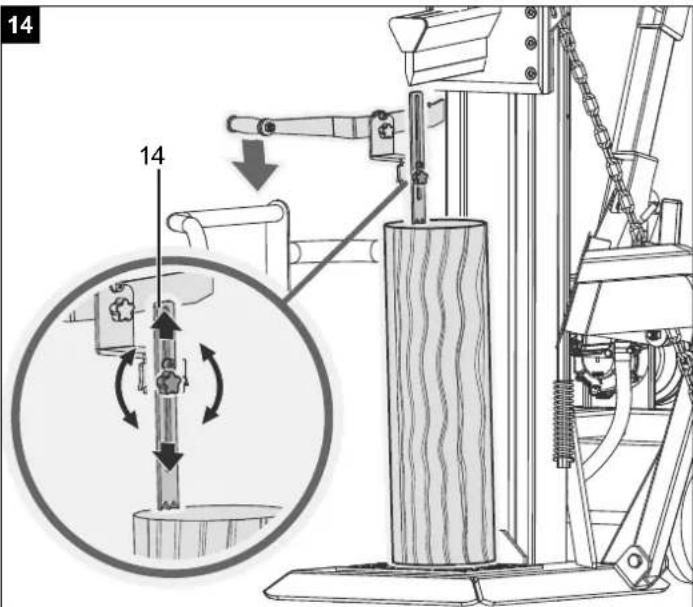

10.6 Using the claw (14) (Fig. 14)

The height of the claw (14) can be set with the clamping screw at various stages to suit the length of the wood.

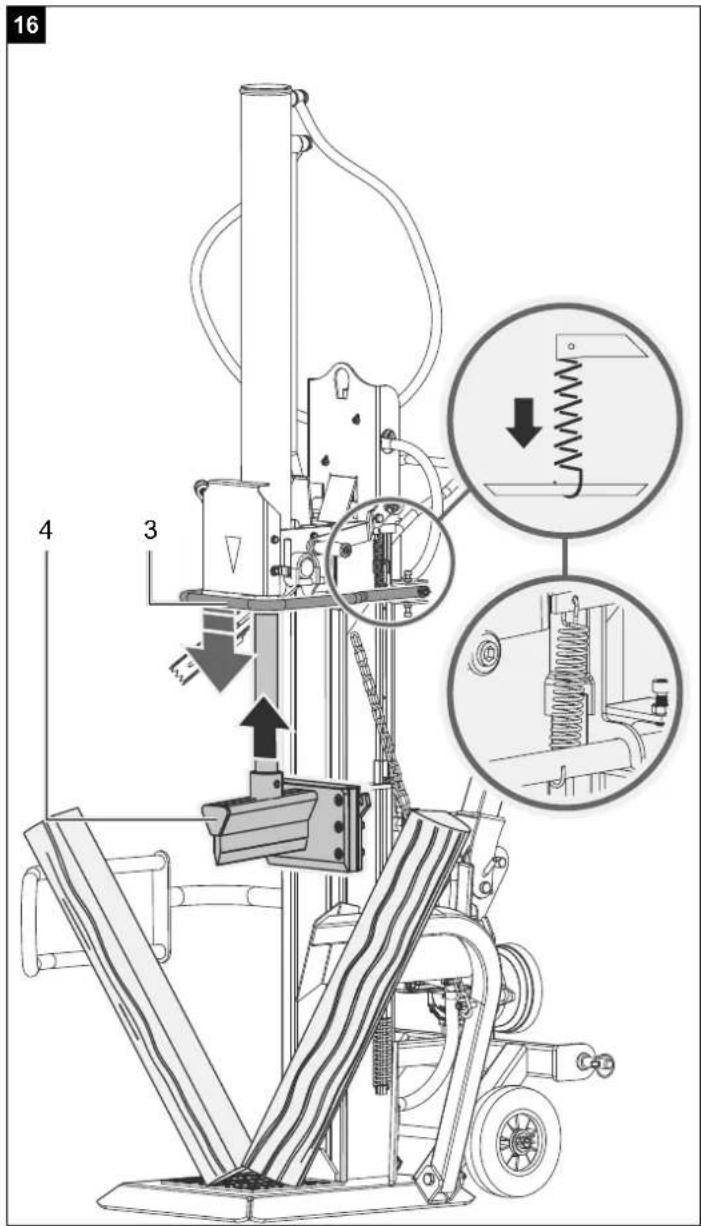

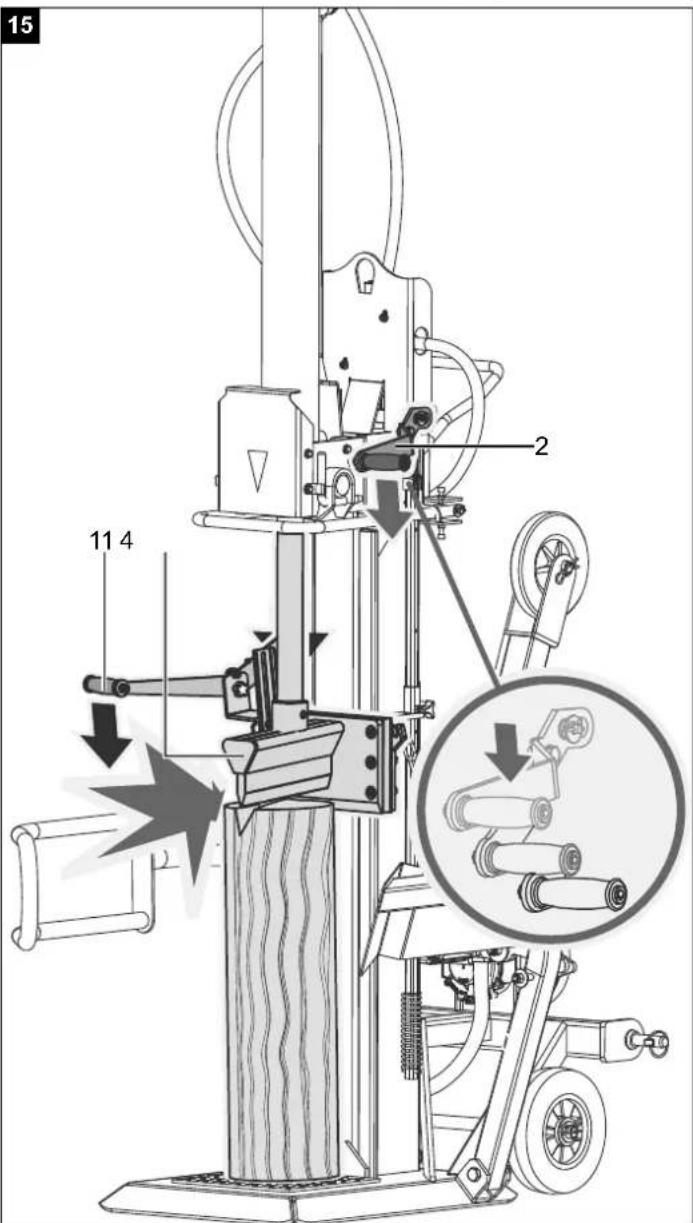

10.7 Splitting (Fig. 15+16)

- If the outside temperature is below 5^ , allow the product to idle for approx. five minutes so that the hydraulic system reaches operating temperature.

Attention: The splitting blade (4) is very sharp. Danger of injury!

• When you press both operating levers (2+11) down, the splitting blade (4) moves downwards and splits the wood.
• Only split logs that have been sawn off straight.
• Split wood vertically.
• Never split horizontally or across the grain!
• Wear suitable gloves and safety shoes when splitting wood.
• If the wood is extremely overgrown, split the trunks from the outline.

Attention: Certain types of wood can come under a lot of tension during splitting and crack abruptly.

- Knock out jammed wood against the splitting direction.

10.8 Operation of the trunk lifter (6) (Fig. 10)

General information about the trunk lifter (6)

• The chain (6a) of the trunk lifter (6) may only be attached to the splitting blade using the last link for safety reasons.
• Ensure that no other people are present in the working range of the trunk lifter (6).

10.9 Operation of the trunk lifter (6) (Fig. 10)

1. Release the retaining hook of the trunk lifter so that the lifting tube can run freely.
2. Move the splitting blade down until the lifting tube of the trunk lifter lies completely on the floor.
3. In this position, you can roll the trunk to the split onto the lifting tube.
4. The trunk must lie in the area between the two fixing points.
5. Push the return bar (3) down and let the splitting blade (4) move up.
6. Caution! Do not stand in the working range of the trunk lifter (6)! Danger of injury!
7. Now align the trunk, press it against the claw (14) and split it. (Refer to: Working instructions)
8. Then remove the split wood and move the splitting blade (4) and thus the trunk lifter (6) down again.
9. A new log can now be rolled onto the trunk lifter (6).

10.10 Resetting the trunk lifter (6) (Fig. 10)

This is used as a second guard arm when not using the trunk lifter (6). To do this, the trunk lifter (6) is raised until it engages on the retaining hook (12).

10.11 Trunk lifter (6) transport position (Fig. 10)

Guide the trunk lifter (6) up by hand until it latches into place in the retainer hook (12).

Observe these instructions to ensure that you can work quickly and safely.

11. Cleaning

Only carry out modifications, adjustments and cleaning work when disconnected from the drive shaft.

We recommend that you clean the product directly after every use.

Wipe chippings and dust off the product from time to time with a cloth.

Clean the product at regular intervals using a damp cloth and a little soft soap. Do not use any cleaning products or solvents; they could attack the plastic parts of the product. Make sure that no water can penetrate the interior of the product.

12. Transport

The product can be easily transported using the 3-point attachment on the drive vehicle.

Before transporting the product, place it in the transport position.

To do this, move the splitting blade (4) downwards until it rests on the support (4a). Then remove both safety pins and their split pins (1a) and move the hydraulic cylinder down into the transport position by pressing the return bar (3) downwards.

Make sure there is sufficient manoeuvring space when driving, e.g. when turning, parking and at junctions.

Before transport, ensure that the product is properly and securely attached to the drive vehicle and that the cardan shaft has been disassembled.

Never transport the product with the cardan shaft drive connected.

Make sure that the product is raised high enough to pass obstacles during transport.

13. Storage

Store the product and its accessories in a dark, dry and frost-free place that is inaccessible to children. The optimum storage temperature lies between 5 and 30 °C. Store the tool in its original packaging.

Cover the product to protect it from dust or moisture. Store the instruction manual with the product.

14. Maintenance

Attention!

Ensure that the cardan shaft is not connected to the drive vehicle.

Oil change intervals

Initial oil change after 50 operating hours, then every 250 operating hours.

14.1 Changing oil (Fig. 17+18)

Due to the heavy weight of the product, we recommend that maintenance work is carried out by at least two people.

1. Move the additional transport wheel (5) to the transport position.
2. Use the transport wheels (9) to tilt the product so that you can easily reach the oil drain plug (19).
3. Place an appropriately sized container under the oil drain screw (19).
4. Open the oil filling opening (18).
5. Open the oil drain screw (19) and carefully allow the oil to run into the container.
6. Reinsert the oil drain screw (19) with seal and tighten securely.
7. Top up with new hydraulic oil. (contents: see technical data) and check the oil level with the oil dipstick. After an oil change, actuate the splitting blade (4) several times without actually splitting.

Attention! Do not allow any dirt particles to enter the oil container.

Dispose of the used oil properly at a local used oil collection point. Dumping used oil in the soil or mixing it with waste is prohibited.

We recommend oil from the HLP 32 range.

14.2 Changing the gearbox oil (Fig. 19)

The gearbox is filled with SAE90 gear oil at the factory.

Drain the gear oil after the first 50 operating hours and replace it with new oil as specified. The next oil change should then be carried out every 250 operating hours or every six months, whichever comes first.

1. Disassemble the cardan shaft protective cover (7) and set a sufficiently large container under the gearbox.
2. First open the oil drain screw (gearbox) (21) and then the oil filler plug (20) and drain the oil completely.
3. Close the oil drain screw (gearbox) (19) with a new seal and fill new SAE90 gear oil into the opening of the oil filler plug (20) using a funnel until the lower edge of the oil sight glass (22) is almost covered with oil.

Check the oil level every 8 working hours. The oil level is correct when the lower edge of the oil sight glass (22) is almost covered with oil.

Hydraulic system

The hydraulic system is a closed system with an oil tank, oil pump and control valve.

The factory-completed system must not be changed or tampered with.

Check the oil level regularly.

If the oil level is too low, the oil pump will be damaged. Check hydraulic connections and screw connections regularly for leaks-retighten if necessary.

Please provide the following information in the event of any enquiries:

• Machine data-type plate

Service information

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

Wearing parts*: Riving knife / riving spar guides, hydraulic oil, gear oil

* may not be included in the scope of delivery!

Spare parts and accessories can be obtained from our service centre. To do this, scan the QR code on the cover page.

15. Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

You can find out how to dispose of the disused device from your local authority or city administration.

Fuels and oils

• Before disposing of the device, the fuel tank and the motor oil tank must be emptied!
• Fuel and engine oil do not belong in household waste or drains, but must be collected or disposed of separately!
• Empty oil and fuel tanks must be disposed of in an environmentally friendly manner.

16. Troubleshooting

The following table shows fault symptoms and describes remedial measures in the event of your machine failing to work properly. If you cannot localise and rectify the problem with this, please contact your service workshop.

Fault Possible cause Remedy
The blade does not move downwards or reach its splitting force	Drive shaft speed incorrect Check drive shaft speed
	Drive shaft rotating in wrong direction	Check and adjust the direction of rotation
	Low oil level Check the oil level and top up
	One of the levers is not connected Check the attachment of the lever
	Dirt in the rails Clean the rails

Technical schematic diagram of a mechanical assembly with numbered components and labeled parts

AT-Outils, 36 Rue de l'Eglise, 68740 Nambsheim, FRANCE

DE	EU-KonformitätserklärungÜbersetzung der OriginalkonformitätserklärungWir erklären in alleiniger Verantwortung, dass das hier beschriebene Produkt mit den geltenden Richtlinien und Normen übereinstimmt.		Der hier beschriebene Gegenstand der Erklärung erfüllt die Vorschriften der Richtlinie 2011/65/EU des Europäischen Parlaments und des Rates vom 8. Juni 2011 zur Beschränkung der Verwer-dung bestimmter gefährlicher Stoffe in Elektro- und Elektronikgeräten. *Technische Unterlagen verfügbar bei: **
	Artikelnummer***	Artikelbezeichnung: Holzspalter HL1400G ATO		Marker****
GB	EU Declaration of ConformityTranslation of the original Declaration of ConformityWe declare under our sole responsibility that the product described here complies with the applicable directives and standards.		The object of the declaration described here fulfils the regulations of the directive 2011/65/EU of the European Parliament and Cour-cil from 8th June 2011, on the restriction of the use of certain haz-ardous substances in electrical and electronic equipment. *Technical documentation available at: **
	Item number***	Item designation: Log splitter HL1400G ATO		Brand****
FR	Déclaration UE de conformitéTraduction de la déclaration de conformité originaleNous déclarons, sous notre propre responsabilité, que le produit décrit ici est conforme aux directives et normes en vigueur.		L'appareil décrit ci-dessus dans la déclaration est conforme aux réglementations de la directive 2011/65/EU du Parlement Européen et du Conseil du 8 juin 2011 visant à fimiter l'utilisation de sub-sances dangereuses dans la fabrication des appareils électriques et électroniques. *Dossier technique auprès de: **
	Référence***	Désignation de l'article: Fendeur de bûches HL1400G ATO		Marque****
	***39054249953			****

** Documents registrar:____________AT-Outils36 Rue de l'Eglise68740 Nambsheim . [e-mail],21.08.2025	□ 2011/65/EU*□ 2014/30/EU□ 2016/1628/EU□ 2014/29/EU□ 2014/35/EU□ 2004/22/EG□ 2014/68/EU□ 89/686/EWG_96/58/EG□ 90/396/EWG	✕ 2006/42/EG□ Annex IVNotified Body:Notified Body No.:Certificate No.:	□ 2000/14/EG; 2005/88/EGNoise:measured L_WA = dBguaranteed L_WA = dB□ Annex V□ Annex VINotified Body:Notified Body No.:
	□ 2016/1628/EU	Emission No.:
	EN 609-1:2017

Nambsheim le 12/09/2025

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyeris rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material

or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR
