USER MANUAL H-7621 Uline

DUAL MONITOR MOUNT – EASY-ADJUST

1-800-295-5510

uline.com

TOOLS NEEDED

Phillips Screwdriver

4 x 4 Allen Wrench (F)
5 x 5 Allen Wrench (G) (included)

Two Person Assembly
Required

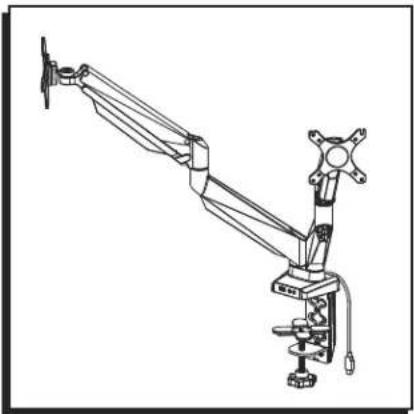

Technical line drawing of a mechanical arm with articulated joints and a vertical support (no text or symbols)

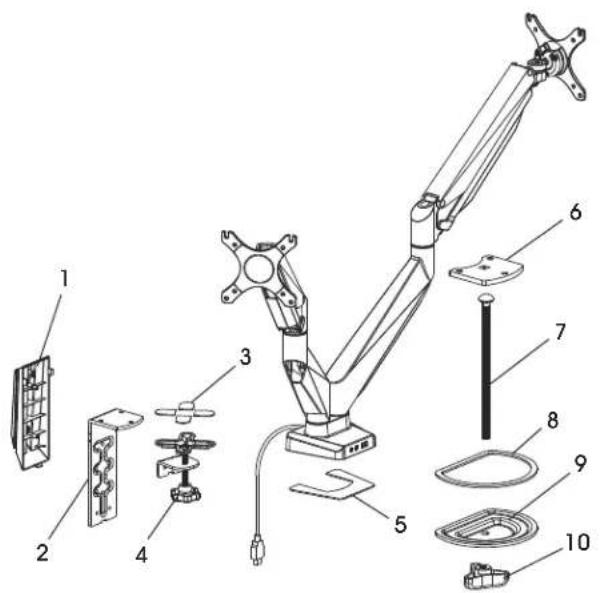

PARTS

Exploded view diagram of a robotic arm with numbered parts for identification

#	DESCRIPTION QTY.
1	Cable Clip 1
2	Clamp Mounting Bracket 1
3	Anti-Slip Foam for Clamp 4
4	Clamp 1
5	Anti-Slip Foam for Base 1
6	Grommet Mounting Plate 1
7	Grommet Bolt 1
8	Anti-Slip Foam for Bottom Support	1
9	Bottom Support	1
10	Knob	1
A	M4 x 12 mm Bolt (Not Shown)	8
B	M5 x 12 mm Bolt (Not Shown)	8
C	M6 x 12 mm Bolt (Not Shown)	3
D	M6 x 14 mm Bolt (Not Shown)	2
E	Flat Washer (Not Shown)	16

SETUP

NOTE: Make sure the monitor has a VESA hole pattern of 75 x 75 mm or 100 x 100 mm. (See Figure 1)

NOTE: If the monitors are attached to fixed bases, remove monitors from bases.

CAUTION! Be careful not to scratch the monitor screen during installation.

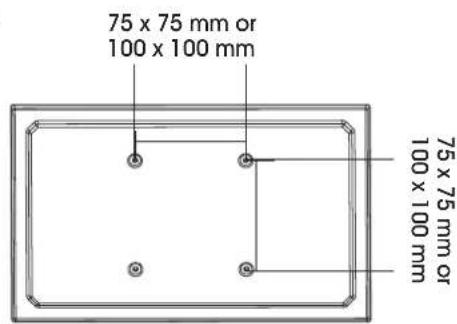

Figure 1

75 x 75 mm or 100 x 100 mm 75 x 75 mm or 100 x 100 mm

ASSEMBLY CONTINUED

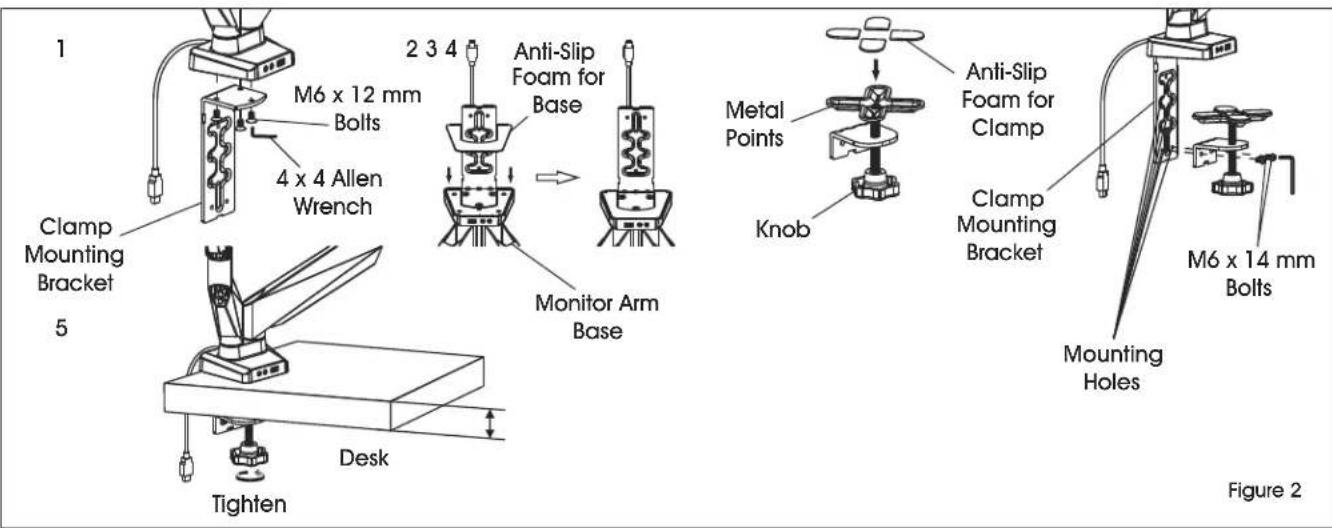

CLAMP MOUNTING

1 Clamp Mounting Bracket 5 M6 x 12 mm Bolts 4 x 4 Allen Wrench 2 3 4 Anti-Slip Foam for Base Monitor Arm Base Tighten Desk Metal Points Knob Anti-Slip Foam for Clamp Clamp Mounting Bracket Mounting Holes M6 x 14 mm Bolts Figure 2

NOTE: Clamp mount is compatible with desk thickness of 3/4 - 4^3/_4 .

1. Attach clamp mounting bracket (2) to bottom of monitor arm base using M6 x 12 mm bolts (C) and 4 x 4 Allen wrench (F).
2. Apply anti-slip foam for base (5) to bottom of monitor arm base.
3. Apply anti-slip foam for clamp (3) over metal points on clamp (4).

NOTE: Select the appropriate mounting holes based on the thickness of the desk.

1. Attach clamp (4) to the clamp mounting bracket (2) using M6 x 14 mm bolts (D) and 4 x 4 Allen wrench (F).
2. Place clamp mounting bracket and clamp over desk and fully tighten knob.

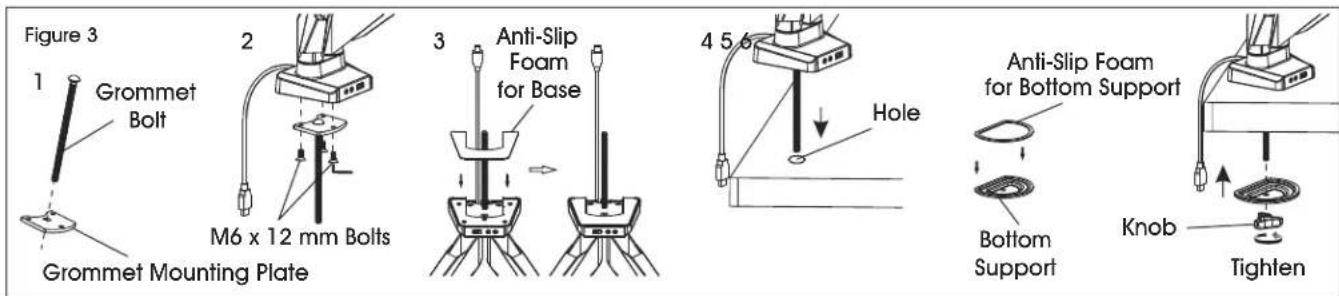

GROMMET MOUNTING

Figure 3 1 Grommet Bolt 2 M6 x 12 mm Bolts 3 Anti-Slip Foam for Base 4 5 6 Hole Anti-Slip Foam for Bottom Support Bottom Support Knob Tighten

NOTE: For grommet mounting, hole in desk must be 3/8 - 2^3/4 .

NOTE: Grommet mount is compatible with desk thickness of 1 - 378 ".

1. Insert grommet bolt (7) through center of grommet mounting plate (6); counterbore-side down.

2. Attach grommet mounting plate (6) to bottom of monitor arm base using M6 x 12 mm bolts (C) and 4 x 4 Allen wrench (F).

3. Apply anti-slip foam for base (5) to bottom of monitor arm base.

4. Insert grommet bolt (7) into hole of desk.
5. Apply anti-slip foam for bottom support (8) to bottom support (9).
6. Thread grommet bolt (7) through bottom support (9) and attach knob (10) to end of bolt. Fully tighten knob.

ASSEMBLY CONTINUED

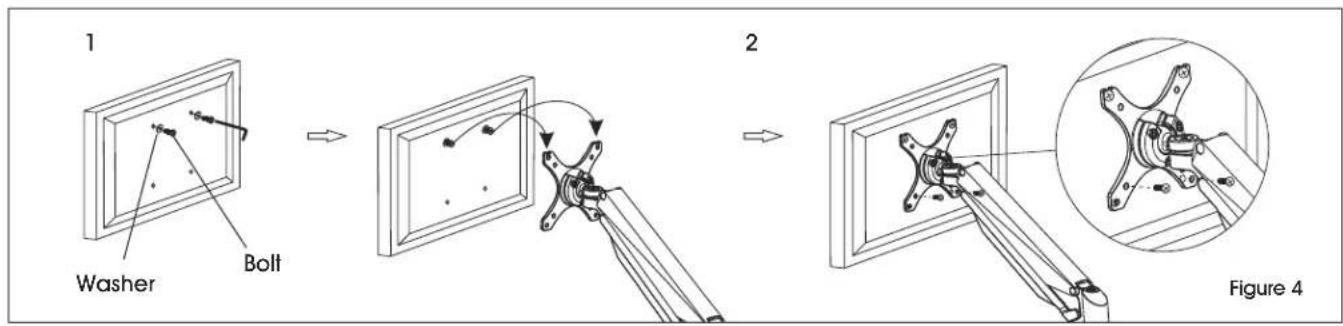

ATTACHING MONITORS

1 Washer Bolt 2 Figure 4

NOTE: Two-person assembly is required for this step.

NOTE: Depending on size of holes, use either M4 x 12 mm bolts (A) or M5 x 12 mm bolts (B). If holes are not deep enough, add flat washers to bolts to ensure a tight fit.

1. One person should hold the monitor and align the bolt holes on the back of the monitor with the mounting plate. The second person should insert bolts into the top two holes in the mounting plate and monitor. Loosely tighten both bolts.

NOTE: For 100 x 100 mm VESA hole pattern, screws can be inserted into the top holes in back of monitor and lowered into mounting plate for easier attachment.

1. While one person continues to hold the monitor, the second person should insert bolts into the bottom two holes in the mounting plate and monitor. Then, fully tighten all four bolts.

2. Repeat for second monitor.

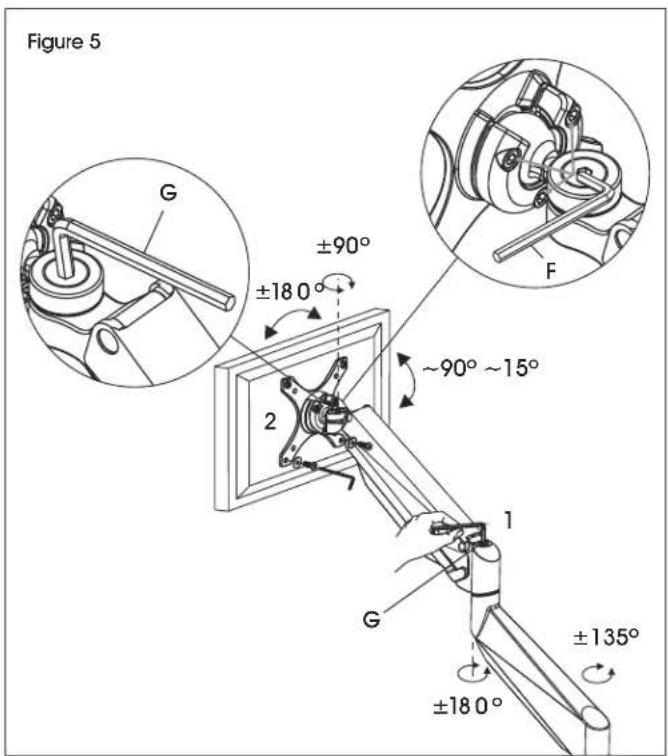

ADJUSTING MONITORS

NOTE: Easy-adjust monitor includes a built-in counterweight system for free range of motion. Arm or mount may need to be adjusted to allow monitor to stop at desired position.

1. To adjust the counterweight, use 5 x 5 Allen wrench (G) on bolt above middle joint. Turn towards "-" if monitor raises when released. Turn towards "+" if the monitor lowers when released. Adjust until mount can be stopped at desired position. (See Figure 5)

2. To adjust the tilt function, use 5 x 5 Allen wrench (G) and 4 x 4 Allen wrench (F) on bolts near mounting plate. (See Figure 5)

Figure 5 ±90° ±180° ~90° ~15° 2 G F 1 ±135° ±180°

ASSEMBLY CONTINUED

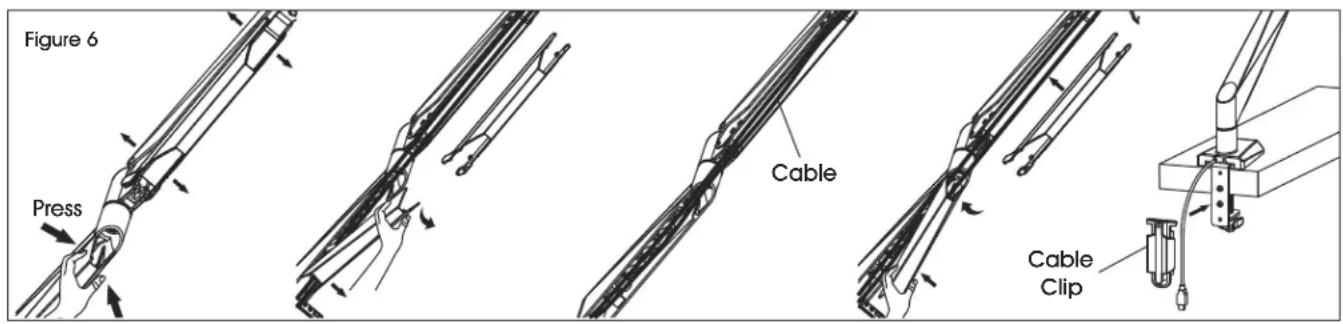

CABLE MANAGEMENT

Figure 6 Press Cable Cable Clip

1. Press both sides of cable cover and pull off to remove.

2. Run cables along monitor arm and reattach cable cover over cables.

3. Attach cable clip (1) to back of clamp mounting bracket (2). Run cables through cable clip for a clean appearance.

ULINE H-7621

SOPORTE PARA MONITORES DOBLE – AJUSTE FÁCIL

800-295-5510

uline.mx

Technical line drawing of a mechanical arm with articulated joints and a vertical support (no text or symbols)

PARTES

Exploded view diagram of a robotic arm with numbered parts for identification

Diagram of a mechanical device with a clamp and connecting rod, no visible text or symbols

Pernos de M6 x 12 mm

3 Espuma Antiderrapante Para Base

4 5 Orificio

Espuma Antiderrapante
Para Soporte Inferior

Soporte Inferior

Ajuste

Diagrama 5 G ±90° ±180° F ~90° ~15° 2 7 1 G ±135° ±180°

Technical line drawing of a mechanical arm with articulated joints and suspension components (no text or symbols)

PIÈCES

Exploded view diagram of a robotic arm with numbered parts for identification

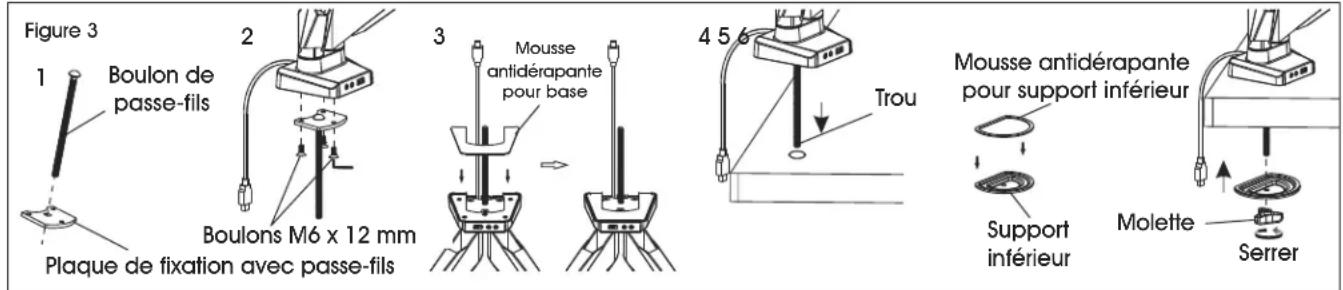

FIXATION AVEC PASSE-FILS

Figure 5 ±90° ±18 0° F ~90° ~15° 2 1 G ±135° ±18 0°

MONTAGE SUITE

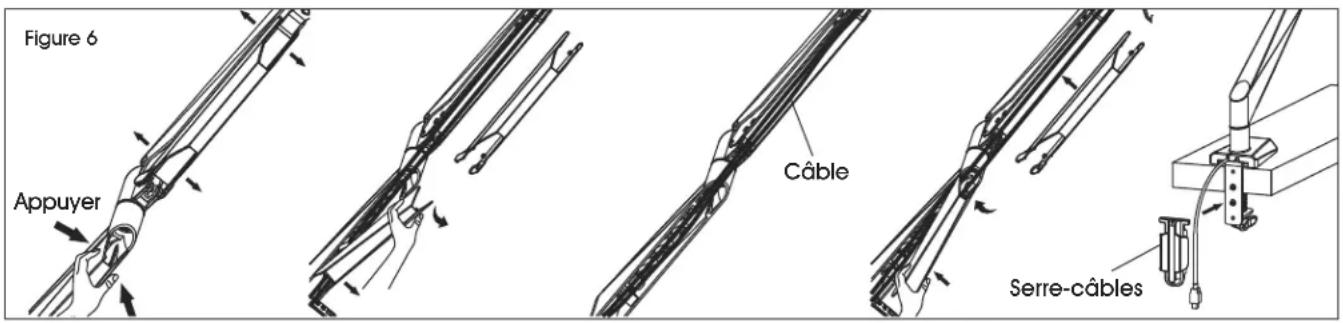

GESTION DES CÂBLES

Figure 6 Appuyer Câble Serre-câbles
