USER MANUAL SBS-FZ 1000P STEINBERG

SBS-FZ 2000/6M | SBS-FZ 5000/3M | SBS-FZ 1000/6M

SBS-FZ 3000/5M | SBS-FZ 3000/12M | SBS-FZ 3000/10M

SBS-FZ 2000/5M | SBS-FZ 2000/12M | SBS-FZ 2000/10M

SBS-FZ 5000P/3M | SBS-FZ 1000P/6M

DE	Produktname	KETTENZUG
EN	Product name	CHAIN HOIST
PL	Nazwa produktu	WCIĄGARKA ŁAŃCUCHOWA
CZ	Název výrobku	ŘETĚZOVÝ KLADKOSTROJ
FR	Nom du produit	PALAN À CHAÎNE
IT	Nome del prodotto	PARANCO
ES	Nombre del producto	CABESTRANTE DE CADENA
HU	Termék neve	LÁNCOS CSÖRLÓ
DA	Produktnavn	KÆDESPIL
DE	Modell:	SBS-FZ 2000/6M
EN	Product model:	SBS-FZ 5000/3M
PL	Model produktu:	SBS-FZ 1000/6M
CZ	Model výrobku	SBS-FZ 3000/5M
FR	Modèle:	SBS-FZ 3000/12M
IT	Modello:	SBS-FZ 3000/10M
ES	Modelo:	SBS-FZ 2000/5M
HU	Modell	SBS-FZ 2000/12M
		SBS-FZ 2000/10M
DA	Model	SBS-FZ 5000P/3M
		SBS-FZ 1000P/6M
DE	Hersteller	expondo Polska sp. z o.o. sp. k.
EN	Manufacturer
PL	Producent
CZ	Výrobce
FR	Fabricant
IT	Produttore
ES	Fabricante
HU	Termelő
DA	Producent
DE	Anschrift des Herstellers	ul. Nowy Kisielin – Innowacyjna 7, 66-002 Zielona Góra | Poland, EU
EN	Manufacturer Address
PL	Adres producenta
CZ	Adresa výrobce
FR	Adresse du fabricant
IT	Indirizzo del produttore
ES	Dirección del fabricante
HU	A gyártó címe
DA	Producentens adresse

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description	Parameter value
Product name	CHAIN HOIST
Model	SBS-FZ2000 / 6M	SBS-FZ5000 / 3M	SBS-FZ1000 / 6M		SBS-FZ3000 / 5M
Weight [kg]	23	38	11.5		22
Load capacity [T]	2	5	1		3
Maximum lifting height[m]	6 3 6 5
Product name	CHAIN HOIST
Model	SBS-FZ3000 /12M	SBS-FZ3000 /10M	SBS-FZ2000 / 5M		SBS-FZ2000 /12M
Weight [kg]	48.8	42.8	19.6		35.8
Load capacity [T]	3	3	2		2
Maximum lifting height[m]	12 10 5	12
Product name	CHAIN HOIST
Model	SBS-FZ 2000 /10M		SBS-FZ 5000P /3M	SBS-FZ 1000P /6M
Weight [kg]	31.2		38	11.5
Load capacity [T]	2		5	1
Maximum lifting height[m]	10 3 6

1. General Description

This manual is intended to assist you for safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components and maintaining the highest quality standards.

CAREFULLY READ AND UNDERSTAND THIS MANUAL BEFORE STARTING THE WORK.

To ensure long and reliable operation of the device, make sure to operate and maintain it properly in accordance with the guidelines in this instruction manual. The technical data and specifications in this manual are up-to-date. The manufacturer reserves the right to make changes in order to improve the quality. Taking the technical progress and the possibility of reducing noise into account, the unit is designed and built in such a way so that risks resulting from noise emissions are reduced to the lowest possible level.

Explanation of symbols

	The product complies with applicable safety standards.
	Read the manual before use.
	CAUTION! or WARNING! or REMEMBER! describing a situation (general warning sign).
	Wear protective gloves.
	Wear protective head gear.
	CAUTION! Spinning elements!
	CAUTION! Hanging weight!
	CAUTION! Keep bystanders away from the working area.

CAUTION! The figures in this manual are illustrative only and may vary in some details from the actual appearance of the product.

2. Safety of use

CAUTION! Read all safety warnings and instructions. Failure to follow warnings and uctions could result in serious injury or even death.

The term "device" or "product" in the warnings and in the description of the instructions refers to

Chain Hoist.

2.1. Safety recommendations

a) Please read these instructions carefully before starting up the unit! Observe all safety instructions to avoid damage from improper use!
b) Keep the operating instructions for future reference. If the machine is to be passed on to third parties, the operating instructions must also be handed over together with the machine.
c) Liability for any damage that may arise is excluded in the event of improper use or operation.
d) The unit may be operated by persons who are physically fit, capable of operating it and appropriately trained, and who have read this instruction manual and have been trained in occupational safety and health.
e) The machine is not intended to be used by persons (including children) with reduced mental, sensory or intellectual functions or persons who lack experience and/or knowledge unless they are supervised or have been instructed by a person responsible for their safety on how to operate the machine.
f) Keep the work area tidy and well lit. Disorder or poor lighting can lead to accidents. Be foresighted, watch what you are doing and use common sense when using the unit.

2.2. Personal safety

a) Do not operate this device if you are tired, ill or under the influence of alcohol, drugs or medication that could impair your ability to operate the device.
b) Read the instructions and safety notes before each use.
c) Before each use, inspect the machine for parts that are worn or damaged in a way that prevents proper operation. Do not use the machine if parts are worn or damaged in a way that prevents proper operation (chain jumping, excessive noise, chain sticking, etc.).
d) If the machine has been overloaded or subjected to severe shock, it must be inspected by an authorized service technician before use.
e) Do not use a damaged, worn or improperly functioning machine. In this case, return the machine to an authorized service center for inspection and repair.
f) Comprehensive periodic inspection of the machine should be carried out and worn / damaged parts should be replaced on an ongoing basis.
g) Use only spare parts recommended by the manufacturer.
h) The machine should only be operated by persons who have been adequately trained in the safety rules and are physically able to operate it.
i) The machine must be lubricated regularly.
j) The machine must not be used if the hook latch has been damaged in any way.
k) Always check that the hook latches have been closed properly.
I) Connecting the chain by bolts through the chain links is forbidden.
m) Never load the machine with more than its maximum load.
n) Never put your hands inside the hooks.
o) Make sure that the load is securely and properly centered under the hook. Do not drag the load.
p) Do not use the machine with twisted, jammed, looped or damaged chain.
q) Do not hit the chain or hook.
r) Never run the hook through the chain links or catch the hook by the chain links.
s) Always make sure that the load is properly suspended on the hook and that the hook latch is closed.
t) Always verify that all bolted connections on the machine and / or its attachment are properly tightened.
u) Do not walk or stand under suspended loads (or in their immediate vicinity).
v) Lifting the load with the machine over people or animals is forbidden.
w) Lifting people or animals by means of this machine is prohibited.
x) Always pay close attention to the load.
y) Do not leave suspended loads unattended.
z) Avoid rocking the load.
aa) Bystanders should be warned about the operation of the machine and should stay at a safe distance from the load.
bb) Do not perform mechanical or similar work (welding, cutting, etc.) on suspended loads.
cc) After working with the machine, it must be secured against unauthorized use.

dd) The machine must be inspected regularly and damaged or worn parts must be replaced by an authorized service center.
ee) If the load falls, there is a risk of injury or death.
ff) When working with the device, use personal protective equipment (incl. protective gloves). Also wear appropriate, close-fitting work clothing.
gg) ATTENTION: There is a risk of overheating the brake when lowering the load for a long time.

CAUTION! Although the product has been designed to be safe and has adequate safeguards and despite the additional safety features provided to the user, there is still a slight risk of accident or injury when handling the product. Caution and common sense are advised when using the product.

3. Instructions for use

The machine is intended solely for manual lifting and lowering of loads. The weight of the load must not exceed the stated permissible load. The device is dedicated for factories, farms, construction sites for assembly purposes as well as loading and unloading of goods.

Using the unit in conditions of increased corrosion risk and/or in flammable or explosive environments is prohibited.

The user is responsible for any damage resulting from misuse.

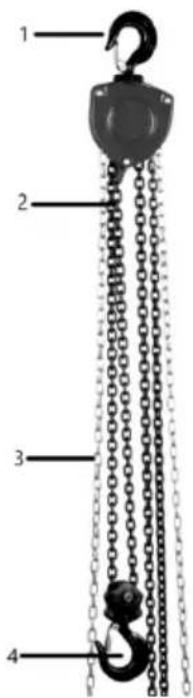

3.1. Product overview

1 2 3 4

1. Hook for hanging
2. Lifting chain
3. Control chain
4. Hook for the load

3.2. Preparation for operation

ASSEMBLY OF THE UNIT

- Before installing the unit in the workplace, check its components for signs of damage.

• Make sure that the load-bearing structure on which the device is to be mounted will support its weight together with the weight of the load.

- The support on which the device is to be mounted must withstand 4 times the rated load.

- Do not mount the unit on a support structure the load capacity and strength of which have not been verified.

- When mounting the unit to the supporting structure, take special care and ensure proper conditions for safe operation to avoid hazards leading to personal injury.

- The user is responsible for preparing the conditions for the installation of the device and for the installation itself.

- After installing the unit, check that the hook is properly attached and that the latch is closed.

- Each time a load is lifted, check that the safety brake is working properly. To do this, hang a load on the device (approx. 10% of the permissible lifting capacity) and raise and lower it several times, making sure that after stopping lifting/lowering the load always stops in a given position without lowering itself.

- Each time check the control chain - whether it is not twisted and whether it is properly arranged, i.e. the links are aligned.

3.3. Working with the device

Lifting/lowering

- Place the hook directly above the load so that it is not under tension and the hooked load rests firmly on the ground. - To raise/lower the load, pull the control chain responsible for lifting/lowering - lifting/lowering can be stopped at any time.

WARNING: in exceptional cases, the emergency brake may become hot for devices that are used intensively during continuous lowering.

- Always lower the load slowly and in stages. Stop the work immediately if the chain becomes jammed or any other fault occurs. In such acase, notify your supervisor or a responsible person who can safely remove the load and restore the normal operation of the device.

IMPORTANT: when unlocking the load lifted on the device, additional force may be required to release the friction between the brake components - this is normal and does not constitute a defect of the device!

3.4. Cleaning and maintenance

a) Use only non-corrosive cleaning agents for cleaning the surfaces.
b) Store the unit in a dry and cool place protected from moisture and direct sunlight.
c) Do not spray the unit with a stream of water or immerse it in water.
d) Perform regular inspections of the unit, checking technical fitness and any damages.
e) Do not use sharp and/or metal objects (e.g. wire brush or metal spatula) for cleaning as they may damage the surface of the appliance material.

For the disposal of the device please consider and act according to the national and local rules and regulations.
