CUBE-15XL - Guitar amplifier ROLAND - Free user manual and instructions

Product Type	Guitar Amplifier
Brand	ROLAND
Model	CUBE-15XL
Rated Output Power	15 W
Speaker	30 cm (12 inches)
Nominal Input Level (INPUT)	-10 dBu / 1 MΩ
Nominal Input Level (AUX IN)	-10 dBu
Connectors	INPUT, AUX IN, RECORDING OUT/PHONES
Controls	POWER, SELECT, POWER SQUEEZER, VOLUME (CLEAN), TYPE, GAIN, VOLUME (LEAD), BASS, MIDDLE, TREBLE
Indicators	CLEAN channel (green), LEAD channel (red)
Power Consumption	18 W
Dimensions (W x D x H)	335 x 240 x 335 mm
Weight	7.2 kg
Included Accessories	Owner's Manual
Channels	CLEAN and LEAD (4 distortion types: OVERDRIVE, DISTORTION, METAL ZONE, EXTREME)
Power Squeezer Function	Reduces output to 2 W for balanced sound at low volume
Auxiliary Input	AUX IN for CD player or digital audio player
Recording/Headphone Output	RECORDING OUT/PHONES (1/4" mono jack)
Power Supply	Household power via power cord
Maintenance and Cleaning	Soft, dry cloth; avoid solvents, alcohol, thinners
Safety	Do not open, avoid moisture/rain, unplug before cleaning
Spare Parts and Repairability	Contact your dealer or authorized Roland service center

Frequently Asked Questions - CUBE-15XL ROLAND

How to connect an electric guitar to the CUBE-15XL?

Plug your guitar into the INPUT jack located on the rear of the amplifier. Make sure the unit is turned off when connecting.

How to use the different distortion types on the LEAD channel?

Use the TYPE switch to select from OVERDRIVE, DISTORTION, METAL ZONE, and EXTREME. Then adjust the distortion level with the GAIN knob and the volume with the VOLUME knob on the LEAD channel.

Can I connect a CD player or headphones to this amplifier?

Yes, connect a CD player or digital audio player to the AUX IN input. For headphones, use the RECORDING OUT/PHONES output. Note that the speaker is then muted.

What to do if no sound comes out of the amplifier?

Check that the unit is powered on (POWER switch lit). Make sure the VOLUME knobs (CLEAN or LEAD) as well as BASS, MIDDLE, and TREBLE are not set to zero. Also check cable connections.

How to reduce the volume so as not to disturb neighbors?

Use the Power Squeezer function to reduce output to 2 W, which provides balanced sound at low volume. You can also use headphones on the RECORDING OUT/PHONES output.

What precautions to take before unplugging the unit?

First turn off the unit using the POWER switch, then unplug the power cord from the wall outlet. Also disconnect all cables connected to other devices.

How to clean the CUBE-15XL?

Use a soft, dry cloth or one slightly dampened with water. For stubborn dirt, use a mild non-abrasive detergent. Never use gasoline, alcohol, or solvents.

What to do if condensation occurs inside the unit?

Let the unit rest for a few hours until the condensation has completely evaporated before use. This can happen after a change in temperature or humidity.

Can I use connection cables containing resistors?

No, do not use cables with resistors for connecting this device, as the sound level may become very low or inaudible. Use standard cables.

What is the purpose of the POWER SQUEEZER switch?

This switch reduces the amplifier's output power from 15 W to 2 W, while preserving sound quality. Ideal for playing at low volume at home.

USER MANUAL CUBE-15XL ROLAND

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS.

IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS

WARNING - When using electric products, basic precautions should always be followed, including the following:

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.
12. Unplug this apparatus during lightning storms or when unused for long periods of time.
13. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

For the U.K.

IMPORTANT: THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE.

BLUE: NEUTRAL

BROWN: LIVE

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.

Under no circumstances must either of the above wires be connected to the earth terminal of a three pin plug.

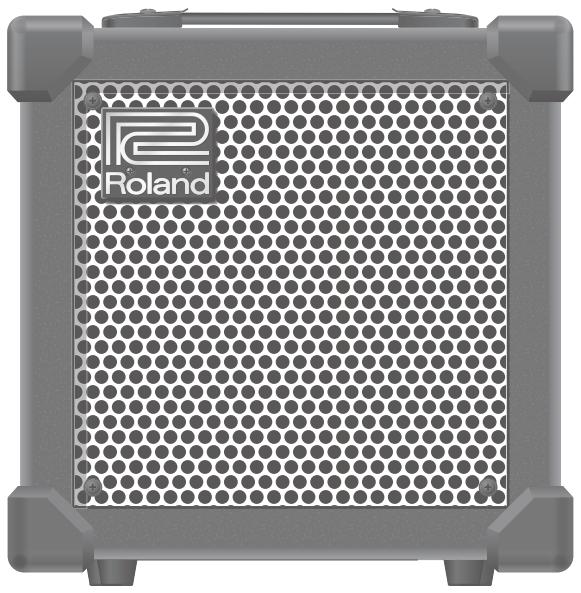

Owner's Manual

Guitar Amplifier

15-watt output, compact, high-performance guitar amp with built-in 20 cm (8-inch) speaker

• Ideal for practicing at home. Its compact size makes it easy to take it with you whenever you need it.

Switchable between two channels: CLEAN and LEAD (p. 4)

• Simply press a single button to switch between the CLEAN and LEAD channels.
• The LEAD channel provides four different distortion sounds: OVERDRIVE, DISTORTION, METAL ZONE, and EXTREME.

Power Squeeze function (p. 4)

This allows you to obtain a good tonal balance even at low volume, letting you enjoy powerful sound even when you're at home.

Equipped with RECORDING OUT jack convenient for use in recording (p. 4)

• You can connect this directly to your mixer or recorder.
• It can also be used as a headphone jack for convenient night-time practice or sound checks.

Equipped with an AUX IN jack, which is convenient for your practice sessions (p. 4)

• Use this to play along with sounds from CD players and digital audio players.

Before using this unit, carefully read the sections entitled: "IMPORTANT SAFETY INSTRUCTIONS" (inside front cover), "USING THE UNIT SAFELY" (p. 2), and "IMPORTANT NOTES" (p. 3). These sections provide important information concerning the proper operation of the unit. Additionally, in order to feel assured that you have gained a good grasp of every feature provided by your new unit, Owner's manual should be read in its entirety. The manual should be saved and kept on hand as a convenient reference.

INSTRUCTIONS FOR THE PREVENTION OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS

About WARNING and CAUTION Notices

▲WARNING	Used for instructions intended to alert the user to the risk of death or severe injury should the unit be used improperly.
▲CAUTION	Used for instructions intended to alert the user to the risk of injury or material damage should the unit be used improperly. * Material damage refers to damage or other adverse effects caused with respect to the home and all its furnishings, as well to domestic animals or pets.

About the Symbols

!	The △symbol alerts the user to important instructions or warnings.The specific meaning of the symbol is determined by the design contained within the triangle. In the case of the symbol at left, it is used for general cautions, warnings, or alerts to danger.
®	The ⊙symbol alerts the user to items that must never be carried out (are forbidden). The specific thing that must not be done is indicated by the design contained within the circle. In the case of the symbol at left, it means that the unit must never be disassembled.
✔	The ●symbol alerts the user to things that must be carried out. The specific thing that must be done is indicated by the design contained within the circle. In the case of the symbol at left, it means that the power-cord plug must be unplugged from the outlet.

ALWAYS OBSERVE THE FOLLOWING

WARNING

Do not open or perform any internal modifications on the unit.

Do not attempt to repair the unit, or replace parts within it (except when this manual provides specific instructions directing you to do so). Refer all servicing to your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the "Information" page.

Never install the unit in any of the following locations.

• Damp (e.g., baths, washrooms, on wet floors); or are
• Exposed to steam or smoke; or are
• Subject to salt exposure; or are
• Humid; or are
• Exposed to rain; or are
• Dusty or sandy; or are
• Subject to high levels of vibration and shakiness.

Make sure you always have the unit placed so it is level and sure to remain stable. Never place it on stands that could wobble, or on inclined surfaces.

The unit should be connected to a power supply only of the type described as marked on the rear side of unit.

Do not excessively twist or bend the power cord, nor place heavy objects on it. Doing so can damage the cord, producing severed elements and short circuits. Damaged cords are fire and shock hazards!

This unit, either alone or in combination with an amplifier and headphones or speakers, may be capable of producing sound levels that could cause permanent hearing loss. Do not operate for a long period of time at a high volume level, or at a level that is uncomfortable. If you experience any hearing loss or ringing in the ears, you should immediately stop using the unit, and consult an audiologist.

Do not place containers containing liquid on this product. Never allow foreign objects (e.g., flammable objects, coins, wires) or liquids (e.g., water or juice) to enter this product. Doing so may cause short circuits, faulty operation, or other malfunctions.

Immediately turn the power off, remove the power cord from the outlet, and request servicing by your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the "Information" page when:

• The power-supply cord or the plug has been damaged; or

• If smoke or unusual odor occurs

• Objects have fallen into, or liquid has been spilled onto the unit; or
• The unit has been exposed to rain (or otherwise has become wet); or
• The unit does not appear to operate normally or exhibits a marked change in performance.

In households with small children, an adult should provide supervision until the child is capable of following all the rules essential for the safe operation of the unit.

WARNING

Protect the unit from strong impact.

(Do not drop it!)

Do not force the unit's power-supply cord to share an outlet with an unreasonable number of other devices. Be especially careful when using extension cords---the total power used by all devices you have connected to the extension cord's outlet must never exceed the power rating (watts/ amperes) for the extension cord. Excessive loads can cause the insulation on the cord to heat up and eventually melt through.

Before using the unit in a foreign country, consult with your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the "Information" page.

CAUTION

The unit should be located so that its location or position does not interfere with its proper ventilation.

Always grasp only the plug on the power-supply cord when plugging into, or unplugging from an outlet.

At regular intervals, you should unplug the power plug and clean it by using a dry cloth to wipe all dust and other accumulations away from its prongs. Also, disconnect the power plug from the power outlet whenever the unit is to remain unused for an extended period of time. Any accumulation of dust between the power plug and the power outlet can result in poor insulation and lead to fire.

Try to prevent cords and cables from becoming entangled. Also, all cords and cables should be placed so they are out of the reach of children.

Never climb on top of, nor place heavy objects on the unit.

Never handle the power cord or its plug with wet hands when plugging into, or unplugging from, an outlet.

Before moving the unit, disconnect the power plug from the outlet, and pull out all cords from external devices.

Before cleaning the unit, turn off the power and unplug the power cord from the outlet (p. 5).

Whenever you suspect the possibility of lightning in your area, pull the plug on the power cord out of the outlet.

The cooling vents on either side of the unit may become hot, so take care to avoid burns.

Do not remove the speaker grille and speaker by any means. Speaker not user replaceable. Shock hazardous voltages and currents are present inside the enclosure.

Power Supply

• Do not connect this unit to same electrical outlet that is being used by an electrical appliance that is controlled by an inverter (such as a refrigerator, washing machine, microwave oven, or air conditioner), or that contains a motor. Depending on the way in which the electrical appliance is used, power supply noise may cause this unit to malfunction or may produce audible noise. If it is not practical to use a separate electrical outlet, connect a power supply noise filter between this unit and the electrical outlet.
• Before connecting this unit to other devices, turn off the power to all units. This will help prevent malfunctions and/or damage to speakers or other devices.
• Although the LEDs are switched off when the POWER switch is switched off, this does not mean that the unit has been completely disconnected from the source of power. If you need to turn off the power completely, first turn off the POWER switch, then unplug the power cord from the power outlet. For this reason, the outlet into which you choose to connect the power cord's plug should be one that is within easy reach and readily accessible.

Placement

• Using the unit near power amplifiers (or other equipment containing large power transformers) may induce hum. To alleviate the problem, change the orientation of this unit; or move it farther away from the source of interference.
• Noise may be produced if wireless communications devices, such as cell phones, are operated in the vicinity of this unit. Such noise could occur when receiving or initiating a call, or while conversing. Should you experience such problems, you should relocate such wireless devices so they are at a greater distance from this unit, or switch them off.
• Do not expose the unit to direct sunlight, place it near devices that radiate heat, leave it inside an enclosed vehicle, or otherwise subject it to temperature extremes. Also, do not allow lighting devices that normally are used while their light source is very close to the unit (such as a piano light), or powerful spotlights to shine upon the same area of the unit for extended periods of time. Excessive heat can deform or discolor the unit.
• When moved from one location to another where the temperature and/or humidity is very different, water droplets (condensation) may form inside the unit. Damage or malfunction may result if you attempt to use the unit in this condition. Therefore, before using the unit, you must allow it to stand for several hours, until the condensation has completely evaporated.
• Do not allow rubber, vinyl, or similar materials to remain on this unit for long periods of time. Such objects can discolor or otherwise harmfully affect the finish.
• Do not paste stickers, decals, or the like to this instrument. Peeling such matter off the instrument may damage the exterior finish.
• Depending on the material and temperature of the surface on which you place the unit, its rubber feet may discolor or mar the surface. You can place a piece of felt or cloth under the rubber feet to prevent this from happening. If you do so, please make sure that the unit will not slip or move accidentally.
• Do not put anything that contains water (e.g., flower vases) on this unit. Also, avoid the use of insecticides, perfumes, alcohol, nail polish, spray cans, etc., near the unit. Swiftly wipe away any liquid that spills on the unit using a dry, soft cloth.

Maintenance

• For everyday cleaning wipe the unit with a soft, dry cloth or one that has been slightly dampened with water. To remove stubborn dirt, use a cloth impregnated with a mild, non-abrasive detergent. Afterwards, be sure to wipe the unit thoroughly with a soft, dry cloth.
• Never use benzine, thinners, alcohol or solvents of any kind, to avoid the possibility of discoloration and/or deformation.

Additional Precautions

• Use a reasonable amount of care when using the unit's buttons, sliders, or other controls; and when using its jacks and connectors. Rough handling can lead to malfunctions.
• When connecting / disconnecting all cables, grasp the connector itself—never pull on the cable. This way you will avoid causing shorts, or damage to the cable's internal elements.
• A small amount of heat will radiate from the unit during normal operation.
• To avoid disturbing your neighbors, try to keep the unit's volume at reasonable levels. You may prefer to use headphones, so you do not need to be concerned about those around you.
• When you need to transport the unit, package it in the box (including padding) that it came in, if possible. Otherwise, you will need to use equivalent packaging materials.
• Some connection cables contain resistors. Do not use cables that incorporate resistors for connecting to this unit. The use of such cables can cause the sound level to be extremely low, or impossible to hear. For information on cable specifications, contact the manufacturer of the cable.
• Wrap the power cord around the cord hook when transporting or storing the unit.

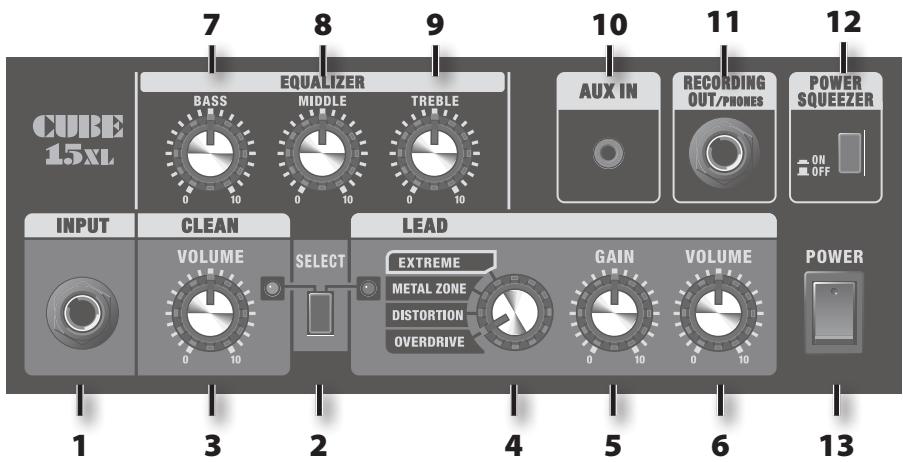

Control Panel

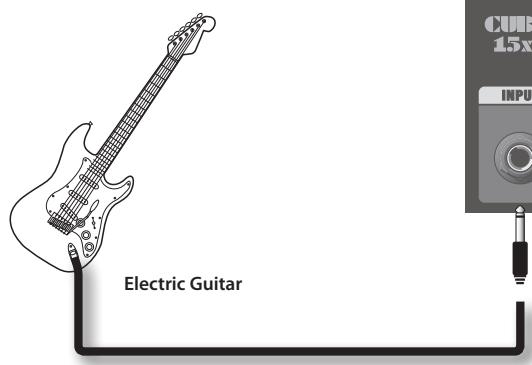

1. INPUT Jack

Connect your electric guitar here.

2. [SELECT] Switch

Switches between the CLEAN and LEAD channels.

You can confirm which channel is selected by checking the indicator's color (CLEAN: green; LEAD: red).

CLEAN Channel

3. [VOLUME] Knob

Adjusts the CLEAN channel volume.

LEAD Channel

4. Type Switch

You can select from the following four types.

Type	Description
OVERDRIVE	Natural distortion sound similar to that obtained by turning an amp's volume up completely.
DISTORTION	Harder distortion than OVERDRIVE.
METAL ZONE	Even harder and heavier than DISTORTION, which can get long sustained notes.
EXTREME	High-gain sound delivering thick lows and intense distortion while still preserving the sound's clear definition.

5. [GAIN] Knob

Adjusts the LEAD channel's distortion level.

6. [VOLUME] Knob

Adjusts the LEAD channel volume.

EQUALIZER

7. [BASS] Knob

Adjusts the tone quality of the lower range.

8. [MIDDLE] Knob

Adjusts the tone quality of the midrange.

9. [TREBLE] Knob

Adjusts the tone quality of the upper range.

• No sound will be produced when [BASS], [MIDDLE], and [TREBLE] knobs are all set to 0.

10. AUX IN Jack

You can connect a CD player, digital audio player or other kind of device and have it play along with your guitar.

This accepts a stereo miniature phone plug. However, the speaker and RECORDING OUT/PHONES output is monaural. Use a cable (sold separately) that's appropriate for the device you're connecting.

• Determine the volume level by adjusting the volume control of the connected device.
• When connection cables with resistors are used, the volume level of equipment connected to the AUX IN jack may be low. If this happens, use connection cables that do not contain resistors.

• When Using RECORDING OUT
  Use mono 1 / 4'' phone plugs when connecting to this jack. Volume level of RECORDING OUT can be easily adjusted if you set the CLEAN or LEAD Channel [VOLUME] knob as shown in the diagram on the right.
• When Using Headphones
  Connect headphones to this jack.
• No sound is played through the unit's speaker while the RECORDING OUT/PHONES jack is in use.

12. [POWER SQUEEZEER] Switch

Switching on the Power Squeezer function allows you to reduce the amp's output to 2 watts.
Switching this on allows you to produce a sound that preserves the same tone and balance at an output of 2 watts, for volume levels that are more suitable for the average home.
* The Power Squeezeer function is also applied to sounds input from the AUX IN jack.

13. [POWER] Switch

This switches the power on and off.

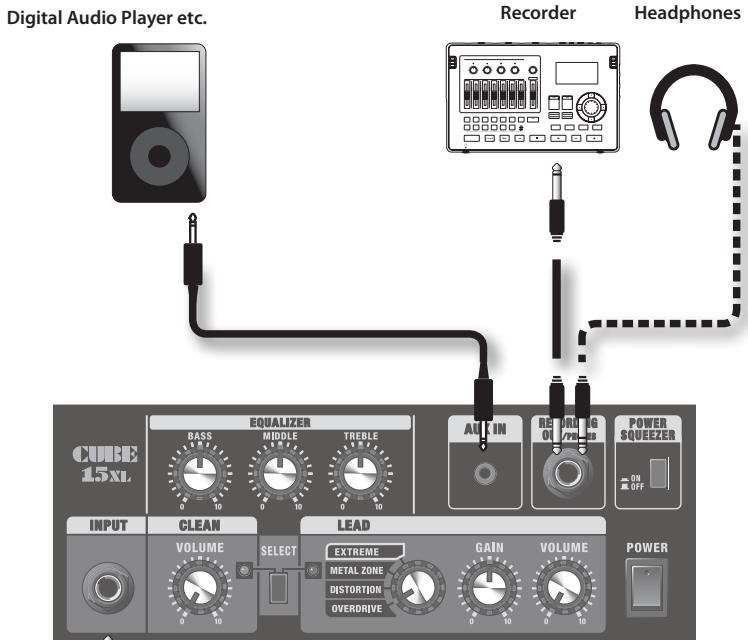

Refer to the figure shown below to connect the CUBE-15XL to other equipment.

• To prevent malfunction and/or damage to speakers or other devices, always turn down the volume, and turn off the power on all devices before making any connections.
• Before making the connections, be sure that the volume setting of the [VOLUME] knob for both amplifiers is set to 0.
• When connection cables with resistors are used, the volume level of equipment connected to the AUX IN jack may be low. If this happens, use connection cables that do not contain resistors.

CD Player

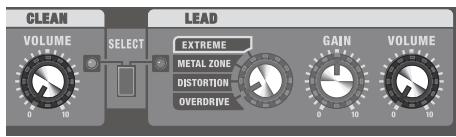

Switching the Power On and Off

Once the connections have been completed, turn on power to your various devices in the order specified. By turning on devices in the wrong order, you risk causing malfunction and/or damage to speakers and other devices.

1. Make sure that all [VOLUME] knobs on the CUBE-15XL and connected devices are set to 0.

1. Turn on all the devices connected to the CUBE-15XL's input jacks (INPUT jack and AUX IN jack).

2. Turn on the CUBE-15XL.

3. Always make sure to have the volume level turned down before switching on power. Even with the volume all the way down, you may still hear some sound when the power is switched on, but this is normal, and does not indicate a malfunction.

4. This unit is equipped with a protection circuit. A brief interval (a few seconds) after power up is required before the unit will operate normally.

1. Adjust the volume levels for the devices.
2. Before switching off the power, lower the volume on each of the devices in your system and then TURN OFF the devices in the reverse order to which they were switched on.
3. If you need to turn off the power completely, first turn off the POWER switch, then unplug the power cord from the power outlet. Refer to Power Supply (p. 3).

CUBE-15XL

Rated Power Output	15 W
Nominal Input Level	INPUT (CLEAN channel) -10dBu/1MΩ
	AUX IN -10dBu
Speakers	20 cm (8 inch)
Controls	[POWER] Switch
	[SELECT] Switch
	[POWER SQUEEZER] Switch
	<CLEAN Channel> [VOLUME] Knob
	<LEAD Channel> TYPE Switch (OVERDRIVE, DISTORTION, METAL ZONE, EXTREME), [GAIN] Knob, [VOLUME] Knob
	<BASS> [BASS] Knob, [MIDDLE] Knob, [TREBLE] Knob
Indicators	CLEAN Channel, LEAD Channel
Connectors	INPUT Jack, AUX IN Jack, RECORDING OUT/PHONES Jack
Power Consumption	18 W
Dimensions	335 (W) x 240 (D) x 335 (H) mm 13-3/16 (W) x 9-1/2 (D) x 13-3/16 (H) inches
Weight	7.2 kg / 15 lbs 14 oz
Accessories	Owner's Manual

• 0 dBu = 0.775 Vrms
• In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.

Bedienungsanleitung

Gitarrenverträker

Fonction Power Squeezer (p. 4)

13. Interruption [POWER]

Power Squeezer-function (p. 4)

When you need repair service, call your nearest Roland Service Center or authorized Roland distributor in your country as shown below.

AFRICA

EGYPT

Al Fanning Trading Office 9, EBN Hagar Al Askalyane Street, ARD E1 Golf, Heliopolis, Cairo 11341, Egypt
TEL: [phone]

REUNION

MARCEL FO-YAM Sarl 25 Rue Jules Hermann, Chaudron -BP79 97 49 Ste Clotilde Cedex, REUNION ISLAND TEL: [phone]

SOUTH AFRICA

T.O.M.S. Sound & Music (Pty)Ltd. 2ASTRON ROAD DENVER JOHANNESBURGZA 2195, SOUTH AFRICA TEL: [phone]

Paul Bothner(PTY)Ltd.
Royal Cape Park, Unit 24
Londonderry Road, Ottery 7800
Cape Town, SOUTH AFRICA
TEL: [phone]

ASIA

CHINA

Roland Shanghai Electronics Co., Ltd.
SF. No.1500 Pingliang Road
Shanghai 200090, CHINA
TEL: [phone]

Roland Shanghai Electronics Co.,Ltd. (BEIJING OFFICE) 10F.No.183 Section Anhuxali Chaoyang District Beijing 100011,CHINA TEL:[phone]

HONG KONG

Tom Lee Music
11/F Silvercord Tower 1
30 Canton Rd
Tsimshatsui, Kowloon,
HONG KONG
TEL: [phone]

Parsons Music Ltd.
8th Floor, Railway Plaza, 39 Chatham Road South, T.S.T. Kowloon, HONG KONG
TEL: [phone]

INDIA

Rivera Digitec (India) Pvt. Ltd. 411, Nirman Kendra Mahalaxmi Flats Compound Off. Dr. Edwin Moses Road, Mumbai-400011, INDIA TEL: [phone]

INDONESIA

PT Citra Intirama
JL.Cideng Timur No.15J-15O
Jakarta Pusat,
INDONESIA
TEL: [phone]

KOREA

Cosmos Corporation 1461-9, Seecho-Dong, Seecho Ku, Seoul, KOREA TEL: [phone]

MALAYSIA

Roland Asia Pacific Sdn. Bhd. 45-1, Block C2, Jalan PJU 1/39, Dataran Prima, 47301 Petaling Jaya, Selangor, MALAYSIA TEL: [phone]

VIET NAM

VIETHUONGCORPORATION 386 CACH MANG THANG TAM ST. DIST.3,HO CHI MINH CITY, VIE NT TEL: [phone]

PHILIPPINES

G.A. Yupangco & Co. Inc. 339 Gil J. Puyat Avenue Makati, Metro Manila 1200
PHILIPPIINES
TEL: [phone]

MALAYSIA/

SINGAPORE

Roland Asia Pacific Sdn. Bhd 45-1, Block C2, Jalan PJU 1/39, Dataran Prima, 47301 Petaling Jaya, Selangor, MALAYSIA TEL: [phone]

TAIWAN

ROLAND TAIWAN ENTERPRISE CO., LTD. 9F-5, No. 112 Chung Shan North Road Sec. 2 Taipei 104, TAIWAN R.O.C.
TEL: [phone]

THAILAND

Theera Music Co., Ltd.
100-108 Soi Verng Nakornkasetem,
New Road,Sumpantawong,
Bangkok 10100,THAILAND
TEL: [phone]

OCEANIA

AUSTRALIA/ NEW ZEALAND

Roland Corporation Australia Pty.,Ltd. 38 Campbell Avenue Dee Why West.NSW 2099, AUSTRALIA

For Australia
TEL: [phone]
For New Zealand
TEL: [phone]

CENTRAL/LATIN AMERICA

ARGENTINA

Instrumentos Musicales S.A.
Av.Santa Fe 2055
(1123) Buenos Aires, ARGENTIN
TEL: [phone]

BARBADOS

A&B Music Supplies LTD
12 Webster Industrial Park
Wildey, St.Michael, BARBADOS
TEL: [phone]

BRAZIL

Roland Brasil Ltda.
Rua San Jose, 211
Parque Industrial San Jose
Cotla - Sao Paulo - SP, BRAZIL
TEL: [phone]

CHILE

Comercial Fancy II S.A.
Rut.: 96,919,420-1
Nataniel Cox #739, 4th Floor
Santiago - Centro, CHILE
TEL: [phone]

COLOMBIA

Centro Musical Ltda.
Cra 43 B No 25 A 41 Bododega 9
Medellin, COLOMBIA
TEL: [phone]

COSTA RICA

JUAN Bansbach Instrumentos Musicales
Ave.1.Calle 11, Apartado 10237, San Jose, COSTA RICA
TEL:[phone]

CURACAO

Zeelandia Music Center Inc
Orionweg 30
Curacao, Netherland Antilles
TEL: [phone]

DOMINICAN REPUBLIC

Instruments Fernando Giraldez
Calle Proyecto Central No.3
Ens.La Esperilla
Santo Domingo,
DOMINICAN REPUBLIC
TEL: [phone]

ECUADOR

Mas Musika Rumichaca 822 yara Zura Guayauqi- ECUADOR TEL: [phone]

EL SALVADOR

OMNI MUSIC
75 Avenida Norte y Final Alameda
Juan Pablo II,
Edificio No.4010 San Salvador,
EL SALVADOR
TEL: [phone]

GUATEMALA

Casa Instrumental
Calzada Roosevelt 34-01, zona 11
Ciudad de Guatemala, GUATEMALA
TEL: [phone]

HONDURAS

Almacen Pajaro Azul S.A. de C.V.
BO.Paz Barahona
3 Ave.11 Calle S.O
San Pedro Sula, HONDURAS
TEL: [phone]

MARTINIQUE

2045 Torokbalint, FSD Park, building 3, HUNGARY
TFI: (23) 511011

IRELAND

Roland Ireland
G2 Calmount Park, Calmout
Avenue, Dublin 12,
Republic of IRELAND
TEL: [phone]

ITALY

TALENTZ CENTRE L.L.C.
Malatan House No.1
Al Noor Street, Ruwi
SULTANATE OF OMAN

TEL: [phone]

QATAR

AL-EMADI TRADING & CONTRACTING CO. PO.Box 62, Doha, QATAR TEL:[phone]

SAUDI ARABIA

aDaw利亚h Universal Electronics APL

Behind Pizza Inn Prince Turkey Street aDawlah Building, PO BOX 2154, Alkohbar 31952, SAUDI ARABIA TEL: [phone]

SYRIA

Technical Light & Sound Center
PO Box 13520 Bldg No.49
Khaled Abn Alwalid St.
Damascus, SYRIA
TEL: [phone]

TURKEY

ZUHAL DIS TICARET A.S. Galip Dede Cad. No.33 Beyoglu, Istanbul, TURKEY TEL: [phone]

U.A.E.

Zak Electronics & Musical Instruments Co. L.L.C.
Zabeel Road, Al Sheroog Bldg., No. 14, Ground Floor, Dubai, U.A.E.
TEL: [phone]

NORTH AMERICA

CANADA

Roland Canada Ltd. (Head Office) 5480 Parkwood Way Inc., V6V 2M4, CANADA TEL: [phone]

Roland Canada Ltd. (Toronto Office) 170 Admiraloulboula Mississauga ON LST 2 CANADA TEL: [phone]

U.S.A.

Roland Corporation U.S. 5100 S. Eastern Avenue Los Angeles, CA 90040-2938, U.S.A. TEL: [phone]

有关产品中所含有害物质的说明

This symbol indicates that in EU countries, this product must be collected separately from household waste, as defined in each region. Products bearing this symbol must not be discarded together with household waste.

This product complies with the requirements of EMCD 2004/108/EC and LVD 2006/95/EC.

For C.A. US (Proposition 65)

WARNING

This product contains chemicals known to cause cancer, birth defects and other reproductive harm, including lead.

Roland
