USER MANUAL XG2WP051 Xtorm

Line drawing of two smartphones with a circular screen and a slot, showing front and side views (no text or symbols)

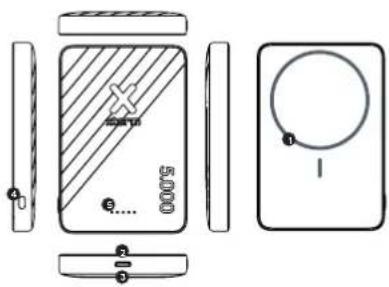

SPECIFICATIONS PRODUCT OVERVIEW1 2

5.000 mAh Li-Poly / 19.25Wh

Wireless 15W/7.5W Apple iPhone USB-C PD 20W

USB-C PD 18W input

100x69x13 mm

121 grams

+ 1x USB-C PD cable 1x Manual

5000 2....

Output Wireless 15W (7.5W Apoe Phone)

Output USB-C PD 20W Input USB-C PD 18W

Power Button LED Power Indicator

CHARGING YOUR DEVICE3 RECHARGING THE POWER BANK 4

COMPATIBLE DEVICES

Diagram showing two devices connected via USB cable, one with a logo and the other displaying '0005' and a checkmark.

3A Snap the Power Bank to the back of your phone magnetically.

3B Or, connect the USB-C end of the charging cable to the USB-C PD output of the Power Bank and the other end to the input of your device. The charging will start automatically. Charging some devices requires a charging cable other than the one supplied.

E.g. an Apple Lightning or a Micro USB cable.

Three schematic diagrams of electronic components: a plug, a connector, and a capacitor (no text or symbols)

4A Connect the USB-C end of the charging cable to output 2 of the Power Bank and the USB end to a wall charger.
4B For the fastest charging possible use a 18W USB-C PD charger. This will fully recharge the Power Bank within 1.5 hours.

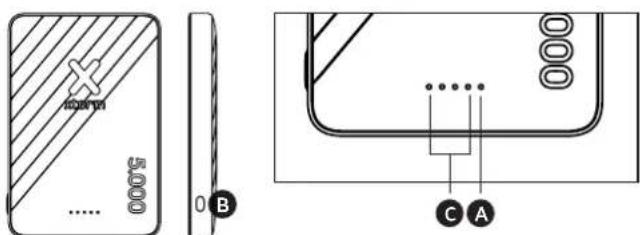

LED POWER INDICATOR5 IN THE BOX 6

000G ...... B C A

5A The fifth LED light indicates wireless charge status. When the LED is green, wireless charging is active.
5B Press the Power Button once to display the battery level remaining in the Power Bank via the LED lights. Press the Power Button twice turn off the Power Bank.
5C Each lit LED light indicates 25% remaining energy in the Power Bank. At 4 lit lights, the Power Bank is fully charged.

GODUTS ..... ① ② MANUAL ③

XG2WP051 Wireless Power Bank USB-C to USB-C Cable Manual

EN - ENGLISH

1. SPECIFICATIONS

2. PRODUCT OVERVIEW

3. CHARGING YOUR DEVICE

3.A. Snap the Power Bank to the back of your phone magnetically.

3.B. Or, connect the USB-C end of the charging cable to the USB-C PD output of the Power Bank and the other end to the input of your device. The charging will start automatically. Charging some devices requires a charging cable other than the one supplied. E.g. an Apple Lightning® or a Micro USB cable.

4. RECHARGING THE POWER BANK

4.A. Connect the USB-C end of the charging cable to output 2 of the Power Bank and the USB end to a wall charger.

4.B. For the fastest charging possible use a 18W USB-C PD charger. This will fully recharge the Power Bank within 1.5 hours.

5. LED POWER INDICATOR

5.A. The fifth LED light indicates wireless charge status. When the LED is green, wireless charging is active.
5.B. Press the Power Button once to display the battery level remaining in the Power Bank via the LED lights. Press the Power Button twice turn off the Power Bank.
5.C. Each lit LED light indicates 25% remaining energy in the Power Bank. At 4 lit lights, the Power Bank is fully charged.

6. IN THE BOX

NL - NEDERLANDS

1. SPECIFICATIES

2. PRODUCTOVERZICHT

3. UW APPARAAT OPLADEN

2. APERÇU DU PRODUIT

3. CHARGER VOTRE APPAREIL

2. PRODUKTA PÄRSKATS

3. IERİCES UZLÄDE

5. LED GÜÇ GÖSTERGESI

EN When recycling this product, please follow WEEE battery recycling procedures. Contact your local recycling organization for more information.

XTORM SAFETY CHECK WARNINGS

1. TEMPERATURE CONTROL

Provided with a temperature control chip that prevents overheating.

2. OVERLOAD PROTECTION

Protects both the internal battery as well as the battery of the attached device from overcharging.

3. SECURED POWER MANAGEMENT

Automatically picks the correct charging speed and efficiently devides power between attached devices.

4. SHORT CIRCUIT PROTECTION

Breaks the circuit automatically when an overcurrent is detected. This protects the Xtorm charger and your device from short circuit damage.

5. A-CLASS BATTERY CELLS

We only use the best battery cells that provide the fast charging you need and meet all safety requirements.

6. HIGH EFFICIENCY

Our power products are built to power your device as efficient as possible. This ensures the least possible loss of energy during the charging process.

EN Warnings

Don't crop, disseme or attempt to repair the charger by yourself. Avoid exposure to water or high humidity. Don't expose to any heat source. Keep out of reach of children. Don't use in the presence of flammabia gas. The warranty will lose in the event of limoper use. Telco Accessories has tested the product in a test environment. All statements/declarations made by Telco Accessories about the operation of the product are based on the results obtained from such tests. These results/statements/declarations cannot be guaranteed, for example in cases of deviating or injudicious use and/or use in a different environment.

NL Waarschuwingen

EU DECLARATION OF CONFORMITY

Description No. of the Name of the Name of the Name of the Name of the Name of the Name of the Name of the Name of the Name of the Name of the Name of the Name of the Name of the Name of the Name of the Name of the Name of the Name of the Name of the Name of the Name of the Name of the Name of the Name of the Name of the

HIGHER QUALITY

= LOWER IMPACT

CUSTOMER SUPPORT

[e-mail]

[phone]

TELCO ACCESSORIES GROUP

Hoofdveste 19, 3992DH Houten

The Netherlands

MOREENERGY

XTORM.EU
