FS5W101 - Power bank Xtorm - Free user manual and instructions

Product Type	Portable Battery (Power Bank)
Brand	Xtorm
Model	FS5W101
Material	ABS plastic and electronic components
Battery Capacity	5000 mAh (estimated)
Charge Input	USB-C PD (Power Delivery) 20 W max
Charge Output	USB-C PD 20 W max (fast charge)
Recharging Time (Power Bank)	Approximately 3 hours with a USB-C PD 20 W charger
Battery Level Display	LED screen showing percentage (0% to 100%)
Fast Charge Indicator	Yes, lights up during fast charging (20 W USB-C PD and above)
Magnetic Attachment	Yes, attaches to the back of the phone (MagSafe compatible)
Power Button	Single press: display level; double press: turn Power Bank on/off
Built-in Kickstand	Yes, also serves as power button
Compatibility	Smartphones with MagSafe wireless charging or USB-C; Lightning or Micro USB cable (not included)
Safety Protection	Do not expose to water, heat, disassemble, keep out of reach of children
Recycling	Follow WEEE procedures for battery recycling
Box Contents	Power Bank, USB-C cable, user manual

Frequently Asked Questions - FS5W101 Xtorm

How do I charge my phone with the Xtorm FS5W101 Power Bank?

Magnetically attach the Power Bank to the back of your phone, or connect the included USB-C cable to the Power Bank's USB-C PD output and to your device's input. Press the kickstand/power button once to start charging.

How do I recharge the Power Bank itself?

Connect the USB-C end of the charging cable to output 2 of the Power Bank (USB-C input) and the USB end to a wall charger. For fast charging, use a 20 W USB-C PD charger, allowing a full recharge in 3 hours.

How do I check the remaining battery level?

Press the power button once to display the remaining battery percentage on the LED screen, from 0% (empty) to 100% (fully charged).

What does the fast charge indicator mean?

The fast charge indicator lights up when you use a cable and charger compatible with fast charging (20 W USB-C PD or higher). This ensures optimal charging of your device.

Can I turn the Power Bank completely on or off?

Yes, double-press the power button to turn the Power Bank completely on or off. A single press displays the battery level without starting charging.

Which cables are compatible with this Power Bank?

The Power Bank comes with a USB-C cable. For Apple devices, you will need a Lightning cable. For Micro USB devices, use a Micro USB cable. The Power Bank supports fast charging via USB-C PD.

Is the Power Bank compatible with phone cases?

Magnetic attachment works best without a thick case. If your case is thin and MagSafe compatible, the magnet may work. Otherwise, use the USB-C cable for charging.

What is the charging time for my phone?

Charging time depends on your phone's battery capacity and usage. With a 20 W output, a modern smartphone can charge quickly, for example from 0% to 50% in about 30 minutes.

Is it safe to leave the Power Bank charging overnight?

Yes, the Power Bank has built-in protections against overcharging and overheating. However, it is recommended to unplug it once fully charged to preserve battery life.

How do I recycle the Power Bank at the end of its life?

Do not throw the Power Bank in the trash. Follow WEEE (Waste Electrical and Electronic Equipment) procedures for battery recycling. Contact your local recycling organization for more information.

USER MANUAL FS5W101 Xtorm

Technical line drawing of a remote control device with a magnifying glass and circular buttons (no text or symbols)

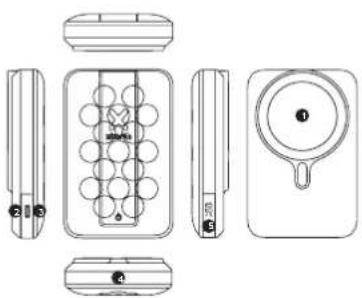

SPECIFICATIONS PRODUCT OVERVIEW1 2

10.000 mAh Li-Poly / 38.5W

Wireless 15W USB-C PD 20W

USB-C PD 18W Input

111x72x24 mm

229 grams

+ 1x USB-C to USB-C cable 1x Manual

Technical line drawings of a device with internal components and a central circular component (no text or symbols)

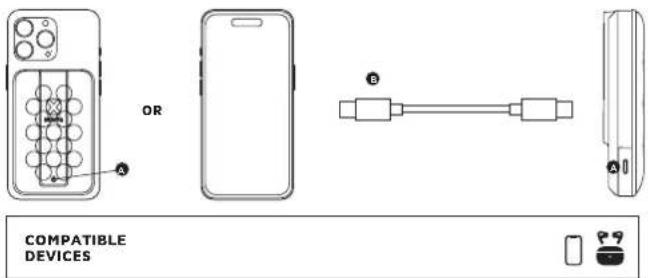

CHARGING YOUR DEVICE3 RECHARGING THE POWER BANK 4

3A Snap the Power Bank to the back of your phone magnatically or connect the USB-C end of the charging cable to the USB-C PD output of the Power Bank and the other end to the input of your device. Press the kickstand/power button to start charging.
3B Charging some devices requires a charging cable other than the one supplied. E.g. an Apple Lightning ^® or a Micro USB cable.

Three technical line drawings of electronic components: a three-pin plug, a connector with pins, and a separate terminal block (no text or symbols)

4A Connect the USB-C end of the charging cable to output 2 of the Power Bank and the USB and to a wall charger.
4B For the fastest charging possible use a 20W USB-C PD charger. This will fully recharge the Power Bank within 3 hours.

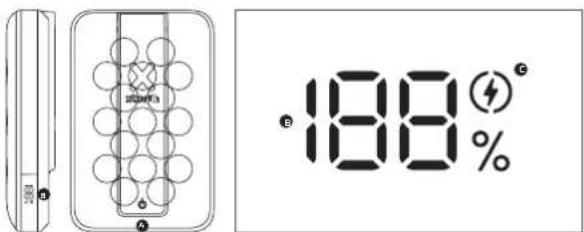

LED POWER INDICATOR5 IN THE BOX 6

5A Press the Power Button once to display the battery level remaining in the Power Bank via the LED display. Improved Power Button function:

- single press to turn on/off the display

- double press to fully turn on/off the Power Bank

5B The display shows the remaining battery percentage between 0% (empty) and 100% (fully charged).

5C The fast charge indicator will light up when you are using the correct cable for fast charging your device. (20W USB-C PD and higher).

1

2

3

FS5W101

Wireless Power Bank

USB-C to USB-C Cable

Manual

EN - ENGLISH

1 SPECIFICATIONS

2 PRODUCT OVERVIEW

3 CHARGING YOUR DEVICE

3.A Snap the Power Bank to the back of your device magnatically or connect the USB-C end of the charging cable to the USB-C PD output of the Power Bank and the other end to the input of your device. Press the kickstand to start charging.
3.B Charging some devices requires a charging cable other than the one supplied. E.g. an Apple Lightning ^b or a Micro USB cable.

4 RECHARGING THE POWER BANK

4.A Connect the USB-C end of the charging cable to output 2 of the Power Bank and the USB end to a wall charger.

4.B For the fastest charging possible use a 20W USB-C PD charger. This will fully recharge the Power Bank within 3 hours.

5 LED POWER INDICATOR

5A Press the Power Button once to display the battery level remaining in the Power Bank via the LED display. Improved Power Button function: - single press to turn on/off the display - double press to fully turn on/off the Power Bank

5B The display shows the remaining battery percentage between 0% (empty) and 100% (fully charged).

5C The fast charge indicator will light up when you are using the correct cable for fast charging your device. (20W USB-C PD and higher).

6 IN THE BOX

NL - NEDERLANDS

1 SPECIFICATIES

2 PRODUCT OVERZICHT

3 OPLADEN VAN JOUW APPARAAT

EN When recycling this product, please follow WEEE battery recycling procedures. Contact your local recycling organization for more information.

XTORM SAFETY CHECK WARNINGS

1. TEMPERATURE CONTROL

Provided with a temperature control chip that prevents overheating.

2. OVERLOAD PROTECTION

Protects both the internal battery as well as the battery of the attached device from overcharging.

3. SECURED POWER MANAGEMENT

Automatically picks the correct charging speed and efficiently devides power between attached devices.

4. SHORT CIRCUIT PROTECTION

Breaks the circuit automatically when an overcurrent is detected. This protects the Xtorm charger and your device from short circuit damage.

5. A-CLASS BATTERY CELLS

We only use the best battery cells that provide the fast charging you need and meet all safety requirements.

6. HIGH EFFICIENCY

Our power products are built to power your device as efficient as possible. This ensures the least possible loss of energy during the charging process.

EN Warnings

Don't crop, disseme or attempt to repair the charger by yourself. Avoid exposure to water or high humidity. Don't expose to any heat source. Keep out of reach of children. Don't use in the presence of flamimabla gas. The warranty will lease in the event of limoper use. Talco Accessories has tested the product in a test environment. All statements/declarations made by Talco Accessories about the operation of the product are based on the results obtained from such tests. These results/statements/declarations cannot be guaranteed, for example in cases of deviating or injudicious use and/or use in a different environment.

NL Waarschuwingen

EU DECLARATION OF CONFORMITY

Product Category	Product Type
Material Description	Material Description
Material Quality	Quality
Material Use	Material Use
Material Designation	Material Designation

HIGHER QUALITY

= LOWER IMPACT

CUSTOMER SUPPORT

[e-mail]

[phone]

TELCO ACCESSORIES GROUP

Hoofdveste 19, 3992DH Houten

The Netherlands
