USER MANUAL ROP2 312NV Mirka

White and black MIRKA electric shaver tool with handle and base mount (no visible text or symbols)

Stylized illustration of a bulldog in aggressive posture (no text or symbols)

Mirka®ROP2

77 mm (3") · 125 mm (5")

UK Operating Instructions....122-122

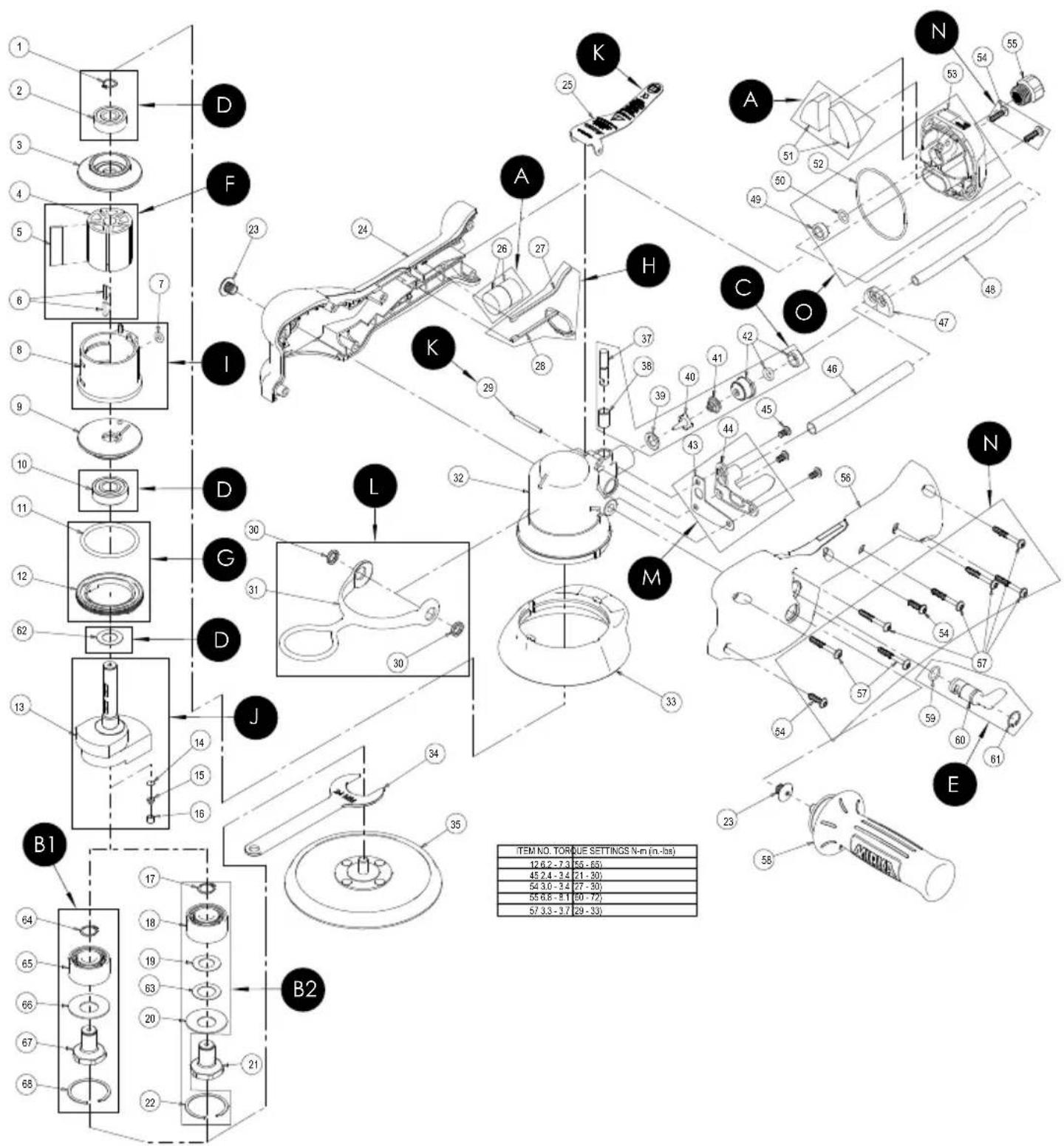

Exploded view of ROP2, 77 mm & 125 mm

Updated 11.03.2022

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 B1 B2 D F I G J K L M N O A H K E ITEM NO. TORRUE SETTINGS N-m (in -lbs) 12 6.2 - 3.4 55 - 65 45 2.4 - 3.4 71 - 30 54 3.0 - 3.4 77 - 30 55 6.8 - 8.1 00 - 72 57 3.3 - 3.7 29 - 33 23 58 59 60 61 54 55 56 57 58 59 60 54 55 56 57 58 59 60 61 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56

ROP2 77 & 125 mm Spare Part kits

Note! Repairs done by non-authorized repairer will breach the Mirka warranty.

Mirka Code Item Description Kit QTY Part No
8994226011 Muffler kit (CV & NV) MPA2348
26 Muffler Insert	A	2 MPA0068
51 Muffler (CV & NV)		2 MPA0776
MIE3521411 Spindle Bearing kit for 77mm
64 Retaining Ring	B1	1
65 Bearing		1
66 Belleville Washer		1
67 Spindle 77 mm		1
68 Retaining Ring		1
8994021811 Bearing kit for 125 mm MPA2186
17 Retaining Ring		1 MPA0090
18 Double Row Bearing		1 MPA0751
19 Spacer	B2	1 MPA1767
20 Belleville Washer		1 MPA1024
22 Retaining Ring		1 MPA1025
63 Dust Shield		1 MPA2540
8994024011 Air Inlet kit MPA2216
37 Valve Stem Assembly		1 MPA0655
38 Valve Sleeve		1 MPA0015
39 Valve Seat	C	1 MPA0009
40 Valve		1 MPA0007
41 Valve Spring		1 MPA0014
42 Airline Seal Assembly		1 MPA0730
8993019811 Endplate Bearing kit MPA0799
1 Retaining Ring		1 MPA0040
2 Bearing	D	1 MPA0021
10 Bearing		1 MPA0019
62 Dust Shield		1 MPA2541
8994025511 Speed Valve kit MPA2218
59 O-Ring	E	1 MPA0043
60 Speed Valve		1 MPB0183
61 Retaining Ring		1 MPA0039
8994020611 Rotor, Vanes and Key kit		MPA2220
4 Rotor	F	1 MPB0118
5 Vanes		5 MPA0445
6 Key		2 MPA0041
8993007911 Lock Ring and O-Ring kit		MPA0993
11 O-Ring 39.4 x 3.1 mm	G	1 MPA0045
12 Lock Ring		1 MPA0001
8994012911 Housing Seal kit		MPA2531
27 Top Housing Seal	H	1 MPA1218
28 Lower Housing Seal (to be modified from MPB0290 seal) - (NV)		1 MPA1255

ROP2 77 & 125 mm Spare Part kits

					oN tral
8994020411	7	Cylinder and O-Ring kit			MPA2593
		O-Ring 5 x 2 mm	I	1	MPA0042
	8	Cylinder		1	MPA0441
8994221311	Shaft Balancer kit 77 mm/12,0				MPA2922
	13	Shaft Balancer 77 x 12.0 mm (3 x 1/2 In.)		1	MPB0203
	14	Filter	J	1	MPA0122
	15	Check Valve		1	MPA0121
	16	Retainer		1	MPA0120
8994221411	Shaft Balancer kit 125 mm/12,0				MPA3089
	13	Shaft Balancer 125 x 12 mm (5 x 1/2 In.)		1	MPC0381
	14	Filter	J	1	MPA0122
	15	Check Valve		1	MPA0121
	16	Retainer		1	MPA0120
8994222511	Lever kit 12,0 mm				MPA3099
	25	Lever 12.0 mm (1/2 In.)	K	1	MPA2073
	29	Cylinder Spring Pin		1	MPA0004
8994023111	Hanger and Spacer Ring kit				MPA2832
	30	Spacer Ring	L	2	MPA1865
	31	Hanger - Black		1	MPB0420
8994244311	Exhaust Nozzle and Gasket kit - (CV & NV)				MPA2924
	43	Exhaust Gasket	M	1	MPA0500
	44	Exhaust Nozzle - (CV & NV)		1	MPB0182
8994025311	Housing Screw kit				MPA2928
	54	Screw	N	4	MPA1398
	57	Screw		7	MPA1430
8994225311	End Cap kit - (NV)				MPA2926
	49	Inlet Captive Ring		1	MPA0510
	50	O-Ring	O	1	MPA0509
	52	O-Ring (CV & NV)		1	MPA0628
	53	Exhaust End Cap Assembly - (NV)		1	MPA0731

Separate spare parts on next page.

ROP2 77 & 125 mm Spare Parts

					oN tral
	1	Retaining Ring	D	1	MPA0040
	2	Bearing	D	1	MPA0021
8993009311	3	Rear Endplate		1	MPB0017
	4	Rotor	F	1	MPB0118
	5	Vanes	F	5	MPA0445
	6	Key	F	2	MPA0041
8993008211	7	O-Ring 5 x 2 mm	I	1	MPA0042
	8	Cylinder	I	1	MPA0441
8993009411	9	Front Endplate		1	MPB0016
	10	Bearing	D	1	MPA0019
	11	O-Ring	G	1	MPA0045
	12	Lock Ring	G	1	MPA0001
	13	Shaft Balancer 77 x 12 mm (3 x 1/2 In.)	J	1	MPB0203
	13	Shaft Balancer 125 x 12 mm (5 x 1/2 In.)	J	1	MPC0381
	14	Filter	J	1	MPA0122
	15	Check Valve	J	1	MPA0121
	16	Retainer	J	1	MPA0120
	17	Retaining Ring	B2	1	MPA0090
	18	Double Row Bearing	B2	1	MPA0751
	19	Spacer	B2	1	MPA1767
	20	Belleville Washer	B2	1	MPA1024
8994012111	21	Spindle 125 mm		1	MPB0208
	22	Retaining Ring	B2	1	MPA1025
8994602511	23	Threaded Plug		2	MPA1711
8994213111	24	Housing RH		1	MPB0401
	25	Lever 12.0 mm (1/2 In.)	K	1	MPA2073
	26	Muffler Insert	A	2	MPA0068
	27	Top Housing Seal	H	1	MPA1218
	28	Lower Housing Seal (to be modified from MPB0290 seal) - (NV)	H	1	MPA1255
	29	Cylinder Spring Pin	K	1	MPA0004
	30	Spacer Ring	L	2	MPA1865
	31	Hanger - Black	L	1	MPB0420
8994013311	32	Motor Housing		1	MPB0356
8994014811	33	Shroud 77 mm (3 In.)		1	MPC0228
8994213311	33	Shroud 125 mm (5 In.)		1	MPA2080
8993008012	34	Pad Wrench 17 mm (supplied with each 77 mm (3 In.) tool)		1	MPA0146
8995604121	34	Pad Wrench 24mm (supplied with each 125 mm (5 In.) tool)		1	MPP0412
8294791311	35	Backing Pad 77mm 1/4" Grip Medium		1
8295191511	35	Backing Pad 125mm 5/16" Grip Medium		1

ROP2 77 & 125 mm Spare Parts

					oN tral
	37	Valve Stem Assembly	C	1	MPA0655
	38	Valve Sleeve	C	1	MPA0015
	39	Valve Seat	C	1	MPA0009
	40	Valve	C	1	MPA0007
	41	Valve Spring	C	1	MPA0014
	42	Airline Seal Assembly	C	1	MPA0730
	43	Exhaust Gasket	M	1	MPA0500
	44	Exhaust Nozzle (CV & NV)	M	1	MPB0182
8994804411	45	Screw		3	MPA0664
8994014511	46	Exhaust Tubing - (CV & NV)		1	MPA0517
8994215711	47	Tubing Clamp - (CV & NV)		1	MPA0516
8994014711	48	Inlet Tubing		1	MPA0511
	49	Inlet Captive Ring	O	1	MPA0510
	50	O-Ring	O	1	MPA0509
	51	Muffler - (CV & NV)	A	2	MPA0776
	52	O-Ring - (CV & NV)	O	1	MPA0628
	53	Exhaust End Cap - (NV)	O	1	MPA0731
	54	Screw	N	4	MPA1398
8993009511	55	Inlet Bushing assembly (1/4-18 Npt)		1	MPA0013
8994216211	56	Housing LH		1	MPB0402
	57	Screw	N	7	MPA1430
8994605011	58	Side Handle - Mirka		1	MPA1981
	59	O-Ring	E	1	MPA0043
	60	Speed Valve	E	1	MPB0183
	61	Retaining Ring	E	1	MPA0039
	62	Dust Shield	D	1	MPA2541
	63	Dust Shield	B2	1	MPA2540
	64	Retaining Ring	B1	1
	65	Bearing	B1	1
	66	Belleville Washer	B1	1
	67	Spindle 77 mm	B1	1
	68	Retaining Ring	B1	1

Declaration of conformityMirka Ltd.66850 Jeppo, Finlanddeclare on our sole responsibility that the products 77 mm (3 in.) and 125 mm (5 in.) 10,000 rpm Two-handed Random Orbital Polisher (see “Product Configuration/Specifications” table for particular model) to which this declaration relates are in conformity with the following standard(s) or other normative document(s): EN ISO 12100:2010, EN ISO 11148-8:2011, EN ISO 15744:2008 & EN ISO 28927-3:2009 in accordance with the regulation 2006/42/EC.Jeppo 04.06.2020 Place and date of issue Company Stefan Sjöberg, CEO
Operator InstructionsIncludes – Parts Page, Parts List, Polisher Spare Parts Kits, Please Read and Comply, Proper Use of Tool, Work Stations, Putting the Tool Into Service, Operating Instructions, Product Configuration/Specifications Tables, Trouble Shooting Guide		ImportantRead these instructions carefully before installing, operating, servicing or repairing this tool.Keep these instructions in a safe accessible location.
Manufacturer/SupplierMirka Ltd.66850 Jeppo, FinlandTel: + 358 20 760 2111	Required Personal Safety EquipmentSafety Glasses Breathing MasksSafety Gloves Ear Protection

WARNING

Always wear required personal safety protection in accordance with manufacturer's instructions and local/national standards while using this tool.

• Do not use a power tool if you are tired or under the influence of drugs, alcohol or medication.
• Read the Materials Safety Data Sheet (MSDS) for the working surface.
• Use the tool with dust extraction. A suitable dust extraction unit will reduce hazardous dust.
• Do not overreach. Keep proper footing and balance at all times.
• Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.
  Loose clothes, jewellery or long hair can be caught in moving parts.
• If any physical hand/wrist discomfort is experienced, stop working and seek medical attention.
  Hand, wrist and arm injury may result from repetitive work, motion and overexposure to vibrations.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
  • The tool is not electrically insulated. Check work area for live electricity, gas pipes, etc. before operation.

CAUTION

• Prevent unintentional starting.
• Remove pad wrench before connecting the tool to the air supply.
• Keep work area clean and well lit.
  • Always ensure that the work piece to be sanded is firmly fixed.
• Before changing abrasive always disconnect the air supply.

Additional safety warnings

• Read all instructions before using this tool. All operators must be fully trained in usage and safety of this tool.
• All maintenance must be carried out by trained personnel. For service, contact Mirka authorized service centre!
  • Always wear required safety equipment (see warnings).
• The operator must be in a secure position and have a firm grip and footing on a solid floor.
  • Always ensure that the work piece to be sanded is firmly fixed.
• Check tool, backing pad, hose and fittings regularly for wear.
  • Always take care to ensure your safety at work; never carry, store or leave the tool unattended with the air supply connected.
  • Vacuum unit dust collection bag should be cleaned or replaced daily. Dust can be highly combustible.
  Cleaning or replacing of bag also assures optimum performance.
• Do not exceed maximum recommended air pressure of 6.2 bar (90 psi).
  • Take care to avoid entanglement of the moving parts of the tool with clothing, ties, hair, cleaning rags, etc.
• Keep hands clear of the spinning pad during use.
• If the tool appears to malfunction, remove from use immediately and arrange for service and repair.
• Before changing abrasive always disconnect the air supply. Take care to properly attach and centre the abrasive on the backing pad.

Please Read and Comply with

1) General Industry Safety & Health Regulations, Part 1910, OSHA 2206, available from: Superintendent of Documents; Government Printing Office; Washington DC 20402
2) Safety Code for Portable Air Tools, ANSI B186.1 available from: American National Standards Institute, Inc.; 1430 Broadway; New York, New York 10018
3) State and Local Regulations.

Proper Use of Tool

This grinder/polisher is designed for sanding all types of materials i.e. metals, wood, stone, plastics, etc. using abrasive designed for this purpose. Do not use this grinder/polisher for any other purpose than that specified without consulting the manufacturer or the manufacturer's authorized supplier. Do not use backing pads that have a working speed less than 10,000 rpm free speed.

Work Stations

The tool is intended to be operated as a hand-held tool. It is always recommended that the tool be used when standing on a solid floor. It can be used in any position but before any such use, the operator must be in a secure position and have a firm grip and footing, and be aware that the polisher can develop a torque reaction. See the section "Operating Instructions".

Putting the Tool into Service

Use a clean lubricated air supply that will give a measured air pressure at the tool of 6.2 bar (90 psig) bar when the tool is running with the lever fully depressed. It is recommended to use an approved 10 mm (3/8 in.) x 8 m (25 ft) maximum length airline. It is recommended that the tool be connected to the air supply as shown in Figure 1.

Do not connect the tool to the airline system without incorporating an easy to reach and operate air shut-off valve. The air supply should be lubricated. It is strongly recommended that an air filter, regulator and lubricator (FRL) be used as shown in Figure 1 as this will supply clean, lubricated air at the correct pressure to the tool. Details of such equipment can be obtained from your supplier. If such equipment is not used then the tool should be manually lubricated.

To manually lubricate the tool, disconnect the airline and put 2 to 3 drops of suitable pneumatic motor lubricating oil such as Fuji Kosan FK-20, Mobil ALMO 525 or Shell TORCULA® 32 into the hose end (inlet) of the machine. Reconnect the tool to the air supply and run the tool slowly for a few seconds to allow air to circulate the oil. If the tool is used frequently, lubricate it on a daily basis or lubricate it if the tool starts to slow or lose power. It is recommended that the air pressure at the tool is 6.2 bar (90 psig) while the tool is running. The tool can run at lower pressures but never higher than 6.2 bar (90 psig).

Operating Instructions

1) Read all instructions before using this tool. All operators must be fully trained in its use and be aware of these safety rules. All servicing and repairs must be carried out by trained personnel.
2) Make sure the tool is disconnected from the air supply. Select a suitable abrasive and secure it to the backing pad. Take care to center the abrasive on the backing pad.
3) Always wear the required safety equipment when using this tool.
4) When sanding always place the tool on the work then start the tool. Always remove the tool from the work before stopping. This will prevent gouging of the work due to excess speed of the abrasive.
5) Always disconnect the air supply from the polisher before fitting, adjusting or removing the abrasive or backing pad.
6) Always adopt a firm footing and/or position and be aware of the torque reaction developed by the polisher.
7) Use only correct spare parts.
8) Always ensure that the material to be sanded is firmly fixed to prevent its movement.
9) Check the hose and fittings regularly for wear. Do not carry the tool by its hose; always be careful to prevent the tool from being started when carrying the tool with the air supply connected.
10) Do not exceed the maximum recommended air pressure. Use safety equipment as recommended.
11) The tool is not electrically insulated. Do not use where there is a possibility of coming into contact with live electricity, gas pipes, water pipes, etc. Check the working area before operation.
12) Take care to avoid entanglement of the moving parts of the tool with clothing, ties, hair, cleaning rags, etc. If entangled, it will cause the body to be pulled towards the work and moving parts of the machine, which can be very dangerous.
13) Keep hands clear of the spinning pad during use.
14) If the tool appears to malfunction, remove from use immediately and arrange for servicing and repair.
15) Do not allow the tool to free-speed without taking precautions to protect any persons or objects from the loss of the abrasive or pad.

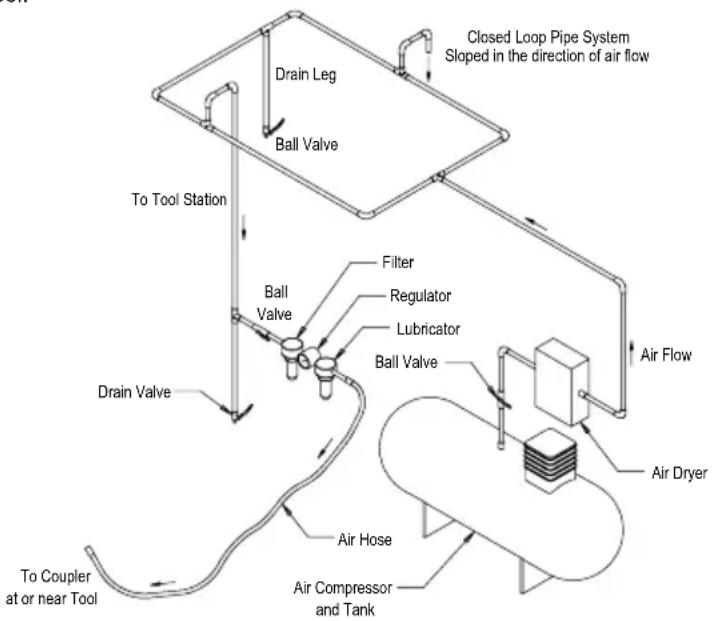


Technical data

Mirka® ROP2 312NV 512NV
Recommended Airline Size - Minimum	10 mm 3/8 in
Recommend Maximum Hose Length	8 meters 25 feet
Air Pressure - Maximum Working Pressure	6.2 bar 90 psig
Air Pressure - Recommended Minimum	NA

Product Configuration/Specifications: 10,000 rpm Random Orbital Polisher

Orbit	Pad Size mm (in.)	Model Number	Product Net Weight kg (pounds)	Height mm (In.)	Length mm (In.)	*Noise Level dBA	Power watts (hp)	Air Consumption LPM (scfm)	**Vibration Level m/s2	**Uncertainty Factor
12.0 mm (1/2 in.)	77 (3)	ROP2-312NV	1.18 (2.60)	108.2 (4.26)	251.9 (9.9)	80.5	276 (0.37)	538 (19)	4.47	0.94
	125 (5)	ROP2-512NV	1.23 (2.71)	109.6 (4.31)	277.0 (10.9)	81.0	343 (0.46)	594 (21)	7.46	1.23
The noise test is carried out in accordance with EN ISO 15744:2008 – Hand-held non-electric power tools – Noise measurement code – Engineering method (grade 2) and EN ISO 11203:2009 Acoustics – Noise emitted by machinery and equipment – Determination of emission sound pressure levels at a work station and other specified positions from the sound power level.The vibration test is carried out in accordance with EN ISO 28927-3, Hand-held portable power tools – Test method for evaluation of vibration emission – Part 3: Polishers and rotary , orbital and random orbital sanders.

Specifications subject to change without prior notice.

* The values stated in the table are from laboratory testing in conformity with stated codes and standards, and are not sufficient for risk evaluation. Values measured in a particular work place may be different from the declared values. The actual exposure values and amount of risk r harm experienced by an individual are unique to each situation and depend upon the surrounding environment, the way in which the individual works, the particular material being worked, work station design as well as upon the exposure time and the physical condition of the user. Mirka, Ltd. cannot be held responsible for the consequences of using declared values instead of actual exposure values for any individual risk assessment.

Further occupational health and safety information can be obtained from the following websites:

https://osha.europa.eu/en (Europe)

http://www.osha.gov (USA)

Troubleshooting Guide

Symptom Possible Cause Solution
Low power and/or low free speed.	Insufficient air pressure. Check air line pressure	ure at the inlet of the Polisher while the tool is running at free speed. It must be 6.2 Bar (90 psig/620 kPa).
	Clogged Muffler(s). See the “Housing Disassembly” section for Muffler removal. The item 51 Muffler can be back-flushed with a clean, suitable cleaning solution until all contaminants and obstructions have been removed. If the Muffler cannot be properly cleaned then replace it. (See the “Housing Assembly” Section).
	Plugged Inlet Screen. Clean the Inlet Screen	with a clean, suitable cleaning solution. If the Screen cannot be cleaned, replace it.
	One or more worn or broken Vanes. Install a complete set of new Vanes (all vanes must be replaced for proper operation). Coat all vanes with quality pneumatic tool oil. See “Motor Disassembly” and “Motor Assembly”.
	Internal air leakage in the Motor Housing indicated by higher than normal air consumption and lower than normal speed.	Check for proper Motor alignment and Lock Ring engagement. Check for damaged O-Ring in Lock Ring groove. Remove Motor Assembly and reinstall the Motor Assembly. See “Motor Disassembly” and “Motor Assembly”.
	Motor parts worn. Overhaul Motor. Contact authorized Mirka Service Center.
	Worn or broken Spindle Bearings. Replace the worn or broken Bearings. See “Shaft Balancer and Spindle Disassembly” and “Spindle Bearings, AirSHIELDTM and Shaft Balancer Assembly”.
Air leakage through the Speed Control and/or Valve Stem.	Dirty, broken or bent Valve Spring, Valve or Valve Seat.	Disassemble, inspect and replace worn or damaged parts. See steps 2 and 3 in “Housing Disassembly” and steps 2 and 3 in “Housing Assembly”.
Vibration/rough operation.	Incorrect Pad Only use Pad sizes and weights designed for the machine.
	Addition of interface pad or other material. Only use abrasives and/or interfaces designed for the machine. Do not attach anything to the Polisher Pad face that was not specifically designed to be used with the Pad and Polisher.
	Improper lubrication or buildup of foreign debris.	Disassemble the Polisher and clean in a suitable cleaning solution. Reassemble the Polisher. (See “Service Manual”.)
	Worn or broken rear or front Motor Bearing(s).	Replace the worn or broken Bearings. See “Motor Disassembly” and “Motor Assembly”.

1) 일반 산업 안전 보건 규정(General Industry Safety & Health Regulations, part 1910, OSHA 2206, 자료 제공: Superintendent of Documents; Government Printing Office; Washington DC 20402).

2) 휴내용 에어 공구 안진 규정(Safety Code for Portable Air Tools, ANSI B186.1, 자료 제공: American National Standards Institute, Inc.; 1430 Broadway; New York, New York 10018).

3) 주/지방 법규.

올바른 공구 사용법

https://osha.europa.eu/en(유럽)

http://www.osha.gov(미국)

문제 해결 가이드

Stefan Sjöberg, Executive Vice President

Gebruiksaanwijzing

1) General Industry Safety & Health Regulations, Part 1910, OSHA 2206, disponível em: Superintendent of Documents; Government Printing Office; Washington DC 20402
2) Safety Code for Portable Air Tools, ANSI B186.1 disponível em: American National Standards Institute, Inc.; 1430 Broadway; New York, New York 10018
3) Regulamentações e legislações locais

https://osha.europa.eu/en (Avrupa)

http://www.osha.gov (ABD)

Declaration of conformityMirka Ltd.66850 Jeppo, Finlanddeclare on our sole responsibility that the products 77 mm (3 in.) and 125 mm (5 in.) 10,000 rpm Two-handed Random Orbital Sanders (see “Product Configuration/Specifications” table for particular model) to which this declaration relates is in conformity with the following standard(s) or other normative document(s) BS EN ISO 12100:2010, BS EN ISO 11148-8:2011, BS EN ISO 15744:2008, and BS EN ISO 28927-3:2009 in accordance with the Supply of Machinery (Safety) Regulations 2008.Jeppo 14.07.2021MIRKAA Place and date of issue CompanyStefan Sjöberg, CEO
Operator InstructionsIncludes – Parts Page, Parts List,Sander Spare Parts Kits, PleaseRead and Comply, Proper Use ofTool, Work Stations, Putting the ToolInto Service, Operating Instructions,Product Configuration/SpecificationsTables,Troubleshooting Guide.	ImportantRead these instruc-tions carefully beforeinstalling, operating,servicing or repairingthis tool. Keep theseinstructions in a safeaccessible location.	Importer InformationMirka (UK) LtdSaxon HouseShirwell CrescentFurzton LakeMilton KeynesMK4 1GATel. [phone]
Manufacturer/SupplierMirka Ltd.66850 Jeppo, FinlandTel: + 358 20 760 2111		Required Personal Safety EquipmentSafety Glasses Breathing MasksSafety Gloves Ear Protection

This chapter is an addition to the English language chapter of the manual in order to fulfill the UKCA regulation requirements. Please refer to the English language chapter for more information about your product.

Mirka Ltd

Finland

Brazil Mirka Brasil Ltda.

Belgium Mirka Belgium Logistics NV

Canada Mirka Canada Inc.

China Mirka Trading Shanghai Co., Ltd

Finland & Baltics Mirka Ltd

France Mirka France Sarl

Germany Mirka GmbH

India Mirka India Pvt Ltd

Russia Mirka Rus LLC

Singapore Mirka Asia Pacific Pte Ltd

Spain Mirka Ibérica S.A.U.

Sweden Mirka Scandinavia AB

Turkey Mirka Turkey Zimpara Ltd Şirketi

United Kingdom Mirka (UK) Ltd

United Arab Emirates Mirka Middle East FZCO

USA Mirka USA Inc.

For contact information,

please visit www.mirka.com

Dedicated to the finish
