USER MANUAL Haaga 375 Starmix

Line drawing of a manual lawn mower with grass blades (no text or symbols)

DE Original Bedienungsanleitung 3
EN Original operating instructions 17
IT Manuale d'uso originale 31
CS Originální návod k obsluze 45
DA Original vejledning 59
ES Manual de instrucciones original 73
FI Alkuperäinen käyttöohje 87
FR Manuel d'utilisation original 101
NL Originele bedieningshandleiding 115
NO Originalbetjeningsanvisning 129
PL Oryginalna instrukcja obsługi 143
PT Instruções de operação na versão original 157
RU Оригинал руководства по эксплуатации 171
SV Original bruksanvisning 185
TR Orijinal kullanım kılavuzu 199

Inhaltsverzeichnis

1. Allgemeines....4

1.1 Adresse....4

1.2 Konventionen....4

Technical diagram of a lawn mower with numbered parts for identification

Technical diagram of a mechanical assembly with numbered components for identification

Technical diagram of a mechanical device with numbered components labeled 16, 17, and an unlabeled top part.

Technical line drawing of a mechanical device with no visible text or symbols

Technical diagram of a vacuum cleaner with labeled parts 1 and 2, showing internal components and hands.

Technical diagram showing a hand operating a mechanical device with labeled parts 1 and 2

Abb. 7: Griff beschlagmontage (haaga 375)

Technical diagram of a car interior showing labeled parts and directional arrows indicating movement or force

Diagram of a cleaning or cleaning device with numbered components and directional arrows indicating motion or movement.

Technical diagram of a vehicle's internal structure with numbered components and an inset showing battery pack assembly

Diagram of a vacuum cleaner with labeled parts including lever, handle, and pusharm mechanism

Technical diagram showing a hand operating a car wheel with labeled parts 1 and 2

Symbol of a trash bin crossed with no text or labels

Table of Contents

1. General....18

1.1 Address 18

1.2 Conventions....18

1.3 Symbols and labels 18

1.4 Limitation of Liability.... 18

1.5 Warranty 18

1.6 Copyright....19

1.7 Target group.... 19

1. Safety 19

2.1 Intended use....19

2.2 Improper use....19

2.3 Responsibility of the user....19

2.4 General safety instructions 20

2.5 Hazard notices on the device 20

2.6 Personal Safety Equipment 20

1. Technical data 20

2. Construction and Function 21

3. Transport/transporting 22

5.1 Delivery....22

5.2 Scope of supply 22

5.3 Handling Packaging Materials....22

5.4 Storage 22

5.5 Carrying the device 23

5.6 Transporting the device in a vehicle....23

1. Commissioning 24

6.1 Assemble handle fittings (haaga 375) 24

6.2 Install sliding bracket....24

1. Operation 25

7.1 Before starting work....25

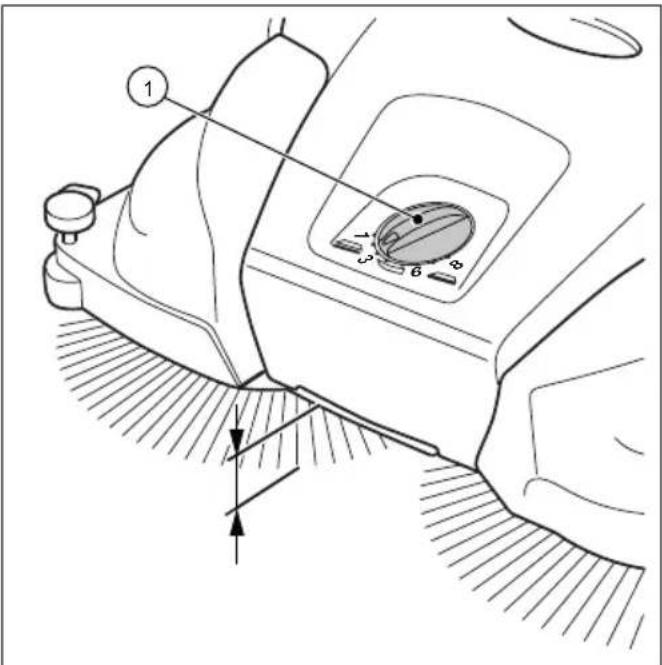

7.2 Height adjustment of the plate brooms 25

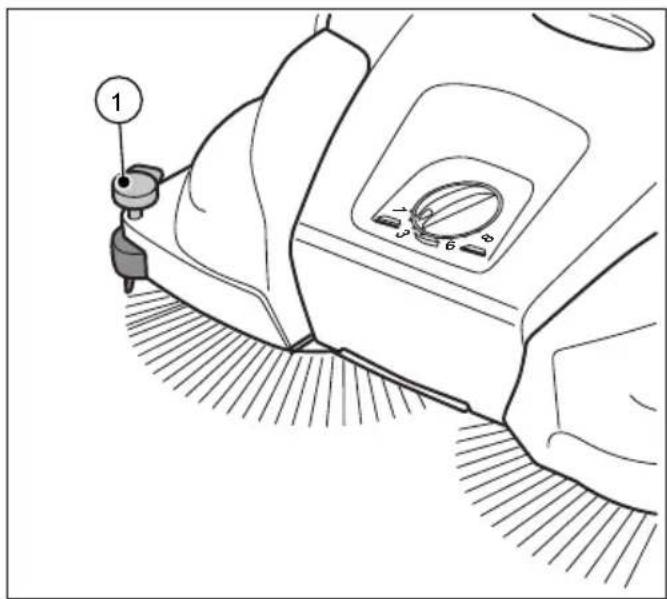

7.3 Set hold-down device (not haaga 375)....26

7.4 Operation....26

7.5 Empty sweeping container 26

1. Troubleshooting 27

8.1 Fault table....27

1. Maintenance and cleaning 28

9.1 Maintenance plan....28

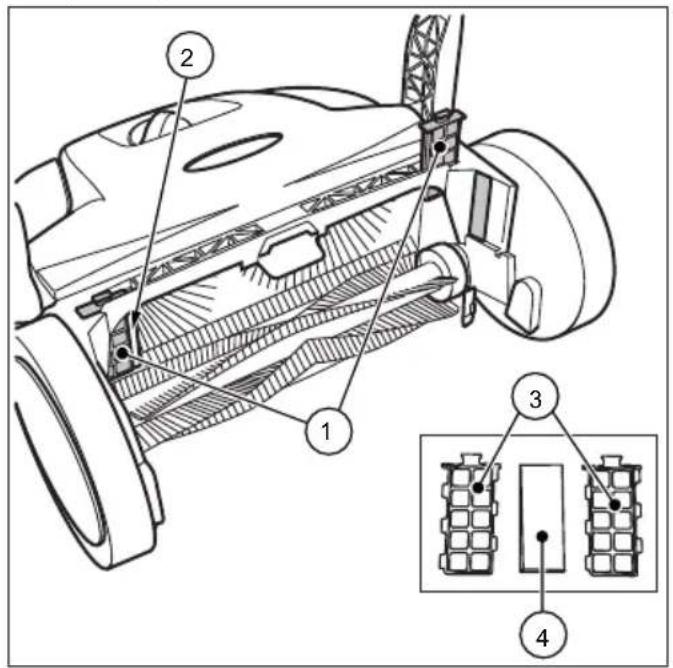

9.2 Clean dust filter (not haaga 375) 29

9.3 Remove blockage 29

9.4 Align bristles....29

9.5 Clean the device 29

1. Decommissioning 30

10.1 Disassemble sliding bracket 30

10.2 Disposal....30

1. General

This operating manual is a part of the device Sweeping Machine haaga 375 (year built: from 2025) and is valid only for the named devices.

EN

This operating manual provides important information for the safe and efficient use of the machine.

A requirement for safe operation of the machine is the adherence to all of the safety and operation instructions provided.

• Read the operating manual carefully before using the device.
• Read the safety instructions!
• Keep the operating manual safe and accessible during the lifespan of the device.
  • Pass the operating manual onto any subsequent owner or user of the device.

1.1 Address

Electrostar GmbH

To be able to work optimally with the operating manual, please note the following explanations of the typographical conventions.

Numbering

- The texts shown are first level numbering points.

Work sequence

1. Step 1 of the work sequence
2. Step 2 of the work sequence
3. Step 3 of the work sequence
   The sequence of the work steps must be observed.

Tip

» Tips and notes (not machine damage) are shown like this.

1.3 Symbols and labels

All warnings and safety instructions must be complied with! When working, always act with caution to prevent accidents, personal injury and damage to property!

Safety instructions

SIGNAL WORD

Type and source of hazard

Possible consequences

• Measures for avoiding danger

Risk level

Risk level Probability

of occurrence

Consequences

in the event of

noncompliance

DANGER

Direct Death, serious injury

WARNING

Possible Death, serious injury

CAUTION

Possible

Slight injury

NOTE Possible material damage

1.4 Limitation of Liability

Electrostar GmbH does not accept any liability for damage and consequential damage caused by the following points:

• Failure to observe the operating instructions
• Use of nonapproved replacement parts / wrong spare parts / spare parts that do not correspond to the manufacturer's specification
• Unauthorized changes, additions to and modifications to the device

1.5 Warranty

The provisions that are described in the general terms and conditions of Electrostar GmbH apply.

1.6 Copyright

The operating manual is copyright protected for Electrostar GmbH.

The operating manual includes instructions and diagrams or diagram sections of a technical nature, which may not be reproduced in the entirety or in part, distributed or used for competition purposes or otherwise communicated.

Electrostar GmbH reserves all rights for the provision of permission for use for publication or distribution of copies or information from this operating manual to third parties.

In case of infringement the manufacture is entitled to make a claim for damages. Further claims are reserved.

1.7 Target group

This operating manual is intended for the use of this sweeping machine.

2. Safety

To avoid incorrect functioning, damage and health impairments, please observe the following instructions!

2.1 Intended use

The haaga 375 sweeping machines are only for removal of road pollution such as foliage, grass, split, sand and similar impurities on flat and hard surfaces.

2.2 Improper use

Any use other than that described in the section "Intended use" is not in compliance with the intended purpose. The operator of the device alone is liable for any resulting damage.

The sweeping machine may not be used for sweeping hazardous, flammable or glowing substances (cigarettes and matches) liquids, explosive or hazardous dusts (ex), acids or solvents.

The sweeping machine may also not be used for sweeping water.

The sweeping machine may not be used in areas where there is a risk of explosion or as a means of transport.

2.3 Responsibility of the user

A user is any individual or legal entity, who uses the machine or has it used by third parties and is responsible during its use for the safety of the user or third parties.

• Supervise children who are in the working environment, to ensure that they do not play with it.
• Minors may not work with the device. Young people over the age of 16 years who are being trained under supervision are excluded.
• Persons, whose reaction times are influenced by, e.g. drugs, alcohol or medications, may not carry out any work with the device.
• Persons who are not allowed to do strenuous work due to their health status may not work with the sweeping machine.
• Replace any signs that have become illegible on the sweeping machine.

2.4 General safety instructions

• Keep the packaging material out of reach of children. There is a risk of suffocation!
• Do not wear long hair, ties, loose clothing or jewellery including rings.
• When handling the sweeping machine please note that there is a risk of injury from hanging or being pulled in.

2.5 Hazard notices on the device

The following pictograms are affi xed to the sweeping machine:

CAUTION

When working on the machine, the safety instructions described in the operating manual must be observed.

Operating instructions

Read the operating manual carefully before using the device.

2.6 Personal Safety Equipment

Personal safety equipment must be worn when working to minimise health hazards. For that reason:

- Before starting all work put on each item of specified safety equipment properly and wear it during work.

Sturdy footwear

Wear sturdy footwear with well-gripping, non-slip soles.

Protective gloves

Wear protective gloves.

Dust protection mask

Wear a dust protection mask.

3. Technical data

Basic information for the haaga 375 Sweeping Machine

Technical data Value
Height in millimetres [mm] 1200
Width in millimetres [mm] 770
Length in millimetres [mm] 800
Sweeping width in millimetres [mm] 750
Sweeping capacity in square metres per hour [ m^2/h ]	2900
Capacity of the sweeping container in litres [l]	40
Weight kilogrammes [kg] 11

1. Construction and Function


Technical diagram of a lawn mower with numbered parts for identification

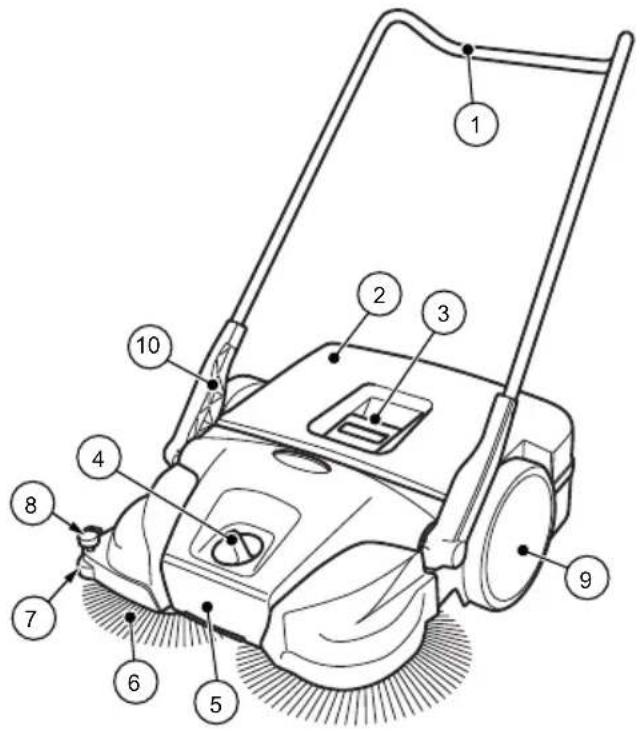

Fig. 1: Component overview 1

Item no.	Component
1	Sliding bracket
2	Sweeping container
3	Container handle
4	Plate brooms – height adjustment
5	Carrying handle
6	Plate brooms
7	Lateral guide roller (not haaga 375)
8	Hold-down device (not haaga 375)
9	Impeller
10	Handle fitting

The device is moved forward by pushing, via the sliding bracket (1). At the same time the 2 plate brooms (6) convey the sweepings in the direction of the sweeping container (2) with the aid of the sweeper lip (13). The fine dirt sweeping roll (11) conveys the rest of the sweepings into the sweeping container (2).

Technical diagram of a mechanical device with numbered components for identification

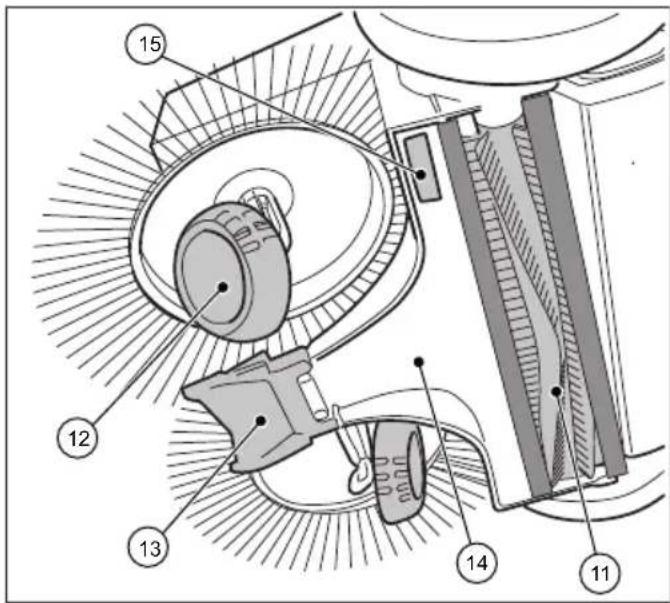

Fig. 2: Component overview 2

Item no. Component

11 Fine sweeping roll

12 Helical gear

13 Sweeper lip

14 Sweeping plate

15 Name plate (haaga 375)

Technical diagram of a mechanical device with numbered components labeled 16, 17, and an unlabeled top part.

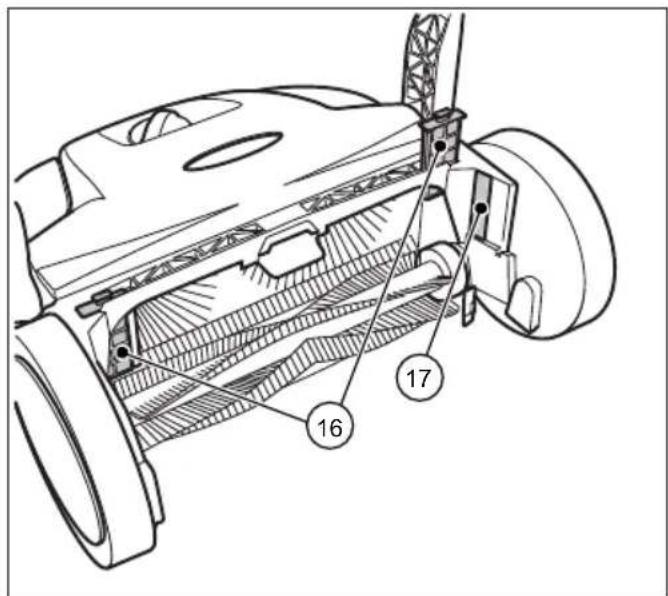

Fig. 3: Component overview 3

Item no. Component

16 Dust filter (not haaga 375)

17 Name plate (not haaga 375)

Construction and Function Transport/transporting

haaga 375

21 18 19 20

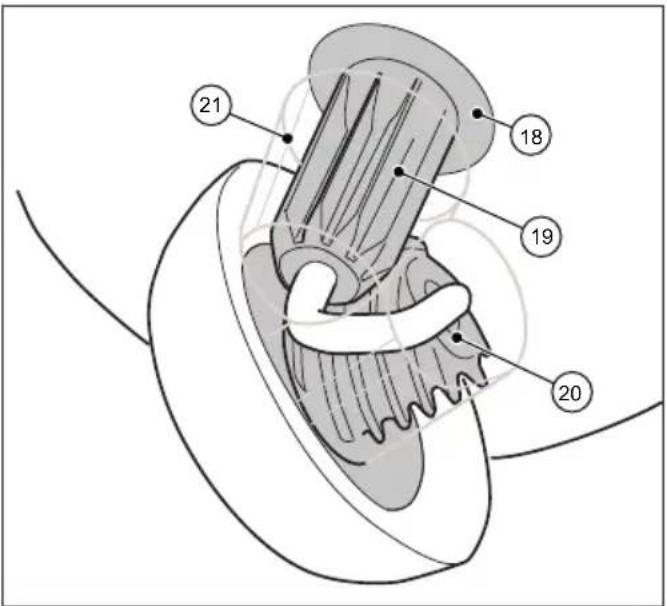

Fig. 4: Component view 4

Item no.	Component
18	Clutch housing
19	Toothed sleeve
20	Helical gear toothing
21	Gearbox protection (not haaga 375)

5. Transport/transporting

5.1 Delivery

NOTE

Visible damage on the outer packing must be immediately confirmed on delivery by the parcel service driver. If transport damage is only noticed during unpacking, the parcel service must be notified in writing within 24 hours after delivery so that it can be liable for the damage.

5.2 Scope of supply

• Device
• Sliding bracket
• Two handle fi ttings (haaga 375)
• Operating instructions

5.3 Handling Packaging Materials

• Always dispose of packing in an environmentally responsible manner.
- Observe the local and regional legal provisions in force.

5.4 Storage

NOTE

Improper storage, e.g. storage of the device in a humid environment, can lead to damage to the sweeper.

• Store the sweeping machine only in cleaned condition and with an emptied sweeping container.
  » Information on emptying the sweeping container can be found in Section 7.5 and information on cleaning can be found in Section 9.5 of this operating manual.

Technical line drawing of a mechanical device with no visible text or symbols

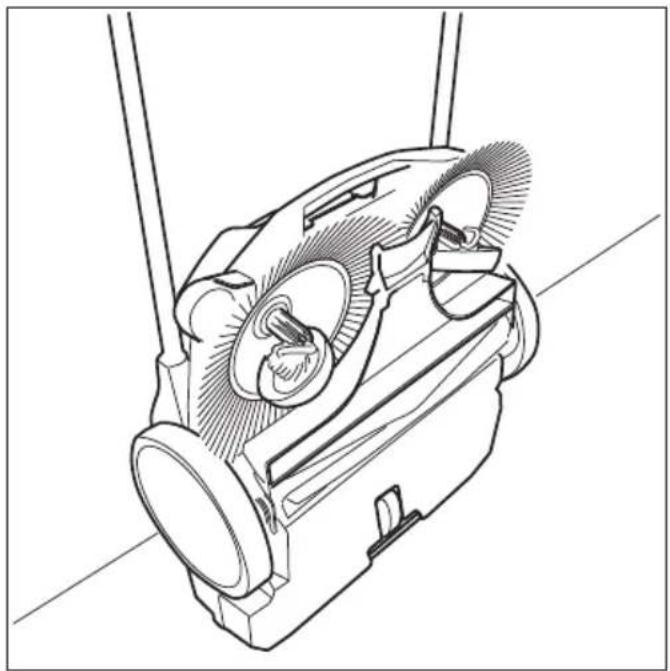

Fig. 5: Storage position

• Place the device in such a way that the bristles cannot be kinked or bent.
• Secure the device including sliding brackets against tipping over, slipping and thus against damage.
• Do not store the device outdoors or in damp environments.

5.5 Carrying the device

CAUTION

Risk of injury through tipping over of the sliding bracket!

Tipping over of the sliding bracket may lead to slight injuries, such as jamming of the finger or haematomas in users or other persons.

- When carrying the device, hold it so that the sliding bracket cannot tip over.

Technical diagram of a vacuum cleaner with labeled parts 1 and 2, showing internal components and motion indicators.

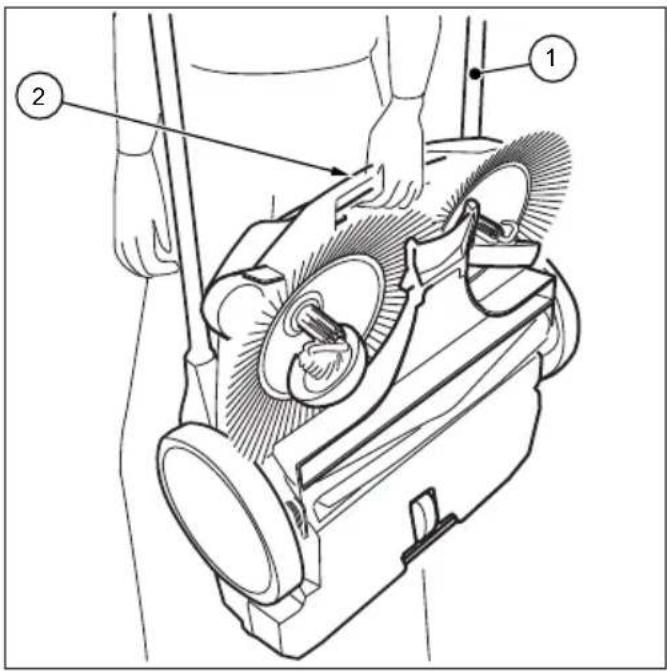

Fig. 6: Carrying the device

1. Swing the sliding bracket (1) fl at towards the front.
2. Grasp the device on the carrying handle (2).
3. Carry the device in such a manner that the plate brooms face away from the body.

5.6 Transporting the device in a vehicle

CAUTION

Risk of injury through improper transport of the sweeping machine!

Wandering, skidding or tipping of the device can result in injury to the driver or other persons

- Secure the device with a strap to prevent it from slipping and moving around.

1. Place the device in a suitable location in the vehicle.
2. Secure the device with a strap.

NOTE

Improper transport can result in damage to the sweeping machine.

6. Commissioning

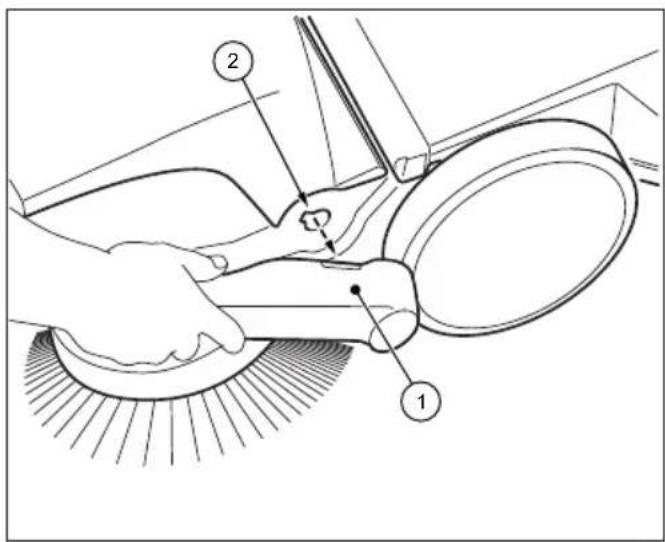

6.1 Assemble handle fi ttings (haaga 375)

Technical diagram showing a hand using a power tool to clean or adjust a mechanical component, labeled with parts 1 and 2.

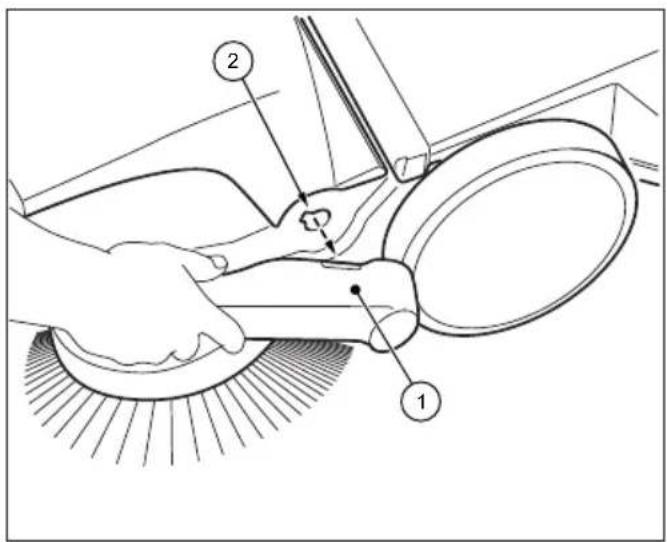

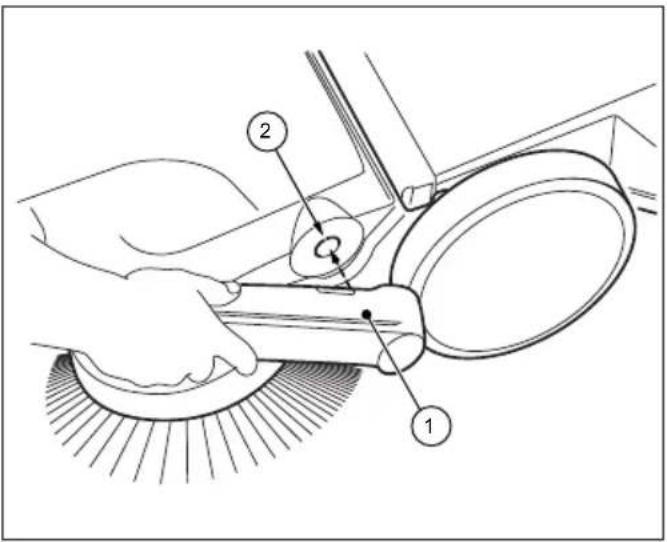

Fig. 7: Handle fi tting assembly (haaga 375)

Two handle fi ttings (1) and the sliding bracket are included as individual parts in the delivery.

1. Position the handle fittings (1) as shown in Figure 7.
2. Insert the handle fi ttings in this position into the intended receptacle (2) of the sweeper. It may be necessary to slightly hit the handle fi ttings in this step.
   » Make sure that the handle fi ttings audibly click into the device.

6.2 Install sliding bracket

CAUTION

Risk of injury through tipping over of the sliding bracket!

Tipping over of the sliding bracket may lead to slight injuries, such as jamming of the finger or haematomas in users or other persons.

- When carrying the device, hold it so that the sliding bracket cannot tip over.

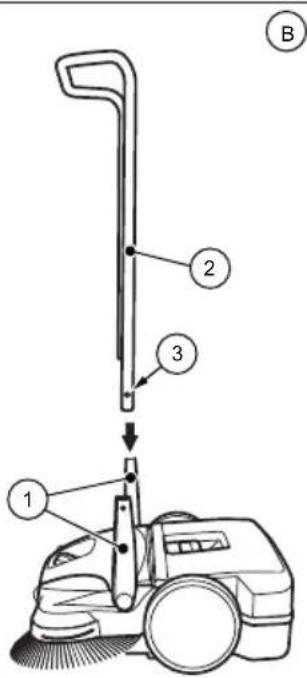

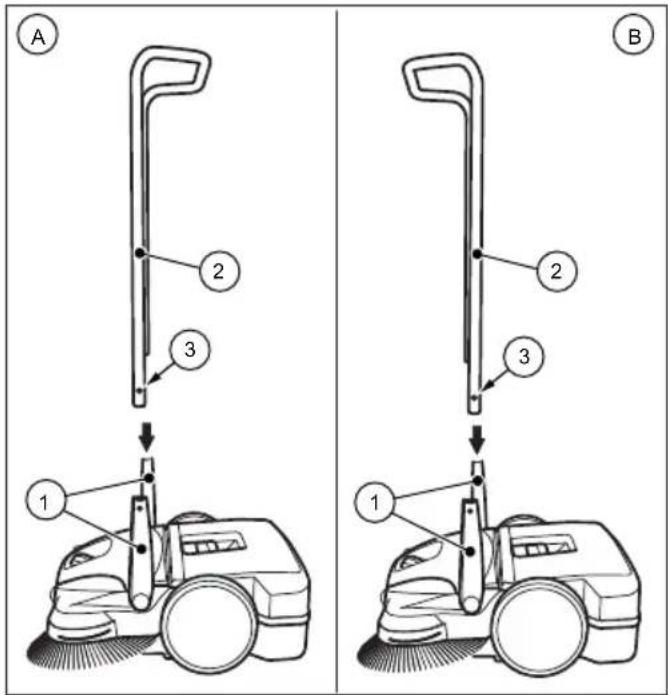

Sliding bracket for not haaga 375

The sliding bracket can be adjusted to the height of the user in two levels (A) and (B).

» (A): Lower level
» (B): Upper level

A 2 3 1 B 2 3 1

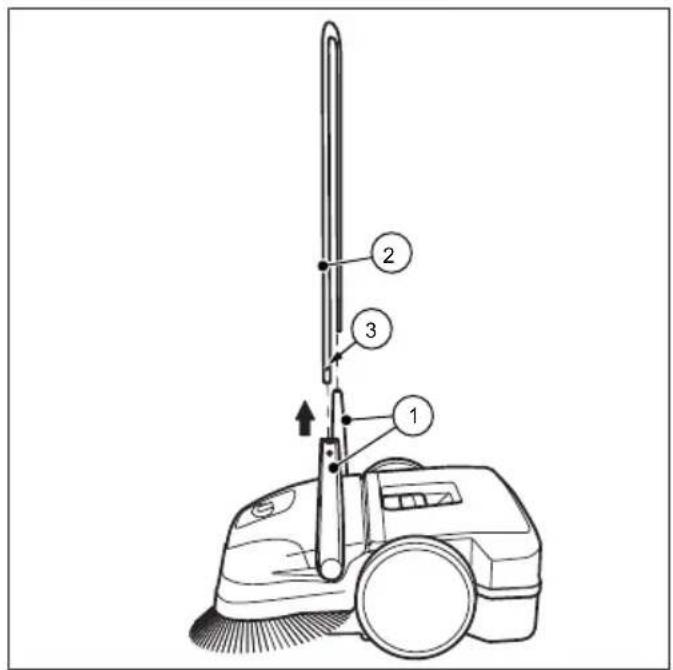

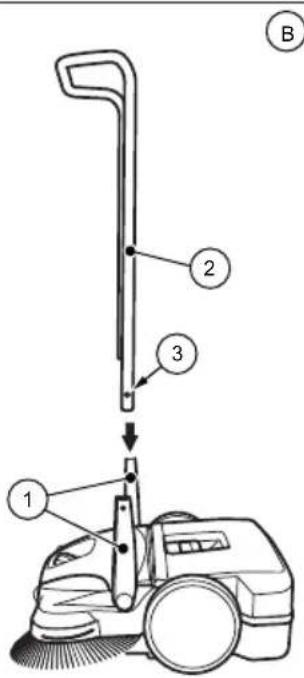

Fig. 8: Sliding bracket assembly

1. Turn the handles (1) into the vertical position.
2. Press the locking springs (3) inwards on both sides of the sliding bracket.
3. Push the sliding bracket (2) into both handle fi ttings simultaneously.
   » To do so, the sliding bracket must bent apart by about 10 cm before insertion in the handle fi ttings.
4. Push the sliding bracket (2) into the handle fittings until the locking springs lock in.

7. Operation

WARNING

Risk of cutting due to broken glass, metal or other sharp edged materials!

When emptying the sweeping container, cutting injuries may occur due to broken glass, metal or other sharp edged materials.

- Wear the prescribed personal protective equipment!

CAUTION

Health impairments caused by dust resulting from sweeping!

The inhalation of dusts can endanger the health

- Wear the prescribed personal protective equipment!

7.1 Before starting work

• Check the device to make sure that it is functioning before starting work.
• Check the sliding bracket to make sure that it is firmly fixed in the handle fittings.
• Check the sweeping container to make sure it is firmly fixed and in good condition.
• Check the plate brooms and the fi ne dust sweeping roller for rolled up threads and cords. Remove these if necessary.
• Check the plate brooms and the fi ne dust sweeping roller for jammed items or contamination.
• Check the handle for contamination and clean its if necessary.

7.2 Height adjustment of the plate brooms

The height of the brooms is adjusted with a dial in the middle of the front part. The height adjustment sets the plate brooms to the surface to be swept. The levels are based on empirical values and must therefore be considered as the levels are based on empirical values and must therefore be regarded as reference values. As a result, during sweeping, adaptations of the levels may need to be made depending on the surface.

• Level 1-2: for all level, hard surfaces

(e.g. asphalt, concrete, slabs...)

- Level 3-4: for damp leaves, sand, and uneven surfaces (e.g. washed concrete slabs)

• Level 5-7: for heavy soiling and severely uneven surfaces

NOTE

Do not press the plate brooms too firmly or the ground. A too high pressure does not achieve a better cleaning result, but rather leads to an increase in the pushing resistance and the wear of the device.

Technical diagram of a vehicle's steering wheel and dashboard with numbered components and directional arrows indicating motion or force.

Fig. 9: Height adjustment of the plate brooms

• Set the required level:
• Turn the dial (1) to the left to lower the level.
• Turn the dial (1) to the right to increase the level.
  » Lift the machine slightly by the handle. This will make it easier to adjust the height.

7.3 Set hold-down device (not haaga 375)

With the hold-down device, the right plate broom is adjusted to the edge regions to be swept, for example on walls or curbs.

NOTE

An unsuitable setting of the hold-down device at lower edges can lead to excessive wear. The hold-down device must not scratch on the ground.

1 7 5 6 8

Fig. 10: Hold-down device setting

Sweeping out edges and corners

- Press down the handle of the hold-down device.

Operation on surfaces

• Pull up the handle of the hold-down device.

7.4 Operation

• Operate the device via the sliding bracket with both hands.
• Push the device forward at normal walking speed.
• Remove the sweeping container as needed, see section "Empty sweeping container" in Section 7.5 of this operating manual.

7.5 Empty sweeping container

Diagram of a cleaning or cleaning device with labeled parts and directional arrows indicating motion or movement.

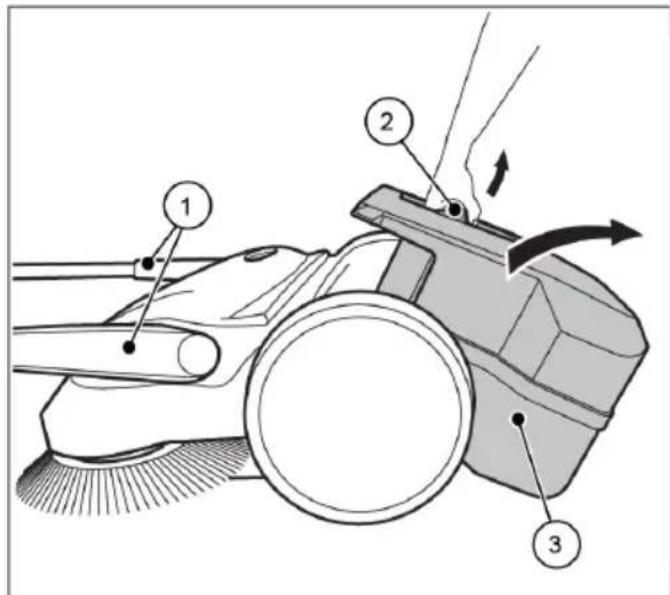

Fig. 11: Empty the sweeping container

• Empty the sweeping container after each use.
• Empty the sweeping container at regular intervals to achieve a proper sweeping result.
1. Bring the sliding bracket (1) into the horizontal position.
2. Pull the sweeping container (3) upwards by the container handle (2).
3. Empty the sweeping container (3) completely.
» Make sure that the enclosure sides are free of dirt.
4. Insert the empty sweeping container (3) on the device.
5. Press the container handle (2) back into the starting position. To do this, simultaneously press with force in the direction of the sweeper so that the hook of the container handle can easily hook into the locking point on the sweeper.
» The sweeping container (3) must audibly lock into position.
6. Bring the sliding bracket (1) back into the operating position.

8. Troubleshooting

WARNING

Risk of cutting due to broken glass, metal or other sharp edged materials!

When emptying the sweeping container, cutting injuries may occur due to broken glass, metal or other sharp edged materials.

- Wear the prescribed personal protective equipment!

CAUTION

Health impairments caused by dust resulting from sweeping!

The inhalation of dusts can endanger the health

- Wear the prescribed personal protective equipment!

CAUTION

Risk of injury through tipping over of the sliding bracket!

Tipping over of the sliding bracket may lead to slight injuries, such as jamming of the finger or haematomas in users or other persons.

- When carrying the device, hold it so that the sliding bracket cannot tip over.

Faults may occur even if the prescribed maintenance work and checks of the device before use are complied with. Possible faults are listed in the table below, with specification of the cause and remedy.

8.1 Fault table

Fault Cause Remedy
Device is running with diffi culty or roughly	Device is contaminated	Clean device, see Section 9.5
	Broom blocked Remove blockage see Section 9.3 “Remove blockage”
	Contaminated broom drives	Clean broom drives, see Section 9.5 “Clean device”
	Height adjustment is set too low, contact pressure of the plate brooms too high	Set height adjustment, see Section 7.2 in the section “Adjust height of plate brooms”
	Plate brooms do not rotate	Contact Service
Bristles are bent	Improper storage	Align the bristles, see Chapter 9.4 in the section “Align bristles”
Sweeping result is insufficient	Sweeping lip is missing, loose or worn	Replace sweeping lip

9. Maintenance and cleaning

WARNING

Risk of cutting due to broken glass, metal or other sharp edged materials!

When emptying the sweeping container, cutting injuries may occur due to broken glass, metal or other sharp edged materials.

- Wear the prescribed personal protective equipment!

CAUTION

Health impairments caused by dust resulting from sweeping!

The inhalation of dusts can endanger the health

- Wear the prescribed personal protective equipment!

CAUTION

Risk of injury through tipping over of the sliding bracket!

Tipping over of the sliding bracket may lead to slight injuries, such as jamming of the finger or haematomas in users or other persons.

- When carrying the device, hold it so that the sliding bracket cannot tip over.

CAUTION

Hazard due to cleaning materials!

The agents can contain harmful ingredients and can thereby cause irritation of the respiratory tract and the skin

• Observe the manufacturer's safety data sheet.
• Avoid spillage and the formation of fog.
• Do not eat, drink or smoke while working
• Avoid contact with skin and eyes.

In the following sections the maintenance and cleaning work required for optimal and fault-free operation is described.

The conduct of the specified work depends in some cases on time and/or load. For the maintenance interval information shown both in deadlines and service hours, the one that occurs first applies.

In case of questions on the maintenance work and intervals contact the manufacturer.

9.1 Maintenance plan

Maintenance interval	Maintenance work
Before starting work	Check the device to make sure that it is functioning before starting work. If necessary, contact the Service.
	Check the sliding bracket to make sure that it is fi rmly fi xed in the handle fi ttings.
	Check the sweeping container to make sure it is fi rmly fi xed and in good condition.
	Check the plate brooms and the fi ne dust sweeping roller for rolled up threads and cords. Remove these if necessary.
	Check the plate brooms and the fi ne dust sweeping roller for jammed items or contamination.
	Check the handles for contamination and clean if necessary.
	Check that the height adjustment is at the correct height.
	Check the sweeping pressure setting. Adapt the sweeping pressure to the surface to be swept, if necessary.
After fi nishing work	Empty the sweeping container.
	Clean the device.
8 Bh Clean broom drives.

9.2 Clean dust fi Iter (not haaga 375)

1. Remove the sweeping container from the sweeping machine, see section "Empty sweeping container" in Section 7.5 of this operating manual.

Technical diagram of a mechanical assembly with numbered components and an inset showing labeled parts 1, 2, 3, and 4.

Fig. 12: Dust fi Iter removal

1. Pull the dust fi iter (1) up from the guides (2).
2. Open the plastic housing (3) of the dust filter and remove the foam insert (4).
3. Pound out the foam insert (4) and clean it with water.
4. Place the dry foam insert back into the plastic housing.
5. Slide the dust fi Iter back into the guides.
6. Insert the sweeping container into the sweeping machine.

9.3 Removeblockage

• Remove wound-up material (e.g. cords, threads, etc.) from the brooms and axes.
• Remove jammed material (e.g. stones, twigs, leaves etc.).

9.4 Alignbristles

WARNING

Fire hazard due to improper handling of a fan or the use of an unsuitable fan!

When aligning the bristles, there is a risk of fire if they are heated to too high temperatures

• Do not use open flames or furnace to heat the bristles!
• Do not use a hot air blower. If the air is too hot, the bristles may melt.

Bent bristles can be straightened out again with heating by means of a warm air fan (e.g. hairdryer).

• Point the switched-on warm air fan towards the bent bristles.
  » If the heating is sufficient, the bristles will straighten out again by themselves.

9.5 Clean the device

• Do not use a degreasing agent.
• Do not use any aggressive cleaning agents.
• Do not clean the device with a high-pressure cleaner or under running water. The device may not be immersed in water or cleaned with water.
• Protect the bearings against moisture.

• Do not clean the plate brooms and the fine dirt sweeping roll with compressed air.
  » The strong air jet can damage the bristles.

• Clean the plate brooms, the fi ne dirt sweeping roll and the drives with a wet cloth.

• Clean all plastic parts with a damp cloth.

10. Decommissioning

10.1 Disassemble sliding bracket

CAUTION

Risk of injury through tipping over of the sliding bracket!

Tipping over of the sliding bracket may lead to slight injuries, such as jamming of the tinger or haematomas in users or other persons.

- When carrying the device, hold it so that the sliding bracket cannot tip over.

Diagram of a vacuum cleaner with labeled parts including lever, handle, and pusharm mechanism

Fig. 13: Sliding bracket disassembly (haaga 375)

1. Bring the sliding bracket (2) into the vertical position.
2. Press the lock springs (3) inwards on both sides, so that the sliding bracket (2) is released for removal.
3. Pull the sliding bracket (2) out of both handle fittings (1) simultaneously.

Technical diagram showing a hand operating a car wheel with labeled parts 1 and 2

Fig. 14: Sliding bracket disassembly (not haaga 375)

1. Bring the respective arrows on the housing to the bar of the handle fi ttings (1).
2. Position yourself between the sliding bracket in front of the device.
3. Grip both handle fittings (1) with your hands and carefully push them out.
4. At the same time pull out the handle fi ttings from both receptacles of the device.

10.2 Disposal

- Dispose of the device in an environmentally friendly manner in accordance with the applicable regional regulations.

Indice

1. In generale 32

1.1 Indirizzo 32

1.2 Convenzioni 32

Technical diagram of a lawn mower with numbered parts for identification

Technical diagram of a mechanical device with numbered components for identification

Technical diagram of a mechanical device with numbered components labeled 16, 17, and an unlabeled top part.

Anatomical diagram of a biological structure with numbered labels pointing to specific parts.

Technical line drawing of a mechanical device with no visible text or symbols

Technical diagram of a vacuum cleaner with labeled parts 1 and 2, showing internal components and motion indicators.

Technical diagram showing a hand operating a tool with labeled parts 1 and 2, likely illustrating a mechanical or optical setup.

Technical diagram of a car interior with numbered components and directional arrows indicating movement or force

Diagram of a cleaning or cleaning device with labeled parts and directional arrows indicating motion or movement.

Technical diagram of a mechanical device with numbered components and an inset showing two labeled parts.

Fig. 12: Prelievo del fi Itro antipolvere

Diagram of a vacuum cleaner with labeled parts including lever, handle, and pusharm mechanism

Technical diagram showing a hand operating a car wheel rim with labeled parts 1 and 2

Anatomical diagram of a biological structure with numbered labels pointing to specific parts.

Technical line drawing of a mechanical device with no visible text or symbols

Technical diagram of a vacuum cleaner with labeled parts 1 and 2, showing internal components and motion indicators.

Technical diagram showing a hand operating a tool with labeled parts 1 and 2, likely illustrating a mechanical or optical setup.

Technical diagram of a vehicle's steering wheel and dashboard with numbered components and directional arrows indicating motion or movement.

Diagram of a cleaning or cleaning device with labeled parts and directional arrows indicating motion or movement.

Technical diagram of a mechanical device with numbered components and an inset showing four labeled parts.

Diagram of a vacuum cleaner with labeled parts including lever, handle, and pusharm mechanism

Technical diagram showing a hand operating a car wheel with labeled parts 1 and 2

Technical diagram of a lawn mower with numbered parts for identification

Fig. 1: Komponentoversigt 1

Technical diagram of a mechanical assembly with numbered components for identification

Fig. 2: Komponentoversigt 2

Technical diagram of a mechanical device with numbered components labeled 16, 17, and an unlabeled top part.

Fig. 3: Komponentoversigt 3

Technical line drawing of a mechanical device with no visible text or symbols

Fig. 5: Opbevaringsposition

Technical diagram of a vacuum cleaner with labeled parts 1 and 2, showing internal components and wiring.

Fig. 6: Bær enheden

Technical diagram showing a hand operating a mechanical tool with labeled parts 1 and 2

Technical diagram of a vehicle's steering wheel and dashboard with numbered components and directional arrows indicating motion or force.

Diagram of a cleaning or cleaning device with labeled parts and directional arrows indicating motion or movement.

Fig. 11: Aff aldsbeholderen tømme

Technical diagram of a mechanical assembly with numbered components and an inset showing labeled parts

Diagram of a vacuum cleaner with labeled parts including lever, handle, and adjustment mechanism

Technical diagram showing a hand operating a car wheel with labeled parts 1 and 2

Technical diagram of a lawn mower with numbered parts for identification

Fig. 1: Resumen de componentes 1

Technical diagram of a mechanical assembly with numbered components for identification

Fig. 2: Resumen de componentes 2

Technical diagram of a mechanical device with numbered components labeled 16 and 17

Fig. 3: Resumen de componentes 3

Technical line drawing of a mechanical device with no visible text or symbols

Technical diagram of a vacuum cleaner with labeled parts 1 and 2, showing internal components and motion indicators.

Technical diagram showing a hand operating a mechanical tool with labeled parts 1 and 2

Technical diagram of a car interior with numbered components and directional arrows indicating movement or force

Diagram of a cleaning or cleaning device with labeled parts and directional arrows indicating motion or movement.

Technical diagram of a mechanical device with numbered components and an inset showing internal components labeled 1, 2, 3, and 4.

Diagram of a vacuum cleaner with labeled parts including lever, handle, and pusharm mechanism

Technical diagram showing a hand operating a mechanical tool with labeled parts 1 and 2

Technical diagram of a lawn mower with numbered parts for identification

Technical diagram of a mechanical assembly with numbered components for identification

Technical diagram of a mechanical device with numbered components labeled 16, 17, and an unlabeled top part.

Anatomical diagram of a biological structure with numbered labels pointing to specific parts.

Technical line drawing of a mechanical device with no visible text or symbols

Technical diagram of a vacuum cleaner with labeled parts 1 and 2, showing internal components and motion indicators.

Technical diagram showing a hand operating a lathe tool with labeled parts 1 and 2

Technical diagram of a vehicle's steering wheel and dashboard with numbered components and directional arrows indicating motion or movement.

Diagram of a car interior with numbered parts and a labeled component, likely illustrating a mechanical or electrical component.

Diagram of a cleaning or cleaning device with labeled parts and directional arrows indicating motion or movement.

Technical diagram of a mechanical device with numbered components and an inset showing four labeled parts.

Diagram of a vacuum cleaner with labeled parts including lever, handle, and pusharm mechanism

Technical diagram showing a hand operating a mechanical component with labeled parts 1 and 2

1.2 Conventions....102

Technical diagram of a lawn mower with numbered parts for identification

Technical diagram of a mechanical assembly with numbered components for identification

Technical diagram of a mechanical device with numbered components labeled 16 and 17

5.4 Stockage / conservation

NOTA

Technical line drawing of a mechanical device with no visible text or symbols

Technical diagram of a vacuum cleaner with labeled parts 1 and 2, showing internal components and motion indicators.

Technical diagram showing a hand operating a mechanical tool with labeled parts 1 and 2

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or assembly.

Diagram of a cleaning or cleaning device with labeled parts and directional arrows indicating motion or movement.

Technical diagram of a mechanical device with numbered components and an inset showing internal components labeled 1, 2, 3, and 4.

Diagram of a cleaning brush with labeled parts including lever, brush tip, and brush head

Technical diagram showing a hand operating a car wheel with labeled parts 1 and 2

9.5 Apparaat schoonmaken....127

Technical diagram of a lawn mower with numbered parts for identification

Technical diagram of a mechanical assembly with numbered components for identification

Technical diagram of a mechanical device with numbered components labeled 16, 17, and an unlabeled top part.

Anatomical diagram of a biological structure with numbered labels pointing to specific parts.

Technical line drawing of a mechanical device with no visible text or symbols

Technical diagram of a vacuum cleaner with labeled parts 1 and 2, showing internal components and motion indicators.

Technical diagram showing a hand operating a mechanical tool with labeled parts 1 and 2

Afb. 7: Handvatmontage (haaga 375)

Diagram of a cleaning or cleaning device with labeled parts and directional arrow indicating inspection or repair.

Diagram of a vacuum cleaner with labeled parts including lever, handle, and base components

Afb. 8: Duwbeugelmontage

Technical diagram of a car interior with numbered components and directional arrows indicating movement or force

Diagram of a cleaning or cleaning device with labeled parts and directional arrows indicating motion or movement.

Technical diagram of a mechanical device with numbered components and an inset showing internal components labeled 1, 2, 3, and 4.

Diagram of a cleaning brush with labeled parts including lever, handle, and brush tip

Technical diagram showing a hand using a tool to adjust or install a mechanical component, labeled with parts 1 and 2.

Technical diagram of a lawn mower with numbered parts for identification

Fig. 1: Komponentoversikt 1

Technical diagram of a mechanical device with numbered components for identification

Fig. 2: Komponentoversikt 2

Pos.-nr. Komponent

11 Feievalser til fint smuss

12 Skrähjul

13 Feieleppe

14 Feieplate

15 Typeskilt (haaga 375)

Technical diagram of a mechanical device with numbered components labeled 16, 17, and an unlabeled top part.

Fig. 3: Komponentoversikt 3

Pos.-nr. Komponent

16 Støvfilter (ikke haaga 375)

17 Typeskilt (ikke haaga 375)

Anatomical diagram of a biological structure with numbered labels pointing to specific parts.

Technical line drawing of a mechanical device with no visible text or symbols

Technical diagram of a vacuum cleaner with labeled parts 1 and 2, showing internal components and motion indicators.

Technical diagram showing a hand operating a mechanical device with labeled parts 1, 2, and a circular component marked Q.

Technical diagram of a vehicle's steering wheel and dashboard with numbered components and directional arrows indicating motion or force.

Diagram of a car cleaning or cleaning process with labeled parts and directional arrows indicating movement

8.1 Tabell over feil

Technical diagram of a mechanical device with numbered components and an inset showing four labeled parts.

Fig. 12: Å ta ut støvfi ltre

Diagram of a vacuum cleaner with labeled parts including lever, handle, and pusharm mechanism

Technical diagram showing a hand operating a car wheel with labeled parts 1 and 2

Technical diagram of a lawn mower with numbered parts for identification

Technical diagram of a mechanical assembly with numbered components for identification

Technical diagram of a mechanical device with numbered components labeled 16, 17, and an unlabeled top part.

Technical line drawing of a mechanical device with no visible text or symbols

Technical diagram of a vacuum cleaner with labeled parts 1 and 2, showing internal components and motion indicators.

Technical diagram showing a hand operating a mechanical tool with labeled parts 1 and 2

Technical diagram of a car interior showing labeled parts and directional arrows indicating movement or force

Diagram of a cleaning or cleaning device with labeled parts and directional arrows indicating motion or movement.

Technical diagram of a mechanical device with numbered components and an inset showing four labeled parts.

Diagram of a vacuum cleaner with labeled parts including lever, handle, and pusharm mechanism

Technical diagram showing a hand using a power tool to adjust or clean a motor, labeled with parts 1 and 2.

9.4 Alinhar as cerdas....169

Technical diagram of a lawn mower with numbered parts for identification

Technical diagram of a mechanical device with numbered components for identification

Technical diagram of a mechanical device with numbered components labeled 16, 17, and an unlabeled top part.

Anatomical diagram of a biological structure with numbered labels pointing to specific parts.

Technical line drawing of a mechanical device with no visible text or symbols

Technical diagram of a vacuum cleaner with labeled parts 1 and 2, showing internal components and motion indicators.

Technical diagram showing a hand operating a mechanical tool with labeled parts 1 and 2

Diagram of a cleaning or cleaning device with labeled parts and directional arrow indicating inspection or repair.

Diagram of a cleaning or cleaning device with labeled parts including lever, handle, and brush (B)

Technical diagram of a car interior with numbered components and directional arrows indicating movement or force

Diagram of a cleaning or cleaning device with labeled parts and directional arrows indicating motion or movement.

Fig. 11: Esvaziar o recipiente de material varrido

Technical diagram of a mechanical device with numbered components and an inset showing internal components labeled 1, 2, 3, and 4.

9.4 Alinhar as cerdas

! AVISO

Diagram of a vacuum cleaner with labeled parts including lever, handle, and base

Technical diagram showing a hand using a tool to adjust or clean a car wheel, labeled with parts 1 and 2.

Technical diagram of a lawn mower with numbered parts for identification

Technical diagram of a mechanical assembly with numbered components for identification

Technical diagram of a mechanical device with numbered components labeled 16, 17, and an unlabeled top part.

Anatomical diagram of a biological structure with numbered labels pointing to specific parts.

Technical line drawing of a mechanical device with no visible text or symbols

Technical diagram of a vacuum cleaner with labeled parts 1 and 2, showing internal components and motion indicators.

Technical diagram showing a hand operating a tool with labeled parts 1 and 2, likely illustrating a mechanical or optical setup.

Technical diagram of a car interior with numbered components and directional arrows indicating movement or force

Diagram of a cleaning or cleaning device with labeled parts and directional arrows indicating motion or movement.

Technical diagram of a mechanical device with numbered components and an inset showing two battery cells labeled 1 and 4.

Diagram of a vacuum cleaner with labeled parts including lever, handle, and pusharm mechanism

Technical diagram showing a hand operating a car wheel with labeled parts 1 and 2

Technical diagram of a lawn mower with numbered parts for identification

Technical diagram of a mechanical assembly with numbered components for identification

Technical diagram of a mechanical device with numbered components labeled 16, 17, and an unlabeled top part.

Anatomical diagram of a biological structure with numbered labels pointing to specific parts.

Technical line drawing of a mechanical device with no visible text or symbols

Technical diagram of a vacuum cleaner with labeled parts 1 and 2, showing internal components and motion indicators.

Technical diagram showing a hand using a tool to adjust or clean a mechanical component, labeled with parts 1 and 2.

Technical diagram of a vehicle's steering wheel and dashboard with numbered components and directional arrows indicating motion or force.

Diagram of a cleaning or cleaning device with numbered components and directional arrows indicating motion or movement.

Technical diagram of a mechanical device with numbered components and an inset showing internal components labeled 1, 2, 3, and 4.

Bild 12: Ta bort dammfi ltret

Diagram of a vacuum cleaner with labeled parts including lever, handle, and push button

Technical diagram showing a hand operating a car wheel with labeled parts 1 and 2

Technical diagram of a lawn mower with numbered parts for identification

Technical diagram of a mechanical assembly with numbered components for identification

Technical diagram of a mechanical device with numbered components labeled 16, 17, and an unlabeled top part.

Anatomical diagram of a biological structure with numbered labels pointing to specific parts.

Technical line drawing of a mechanical device with no visible text or symbols

Technical diagram of a vacuum cleaner with labeled parts 1 and 2, showing internal components and motion indicators.

Technical diagram showing a hand operating a tool with labeled parts 1 and 2, likely illustrating a mechanical or optical setup.

Technical diagram of a car interior showing labeled parts and directional arrows indicating movement or force

Diagram of a cleaning or cleaning device with labeled parts and directional arrows indicating motion or movement.

Technical diagram of a mechanical device with numbered components and an inset showing two battery cells labeled 1 and 4.

Diagram of a vacuum cleaner with labeled parts including lever, handle, and pusharm mechanism

Technical diagram showing a hand operating a car wheel with labeled parts 1 and 2
