USER MANUAL BCIWMSTP90P Be Cool

Exterior view of a large industrial fan or fan unit with visible blades and mounting brackets (no text or symbols)

HERZLICHEN GLÜCKWUNSCH!

QR code image containing encoded data, no visible human-readable text

Three black-and-white warning symbols: no hand, warning triangle, and lightning bolt symbol

BE COOL

Technical diagram of a large industrial fan with numbered labels pointing to different components.

Exterior view of a large industrial fan or fan unit with visible blades and wheels, no text or symbols present.

FÉLICITATIONS !

MERCI D'AVOIR CHOISI UN PRODUIT BE COOL.

QR code image containing encoded data, no visible human-readable text

VEUILLEZ LIRE ATTENTIVEMENT LE MANUEL D'UTILISATION AVANT DE COMMENCER L'INSTALLATION, L'UTILISATION OU LA MAINTENANCE. PROTÉGEZ-VOUS ET PROTÉGEZ LES AUTRES EN SUIVANT LES CONSIGNES DE SÉCURITÉ. LE NON-RESPECT DES INSTRUCTIONS PEUT ENTRAÎNER DES BLESSURES ET/OU DES DOMMAGES MATÉRIELS ET/OU LA PERTE DE LA GARANTIE !

INFORMATIONS IMPORTANTES CONCERNANT LA SÉCURITÉ,

L'EMPLACEMENT ET LE RACCORDEMENT ÉLECTRIQUE.

BE COOL

UTILISATION CONFORME

RECYCLAGE, ÉLIMINATION, DÉCLARATION DE CONFORMITÉ

Technical diagram of a large industrial fan with numbered labels pointing to different components.

Exterior view of a large industrial fan or fan unit with visible blades and wheels, enclosed in a metal frame (no text or symbols)

CONGRATULAZIONI!

GRAZIE PER AVER SCELTO UN PRODOTTO BE COOL.

QR code image containing encoded data, no visible human-readable text

LEGGERE ATTENTAMENTE IL MANUALE D'USO PRIMA DI INIZIARE L'INSTALLAZIONE, L'UTILIZZO O LA MANUTENZIONE. PROTEGGERE SE STESSI E GLI ALTRI SEGUENDO LE ISTRUZIONI DI SICUREZZA. LA MANCATA OSSERVANZA DELLE ISTRUZIONI POTREBBE CAUSARE LESIONI PERSONALI E/O DANNI MATERIALI E/O LA PERDITA DEL DIRITTO ALLA GARANZIA!

INFORMAZIONI IMPORTANTI SULLA SICUREZZA, L'UBICAZIONE E IL COLLEGAMENTO ELETTRICO.

Three black-and-white warning symbols: no hand, exclamation mark, and lightning bolt symbol.

BE COOL

USO PREVISTO

Technical diagram of a large industrial fan with numbered labels pointing to different components.

Exterior view of a large industrial fan or fan unit with visible blades and mounting brackets (no text or symbols)

GEFELICITEERD!

HARTELIJK DANK DAT U VOOR EEN PRODUCT VAN BE COOL HEEFT GEKOZEN.

BE COOL

Actuele handleidingen en andere talen

QR code image containing encoded data, no visible human-readable text

LEES DE GEBRUIKSAANWIJZING ZORGVULDIG DOOR VOORDAT U BEGINT MET DE INSTALLATIE, BEDIENING OF ONDERHOUD. BESCHERM UZELF EN ANDEREN DOOR DE VEILIGHEIDSINSTRUCTIES OP TE VOLGEN. HET NIET OPVOLGEN VAN DE INSTRUCTIES KAN LEIDEN TOT PERSOONLIJK EN/OF MATERIËLE SCHADE EN/OF HET VERLIES VAN DE GARANTIE!

BELANGRIJKE INFORMATIE OVER VEILIGHEID, LOCATIE EN ELEKTRISCHE AANSLUITING.

BE COOL

BEHOORLIJK GEBRUIK

RECYCLING, AFVALVERWERKING,

CONFORMITEITSVERKLARING

Technical diagram of a large industrial fan with numbered labels pointing to different components.

Exterior view of a large industrial fan or fan unit with visible blades and wheels, no text or symbols present.

¡ENHORABUENA!

MUCHAS GRACIAS POR ELEGIR UN PRODUCTO DE BE COOL.

QR code image containing encoded data, no visible human-readable text

Technical diagram of a large industrial fan with numbered labels pointing to different components.

Exterior view of a large industrial fan or fan unit with visible blades and wheels, no text or symbols present.

GRATULUJEME!

DĚKUJEME, ŽE JSTE SE ROZHODLI PRO PRODUKT BE COOL.

BE COOL

QR code image containing encoded data, no visible human-readable text

PŘED ZAHÁJENÍM INSTALACE, PROVOZU NEBO ÚDRŽBY SI PEČLIVĚ PŘEČTĚTE NÁVOD K POUŽITÍ. CHRAŇTE SEBE I OSTATNÍ DODRŽOVÁNÍM BEZPEČNOSTNÍCH POKYNŮ. NEDODRŽENÍ POKYNŮ MŮŽE VÉST K ÚRAZU OSOB A/NEBO POŠKOZENÍ MAJETKU A/NEBO ZTRÁTĚ NÁROKU NA ZÁRUKU!

DŮLEŽITÉ INFORMACE O BEZPEČNOSTI, UMÍSTĚNÍ A ELEKTRICKÉM PŘIPOJENÍ.

Three black-and-white warning symbols: no hand, exclamation mark, and lightning bolt symbol.

BE COOL

POUŽITÍ V SOULADU S URČENÍM

Technical diagram of a large industrial fan with numbered components labeled 1 to 5

Exterior view of a large industrial fan or fan unit with visible blades and mounting brackets (no text or symbols)

BLAHOPREJEME!

ĎAKUJEME, ŽE STE SA ROZHODLI PRE PRODUKT BE COOL.

QR code image containing encoded data, no visible human-readable text

PREČÍTAJTE SI POZORNE NÁVOD NA OBSLUHU PRED ZAČATÍM INŠTALÁCIE, OBSLUHY ALEBO ÚDRŽBY. CHRÁŇTE SEBA A INÝCH DODRŽIAVANÍM BEZPEČNOSTNÝCH POKYNOV. NEUPOSLUŠNÉ DODRŽIAVANIE POKYNOV MÔŽE VEDIET K ÚRAZOM A/ALEBO POŠKODENIU MAJETKU A/ALEBO STRATE NÁROKU NA ZÁRUKU!

DÔLEŽITÉ INFORMÁCIE O BEZPEČNOSTI, UMIESTNENÍ A ELEKTRICKOM PRIPOJENÍ.

BE COOL

POUŽÍVANIE V SÚLADE S URČENÍM

Technical diagram of a large industrial fan with numbered components labeled 1 to 5

Exterior view of a large industrial fan or fan with visible blades and central hub, mounted on a metal frame (no text or symbols)

FELICITĂRI!

VĂ MULTUMIM CĂ ATI ALEAS UN PRODUS BE COOL.

QR code image containing encoded data, no visible human-readable text

CITIȚI CU ATENȚIE MANUALUL DE UTILIZARE ÎNAINTE DE A ÎNCEPE INSTALAREA, UTILIZAREA SAU ÎNTRETINEREA. PROTJAȚI-VĂ PE VOI ÎNȘIVĂ ȘI PE CEILALȚI RESPECTÂND INSTRUCTIUNILE DE SIGURANȚĂ.

Technical diagram of a large industrial fan with numbered components labeled 1 to 5

Exterior view of a large industrial fan or fan unit with visible blades and mounting brackets (no text or symbols)

SERDECZNE GRATULACJE!

DZIEKUJEMY ZA WYBÓR PRODUKTU BE COOL.

QR code image containing encoded data, no visible human-readable text

PROSIMY O UWAŻNE PRZECZYTANIE INSTRUKCJI OBSŁUGI PRZED ROZPOCZĘCIEM INSTALACJI, OBSŁUGI LUB KONSERWACJI. PROSIMY O ZACHOWANIE BEZPIECZEŃSTWA WŁASNEGO I INNYCH OSÓB, PRZESTRZEGAJĄC WSKAZÓWEK BEZPIECZEŃSTWA. NIEPRZESTRZEGANIE INSTRUKCJI MOŻE PROWADZIĆ DO OBRAŻEŃ CIAŁA I/LUB USZKODZENIA MIENIA I/LUB UTRATY PRAWA DO GWARANCJI!

WAŻNE INFORMACJE DOTYCZĄCE BEZPIECZEŃSTWA, LOKALIZACJI I PODŁĄCZENIA ELEKTRYCZNEGO.

BE COOL

Technical diagram of a large industrial fan with numbered labels pointing to different components.

Exterior view of a large industrial fan or fan unit with visible blades and mounting brackets (no text or symbols)

ČESTITAMO!

HVALA, DA STE SE ODLOČILI ZA IZDELEK BE COOL.

Aktualna navodila za uporabo in drugi jeziki

QR code image containing encoded data, no visible human-readable text

PREDEN ZAČNETE Z NAMESTITVIJO, UPORABO ALI VZDRŽEVANJEM, POZORNO PREBERITE NAVODILA ZA UPORABO. ZUPOLNITE SEBI IN DRUGIM, DA SPREJEMATE VARNOSTNE NAVODILA. NEUPOŠTEVANJE NAVODIL LAHKO PRIPELJE DO POŠKODB OSEB IN/ALI PREMOŽENJA IN/ALI IZGUBE GARANCIJSKIH PRAVIC!

POMEMBNE INFORMACIJE O VARNOSTI, LOKACIJI IN ELEKTRIČNEM PRIKLJUČKU.

BE COOL

NAMENSKA UPORABA

Technical diagram of a multi-compartment electric fan with numbered labels pointing to each component.

Exterior view of a large industrial fan or fan unit with visible blades and wheels, no text or symbols present.

ČESTITAMO!

HVALA VAM ŠTO STE ODABRALI PROIZVOD TVRTKE BE COOL.

BE COOL

QR code image containing encoded data, no visible human-readable text

Three black-and-white warning symbols: no hand, a warning triangle with exclamation mark, and a triangular symbol with lightning bolt.

BE COOL

NAMJENA

Vjetroelektrana je namijenjena isključivo za privatnu upotrebu i nije prikladna za komercijalnu upotrebu.

Technical diagram of a multi-compartment electric fan with numbered labels pointing to each component.

1. Okvir (kvadratno kućište) – stabilni potporni okvir uređaja
2. Bubanj – okruglo kućište za motor i lopatice ventilatora
3. Zaštitna rešetka – štiti od kontakta s rotirajućim dijelovima
4. Lopatice ventilatora – osiguravaju kretanje zraka
5. Kotačić – za lakše pomicanje uređaja

BE COOL

SKUPŠTINA

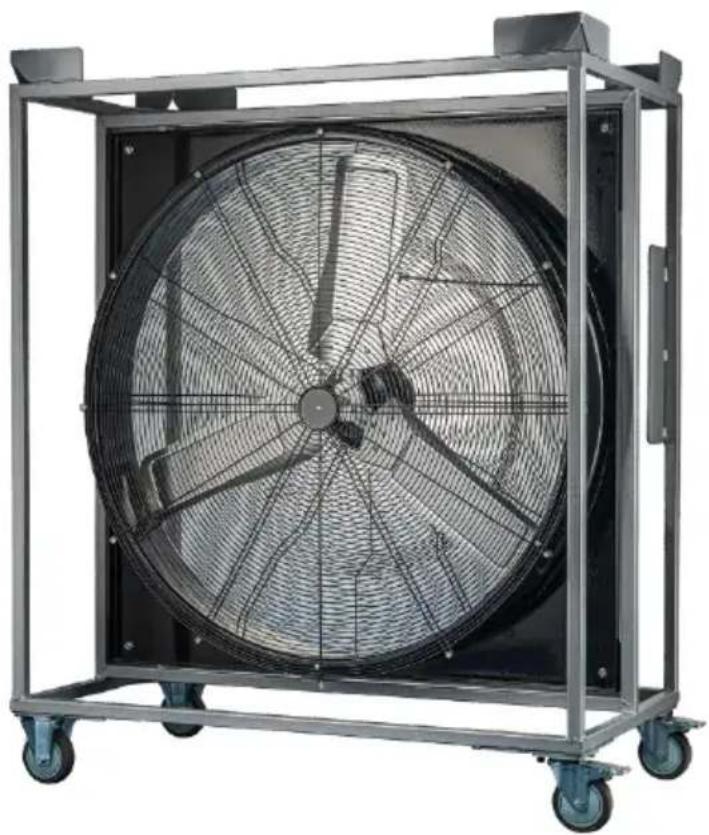

Stackable performance Wind machine

BCIWMSTP90P

Exterior view of a large industrial fan or dust spread unit with visible blades and mounting brackets (no text or symbols)

CONGRATULATIONS!

THANK YOU FOR CHOOSING A BE COOL PRODUCT.

Current operating instructions and other languages

Download the latest operating instructions in various languages via the linkwww.becool.at/downloads or scan the QR code shown. Follow the instructions on the website.

QR code image containing encoded data, no visible human-readable text

PLEASE READ THE OPERATING INSTRUCTIONS CAREFULLY BEFORE YOU START INSTALLATION, OPERATION, OR MAINTENANCE. PROTECT YOURSELF AND OTHERS BY FOLLOWING THE SAFETY INSTRUCTIONS. FAILURE TO FOLLOW THE INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE AND/OR VOID THE WARRANTY!

IMPORTANT INFORMATION ON SAFETY, LOCATION, AND ELECTRICAL CONNECTION.

Three black-and-white warning symbols: a hand crossed out, an exclamation mark, and a triangular hazard symbol.

BE COOL

INTENDED USE

The wind machine is intended for private use only and is not suitable for commercial use.

Only use the wind machine as described in this operating manual.

1. Only operate with free air inlet and outlet; ensure at least 1 m of free space in front of and behind the device.
2. Do not use in potentially explosive areas (ATEX) or in rooms with corrosive or flammable gases/vapors.
3. Do not operate in the rain, outdoors, or in wet environments (bathroom, shower, swimming pool).
4. Never insert fingers, tools, textiles, or other objects through the protective grille; keep hair and loose clothing away.
5. Only operate the device on a stable, level surface; do not place any objects on the device or attach anything to it.
6. Do not leave the device running unattended; switch it off when leaving the room.
7. Children under 8 years of age and persons with limited abilities may only use the device under supervision and after instruction; children must not play with the device.
8. Check before connecting: The mains voltage and frequency must correspond to the type plate (220–240 V\~, 50 Hz; 1000 W; Schuko).

BE COOL

1. Only operate on properly grounded sockets; sockets must not be damaged or loose.

2. Avoid using extension cables; if necessary, only use tested, fully unrolled, grounded cables with a sufficient conductor cross-section.

3. Lay the 5 m supply cable (3×0.75 mm ^2 ) without kinks, shearing, or tension; do not run over it, pinch it, or run it along hot surfaces.

4. Never plug or unplug the device with wet hands and never pull on the cable – always hold the plug.

5. Only use the integrated speed control; do not connect any external dimmers/controllers.

6. High volume flow (up to approx. 21,060 m³/h) creates strong air currents – secure small, light objects.

7. The sound pressure level may be perceived as disturbing in noise-sensitive areas – select the operating time and distance accordingly.

8. When moving, use only the integrated castors; securely lock the parking brakes before operation.

9. Only stack devices of the same design on a stable, level surface; do not operate if unstable.

10. Before cleaning, maintenance, or moving: Switch off the device and disconnect the power plug.

11. Use a soft, slightly damp cloth with a mild cleaning agent for cleaning; do not use aggressive agents or immerse the device in water.

12. Do not bend the protective grille or blades; after cleaning, check that all screws/covers are securely fastened.

BE COOL

1. Keep the motor ventilation openings free of dust; carefully remove any accumulated dust.
2. Do not make any modifications or alterations; use only original replacement parts/accessories (otherwise the warranty/guarantee will be void).
3. Do not operate the device if the power cord or plug is damaged; replacement only by the manufacturer/service workshop.
4. Store the device in a dry, child-proof, and dust-free place; do not operate it in confined spaces or cabinets (risk of overheating/fire).
5. Do not dispose of this product with household waste; use designated collection points for recycling.
6. The information on the type plate and in the complete operating instructions applies; national regulations and company occupational safety rules must be observed.
7. Do not carry by the protective grille, only by the frame; lift with two people during transport; check stability before operation, lock parking brakes.

BE COOL

SAFETY TIPS FOR THE POWER CORD

1. If the power cord is damaged, it must only be replaced by the manufacturer, its customer service department, or a suitably qualified specialist—otherwise there is a risk of accident.
2. Never pull on the cord or jerk the device.
3. Always plug the connector into the connector housing and insert it straight into the socket.
4. To disconnect from the mains: grasp the plug by the housing and pull it straight out of the socket.
5. Check the power cord for cuts or abrasions before each use. Do not use the device if it is damaged – send it to our service department or an authorized specialist for maintenance and cord replacement.
6. Do not wrap the cable tightly around the device. Excessive bending or pulling can damage the cable.
7. Do not operate the device if the power cord is damaged or if it only works intermittently.

BE COOL

RECYCLING, DISPOSAL, DECLARATION OF CONFORMITY

	RECYCLINGThe packaging materials can be recycled. It is therefore recommended that you dispose of them in the sorted waste.
	DISPOSALThe symbol "crossed-out wheelie bin" requires the separate disposal of waste electrical and electronic equipment (WEEE). Electrical and electronic equipment may contain hazardous and environmentally harmful substances. Therefore, do not dispose of it in unsorted residual waste, but at a designated collection point for waste electrical and electronic equipment. In this way, you contribute to the protection of resources and the environment. For further information, please contact your dealer or local authorities. Directive 2012/19/EU
	DECLARATION OF CONFORMITYWe hereby confirm that this item complies with the basic requirements, regulations, and directives of the EU. You can view the detailed declaration of conformity at any time at the following link: https://www.schuss-home.at/downloads

Errors and technical changes excepted.

BE COOL

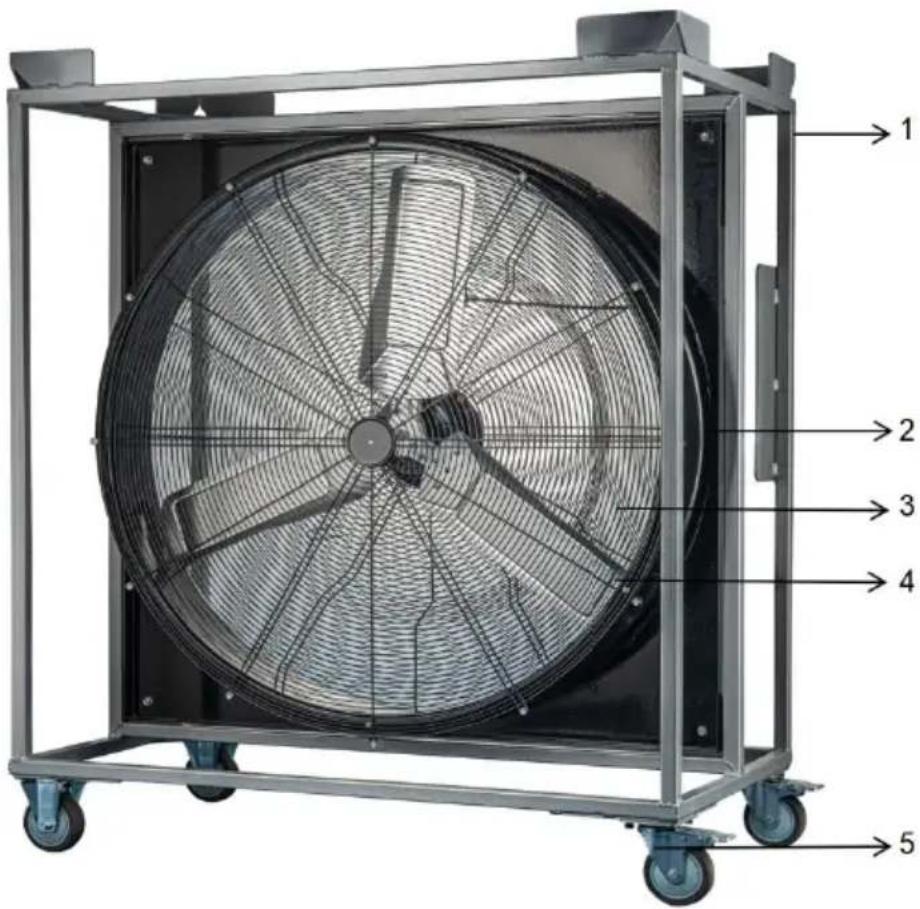

DESCRIPTION OF INDIVIDUAL PARTS

Technical diagram of a large industrial fan with numbered labels pointing to different components.

1. Frame (square housing) – sturdy support frame for the device
2. Drum – round housing for motor and fan blades
3. Protective grille – protects against contact with rotating parts
4. Fan blades – ensure air circulation
5. Castor – for easy movement of the device

BE COOL

ASSEMBLY

1.) No assembly required. The device is completely pre-assembled.
2.) Before first use: Place the device on a level surface and lock the parking brake(s) on the casters (5) to ensure that the wind machine is stable.

OPERATION

Check voltage

Ensure that the mains voltage corresponds to the voltage specified on the type plate.

Switch on & select speed

Use the speed control on the back of the device to the selected speeds: 0 (off) and speeds 1 and 2 for slow and high speeds.

Maintain a safe distance

Never touch the fan blades and do not insert any objects through the protective grille.

Take care of the power cord

Do not pull on the cable or jerk it suddenly. If the cable is damaged or operation is interrupted, do not use the device and have it checked by the manufacturer/authorized service center.

Cleaning

a) Switch off and unplug the device. Allow the device to cool down.
b) Clean the exterior surfaces with a soft, slightly damp cloth and a mild cleaning agent.
c) Do not use polish, solvents, abrasives, or corrosive agents; do not allow water to enter the device.
d) If applicable to this model: Carefully remove the protective grille and blades (do not drop them), clean them, and reattach them securely.

Before the next use

Check that the protective grille and blades are securely in place, that the air inlets/outlets are unobstructed, that the unit is stable, and that the parking brakes are engaged if applicable.

BE COOL

Note

Observe all safety instructions. Improper handling can lead to damage and affect warranty/guarantee claims.

CLEANING INSTRUCTIONS

1. Caution! Allow the device to come to a complete stop before cleaning and disconnect it from the power source.
2. Use a soft cloth for cleaning. If dirt or contaminants cannot be easily removed, use warm soapy water.
3. Do not use solvents or abrasive cleaners (thinners), metal utensils, or hard brushes for cleaning, as these may damage the housing.
4. Do not immerse the wind machine in water or other liquids. No water should drip onto or into the motor housing of the wind machine.
5. Dry all components thoroughly before storing them.

BE COOL

Technical informationBCIWMSTP90P
Nominal voltage	220–240 V
Frequency	50 Hz
Nominal input power	1000 W
Sound level	78 dB(A)
Dimensions	1070×600×1280mm
Weight	66 kg
Contact addresses for further information and service line:	Schuss Home Electronic GmbHScheringgasse 3, A-1140 ViennaTel: [phone] – 0www.becool.atFB No.: 236974 t / FB Court: Vienna

BE COOL

WARRANTY

With this quality product from BE COOL, you have made a decision in favor of innovation, durability, and reliability.

We grant a warranty period of 2 years from the date of purchase for this BE COOL device, valid in Austria!

If, contrary to expectations, your device requires servicing during this period, we guarantee

free repair (spare parts and labor) or (at the discretion of Schuss) replacement of the product. If neither repair nor replacement is possible for economic reasons, we reserve the right to issue a credit note for the current value.

In the case of air conditioners, please contact the customer hotline (see sticker on the device or cover page of the instruction manual) as a first step. For fans, please contact your dealer or us directly. Please note that repair work not carried out by an authorized repair shop in Austria will immediately void this warranty.

This warranty does not cover:

• Repair or replacement of parts due to normal wear and tear
• Damage due to failure to follow the operating instructions
• Devices that are used commercially, even if only partially
• Devices that have been mechanically damaged by external influences (falls, impacts, breakage, improper use, etc.) as well as signs of wear and tear of an aesthetic nature.
• Devices that have been handled improperly
• Devices that have not been opened by our authorized service workshop.
• Unmet consumer expectations.
• Damage caused by force majeure, water, lightning, or power surges.
• Devices on which the type designation and/or serial number has been changed, deleted, made illegible, or removed.
• Services outside our authorized repair shops, transportation costs to an authorized repair shop or to us and back, and the associated risks.

We expressly point out that within the warranty period, a flat rate of €60 (indexed based on CPI 2010, June 2015) will be charged in the event of operating errors or if no fault is found.

The provision of a warranty service (repair or replacement of the device) does not extend the absolute warranty period of 2 years from the date of purchase.

The 2-year warranty is only valid upon presentation of the proof of purchase (must include the name and address of the dealer and the complete device description) and the corresponding warranty certificate, on which the device type and serial number (visible on the box and on the back or bottom of the device) must be noted! Without presentation of the warranty certificate, only the statutory warranty applies!

We expressly point out that the statutory warranty rights are not affected by this warranty and remain in full force and effect. Schuss Home Electronic GmbH and its vicarious agents shall only be liable for damages in cases of gross negligence or intent. In any case, liability for lost profits, expected but unrealized savings, consequential damages, and damages arising from third-party claims is excluded. Damage to or for recorded data is always excluded from the liability for damages.

Congratulations on your purchase. We hope you enjoy your BE COOL device!

ADDRESS

Schuss Home Electronic GmbH

A-1140 Vienna, Scheringgasse 3

Tel.: [phone]

Type designation: ....

Serial number: ....

In the event of a warranty claim, this warranty certificate must be presented together with the device to the authorized service center or dealer from whom you purchased the device!

BE COOL

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Schuss Home Electronic GmbH

Scheringgasse 3

1140 Wien, AUSTRIA

Declares, that the product

Manufacturer

Designation

Hersteller

Bezeichnung

is conformity with following directives, norms and/or regulations:

EMC Directive (EMC): 2014/30/EU Directive of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to electromagnetic compatibility; Official Journal of the EU L96, 29/03/2014, p. 79–106

EN 55014-1:2021

EN 55014-2:2021

EN 61000-3-2:2019 + A1:2021

EN 61000-3-3:2013 + A2:2021

Low Voltage Directive (LVD):2014/35/EU Directive of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits; Official Journal of the EU L96, 29/03/2014, p. 357–374

EN 60335-1:2012 + A11:2014 + A13:2017 + A1:2019 + A14:2019 + A2:2019 + A15:2021

EN 60335-2-80:2003 + A1:2004 + A2:2009

EN 62233:2008

Ökodesign-Richtlinie Energy-Related-Products-Directive (ErP)2009/125/EC:

Official Journal EU L285/10-35 (31.10.2009) and associated regulation 2015/1188

RoHS Directive: 2011/65/EU Directive of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment; Official Journal of the EU L174, 1/07/2011, p. 88–110

Reach SVHC(EC)NO. 1907/2006 Schuss Home Electronic GmbH hereby confirms that in the products we supply, there are no substances of very high concern (SVHC) in the candidate list (last ECHA update from June 14, 2023, 235 substances) above 0.1% in accordance with Article 33 of the REACH Regulation (EC) No .1907/2006 are included.

Place and date of issue:

Vienna, 2025-12-16

SCHUSS HOME ELECTRONIC GMBH 1140 Wirk, Sclaringwisse 3 Tel. [phone], Fax 222 www.schuss-home.at

Bevollmächtigter Vertreter des Herstellers Authorized representative of manufacture

Scharl, Alexander

Senior product and purchasing manager i.V..

Declaration reference:

SCHUSS HOME ELECTRONIC GMBH

Scheringgasse 3, 1140 Wien, AUSTRIA
