USER MANUAL WM14N294CH SIEMENS

Diagram showing two labeled arrows pointing to a blue mechanical component with internal structure, likely illustrating a process or assembly.

3D cutaway diagram of a mechanical component showing internal structure and mounting features (no text or symbols)

Technical diagram of a washing machine with labeled parts and exploded view

Ремонт

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Exploded view diagram of a mechanical component with numbered parts and a red arrow indicating a specific section.

2023-09-05_8001214495 Copyright by BSH Hausgeräte GmbH Страница 13 от 462

Diagram showing a mechanical component with a curved arrow indicating motion, no text or symbols present

Diagram of a medical device with a circular component and a blue base, showing internal components (no text or labels)

3D rendering of a mechanical component with concentric rings and mounting flanges (no visible text or symbols)

Close-up of a metallic circular object with three red circular markers and a small square on the side (no text or symbols visible)

Interior view of a washing machine showing internal components like hoses and gauges (no text or symbols visible)

Technical diagram of a washing machine with numbered components for identification

Technical diagram of a washing machine with numbered components and airflow indicators

Diagram showing two labeled mechanical components with arrows indicating direction of movement or force

4.2.2 Postavljanje ladice za deterdžent

▶ Postavite obratnim redoslijedom.

Popravak

3D cutaway diagram of a mechanical assembly showing internal components and directional arrows (no text or symbols)

1. Uklonite ručicu ladice za deterdžent.

4.3.2 Postavljanje ručice ladice za deterdžent

▶ Postavite obratnim redoslijedom.

Popravak

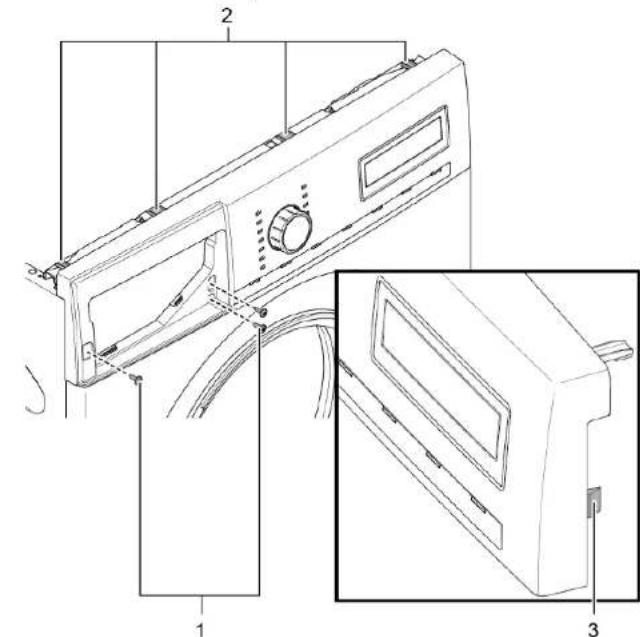

4.4 Zamjena ploče

Technical diagram of a washing machine with labeled parts and exploded view

1. Otpustite priključni kontakt upravljačke jedinice.
2. Uklonite ploču.

Popravak

4.4.2 Postavljanje ploče

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

1. Uklonite vrata prema gore.

4.5.2 Postavljanje vrata

▶ Postavite obratnim redoslijedom.

Popravak

Exploded view diagram of a mechanical component with numbered parts and a red arrow indicating a specific section.

Diagram showing a mechanical component with a curved arrow indicating motion, no text or symbols present

1. Uklonite poklopac pumpe.

Diagram of a medical device with a circular component and a blue base, showing internal components (no text or labels)

4.7.2 Postavljanje poklopca pumpe

▶ Postavite obratnim redoslijedom.

Popravak

4.8 Zamjena brtve vrata

Oštri rubovi kućišta!

Porezotine

▶ Nosite zaštitne rukavice.

Opasnost od padanja dijelova zbog otpuštenih vijaka!

3D rendering of a mechanical component with concentric rings and mounting flanges (no visible text or symbols)

1. Uklonite brtvu vrata.

4.8.2 Postavljanje brtve vrata

▶ Postavite obratnim redoslijedom.

Popravak

4.9 Zamjena brave vrata

Close-up of a metallic circular object with two red circular markers on the side (no text or symbols visible)

1. Uklonite bravu vrata.

Popravak

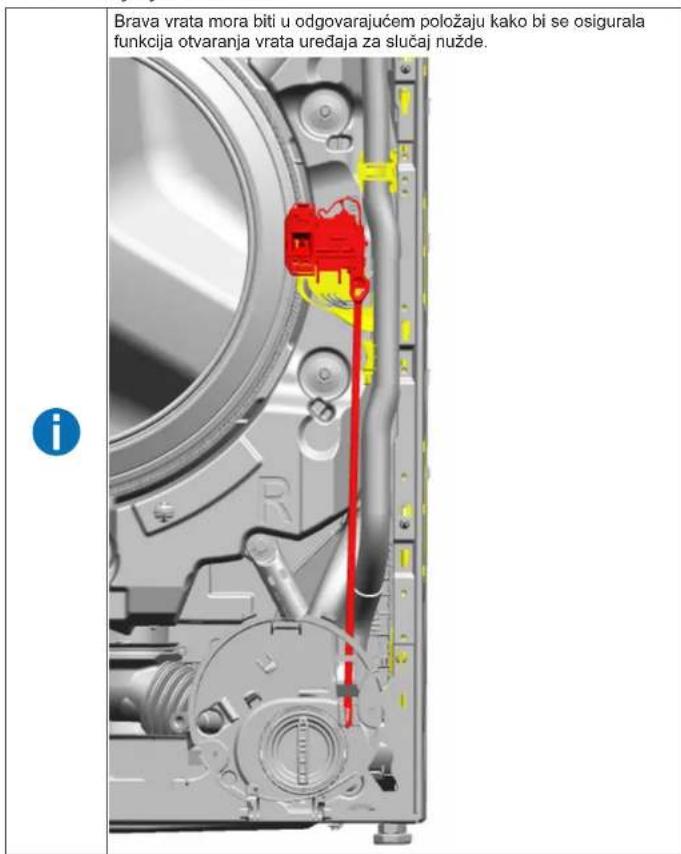

4.9.2 Postavljanje brave vrata

Interior view of a washing machine showing internal components like gears and hoses (no text or symbols visible)

Technical diagram of a washing machine with numbered components for identification

1. Spustite uređaj.

Popravak

1. Uklonite vijke s prednje strane, počevši od dna prema gore (2, 3).

Technical diagram of a washing machine with numbered components for identification

1. Uklonite prednju ploču.

Diagram showing two labeled arrows pointing to a blue mechanical component with internal structure, likely illustrating a process or assembly.

3D mechanical assembly diagram showing internal components and directional arrows (no text or symbols)

Technical diagram of a washing machine with labeled parts and exploded view

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Exploded view diagram of a mechanical component with numbered parts and a red arrow indicating a specific section.

Diagram showing a mechanical component with a downward arrow and blue base, no text or symbols present

Diagram of a mechanical device with a circular housing and a blue base, showing internal components (no text or symbols)

3D rendering of a mechanical component with concentric rings and mounting holes (no text or symbols visible)

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

Interior view of a washing machine showing internal components like hoses and gauges (no text or labels visible)

Technical diagram of a washing machine with numbered parts for identification

1. Položte spotřebič.

Oprava

Technical diagram of a washing machine with numbered components for identification

Diagram showing two labeled mechanical components with directional arrows indicating movement or force

3D cutaway diagram of a mechanical component showing internal structure and mounting features (no text or symbols)

Technical diagram of a washing machine with labeled parts and exploded view

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

1. Fjern døren opad.

Exploded view diagram of a mechanical component with numbered parts and a red arrow indicating a specific section.

1. Abn pumpens afdækning.

Diagram showing a mechanical component with a curved arrow indicating motion, no text or symbols present

1. Fjern pumpens afdækning.

Diagram of a medical device with a circular component and a blue base, showing internal components (no text or symbols)

3D mechanical assembly diagram showing a circular component with red fasteners and mounting flanges (no text or symbols)

1. Fjern dørpakningen.

Close-up of a metallic circular object with two red circular markers and a small square on the surface (no text or symbols visible)

1. Fjern dørlåsen.

Reparation

▶ Sørg for at sikre apparater mod at glide.

Skarpe huskanter!

Snitlæsioner

Interior view of a washing machine showing internal components like hoses and gauges (no text or labels visible)

Technical diagram of a washing machine with numbered components for identification

1. Sænk apparatet ned.

Reparation

1. Fjern skruerne på fronten ved at starte nedefra og op (2, 3).

Technical diagram of a washing machine with numbered components for identification

1. Fjern frontpanelet.

4.11.2 Montering af frontpanel

Diagram showing two labeled arrows pointing to a blue mechanical component with internal structure, likely illustrating a process or assembly.

4.2.2 Wasmiddellade monteren

3D cutaway diagram of a mechanical component showing internal parts and directional arrows (no text or symbols)

Technical diagram of a washing machine with labeled parts and exploded view

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Exploded view diagram of a mechanical component with numbered parts and a red arrow indicating a specific part.

4.6.2 Deurcomponenten monteren

Diagram showing a mechanical component with a downward arrow and blue base, no text or symbols present

Diagram of a mechanical device with a circular component and a blue base, showing internal components (no text or symbols)

4.7.2 Pompdeksel monteren

3D rendering of a mechanical component with concentric rings and mounting flanges (no visible text or symbols)

Close-up of a metallic circular object with three red circular markers and a small square on the surface (no text or symbols visible)

Mechanical assembly diagram showing internal components with red and yellow highlighted parts (no text or symbols)

Reparatie

Interior view of a washing machine showing internal components like gears and hoses (no text or symbols visible)

Technical diagram of a washing machine with numbered components for identification

Technical diagram of a washing machine with numbered components for identification

Self-repair hints - Washing machine

i Concerning this document....99

1.1 Important information....99

1.1.1 Purpose 99

1.2 Explanation of symbols 99

1.2.1 Danger levels....99

1.2.2 Hazard symbols 99

1.2.3 Structure of the warnings.... 100

1.2.4 General symbols.... 100

Safety.... 101

2.1 General Safety instructions 101

2.1.1 All domestic appliances 101

Tools and aids.... 102

Repair 103

4.1 Replacing worktop.... 103

4.1.1 Removing worktop 103

4.1.2 Installing worktop 103

4.2 Replacing detergent drawer 104

4.2.1 Removing detergent drawer.... 104

4.2.2 Installing detergent drawer.... 104

4.3 Replacing detergent drawer handle 105

4.3.1 Removing detergent drawer handle.... 105

4.3.2 Installing detergent drawer handle.... 105

4.4 Replacing fascia panel.... 106

4.4.1 Removing fascia panel 106

4.4.2 Installing fascia panel 107

4.7 Replacing pump cover 110

4.7.1 Removing pump cover.... 110

4.7.2 Installing pump cover 110

4.8 Replacing door seal 111

4.8.1 Removing door seal.... 111

4.8.2 Installing door seal.... 111

4.9 Replacing door lock.... 112

4.10.1 Removing drum light.... 114

4.10.2 Installing drum light.... 114

4.11 Replacing front panel 115

4.11.1 Removing front panel.... 115

4.11.2 Installing front panel.... 116

i Concerning this document

1.1 Important information

1.1.1 Purpose

These repair hints support consumer to repair appliances by himself according to the applicable eco-design regulation (as of 03/2021).

They contain information how to exchange defined spare parts including warnings and risks.

In case of questions, please contact our customer service. We will only be liable for damages if the repair hints have been followed properly.

1.2 Explanation of symbols

1.2.1 Danger levels

The warning levels consist of a symbol and a signal word. The signal word indicates the severity of the danger.

Warning level Meaning
Danger	Non-observance of the warning message will result in death or serious injuries.
Warning	Non-observance of the warning message could result in death or serious injuries.
Caution	Non-observance of the warning message could result in minor injuries.
Notice	Non-observance of the warning message could result in damage to property.

Table 1: Danger levels

1.2.2 Hazard symbols

Hazard symbols are symbolic representations which give an indication of the kind of danger.

The following hazard symbols are used in this document:

	Hazard symbol Meaning
		General warning message
		Danger from electrical voltage
		Risk of explosion
		Danger of cuts
		Danger of crushing

i Concerning this document

Hazard symbol Meaning
		Danger from hot surfaces
		Danger from strong magnetic field
		Danger from non-ionizing radiation

Table 2: Hazard symbols

1.2.3 Structure of the warnings

Warnings in this document have a standardised appearance and a standardised structure.

Type and source of danger!

Possible consequences of ignoring the danger / warning.

▶ Measures and prohibitions for preventing the danger.

The following example shows a warning that warns against electric shock due to live parts. The measure for avoiding the danger is mentioned.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

1.2.4 General symbols

The following general symbols are used in this document:

Gen. symbol Meaning
	Identification of a special tip (text and/or graphic)
	Identification of a simple tip (only text)
	Identification of a link to a video tutorial

Gen. symbol Meaning
	Identification of required tools
	Identification of required preconditions
	Identification of a condition (if ..., then ...)
	Identification of a result
[Start] Identification of a key or button
[00123456] Identification of a material number
Status Identification of displayed text / window(in the appliance's display)

Table 3: General symbols

Safety

2.1 General Safety instructions

2.1.1 All domestic appliances

Risk of electric shock due to live parts!

• Errors by repairs involving electrical components can lead to electrical shock!
  ■ Disconnect the appliance from the mains for at least 60 seconds before starting work.
  ■ After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of injury from sharp edges!

■ Wear protective gloves.

Risk of crushing during repair, maintenance, troubleshooting and service due to heavy and moving components

■ Wear protective shoes.
■ Secure heavy components from falling down.
■ Do not stick body parts into moving components.

Risk to the appliance's safety / function!

■ Only use original spare parts.

Risk of damage to electrostatically sensitive components (ESDs)!

- Do not touch the modules, including connections and conductor paths.

Tools and aids

Designation Details Images
Auxiliary tool[15000155]	Tool for loosening out of plastic parts
Screwdriver Torx T20 with bore hole [00340764]	100 mm, for screws with safety pin
Torque spanner [15000441]	Torque spanner 20 - 100 Nm
Slot screwdriver [00340854]	Blade 3.5 mm x 0.6 mm x 100 mm, Protective Insulation 1000 V AC
Slot screwdriver [00340855]	Blade 5.5 mm x 1.0 mm x 125 mm, Protective Insulation 1000 V AC
Needle-nose pliers, angled pattern [00341269]	Length 200 mm
Side-cutting pliers [00342182]	Length: 200 mm

Designation Details Images
Combination wrench[00340811]	Wrench size 10°mm, M6
Combination wrench[00340814]	Wrench size 13°mm, M8
Combination wrench[00340817]	Wrench size 17 mm, M10
Combination wrench[15000459]	Wrench size 16°mm, M10

Repair

4.1 Replacing worktop

Required tools:

Torx Bit TX20 with hole Length 152 mm, usable length [00341272]

124 mm, 1/4" hexagon drive

(6.35 mm), for screws with safety pin

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.

4.1.1 Removing worktop

▶ 1. Remove screws (1).
2. Push worktop to the back of the appliance (2).
3. Move worktop upwards (3) to remove it.

4.1.2 Installing worktop

Observe cable installation. Cable could be trapped.

▶ Install in reverse order.

Repair

4.2 Replacing detergent drawer

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.

4.2.1 Removing detergent drawer

1. Pull out detergent drawer.
   2.1. Press down on insert (1).

2. Remove detergent drawer (2).

Diagram showing two labeled mechanical components with arrows indicating direction of movement or force

4.2.2 Installing detergent drawer

▶ Install in reverse order.

Repair

4.3 Replacing detergent drawer handle

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Detergent drawer has been removed.→ Page 104

4.3.1 Removing detergent drawer handle

1. Release catch elements.

3D cutaway diagram of a mechanical component showing internal structure and mounting features (no text or symbols)

1. Remove detergent drawer handle.

4.3.2 Installing detergent drawer handle

▶ Install in reverse order.

Repair

4.4 Replacing fascia panel

As a manufacturer, we are obliged to provide consumers with the spare part fascia panel including repair instructions in accordance with Regulation (EU) 2019/2023. However, we would like to point out that after replacing a fascia panel, an electrotechnical safety test by a qualified electrician is required before the device is put into operation. This person must be verifiably qualified according to the country-specific laws, regulations and standards.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.

√ Worktop has been removed.→ Page 103
√ Detergent drawer has been removed.→ Page 104

4.4.1 Removing fascia panel

1. 1. Remove screws (1).

Technical diagram of a washing machine with labeled parts and exploded view

1. Release plug contact of control unit.
2. Remove fascia panel.

Repair

4.4.2 Installing fascia panel

Observe cable installation. Cable could be trapped.

▶ Install in reverse order.

Repair

4.5 Replacing door

Open hinge areal

Finger crushing / entrapment

- Do not reach into the hinge area.

▶ Wear protective gloves.

Risk of falling parts due to released screws!

Injury because of falling parts.

- Secure component from falling down.

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customers home e.g. bot-

n.

- Secure component from falling down.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Door is opened.

4.5.1 Removing door

1. Remove screws (1).

3D rendering of a washing machine with a red arrow pointing to the door panel (no text or symbols visible)

1. Remove door upwards.

▶ Install in reverse order.

Repair

4.6 Replacing door components

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Door has been removed.→ Page 108

4.6.1 Removing door components

▶ Disassemble door from outside to inside.

Exploded view diagram of a mechanical component with numbered parts and a red arrow indicating a specific section.

4.6.2 Installing door components

▶ Install in reverse order.

Repair

4.7 Replacing pump cover

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.

4.7.1 Removing pump cover

1. Open pump cover.

Diagram showing a mechanical component with a downward arrow and blue base, no text or symbols present

1. Remove pump cover.

Diagram of a mechanical device with a circular housing and blue base, showing internal components (no text or symbols)

4.7.2 Installing pump cover

▶ Install in reverse order.

Repair

4.8 Replacing door seal

Sharp housing edges!

Cut injuries

▶ Wear protective gloves.

Risk of falling parts due to released screws!

Injury because of falling parts.

- Secure component from falling down.

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customers home e.g. bot-

tom.

- Secure component from falling down.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Appliances is freely accessible.
√ Worktop has been removed.→ Page 103
√ Detergent drawer has been removed.→ Page 104
√ Fascia panel has been removed.→ Page 106
√ Door has been removed.→ Page 108
√ Pump cover has been removed.→ Page 110
√ Front panel has been removed.→ Page 115
√ Drum light has been removed (optional).→ Page 114

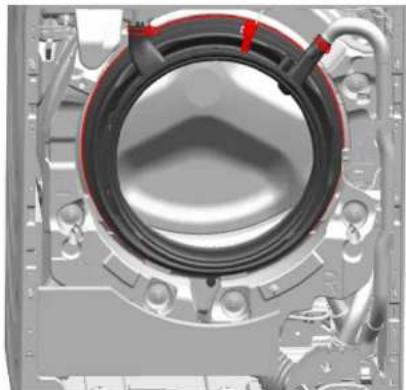

1. Release all hose connections.

3D rendering of a mechanical component with concentric rings and mounting flanges (no visible text or symbols)

1. Remove door seal.

▶ Install in reverse order.

Repair

4.9 Replacing door lock

As a manufacturer, we are obliged to provide consumers with the spare part door lock including repair instructions in accordance with Regulation (EU) 2019/2023. However, we would like to point out that after replacing a door lock, an electrotechnical safety test by a qualified electrician is required before the device is put into operation. This person must be verifiably qualified according to the country-specific laws, regulations and standards.

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repair

▶ Electric parts should be repaired by a qualified electricians.

▶ After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Slipping of tilted appliances!

Bone fractures / crush injuries

- Secure appliances against slipping.

Sharp housing edges!

Cut injuries

▶ Wear protective gloves.

Risk of falling parts due to released screws!

Injury because of falling parts.

- Secure component from falling down.

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customers home e.g. bot- tom.

- Secure component from falling down.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.

√ Appliances is freely accessible.
√ Worktop has been removed.→ Page 103
√ Detergent drawer has been removed.→ Page 104
√ Fascia panel has been removed.→ Page 106
√ Door has been removed.→ Page 108
√ Tension ring has been removed.
√ Door seal has been removed.→ Page 111
√ Pump cover has been removed.→ Page 110
√ Front panel has been removed.→ Page 115

1. Disconnect door lock plug.
2. Release door lock.

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

1. Remove door lock.

Repair

Door lock must be in the right position to ensure the emergency door opening function of the appliance.

▶ Install in reverse order.

Repair

4.10 Replacing drum light

Slipping of tilted appliances!

Bone fractures / crush injuries

- Secure appliances against slipping.

Sharp housing edges!

Cut injuries

▶ Wear protective gloves.

Risk of falling parts due to released screws!

Injury because of falling parts.

- Secure component from falling down.

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customers home e.g. bottom.

- Secure component from falling down.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Appliances is freely accessible.
√ Worktop has been removed.→ Page 103
√ Detergent drawer has been removed.→ Page 104
√ Fascia panel has been removed.→ Page 106

4.10.1 Removing drum light

Interior view of a washing machine showing internal components and ventilation ducts (no text or symbols visible)

1. Pull drum light holder out of appliance.
2. Disconnect electrical connections.
3. Remove drum light from drum light holder.

4.10.2 Installing drum light

Observe cable installation. Cable could be trapped.

▶ Install in reverse order.

Repair

4.11 Replacing front panel

Slipping of tilted appliances!

Bone fractures / crush injuries

- Secure appliances against slipping.

Sharp housing edges!

Cut injuries

- Wear protective gloves.

Risk of falling parts due to released screws!

Injury because of falling parts.

- Secure component from falling down.

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customers home e.g. bottom.

- Secure component from falling down.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Appliances is freely accessible.
√ Worktop has been removed.→ Page 103
√ Detergent drawer has been removed.→ Page 104
√ Fascia panel has been removed.→ Page 106
√ Door has been removed.→ Page 108
√ Pump cover has been removed.→ Page 110
√ Tension ring has been removed.
√ Door seal has been released at front.
√ Drum light has been removed (optional). → Page 114

4.11.1 Removing front panel

1. Lift up appliance at front.
2. Remove screws at bottom (1).

Technical diagram of a washing machine with numbered components for identification

1. Lower appliance down.

Repair

1. Remove screws at front beginning from bottom to top (2, 3).

Technical diagram of a washing machine with numbered parts for identification

1. Remove front panel.

4.11.2 Installing front panel

▶ Install in reverse order.

Remonditeave - Pesumasin

i Selle dokumendiga seoses 118

1.1 Tähtis teave 118

1.1.1 Eesmärk 118

1.2 Sümbolite selgitus 118

1.2.1 Ohutasemed.... 118

Diagram showing two labeled mechanical components with directional arrows indicating movement or force

4.2.2 Pesuaine sahtli paigaldamine

▶ Paigaldage vastupidises järjekorras.

Remont

3D cutaway diagram of a mechanical component showing internal layered structure and mounting features (no text or symbols)

Technical diagram of a washing machine with labeled parts and exploded view

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Exploded view diagram of a mechanical component with numbered parts and a red arrow indicating a specific section.

4.6.2 Ukse osade paigaldamine

▶ Paigaldage vastupidises järjekorras.

Remont

4.7 Pumba katte vahetamine

Nõue:

Diagram showing a mechanical component with a curved arrow indicating motion, no text or symbols present

1. Eemaldage pumba kate.

Diagram of a medical device with a circular component and a blue base, showing internal components (no text or symbols)

4.7.2 Pumba katte paigaldamine

▶ Paigaldage vastupidises järjekorras.

Remont

3D rendering of a mechanical component with concentric rings and mounting flanges (no visible text or symbols)

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

1. Eemaldage ukselukk.

Remont

Interior view of a washing machine showing internal components and ventilation ducts (no text or symbols visible)

Technical diagram of a washing machine with numbered components for identification

1. Langetage seadet allapoole.

Remont

Technical diagram of a washing machine with numbered parts for identification

1. Eemaldage esipaneel.

4.11.2 Esipaneeli paigaldamine

Diagram showing two labeled mechanical components with arrows indicating direction of movement or force

4.2.2 Pesuainelokeron asentaminen

3D cutaway diagram of a mechanical component showing internal structure and mounting features (no text or symbols)

Technical diagram of a washing machine with labeled parts and exploded view

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Technical diagram showing exploded view of a mechanical component with numbered parts and a red arrow indicating a specific section.

Diagram showing a mechanical component being lowered into a blue liquid, with no visible text or symbols.

1. Poista pumpun suojus.

Diagram of a mechanical device with a circular component and a blue base, showing internal components (no text or symbols)

3D rendering of a mechanical component with concentric rings and mounting holes (no text or symbols visible)

1. Poista luukun tiiviste.

Close-up of a metallic circular object with two red circular markers on its surface (no text or symbols visible)

Interior view of a washing machine showing internal components like hoses, gears, and ventilation ducts (no text or labels visible)

Technical diagram of a washing machine with numbered components for identification

1. Laske kone alas.

Korjaus

Technical diagram of a washing machine with numbered components for identification

1. Poista etupaneeli.

4.11.2 Etupaneelin asentaminen

Diagram showing two labeled arrows pointing to a blue mechanical component with internal structure, likely illustrating a process or assembly.

3D cutaway diagram of a mechanical component showing internal parts and directional arrows (no text or symbols)

Technical diagram of a washing machine with labeled parts and exploded view

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Exploded view diagram of a mechanical component with numbered parts and a red arrow indicating a specific section.

Diagram showing a mechanical component with a downward arrow and blue base, no text or symbols present

Diagram of a mechanical device with a circular housing and a blue base, showing internal components (no text or symbols)

3D rendering of a mechanical component with concentric rings and mounting flanges (no visible text or symbols)

1. Retirer le joint de porte.

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

1. Retirer la fermeture de porte.

Réparation

Interior view of a washing machine showing internal components and ventilation ducts (no text or symbols visible)

Technical diagram of a washing machine with numbered parts for identification

Technical diagram of a washing machine with numbered parts for identification

Diagram showing two labeled arrows pointing to a blue mechanical component with internal structure, likely illustrating a process or assembly.

3D mechanical assembly diagram showing internal components and directional arrows (no text or symbols)

Technical diagram of a washing machine with labeled parts and exploded view

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Exploded view diagram of a mechanical component with numbered parts and a red arrow indicating a specific section.

Diagram showing a mechanical component with a curved arrow indicating motion, no text or symbols present

Diagram of a medical device with a circular component and a blue base, showing internal components (no text or symbols)

3D rendering of a mechanical component with concentric rings and mounting holes (no text or symbols visible)

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

Mechanical assembly diagram showing internal components with red and yellow wiring (no text or symbols)

Instandsetzen

Interior view of a washing machine showing internal components and ventilation ducts (no text or symbols visible)

Technical diagram of a washing machine with numbered components for identification

Technical diagram of a washing machine with numbered components for identification

Diagram showing two labeled arrows pointing to a blue mechanical component with internal structure, likely illustrating a process or assembly.

3D cutaway diagram of a mechanical component showing internal structure and mounting features (no text or symbols)

Technical diagram of a washing machine with labeled parts and exploded view

Επισκευή

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Exploded view diagram of a mechanical component with numbered parts and a red arrow indicating a specific section.

2023-09-05_8001214495 Copyright by BSH Hausgeräte GmbH Σελίδα 205 από 462

Diagram showing a mechanical component with a downward arrow and blue base, no text or symbols present

Diagram of a mechanical device with a circular housing and a blue base, showing internal components (no text or symbols)

3D rendering of a mechanical component with concentric rings and mounting flanges (no visible text or symbols)

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

Mechanical assembly diagram showing internal components with red and yellow wiring (no text or symbols)

Επισκευή

Interior view of a washing machine showing internal components like coiled hoses and ventilation ducts (no text or symbols visible)

Technical diagram of a washing machine with numbered components for identification

Technical diagram of a washing machine with numbered components for identification

Diagram showing two labeled arrows pointing to a blue mechanical component with internal structure, likely illustrating a process or assembly.

3D mechanical assembly diagram showing internal components and directional arrows (no text or symbols)

Technical diagram of a washing machine with labeled parts and exploded view

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Exploded view diagram of a mechanical component with numbered parts and a red arrow indicating a specific section.

Diagram showing a mechanical component with a downward arrow and blue base, no text or symbols present

Diagram of a mechanical device with a circular housing and blue base, showing internal components (no text or symbols)

Close-up of a mechanical component with concentric rings and mounting flanges (no visible text or symbols)

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

Interior view of a washing machine showing internal components like wheels, hoses, and a red T-shaped component (no text or symbols visible)

Technical diagram of a washing machine with numbered parts for identification

Technical diagram of a washing machine with numbered parts for identification

Diagram showing two labeled arrows pointing to a blue mechanical component with internal structure, likely illustrating a process or assembly.

3D cutaway diagram of a mechanical assembly showing internal components and directional arrows (no text or symbols)

Technical diagram of a washing machine with labeled parts and exploded view

Riparazione

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Exploded view diagram of a mechanical component with numbered parts and a red arrow indicating a specific section.

Diagram showing a mechanical component with a rotating arm and base, no text or symbols present

Diagram of a mechanical device with a circular housing and internal components, no visible text or symbols

3D rendering of a mechanical component with concentric rings and mounting flanges (no visible text or symbols)

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

Interior view of a washing machine showing internal components like coiled hoses and ventilation ducts (no text or symbols visible)

Technical diagram of a washing machine with numbered components for identification

Technical diagram of a washing machine with numbered components for identification

Diagram showing two labeled arrows pointing to a blue mechanical component with internal structure, likely illustrating a process or assembly.

3D cutaway diagram of a mechanical component showing internal layered structure with two upward-pointing arrows indicating features (no text or symbols present)

Technical diagram of a washing machine with labeled parts and exploded view

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Exploded view diagram of a mechanical component with numbered parts and a red arrow indicating a specific section.

Diagram showing a mechanical component with a curved arrow indicating motion, no text or symbols present

1. Nonemiet sukna vaku.

Diagram of a medical device with a circular component and a blue base, showing internal components (no text or labels)

3D rendering of a mechanical component with concentric rings and mounting flanges (no visible text or symbols)

Close-up of a metallic circular component with two red circular markers on the side (no text or symbols visible)

1. Nonemiet durtinu slēgu.

Remonts

Interior view of a washing machine showing internal components like gears and tubing (no text or symbols visible)

Technical diagram of a washing machine with numbered parts for identification

1. Nolaidiet ierīci.

Remonts

Technical diagram of a washing machine with numbered parts for identification

1. Nonemiet priekšejo paneli.

Diagram showing two labeled arrows pointing to a blue mechanical component with internal structure, likely illustrating a process or assembly.

3D cutaway diagram of a mechanical component showing internal layered structure and mounting features (no text or symbols)

Technical diagram of a washing machine with labeled parts and exploded view

3D rendering of a washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Exploded view diagram of a mechanical component with numbered parts and a red arrow indicating a specific section.

Diagram showing a mechanical component with a curved arrow indicating motion, no text or symbols present

1. Nuimkite siurblio dangtelj.

Diagram of a medical device with a circular component and a blue base, showing internal components (no text or labels)

4.7.2 Siurblio dangtelio uždéjimas

3D rendering of a mechanical component with concentric rings and mounting flanges (no visible text or symbols)

Close-up of a metallic circular object with two red circular markers on the side (no text or symbols visible)

Interior view of a washing machine showing internal components like hoses and gauges (no text or labels visible)

Technical diagram of a washing machine with numbered components for identification

Technical diagram of a washing machine with numbered components for identification

Diagram showing two labeled arrows pointing to a blue mechanical component with internal structure, likely illustrating a process or assembly.

3D cutaway diagram of a mechanical component showing internal structure and mounting features (no text or symbols)

Technical diagram of a washing machine with labeled parts and exploded view

1. Løsne kontrollenhetens pluggkontakt.
2. Demonter instrumentpanelet.

Reparasjon

Fare for â knuse/sette fast fingre

3D rendering of a washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Exploded view diagram of a mechanical component with numbered parts and a red arrow indicating a specific section.

Diagram showing a mechanical component with a curved arrow indicating motion, no text or symbols present

1. Ta av pumpedekslet.

Diagram of a medical device with a circular component and a blue base, showing internal components (no text or symbols)

3D rendering of a mechanical component with concentric rings and mounting flanges (no visible text or symbols)

Close-up of a metallic circular object with two red circular markers on the side (no text or symbols visible)

1. Demonter dørlåsen.

Reparasjon

Interior view of a washing machine showing internal components like gears and hoses (no text or labels visible)

Technical diagram of a washing machine with numbered components for identification

1. Senk apparatet ned.

Reparasjon

1. Fjern skruene på fronten; nedenfra og opp (2, 3).

Technical diagram of a washing machine with numbered parts for identification

1. Demonter frontpanelet.

Diagram showing two labeled arrows pointing to a blue mechanical component with internal structure, likely illustrating a process or assembly.

3D cutaway diagram of a mechanical assembly showing internal components and directional arrows (no text or symbols)

Technical diagram of a washing machine with labeled parts and exploded view

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Exploded view diagram of a mechanical component with numbered parts and a red arrow indicating a specific section.

Diagram showing a mechanical component with a downward arrow and blue base, no text or symbols present

1. Zdjąć osłone pompy.

Diagram of a mechanical device with a circular housing and a blue base, showing internal components (no text or symbols)

3D rendering of a mechanical component with concentric rings and mounting holes (no text or symbols visible)

Close-up of a metallic circular object with two red circular markers on the side (no text or symbols visible)

Naprawy

Mechanical assembly diagram showing internal components with red and yellow highlighted parts (no text or symbols)

Naprawy

Interior view of a washing machine showing internal components like gears and tubing (no text or symbols visible)

Technical diagram of a washing machine with numbered components for identification

1. Opuścić urządzenie.

Naprawy

Technical diagram of a washing machine with numbered components for identification

Diagram showing two labeled arrows pointing to a blue mechanical component with internal structure, likely illustrating a process or assembly.

4.2.2 Instalar a gaveta para detergente

3D cutaway diagram of a mechanical assembly showing internal components and directional arrows (no text or symbols)

Technical diagram of a washing machine with labeled parts and exploded view

Reparação

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Exploded view diagram of a mechanical component with numbered parts and a red arrow indicating a specific section.

Diagram showing a mechanical component with a downward arrow and blue base, no text or symbols present

1. Remova a tampa da bomba.

Diagram of a mechanical device with a circular housing and a blue base, showing internal components (no text or symbols)

4.7.2 Instalar a tampa da bomba

3D rendering of a mechanical component with concentric rings and mounting flanges (no visible text or symbols)

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

Interior view of a refrigerator showing internal components and ventilation ducts (no text or symbols visible)

Technical diagram of a washing machine with numbered parts for identification

1. Baixe o aparelho.

Reparação

Technical diagram of a washing machine with numbered components for identification

1. Remova o painel frontal.

4.11.2 Instalar o painel frontal

Diagram showing two labeled arrows pointing to a blue mechanical component with internal structure, likely illustrating a process or assembly.

3D cutaway diagram of a mechanical component showing internal structure and mounting features (no text or symbols)

Technical diagram of a washing machine with labeled parts and exploded view

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Exploded view diagram of a mechanical component with numbered parts and a red arrow indicating a specific section.

Diagram showing a mechanical component with a downward arrow and blue base, no text or symbols present

Diagram of a mechanical device with a circular housing and a blue base, showing internal components (no text or symbols)

3D rendering of a mechanical component with concentric rings and mounting flanges (no visible text or symbols)

Close-up of a metallic circular object with three red circular markers at the bottom (no text or symbols visible)

Mechanical assembly diagram showing internal components with red and yellow highlighted parts (no text or symbols)

Repararea

Interior view of a washing machine showing internal components and ventilation ducts (no text or symbols visible)

Technical diagram of a washing machine with numbered components for identification

1. Coborâți aparatul.

Repararea

Technical diagram of a washing machine with numbered components for identification

Diagram showing two labeled arrows pointing to a blue mechanical component with internal structure, likely illustrating a process or assembly.

3D cutaway diagram of a mechanical assembly showing internal components and directional arrows (no text or symbols)

Technical diagram of a washing machine with labeled parts and exploded view

Oprava

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

1. Odoberte dvere smerom nahor.

4.5.2 Montáž dverí

Exploded view diagram of a mechanical component with numbered parts and a red arrow indicating a specific section.

Diagram showing a mechanical component with a downward arrow and blue base, no text or symbols present

Diagram of a mechanical device with a circular housing and a blue base, showing internal components (no text or symbols)

3D rendering of a mechanical component with concentric rings and mounting flanges (no visible text or symbols)

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

1. Odoberte poistku dvierok.

Oprava

Interior view of a washing machine showing internal components like gears and hoses (no text or labels visible)

1. Vytiahnite držiak osvetlenia bubna spotrebiča.
2. Odpojte elektrické pripojenia.
3. Odoberte osvetlenie bubna z držiaka osvetlenia bubna.

Technical diagram of a washing machine with numbered components for identification

Technical diagram of a washing machine with numbered components for identification

Diagram showing two labeled arrows pointing to a blue mechanical component with internal structure, likely illustrating a process or assembly.

3D cutaway diagram of a mechanical component showing internal layered structure with two upward-pointing arrows indicating features (no text or symbols present)

1. Odstranite ročaj predalčka za detergent.

Technical diagram of a washing machine with labeled parts and exploded view

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

1. Odstranite vrata v smeri navzgor.

Exploded view diagram of a mechanical component with numbered parts and a red arrow indicating a specific section.

Diagram showing a mechanical component with a curved arrow indicating motion, no text or symbols present

Diagram of a medical device with a circular component and a blue base, showing internal components (no text or labels)

3D rendering of a mechanical component with concentric rings and mounting flanges (no text or symbols visible)

1. Odstranite tesnilo vrat.

Close-up of a metallic circular object with two red circular markers and a small square on the surface (no text or symbols visible)

1. Odstranite varovalo vrat.

Popravilo

Interior view of a washing machine showing internal components and ventilation ducts (no text or symbols visible)

1. Izvlecite držalo luči bobna iz aparata.
2. Odklopite električne priključke.
3. Odstranite luč bobna z držala luči bobna.

Technical diagram of a washing machine with numbered components for identification

1. Spustite aparat.

Popravilo

Technical diagram of a washing machine with numbered components for identification

Diagram showing two labeled arrows pointing to a blue mechanical component with internal structure, likely illustrating a process or assembly.

3D cutaway diagram of a mechanical component showing internal structure and mounting features (no text or symbols)

Technical diagram of a washing machine with labeled parts and exploded view

Reparación

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Exploded view diagram of a mechanical component with numbered parts and a red arrow indicating a specific section.

Diagram showing a mechanical component with a downward arrow and blue base, no text or symbols present

Diagram of a mechanical device with a circular housing and blue base, showing internal components (no text or symbols)

3D rendering of a mechanical component with concentric rings and mounting flanges (no visible text or symbols)

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

Interior view of a refrigerator showing internal components and ventilation ducts (no text or symbols visible)

Technical diagram of a washing machine with numbered components for identification

1. Bajar el aparato.

Reparación

Technical diagram of a washing machine with numbered components for identification

Diagram showing two labeled mechanical components with arrows indicating direction of movement or force

3D cutaway diagram of a mechanical component showing internal structure and mounting features (no text or symbols)

Technical diagram of a washing machine with labeled parts and exploded view

1. Lossa stickkontakten till styrenheten.
2. Ta bort kontrollpanelen.

Reparation

4.4.2 Montera kontrollpanel

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

1. Ta bort luckan uppät.

4.5.2 Montera lucka

Exploded view diagram of a mechanical component with numbered parts and a red arrow indicating a specific section.

4.6.2 Montera luckans komponenter

Diagram showing a mechanical component with a curved arrow indicating motion, no text or symbols present

1. Ta bort pumphöljet.

Diagram of a medical device with a circular component and a blue base, showing internal components (no text or labels)

4.7.2 Montera pumphölje

Cross-sectional view of a mechanical assembly with concentric rings and mounting brackets (no visible text or symbols)

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

Interior view of a washing machine showing internal components and ventilation ducts (no text or symbols visible)

Technical diagram of a washing machine with numbered components for identification

1. Sänk ned maskinen.

Reparation

Technical diagram of a washing machine with numbered components for identification

1. Ta bort frontpanelen.

4.11.2 Montera frontpanel

Diagram showing two labeled mechanical components with directional arrows indicating movement or force

3D mechanical assembly diagram showing internal components and directional arrows (no text or symbols)

Technical diagram of a washing machine with labeled parts and exploded view

Onarim

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Exploded view diagram of a mechanical component with numbered parts and a red arrow indicating a specific section.

Diagram showing a mechanical component with a downward arrow and blue base, no text or symbols present

Diagram of a mechanical device with a circular housing and blue base, showing internal components (no text or symbols)

3D rendering of a mechanical component with concentric rings and mounting flanges (no visible text or symbols)

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

Interior view of a washing machine showing internal components like gears and hoses (no text or labels visible)

Technical diagram of a washing machine with numbered components for identification

1. Cihazı indirin.

Onarim

Technical diagram of a washing machine with numbered components for identification

1. Ön paneli sökün.
