WG56G2Z9CH - Washing machine SIEMENS - Free user manual and instructions

Product type	Washing machine
Brand	Siemens
Model	WG56G2Z9CH
Load capacity	8 kg
Energy class	A (estimate)
Maximum spin speed	1400 rpm
Dimensions (H × W × D)	85 cm × 60 cm × 60 cm
Weight	70 kg
Power supply	230 V, 50 Hz
Main functions	Programs: cotton, synthetics, delicates, quick, etc.; delayed start; child lock; remaining time display.
Maintenance and cleaning	Cleaning of the pump filter, detergent drawer, and door seal.
Safety	Child lock, overflow protection, stop when door open.
Spare parts and repairability	Available parts: top, detergent drawer, control panel, door, seal, door lock, drum light, front panel. User repair possible according to instructions.
General information	Manual available in multiple languages (FR, EN, DE, etc.). Repair guide compliant with Ecodesign Regulation (EU) 2019/2023.

Frequently Asked Questions - WG56G2Z9CH SIEMENS

How to clean the pump filter?

Unplug the appliance and open the pump cover. Remove the filter, clean it under running water, and reinsert it. Make sure it is properly locked.

What to do if the machine does not start?

Check that the appliance is plugged in and the outlet works. Check the circuit breaker. If the problem persists, contact customer service.

How to replace the door seal?

First remove the top, detergent drawer, control panel, door, and front panel. Disconnect hoses and remove the old seal. Install the new seal by tightening the tension ring to 3.4 Nm.

What is the capacity of this machine?

The load capacity is approximately 8 kg. Adjust the laundry amount according to the program.

How to use the delayed start?

Select the desired program, then press the delayed start button to choose the end time. Confirm by pressing Start/Pause.

What does the displayed error code mean?

Error codes are detailed in the manual. For example, E18 indicates a drain problem. Check the filter and drain hose.

How to activate the child lock?

Press simultaneously the Delayed start and Spin buttons for 3 seconds. A symbol appears to confirm.

Can I repair the machine myself?

Yes, for certain parts like the top, detergent drawer, or door. Follow the instructions in the manual. For electrical parts, call a professional.

How to clean the detergent drawer?

Remove the drawer by pressing the latch. Wash it with warm water using a brush. Replace it after drying.

Where to find spare parts?

Original spare parts are available from Siemens customer service or authorized dealers. Use only original parts.

USER MANUAL WG56G2Z9CH SIEMENS

3D cutaway diagram of a mechanical component showing internal structure and mounting features (no text or symbols)

Ремонт

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

2023-09-05_8001214495 Copyright by BSH Hausgeräte GmbH Страница 13 от 462

Diagram showing a mechanical component with a curved arrow indicating motion, no text or symbols present

Diagram of a medical device with a circular component and a blue base, showing internal components (no text or symbols)

3D rendering of a mechanical component with concentric rings and mounting flanges (no text or symbols visible)

Close-up of a metallic circular object with three red circular markers and a small square on the side (no text or symbols visible)

Interior view of a refrigerator showing exposed wiring, air pipes, and mechanical components (no text or symbols visible)

4.2.2 Postavljanje ladice za deterdžent

▶ Postavite obratnim redoslijedom.

Popravak

3D cutaway diagram of a mechanical assembly showing internal components and directional arrows (no text or symbols)

1. Uklonite ručicu ladice za deterdžent.

4.3.2 Postavljanje ručice ladice za deterdžent

▶ Postavite obratnim redoslijedom.

Popravak

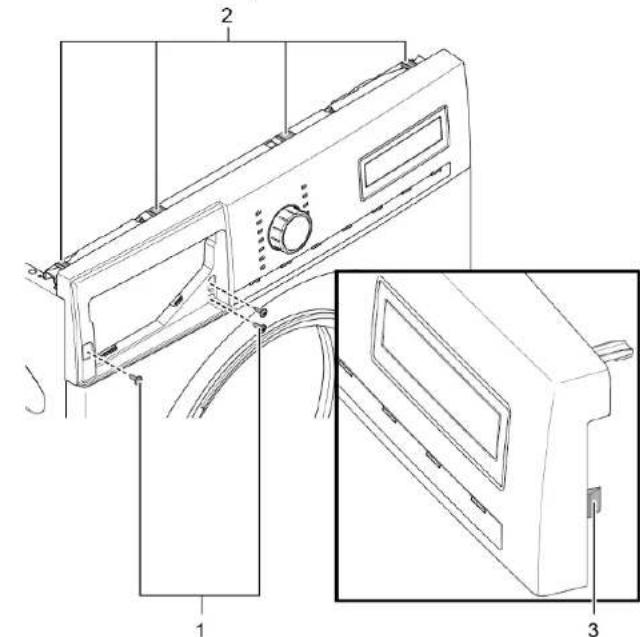

4.4 Zamjena ploče

1. Otpustite priključni kontakt upravljačke jedinice.
2. Uklonite ploču.

Popravak

4.4.2 Postavljanje ploče

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

1. Uklonite vrata prema gore.

4.5.2 Postavljanje vrata

▶ Postavite obratnim redoslijedom.

Popravak

Diagram showing a mechanical component with a curved arrow indicating motion, no text or symbols present

1. Uklonite poklopac pumpe.

Diagram of a medical device with a circular component and a blue base, showing internal components (no text or labels)

4.7.2 Postavljanje poklopca pumpe

▶ Postavite obratnim redoslijedom.

Popravak

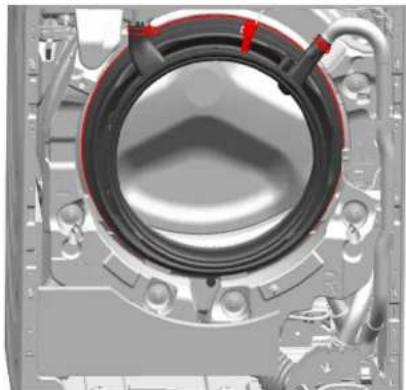

4.8 Zamjena brtve vrata

Oštri rubovi kućišta!

Porezotine

▶ Nosite zaštitne rukavice.

Opasnost od padanja dijelova zbog otpuštenih vijaka!

3D rendering of a mechanical component with concentric rings and mounting flanges (no visible text or symbols)

1. Uklonite brtvu vrata.

4.8.2 Postavljanje brtve vrata

▶ Postavite obratnim redoslijedom.

Popravak

4.9 Zamjena brave vrata

Close-up of a metallic circular object with two red circular markers on the side (no text or symbols visible)

1. Uklonite bravu vrata.

Popravak

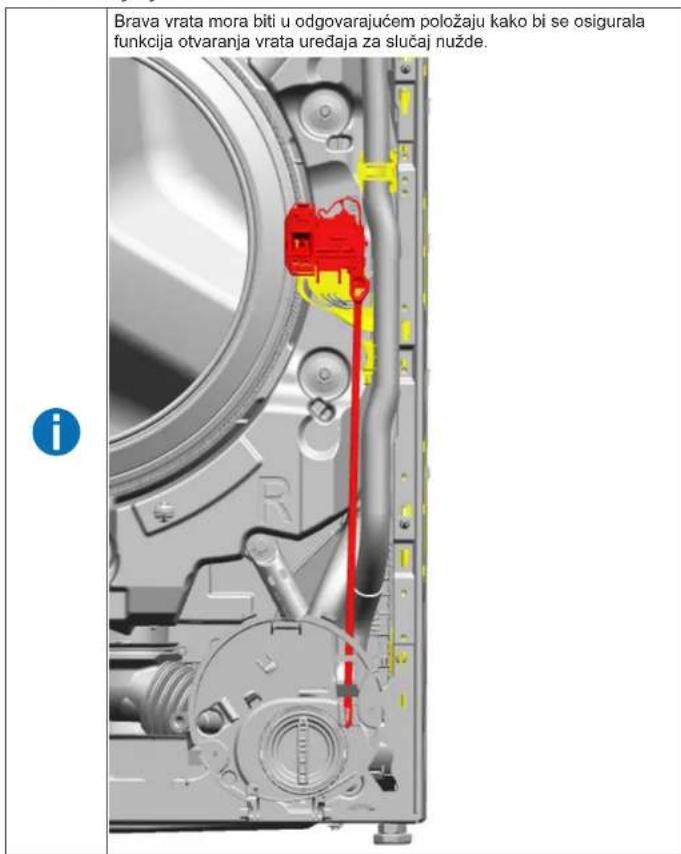

4.9.2 Postavljanje brave vrata

Interior view of a washing machine showing internal components like gears and hoses (no text or symbols visible)

1. Spustite uređaj.

Popravak

1. Uklonite vijke s prednje strane, počevši od dna prema gore (2, 3).

1. Uklonite prednju ploču.

3D mechanical assembly diagram showing internal components and directional arrows (no text or symbols)

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Diagram showing a mechanical component with a rotating arm and base, no text or symbols present

Diagram of a mechanical device with a circular housing and a blue base, showing internal components (no text or symbols)

3D rendering of a mechanical component with concentric rings and mounting flanges (no visible text or symbols)

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

Interior view of a washing machine showing internal components like hoses and gauges (no text or labels visible)

1. Položte spotřebič.

Oprava

3D cutaway diagram of a mechanical component showing internal layered structure and mounting points (no text or symbols)

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

1. Fjern døren opad.

1. Abn pumpens afdækning.

Diagram showing a mechanical component with a curved arrow indicating motion, no text or symbols present

1. Fjern pumpens afdækning.

Diagram of a medical device with a circular component and a blue base, showing internal components (no text or labels)

3D mechanical assembly diagram showing a circular component with red fasteners and mounting holes (no text or symbols)

1. Fjern dørpakningen.

Close-up of a metallic circular object with two red circular markers and a small square on the surface (no text or symbols visible)

1. Fjern dørlåsen.

Reparation

Interior view of a washing machine showing internal components like hoses and gauges (no text or labels visible)

1. Sænk apparatet ned.

Reparation

1. Fjern skruerne på fronten ved at starte nedefra og op (2, 3).

1. Fjern frontpanelet.

4.11.2 Montering af frontpanel

4.2.2 Wasmiddellade monteren

3D cutaway diagram of a mechanical component showing internal parts and directional arrows (no text or symbols)

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

4.6.2 Deurcomponenten monteren

Diagram showing a mechanical component with a downward arrow and blue base, no text or symbols present

Diagram of a mechanical device with a circular component and a blue base, showing internal components (no text or symbols)

4.7.2 Pompdeksel monteren

3D rendering of a mechanical component with concentric rings and mounting holes (no text or symbols visible)

Close-up of a metallic circular object with three red circular markers and a small square on the surface (no text or symbols visible)

Mechanical assembly diagram showing internal components with red and yellow wiring (no text or symbols)

Reparatie

Interior view of a washing machine showing internal components like hoses and gauges (no text or labels visible)

Self-repair hints - Washing machine

i Concerning this document....99

1.1 Important information....99

1.1.1 Purpose 99

1.2 Explanation of symbols 99

1.2.1 Danger levels....99

1.2.2 Hazard symbols 99

1.2.3 Structure of the warnings.... 100

1.2.4 General symbols.... 100

Safety.... 101

2.1 General Safety instructions 101

2.1.1 All domestic appliances 101

Tools and aids.... 102

Repair 103

4.1 Replacing worktop.... 103

4.1.1 Removing worktop 103

4.1.2 Installing worktop 103

4.2 Replacing detergent drawer 104

4.2.1 Removing detergent drawer.... 104

4.2.2 Installing detergent drawer.... 104

4.3 Replacing detergent drawer handle 105

4.3.1 Removing detergent drawer handle.... 105

4.3.2 Installing detergent drawer handle.... 105

4.4 Replacing fascia panel.... 106

4.4.1 Removing fascia panel 106

4.4.2 Installing fascia panel 107

4.7 Replacing pump cover 110

4.7.1 Removing pump cover.... 110

4.7.2 Installing pump cover 110

4.8 Replacing door seal 111

4.8.1 Removing door seal.... 111

4.8.2 Installing door seal.... 111

4.9 Replacing door lock.... 112

4.10.1 Removing drum light.... 114

4.10.2 Installing drum light.... 114

4.11 Replacing front panel 115

4.11.1 Removing front panel.... 115

4.11.2 Installing front panel.... 116

i Concerning this document

1.1 Important information

1.1.1 Purpose

These repair hints support consumer to repair appliances by himself according to the applicable eco-design regulation (as of 03/2021).

They contain information how to exchange defined spare parts including warnings and risks.

In case of questions, please contact our customer service. We will only be liable for damages if the repair hints have been followed properly.

1.2 Explanation of symbols

1.2.1 Danger levels

The warning levels consist of a symbol and a signal word. The signal word indicates the severity of the danger.

Warning level Meaning
Danger	Non-observance of the warning message will result in death or serious injuries.
Warning	Non-observance of the warning message could result in death or serious injuries.
Caution	Non-observance of the warning message could result in minor injuries.
Notice	Non-observance of the warning message could result in damage to property.

Table 1: Danger levels

1.2.2 Hazard symbols

Hazard symbols are symbolic representations which give an indication of the kind of danger.

The following hazard symbols are used in this document:

	Hazard symbol Meaning
		General warning message
		Danger from electrical voltage
		Risk of explosion
		Danger of cuts
		Danger of crushing

i Concerning this document

Hazard symbol Meaning
		Danger from hot surfaces
		Danger from strong magnetic field
		Danger from non-ionizing radiation

Table 2: Hazard symbols

1.2.3 Structure of the warnings

Warnings in this document have a standardised appearance and a standardised structure.

Type and source of danger!

Possible consequences of ignoring the danger / warning.

▶ Measures and prohibitions for preventing the danger.

The following example shows a warning that warns against electric shock due to live parts. The measure for avoiding the danger is mentioned.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

1.2.4 General symbols

The following general symbols are used in this document:

Gen. symbol Meaning
	Identification of a special tip (text and/or graphic)
	Identification of a simple tip (only text)
	Identification of a link to a video tutorial

Gen. symbol Meaning
	Identification of required tools
	Identification of required preconditions
	Identification of a condition (if ..., then ...)
	Identification of a result
StartIdentification of a key or button
[00123456] Identification of a material number
StatusIdentification of displayed text / window(in the appliance's display)

Table 3: General symbols

Safety

2.1 General Safety instructions

2.1.1 All domestic appliances

Risk of electric shock due to live parts!

• Errors by repairs involving electrical components can lead to electrical shock!
  ■ Disconnect the appliance from the mains for at least 60 seconds before starting work.
  ■ After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of injury from sharp edges!

■ Wear protective gloves.

Risk of crushing during repair, maintenance, troubleshooting and service due to heavy and moving components

■ Wear protective shoes.
■ Secure heavy components from falling down.
■ Do not stick body parts into moving components.

Risk to the appliance's safety / function!

■ Only use original spare parts.

Risk of damage to electrostatically sensitive components (ESDs)!

- Do not touch the modules, including connections and conductor paths.

Tools and aids

Designation Details Images
Auxiliary tool[15000155]	Tool for loosening out of plastic parts
Screwdriver Torx T20 with bore hole [00340764]	100 mm, for screws with safety pin
Torque spanner [15000441]	Torque spanner 20 - 100 Nm
Slot screwdriver [00340854]	Blade 3.5 mm x 0.6 mm x 100 mm, Protective Insulation 1000 V AC
Slot screwdriver [00340855]	Blade 5.5 mm x 1.0 mm x 125 mm, Protective Insulation 1000 V AC
Needle-nose pliers, angled pattern [00341269]	Length 200 mm
Side-cutting pliers [00342182]	Length: 200 mm

Designation Details Images
Combination wrench[00340811]	Wrench size 10°mm, M6
Combination wrench[00340814]	Wrench size 13°mm, M8
Combination wrench[00340817]	Wrench size 17 mm, M10
Combination wrench[15000459]	Wrench size 16°mm, M10

Repair

4.1 Replacing worktop

Required tools:

Torx Bit TX20 with hole Length 152 mm, usable length [00341272]

124 mm, 1/4" hexagon drive

(6.35 mm), for screws with safety pin

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.

4.1.1 Removing worktop

▶ 1. Remove screws (1).
2. Push worktop to the back of the appliance (2).
3. Move worktop upwards (3) to remove it.

4.1.2 Installing worktop

Observe cable installation. Cable could be trapped.

▶ Install in reverse order.

Repair

4.2 Replacing detergent drawer

Prerequisite:

√ Appliance is disconnected from power supply
√ Appliance is disconnected from water supply.

4.2.1 Removing detergent drawer

1. Pull out detergent drawer.
   2.1. Press down on insert (1).

2. Remove detergent drawer (2).

4.2.2 Installing detergent drawer

▶ Install in reverse order.

Repair

4.3 Replacing detergent drawer handle

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Detergent drawer has been removed.→ Page 104

4.3.1 Removing detergent drawer handle

1. Release catch elements.

3D cutaway diagram of a mechanical component showing internal structure and mounting features (no text or symbols)

1. Remove detergent drawer handle.

4.3.2 Installing detergent drawer handle

▶ Install in reverse order.

Repair

4.4 Replacing fascia panel

As a manufacturer, we are obliged to provide consumers with the spare part fascia panel including repair instructions in accordance with Regulation (EU) 2019/2023. However, we would like to point out that after replacing a fascia panel, an electrotechnical safety test by a qualified electrician is required before the device is put into operation. This person must be verifiably qualified according to the country-specific laws, regulations and standards.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.

√ Worktop has been removed.→ Page 103
√ Detergent drawer has been removed.→ Page 104

4.4.1 Removing fascia panel

1. 1. Remove screws (1).

1. Release plug contact of control unit.
2. Remove fascia panel.

Repair

4.4.2 Installing fascia panel

Observe cable installation. Cable could be trapped.

▶ Install in reverse order.

Repair

4.5 Replacing door

Open hinge areal

Finger crushing / entrapment

- Do not reach into the hinge area.

▶ Wear protective gloves.

Risk of falling parts due to released screws!

Injury because of falling parts.

- Secure component from falling down.

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customers home e.g. bot-

tom.

- Secure component from falling down.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Door is opened.

4.5.1 Removing door

1. Remove screws (1).

3D rendering of a washing machine with a red arrow pointing to the door panel (no text or symbols visible)

1. Remove door upwards.

▶ Install in reverse order.

Repair

4.6 Replacing door components

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Door has been removed.→ Page 108

4.6.1 Removing door components

▶ Disassemble door from outside to inside.

4.6.2 Installing door components

▶ Install in reverse order.

Repair

4.7 Replacing pump cover

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.

4.7.1 Removing pump cover

1. Open pump cover.

Diagram showing a mechanical component with a downward arrow and blue base, no text or symbols present

1. Remove pump cover.

Diagram of a mechanical device with a circular housing and blue base, showing internal components (no text or symbols)

4.7.2 Installing pump cover

▶ Install in reverse order.

Repair

4.8 Replacing door seal

Sharp housing edges!

Cut injuries

▶ Wear protective gloves.

Risk of falling parts due to released screws!

Injury because of falling parts.

- Secure component from falling down.

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customers home e.g. bot-

tom.

- Secure component from falling down.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Appliances is freely accessible.
√ Worktop has been removed.→ Page 103
√ Detergent drawer has been removed.→ Page 104
√ Fascia panel has been removed.→ Page 106
√ Door has been removed.→ Page 108
√ Pump cover has been removed.→ Page 110
√ Front panel has been removed.→ Page 115
√ Drum light has been removed (optional).→ Page 114

1. Release all hose connections.

3D rendering of a mechanical component with concentric rings and mounting flanges (no visible text or symbols)

1. Remove door seal.

▶ Install in reverse order.

Repair

4.9 Replacing door lock

As a manufacturer, we are obliged to provide consumers with the spare part door lock including repair instructions in accordance with Regulation (EU) 2019/2023. However, we would like to point out that after replacing a door lock, an electrotechnical safety test by a qualified electrician is required before the device is put into operation. This person must be verifiably qualified according to the country-specific laws, regulations and standards.

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repair

▶ Electric parts should be repaired by a qualified electricians.

After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Slipping of tilted appliances!

Bone fractures / crush injuries

- Secure appliances against slipping.

Sharp housing edges!

Cut injuries

▶ Wear protective gloves.

Risk of falling parts due to released screws!

Injury because of falling parts.

- Secure component from falling down.

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customers home e.g. bot- tom.

- Secure component from falling down.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.

√ Appliances is freely accessible.
√ Worktop has been removed.→ Page 103
√ Detergent drawer has been removed.→ Page 104
√ Fascia panel has been removed.→ Page 106
√ Door has been removed.→ Page 108
√ Tension ring has been removed.
√ Door seal has been removed.→ Page 111
√ Pump cover has been removed.→ Page 110
√ Front panel has been removed.→ Page 115

1. Disconnect door lock plug.
2. Release door lock.

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

1. Remove door lock.

Repair

▶ Install in reverse order.

Repair

4.10 Replacing drum light

Slipping of tilted appliances!

Bone fractures / crush injuries

- Secure appliances against slipping.

Sharp housing edges!

Cut injuries

▶ Wear protective gloves.

Risk of falling parts due to released screws!

Injury because of falling parts.

- Secure component from falling down.

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customers home e.g. bottom.

- Secure component from falling down.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Appliances is freely accessible.
√ Worktop has been removed.→ Page 103
√ Detergent drawer has been removed.→ Page 104
√ Fascia panel has been removed.→ Page 106

4.10.1 Removing drum light

Interior view of a washing machine showing internal components and ventilation ducts (no text or symbols visible)

1. Pull drum light holder out of appliance.
2. Disconnect electrical connections.
3. Remove drum light from drum light holder.

4.10.2 Installing drum light

Observe cable installation. Cable could be trapped.

▶ Install in reverse order.

Repair

4.11 Replacing front panel

Slipping of tilted appliances!

Bone fractures / crush injuries

- Secure appliances against slipping.

Sharp housing edges!

Cut injuries

- Wear protective gloves.

Risk of falling parts due to released screws!

Injury because of falling parts.

- Secure component from falling down.

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customers home e.g. bottom.

- Secure component from falling down.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Appliances is freely accessible.
√ Worktop has been removed.→ Page 103
√ Detergent drawer has been removed.→ Page 104
√ Fascia panel has been removed.→ Page 106
√ Door has been removed.→ Page 108
√ Pump cover has been removed.→ Page 110
√ Tension ring has been removed.
√ Door seal has been released at front.
√ Drum light has been removed (optional). → Page 114

4.11.1 Removing front panel

1. Lift up appliance at front.
2. Remove screws at bottom (1).

1. Lower appliance down.

Repair

1. Remove screws at front beginning from bottom to top (2, 3).

1. Remove front panel.

4.11.2 Installing front panel

▶ Install in reverse order.

Remonditeave - Pesumasin

i Selle dokumendiga seoses 118

1.1 Tähtis teave 118

1.1.1 Eesmärk 118

1.2 Sümbolite selgitus 118

1.2.1 Ohutasemed.... 118

4.2.2 Pesuaine sahtli paigaldamine

▶ Paigaldage vastupidises järjekorras.

Remont

3D cutaway diagram of a mechanical component showing internal layered structure and mounting features (no text or symbols)

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

4.6.2 Ukse osade paigaldamine

▶ Paigaldage vastupidises järjekorras.

Remont

4.7 Pumba katte vahetamine

Nõue:

Diagram showing a mechanical component with a curved arrow indicating motion, no text or symbols present

1. Eemaldage pumba kate.

Diagram of a medical device with a circular component and a blue base, showing internal components (no text or labels)

4.7.2 Pumba katte paigaldamine

▶ Paigaldage vastupidises järjekorras.

Remont

3D rendering of a mechanical component with concentric rings and mounting flanges (no visible text or symbols)

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

1. Eemaldage ukselukk.

Remont

Interior view of a washing machine showing internal components like wheels, hoses, and a red warning label (no text or symbols present)

1. Langetage seadet allapoole.

Remont

1. Eemaldage esipaneel.

4.11.2 Esipaneeli paigaldamine

4.2.2 Pesuainelokeron asentaminen

3D cutaway diagram of a mechanical component showing internal structure and mounting features (no text or symbols)

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Diagram showing a mechanical component being lowered into a blue liquid, with no visible text or symbols.

1. Poista pumpun suojus.

Diagram of a mechanical device with a circular component and a blue base, showing no text or symbols.

3D rendering of a mechanical component with concentric rings and mounting holes (no text or symbols visible)

1. Poista luukun tiiviste.

Close-up of a metallic circular object with two red circular markers on the side (no text or symbols visible)

Interior view of a washing machine showing internal components like hoses, wheels, and a red T-shaped component (no text or symbols visible)

1. Laske kone alas.

Korjaus

1. Poista etupaneeli.

4.11.2 Etupaneelin asentaminen

3D cutaway diagram of a mechanical component showing internal parts and directional arrows (no text or symbols)

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Diagram showing a mechanical component with a downward arrow and blue base, no text or symbols present

Diagram of a mechanical device with a circular housing and a blue base, showing internal components (no text or symbols)

3D rendering of a mechanical component with concentric rings and mounting flanges (no visible text or symbols)

1. Retirer le joint de porte.

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

1. Retirer la fermeture de porte.

Réparation

Interior view of a washing machine showing internal components and ventilation ducts (no text or symbols visible)

3D mechanical assembly diagram showing internal components and directional arrows (no text or symbols)

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Diagram showing a mechanical component with a curved arrow indicating motion, no text or symbols present

Diagram of a medical device with a circular component and a blue base, showing internal components (no text or labels)

3D rendering of a mechanical component with concentric rings and mounting holes (no text or symbols visible)

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

Mechanical assembly diagram showing internal components with red and yellow wiring (no text or symbols)

Instandsetzen

Interior view of a washing machine showing internal components and ventilation ducts (no text or symbols visible)

3D mechanical assembly diagram showing internal components and directional arrows (no text or symbols)

Επισκευή

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

2023-09-05_8001214495 Copyright by BSH Hausgeräte GmbH Σελίδα 205 από 462

Diagram showing a mechanical component with a downward arrow and blue base, no text or symbols present

Diagram of a mechanical device with a circular housing and a blue base, showing internal components (no text or symbols)

3D rendering of a mechanical component with concentric rings and mounting flanges (no visible text or symbols)

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

Mechanical assembly diagram showing internal components with red and yellow wiring (no text or symbols)

Επισκευή

Interior view of a washing machine showing internal components and ventilation ducts (no text or symbols visible)

3D mechanical assembly diagram showing internal components and directional arrows (no text or symbols)

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Diagram showing a mechanical component with a downward arrow and blue base, no text or symbols present

Diagram of a mechanical device with a circular housing and a blue base, showing internal components (no text or symbols)

Close-up of a mechanical component with concentric rings and mounting flanges (no visible text or symbols)

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

Interior view of a washing machine showing internal components like wheels and hoses (no text or labels visible)

3D cutaway diagram of a mechanical assembly showing internal components and directional arrows (no text or symbols)

Riparazione

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Diagram showing a mechanical component with a rotating arm and base, no text or symbols present

Diagram of a mechanical device with a circular component and a blue base, showing internal components (no text or symbols)

3D rendering of a mechanical component with concentric rings and mounting holes (no text or symbols visible)

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

Interior view of a washing machine showing internal components like coiled hoses and ventilation ducts (no text or symbols visible)

3D cutaway diagram of a mechanical component showing internal layered structure with two upward-pointing arrows indicating features (no text or symbols present)

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Diagram showing a mechanical component with a curved arrow indicating motion, no text or symbols present

1. Nonemiet sukna vaku.

Diagram of a medical device with a circular component and a blue base, showing internal components (no text or symbols)

3D rendering of a mechanical component with concentric rings and mounting flanges (no visible text or symbols)

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

1. Nonemiet durtinu slēgu.

Remonts

Interior view of a refrigerator showing internal components like wheels, fans, and ventilation ducts (no text or symbols visible)

1. Nolaidiet ierīci.

Remonts

1. Nonemiet priekšejo paneli.

3D cutaway diagram of a mechanical component showing internal layered structure and mounting features (no text or symbols)

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Diagram showing a mechanical component with a curved arrow indicating motion, no text or symbols present

1. Nuimkite siurblio dangtelj.

Diagram of a medical device with a circular component and a blue base, showing internal components (no text or labels)

4.7.2 Siurblio dangtelio uždéjimas

3D rendering of a mechanical component with concentric rings and mounting holes (no text or symbols visible)

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

Interior view of a washing machine showing internal components like hoses and gauges (no text or labels visible)

3D cutaway diagram of a mechanical component showing internal structure and mounting features (no text or symbols)

1. Løsne kontrollenhetens pluggkontakt.
2. Demonter instrumentpanelet.

Reparasjon

Fare for â knuse/sette fast fingre

3D rendering of a washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Diagram showing a mechanical component with a curved arrow indicating motion, no text or symbols present

1. Ta av pumpedekslet.

Diagram of a medical device with a circular component and a blue base, showing internal components (no text or labels)

3D rendering of a mechanical component with concentric rings and mounting flanges (no visible text or symbols)

Close-up of a metallic circular object with two red circular markers on the side (no text or symbols visible)

1. Demonter dørlåsen.

Reparasjon

Interior view of a washing machine showing internal components like gears and hoses (no text or labels visible)

1. Senk apparatet ned.

Reparasjon

1. Fjern skruene på fronten; nedenfra og opp (2, 3).

1. Demonter frontpanelet.

3D mechanical assembly diagram showing internal components and directional arrows (no text or symbols)

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Diagram showing a mechanical component being lowered into a blue liquid, with no visible text or symbols.

1. Zdjąć osłone pompy.

Diagram of a medical device with a circular component and a blue base, showing internal components (no text or labels)

3D rendering of a mechanical component with concentric rings and mounting holes (no text or symbols visible)

Close-up of a metallic circular object with two red circular markers on the side (no text or symbols visible)

Naprawy

Mechanical assembly diagram showing a red and yellow component inserted into a circular housing (no text or symbols visible)

Naprawy

Interior view of a washing machine showing internal components like hoses and gauges (no text or labels visible)

1. Opuścić urządzenie.

Naprawy

4.2.2 Instalar a gaveta para detergente

3D cutaway diagram of a mechanical assembly showing internal components and directional arrows (no text or symbols)

Reparação

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Diagram showing a mechanical component with a curved arrow indicating motion, no text or symbols present

1. Remova a tampa da bomba.

Diagram of a medical device with a circular component and a blue base, showing internal components (no text or labels)

4.7.2 Instalar a tampa da bomba

3D rendering of a mechanical component with concentric rings and mounting flanges (no visible text or symbols)

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

Interior view of a refrigerator showing internal components and ventilation ducts (no text or symbols visible)

1. Baixe o aparelho.

Reparação

1. Remova o painel frontal.

4.11.2 Instalar o painel frontal

3D mechanical assembly diagram showing internal components and directional arrows (no text or symbols)

3D rendering of a washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Diagram showing a mechanical component with a downward arrow and blue base, no text or symbols present

Diagram of a mechanical device with a circular housing and a blue base, showing internal components (no text or symbols)

3D rendering of a mechanical component with concentric rings and mounting holes (no text or symbols visible)

Close-up of a metallic circular object with three red circular markers at the bottom (no text or symbols visible)

Mechanical assembly diagram showing internal components with red and yellow highlighted parts (no text or symbols)

Repararea

Interior view of a washing machine showing internal components and ventilation ducts (no text or symbols visible)

1. Coborâți aparatul.

Repararea

3D cutaway diagram of a mechanical assembly showing internal components and directional arrows (no text or symbols)

Oprava

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

1. Odoberte dvere smerom nahor.

4.5.2 Montáž dverí

Diagram showing a mechanical component with a downward arrow and blue base, no text or symbols present

Diagram of a mechanical device with a circular housing and a blue base, showing internal components (no text or symbols)

3D rendering of a mechanical component with concentric rings and mounting flanges (no visible text or symbols)

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

1. Odoberte poistku dvierok.

Oprava

Interior view of a washing machine showing internal components and ventilation ducts (no text or symbols visible)

1. Vytiahnite držiak osvetlenia bubna spotrebiča.
2. Odpojte elektrické pripojenia.
3. Odoberte osvetlenie bubna z držiaka osvetlenia bubna.

3D cutaway diagram of a mechanical component showing internal layered structure with two upward-pointing arrows indicating features (no text or symbols present)

1. Odstranite ročaj predalčka za detergent.

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

1. Odstranite vrata v smeri navzgor.

Diagram showing a mechanical component with a curved arrow indicating motion, no text or symbols present

Diagram of a medical device with a circular component and a blue base, showing internal components (no text or symbols)

Cross-sectional view of a mechanical component with concentric rings and mounting flanges (no visible text or symbols)

1. Odstranite tesnilo vrat.

Close-up of a metallic circular object with two red circular markers on the side (no text or symbols visible)

1. Odstranite varovalo vrat.

Popravilo

Interior view of a washing machine showing internal components and ventilation ducts (no text or symbols visible)

1. Izvlecite držalo luči bobna iz aparata.
2. Odklopite električne priključke.
3. Odstranite luč bobna z držala luči bobna.

1. Spustite aparat.

Popravilo

3D cutaway diagram of a mechanical component showing internal structure and mounting features (no text or symbols)

Reparación

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Diagram showing a mechanical component with a downward arrow and blue base, no text or symbols present

Diagram of a mechanical device with a circular housing and blue base, showing internal components (no text or symbols)

3D rendering of a mechanical component with concentric rings and mounting flanges (no visible text or symbols)

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

Interior view of a refrigerator showing internal components and ventilation ducts (no text or symbols visible)

1. Bajar el aparato.

Reparación

3D mechanical assembly diagram showing internal components and directional arrows (no text or symbols)

1. Lossa stickkontakten till styrenheten.
2. Ta bort kontrollpanelen.

Reparation

4.4.2 Montera kontrollpanel

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

1. Ta bort luckan uppät.

4.5.2 Montera lucka

4.6.2 Montera luckans komponenter

Diagram showing a mechanical component with a curved arrow indicating motion, no text or symbols present

1. Ta bort pumphöljet.

Diagram of a medical device with a circular component and a blue base, showing internal components (no text or labels)

4.7.2 Montera pumphölje

3D rendering of a mechanical component with concentric rings and mounting flanges (no visible text or symbols)

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

Interior view of a washing machine showing internal components and ventilation ducts (no text or symbols visible)

1. Sänk ned maskinen.

Reparation

1. Ta bort frontpanelen.

4.11.2 Montera frontpanel

3D mechanical assembly diagram showing internal components and directional arrows (no text or symbols)

Onarim

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Diagram showing a mechanical component with a downward arrow and blue base, no text or symbols present

Diagram of a mechanical device with a circular housing and a blue base, showing internal components (no text or symbols)

3D rendering of a mechanical component with concentric rings and mounting flanges (no visible text or symbols)

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

Interior view of a washing machine showing internal components like wheels and hoses (no text or labels visible)

1. Cihazı indirin.

Onarim

1. Ön paneli sökün.
