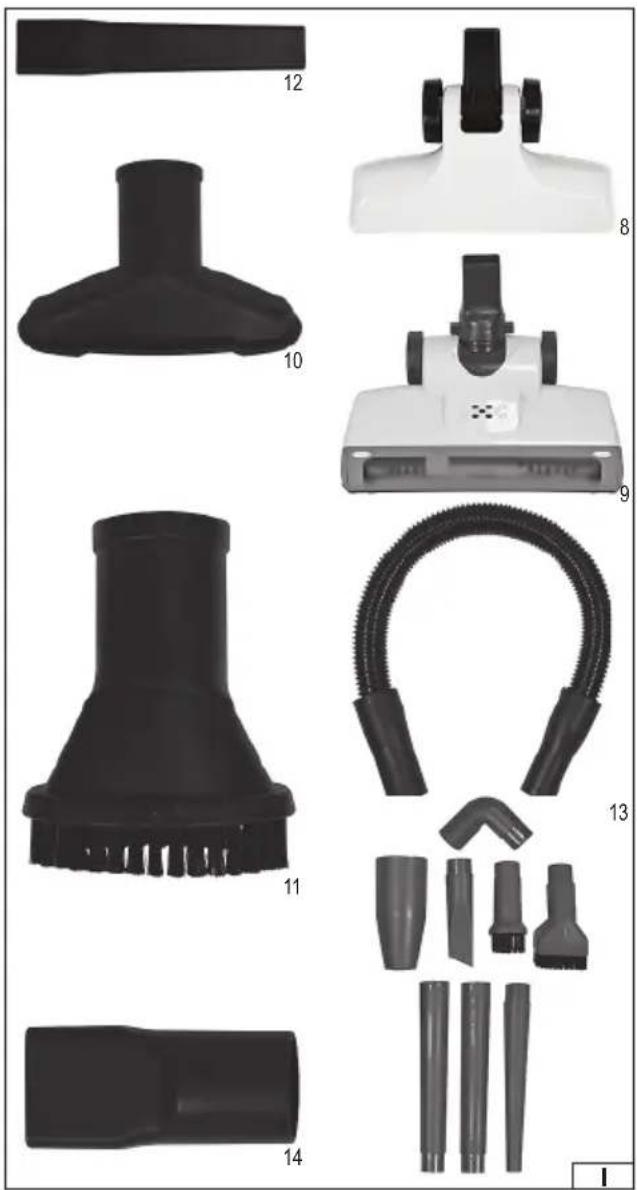

1. drive housing
2. handle
3. dust container
4. ON/OFF Switch
5. power cord and plug
6. handle hook
7. housing hook
8. floor and carpet brush
9. turbo brush
10. small brush
11. bristle brush
12. crevice attachment
13. set of narrow suction attachments
14. accessory adapter

DE

Read the operating instruction

Second class of insulation

This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.

APPLIANCE CHARACTERISTICS

The cyclone vacuum cleaner is used to clean hard floors and carpets with an air stream. The vacuum cleaner does not require dust bags. The air stream is set in a swirling motion inside the vacuum cleaner's container, which allows to separate the sucked in impurities. The product is designed for domestic use only and may not be used in commercial applications. The correct, reliable, and safe operation of the appliance depends on its proper use, so:

Reading and keeping the entire manual before the first use of the appliance.

The supplier shall not be held liable for any damage resulting from failure to observe the safety regulations and recommendations specified in this manual.

ACCESSORIES

The vacuum cleaner is supplied with additional accessories in the form of a pipe and brushes for various purposes.

SAFETY INSTRUCTIONS

CAUTION! Read all of the following instructions. Failure to do so may result in electric shock, fire, or personal injury.

FOLLOW THE INSTRUCTIONS BELOW

Do not use the product in an explosive environment containing flammable liquids, gases, or vapours. Do not place the appliance near any heat or fire sources. Connect the appliance only to the power network with the voltage and frequency indicated on the nameplate of the appliance. The plug of the power cord must match the power socket. Do not modify the plug. Do not use any power adapters to adapt the plug to the socket. An unmodified plug, which matches the socket, reduces the risk of an electric shock. After each application, unplug the power cord from the power socket. Avoid direct contact with grounded surfaces such as piping, radiators and refrigerators. Grounding of the body increases the risk of an electric shock. The appliance is intended for indoor use only. Do not expose the appliance to any precipitation or moisture. If water and moisture enters the appliance, the risk of an electric shock is significantly increased. Do not immerse the product in water or any other liquid. Do not obstruct the ventilation openings and make sure they are clear. Obstructed and/or clogged ventilation openings may cause the appliance to overheat. This can lead to damage to the appliance or cause fire or electric shock. Do not overload the power cord. Do not use the power cord to carry, connect, or disconnect the plug from the power socket. Avoid any contact between the power cord and heat sources, oil, sharp edges, and moving parts. Damage to the power cord increases the risk of an electric shock. If the power cord is damaged (e.g. it is cut, its insulation is melted), immediately unplug it from the wall socket, and return it to an authorised service facility. It is not allowed to use the product with a damaged power cord. It is not allowed to have the power cord repaired. It must be changed for a new one at an authorized service centre. When using extension cords, use extension cords with power parameters such as those shown on the appliance's nameplate. The cross-section of the extension wires shall not be less than the cross-section of the wires of the power cord of the appliance. This should be checked on the insulation of the power cord and the extension cord, or contact the manufacturer of the appliance and/or the extension cord. If you notice any damage to any part of

EN

the appliance, you must discontinue using it. In this case, the appliance must be taken to an authorised service centre or replaced by yourself, if this is permitted by the user's manual. Turn off the appliance and unplug the power cord from the wall socket before you start any work on replacing, cleaning, or adjusting. Switch off the appliance before replacing the accessories and unplug the power cord from the socket. This appliance may be used by children of at least 8 years of age and by persons with reduced physical, mental abilities and persons with no experience or knowledge of the appliance, if supervised or instructed on its safe use so that the risks associated with it were understandable. Children should not play with the appliance. Children should not be allowed to clean or maintain the product without supervision. The appliance is intended for home use only. Do not use the vacuum cleaner on people and animals, do not put the inlet of the suction nozzles near eyes and ears. Do not pass through the power cord with the vacuum cleaner, do not stand on the power cord. This can damage the cable and cause electrical shock. Check the condition of the vacuum cleaner filters before each use. It is forbidden to use the vacuum cleaner without filters or with damaged filters. Before each use, check the passability of the hose, pipes and suction nozzles. If a decrease in suction power or increased noise is noticed during operation, the passability of the above mentioned elements and the level of filling of the dust container must be checked. Do not vacuum cigarette butts, matches, hot ashes. Avoid pulling in sharp objects such as needles, nails, pins or staples. Do not vacuum water or other liquids. Do not vacuum wet waste. Do not vacuum fine dust, e.g. flour, gypsum, printer toner, etc. Do not use the vacuum cleaner for cleaning industrial waste, e.g. sawdust, debris, metal filings, etc. The vacuum cleaner must not be used in a dust extraction system where the dust is generated during operation of other tools, e.g. grinding, cutting, polishing, etc. When vacuuming, static charges may occur on the appliance. This is normal, especially when cleaning in low humidity conditions. In order to minimise this phenomenon, it is necessary to periodically touch the grounded, metal objects around the house, e.g. radiators, with the pipe and to increase the humidity in the room to be cleaned.

OPERATING THE APPLIANCE

CAUTION! Turn off the appliance and unplug the power cord from the socket during all equipment assembly and disassembly activities.

Appliance assembly and disassembly

Take the vacuum cleaner, the dust container and accessories out of the packaging and remove all packaging components. Begin assembly of the vacuum cleaner.

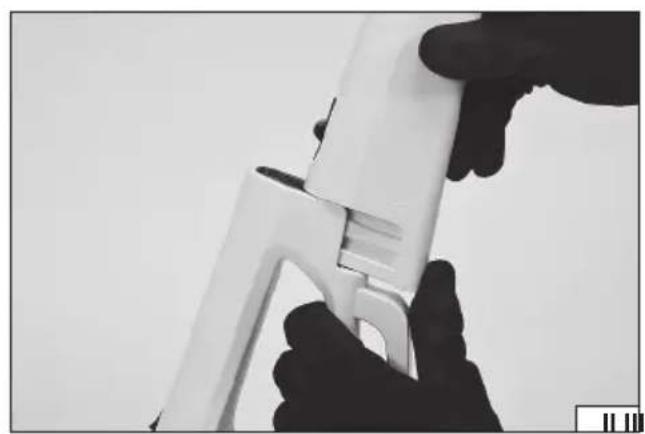

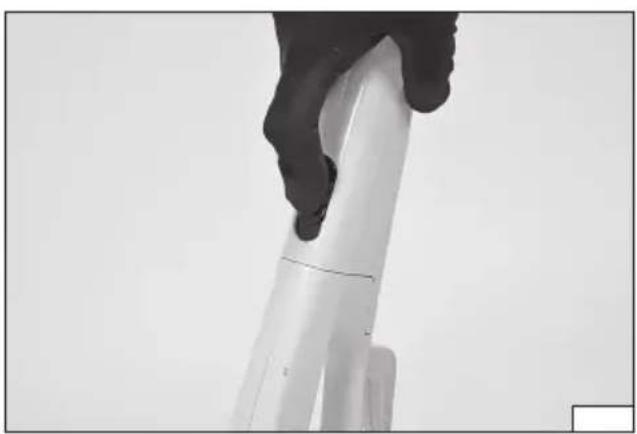

Slide the handle of the vacuum cleaner into the slots of the drive housing (II). Make sure that the connection is locked and cannot be disconnected other than by pulling back the lock and holding it in place (III).

Before first use, make sure that the container has all components and is correctly assembled.

If the container is mounted on a vacuum cleaner, it must be removed. Turn the container in the direction indicated by the open padlock symbol (IV) and then remove the container from the vacuum cleaner.

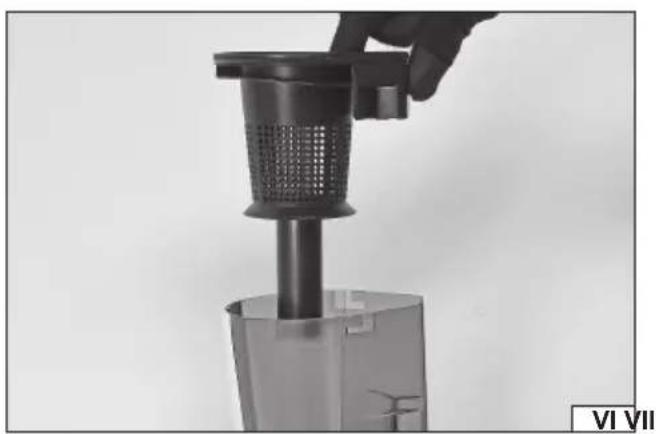

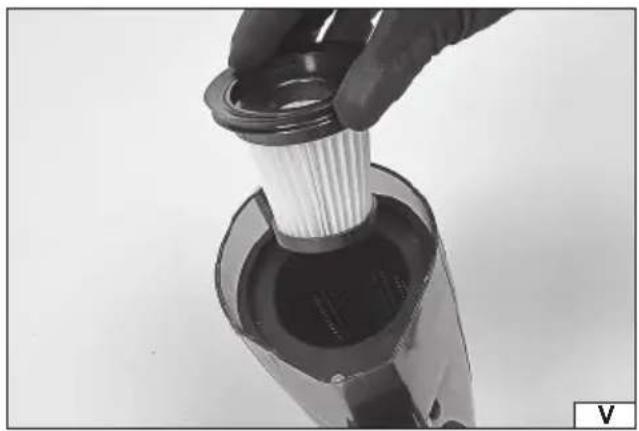

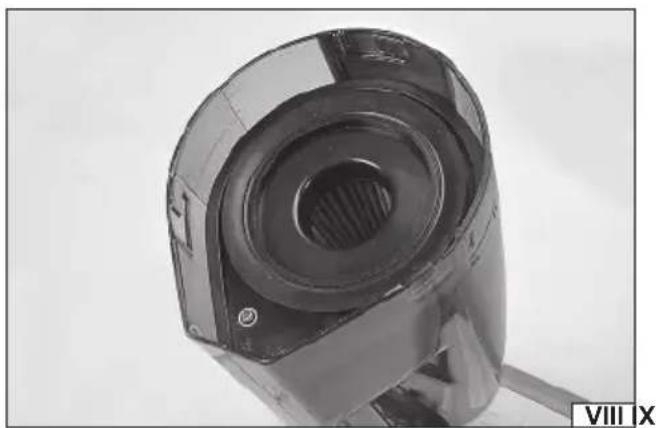

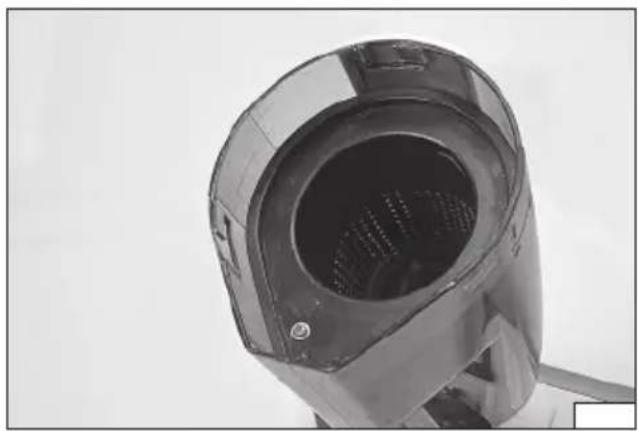

Remove the internal paper filter from the container (V) and then the external plastic filter (VI). The external filter has been shaped in such a way that it can only be installed in one correct position (VII). Slide the internal filter into the external filter so that the internal filter flange rests on the external filter housing (VIII). Check the condition of each filter and the condition of the gasket around the internal filter flange to ensure that no components are damaged. The container has a snap-on lid on the front, make sure it is closed. The lid is opened by pressing the latch (IX).

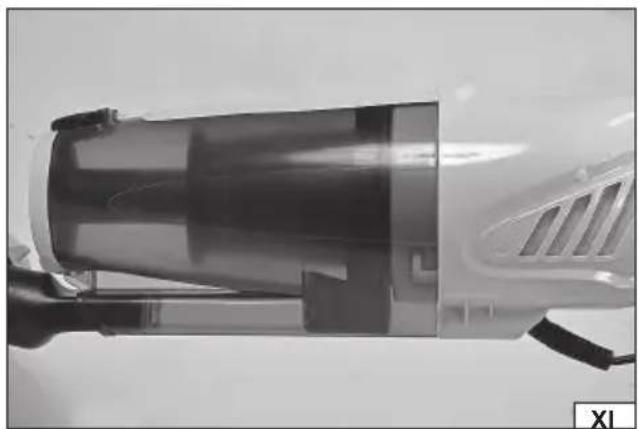

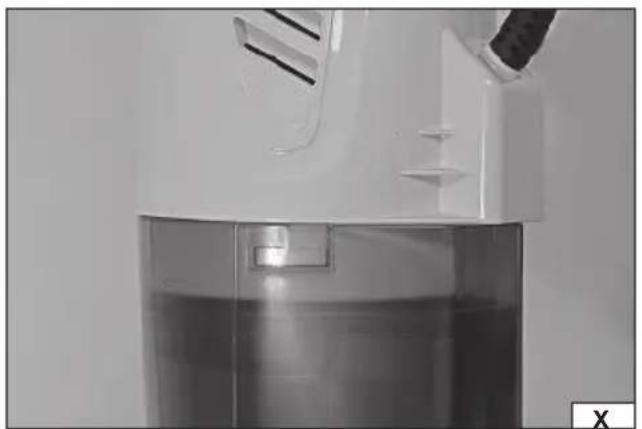

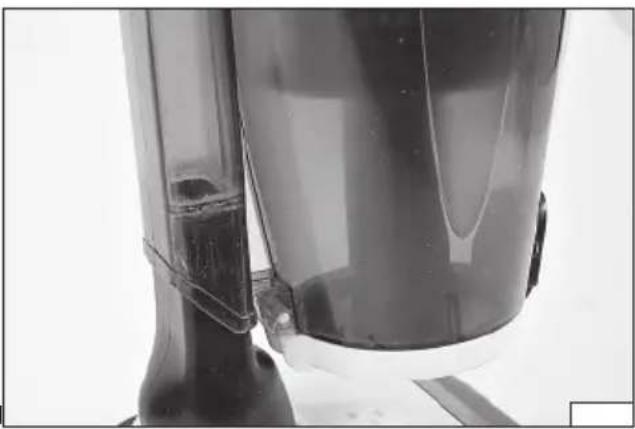

Attach the container with the closed lid and the installed filters to the vacuum cleaner. Attach the container housing to the drive housing so that the arrow on the drive housing is in line with the arrow on the container labelled "Align", then rotate the container in the direction indicated by the open padlock symbol (X). Make sure that all latches on the drive housing are located in the recesses of the container housing. Make sure that the shape of the drive housing is extended by the container housing (XI).

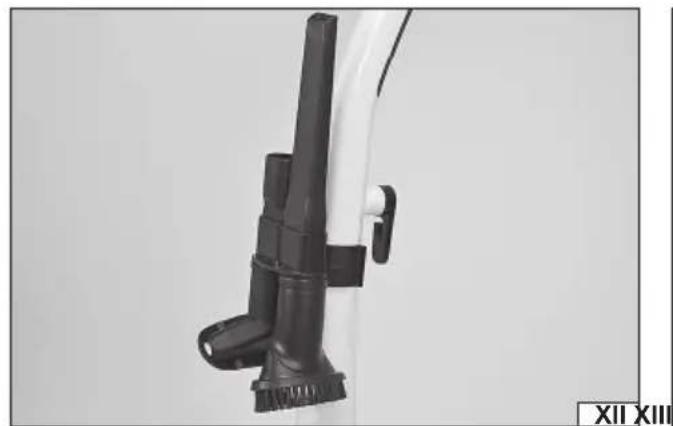

The handle housing can be equipped with an adapter which allows you to hold some accessories, always within reach. Slide the

EN

adapter bracket onto the housing and then mount the accessories on the adapter (XII).

Installation of accessories

Insert the selected accessory into the opening in the dust container housing (XIII).

Accessories equipped with a rectangular outlet are fixed directly into the dust container opening. Accessories equipped with a round outlet are fixed using the adapter.

Purpose of the accessories

Floor and carpet brush - universal brush for cleaning both carpets and all types of hard floors.

Turbo brush - universal brush for cleaning both carpets and all types of hard floors. Thanks to the additional shaft it is possible to clean more effectively than with a regular brush.

Small brush - universal brush designed for cleaning areas inaccessible for normal size brushes. Recommended for cleaning furniture with upholstery.

Bristle brush - a brush designed to clean hard, small-size surfaces.

Crevice attachment - enables cleaning places which are difficult to access, e.g. inside radiators.

Set of narrow suction attachments - for precise and efficient cleaning of small areas. Fixed by means of a flexible hose, makes the use of suction attachments much easier.

Using the device

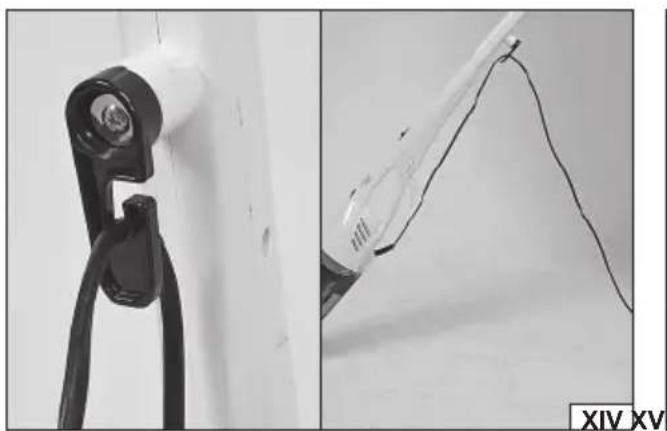

Insert the power cord into the slot of the handle hook pointing downwards (XIV). This will increase the distance between the power cord and the brush, reducing the risk of the power cord being caught by the brush.

After installing the dust container and the selected accessories, make sure that the switch is in the "off" position - O, plug the power cord plug into the socket. Turn the vacuum cleaner on by moving the switch to the "on" position - I, and start cleaning.

The device is switched off when the switch is set to the "off" position - O.

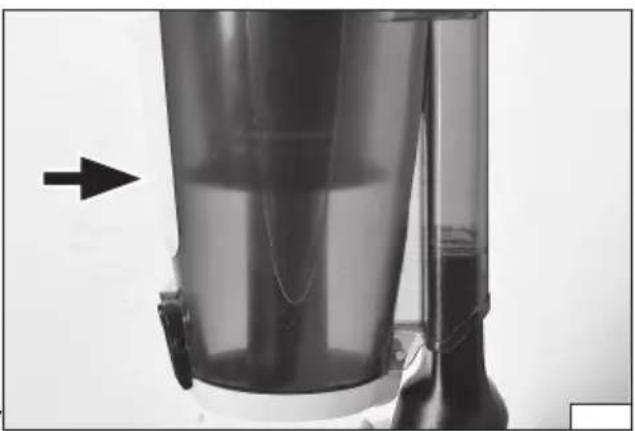

Control the amount of impurities in the container during operation. Place the container vertically with the lid downwards and check the amount of impurities. Empty the container if the impurities level in the container is equal to the edge of the external filter (XV).

MAINTENANCE AND STORAGE

CAUTION! Never immerse the vacuum cleaner in water or other liquids. Doing so may result in electric shock.

After cleaning, turn off the vacuum cleaner with the switch, disconnect the power cord plug from the socket, disconnect the accessories and proceed with maintenance.

Disconnect the dust container from the vacuum cleaner. Open the lower cover of the container and discharge the waste collected in the container. Open the top cover, remove both filters. Clean the container with a damp, soft cloth, then dry with a dry cloth or allow to dry. Warning! It is forbidden to use the vacuum cleaner with a wet or damp filter. This can result in electric shock.

The plastic filter can be rinsed under running, lukewarm water. Next dry with a dry cloth and allow to dry completely. Wait at least 24 hours after placing the filter in a well-ventilated place at room temperature.

Do not wash filters in mechanical dishwashers and do not dry them with a stream of hot air. This can cause deformation of the plastic material used for the construction of the filter. Avoid exposing the filters to direct sunlight.

No other part of the vacuum cleaner must be exposed to water. Gently tap the internal filter to shake off larger impurities. In the case of excessive contamination, replace the filter with a new one.

Clean the remaining parts of the vacuum cleaner with a cloth slightly soaked in water, then dry or allow to dry.

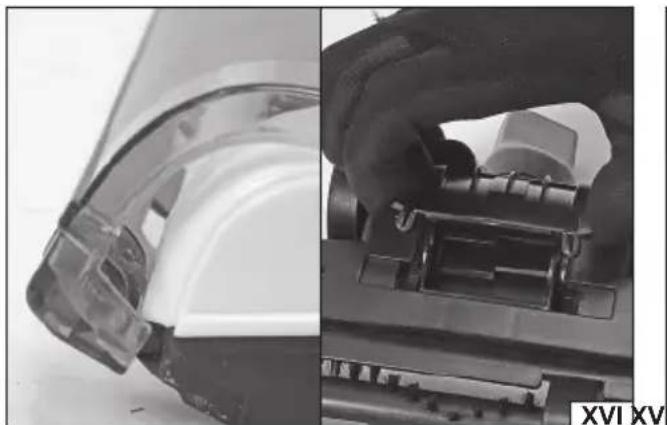

Clean the turbo brush shaft by removing the transparent cover. Grasp the cover at the bottom and lift it so that the cover latches are released (XVI). Clean the shaft with a brush and then reattach the cover. The shaft is driven by a turbine located under the cover on the underside of the brush. If a decrease in shaft speed is observed, clean the turbine. Remove the turbine cover by grasping both latches at the same time and pulling them together (XVI). Clean the turbine with a brush and then fix the cover. If the cover is not installed, the turbine will not rotate.

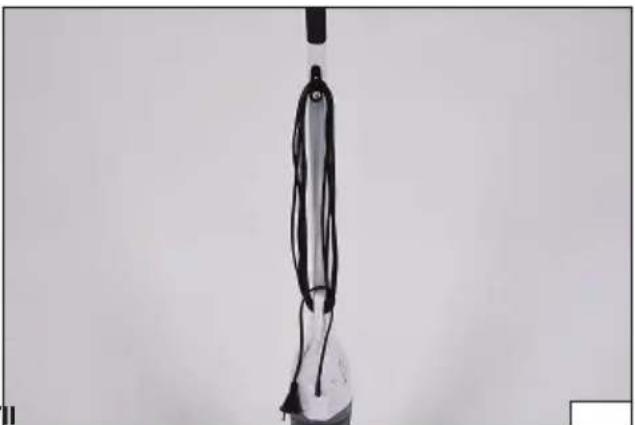

The vacuum cleaner can be stored in a vertical position, resting on the floor and carpet brush or on the turbo brush. In this position, the vacuum cleaner should stand without support. By turning the handle hook upwards, you can use this hook together with the drive housing hook to retract the power cord (XVII). The accessories can be connected or disconnected from the vacuum cleaner for storage. Store the vacuum cleaner with the power cord's plug disconnected from the socket.

TECHNICAL PARAMETERS

Parameter Units Value
Catalogue No. 67112
Rated voltage [V~] 220 – 240
Rated frequency [Hz] 50
Rated power [W] 800
Electrical protection class II
Dust container capacity [l] 1.5
Power cord length [m] 4.8
Weight	[kg]	1.0
