INSTRUCTION MANUAL Wireless Borescope

• 5' (1.52 m) WATERPROOF NYLON GOOSENECK
• 5.5 mm CAMERA WITH ON-BOARD LED LIGHTS
• RECHARGEABLE LITHIUM ION BATTERY
• WIFI CONNECTION* TO iPhone® AND MOST ANDROID® PHONES

*App is optimized for:

• Apple® iOS version 12 or higher
• Android® version 9 or higher

2m IP67/42*

*Camera is rated IP67. Body is rated IP42.

ESPAÑOL pg. 13

FRANÇAIS p. 25

KLEIN TOOLS

SCAN TO DOWNLOAD THE APP

KLEIN TOOLS®

ET21

KLEIN TOOLS ET21 Wireless Bonescope

FC CE

GENERAL SPECIFICATIONS

Klein Tools ET21 is a WiFi-connected borescope with a 0.21" (5.5 mm) camera and a 5' (1.5 m) waterproof nylon gooseneck that outputs video to Android ^ and iOS ^ powered devices using the Klein Tools ET21 App, available on Google Play ^ and the App Store ^ . A hook attachment is included.

• Operating Altitude: 6562' (2000m)
• Relative Humidity: <85% non-condensing
• Charging Temperature: 41°F to 104°F (5°C to 40°C)
• Operating Temperature: 5°F to 131°F (-15°C to 55°C)
• Storage Temperature: 68°F to 140°F (20°C to 60°C)
• Dimensions: 6.5" × 1.84" × 1.52" (165 × 47 × 39 mm)
• Weight: 6.10oz. (173g)
• WiFi Range: \~30' (\~9m) in open space
• Camera Output: 640 × 480 pixels
• Camera Frame Rate: 25 frames per second
• Camera Gooseneck Length: 5' (1.5m)
• Battery: Li-Ion, internal, 3.7V / 2600mAh (9.62Wh)
• Battery Life: 8.5 hours
• Auto-Power Off: 15 minutes after last button press
• Charge Time: 3 hours (depending on charger output)
• Charging Requirements: 5V DC (maximum), 1A (minimum)
• Conformance/Compliance: CE, UKCA, FCC, IC, DOE/CEC, NRCan
• Ingress Protection: Body: IP42 dust & water resistant
  Camera: IP67 dustproof & waterproof
• Drop Protection: 6.5' (2m)

Specifications subject to change.

Google Play and Android are registered trademarks of Google LLC.

App Store and iPhone are registered trademarks of Apple Inc., registered in the U.S. and other countries.

IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used by Apple, Inc. under license.

WARNINGS

KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

To ensure safe operation and service of the instrument, follow these instructions. Failure to observe these warnings can result in serious personal injury, fire, or electrical shock.

• The borescope, including the camera end, is NOT insulated. Avoid probing areas where energized conductive elements may be present. Shut off power to nearby work areas before starting work.
• DO NOT probe moving machinery that could catch the borescope and/or camera end, and cause harm to the operator and the Borescope.
• DO NOT immerse body of borescope in water or liquids. DO NOT use the borescope for underwater inspections.
• Properly seal the charging port cover to achieve specified water & foreign object ingress protection. Keep seal free of dirt, oil, sand, or other material that interferes with proper sealing. Failure to do so can result in risk of fire or electric shock.
• DO NOT open the charging port cover if wet or in a wet environment. Thoroughly dry the unit and the seal around water-resistant cover completely before opening water resistant cover.
• Avoid probing areas where chemicals may be present.
• NOT intended for use on people or animals.
• DO NOT use near sources of heat.
• DO NOT use in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• DO NOT use the product if it is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion, or injury.
• Risk of fire and burns. DO NOT open, crush, heat above specified maximum temperature or incinerate. Prolonged exposure to direct sunlight can result in elevated temperatures.
• DO NOT subject to impacts or drops greater than 6.5 ft. (2 m). Drops larger than this may not show signs of damage, but internal components may have been compromised. It is advisable to replace the unit if any such severe events occur.
• Keep steady footing at all times, following ladder safety procedures when necessary.
• DO NOT attempt to repair the product or charging cable. There are no user-serviceable parts.

COMPLIANCE

FCC COMPLIANCE

This device complies with part 15 of the FCC Rules and Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: The grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. Such modifications could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help

SAR NOTICE:

This device meets the FCC and ISED radiation exposure requirements set forth for an uncontrolled environment. The requirements set a SAR limit of 4.0 W/kg averaged over any ten grams of tissue.

IC NOTICE TO CANADIAN USERS

This device complies with industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation of the device.

This device complies with RSS-247 of Industry Canada. Operation is subject to the condition that this device does not cause harmful interference. This Class B digital apparatus complies with Canadian ICES-003.

EU DECLARATION OF CONFORMITY

Hereby, Klein Tools declares that this product is in compliance with Directive 2014/53/EU and all other applicable EU requirements. The complete declaration of conformity can be found on this product's page at www.kleintools.com.

UKCA DECLARATION OF CONFORMITY

Hereby, Klein Tools declares that this product is in compliance with the relevant statutory requirements. The complete declaration of conformity can be found on this product's page at www.kleintools.com.

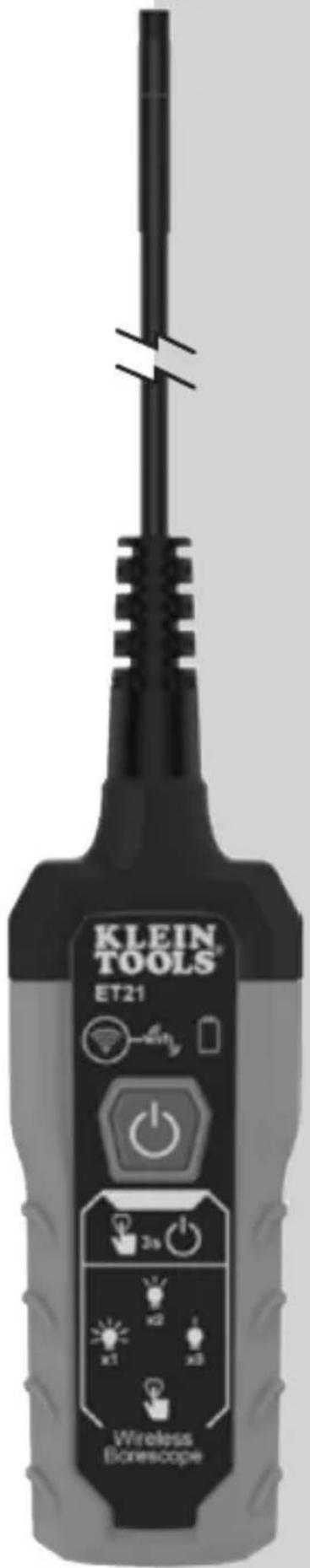

FEATURE DETAILS

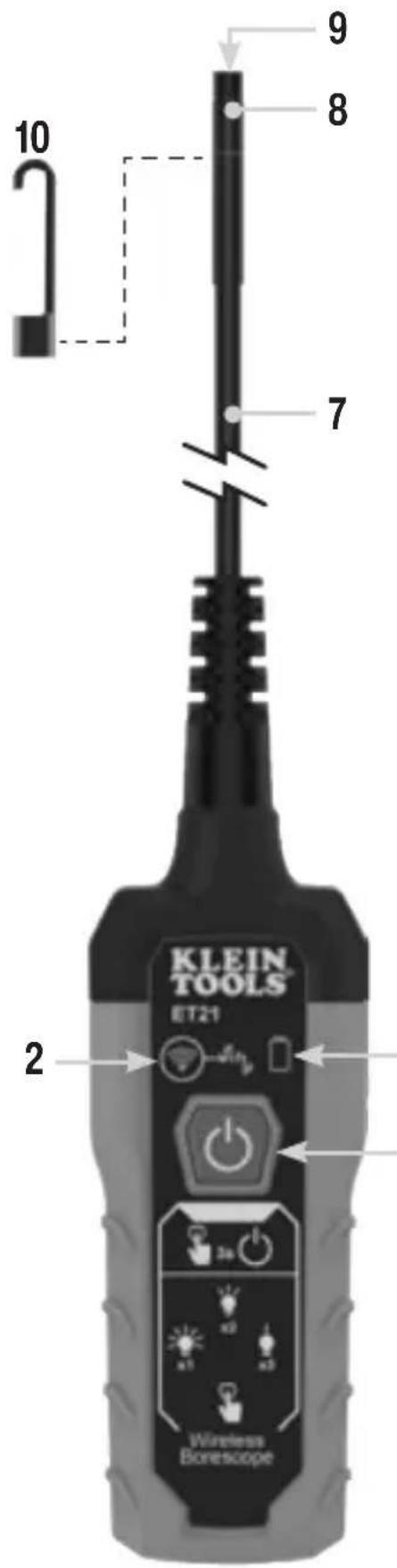

KLEIN TOOLS RT21 2 7 8 9 10 Wireless Bonescope

NOTE: There are no user-serviceable parts inside.

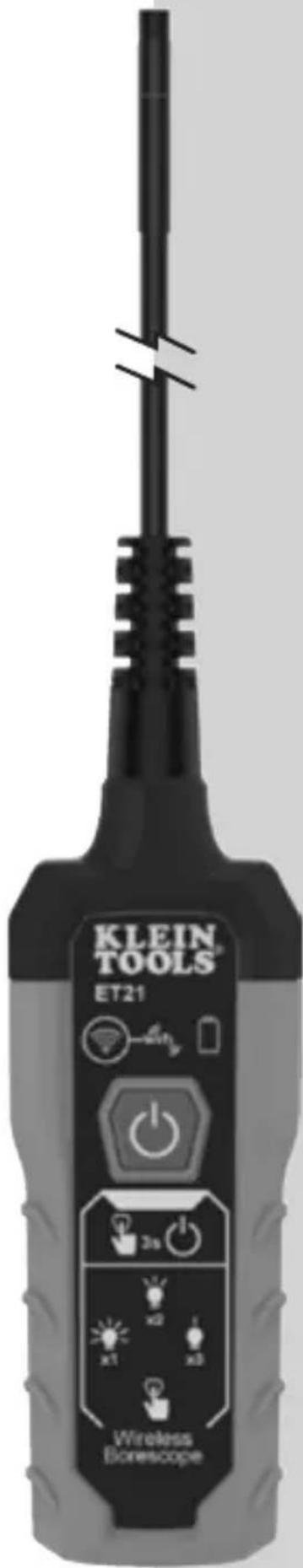

1 Power / LED Output Button
2 WiFi Indicator
3 Battery Status Indicator
4 USB-C Charging Port
5 Charging Port Cover
6 Pocket Clip
7 5' (1.5m) Gooseneck
8 Camera
9 Camera LED
10 Hook Attachment

5 4

MODEL-ETH ECO® SAU0-ETZI EC-THOLEETH CAPACITY PRODUCTION (ECONOM) INPUT: 4V/FTA 6

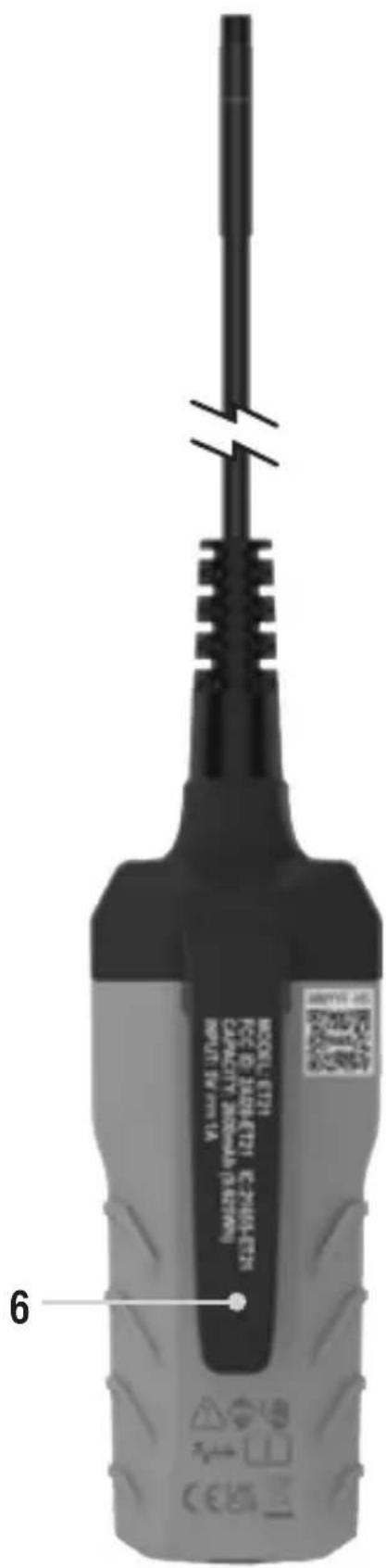

SYMBOLS ON BACK OF INSTRUMENT

	Warning or Caution		Wear approved eye protection		NOT insulated - Will NOT protect against electric shock
	Read Instructions		Do not probe moving ma-chinery		Conformité Européenne: Conforms with European Economic Area directives
	DC voltage/ current		WEEE - Electronics disposal		UKCA: UK Conformity Assessment

INDICATORS

WiFi INDICATOR (2)

When turning on the borescope, the WiFi Indicator will begin to slowly blink when transmitting a WiFi signal. Other behaviors detailed below:

COLOR STATUS
Solid green Unit is connected to a phone and is active.
Blinking green No phone connected, actively transmitting a WiFi signal labeled as “KT ET21”.

BATTERY INDICATOR (3)

CHARGING DISCHARGING (IN USE)
COLOR STATUS COLOR STATUS
Solid green 100% charged Solid green 25% to 100% charge remaining
Blinking green 25% to 99% charged Solid red 10% to 24% charge remaining
Blinking red 1% to 24% charged Blinking red 1% to 10% charge remaining
Not Illuminated	0% charged	Not Illuminated	0% charge remaining

OPERATING INSTRUCTIONS

CHARGING THE BORESCOPE BATTERY

NOTE: Fully charge borescope before use.

Connect USB-C cable (included) to USB charging port (4), plug the other end into a computer, USB AC adapter, or other USB power supply (not included). Normal charging time is 3 hours. See INDICATORS section for more details.

NOTE: Only use USB adapters/power supplies that meet specified charging requirements (see GENERAL SPECIFICATIONS section).

DOWNLOADING THE APP

The ET21 app is required for functionality. The app is available for free from Google Play or the App Store.

KLEIN TOOLS

SCAN TO DOWNLOAD THE APP

CONNECTING YOUR DEVICE TO THE BORESCOPE VIA WiFi

1. Press the Power button (1) for approximately 3 seconds to power-on the borescope. The WiFi indicator (2) and Battery indicator (3) will flash on. The WiFi light will flash slowly when the borescope is actively transmitting a WiFi signal. Wait for this to occur before trying to connect the phone to the borescope.
2. Launch the app and follow prompts to establish a connection.
3. Once the WiFi indicator begins to flash slowly, select "KT ET21" from the app menu. If unavailable, wait 10 seconds to ensure the borescope is fully powered on.

NOTE: Phone must be disconnected from the borescope's WiFi signal if an internet connection is required on the phone.

OPERATING INSTRUCTIONS

HH:MM:SS A B I C D E F G H

A Camera Image
B Borescope Battery Status
C Expand/Collapse Controls
D Capture Photo
E Video Start/Stop
F Menu
G Rotate View
H Gallery
I Elapsed Time

OPERATING INSTRUCTIONS

J K J K L M N July 7, 2023 L July 6, 2023 M N

J Image Gallery
K Video Gallery
L Files
M More
N Previous Screen

OPERATING INSTRUCTIONS

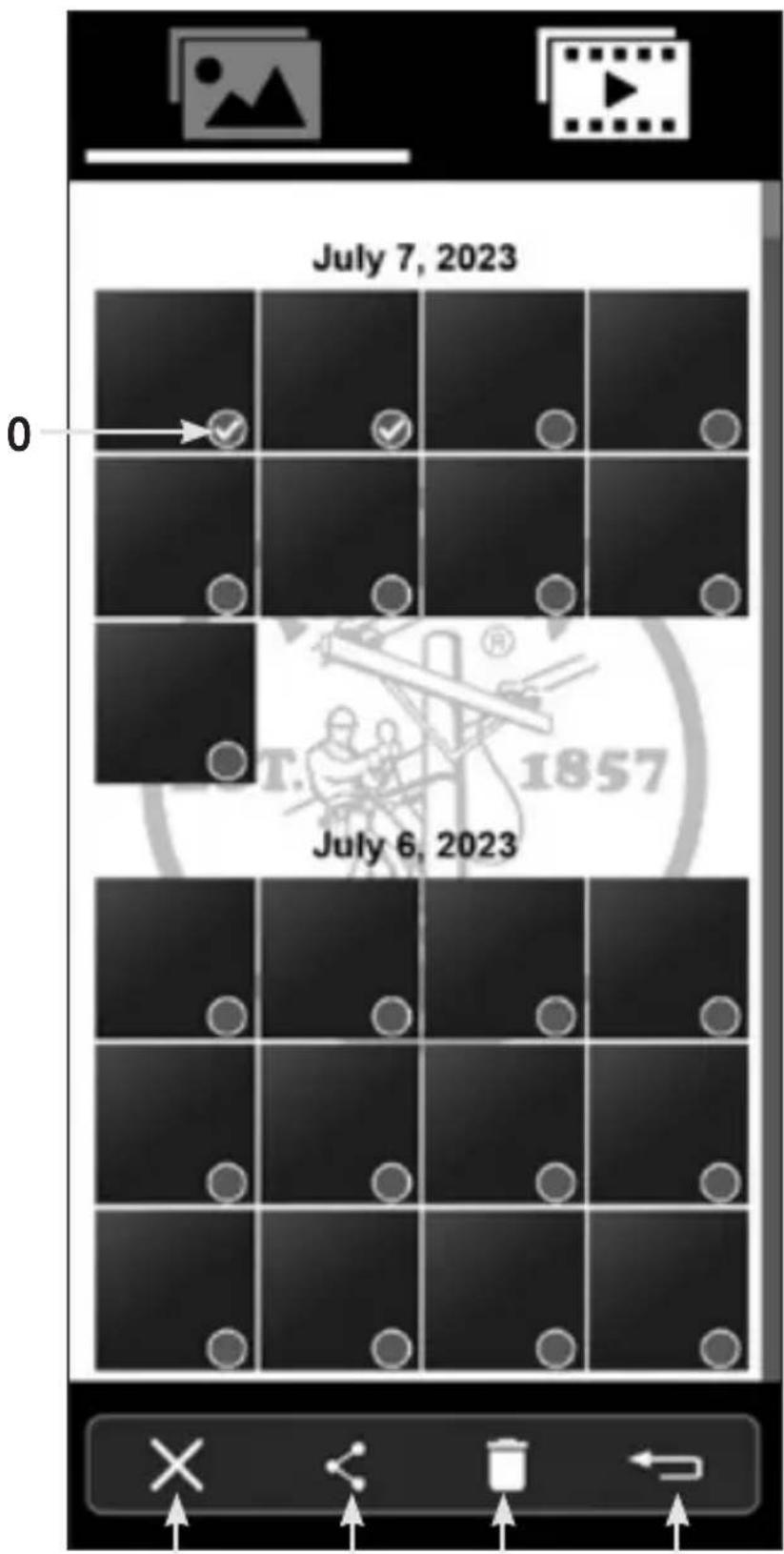

FILE MANAGEMENT MODE BUTTON/ICON DETAILS

July 7, 2023 0 July 6, 2023

0 Select File(s)
P Exit
Q Share
R Delete
S Previous Screen

OPERATING INSTRUCTIONS

APP SCREEN ORIENTATION

The app will display in Portrait or Landscape view, depending on the rotation of the phone. To change the orientation of the app screen, simply rotate the phone 90 degrees.

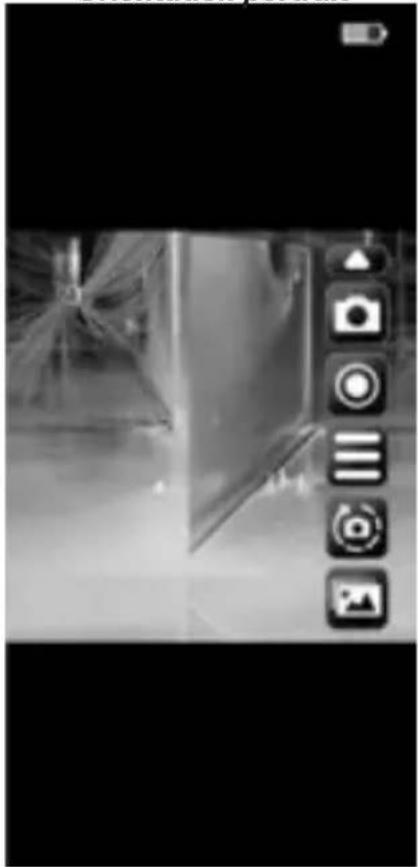

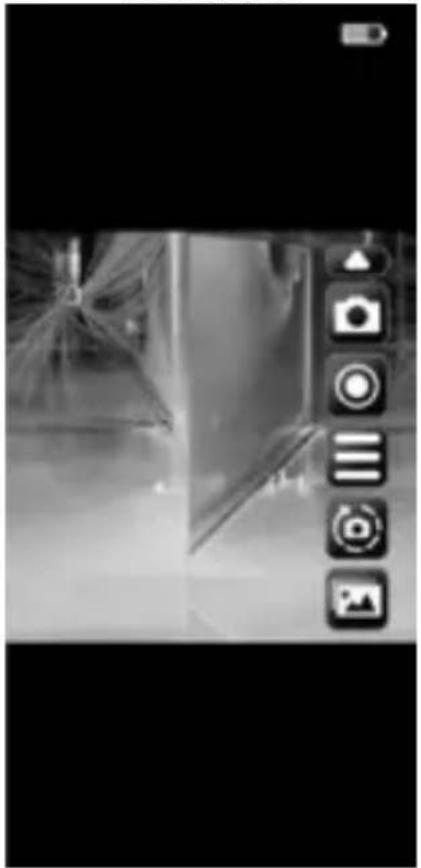

Portrait View

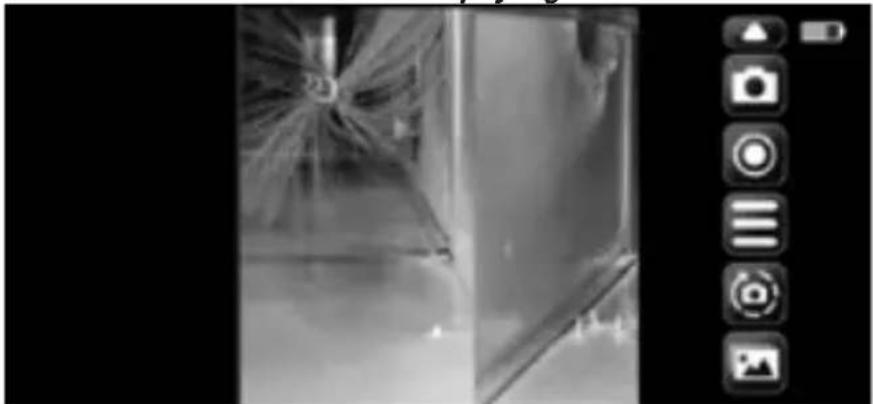

Black and white photo of a window with camera control buttons on the right (no readable text or symbols)

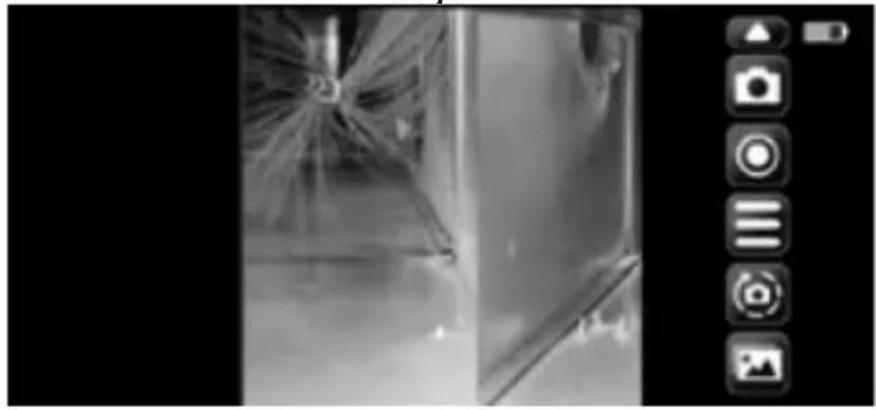

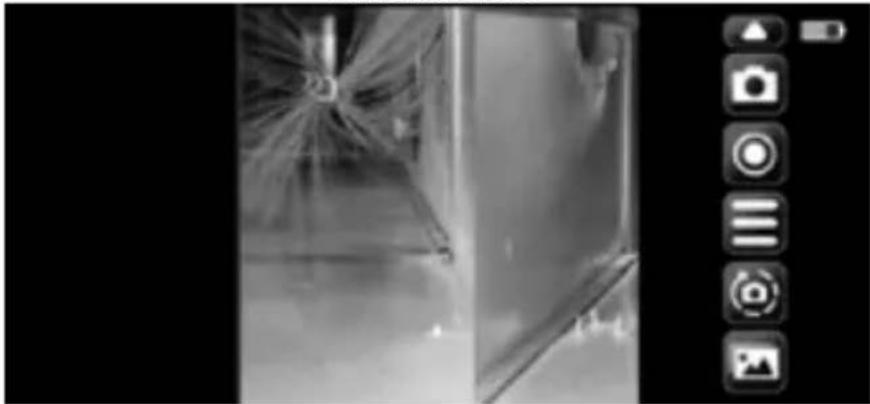

Landscape View

Black and white photo of a glass door with a starburst pattern on the left side, next to a camera control panel (no visible text or symbols)

OPERATING INSTRUCTIONS

ROTATING THE CAMERA IMAGE ON THE APP SCREEN

Sometimes it may be necessary to rotate the camera image relative to the app screen. Each tap of the Rotate Image button (G) will rotate the image clockwise in 90° increments. This does not affect the rotation of the entire app screen, just the camera image.

TAKING PHOTOS

While in Display mode, aim the camera (8) at the subject to be photographed and tap the Capture Photo button (D) to take a photo.

CAPTURING VIDEO

While in Display mode, aim the camera (8) at the subject to be recorded and tap the Video Start/Stop button (E). While recording video, the elapsed time will be shown (I), and the the Video Start/Stop button will turn red and display the square Stop symbol. To end the recording, tap the Video Start/Stop button again (E). The Video Start/Stop button will return to its normal appearance

OPERATING INSTRUCTIONS

VIEWING AND MANAGING PHOTOS AND VIDEO FILES

To access photo and/or video files, tap the Menu button (F), then select the Image Gallery (J) or Video Gallery (K).

Tap on a file (L) to view.

To manage files, tap the Select File(s) icon (O) to select file(s). Once selected, files can be exported, shared (Q) or deleted (R).

NOTE: WiFi to the borescope must be disconnected in the phone's Settings menu in order to send files.

To exit File Management mode, tap the Exit icon (P).

CLEANING

Be sure unit is turned off and wipe with a clean, dry lint-free cloth. Do not use abrasive cleaners or solvents.

STORAGE

Do not expose to high temperatures or humidity. After a period of storage in extreme conditions exceeding the limits mentioned in the General Specifications section, allow the unit to return to normal operating conditions before using.

WARRANTY

Do not place equipment and its accessories in the trash. Items must be properly disposed of in accordance with local regulations. Please see www.epa.gov/recycle for additional information.

CUSTOMER SERVICE

KLEIN TOOLS, INC.

450 Bond Street Lincolnshire, IL 60069

1-800-553-4676

[e-mail]

www.kleintools.com
