Instructions and user manual

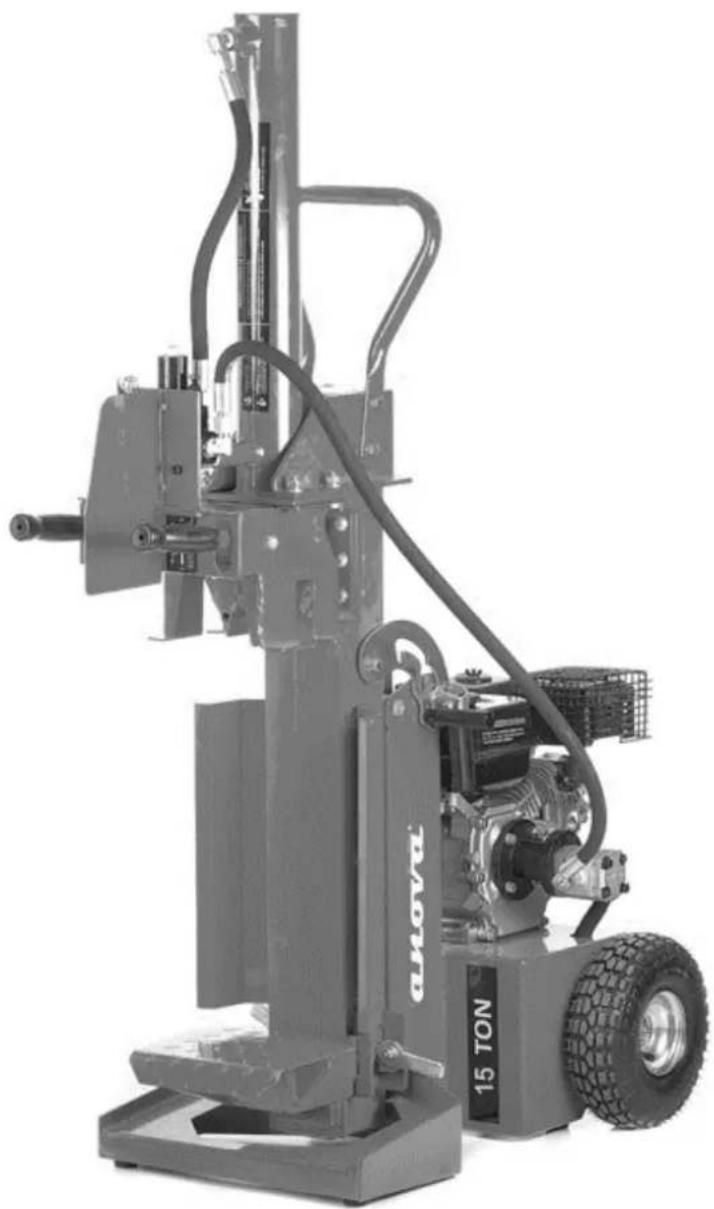

Industrial machine with attached 15-ton load, showing mechanical components and a tire (no visible text or symbols)

EN

ANOVA®

Anova wishes to congratulate you on choosing one of our products and guarantees you the assistance and cooperation that has always distinguished our brand over time.

This machine is designed to last for many years and be very useful if used according to the instructions in the user manual. We therefore recommend that you read this instruction manual carefully and follow all our recommendations.

For more information or questions, you can contact us through our web support services such as www.anova.es

INFORMATION ABOUT THIS MANUAL

Pay attention to the information provided in this manual and on the appliance for your safety and that of others.

• This manual contains instructions for use and maintenance.
• Take this manual with you when working with the machine.
• The contents are correct at the time of printing.
• We reserve the right to make changes at any time without affecting our legal responsibilities.
• This manual is considered an integral part of the product and must remain with it in the event of loan or resale.
• Ask your dealer for a new manual in case of loss or damage.

READ THIS MANUAL CAREFULLY BEFORE USING THE MACHINE

To ensure your machine provides the best results, please read the operating and safety instructions carefully before using it.

OTHER WARNINGS:

Incorrect use could cause damage to the machine or other objects.

Adapting the machine to new technical requirements could cause differences between the content of this manual and the purchased product.

Read and follow all instructions in this manual. Failure to follow these instructions could result in serious personal injury.

INDEX

1. SAFETY INSTRUCTIONS
2. PRODUCT DESCRIPTION
3. TECHNICAL SPECIFICATIONS
4. ASSEMBLY AND INSTRUCTIONS FOR USE
5. MAINTENANCE AND STORAGE
6. TROUBLESHOOTING
7. WARRANTY
8. ENVIRONMENT

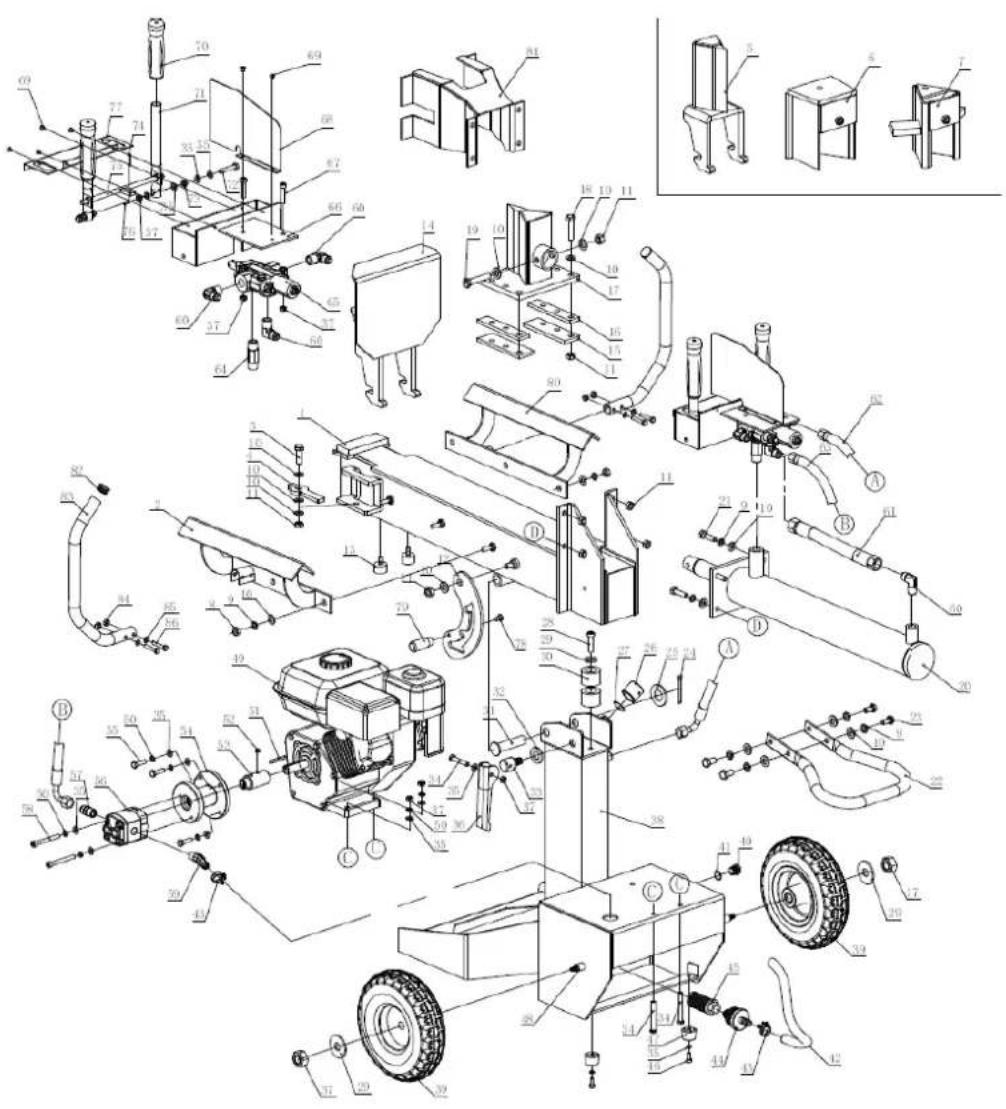

9. EXPLODED VIEW
   10.CE CERTIFICATE

1. SAFETY INSTRUCTIONS

1.1. Safety warnings

▲ Important

Before operating this product, read and follow the instructions below. To prevent injury to yourself and others, you should also follow local safety regulations.

Keep these instructions for future reference. This manual contains safety information to inform you of the hazards and risks associated with the product and how to prevent them. It also contains important instructions that should be followed during product setup, operation, and maintenance.

It is important that you read and understand these instructions before attempting to start or operate this equipment. Make sure you are thoroughly familiar with the controls and proper use of the product. Know how to stop the unit and deactivate controls quickly.

Throughout this manual, notices will appear that inform you of safety instructions and hazards that can cause personal injury and property damage. They include a warning icon to indicate the likelihood and potential severity of an injury.

• Danger/Warning: Indicates a hazard which, if not avoided, could result in serious injury.
• Important/Caution: Indicates a hazard which, if not avoided, could result in minor or moderate injury.
• Note/Notice: Indicates information considered important but not hazard-related.

1.2. Safety symbols

The following safety symbols will be crucial when using this product. Before using, learn their meanings.

Caution

If the safety decals on the machine become worn or damaged beyond readability, they must be replaced. It is the user/operator's responsibility to keep these decals in good condition.

	Read this manual carefullySerious injury or death may occur if safety instructions are not followed.
	The engine is shipped without oil- Before starting the engine, fill with SAE 10W-30 motor oil.- See engine manual for engine oil capacity.- The hydraulic oil tank is shipped without oil. When adding oil, verify that the oil level is 1 from the top of the hydraulic reservoir (not including the filler neck). Closely inspect all log splitter components.- If any components are damaged, please contact your dealer and the shipping agency.Read this manual completelySerious injury or death may result if the safety instructions are not followed. Everyone using the log splitter must read and fully understand all safety rules, operating instructions, and maintenance instructions. Keep untrained persons away.- Turn off the engine before leaving the log splitter unattended.Crushing hazardThe wedge can cut the skin and cause injury. Keep both hands away from the wedge and end plate.- Serious accidents can occur when others are allowed in the work area. Keep everyone out of the work area while using the machine.- Do not wear loose clothing. You can get caught in the log splitter's moving parts.- Only use the breaker in daylight so you can see what you are doing.Loose objectsPieces of logs can fly away while splitting. Wear PPE such as safety glasses. Serious eye injuries can occur.Danger of skin injectionHigh-pressure fluid can be injected under the skin and cause serious injury.- Make sure all connections are tight before use. Relieve system pressure before performing maintenance.- Don't check for leaks with your hand. Instead, use a piece of cardboard.- If an injection occurs into the skin, seek medical attention immediately.
	Risk of fire and explosionHot engine exhaust gases can cause a fire. Gasoline is highly flammable and explosive. You can suffer burns or serious injuries when handling fuel.- Place the exhaust at least 7 feet away from combustible objects.- Before adding fuel, stop the engine and keep away from heat, sparks, and flames. Do not add fuel while the engine is running or still hot. Do not smoke near the engine.- Do not pump fuel directly into the engine at the service station. Static charge can ignite the fuel. Use an approved fuel container. Clean up fuel spills immediately. Move the machine away from spills.- Only store and handle fuel outdoors. Gasoline vapors can ignite if they accumulate indoors, resulting in an explosion.- Do not modify or add to exhaust systems. This may cause fire.- Before each use, check the fuel tank and fuel lines for leaks. Any fuel leak is a fire hazard. Repair any fuel leaks before starting the engine.- During transport, take precautions to ensure that the machine does not tip over and cause a fire hazard from fuel leakage.
	Respiratory hazardEngine fumes are toxic and hazardous. Do not operate the machine indoors, even if it is ventilated. For outdoor use only.
	Hot exhaust.Do not touch the exhaust system, it is hot and can burn you.

1.3. Safety instructions

Warning

Read and follow all safety rules and instructions in this manual before attempting to use this machine. Failure to follow these instructions may result in personal injury.

▲ Important

This machine is capable of amputating hands and feet and throwing objects. Failure to follow the following safety instructions could result in serious injury or death.

• Read, understand, and follow the instructions and warnings in this manual and on the machine, engine, and accessories.
• Only allow operators who are responsible, trained, familiar with the instructions, and physically able to operate the machine.
• Do not carry passengers and keep passers by away.
• Do not operate the machine under the influence of substances that affect attention.

1.3.1. Preparation before use

• Clear the operating area of any objects that could be thrown or interfere with the operation of the machine.
• Keep the operating area clear of bystanders, especially small children and/or pets. Stop the machine and accessories if anyone enters the area.
• Do not operate the machine without all product and other safety devices in place and working properly. Check frequently for signs of wear or deterioration and replace as necessary.
• Wear appropriate personal protective equipment, such as safety glasses, hearing protection, and footwear.

1.4. Residual risks

▲ Important

Even if the product complies with relevant safety regulations, residual risks may exist given the characteristics of the equipment and the work for which it was designed.

Residual risks can be minimized by following the safety instructions.

• You will reduce the risk of personal injury and damage to equipment by following these instructions and exercising caution.
• Failure to follow these safety instructions may result in injury to the operator or damage to property.
• Lack of care, improper use, or failure to follow safety rules can cause injuries to hands and fingers when the wedge is in motion.
• There is a risk of hearing loss when working with the machine without protection for long periods.

Note: Even if you take preventative measures, there may be residual risks that are not obvious. Stay in bed and use common sense.

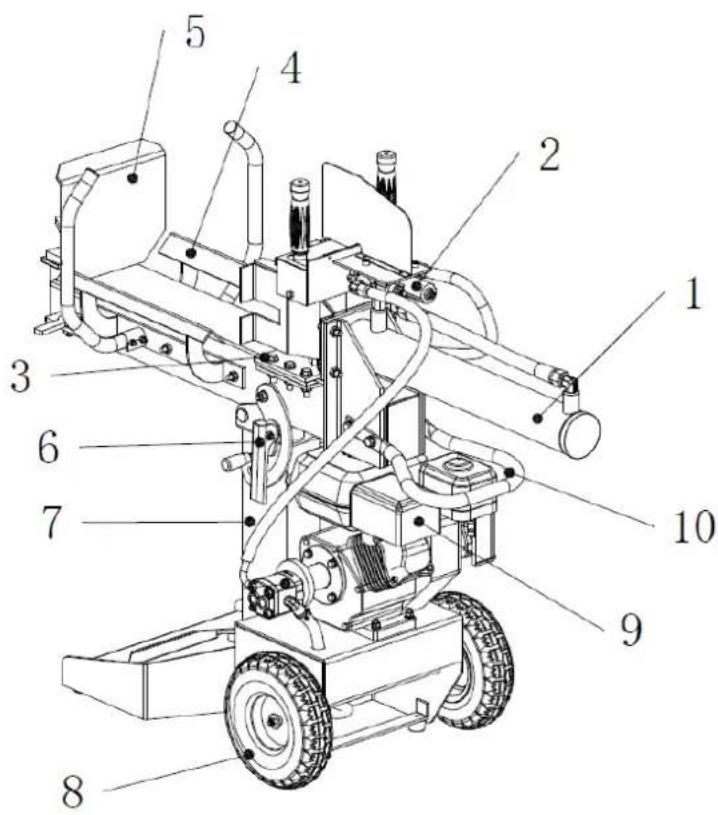

2. PRODUCT DESCRIPTION

Technical diagram of a mechanical device with numbered components for identification

1. Hydraulic cylinder.
2. Control valve handle.
3. Wedge.
4. Trunk guide and protector.
5. Lower trunk support.
6. Locking unit.
7. Main body.
8. Wheel.
9. Engine.
10. Handlebar.

3. TECHNICAL SPECIFICATIONS

Characteristics
Engine	4 times
Cylinder capacity	208 cc
Power	7 HP – 5.1 kW
Maximum pressure	3500 PSI
Hydraulic tank capacity	4.5 L
Cutting length	520 mm
Maximum cutting diameter	400 mm
Working pressure	15 Ton
Recommended engine oil type	SAE30

Note: Due to design improvements and/or changes in specifications, this manual may be modified without prior notice and without the need to change the document. The manufacturer reserves the right to make design improvements and/or changes in specifications at any time without incurring any obligation to install them on previously sold units.

4. ASSEMBLY AND INSTRUCTIONS FOR USE

4.1. Mounting

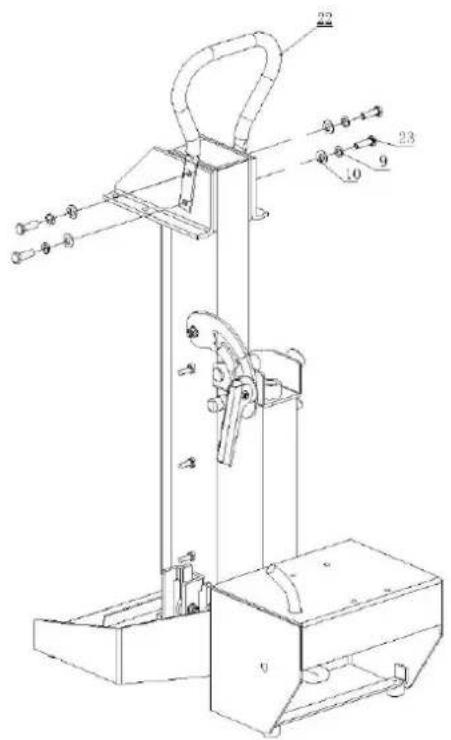

4.1.1. Step 1: Lock and Handle Assembly

Technical diagram of a mechanical device with labeled parts and numbered annotations

Attach the handle (#22) to the end of the beam with the bolt (#23), spring washer (#9) and washer (#10).

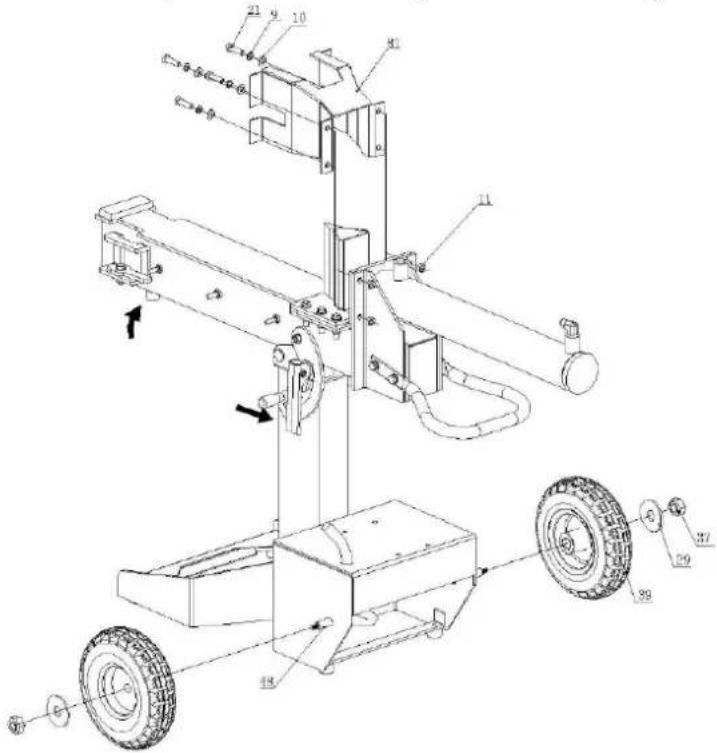

4.1.2. Step 2: Wheel and cylinder assembly

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly.

1. Adjust the beam to a horizontal position and secure it with the locking system.

2. Assemble the cylinder and wedge guard to the beam using a hex bolt (#21), spring washer (#9), flat washer (#10), and nut (#11).

3. Assemble the 2-piece wheels (#39) to the main body using the wheel axle (#48), flat washer (#29) and nut (#37).

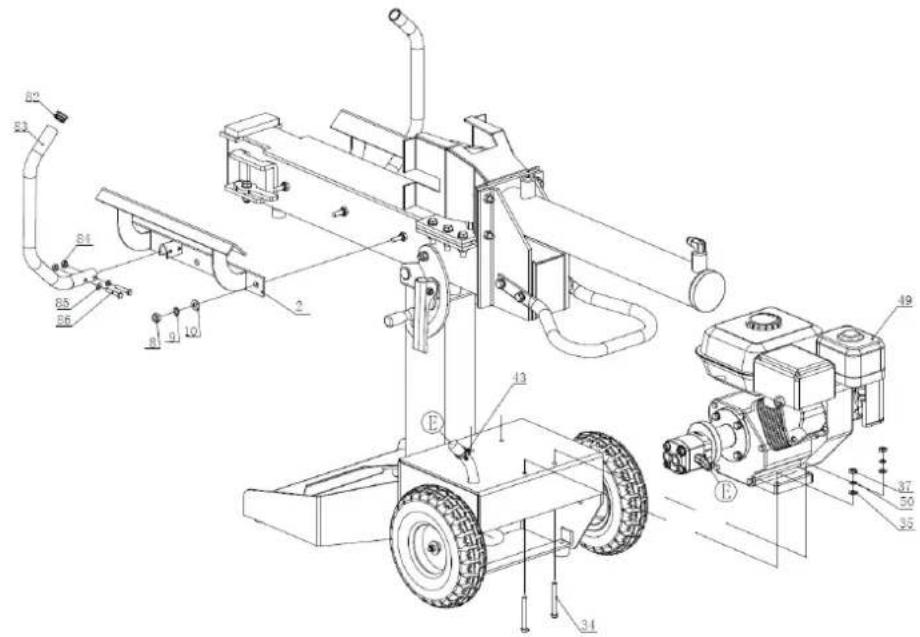

4.1.3. Step 3: Registration and Engine Mounting Guide

1. Mount the left and right registration guide (#2) using nuts (#8), spring washer (#9) and flat washer (#10).
2. Secure the motor assembly to the main body using bolts (#34), flat washer (#35), spring washer (#50) and nuts (#37).

Technical diagram of a mechanical assembly with numbered components and labeled parts

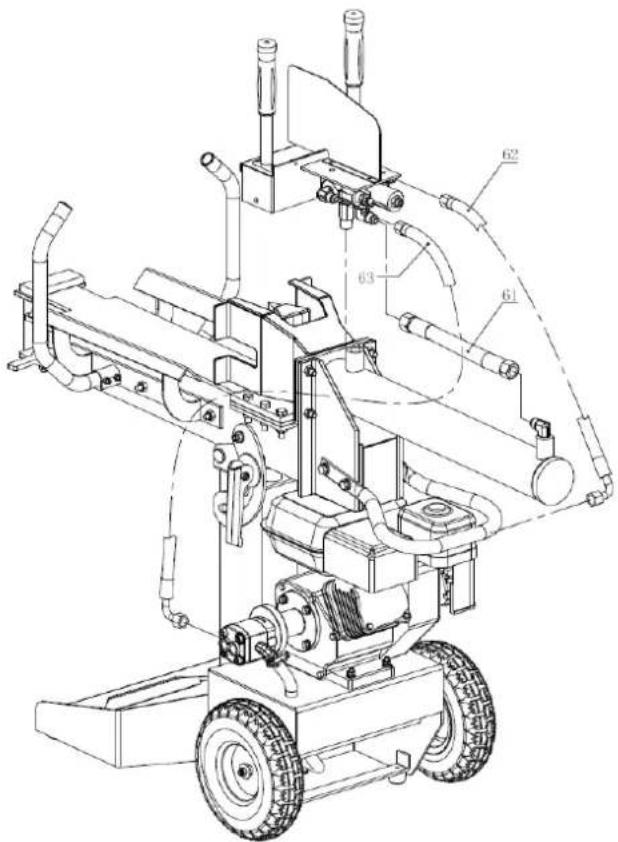

4.1.4. Step 4: Assembling hydraulic hoses

Technical line drawing of a mechanical pump or lift assembly with numbered components labeled 61, 62, and 63.

1. Attach the hydraulic hose (#63). Use a high-pressure hose (#63) to attach it to the control valve and the engine gear pump. Attach one end to the control valve's inlet fitting (previously attached at the factory) and the other end to the engine gear pump.
2. Using the other hydraulic hose (#62), which will be mounted to the control valve and oil tank, attach one end to the control valve outlet fitting (previously attached at the factory) and the other end to the oil tank.
3. Then mount the Oil Pipe to the gear pump, secure it with the clamp (#43).
4. Connect the control valve and cylinder with the oil tube (#61).

4.2. Instructions for use

Correct operation of the log splitter

1. Load a log onto the beam and against the wedge.
2. Serious accidents can occur when others are allowed in the work area. Keep everyone out of the work area while operating the machine.
3. Push the control valve handle forward with both hands to split the log.
4. Push the control valve handle back with both hands to return the wedge to its original position.
5. Clear split wood from the work area.

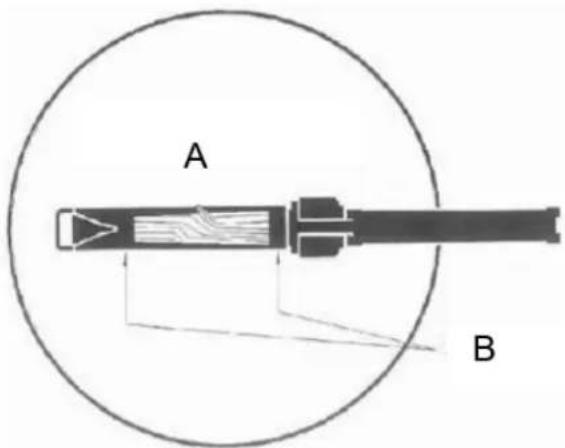

A B

A. Work area
B. Impact zone

Warning

Crushing hazard

The wedge can cut skin and cause serious injury. Keep both hands away from the wedge and the sliding beam.

• Serious accidents can occur when others are allowed in the work area. Keep everyone else out of the work area while operating the control valve.
• Do not wear loose clothing. You may get caught in the log splitter's moving parts.
• Only use the log splitter in daylight so you can see what you are doing.

5. MAINTENANCE AND STORAGE

Proper maintenance is essential for safe operation and to minimize machine problems. Follow the inspection and maintenance recommendations and schedules in this manual.

Warning

Improper maintenance or failure to correct a problem before operation or the use of spare parts not approved by the manufacturer may cause malfunction and result in serious personal injury.

• Before performing any maintenance, turn off the engine.
• Always wear appropriate PPE while making adjustments or repairs.
• Refer to your engine owner's manual for more information on engine maintenance. Contact your dealer for proper maintenance.

Attention

If you are unsure how to perform any of the maintenance items listed below, please contact your authorized dealer for assistance.

Before adjustments and repairs:

• Use only the correct tools.
• Do not modify any element that affects the engine or the use of the machine.
• Replacement parts must be approved by the manufacturer.

5.1. Maintenance

Before performing maintenance, the log splitter must be placed in maintenance mode.

1. Turn off the engine.
2. Move the control valve handle back and forth to relieve hydraulic pressure.

After performing maintenance, ensure all guards, shields, and safety features are replaced. Failure to follow this warning may result in serious injury.

That	When	As
Hoses Each use		Inspect exposed wire mesh and leaks. Replace all worn or damaged hoses before starting the engine.
Hydraulic fittings	Each use	Inspect for cracks and leaks. Replace all damaged connections before starting the engine.
Nuts and bolts	Each use	Check for loose screws
Beam	Each use	Apply grease to the surface of the beam.
Moving parts	Each use	Clean up debris

Caution

Residual hydraulic energy

Pressurized hydraulic fluid must release residual energy before performing any maintenance or repair work on the wood chipper. Hydraulic fluid may be highly pressurized even when the chipper's engine is off. Escaping pressurized hydraulic fluid can penetrate skin and cause serious injury.

To release residual hydraulic energy:

1. Turn off the engine
2. Move the control valves back and forth, from one travel limit to the other, at least four times.
3. Hold the valve for three seconds at each travel limit.

6. TROUBLESHOOTING

Warning

Before performing any maintenance, turn off all controls and stop the engine. Wait until all moving parts have come to a complete stop. Always wear safety goggles during operation or while making adjustments or repairs.

Note: If you are unable to resolve the machine issues, take the product to your authorized Anova dealer.

Problem Solution
The cylinder rod does not move SOLUTION: A, D, E, H, J
Slow speed of the cylinder axis when extending and retracting	SOLUTION: A, B, C, H, I, K, L
The wood does not break or breaks extremely slowly.	SOLUTION: A, B, C, F, I, K
The engine stalls during splitting SOLUTION: G, L
The engine stalls under low load conditions SOLUTION: D, E, L, M
Problem Solution
A- Insufficient oil to pump	Check the oil level in the tank
B- Air in oil Check the oil level in the tank
C- Excessive vacuum at the pump inlet	Check that the pump inlet hose is not blocked or kinked.
D- Blocked hydraulic hoses	Flush and clean the hydraulic system of the divider
E- Control valve blocked	Flush and clean the hydraulic system of the divider
F- Low control valve setting	Adjust the control valve with a pressure gauge
G- High control valve setting	Adjust the control valve with a pressure gauge
H- Damaged control valve Send the control valve for repair
I- Internal leak in the control valve	Send the control valve for repair
J- Internal cylinder leak Send the control valve for repair
K- Internally damaged cylinder	Send the control valve for repair
L- Engine control out of adjustment	Adjust the idle control nuts
M- The engine is loaded during idle mode	Use a shorter log (20" or less) to allow the engine to accelerate before contact.

Note: If you have any questions or problems persist after performing the above steps, please contact your authorized dealer.

Warning

Do not perform any maintenance while the engine is running.

7. WARRANTY

If your product experiences a manufacturing defect during the established warranty period, please contact or go to your point of sale directly with the necessary documentation.

Your purchase invoice must be kept as proof of the purchase date. Your tool must be returned to your dealer in acceptable, clean condition, in its original molded case, if applicable, and accompanied by your corresponding proof of purchase.

7.1. Warranty period

The legal warranty period for the product begins on the original date of purchase by the initial purchaser and will last as long as established by the Royal Decree-Law on the Protection of Consumers and Users from Situations of Social and Economic Vulnerability for the year corresponding to the time of purchase of the product.

Some countries do not allow limitations on how long an implied warranty lasts or do not allow the exclusion or limitation of consequential or incidental damages, so the above limitation and exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or country to country.

7.2. Exclusions

This warranty does not cover damage to the product or performance problems caused by:

• Natural wear and tear due to use.
• Misuse, negligence, careless operation or lack of maintenance.
• Defects caused by improper use, damage caused by manipulation carried out by personnel not authorized by Anova, or use of non-original spare parts.
• Defects in normal wear parts, such as bearings, brushes, cables, plugs, or accessories such as drills, bits, saw blades, etc.
• Damage or defects resulting from abuse, accidents or alterations.
• Incorrect use and storage (explicit reference to the fact that the rules described in the operating instructions have not been followed).
• Wear caused by the customer (e.g. broken saw blades, consumed carbon brushes, etc.).
• Wear and secondary damage due to lack of maintenance, repair, lubricants (e.g., overheating damage due to blocked cooling slots, bearing damage due to dirt, frost damage, etc.)
• Damage as an obvious result of overuse/overload.
• Damage caused by inappropriate supplies (e.g., incorrect fuel)
• Load-induced fracture of housing components or accessories due to abnormal stress
• Load-induced deformation of housing components or accessories due to abnormal stress.
• Damage resulting from the operation of supplies that are overfilled or leak due to improper storage, inappropriate cleaning agents, or other damaging chemical components.
• Damage due to improper exposure to extreme temperatures (e.g., frost fractures, thermal deformation of components, etc.)
• Damage from permanent exposure to ultraviolet radiation.
• Damage caused by inadequate maintenance.
• Any damage caused by non-compliance with the instruction manual
• Any product that has been attempted to be repaired by an unqualified professional.
• Any product connected to an improper power source (amps, voltage, frequency).
• Any damage caused by external influences (water, chemicals, physical, impacts) or foreign substances.
• Use of unsuitable accessories or parts.
• It does not include defects due to normal wear and tear, nor does it cover damage or defects resulting from abuse, accidents or alterations, nor transportation costs.

The warranty is also void if the product has been altered or modified, or if the machine's trademark/serial number has been defaced or removed.

Routine maintenance, tune-ups, adjustments, or normal wear and tear are not covered under this warranty.

This manual does not cover all possible warranty exclusions; for more information, please contact your nearest Anova dealer.

7.3. In case of incident

The warranty must be properly completed with all the requested information and accompanied by the purchase invoice.

Anova reserves the right to reject any claim where the purchase cannot be verified or where it is clear that the product was not properly maintained (maintenance, clean ventilation slots, lubrication, carbon brushes regularly serviced, cleaning, storage, etc.).

Private use is defined as personal domestic use by an end consumer. Commercial use, on the other hand, refers to all other uses, including uses for business, income-generating, or rental purposes. Once a product has been used for commercial purposes, it will henceforth be considered a commercial product for the purposes of this warranty.

These are our standard warranty terms, but occasionally there may be additional warranty coverage not specified at the time of publication. For more information, please contact your nearest authorized Anova dealer or visit www.millasur.com.

Warranty service is only available through official Anova dealers. You can find your nearest dealer on our dealer map at www.anova.es.

8. ENVIRONMENT

It's essential to ensure that products and their components are disposed of responsibly to protect the environment. Below, you'll find general guidelines for the proper disposal of various materials used in your machine.

Dispose of your machine in an environmentally friendly manner. Machines should not be disposed of with household waste. Their plastic and metal components can be sorted according to their nature and recycled.

When disposing of machinery or metal products, keep in mind that their metal components, such as iron, steel, or aluminum, must be properly recycled in metal recycling facilities. This will contribute to the possibility of reusing them in the manufacture of new products.

Oils and Fuels

Used oils and fuels, among other things, must be recycled properly. Do not pour these liquids into drains, soil, rivers, lakes, or seas, as they can cause serious environmental damage. Direct them to a recycling center or specialized collection point. This process helps prevent water and soil contamination and, if possible, allows the oils to be reused safely.

Plastics

Plastics should be separated and taken to specific recycling points. Do not dispose of them with general household waste. Plastics can be recycled, contributing to waste reduction.

EN

Cardboard

Packaging materials, such as cardboard, are recyclable. Be sure to separate clean, dry cardboard and place it in designated recycling containers or at an official waste collection point. Do not dispose of it with household waste.

Batteries

Batteries, accumulators, and other electronic components from the machines must be disposed of at designated collection points to prevent the release of toxic substances into the environment. Do not dispose of them with regular trash. Take them to appropriate recycling centers for safe and responsible handling.

By following these guidelines, you are contributing to environmental protection and resource conservation. For more information on disposal and recycling, please contact your local authorities for further information.

9. EXPLODED VIEW

Technical schematic diagram of a mechanical assembly with numbered components and exploded views

DISTRIBUTION COMPANY

MILLASUR, SLU

EC DECLARATION OF CONFORMITY

In compliance with the various EC directives, it is hereby confirmed that, due to its design and construction, and according to the CE mark printed on it by the manufacturer, the machine identified in this document complies with the relevant and fundamental health and safety requirements of the aforementioned EC directives. This declaration qualifies the product for displaying the CE symbol.

If the machine is modified and this modification is not approved by the manufacturer and communicated to the distributor, this declaration will lose its value and validity.

Machine name: WOOD BREAKER

Model: RLT15GVH

Recognized and approved standard to which the following are adapted:

Directive 2006/42/EC

2014/30/EU

Tested according to regulations:

EN 609-1:2017, EN 55012:2007 + A1:2009

Company seal

MILLASUR, S.L.U. Rúa Eduardo Pondal,23 - Pol.Emp..Sigüeiro 15688-Oroso-A Coruña Tel.[phone] - Fax [phone] e-mail: [e-mail] CIF: B-15 749 922

05/26/2025

Brennholzbrecher

RLT15GVH

ANOVA®

Industrial machine with attached 15-ton load, showing mechanical components and a tire (no visible text or symbols)

DE

ANOVA®

Technical diagram of a mechanical device with numbered parts for identification

Technical diagram of a mechanical device with numbered components and labeled parts

Technical diagram of a mechanical assembly with labeled components and motion indicators

Technical diagram of a mechanical assembly with numbered components and labeled parts

Technical line drawing of a mechanical pump or lift assembly with numbered components labeled 61, 62, and 63.

Technical schematic diagram of a mechanical assembly with numbered components and exploded views

10. CE-ZERTIFIKAT

Industrial machine with attached 15-ton tire, no visible text or symbols on the device itself

NL

ANOVA®

ANDERE WAARSCHUWINGEN:

2. PRODUCTBESCHRIJVING

Technical diagram of a mechanical device with numbered components for identification

Technical diagram of a mechanical device with labeled parts and numbered annotations

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly.

Technical diagram of a mechanical assembly with numbered components and labeled parts

Technical line drawing of a mechanical pump or lift assembly with numbered components labeled 61, 62, and 63.

6. PROBLEEMOPLOSSING

⚠ Waarschuwing

Technical schematic diagram of a mechanical assembly with numbered components and exploded views

DISTRIBUTIEBEDRIJF

MILLASUR, SLU
