USER MANUAL 67902 Lund

Close-up of a white LUND meat processing tool with a metallic handle and control knob (no visible text or symbols)

CE

Exploded view diagram of a kitchen appliance with numbered parts for identification

PL EN

Line drawing of a hand operating a portable device with a hose, showing mechanical components and a directional arrow (no text or symbols)

Line drawing of a hand operating a manual kitchen tool with a circular cutter (no text or symbols)

Line drawing of a hand using a coiled tool to interact with a mechanical device (no text or symbols)

Line drawing of a hand using a manual electric shaver to press or install a cylindrical component (no text or symbols present)

Line drawing of a hand using a manual electric shaver to lift a motor, showing the blade and handle (no text or symbols)

Line drawing of a hand using a food processor with a rotating button (no text or symbols)

Line drawing of a hand using a manual electric shaver to feed noodles from a bowl (no text or symbols)

Line drawing of a hand holding a small mechanical component with a directional arrow indicating motion (no text or symbols)

PL EN DE RU UA LT LV CZ SK HU RO ES FR IT NL GR BG PT HR AR

Line drawing of a hand turning a small mechanical component with a circular head, showing no text or symbols.

Line drawing of a hand using a manual electric shaver machine to generate food, with no text or symbols present.

Line drawing of a food robotic mill with exploded view and side view (no text or symbols)

Line drawing of a manual kitchen tool with a circular component and directional arrow (no text or symbols)

Line drawing of a hand operating a small kitchen tool with a circular component, showing motion arrows (no text or symbols)

This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.

Read the operating instruction

Safe contact with food

WYPOSAŻENIE PRODUKTU

Nasadka do kibbe (IX)

PRODUCT CHARACTERISTICS

The meat grinder is used for mechanical processing of meat and other food. Thanks to its rich equipment, the grinder significantly speeds up and facilitates many kitchen tasks. The product was designed for home use only and it is forbidden to use it in commercial applications. The correct, reliable and safe operation of the device depends on proper use, therefore:

Before using this product, please read the entire manual and keep it for future reference.

The manufacturer is not liable for any damage resulting from failure to comply with the safety regulations and recommendations of this manual.

PRODUCT EQUIPMENT

The product is delivered complete, but requires preparatory activities before starting work. The machine is equipped with a meat grinder, a sausage stuffing attachment and a kibbe (kebbe) attachment.

SAFETY INSTRUCTIONS

WARNING! Read all instructions below. Failure to follow them may result in electric shock, fire or injury.

FOLLOW THE INSTRUCTIONS BELOW

Do not use the device in an environment with an increased risk of explosion, containing flammable liquids, gases or vapors. The device must be placed on flat, even and hard surfaces. If the device is equipped with rubber feet or suction cups, choose a surface such that the feet or stands prevent the device from moving during use. Do not place the device near sources of heat or fire. The device must only be connected to a power supply with the voltage and frequency indicated on the device's rating plate. The device must be connected to a socket with a protective contact. The power cord plug must fit the socket. Do not modify the plug. Do not use any adapters to adapt the plug to the socket. An unmodified plug that fits the socket reduces the risk of electric shock. After each use, disconnect the power cord plug from the socket. Do not pull on the cable. Always remove the plug from the socket by grasping its housing. Avoid contact with grounded surfaces such as pipes, radiators and refrigerators. Grounding your body increases the risk of electric shock. The device is intended for indoor use only. Do not expose the device to precipitation or moisture. Water or moisture entering the device increases the risk of electric shock. Do not immerse the device in water or other liquids. Do not pour water into the product bowl while it is in use. Do not overload the power cord. Do not use the power cord to carry, connect or disconnect the plug from the power outlet. Avoid contact between the power cord and heat, oil, sharp edges and moving parts. Damage to the power cord increases the risk of electric shock. If the power cord is damaged (e.g. cut, melted insulation), immediately disconnect the plug from the socket and take the product to an authorized repair center. It is forbidden to use the device with a damaged power cord. The power cord must not be repaired, it must be replaced by a new one at an authorized service center. When using extension cords, use extension cords with the power supply parameters shown on the device's rating plate. The cross-section of the extension cord's cores should not be smaller than the cross-section of the cores of the device's power cable.

EN

This should be checked on the insulation of the power cable and extension cord or contact the manufacturer of the device and/or extension cord. Do not use the product with any damaged elements or with damaged equipment. If you notice damage to any part of the device, its further use is prohibited. In such a case, the device should be sent to an authorized service center or the part should be replaced by yourself, if the user manual allows such repair actions. Before starting any activities related to replacing, cleaning or adjusting moving parts, the device should be switched off and the power cord plug should be disconnected from the mains socket. The device may be used by children older than 8 years and by persons with reduced physical, mental capabilities and persons lacking experience and knowledge of the device, if supervision or instruction is provided regarding the use of the device in a safe manner so that the associated risks are understood. Children should not play with the device. Children should not clean or maintain the device without supervision. The appliance is intended for home use only. It is recommended not to exceed 2 minutes of continuous operation, after which the appliance should be left for approx. 20 minutes to cool down. During this time, the power cord plug should be disconnected from the mains socket. The maximum continuous operation time should not exceed 10 minutes, after which the product should be turned off and left to cool down by itself for another 10 minutes. Overloading the product leads to its faster wear and may also cause damage to the product. Do not use the grinder to grind hard parts of food. Meat should be prepared for grinding by removing skin, bones and cartilage. Other food products should be prepared for grinding by removing seeds, stalks, shells and all other hard parts. Do not grind frozen food products.

PRODUCT SERVICE

Preparing for work

Remove the product from the packaging, remove all packaging elements, and then wash all parts mounted to the drive unit according to the instructions in the section: „Product maintenance”.

Set up the product according to the instructions in the manual.

Install the meat grinder attachment body. The body should be installed by placing it on the mounting socket turned at an angle (II).

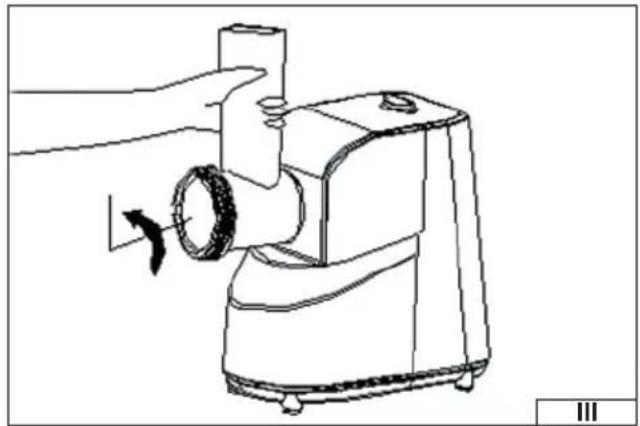

Press the attachment towards the socket and then turn it so that the inlet opening is facing upwards (III).

During assembly, you will hear the characteristic sound of the latch securing the attachment body in the socket.

If you experience problems with assembly, you can always press and hold the attachment lock button, attach the attachment and release the lock button.

Check correct assembly.

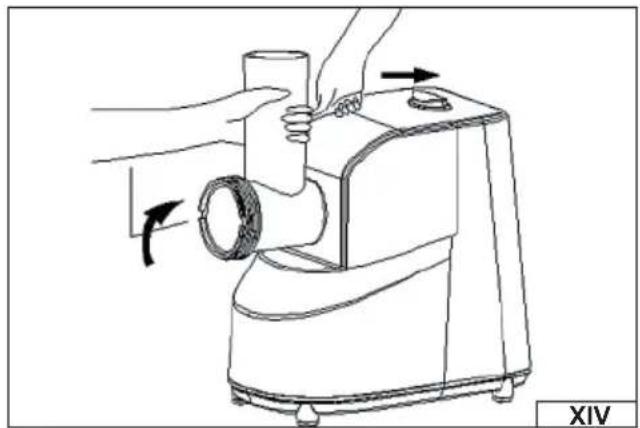

A correctly mounted attachment body cannot be dismantled except by pressing the lock button first. Then, turn the attachment body a small angle and dismantle it from the mounting socket (XIV).

Meat grinder attachment

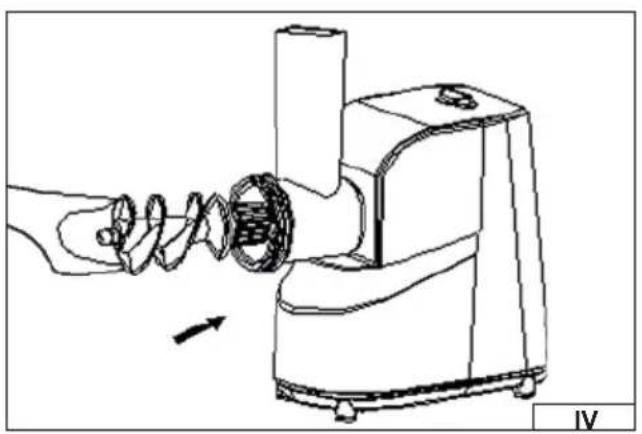

Connect the attachment body to the mounting socket. Insert the grinding auger into the body so that the drive axis fits into the auger hole (IV).

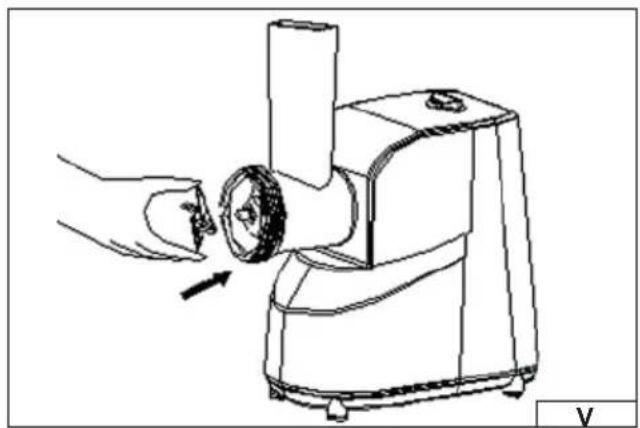

Place the blade on the square socket, with the cutting edges facing outwards from the attachment (V).

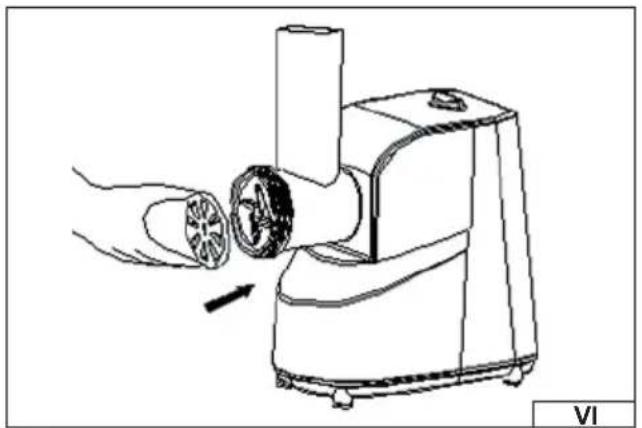

Put on the sieve. The sieve has positioning protrusions on the edge, which should fit into the cutouts on the front of the attachment (VI). The sieves included with the product have holes of different diameters. The smaller the holes, the more food products will be crushed during grinding.

Note: Only one strainer can be installed at a time.

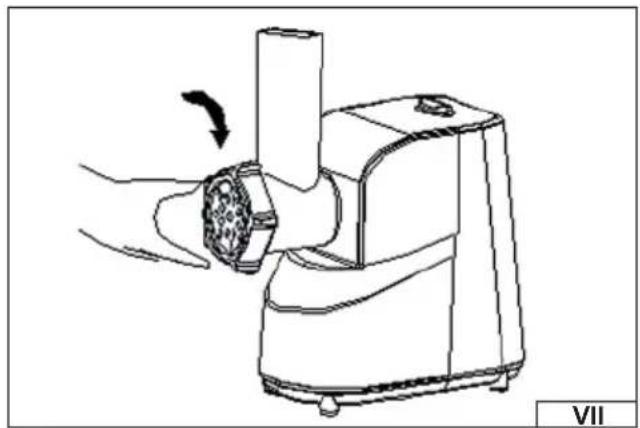

Screw the mounting nut (VII) onto the outlet thread of the attachment.

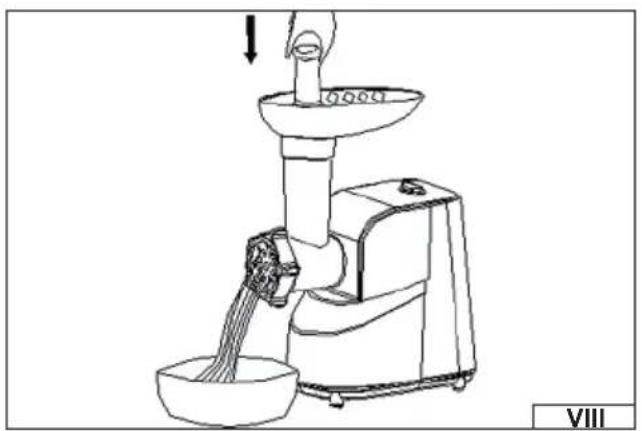

Place the feed tray (VIII) on the inlet opening.

Check whether the push rod can be inserted and removed from the inlet hole (VIII) without any difficulties.

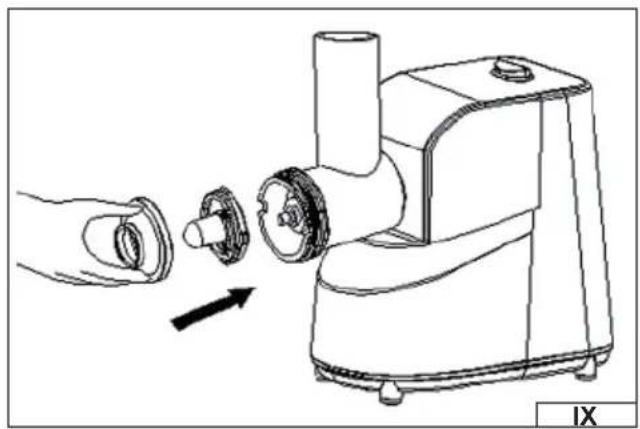

Kibbe attachment (IX)

Connect the attachment body to the mounting socket and insert the grinding auger inside the body.

The rear of the kibbe attachment is equipped with positioning tabs that should fit into the cutouts at the front of the attachment.

EN

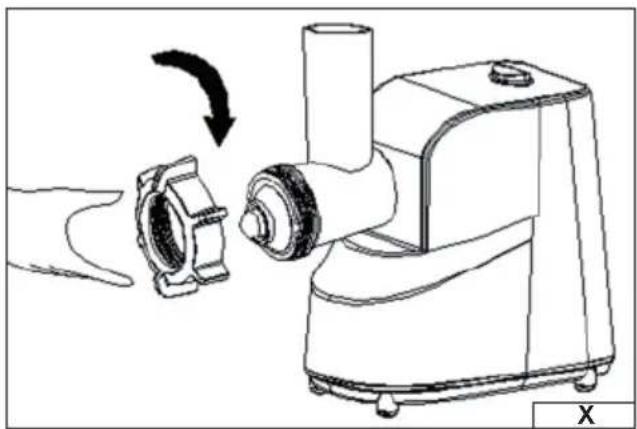

Place the front part of the kibbe attachment on and secure everything by tightening the mounting nut (X).

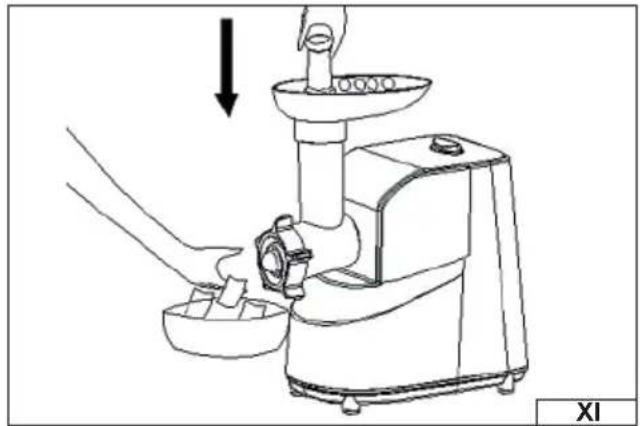

After installing the attachment, place a container under its outlet. The product is ready to use (XI).

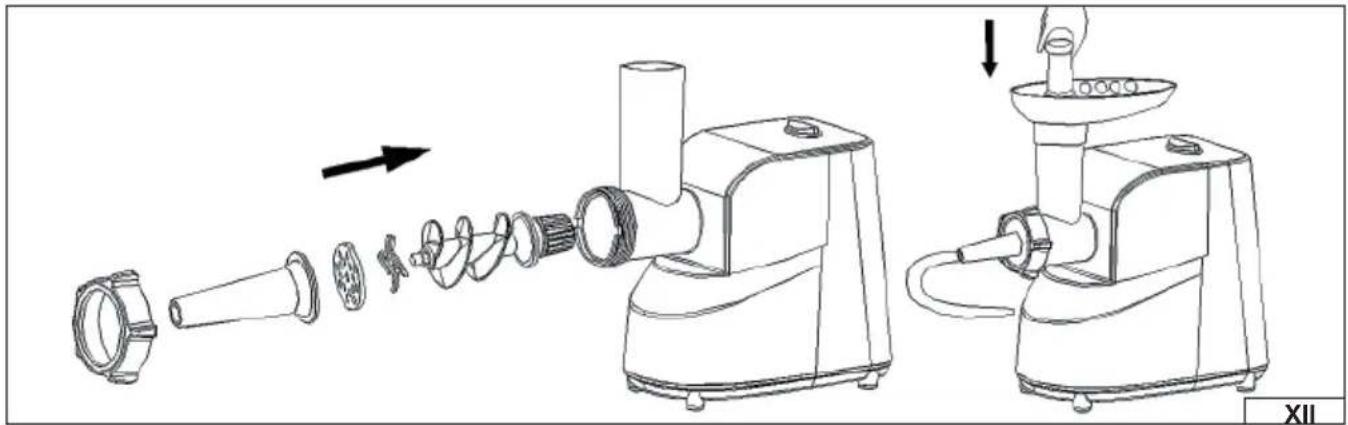

Sausage stuffi ng attachment (XII)

Assemble the meat grinder attachment, but before screwing on the mounting nut, install the sausage stuffing attachment.

After installing the attachment, place a container under its outlet. The product is ready to use.

Product launch

Make sure the power switch is in the OFF position, then plug the power cord into the outlet.

The product has a switch that can be set to three positions:

OFF - product turned off ;

ON - product turned on;

R - reverse gear.

The device will start after setting the switch to the ON position. The switch does not need to be held in this position.

The device is switched off by moving the switch to the OFF position. To do this, lightly press the button in the place marked R and release the pressure. Wait until the engine stops rotating.

The switch position marked R is intended for short-term reverse gear. Press and hold the switch in this position. The auger starts rotating in the opposite direction, which allows you to clean the inside of the attachment from food. Releasing the pressure on the switch will cause the switch to automatically return to the OFF position, thus stopping the device.

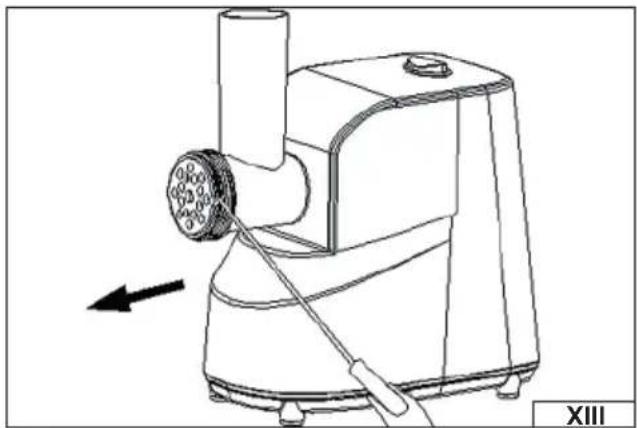

Reverse gear should be used when the grinder's efficiency drops. Rotating the auger in the opposite direction allows the food to be withdrawn from the attachment. Then restart the machine by turning the switch to the ON position and grind the food again. If the efficiency continues to drop, stop the machine, disconnect the attachment, disassemble it and clean it manually (XIII) and follow the instructions in the "Maintenance and storage" section.

After finishing work, turn off the device by moving the switch to the OFF position, then disconnect the product's power cable plug from the power outlet and proceed to maintain the product.

MAINTENANCE AND STORAGE

WARNING! Never immerse the drive housing in water or any other liquid. This may cause electric shock and damage to the product. All attachment and attachment elements can be immersed in water or washed under a stream of water after disconnecting them from the drive unit.

The parts of the appliance that have been in contact with food should be cleaned immediately after use. Dried food residues can stick to the product elements, which can lead to a decrease in the efficiency of the appliance or even its damage. However, if this happens, immerse the parts that are described as immersible in warm water with added dishwashing liquid and leave to soak, then clean with a soft sponge or brush and water with dishwashing liquid. None of the parts of the appliance are suitable for washing in mechanical dishwashers. This can lead to loss of shape, color, texture of the materials from which they were made.

Clean the holes in the grinder attachment sieves with a soft plastic brush. Do not use sharp objects (including scouring pads) to clean any part of the product.

Clean the drive housing with a soft cloth dampened with a solution of water and a mild detergent. Wipe dry. Do not use abrasive cleaners.

Before connecting the device to the power supply, make sure that all parts have been cleaned and dried. Store the product in dry and shaded places. Protect the storage area from access by unauthorized persons, especially children. Store the product in the individual packaging supplied with the product.

TECHNICAL PARAMETERS

Parameter Unit of measurement Value
Catalogue number 67902
Nominal voltage [V~] 220 - 240
Nominal frequency [Hz] 50
Rated power [W] 350
Electrical protection class II
Mass	[kg]	1,4
