USER MANUAL Booster iSize BabyGO

Abstract logo design with a stylized lowercase 'b' inside a cloud-like outline (no text or symbols)

BOOSTER I-SIZE

ASSEMBLY INSTRUCTIONS

BOOSTER I-Size - Simplex poussette

MANUEL D'INSTRUCTIONS

babyGO

BabyGo Baby Products GmbH

Am Bahndamm 1-3

Line drawing of a babyGO backpack with ribbon (no text or symbols on the backpack itself)

BOOSTER I-SIZE

Seite 04 - 11

DEUTSCH

Page 12 - 19

ENGLISH

Page 20 - 27

FRANCE

Page 28 - 35

NEDERLANDS

babyGO

babyGO

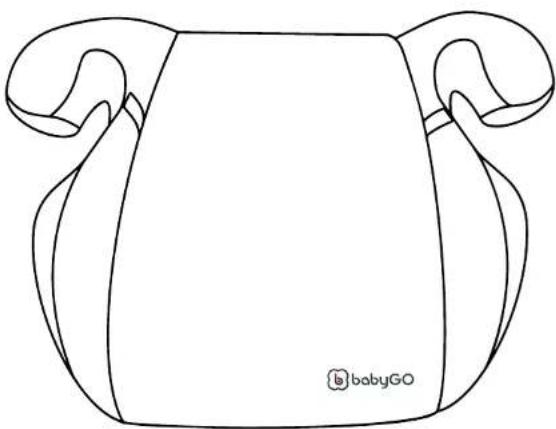

Line drawing of a baby car seat with two side handles and a logo (no text or symbols on the diagram itself)

DE

BEDIENUNGSANLEITUNG

Liebe Eltern:

Line drawing of a person sitting in a car seat using a green safety belt (no text or symbols)

Illustration of a person sitting on a chair wearing a green safety belt (no text or symbols)

BOOSTER I-SIZE

GEBRAUCH

Line drawing of a baby car seat with two side handles and a logo (no text or symbols on the diagram itself)

EN INSTRUCTION MANUAL

Dear Parents:

Thank you for purchasing the child seat.

Please read and follow all instructions before using the child seat.

WARNING! Read the Instruction carefully before use and keep them for future reference.

BOOSTER I-SIZE

IMPORTANT

READ CAREFULLY AND READ CAREFULLY AND KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

• There shall be provisions made so that the instructions can be retained on the child restraint for its life period or in the vehicle handbook in the case of built-in restraints.
• Periodically check that your child has not unfastened the car seat buckle.
• This product should not be modified or adapted with new fittings, without previous authorization by the competent authority. It is dangerous to make any alterations without the approval and not to follow the installation instructions.
• Please ensure that you carefully follow the manufacturers' instructions when fitting this car seat.
• The child restraint must not be used without cover.
• The car seat cover should not be replaced with any other than the one recommended by the manufacturer, because the cover constitutes an integral part of the restraint performance.
  • After a violent impact the seat and belts may be damaged. Therefore, it is advisable to replace them.
  • Not leave the children in their restraints unattended.
• Always make sure that you are not carrying any unsecured objects, especially on the back shelf, which, in case of an accident, may injure the car's occupants.
  • In case of long trips, make frequent stops. Children get tired easily.
• Never use a second hand car seat. It may have suffered structural damage which may the car seat extremely dangerous.
• Make sure all the car occupants wear the seat belt: in case of an accident they may hit and injure the child.
• Importer declines any responsibility in cases of improper use of this product.

babyGO

CERTIFICATION

Read the car manual 1rst and check whether the car seat is equipped with ISOFIX attachment fixed anchor points, and check the size of recommended ISOFIX attachment constraints on the system if it is matched our ISOFIX attachment size.

WARNING! Only suitable when the approved vehicles are equipped with 3-point safety belts approved according to UN/ECE Regulation No. 16 or other equivalent standards.

BOOSTER I-SIZE

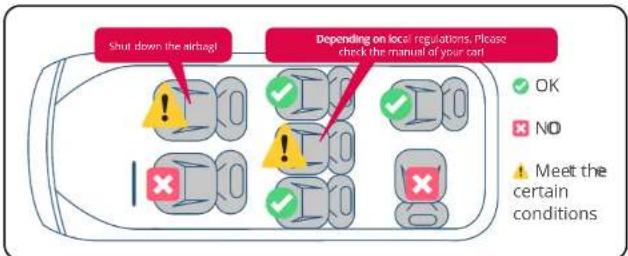

Here is the positions of installation for your reference

Forward facing
Rear facing
Two points seat belts
√ Three points seats belts
× Front passenger seat
√ The rear vehicle seats

WARNING! If your child is secured in the vehicle seat with only a 2 point belts, he or she could sustain serious injuries possibly resulting in death. Never use in connection with a 2 point belts.

• Do not fasten the child seat on the front passenger seat with validated airbag as it will casue death or serious injury if airbag exploded. Please always secure the child seat on the rear seats.
• Do not fasten the child seat on the rear facing or lateral vehicle seats. Please refer to the following graphic when you install your child seat

Shut down the airbag! Depending on local regulations. Please check the manual of your cart ✓ OK ✗ NO ↑ Meet the certain conditions

DO NOT place rear-facing child seat on front seat with airbag. IMPORTANT-DO NOT use forward facing before the child's age exceeds 15 months. DEATH OR SERIOUS INJURY can occur.

babyGO

BOOSTER I-SIZE

MAINTENANCE

Daily maintenance

1. In daily use, check periodically the child seat. The child seat should be replaced after an accident.
2. Please keep this child seat in dry and ventilated place to avoid damp moldy.
3. If the child seat becomes dusty, clean the seat belt and the plastic pieces by swiping them with a damp sponge and let it dry naturally.
4. If food or drink drop accidentally on the buckle, disassemble the seat belt from the child seat and rinse it gently by warmwater. Leave it dry naturally.
5. For cleaning the entire child seat fabric cover, please refer to the

Washing instructions

• The cover is a safety feature. Never use the child seat without it, don't
  • The cover is removable and washable at 30C. line dry only. The cradle safety
• put your child's safety at risk by using other replacement cover, they
  • could stop the child seat from protecting your child as well as it should.
• belts and plastic component can be washed by soft scour and warm water.
• Don't use any chemical scour bleacher and corrosive.
  • Machine wash, cold Dry clean, any solvent
  • except trichloroethylene
• Do not bleach
• Do not tumble dry
• Do not iron
• Washing temperature 30^

Remove and assemble the fabric cover

Remove the cover by press the booster with one hand and other hand pulling it, and wash it carefully following instructions on the label attached to the seat cover.

ATTENTION: Follow the instructions on the label attached to the seat cover.

The outer fabric of car seat is polyester 100% . The lining is fixed to the structure by means of posterior closing to tear. It is possible to remove and to wash the lining.

babyGO

INSTALLATION

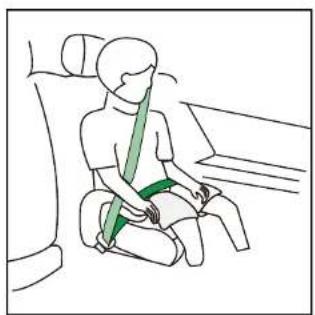

1. Place the child seat in the car seat where fitted a seat belt and then position the child.
2. Fit the car's seat belt as for normal use: ensure the lap belt passes through the arm rests of the child seat. The child seat must be placed as close as possible to the car seat backrest, to allow the most comfortable position for the child.

Line drawing of a person sitting in a car seat using a green safety belt (no text or symbols)

Line drawing of a person sitting on a chair wearing a green seatbelt (no text or symbols)

BOOSTER I-SIZE

INSTRUCTIONS FOR USE

The car seat is approved for use for the transport of children 125-150CM. It's a booster seat designed to ensure a correct fit for a 3-point adult seat belt. It must only be used in a forward facing position.

Only suitable if the approved vehicles are fitted with safety belts approved to ECE R16 or other equivalent standards.

babyGO

Line drawing of a baby car seat with two side handles and a logo (no text or symbols on the diagram itself)

FR MODE D'EMPLOI

Chers parents

Line drawing of a person sitting in a car seat using a green safety belt (no text or symbols)

Line drawing of a person sitting on a chair with a green bandage indicating seatbelt (no text or symbols)

BOOSTER I-SIZE

INSTRUCTIONS D'UTILISATION

Line drawing of a baby car seat with two side handles and a logo (no text or symbols on the diagram itself)

NL HANDLEIDING

Beste ouders,

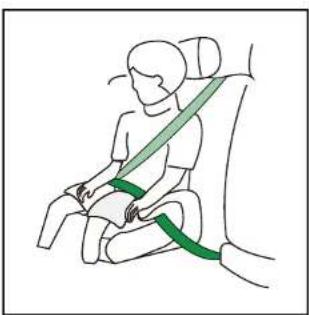

Line drawing of a person sitting in a car seat using a green safety belt (no text or symbols)

Illustration of a person sitting on a chair wearing a green safety belt (no text or symbols)

BOOSTER I-SIZE

GEBRUIKSAANWIJZING
