USER MANUAL Nova+ 360 BabyGO

Abstract logo design with a stylized lowercase 'b' inside a cloud-like frame, featuring a red dot at the center (no text or symbols)

NOVA+360

Nova+ 360 - Child seat

ASSEMBLY INSTRUCTIONS

Nova+ 360 - Simplex poussette

MANUEL D'INSTRUCTIONS

Line drawing of a car seat assembly with no text or symbols

DE

BEDIENUNGSANLEITUNG

Liebe Eltern:

Line drawing of a car seat with seatbelt and seatbelt (no text or symbols)

REINIGUNG

A B C D E F G H I J K L

Technical diagram of a car seat assembly with labeled parts and an inset showing internal components M, R, O, P, N.

Line drawing of a car seat with a comfort seat and seatbelt (no text or symbols)

Diagram showing a car seat with a magnified view of the seatbelt switch, labeled with check and dislocation buttons.

NOVA+ 360

VORWÄRTSGERICHTET + ISOFIX + 5-PUNKT-GURT

Line drawing of a car seat with a mesh grille and seatbelt (no text or symbols)

Diagram showing a car seat with a hand pressing a button, accompanied by a numbered step indicator.

babyGO

VORWÄRTSGERICHTET + ISOFIX + 3-PUNKT-GURT

Illustration of a child wearing a full-body safety harness, with a hand adjusting the seat (no text or symbols)

Illustration of a child wearing a seatbelt with hands adjusting the seatbelt (no text or symbols present)

Line drawing of a seat with a lid and seatbelt, no text or symbols present

Illustration of a hand pressing down on a device with an upward arrow (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of a baby seat with hands placed on the seat (no text or symbols)

Three line drawings of a baby car seat with internal components and a 180-degree rotation indicator (no text or symbols)

babyGO

NOVA+ 360

ZU SICHERN.

Illustration of a child inside a car seat and a small robot figure (no text or symbols)

Illustration of a seat assembly with an inset showing a hand operating a tool (no text or symbols present)

babyGO

NOVA+ 360

Diagram showing a baby seat with a magnified view of the seat's hand and control buttons, labeled with numbers ② and green/red checkmarks.

Line drawing of a car seat assembly with no text or symbols

EN

INSTRUCTION MANUAL

Dear Parents:

Thank you for purchasing the child seat.

Please read and follow all instructions before using the child seat.

WARNING! Read the Instruction carefully before use and keep them for future reference.

NOVA+ 360

WARNING

READ CAREFULLY AND READ CAREFULLY AND KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

• Read this instruction manual carefully.
• The correct tting of the ISOFIX attachment and Support leg anchoring systems of 3-point belt is of vital importance for the safety of your child.
• For the future use of the seat, it is important that you keep the instruction manual carefully.
• Never leave your child unattended in the car.
• Do not use a child safety seat if the vehicle seat is equipped with a front airbags.
• This can be dangerous. This does not apply to so-called side airbags.
• Before use our product, please read the instruction manual carefully.
• The product is a safety product and is only safe when used in accordance with the instruction manual.
• The product must only be used on a forward facing seat that is tted with the
  • ISOFIX attachment and Support leg.
• The product may be used on either the front or the back seat. However, we recommend that it is tted on the back seat.
• The product has been approved according to the strictest European safety standards (ECE R129/03) and is suitable for 40-105cm (mass limit 18kg) with the ISOFIX attachment and the Support leg; 76-105cm (mass limit 18kg) with the ISOFIX attachment and the Support leg; 100-150cm with 3-point belt; 100-150cm with 3-point belt and ISOFIX attachment.
  • After an accident the seat may become unsafe due to damage that is not noticeable immediately. It should therefore be replaced.
• The safety of the seat can only be guaranteed by the manufacturer if it issued by the original owner.
  • We advise you strongly that not to use a second-hand product, because you are not sure what has happened to it.
• The harness pads are important for the safety of your child, therefore use them at all the time.

babyGO

• Ensure that all luggage and objects likely to cause injury in the event of an accident are properly secured.
  • The moving parts of the car seat should not be lubricated in any way.
• The baby car seat must not be used without the cover. Please use an original cover, as the cover contributes to the safety of the seat.
• The seat must be secured with ISOFIX attachment, even when it not on use. An unsecured seat may injure other passengers in the car in an urgent stop.
• The rigid items and plastic parts of a child restraint must be so located and installed that they are not liable, during everyday use of the vehicle, to become trapped by a movable seat or in a door of the vehicle.
• Ensure that the seat is not damaged by the webbing between or underneath heavy luggage, adjustable seats or slamming the car door etc.
• No alterations may be made to the product as this could a ect part or the overall safety of the seat.
• In hot weather the plastic and metal parts of the product will be hot. You should cover the seat when the car parked under the sun.
• In order to prevent damage to the cover, do not reNova+ the product's logo.
• Use the seat even in s short journey, as this is when most accidents occur.
• Before the purchase, please check that the seat is properly in your car.
  • Take a short break in long journey. So that your child has some time for the relaxation.
• Set a good example your child and always wear your seat belt.
• Tell your child that he/she should be never play with the harness buckle.
• Make sure that any straps is properly fastened (worn low down) and not twisted.
• Any lap strap is worn low down, to keep the pelvis is firmly engaged.

NOVA+ 360

babyGO

NOVA+ 360

MAINTENANCE

INSTALLATION OF CLOTH COVER

1.

Adjust the shoulder straps 01

2.

Press the red button A on the buckle to open the buckle 03

3.

Take out the inner liner 02 and snap pad 04

4.

Carefully reNova+ the headrest cover and seat cover from the seat.

Line drawing of a car seat with seats and seatbelt, no text or symbols present

CLEANING

Please be sure to use only original seat covers, as the seat cover is important to the proper functioning of the system. Replacement seat covers are available from your retailer and or at branches.

!!! The child seat must not be used without the seat cover.

• In the daily using, it is necessary to regularly check the child safety seat,
• In case of accident, the safety seat must be replaced.
- When the car seat is not in use, the child safety seat should be placed in a
- dry and ventilated place to avoid damp and mildew.
• If there is dust on the surface of the child safety seat, we can use a damp
- sponge to wipe and ventilate it to dry.
- If food or drink drops onto the seat belt by accident, pls reNova+ the seat belt
• and rinse thoroughly with warm water and ventilate it to dry.
• To clean the entire seat cover, please refer to the washing instructions.
- Slight fading may occur during the rst washing, which it is a normal
- situation.

Caution! Never reNova+ the buckle tongues from the straps.

WARRANTY

The warranty period starts from the date of purchase and is valid for a period of 12 months. The warranty is only applicable to the original owner and is not transferable. The warranty is only applicable to products that have not been adapted by the user. In the case of any defects, the owner is required to return the product to the retailer. If the retailer can not solve the problem, he must return the product, complete with a clear description of the complaint and a validated purchase receipt to the manufacturer. Exchanger or return can not be demanded. Repairs do not constitute an extension to the warranty term. The manufacturer is not liable for any damages other than those on products supplied.

No warranty is given if:

• The product is not supplied complete with the validated purchase receipt to the
manufacturer.
• Defects are caused by misuse or maintenance which differ from that indicated in the
instruction manual.
• Repairs are carried out by third parties.
• Defects are caused by neglect.
- Damage or removal of any serial number is found.
- If there is normal wear and tear which may be expected from everyday use.
- The stated warranty terms and conditions have not been satisfied.

babyGO

NOVA+ 360

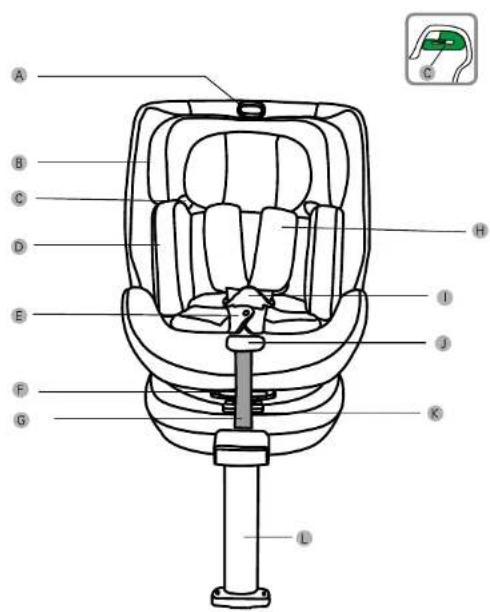

A B C D E F G H I J K L

A. Handle For The Headrest
B. Headrest
C. Belt Guider
D. Newborn Cushion
E. Buckle Pads
F. Handle For Adjusting The Angle
G. Adjustment Belt

H. Shoulder Pads
1. Buckle
J. Button For The
5-points Harness System
K. Rotation Adjusting Handle
L. Support Leg

Technical diagram of a car seat assembly with labeled parts and an inset view of the seat assembly.

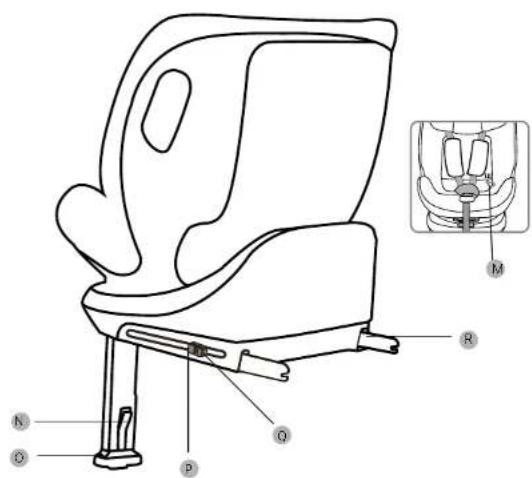

M. Instruction storage bag
N. Supporting Leg Adjustment Button
O. Supporting Leg Indicator
P. ISOFIX Attachment Second Lock
Q. ISOFIX Attachment Release Button
R. ISOFIX Attachment

babyGO

CERTIFICATION

Read the car manual first and check whether the car seat is equipped with ISOFIX attachment fixed anchor points, and check the size of recommended ISOFIX attachment constraints on the system if it is matched our ISOFIX attachment size.

WARNING! Only suitable if the approved vehicles ar fitted with 3 point safety belts, approved to UN/ECE Regulation No.16 or other equivalent standards.

Height Size facing direction

40-105cm ISO/R2 rearward facing

76-105cm ISO/F2X forward facing

100-150cm ISO/B2 forward facing

NOVA+ 360

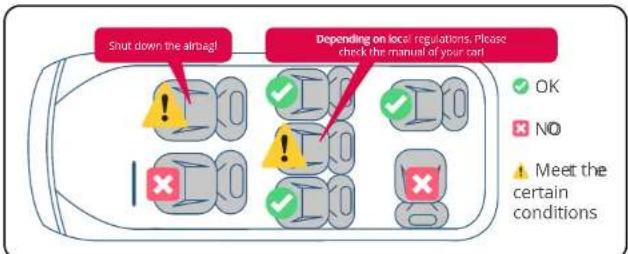

Here is the positions of installation for your reference

Forward facing
Rear facing
× Two points seat belts
√ Three points seats belts
Front passenger seat
The rear vehicle seats

WARNING! If your child is secured in the vehicle seat with only a 2 point belts, he or she could sustain serious injuries possibly resulting in death. Never use in connection with a 2 point belts.

• Do not fasten the child seat on the front passenger seat with validated airbag as it will casue death or serious injury if airbag exploded. Please always secure the child seat on the rear seats.
• Do not fasten the child seat on the rear facing or lateral vehicle seats. Please refer to the following graphic when you install your child seat

Shut down the airbag! Depending on local regulations. Please check the manual of your cart OK NO Meet the certain conditions

DO NOT place rear-facing child seat on front seat with airbag. IMPORTANT-DO NOT use forward facing before the child's age exceeds 15 months. DEATH OR SERIOUS INJURY can occur.

babyGO

NOVA+ 360

INSTALLATION

REARWARD FACING + ISOFIX FORWARD FACING + ISOFIX + 5 POINT BELT

Making rearward facing position by using ISOFIX attachment + Support leg (suitable for children height from 40-105cm)

Line drawing of a car seat with a cushioned seat and seatbelt, no text or symbols present

1. When installing the child safety seat in the forward facing position, take the Support leg out from the bottom of the seat according to method 4-10, and then rotate the seat to the rearward position according to method 4-6 (see Figure 25). Then according to method 4-9, installing the ISOFIX attachment to the car seat firmly.

Attention! If your child's height is less than 105cm, pls use rearward facing.

DO NOT place rear-facing child seat on front seat with airbag. IMPORTANT-DO NOT use forward facing before the child's age exceeds 15 months. DEATH OR SERIOUS INJURY can occur.

1. Press the supporting leg adjustment button by your hand and pull the Support leg down until it touches the car surface

2. Place the child in car seat and secure with 5-point seat belt system

Attention: When the supporting leg touches the car surface, the support leg indicator must be all green (as shown in the figure).

Illustration of a car seat with a hand operating a switch, accompanied by a numbered diagram showing control buttons.

Installing the child safety seat forward facing position by using ISOFIX attachment + Support leg (suitable for children height from 76-105cm)

Line drawing of a car seat with a mesh grille and seatbelt (no text or symbols)

1. When installing the child safety seat in the forward facing position, take the Support leg out from the bottom of the seat according to method 4-10, and then rotate the seat to the forward position according to method 4-6 (see Figure27). Then according to method 4-9, Installing the ISOFIX attachment to the car seat firmly.

2. Press the Support leg adjustment button by your hand and pull the Support leg down until it touches the car surface

3. Place the child in car seat and secure with 5-point seat belt system

Attention: When the supporting leg touches the car surface, the support leg indicator must be all green (as shown in the figure).

Diagram showing a car seat with a hand pressing a button, accompanied by an instructional note indicating '✓' and '×' controls.

babyGO

NOVA+ 360

FORWARD FACING + ISOFIX + 3 POINT BELT FORWARD FACING + 3 POINT BELT

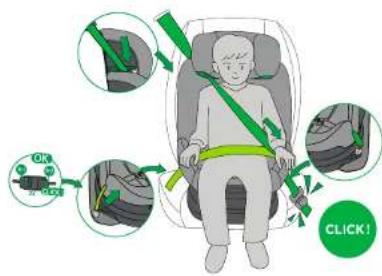

Installing the car seat forward facing position by using ISOFIX attachment + 3-point seat belt (suitable for children height from 100-150cm)

OK CLICK!

1. ReNova+ the 5-point safety belt system before placing the child in this way (method 4-8)
2. The vehicle seat belt passes through the belt guilder and pass the child's shoulder
3. Fasten the car seat through ISOFIX attachment and ISOFIX attachment anchor points on the vehicle seat according to the method 4-9.
4. Vehicle seat abdominal belt through the belt guilder and pass the child's pelvis
5. Place the child seat on the vehicle seat and adjust the seat to the appropriate position (method 4-4).
6. Fasten your car seat belt

The 100-150cm I-Size Booster seat cannot use the Support leg.

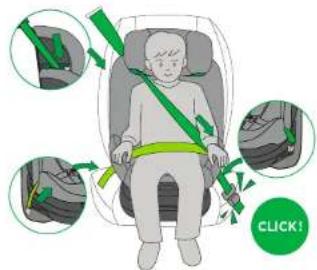

Use 3-point seat belt to install the child safety seat in forward facing position (Suitable for children height from 100-50cm)

CLICK!

1. ReNova+ the 5-point safety belt system before placing the child in this way (method 4-8)
2. Vehicle seat abdominal belt through the belt guider and pass the child's pelvis
3. Place the child seat on the vehicle seat and adjust the seat to the appropriate position (method 4-4).
4. Fasten your car seat belt
5. The vehicle seat belt passes through the belt guilder and pass the child's shoulder

The 100-150cm I-Size Booster seat cannot use the Support leg.

babyGO

NOVA+ 360

FUNKTIONS

THE USAGE OF BUCKLE

1. Close the left and right latches of the buckle (as shown in Figure 1) and ensure that the concave and convex structures of the left and right latches are closed.

1. Close the left and right latches without leaving a gap. Keep the latches facing up. (Figure 2)

1. Insert the closed latches into the slot of the buckle. (Figure 3)

1. If you hear "click" sound, it means that the buckle has been fastened. (Figure 4)

ADJUST THE SAFETY BELT

Illustration of a child wearing a full-body seatbelt, with hands adjusting the seat (no text or symbols)

1. Tighten your baby car seat belt Pull the shoulder strap up to tighten the loose part of the leg belt. Then pull the adjustable belt to tighten the belt. Keep your seat belt as tight as possible without causing discomfort. The leg belt should be as low as possible and should be near the crotch, not the belly. A finger space should fit between the seat belt and the child.

A loose seat belt is dangerous. Check that the seat belt adjuster is working properly each time when you place a child in a car seat before tightening the seat belt.

Illustration of a child wearing a seatbelt with hands adjusting the seatbelt (no text or symbols present)

1. loose the seat belt The seat belt can be loosened by pressing the 5-point seat belt adjustment button in front of the seat. While pressing down the 5-point seat belt adjustment button, hold the two straps under the shoulder guard with the other hand and pull them in front of the child to release the seat belt

babyGO

NOVA+ 360

1. Use the ve-point seat belt adjustment button under the front of the seat to loosen the seat belt, unlock the buckle, pull the headrest adjustment handle up, Nova+ the headrest to the correct shoulder belt height, and then gently slide the headrest down to check that the headrest is properly hinged.

Illustration of a person in a car seat with red and green checkmarks indicating cancellation or rejection options.

1. Correctly adjusting the headrest can ensure the best protection for your child in the car seat; The headrest must be adjusted to the position that the shoulder strap is compatible with the height of a child's shoulders or slightly higher. The straps must be located at shoulder height or slightly above the child's shoulder height. The shoulder strap should not be behind the child or at or above the ear.

Note: It is important to keep the headrest appropriate to the height of the child's head.

ADJUST THE ANGLE RECLINING OF CAR SEATADJUST THE HEIGHT OF HEADREST

Line drawing of a seat with a gasket and armrest (no text or symbols)

Diagram of a hand pressing down on a device with an upward arrow indicating motion (no text or symbols)

The child safety seat can be adjusted to different reclining positions. You can adjust the reclining angle of the seat even when your child is in it

REARWARD :

Press the base part of the seat with one hand and pull the angle adjusting handle on the back of the seat with the other hand to adjust the seat to the appropriate position, 5 positions in total.

When the baby car seat is rearward facing: please use 1,2,3,4,5 position;

FORWARD FACING: :

Press the base of the seat with one hand and pull the angle adjusting handle on the back of the seat with the other hand to adjust the seat to the appropriate position, a total of 5 positions.

When the baby car seat is forward facing: please use 1,2,3,4,5 position;

babyGO

Notice: When the height of baby is 40-75cm, please use the newborn baby's cushion.

Technical line drawing of a mechanical component with no visible text or symbols

Place the new born cushion in the car seat, place the two shoulder pads on the new born cushion, and finally cover the buckle cushion on.

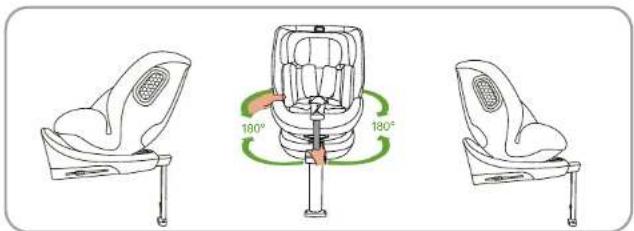

NOVA+ 360

ROTATION FUNCTIONNEW BORN CUSHION

Illustration of a baby car seat with hands placed on the seat (no text or symbols)

1. Take the supporting leg out of the storage at the bottom of the base;
2. Press the supporting leg expansion button and pull out the leg;
3. Press the rotation button and rotate the seat.

Attention! Before each trip, pls make sure that the seat rotation is locked by turning the seat in both directions.

IMPORTANT-DO NOT USE FORWARD FACING BEFORE THE CHILD'S AGE EXCEEDS 15 MONTHS(Refer to instruction)

Attention! Before each trip, pls make sure the child seat is in the correct group and configuration.

Three line drawings of a baby car seat assembly, showing front, side, and side views with 180° angle annotations (no text or symbols on the diagrams themselves)

babyGO

1. Release the safety belt to the most loosely, then unlock the buckle and place it on both sides of the seat, as shown in the picture

1. Insert the left and right latches into the buckle and hear a "click" sound, indicating that the buckle is fastened. Press the adjustable belt button to adjust and tighten the shoulder strap, while ensuring that the child's shoulders are comfortable (a finger space should fit between the seat belt and the child).

NOVA+ 360

THE METHOD TO RENOVA+ THE 5-POINT SEAT BELT SYSTEMS-POINT HARNESS S

Illustration of a car seat with a person adjusting its seatbelt and a robot figure nearby (no text or symbols)

1. ReNova+ shoulder pads, buckle cover and new born cushion from the seat.

2. Pass the buckle through the hole in the cloth sleeve, as shown in Figure 15.

1. Open the buttons of the seat cloth cover as shown. Insert the latches insert into the buckle. Open the buckle cover at the bottom of the seat, place the buckle in, and nally close the cover.

2. Tidy up the cloth cover, as shown in Figure17

babyGO

Notice: Child safety seats can also be used with the ISOFIX attachment guide.

Notice: If your car seat can adjust the angle, pls adjust the car seat angle to the appropriate position, it will be more convenient for ISOFIX attachment installation.

The installation is more convenient, please clip the ISOFIX attachment guide on the ISOFIX attachment anchor point on the ISOFIX attachment fixed point of the automobile, and the make notch faces upward

1. Press ISOFIX attachment lock released button and ISOFIX attachment 2nd lock button (as shown in Figure 19) at the same time, then push ISOFIX attachment out.

1. Grab the child seat with both hands, then push the two ISOFIX into the ISOFIX guider until the ISOFIX is stuck on both sides, and hear click. When the ISOFIX is locked, pls push the child safety seat vigorously in the direction of the arrow to make it t the back of the car seat (gure 21).

NOVA+ 360

RENOVA+ ISOFIX ATTACHMENT AND HIDE THE SUPPORT LEGINSTALLING METH

1. Removing the ISOFIX attachment: Press the "ISOFIX" attachment unlock button", and hear "click" sound, ensure that both sides of the ISOFIX attachment are unlocked, then reNova+ the seat

Notice: ISOFIX attachment is unlocked correctly only when the left and right ISOFIX indicator show red.

1. Hide the support leg: Press the supporting leg adjustment button and pull the Support leg up

Illustration of a car seat with an inset showing a hand operating the seat (no text or symbols present)

babyGO

NOVA+ 360

1. Put the bottom of the seat in the displayed state as shown in the gure, and take out the supporting legs from the storage bin at the bottom of the base.

1. Use your hands to support your legs and pull them out to the outside.

Support leg storage According to the reverse operation of the release of the support leg, press figure 25, then press Figure 24 reverse operation The operation is OK.

INSTALLATION OF SUPPORT LEGRELEASE AND STORAGE OF SUPPORT LEGS

Illustration of a baby seat with an inset showing a hand holding a device with warning symbols.

1. Take the Support leg out from the storage bin at the bottom of the base
2. Press the expansion button to pull the support leg out
3. Place child in car seat and secure with 5-point seat belt system

Notice: when the Support leg touches the car surface, the Support leg indicator must be all green (as shown in the figure22)

• Check and tighten ISOFIX attachment, Support leg and 5-point seat belt system to ensure seat and child are firmly fixed.
  • The 5-point seat belt should not be twisted or wound.
• When installing the car seat by rearward facing and children's height is less than 75cm, it must use new born cushion.
  • We recommend to install car seat with ISOFIX attachment guider.
  • The seat must be as close to (against) the back of the vehicle seat as possible
• The child restraint system should not be installed in the position where the airbag is installed in the rearward facing position.

The 100-150cm I-Size Booster seat cannot use the Support leg.

babyGO

Line drawing of a car seat assembly with no text or symbols

FR MODE D'EMPLOI

Chers parents

Line drawing of a car seat with seatbelt and seatbelt (no text or symbols)

LE NETTOYAGE

A B C D E F G H I J K L

Technical diagram of a car seat assembly with labeled parts and an inset showing internal components M, R, O, P, N.

Line drawing of a car seat with a comfort seat and seatbelt (no text or symbols)

Diagram showing a car seat with a highlighted safety switch and warning symbols, alongside a magnified view of the switch mechanism.

NOVA+ 360

POSITION VERS L'AVANT + ISOFIX + HARNAIS À 5 POINTS

Line drawing of a car seat with a mesh grille and seatbelt (no text or symbols)

Diagram showing a car seat with a hand pressing a button, accompanied by a numbered step indicator.

babyGO

POSITION VERS L'AVANT + ISOFIX + CEINTURE À 3 POINTS

Illustration of a child wearing a full-body seatbelt, with hands adjusting the seat (no text or symbols)

Illustration of a child wearing a seatbelt with hands adjusting the seatbelt (no text or symbols present)

Line drawing of a seatbelt device with a button and handle (no text or symbols)

Illustration of a hand pressing down on a ribbed seat with an upward arrow indicating motion (no text or symbols)

Line drawing of a car seat with a highlighted seatbelt (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of a baby car seat with hands placed on the seat (no text or symbols)

Three line drawings of a baby car seat with internal components and a 180-degree rotation indicator (no text or symbols)

babyGO

UTILISATION DU SYSTÈME DE HARNAIS À 5 POINTS POUR ATTACHER L'ENFANT EN TOUTE SÉCURITÉ.

Illustration of a car seat with a child inside and a small robot figure nearby (no text or symbols)

Illustration of a car seat with an inset showing a hand pressing a button (no text or symbols present)

babyGO

NOVA+ 360

Diagram showing a car seat with a magnified view of the seatbelt with warning symbols

Line drawing of a car seat assembly with no text or symbols

Line drawing of a car seat with seatbelt and seatbelt bands (no text or symbols)

REINIGUNG

A B C D E F G H I J K L

Technical diagram of a car seat assembly with labeled parts and an inset view of the seat assembly.

Line drawing of a car seat with a cushioned seat and seatbelt (no text or symbols)

Diagram showing a car seat with a magnified view of the seatbelt switch, labeled with red and green symbols indicating control buttons.

VOORWAARTS GERICHT + ISOFIX + 5-PUNTSGORDEL

Line drawing of a car seat with a mesh grille and seatbelt (no text or symbols)

Diagram showing a car seat with a hand pressing a button, accompanied by an instructional note indicating '✓' and '●' symbols.

babyGO

VOORWAARTS GERICHT + ISOFIX + 3-PUNTSGORDEL

Illustration of a child wearing a full-body seatbelt, with hands adjusting the seat (no text or symbols)

Illustration of a child wearing a seatbelt with hands adjusting the seatbelt (no text or symbols present)

Line drawing of a seatbelt device with a button and handle (no text or symbols)

Illustration of a hand pressing down on a device with an upward arrow (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of a baby car seat with hands placed on the seat (no text or symbols)

Three line drawings of a baby car seat assembly, showing top, front, and side views with 180° rotation indicators (no text or symbols)

babyGO

NOVA+ 360

Illustration of a baby car seat with a child inside, next to a cartoon character (no text or symbols)

Illustration of a car seat with an inset showing a hand operating a lift (no text or symbols present)

babyGO

NOVA+ 360

Diagram showing a car seat with a magnified view of the seatbelt with warning symbols

Line drawing of a car seat assembly with no text or symbols

NÁVOD K POUŽITÍ

Vážení rodiče,

Line drawing of a car seat with seatbelt and seatbelt (no text or symbols)

ČIŠTĚNÍ

A B C D E F G H I J K L

Technical diagram of a car seat assembly with labeled parts and an inset showing internal components M, R, O, P, N.

Line drawing of a car seat with a comfort seat and seatbelt (no text or symbols)

Diagram showing a car seat with a magnified view of the hand holding a switch, indicating control buttons.

VE SMĚRU JÍZDY + ISOFIX + 5BODOVÝ BEZPEČNOSTNÍ PÁS

Line drawing of a car seat with a mesh grille and seatbelt (no text or symbols)

Diagram showing a car seat with a hand holding a pushpin, accompanied by a numbered step indicator.

babyGO

VE SMĚRU JÍZDY + ISOFIX + 3BODOVÝ BEZPEČNOSTNÍ PÁS

Illustration of a child wearing a full-body seatbelt, with hands adjusting the seat (no text or symbols)

Illustration of a child wearing a seatbelt with hands adjusting the seat (no text or symbols)

Line drawing of a seatbelt device with a button and handle (no text or symbols)

Illustration of a hand pressing down on a device with an upward arrow (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of a baby car seat with hands placed on the seat (no text or symbols)

Three line drawings of a baby car seat assembly, showing front, side, and side views with 180° angle annotations (no text or symbols on the diagrams themselves)

babyGO

NOVA+ 360

K ZAJIŠTĚNÍ DÍTĚTE:

Illustration of a baby car seat with a child inside, next to a cartoon character (no text or symbols)

Illustration of a car seat with an inset showing a hand operating a lift (no text or symbols present)

babyGO

NOVA+ 360

Diagram showing a car seat with a magnified view of the seatbelt with warning symbols

Line drawing of a car seat assembly with no text or symbols

SK NÁVOD NA POUŽITIE

Vážení rodičia,

Line drawing of a car seat with seatbelt and seatbelt (no text or symbols)

ČISTENIE

A B C D E F G H I J K L

Technical diagram of a car seat assembly with labeled parts and an inset view of the seat assembly.

Line drawing of a car seat with a comfort seat and seatbelt (no text or symbols)

Diagram showing a car seat with a magnified view of the seatbelt mechanism, labeled with red and green symbols.

V SMERE JAZDY + ISOFIX + 5-BODOVÝ BEZPEČNOSTNÝ PÁS

Line drawing of a car seat with a mesh grille and seatbelt (no text or symbols)

Diagram showing a car seat with a hand pressing a button, accompanied by a numbered step indicator.

babyGO

V SMERE JAZDY + ISOFIX + 3-BODOVÝ BEZPEČNOSTNÝ PÁS

Illustration of a child wearing a full-body seatbelt, with hands adjusting the seat (no text or symbols)

Illustration of a child wearing a seatbelt with hands adjusting the seatbelt (no text or symbols present)

Line drawing of a seatbelt device with a button and handle (no text or symbols)

Illustration of a hand pressing down on a device with an upward arrow (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of a baby car seat with hands placed on the seat (no text or symbols)

Illustration of a baby car seat with a child inside, next to a cartoon character (no text or symbols)

Illustration of a car seat with a magnified inset showing the base and seat structure (no text or symbols)

babyGO

NOVA+ 360

Diagram showing a car seat with a magnified view of the seatbelt with warning symbols
