USER MANUAL Dreams II BabyGO

Line drawing of a simple metal frame structure with four legs and a central horizontal panel (no text or symbols)

BEDIENUNGSANLEITUNG

Liebe Eltern:

Simple line drawing of a cube with internal diagonal lines (no text or symbols)

Simple line drawing of a closed bag with handle and skirt (no text or symbols)

Simple line drawing of a rectangular frame with two vertical panels and corner brackets (no text or symbols)

GROSSE MATRATZENAUFLAGE FÜR DEN LAUFSTALL

Pure diagram of a rectangular frame with internal cutouts and grid lines, no text or symbols present.

KINDERBETTCHEN

STÜTZROHR FÜR DAS KINDERBETTCHEN

Simple geometric diagram of two adjacent empty rectangles (no text or symbols)

KLEINE MATRATZENAUFLAGE
FÜR DAS KINDERBETTCHEN

Two-step diagram showing fabric folding process with arrows indicating movement (no text or symbols)

Line drawing of a simple container with mesh pattern and lid (no text or symbols)

WARNUNG!

Line drawing of a babystand with a top handle and seat, no text or symbols present

Diagram of a container with four circular components above it, no text or symbols present

Simple line drawing of a rectangular object with four arms and a central body, no text or symbols present.

WARNUNG!

Diagram illustrating a mechanical or structural assembly with labeled parts E and D, showing hand positioning and directional arrows.

Diagram of a garment pattern piece with two side views showing fabric folds and stitching (no text or symbols)

Illustration of a hand holding a cable with a magnified inset showing a mechanical component (no text or symbols)

Line drawing of a babystand with a top handle and seat, no text or symbols present

Line drawing of a triangular container filled with mesh material, no text or symbols present

Diagram of a net with a handle and arrow indicating rotation (no text or symbols)

KINDERBETTCHEN ZUSAMMENKLAPPEN

PRESS

Line drawing of a folded or layered object resembling a book or document (no text or symbols)

Diagram of a folded paper or fabric structure with an arrow indicating direction (no text or symbols)

Line drawing of a mechanical component with internal layered structure and an arrow indicating direction (no text or symbols)

PFLEGE

Instandhaltung

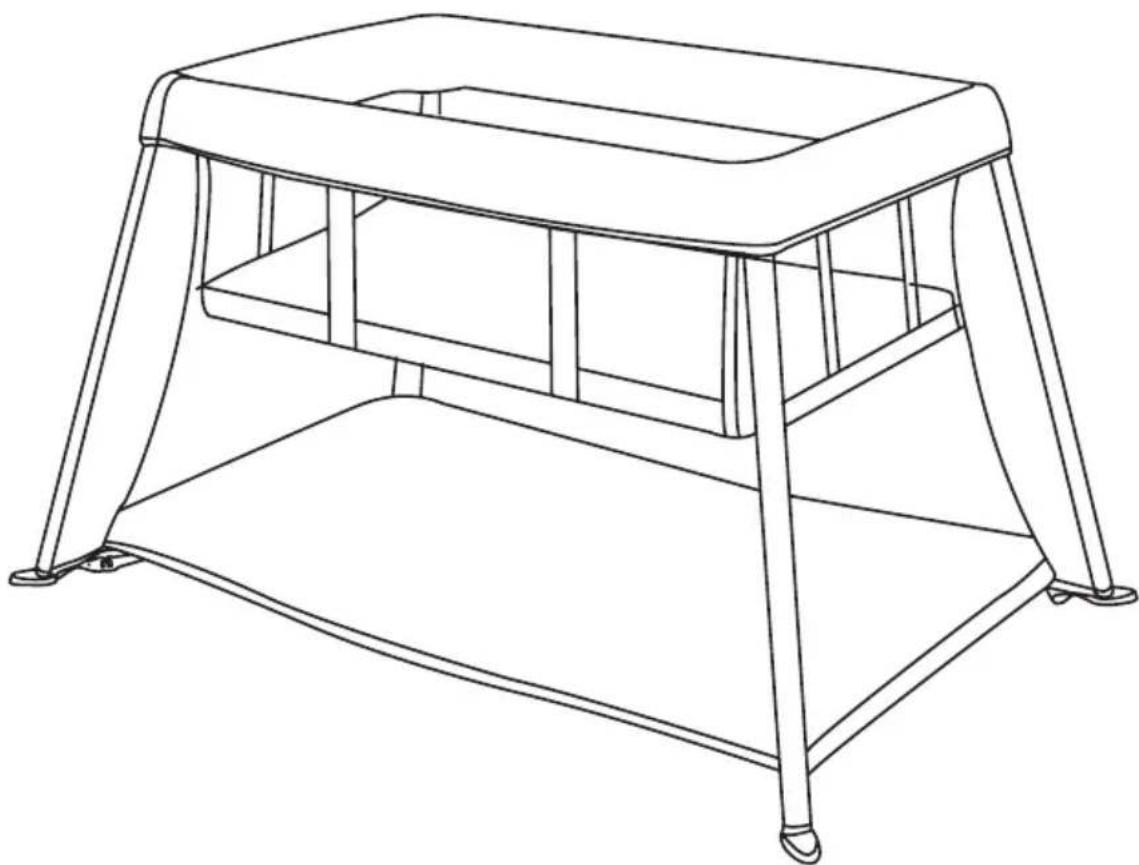

Carry Cot Instruction manual

Line drawing of a simple metal frame structure with four legs and a central horizontal panel (no text or symbols)

INSTRUCTION MANUAL

Dear Parents:

Thank you for purchasing the Travel Cot.

Please read and follow all instructions before using the Travel Cot.

• Lightweight
• Aluminum frame
  • Suitable for new born baby
• Easy to handle
  • Maximum Load: 13 kgs or height of 85cm tall.

WARNING!

Read the Instruction carefully before use and keep them for future reference.

IMPORTANT

BEFORE ASSEMBLING THIS COT READ AND UNDERSTAND THE INSTRUCTIONS.

Do not use mattress other than the one supplied by the manufacturer.

Incorrect mattress can cause death.

Use only accessories as recommended by the manufacturer.

Ensure the top rails and base are fully locked.

Stop using this cot of any part of the cot is broken, torn or missing.

KEEP THESE INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE.

INSTRUCTIONS FOR ASSEMBLY AND USE

SAFETY PRECAUTIONS

READ THESE INSTRUCTIONS CAREFULLY BEFORE USE AND KEEP THEM FOR FUTUR REFERENCE. YOUR CHILD'S SAFETY MAY BE AFFECTED IF YOU DO NOT FOLLOW THESE INSTRUCTIONS.

WARNING

BEFORE ASSEMBLING THIS COT, READ AND UNDERSTAND THE FOLLOWING INSTRUCTIONS

• IMPORTANT: Mattresses are included and are designed specifically for this cot.
• Do not use any mattresses other than the ones supplied by the manufacturer.
• Only use accessories recommended by the manufacturer. Never use substitute parts. Ensure the top rails and the base are fully locked before use.
• Stop using this cot if any of the parts of the cot are broken, torn or missing.
• Failure to follow the warnings and instructions could result in serious injury or death. Contact the manufacturer for replacement parts or instructions if they are required. Keep children away while assembling/disassembling the cot.
• Do not leave anything on the folding cot (such as toys) that provide a foothold.
• Do not use the cot near naked heat sources, bar heaters, open fires or exposed flames.
• Keep the folding cot clear of trailing cables and hanging cords.
• Keep medications and small items that a child could choke on, away from the cot.
• Do not use the folding cot if fabric or padding on the side rails or end rails has been bitten through.

FALL HAZARD:

• To prevent falls, DO NOT use the folding cot once the infant has reached the manufacturer's maximum weight of 13kgs or a height of 85cm tall.
• The crib/cradle should be placed on a horizontal floor.

WARNING:

• the crib/cradle should be locked in the fixed position when a child is unsupervised in it
• When a child is able to sit, kneel or to pull itself up, the crib/cradle shall not be used anymore for this child.
• Do not to use the body of a cradle without its frame.

SUFFOCATION HAZARD - Infants can suffocate:

• In gaps between an extra pad or mattress.
- In soft bedding.
- Never leave your child unattended.
- Use this product with only one child at a time.
- To reduce the risk of Sudden Infant Death Syndrome (SIDS), Paediatricians recommend infants to be placed on their backs to sleep, unless otherwise advised by your physician.

WARNING:

TO PREVENT SUFFOCATION AND FALLS, THE RECOMMENDED MATTRESS SIZE SHOULD BE 1035mm LONG X 590mm WIDE AND NO MORE THAN 40mm THICK.

PARTS

IMPORTANT!

Please remove all parts from the package and identify them before assembly.

Simple line drawing of a cube with internal diagonal lines (no text or symbols)

Simple line drawing of a closed bag with handle and skirt (no text or symbols)

PLAYARD TRAVEL AND STORAGE BAG

Simple line drawing of a rectangular frame with two vertical panels and corner brackets (no text or symbols)

BIG MATTRESS PAD FOR PLAYARD

Pure diagram of a rectangular frame with internal cutouts and grid lines, no text or symbols present.

BASSINET

SUPPORT TUBE FOR BASSINET

Simple geometric diagram of two adjacent empty rectangles (no text or symbols)

SMALL MATTRESS PAD FOR BASSINET

PLAYARD ASSEMBLY AND USE

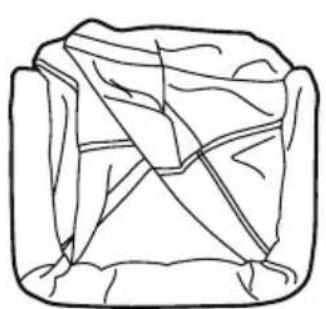

Two-step illustration of folded fabric or bedding, showing folding and stretching steps (no text or symbols)

1. Remove the travel cot from the carry bag

CLICK 2

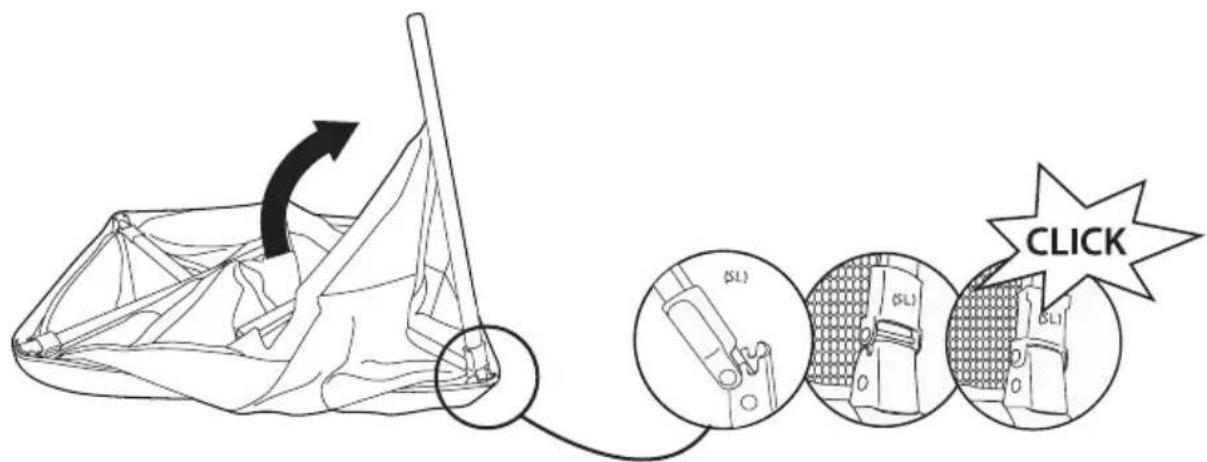

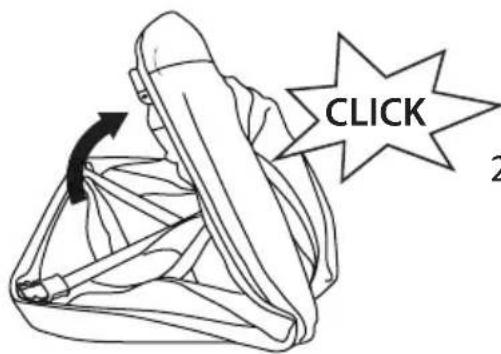

1. Unfold the travel cot frame so it opens falt. It will click into locked position. Carefully swing out each leg (x4) until they click into position.

CLICK (SL) (SL) (SL)

Line drawing of a triangular container filled with mesh material, no text or symbols present

WARNING!

Check that the legs are properly locked into place. Push each leg to ensure that it does not fold back.

ASSEMBLY AND USE

Line drawing of a babystand with a top handle and seat, no text or symbols present

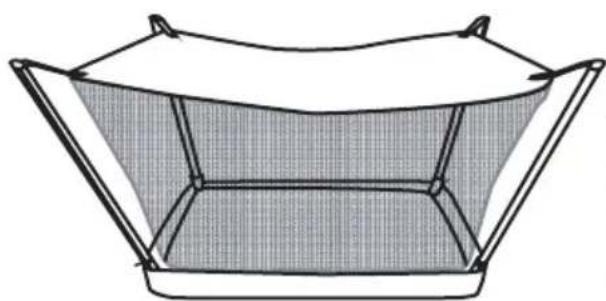

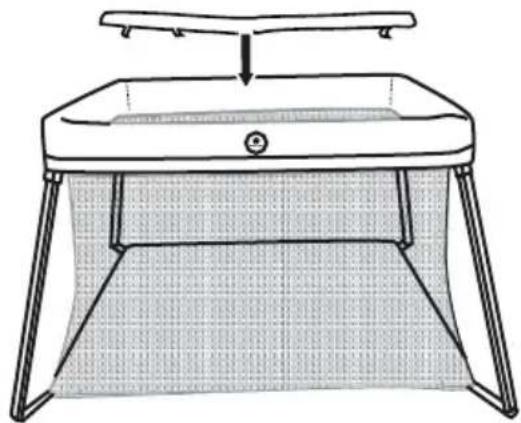

1. Turn the cot upright and insert the mattress in place at the bottom of the cot.

Diagram of a container with four circular components above it, no text or symbols present

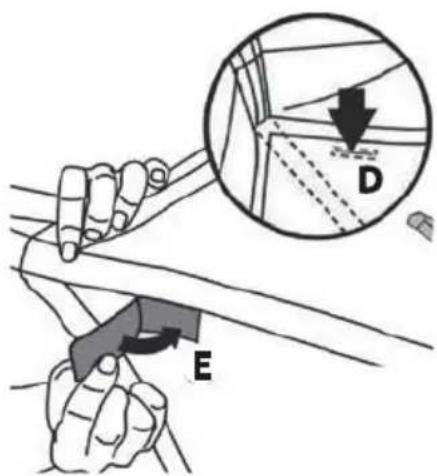

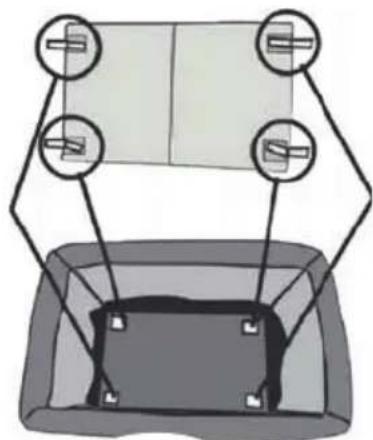

1. Slide the Velcro straps through the openings D on the bottom of the cot and attach them firmly to the Velcro patches E under the bottom of the cot.

WARNING!

Always ensure the locking mechanisms are fully engaged before using this cot.

Simple line drawing of a rectangular object with four protruding legs and a central horizontal bar (no text or symbols)

Diagram illustrating a mechanical or structural assembly with labeled parts E and D, showing hand positioning and detail view.

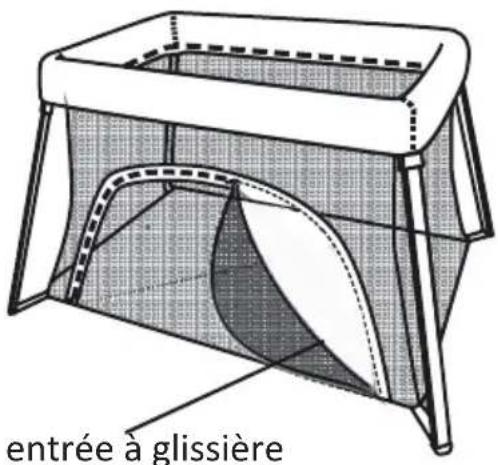

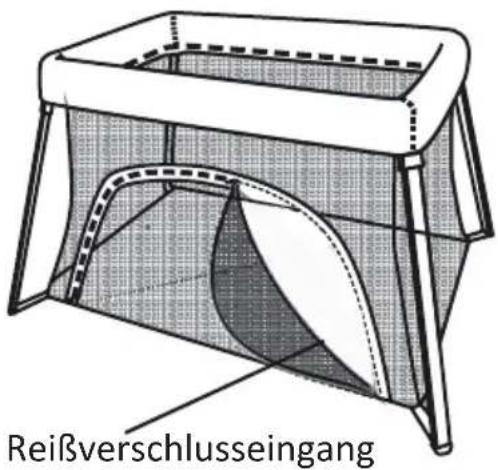

zipper entrance

1. Zipper entrance for playing. Make sure to unzip or zip the entrance completely with the child inside.

BASSINET ASSEMBLY AND USE

WARNING:

(A) TO PREVENT FALLS, DO NOT USE THE BASSINET WHEN THE CHILD BEGINS TO PUSH UP ON HANDS AND KNEES OR REACH MAXIMUM WEIGHT 6.8KG OR CAN ROLL OVER.
(B) NEVER PLACE A CHILD IN THE COT WHEN THE BASSINET IS IN PLACE.

1. Inser the tubes Fit the tubes to

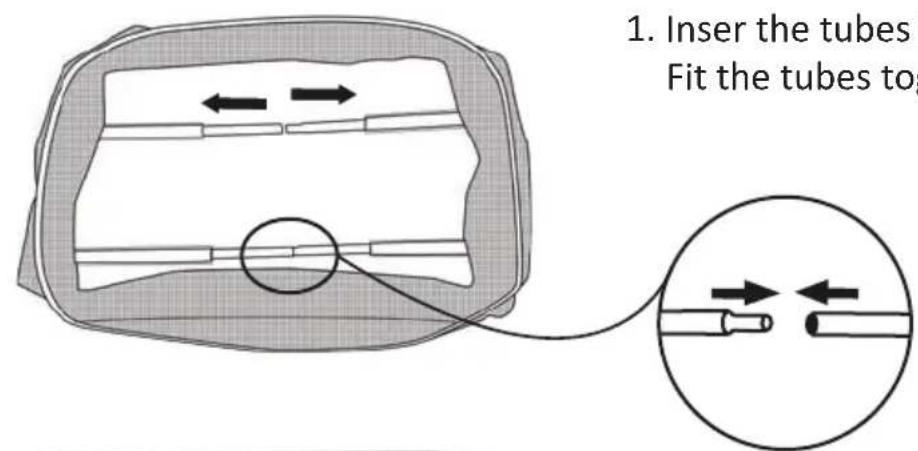

1. Inser the tubes into casing cloth. Fit the tubes together

2. The in top rail provid Fasten

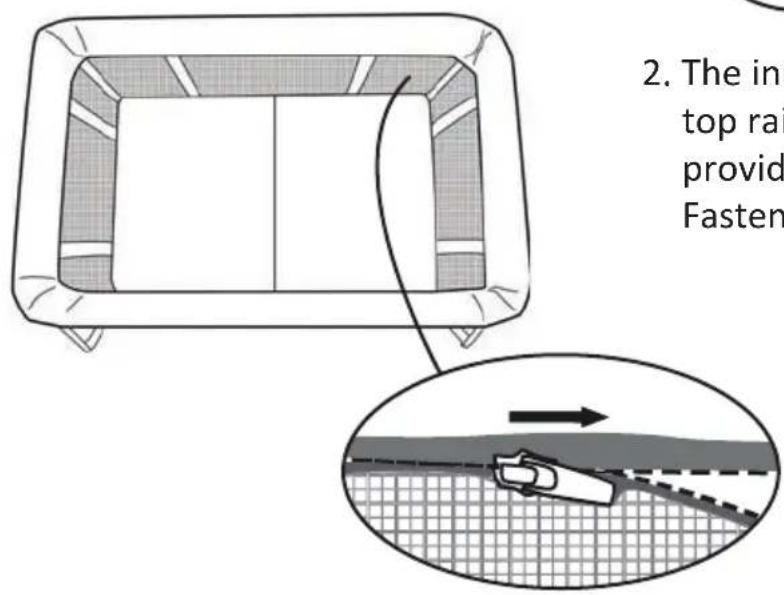

1. The inner side of the bottom of the top rail and the top of the bassinet are provided with zip. Fasten the bassinet to the cot with zips.

Diagram of a garment pattern piece with two side views showing fabric folds and stitching (no text or symbols)

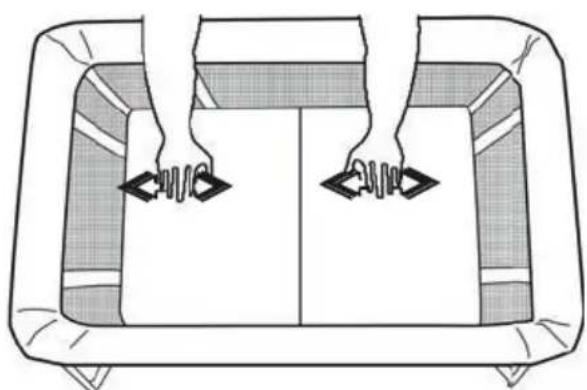

1. Insert the mattress pad. Place hands inside and push down on mattress to ensure it is firm.

FOLDING THE COT

Illustration of a hand gripping a cable with a magnified inset showing a mechanical component (no text or symbols)

Line drawing of a baby table with a top handle and a mesh base (no text or symbols)

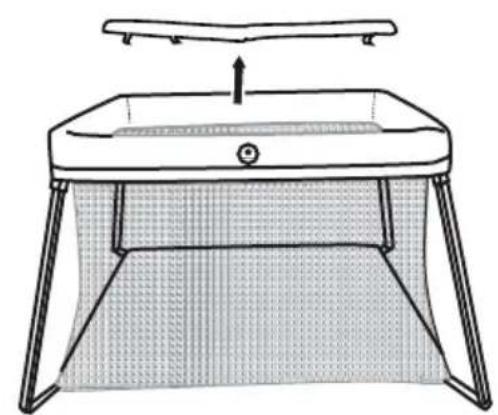

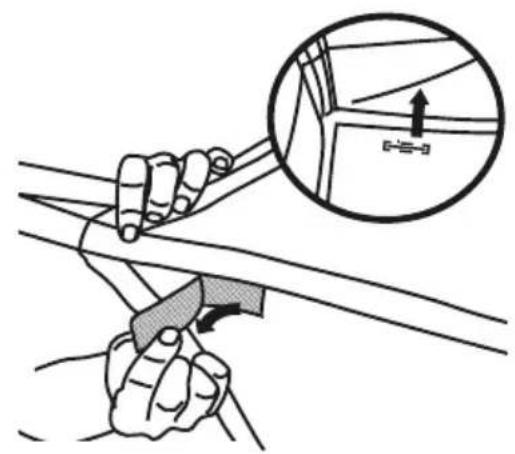

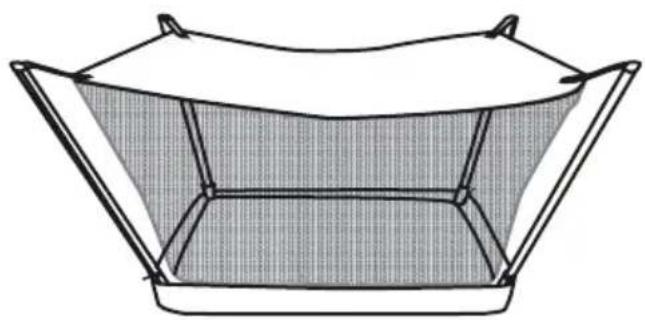

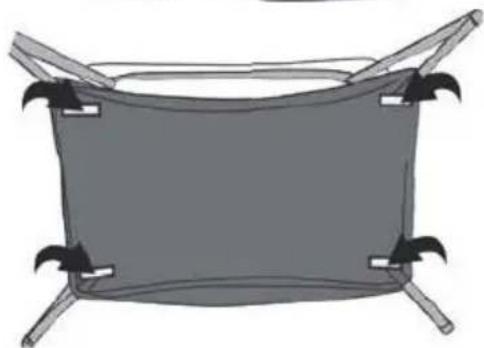

1. To take the mattress out of the cot, detach the Velcro tabs at the bottom of the cot and remove the mattress.

Line drawing of a triangular container filled with mesh material, no text or symbols present

(SL)

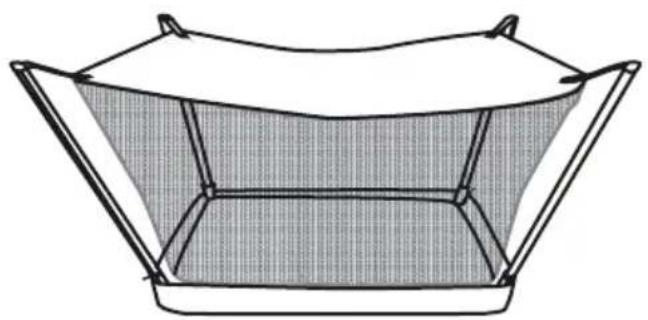

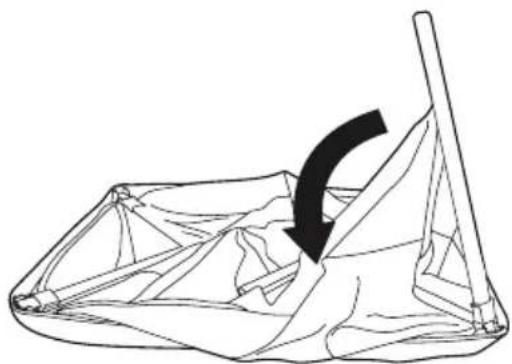

1. Turn the cot over and fold the four feet one after another: pull the closing button on the upper part of the foot (near the corner of the cot) and fold the foot towards the inside of the cot.

Diagram of a net with a curved arrow indicating rotation or force direction (no text or symbols)

FOLDING THE COT

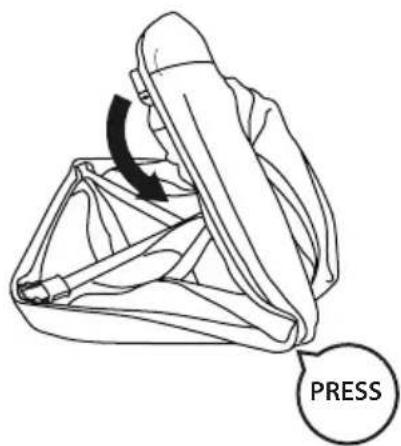

PRESS

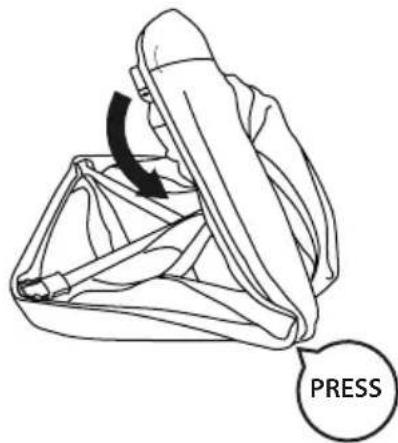

1. Press the side buttons located on the middle of the rail and fold the cot structure in half.

Line drawing of a folded or layered object resembling a book or document (no text or symbols)

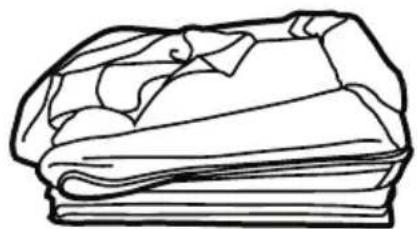

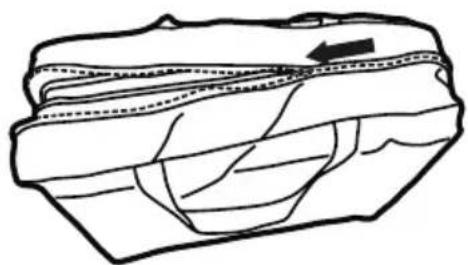

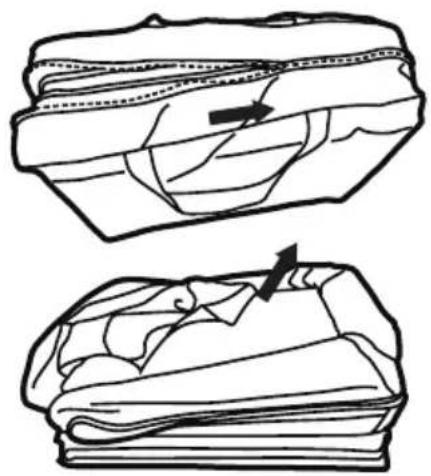

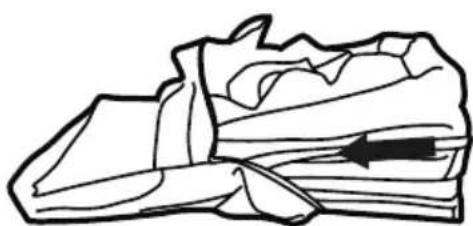

1. Once the travel cot structure is folded, insert it into the carry bag. Zip the carry bag shut for transportation and storing.

Simple line drawing of a folded paper or sheet with an arrow indicating direction (no text or symbols)

Line drawing of a folded garment with a black arrow indicating a seam or seam (no text or symbols)

CARE

Maintenance

This product requires regular maintenance to keep it in good working order.

Regularly check all parts of the product to ensure that they are operating correctly and for signs of wear or damage. Only replacement parts supplied or recommended by the manufacturer should be used. The fabric of cot can be wiped clean with a damp cloth and mild soap or can be removed and washed if necessary.

Cleaning

Clean metal or plastic components with mild detergent and warm water. Never use abrasive, ammonia based, bleach based or spirit type cleaners. Ensure the product is fully dry before use or storage.

Line drawing of a simple metal frame structure with four legs and a central horizontal panel (no text or symbols)

Simple line drawing of a rectangular object with internal diagonal lines, resembling a folded paper or geological structure (no text or symbols)

Simple line drawing of a closed bag with handle and skirt (no text or symbols)

PARC POUR BÉBÉ SAC DE VOYAGE ET DE RANGEMENT

Simple line drawing of a rectangular frame with two vertical panels and corner handles (no text or symbols)

GRAND MATELAS DU PARC POUR BÉBÉ

Simple diagram of a rectangular frame with internal horizontal lines and grid pattern (no text or symbols)

COUFFIN

TUBE DE SUPPORT POUR LE COUFFIN

Simple geometric diagram of two adjacent empty rectangles (no text or symbols)

PETIT SUR-MATELAS POUR COUFFIN

ASSEMBLAGE ET UTILISATION DU PARC POUR BÉBÉ

Two-step diagram showing fabric folding process with arrows indicating movement (no text or symbols)

Line drawing of a simple container with mesh pattern and handle (no text or symbols)

ATTENTION!

Line drawing of a babystand with a top handle and seat, no text or symbols present

Diagram of a container with four circular components above it, no text or symbols present

Simple line drawing of a rectangular object with four arms and a central body, no text or symbols present.

ATTENTION!

Diagram illustrating a mechanical or structural assembly with labeled parts E and D, showing a hand holding a tool and a magnified inset highlighting a detail.

Diagram of a garment pattern piece with two side views showing fabric folds and stitching (no text or symbols)

Illustration of a hand holding a cable with a magnified inset showing a mechanical component (no text or symbols)

Line drawing of a babystand with a top handle and mesh base (no text or symbols)

Line drawing of a triangular container filled with mesh material, no text or symbols present

(SL)

Diagram of a net with a handle and arrow indicating rotation (no text or symbols)

PLIER LE LIT

PRESS

Line drawing of a folded garment or fabric item (no text or symbols)

Simple line drawing of a folded paper or rock with a black arrow indicating a direction (no text or symbols)

Line drawing of a folded garment with a black arrow indicating fabric direction (no text or symbols)

SOIN

Entretien
